How do I connect DVR for CCTV on my PC sharing network?

How do I connect DVR for CCTV on my PC sharing ? You are likely going to have to spend some money on something. Actually… I'm going to edit your question… the All Caps thing is killing me. Totally unnecessary. One sec. Ok. That's better.

So… let's see. There are 3G hotspots that have ethernet ports on them. You can contact the company that provides you with your 3G modem, and tell you that you need a 3G modem with both WiFi and Ethernet. In fact… they have a sales department trained just for this. You tell them how you want to set up your home… and they will provide you with the proper equipment. Cool, right?

Otherwise… you'd have to use a computer as a middleman. The computer would need to have both wireless and ethernet…. like many laptops. You'd connect the laptop to the modem via Wireless, and you'd connect the DVR to the laptop via the ethernet, and then you'd enable Internet Connection Sharing in Windows, and designate the Wireless as the Source. Then, while you have the laptop on, your DVR would connect to the internet.

You could also purchase a WiFi extender, as most have ethernet ports. Then, you follow the instructions to set up the WiFi extender to the 3G modem, and you connect the DVR to the ethernet port on the WiFi extender.

You could do some research on what WiFi routers can also be used as range extenders when you replace the firmware with DD-WRT… the list isn't all that long, but it means it is *possible* to take an old Wireless Router and turn it into a range extender. If you just happened to have one of those models, I guess that would save you from spending money.

But…. you definitely need some intermediate device between the internet connection and the DVR.

.

To connect a DVR for CCTV to your PC sharing network, you can follow these general steps:

1.Connect the DVR to your network: Use an Ethernet cable to connect the DVR to your router or switch.
2.Obtain the DVR's IP address: Access the DVR's to find its IP address. This is typically done through the DVR's interface or by consulting the user manual.
3.Access the DVR from your PC: Open a web browser on your PC and enter the DVR's IP address in the address bar. This should allow you to access the DVR's interface and settings.
4.Set up port forwarding (if necessary): If you need to access the DVR from outside your , you may need to set up port forwarding on your router to allow external access to the DVR.
5.Install DVR viewing software: Some DVRs come with viewing software that you can install on your PC to access the CCTV footage.
6.Configure network sharing: Once the DVR is accessible from your PC, you can set up network sharing to access and view the CCTV footage on your PC.

Keep in mind that the specific steps may vary depending on the make and model of your DVR and the software it uses. It's always a good idea to refer to the DVR's user manual or contact the manufacturer for detailed instructions.

.

Connecting a DVR for CCTV to your PC sharing network involves several steps. Here's a general guide:

1.Ensure Network Compatibility:Make sure your DVR and PC are on the same network, either wired or wireless.Check the network settings on both devices to ensure they have compatible IP addresses.
2.Access DVR Settings:Connect the DVR to a monitor and access its settings or menu.Look for the network settings section to configure the DVR for network connectivity.
3.Assign a Static IP Address:For stability, consider assigning a static IP address to the DVR. This ensures the DVR always has the same IP on the network.
4.Port Forwarding (If Accessing Remotely):If you want to access the DVR remotely, configure port forwarding on your router. This involves opening specific ports to allow external access.
5.Enable DDNS (Dynamic Domain Name System) (If Needed):If your ISP provides dynamic IP addresses, consider using DDNS to assign a domain name to your DVR. This allows remote access even if your IP address changes.
6.Connect DVR to the Router:Use an Ethernet cable to connect the DVR to one of the LAN ports on your router.
7.Access PC Network Settings:On your PC, access the network settings and make sure it is on the same network as the DVR.
8.Find DVR IP Address:Check the DVR settings or use the router's interface to find the assigned IP address of the DVR.
9.Install DVR Viewing Software:Install the DVR viewing software on your PC. This software is often provided by the DVR manufacturer and may be available for download on their website.
10.Configure Software:Open the installed software and configure it to connect to the DVR using the IP address, port, and login credentials.
11.View CCTV Footage:Once configured, you should be able to view the CCTV footage from the DVR on your PC.

Remember to consult the user manual of your DVR and the software for specific instructions, as steps may vary based on the brand and model. If you encounter difficulties, seeking assistance from a knowledgeable CCTV Camera Dealer in Chandigarh can provide guidance and for network .

.

.

How do I connect a CCTV DVR with a laptop using an HDMI cable?

.

To connect a CCTV DVR with a laptop using an HDMI cable, follow these steps:

1.Make sure that your CCTV DVR has an HDMI output port and that your laptop has an HDMI input port.
2.Connect one end of the HDMI cable to the HDMI output port on your CCTV DVR and the other end to the HDMI input port on your laptop.
3.Turn on your CCTV DVR and your laptop.
4.On your laptop, open the Control Panel and select “Display”.
5.In the Display settings, select “Extend these displays” to enable the laptop to display the CCTV DVR footage on a separate screen.
6.If necessary, adjust the resolution and orientation of the CCTV DVR footage on your laptop screen to ensure that it displays correctly.
7.Depending on your CCTV DVR settings, you may need to enter a password or other login credentials to access the CCTV footage on your laptop screen.
8.Once you have successfully connected your CCTV DVR to your laptop using the HDMI cable, you should be able to view and monitor the CCTV footage on your laptop screen.

Overall, connecting a CCTV DVR to a laptop using an HDMI cable is a straightforward process, but it's important to ensure that both devices have the necessary ports and settings to enable the connection. If you have any issues or questions, consult the user manual for your CCTV DVR or laptop, or seek assistance from a technical expert.

.

.

How do I connect my Hikvision DVR to a laptop and share my WiFi network to it?

.

I think you want to connect your DVR from Hikvision's free DDNS hostinf service.

You can make your user ID on hikonline Resources and Information. After that you have to go to network settings menu and follow this video

.

How Can I watch CCTV footage with my PC? I'm using Hikvision 8 channel DVR and had connected it with internet.

.

Yes you can, Download and Install ivms-4200 software on your PC if it's not at the same location as the cameras, or just type in the DVR ip address to your browser address bar if you are on the same network as the DVR.

.

.

How do I connect a CCTV DVR with a laptop using an HDMI cable?

.

A CCTV DVR is an analogue device so it uses baseband composite video. 9PAL or NTSC) at standard definition. You will need to find a video to HDMI converter if you really want to just view CCTV images on your laptop. You will still need to control the DVR locally via its remote control.

I abandoned DVRs some years ago.

A better approach is to replace the unit with a Network Video Recorder (NVR) that can be connected to your home network and can accept legacy SD video inputs from your cameras. Or you can go the whole way and upgrade your cameras to IP and connect them to your network directly via WiFi or Ethernet cabling.

Then you can access the NVR via Ethernet or via your WiFi to check recordings etc. It is also useful to add a “ key” that will allow secure access remotely from any external location via the Internet.

I have my CCTV surveillance integrated with my high speed home network using equipment provided by Ubiquiti. I can remotely access cameras at two properties using a Firefox or Chrome browser on my laptop and on my smartphone via the Ubiquity iOS video app.

.

.

Can I connect CCTV cameras directly to a TV?

.

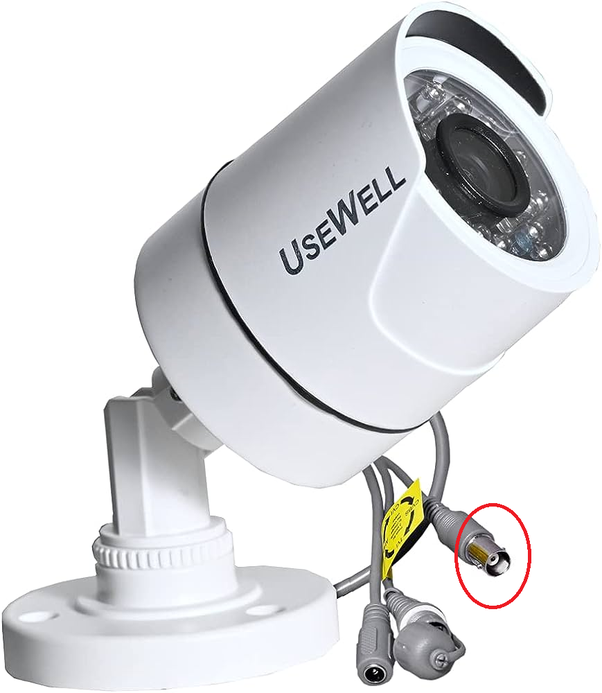

CCTV cameras (usually) do not have HDMI but they may have coaxial out. See below:

main qimg 86eede034727f1a16f05459eec103601

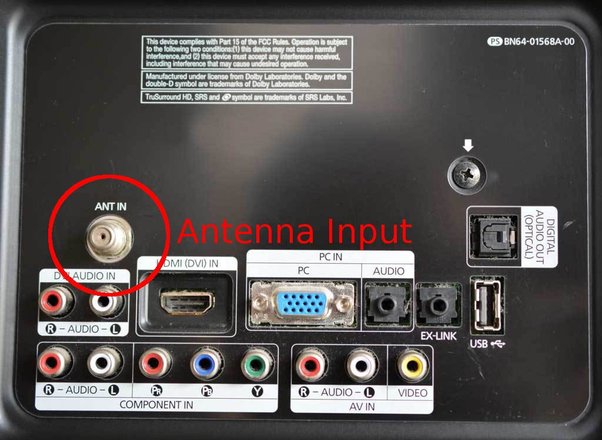

The coaxial-out can be connected directly to the TV via the TV antenna input.

main qimg f15022152951ddd55b8126348147193b lq

But this will work for one camera only.

You have options such as:

 (Best): Have a DVR. DVRs accept inputs from 4, 8, 16, 32+ cameras and can record the footage 24×7. capacity depends upon camera resolution (HD, FHD) and disk size. The DVR has an HDMI out that can be connected to the TV. In fact, this is how it is in our building (16 cameras)

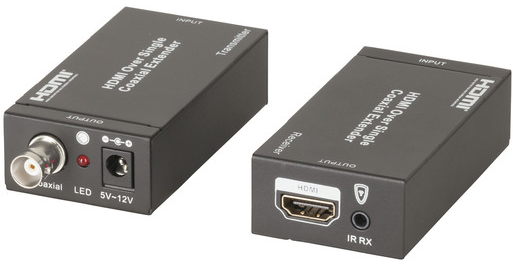

 Buy a converter/adapter. But this will work for one camera only.

main qimg b6bfc91575355c2ff12df93bdb03f40a

.

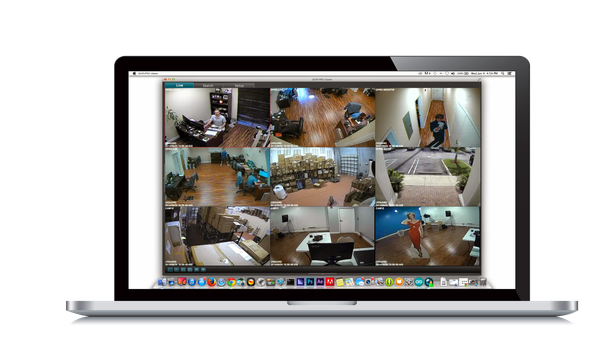

Is it possible to connect the CCTV DVR, and watch on your laptop?

.

main qimg b9660a92368752d431bb843868ee29c6

There are lot of ways you can achieve this but let me talk on the simplest one.

By connecting the Ethernet port of your CCTV DVR to a switch and and hook up your PC to the same switch using RJ45 patch cable. Then go to the DVR network setup and set a static IP address if it is already enabled to use DHCP (dynamic Host Cofiguration Protocol). Set up something like this:

 IP address: 192.168.001.010
 Subnet: 255.255.255.0
 Default Gateway: 192.168.001.001

Save this and and restart your DVR for it to take effect.

Now head over to your PC Ethernet network configuration through control panel, go to your IPv4 and select “Use the following IP address”

Now enter something like this:

 IP addresss: 192.168.001.015
 Subnet: 255.255.255.0
 Default Gateway: 192.168.001.001

With this , the PC can successfully establish a link with the DVR through the gateway address.

Second Step:

Navigate to your internet explorer and type the DVR IP 192.168.001.010

you will be prompted to download an Active X, then follow the prompt and go to internet option on your internet explorer and enable the necessary Active X control, without doing this, you are not going to have your DVR web interface displayed properly.

watch this to learn how to enable Active X control

Once you are done with it, you should be able to see the number of channels, use exact user account on the DVR to login on your PC if prompted.

You will see Main Stream and Sub Stream, click on your desire channel and select Main Stream since you are not on the internet.



How do I connect DVR for CCTV on my PC sharing network?

.

How do I connect a CCTV camera to a laptop?

.

Connecting a CCTV (Closed-Circuit Television) camera to a laptop can be accomplished through several methods. Please note that the exact steps might slightly vary depending on the brand and model of your camera.

Here's a general guide on how to connect a CCTV camera to a laptop:

Using a USB Adapter:

1.Connect the CCTV cable to a USB adapter: CCTV cameras usually come with a BNC (Bayonet Neill–Concelman) connector. You'll need a BNC to USB adapter to connect the camera to your laptop.
2.Install the USB adapter: Plug the USB adapter into a USB port on your laptop.
3.Install necessary software or drivers: Some USB adapters may require specific software or drivers to operate. You should be able to find these on the manufacturer's website.
4.Launch the software and access the feed: Once the adapter and software are installed, you should be able to open the software and see the video feed from your camera.

Using an External Video Capture Card:

1.Connect the CCTV camera to the capture card: Use a BNC to RCA cable to connect your CCTV camera to the capture card.
2.Connect the capture card to the laptop: The capture card can be connected to your laptop via USB or HDMI port.
3.Install necessary drivers or software: Depending on the capture card, you might need to install drivers or additional software.
4.Open the video feed: Once your camera and capture card are properly connected and installed, you should be able to open the video feed on your laptop using the associated software.

Via Network (IP cameras):

1.Connect the camera to the network: If you have an IP-based CCTV camera, connect it to your network via Ethernet cable or Wi-Fi, following the manufacturer's instructions.
2.Install the viewing software: Most IP cameras come with their own software, which you'll need to install on your laptop.
3.Access the camera: Open the software and add your camera using its IP address, which can be found in the camera's settings or in your router's device list.

In all cases, you'll want to consult the user manual or contact the manufacturer's customer support for the most accurate and specific instructions for your particular camera and laptop setup. Remember, it's important to secure your camera feed to prevent unauthorized access.

.

.

How can I transfer CCTV footage from a DVR to a PC or mobile device?

.

To transfer CCTV footage from a DVR (Digital Video Recorder) to a PC or mobile device, you can follow these general steps:

1. Determine the DVR output: Check the available output options on your DVR. Most DVRs offer different types of outputs, such as HDMI, VGA, or BNC. Identify the appropriate output that matches the input options on your PC or mobile device.

2. Connect the DVR to the PC or mobile device:

– For PC: Use the corresponding cable (HDMI, VGA, etc.) to connect the DVR output to the PC input port. If the PC does not have the required input port, you may need to use an adapter or a video capture card.

– For mobile device: Some DVR systems provide apps that allow remote access and viewing of CCTV footage on mobile devices. Check if your DVR offers such an app and install it on your mobile device. Follow the instructions provided by the app to connect to your DVR remotely.

3. Software or app setup: If you are using a PC, you may need to install software provided by the DVR manufacturer to facilitate the transfer of footage. This software often allows you to access, view, and export footage from the DVR. Follow the installation instructions and set up the software as needed. If you are using a mobile device, make sure you have the DVR app installed and configured properly.

4. Access and export footage: Once the connection is established between the DVR and your PC or mobile device, use the software or app to access the CCTV footage. You should be able to view the recorded footage and select specific clips or timeframes for export. The export options may vary depending on the software or app, but commonly, you can save the footage as video files on your PC or mobile device.

It's important to note that the specific steps and options may differ depending on the brand and model of your DVR system. Therefore, it's recommended to consult the user manual or documentation provided by the DVR manufacturer for detailed instructions tailored to your device.

.

.

How do I connect my security cameras to my TV without a DVR?

.

Digital video recorders are a popular option for this connection. If you don't want to hook up your security camera to a DVR, you can bypass the component and connect directly to a TV or monitor for viewing the signal from the camera.

1.Turn off the TV and security camera
2.Connect the video cable to the TV and security camera
3.Plug in the DC power adapter cable supplied with the security camera
4.Turn on TV

You can now monitor any area under camera surveillance without recording

For home application, I recommend use cloud storage instead, easy install and operate.

.

.

What is the DVR used in CCTV?

.

In CCTV systems, a DVR stands for Digital Video Recorder. It's a central component that acts like a storage device for the video footage captured by your security cameras. Here are some of its functionality:

Function: DVRs take the analog video signal from CCTV cameras, convert it into a digital format, and store it on a hard drive. This allows you to review past recordings for security purposes or to monitor activity remotely.

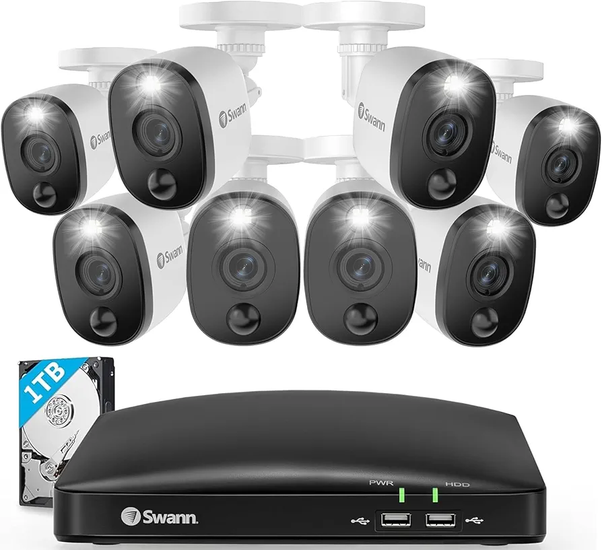

Appearance: DVRs are typically standalone devices that look like small computers. They have ports for connecting CCTV cameras, a monitor output for viewing footage, and a network connection for remote access (depending on the model).

main qimg a078351fe83702112a37c4d9b5dee1de

Here are some additional points to consider about DVRs in CCTV systems

Compatibility: DVRs are designed to work with analog If you have IP cameras (digital cameras that transmit video over a network), you'll need a Network Video Recorder (NVR) instead.

Storage Capacity: DVRs come with varying storage capacities. The amount of storage you need depends on the number of cameras you have, the recording resolution, and how long you want to keep footage.

Features: Modern DVRs offer various features such as motion detection recording, scheduled recording, and remote access through a mobile app.

.

.

How do I connect a CCTV DVR with the Internet using a 3G/4G data SIM?

.

If your DVR support 3G connection then you are good to go.

Unfortunately I won't be able to provide you with pictures as DVR systems vary and I do not know your DVR brand.

First and foremost, I suggest you use Huwaei E303 dongle because it is one of the best dongle out there.

Make sure your sim card had already been provisioned for Data service by your ISP and don't forget to obtain the APN details for your internet service.

Ensure cloud is enabled on your DVR by going through the setting icon.

Then head over to Network and look for the wireless service or 3G depending on the brand of your DVR.

Insert the 3G dongle to the back of your DVR and wait for the dongle to start blinking.

Select 3G and fill up the necessary information such as the APN details you got from the ISP.

1.select your ISP if there is a drop-down of carriers
2.Enter your APN name or leave blank if it is not necessary by your ISP
3.In the dial number, enter *99#
4.Enter the username and password if it is required by your ISP
5.If there is use Authentication drop-down in the DVR interface, select NO AUTH, NOAUTH will disregard the use of username and password
6.Tick any box that says “Auto dial at boots up” if the option is available, or select any option that says “Auto connect”

After the settings, click save and restart, whenever the DVR is ready, you should see the dongle with a solid blue or green LED light showing that it is connected.

You should now be able to view your DVR online after the necessary remote view app installation and right configuration.

.
