VIVOCloud step by step user guide

VIVOCloud user , VIVOCloud Surveillance makes online surveillance much easier and smarter than ever. Simply register user’s account and connect corresponding devices, users can view live stream and play recording clips with intuitive interface anytime, anywhere. Enhanced functionalities with version, the Push Notification function will directly popup the alert message on users’ mobile devices when specific events happening such as unusual motion, stealing behavior and so on. Moreover, users can share the video stream with up to 4 persons to view the simultaneously, makes it deal to provide the real-time security for retails, shops or SMB.

Getting Started: Enabling the VIVOCloud service in your device

Before starting using your VIVOCloud application, you must enable the VIVOCloud service in your devices. This guide will teach you enable the service in easy to follow steps:

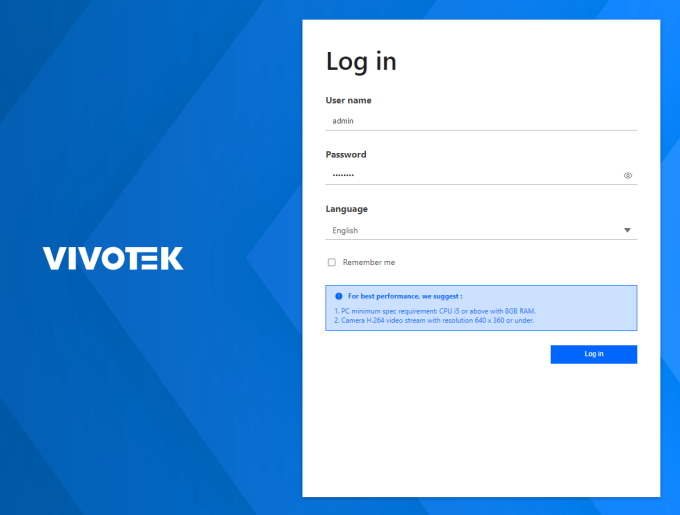

Step 1. Log in to your device using its username and password.

https://vivotek.zendesk.com/hc/article_attachments/25056168887065

Step 2. Click on the gear icon to access the NVR configurations.

https://vivotek.zendesk.com/hc/article_attachments/25056183858457

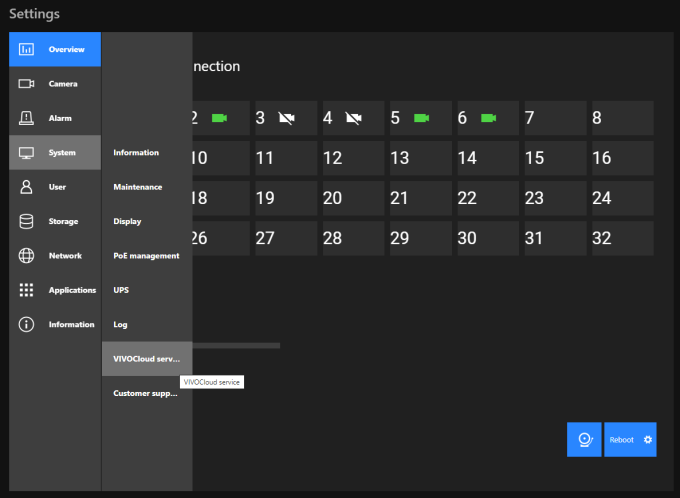

Step 3. In the Settings interface, select the System tab and click on “VIVOCloud service”.

https://vivotek.zendesk.com/hc/article_attachments/25056155491225

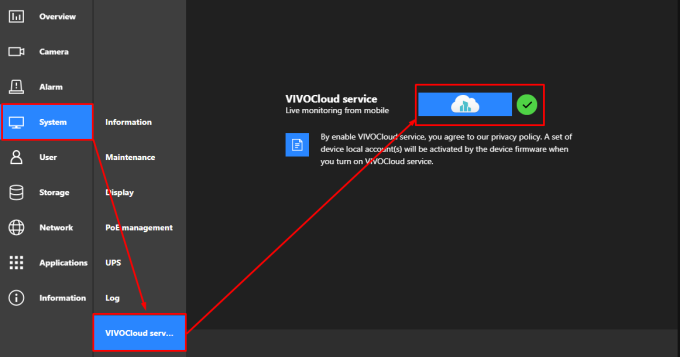

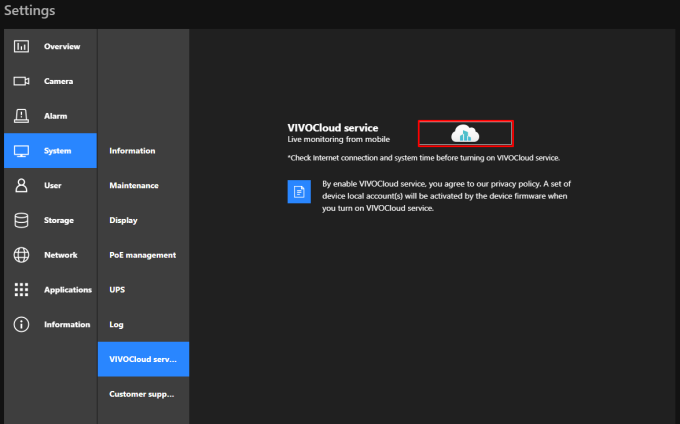

Step 4. In the VIVOCloud service interface, you will see a “blue” button (old interface) or a “gray” button (new interface). Clicking this button will enable the VIVOCloud service on your NVR.

https://vivotek.zendesk.com/hc/article_attachments/25056196235545

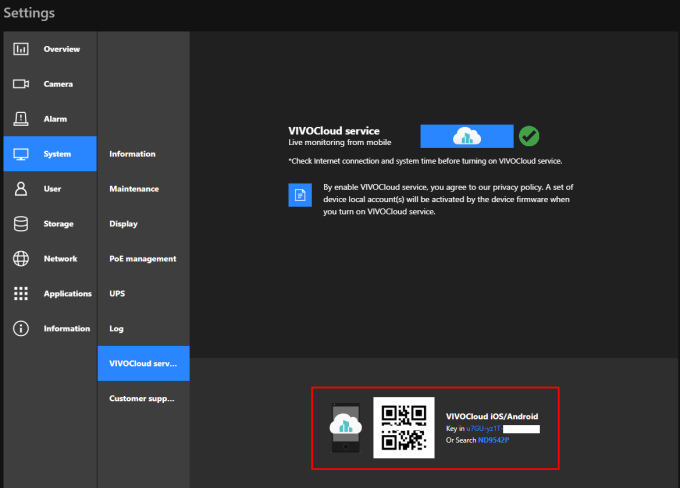

After clicking it, the NVR will start connecting to the VIVOCloud server and register the service (this might take 1-2 minutes depending on your internet connection). Once the connection is established and the device is registered in the cloud system, a QR code and Device ID will be displayed below.

https://vivotek.zendesk.com/hc/article_attachments/25056166885913

Note: If you are using the local console, follow the same steps, as both the Local and Web interfaces are the same in this regard.

Now the device service is enabled and you should be able to add it to your VIVOCloud application.

.

Getting Started: Adding your NVR to the VIVOCloud application using the QR code/device ID

In order to add your VIVOCloud compatible device, you need to use a QR code or Device ID. This document will explain where to find this :

Enabling the Service:

Before being able to add your device using its QR code or Device ID, you need to ensure that the VIVOCloud service is enabled. First, log in to your NVR device using its username and password.

https://vivotek.zendesk.com/hc/article_attachments/25054585320217

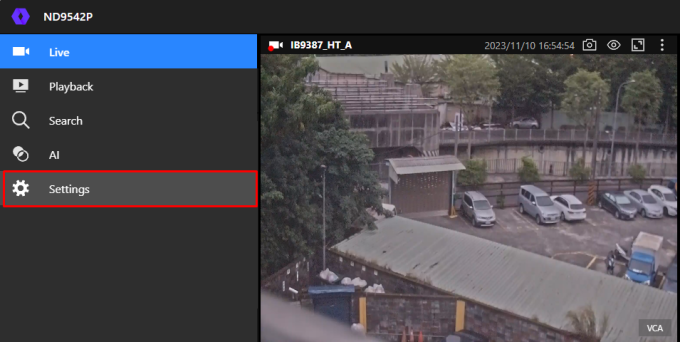

Once you have accessed the device, click on the gear icon to access the NVR configurations.

https://vivotek.zendesk.com/hc/article_attachments/25055034866201

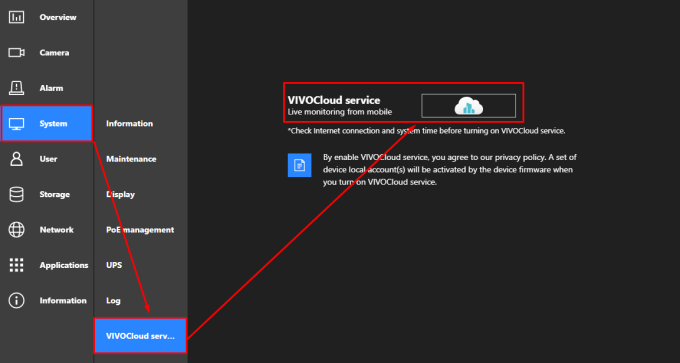

In the Settings interface, select the System tab and click on “VIVOCloud service”.

https://vivotek.zendesk.com/hc/article_attachments/25055042471961

In the VIVOCloud service interface, you will see a “blue” button (old interface) or a “gray” button (new interface). Clicking this button will enable the VIVOCloud service on your NVR.

https://vivotek.zendesk.com/hc/article_attachments/25055034903321

After clicking it, the NVR will start connecting to the VIVOCloud server and register the service (this might take 1-2 minutes depending on your internet connection). Once the connection is established and the device is registered in the cloud system, a QR code and Device ID will be displayed below.

https://vivotek.zendesk.com/hc/article_attachments/25055034922777

If you are using the local console, follow the same steps, as both the Local and Web interfaces are the same in this regard.

Adding the device to the VIVOCloud application:

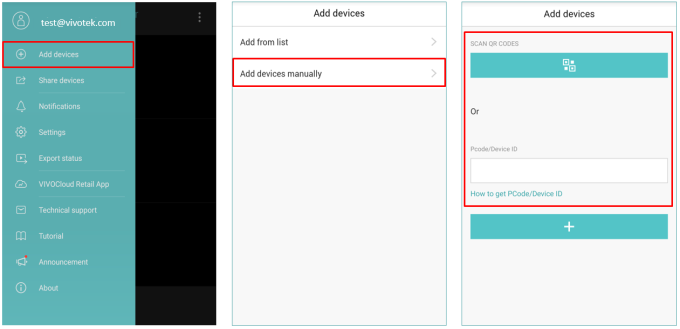

In the VIVOCloud application, go to the configuration menu and select “Add devices” to add your NVR. Then, click on the “Add devices manually” section. Here, you will be allowed to choose between using a QR code or the device ID.

https://vivotek.zendesk.com/hc/article_attachments/25055932230809

Using the Device ID

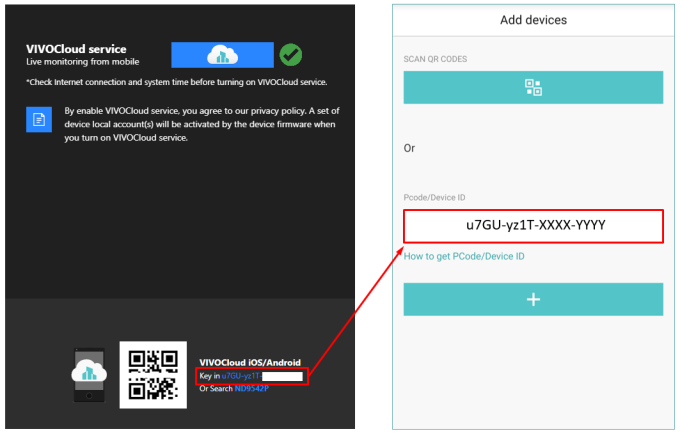

Type the Pcode/Device ID found on the NVR VIVOCloud service webpage and click on the “+” button to add the NVR to the VIVOCloud application.

https://vivotek.zendesk.com/hc/article_attachments/25055938143641

Using the QR Code

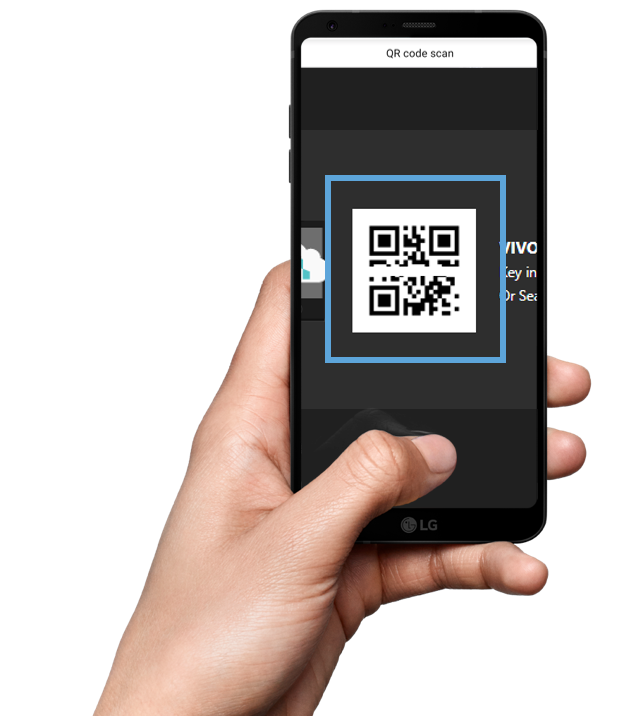

Click on the QR button to scan the QR code on the webpage using your phone camera (make sure to allow the application access to the camera).

https://vivotek.zendesk.com/hc/article_attachments/25055932245401

Once finished, you will be able to see your NVR cameras in the VIVOCloud application.

[VIVOCloud Camera] How to generate the QR code/PCode in a VIVOCloud compatible camera?

Question

How to generate the QR code/PCode in a VIVOCloud compatible camera?

Answer

VIVOCloud devices are not limited to just NVRs; cameras that remote connection using VIVOCloud are also available. The principle of using a QR code/Device ID is the same as with the NVR. For clarity, follow these steps to obtain the QR code/PCode of the camera and add it to the VIVOCloud application:

Step 1. Access the camera web interface using its IP.

https://vivotek.zendesk.com/hc/article_attachments/25057581244441

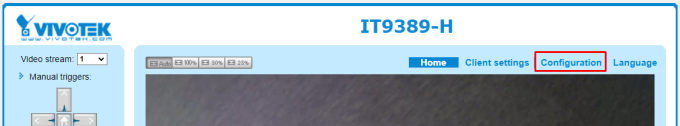

Step 2. Go to the camera configuration by clicking on the “Configuration” tab.

https://vivotek.zendesk.com/hc/article_attachments/25057609811737

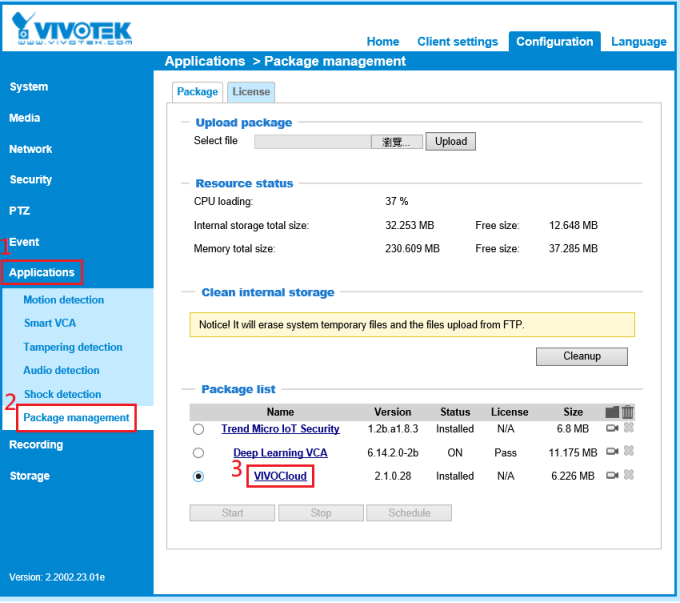

Step 3. Click “Applications” > “Package management” > “VIVOCloud” and click the link of the VIVOCloud VADP page.

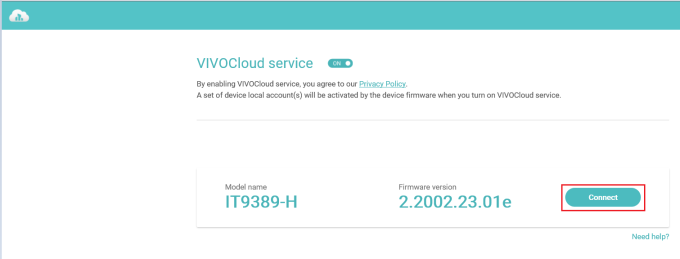

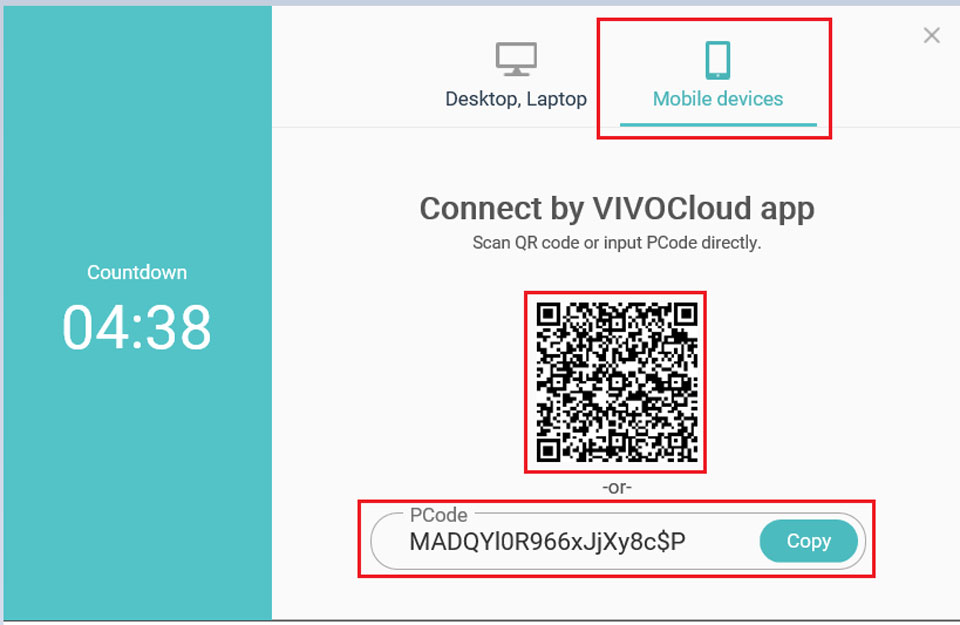

Step 4. Click the “Connect” button to generate a unique QR code/Device ID which will be used to add the device into the VIVOCloud application.

For security purposes, the QR code and Device ID will only be available for 5 minutes so please be sure to have your phone at hand to fastly add the device into the application.


If you are unfamiliar with the QR code scan process or Device ID registration, please refer to the following documentation:

[VIVOCloud Application] How to share your device with other account?

Question

How to share your device with other account?

Answer

Devices configured in your VIVOCloud account can be shared to other users (e.g family members, coworkers, etc.). To share devices please follow the next steps:

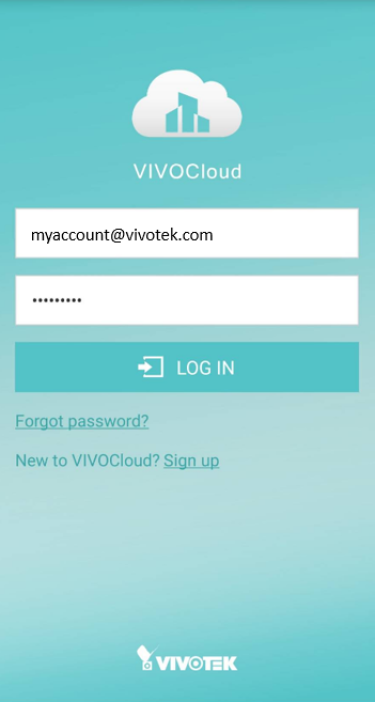

Step 1. Login into your VIVOCloud phone application.

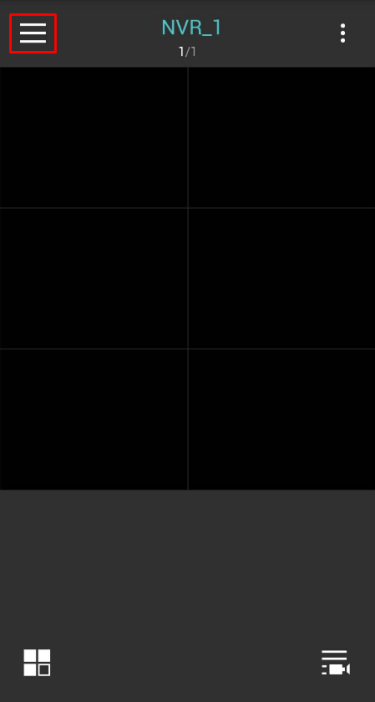

Step 2. Click on the option icon to access the application account configuration menu.

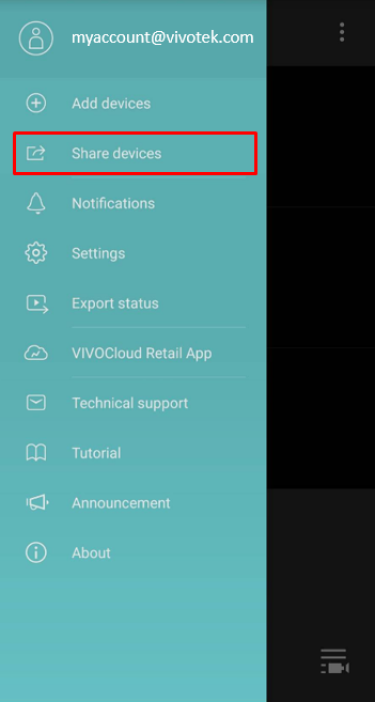

Step 3. Once the menu has appeared, click on the “Share devices” button to start the sharing process.

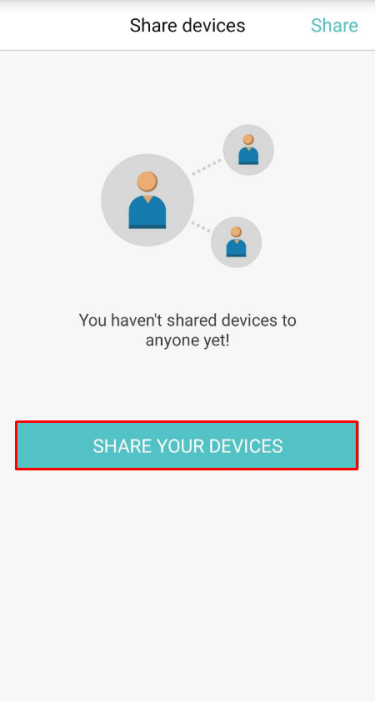

Step 4. In the “Share devices” interface, click on the “SHARE YOUR DEVICES” button to start registering the email of the user you want to share the devices with.

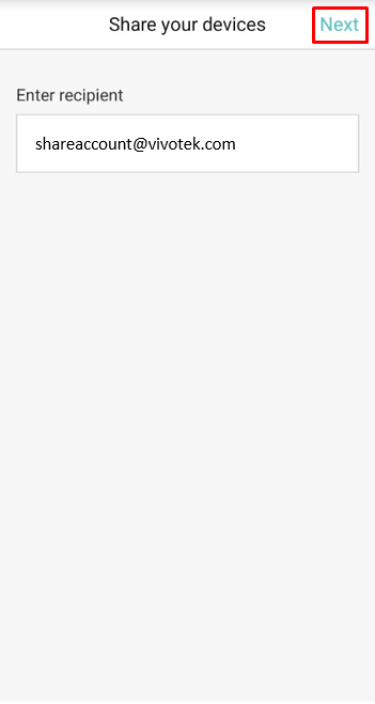

Step 5.  Type the email address (user with VIVOCloud account) which will be accessing your device and click the “NEXT” button to continue.

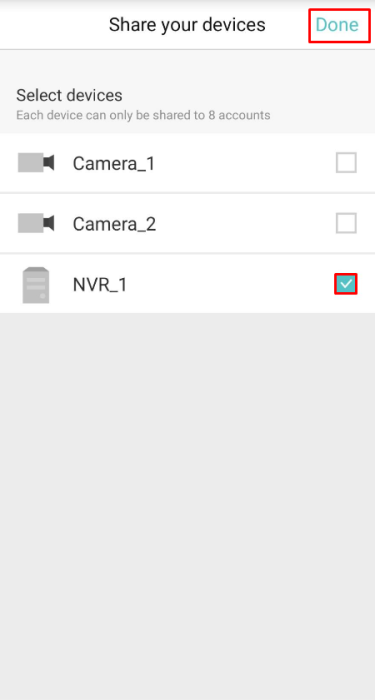

Step 6. All of your configured devices will be listed. Select the devices to share by checking them, click “Done” when finished.

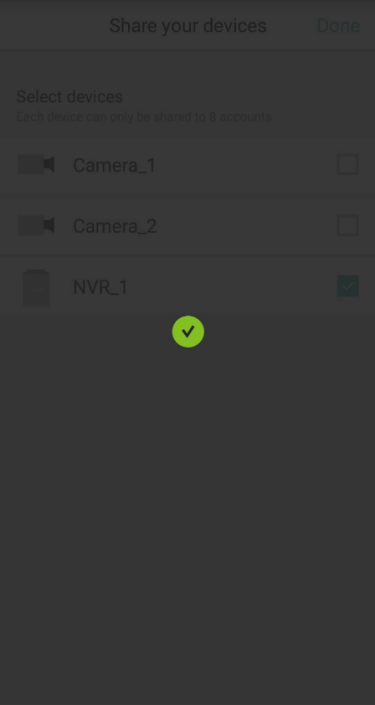

Once the device is ready to share you will see a green arrow notification.

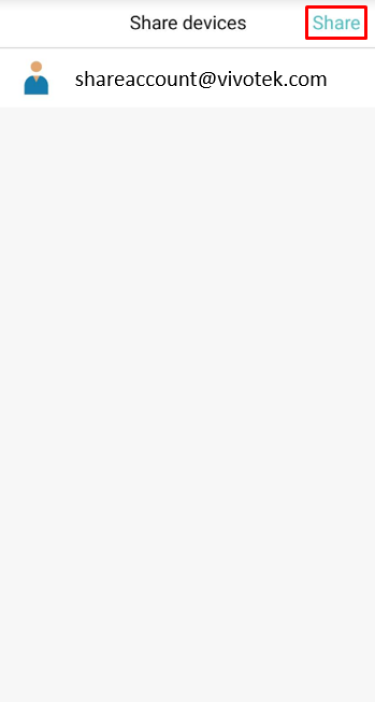

Step 7. Click on the “Share” button to share the device to the configured email account.


Important note: You can only share the same device with up to 4 accounts.

How to use VIVOCloud to connect to NVR if the NVR is already added to other VIVOCloud account?

QUESTION

How to use VIVOCloud to connect to NVR if the NVR is already added to other VIVOCloud account?



ANSWER

https://youtu.be/8FD-_h8zMFE

[VIOVCloud]How to share the usage data with VIVOTEK

Question

How to share the usage data with VIVOTEK



Answer

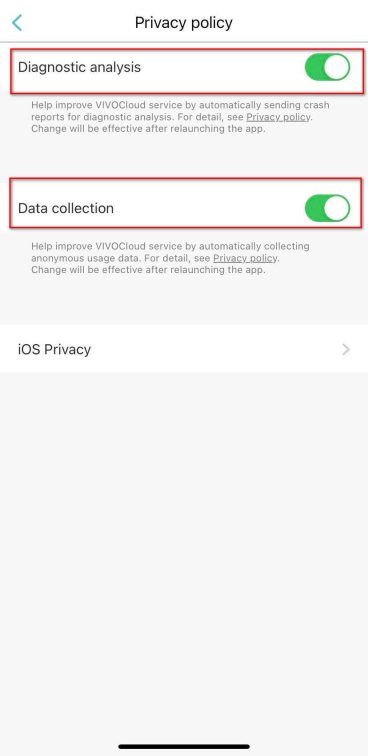

For VIVOVloud app, please follow the steps to check.

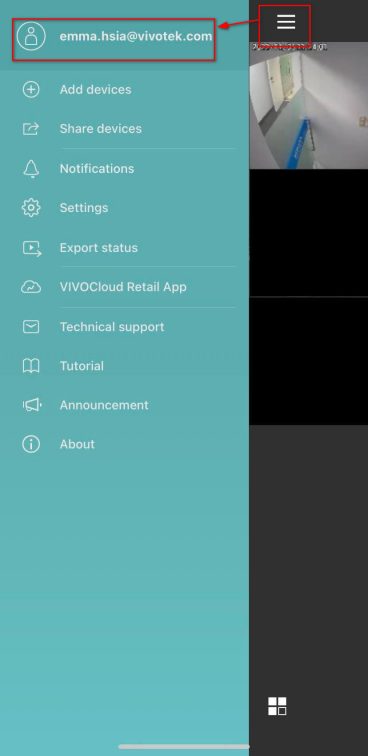

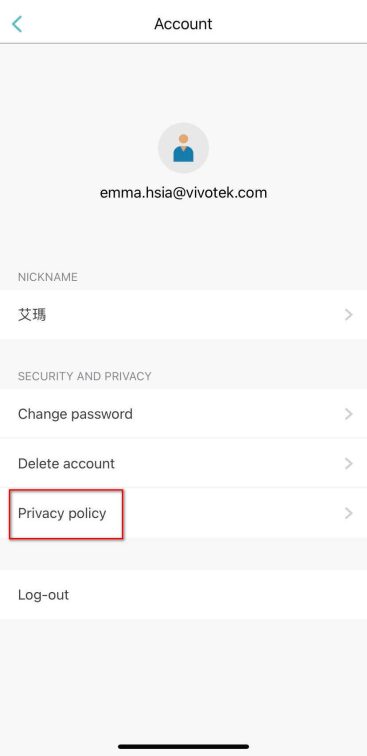

1. Go to your account from setting.




2. Go to Privacy policy.




3.Make sure the analysis and data are shared.

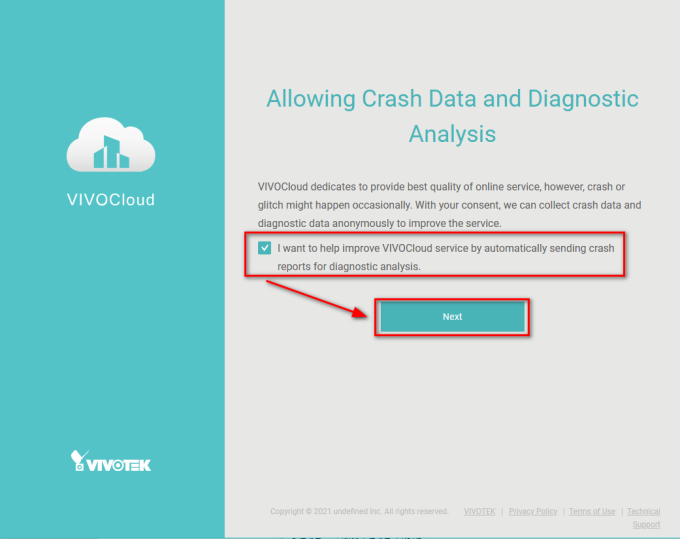

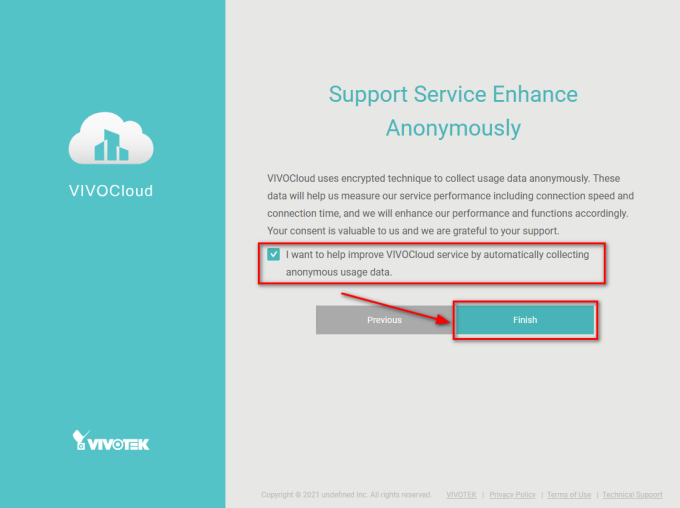

For VIVOCloud portal, please follow the steps to check.

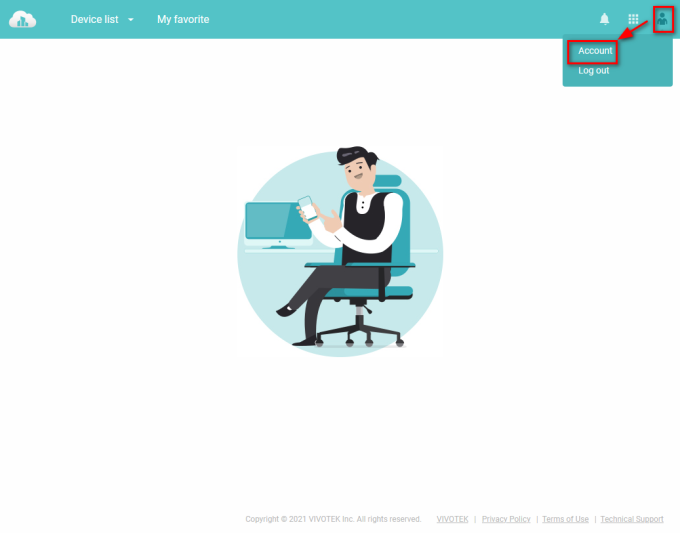

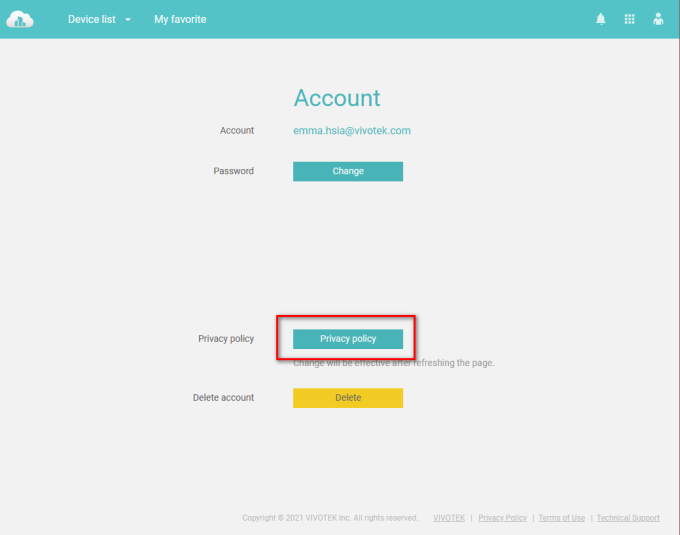

1.Go to your account.






2. Go to Privacy policy.




3. Make sure the analysis and data are shared.

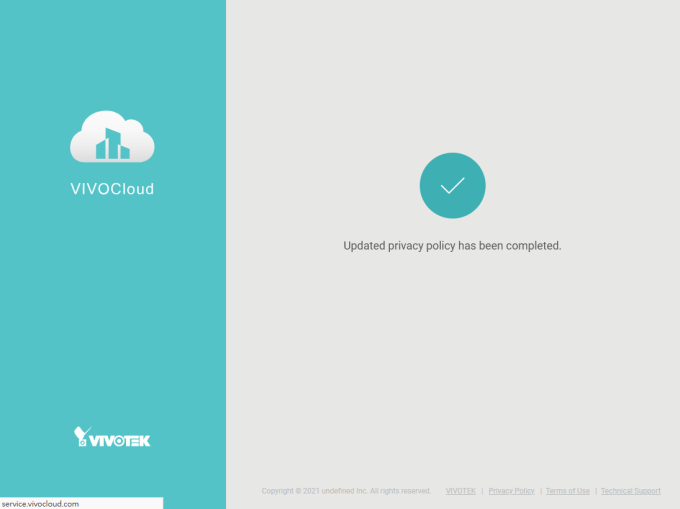

4. Please reload the website after seeing complete message,


[VIVOCloud/iViewer] [2.4.401/3.10.604] Why the live image is being cut for 4 equal when viewing MS9390-HV?

Question

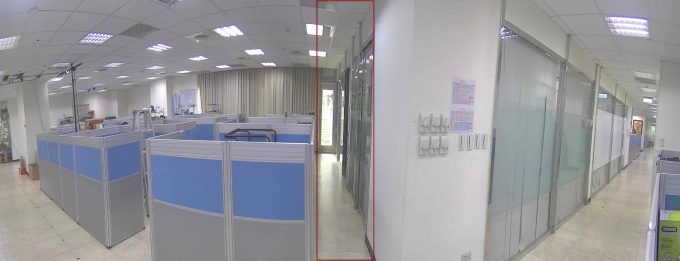

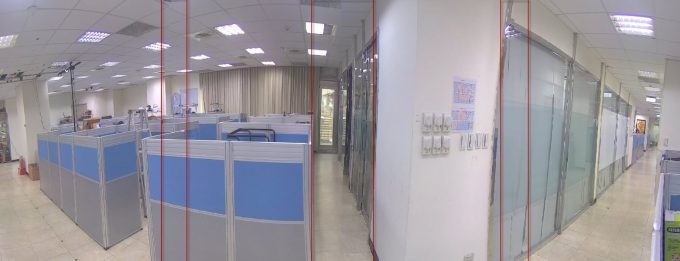

MS9390-HV is two wide angle lens. When I view the MS9390-HV live image on VIVOCloud/iViewer, it is being cut for 4 equal.
rtaImage_-_2021-05-09T183811.116.jfif
If I login the WEB page of MS9390-HV, it is working normal. How to solve it?
rtaImage_-_2021-05-09T183816.002.jfif

Answer

We will solve this issue in VIVOCloud 2.5.1 and iViewer 3.11.1.

[VAST/NR9X81/ND series/VIVOCloud] How many users can login at the same time to different VIVOTEK products?

QUESTION

How many users can login at the same time to different VIVOTEK products?



ANSWER



 .

VAST

NR series
Windows based NVR

ND series
Linux based NVR

VIVOCloud

Maximum logged in session at the same time

No limitation, but the system performance may be effected if too many users watch / playback at the same time.

No limitation, but the system performance may be effected if too many users watch live view/ playback at the same time.

No limitation, but the system performance may be effected if too many users watch live view/ playback at the same time.

15
3 devices can login the same account at the same time, and there can be 1+4 account.

Maximum account amount

1024

1024

16

1+4
(owner + share)



How to remove NVR from VIVOCloud app and portal?

QUESTION

How to remove NVR from VIVOCloud app and portal?



ANSWER

https://youtu.be/OeJpJXRIzG8

[VIVOCloud Retail] Do ND8322P/ ND8422P models support VIVOCloud Retail?

Question

Do ND8322P/ ND8422P support VIVOCloud retail?


Answer

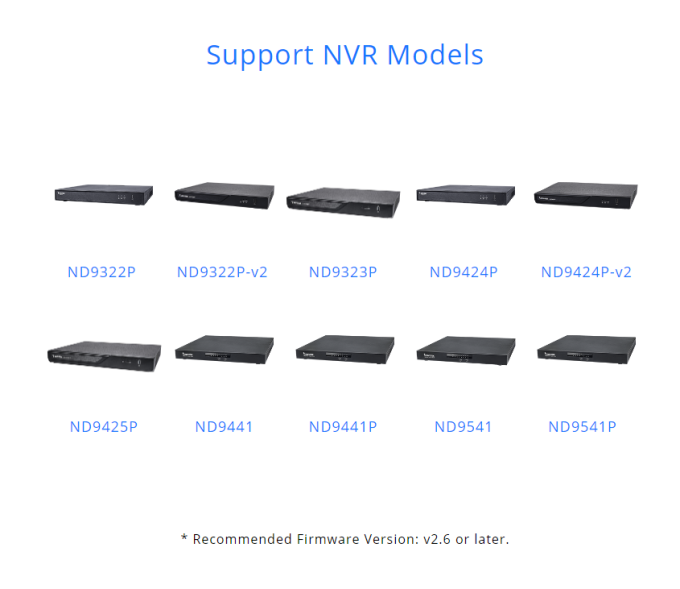

No, the ND8322P/ND8422P does not support the VIVOCloud retail solution. If you want to know which devices support the VIVOCloud retail solution, you can visit our website to check the supported model list: https://www.vivotek.com/vivocloud#retail

https://vivotek.zendesk.com/hc/article_attachments/25056410696089

[VIVOCloud] Do you need to purchase a license to use the VIVOCloud service?

Question

Do you need to purchase a license to use the VIVOCloud service?

Answer

No license is required to use the VIVOCloud service with VIVOCloud-compatible devices. For more information on compatible devices, please visit the following link:

 VIVOCLOUD Support list: https://www.vivotek.com/vivocloud/support-list

[VIVOCloud Application] What is the maximum number of notifications that can be stored in the application?

Question

What is the maximum number of notifications that can be stored in the application?

Answer

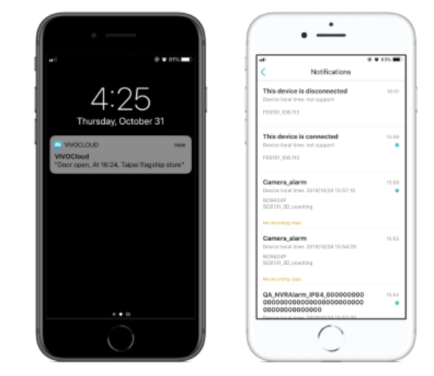

The VIVOCloud application can show push notifications in the phone which will allow you to easily see and device status (disconnection).


You can also see all the notifications that have been sent to the application from the NVR/Camera in the notification menu, but there is a limit on how many alarms can be stored. The application can store a maximum of 100 notifications, if the application receives a new notification when this number is exceed, the old alarms will be deleted and replaced with the new ones.

[VIVOCloud] What ports are used by the VIVOCloud Service?

Question

What ports are used by the VIVOCloud Service?

Answer

The VIVOCloud Service uses below ports:

 TCP Ports: 443, 1194, 3333-3336, 3478, 3479, 6000, 8883 and 65534.
 UDP Ports: 53, 123, 3478, 3479, 6000, 9000-9003, 47833 and 49152-65535.

If your network firewall or router only allows connections to specific ports, please ensure that the ports listed above are not blocked from inside to outside; otherwise, this could cause issues when the NVR/Camera tries to connect to the VIVOCloud server. Below is a list of possible situations you might encounter if the ports are not properly opened.

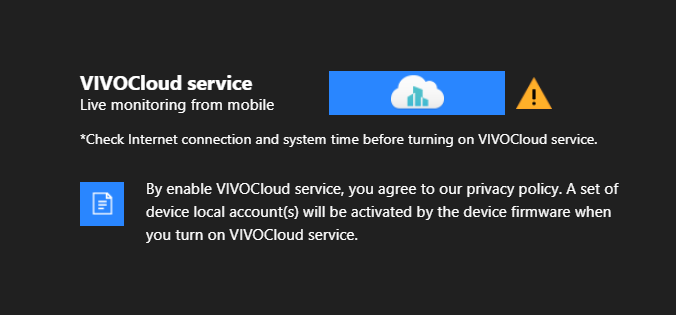

Situation 1. Cannot enable the VIVOCloud service in the NVR

If port 1194 is not opened, the VIVOCloud service on the NVR will display an yellow ‘!’ icon.

https://vivotek.zendesk.com/hc/article_attachments/25058964955033



Situation 2. Portal connection issues with NVR

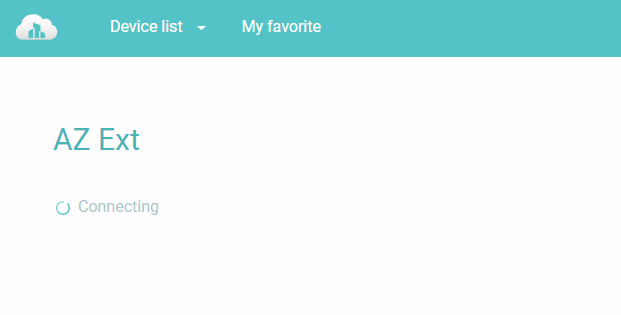

If the port 3478 is not opened, VIVOCloud portal will show the device as “Connecting”.

https://vivotek.zendesk.com/hc/article_attachments/25058942694169

Situation 3. Slow video connection

If the other ports are not opened, you may not see an image on VIVOCloud, or the image may load slowly.



Ensuring that the necessary ports are not blocked by your network’s firewall or router is crucial for establishing a successful connection between your NVR/Camera and the VIVOCloud server. By following the guidelines above and verifying that these specific ports are accessible, you can facilitate a smooth and efficient operation of your VIVOCloud devices.

.

[VIVOCloud] What can I do if I cannot access my NVR device through the VIVOCloud portal or mobile application?

.

Question

What can I do if I cannot access my NVR device through the VIVOCloud portal or mobile application?

Answer

VIVOCloud service allows you to remotely access your NVR/Camera videos remotely using the browser or application without the need opening ports or performing extra configurations. If you encounter any issues while using this service please be sure to check the following:

1. Check that you are using a compatible browser:

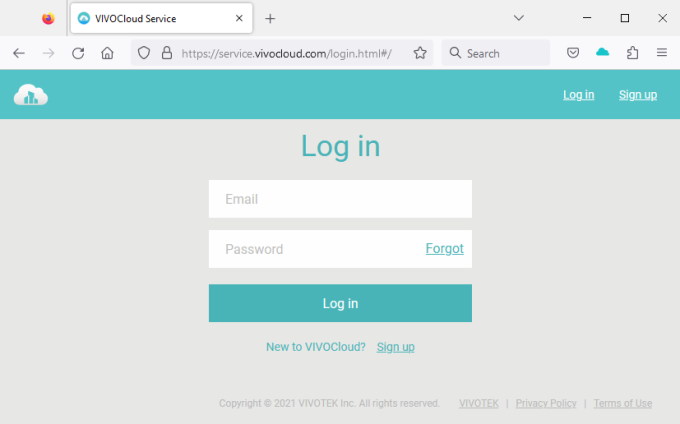

If you are trying to access the VIVOCloud webportal (service.vivocloud.com), be sure to use the Firefox browser.

https://vivotek.zendesk.com/hc/article_attachments/17044878511001

The VIVOCloud portal is only supported by this browser, if you use other browser you wont be able to access your NVR videos. You can find more information about browser compatibility in the VIVOCloud official webpage: https://www.vivotek.com/vivocloud#portal

https://vivotek.zendesk.com/hc/article_attachments/16339466196377

2. Check that the VIVOCloud service is enabled

Before using the VIVOCloud service you need to enable it, in order to do so please go to your ND device configuration, under System > VIVOCloud service and be sure that the service is enabled. There should be a green mark next to the blue button, if you don’t see this mark you might need to click on the button to enable the service.

VIVOCloud service enabled:
https://vivotek.zendesk.com/hc/article_attachments/17045060939801

VIVOCloud service disabled:

https://vivotek.zendesk.com/hc/article_attachments/17045121012505

3. Check that the ND device was only added to one account:

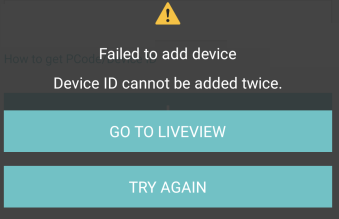

Each ND device can only be registered to one VIVOCloud account, if you already added to another account and try it to add it into a new account you will find the following error:


If you want to delete the NVR from any other accounts because you want to add it to a new account you just need to disable the service in the configuration page and re-enable it, this will automatically remove the device from the original account. Please note that if the device was previously shared to another account it will also be removed.

4. Network and configuration check

The VIVOCloud service server is very strict with its data management so you need to be sure that everything is properly configured otherwise you might not be able to enable the function on the ND. Before enable the service please be sure to verify the following:

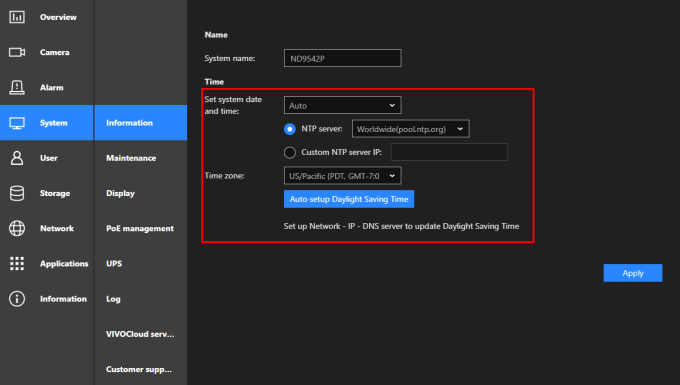

a) Time zone needs to match your access point time zone:

https://vivotek.zendesk.com/hc/article_attachments/17045388636697

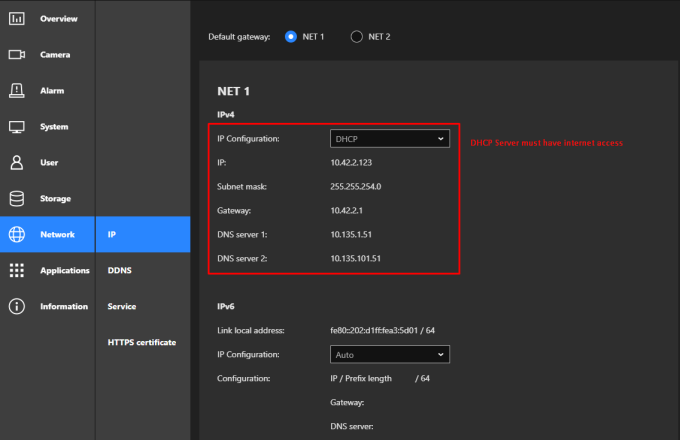

b) ND IP must be properly configured and the device internal network access point needs to have access to WAN.

https://vivotek.zendesk.com/hc/article_attachments/17045468297753

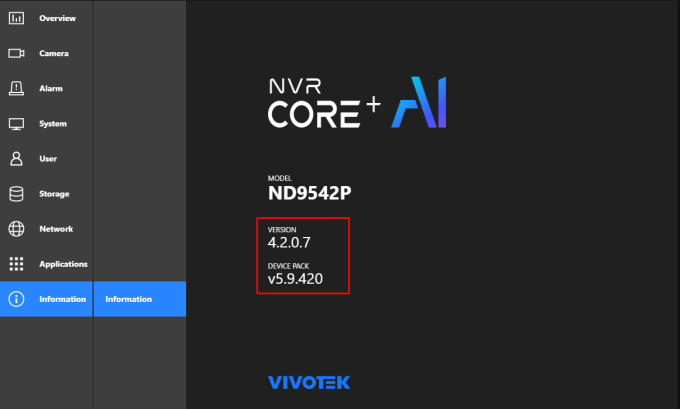

c) Be sure that your NVR is up to date and is using the latest firmware available

https://vivotek.zendesk.com/hc/article_attachments/17045473332761

If you don’t know how to upgrade the device, feel free to check this documentation:

d) Be sure that the service main ports are accessible, if the main ports used for server communication are being blocked you wont be able to add the device to your VIVOCloud account. Here is a document that explains in detail which ports are used by the service.

If after following all the suggestions mentioned in this guide you are still unable to access your device using the VIVOCloud service please contact Technical Support for assistance.

.

[VIVOCloud] What ports are used by the VIVOCloud Service?

Question

What ports are used by the VIVOCloud Service?

Answer

The VIVOCloud Service uses below ports:

 TCP Ports: 443, 1194, 3333-3336, 3478, 3479, 6000, 8883 and 65534.
 UDP Ports: 53, 123, 3478, 3479, 6000, 9000-9003, 47833 and 49152-65535.

If your network firewall or router only allows connections to specific ports, please ensure that the ports listed above are not blocked from inside to outside; otherwise, this could cause issues when the NVR/Camera tries to connect to the VIVOCloud server. Below is a list of possible situations you might encounter if the ports are not properly opened.



Situation 1. Cannot enable the VIVOCloud service in the NVR

If port 1194 is not opened, the VIVOCloud service on the NVR will display an yellow ‘!’ icon.

https://vivotek.zendesk.com/hc/article_attachments/25058964955033



Situation 2. Portal connection issues with NVR

If the port 3478 is not opened, VIVOCloud portal will show the device as “Connecting”.

https://vivotek.zendesk.com/hc/article_attachments/25058942694169

Situation 3. Slow video connection

If the other ports are not opened, you may not see an image on VIVOCloud, or the image may load slowly.



Ensuring that the necessary ports are not blocked by your network’s firewall or router is crucial for establishing a successful connection between your NVR/Camera and the VIVOCloud server. By following the guidelines above and verifying that these specific ports are accessible, you can facilitate a smooth and efficient operation of your VIVOCloud devices.

.
