Hik-Connect Camera / NVR / DVR Guide, The Mobile Client supports adding cameras, NVRs, and DVRs. After you add the devices, you can start live view, playback on the client. You can also link cameras with NVR/DVR, set motion detection alarms for network cameras, and reset password of NVRs or DVRs, etc.

Manage Solar Camera

After adding a solar camera to the Mobile Client, you can control and manage it remotely. The supported functions include waking up the device, viewing its network signal strength, switching power consumption mode, etc.

Wake Up Solar Camera

Unlike using other network cameras, you need to wake up a solar camera before you can control it. You can wake it up in the following two ways:

• On the device list page, tap  > Settings to enter the device settings page. Once you enter this page, the camera will start waking up.

• On the device list, tap the device to enter its live view page. Once you enter this page, the camera will start waking up.

View Network Signal Strength

Enter the device settings page of the solar camera, and then tap Network Strength to view its network strength level.

Switch Power Consumption Mode

Enter the device settings page of the solar camera, tap Power Consumption Mode and then select a mode.

Note

After switching power consumption mode, you need to reboot the solar camera to make the new settings take effect on the device.

Set Light for Floodlight Camera

You can set light for the Floodlight camera.

Make sure you have added a Floodlight camera to the Mobile Client.

1.On the device list page, tap  > Settings on a device card to enter the Settings page of a Floodlight camera.

2.Tap Light Settings to enter the Light Settings page.

3.Set the parameters.

Adjust Brightness

Adjust the brightness of the camera light.

Light Linkage

If enabled, when activities of human beings or animals are detected at night in the areas specified by you (see Light Linkage Area Settings, the camera light will be automatically turned on.

Light Linkage Area Settings

Tap the areas to specify them as the light linkage areas.

Batch Arm/Disarm Cameras Linked to NVR

For cameras linked to NVRs and areas of NVRs, you can batch arm/disarm them, and silence alarms.

Note

Only NVRs with the firmware version 4.63.000 and newer support these updates.

1.On the device list page, find the device card of an NVR.

Figure 1 NVR

2.Optional: You can perform the following operations.

Batch Arm/Disarm Cameras and Areas or Arm Them Silently	Tap , and tap Arm / Arm Silently / Disarm at the bottom of the page, and all cameras linked with the NVR will be armed / armed silently / disarmed.
Arm/Disarm a Single Camera or Area or Arm One Silently	Tap  to go to the area and camera details page. Tap a camera or area, and tap Arm / Arm Silently / Disarm at the bottom of the page, and the selected camera or area will be armed / armed silently / disarmed.
Edit Area/Camera Details	Tap  to go to the area and camera details page. Tap  in the lower-right corner of an area or camera to edit its information

Edit Settings of Cameras Linked to NVR/DVR

For cameras linked to NVR/DVR, you can edit their names, hide or show them in the device list, and enable camera cascading.

1.On the device list page, tap  > Settings on a device card to enter the Settings page of an NVR or DVR.

2.Tap Linked Camera to enter the Linked Camera page, and then edit camera settings.

Edit Camera Name	Tap  to enter the camera details page, and then tap Channel Name to edit the camera name, and finally tap  to save the settings.
Hide/Show Camera	Tap  or  to hide or show the camera on the device list respectively.

Set Motion Detection Alarm for Network Camera

Motion detection is a way of detecting motion in a security scene by analyzing image data and differences in a series of images. After setting motion detection area within the field of view of the network camera, the network camera will be able to detect the objects in motion within the area you set and at the same the Mobile Client will receive an event notification about the motion detection alarm.

1.On the device list page, tap  > Settings on a device card to enter the Settings page of the network camera.

2.Tap Notification to enter the Notification page.

3.Draw motion detection area.

a.Tap Draw Motion Detection Area to enter the motion detection area settings page.

b.Swipe on the screen to draw the motion detection area.

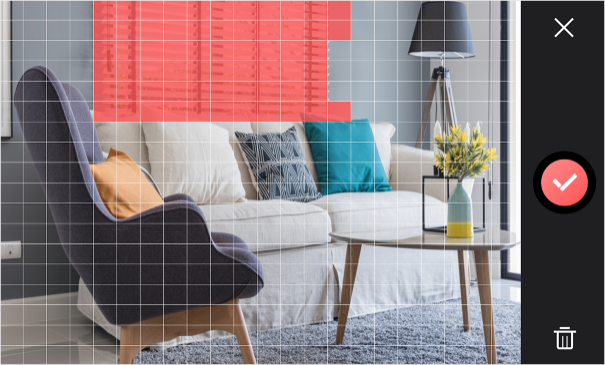

Figure 1 Draw Motion Detection Area

c.Optional: Tap  to undo the drawing.

d.Tap  to save the motion detection area settings.

4.Tap  to go back to the Notification page and tap Motion Detection Sensitivity, and then adjust the slider to adjust the motion detection sensitivity.

Low

Moving persons, large moving pets, and any other large moving objects in the motion detection area will trigger the alarm, while smaller objects will not.

Medium

Moving small pets and any other medium-sized moving objects in the motion detection area will trigger the alarm, while smaller objects will not.

High

Moving insects, moving leaves, and any other larger objects will trigger the alarm.

Go back to the Notification page and make sure Notification is enabled.

Note

For details about how to enabling notification, see Enable Notifications

.

View Network Topology of NVR

You can view network topology of the cameras connected to an NVR.

Note

The NVR should support the network topology functionality.

On the device list page, tap  > Settings on an NVR card to enter the Settings page of the NVR, and then tap Network Camera Topology to enter the topology page. On the page, you can perform the following operations.

View Network Status

On the topology, you can know the type of the network connection between each node (i.e., an NVR or a network camera) by the type of the line between the two nodes: solid line represents wired connection, dotted line Wi-Fi connection.

You can also view network status of the cameras. If a camera icon is grayed out, the camera is offline.

Zoom In/Out

You can pinch fingers together to zoom in, and spread them apart to zoom out.

Refresh Topology Structure

Tap  in the upper right corner to refresh the topology structure.

Show/Hide Cascaded Camera

You can enable the topology to display a specific camera’s cascaded camera(s).

Note

The NVR should support this function.

1.On the device list page, tap  > Settings on an NVR card to enter the Settings page of the device, and then tap Linked Camera to enter the Linked Camera page.

2.Tap a camera on the Linked Camera page to enter the Details page.

3.Turn on Cascading Status to display cascaded camera(s) of a specific camera in the topology.

Turn off to hide.

Reset Password of DVR or NVR via the Mobile Client

If you forgot the admin password of a DVR or NVR, you can reset the password by using the Mobile Client to scan the QR code generated on the local GUI of the device.

Two verification methods are provided for resetting the password of DVR or NVR: verifying by reserved email or verifying by Hik-Connect.

Procedures of Resetting Password via Hik-Connect Verification

It is recommended that you use this way to reset the password of DVR or NVR, which is comparatively simpler and more convenient. For details, see Reset Password by Hik-Connect.

Procedures of Resetting Password via Email Verification

The flow chart below shows the procedures of resetting password by email verification.

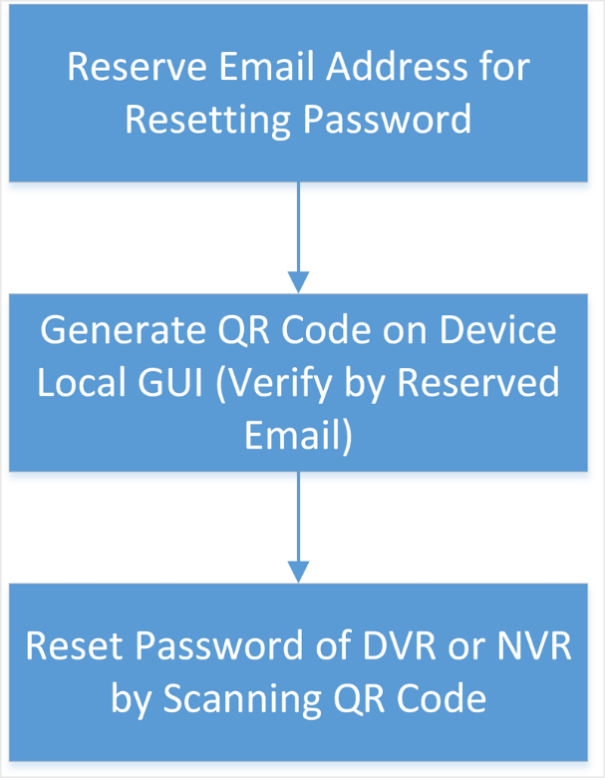

Figure 1 Flow Chart

Reset Password by Hik-Connect

You can reset the password of DVR or NVR via Hik-Connect.

Reserve Email Address for Resetting Password

Make sure you have reserved email address for resetting the admin password of NVR or DVR if you want to change the password by scanning QR code.

Note

The DVR or NVR should support the function.

Generate QR Code by Reserved Email

If you forgot the admin password of the DVR or NVR, you can generate a QR code on the device’s local GUI and then scan the QR code via the Mobile Client to reset the admin password.

Make sure you have reserved an email address for resetting password.

Note

The DVR or NVR should support this function.

Reset Password by Reserved Email

If you forgot the admin password of DVR or NVR, you can reset the password by scanning the QR code generated on the local GUI of the device.

Video & Cloud Storage

With the Mobile Client, you can remotely view live videos of the added encoding devices (e.g., cameras, NVRs, and DVRs) and play back their video footage. If cloud storage is activated on the video devices, you can browse, search, play back, and download the video footage on cloud.

Live View

You can view live video of the devices’ connected cameras. And some basic operations are supported during live view, including picture capturing, manual recording, PTZ control, etc.

Start and Stop Live View

Live view shows you the live video getting from cameras. Perform the following task to start and stop live view.

1.Tap a camera or tap Applications > Live View to enter the Live View page.

◦ If the Video and Image Encryption function is disabled, the live video will start playing automatically.

◦ If the Video and Image Encryption function is enabled, you should enter the encryption password before live view.

Note

· For details about Video and Image Encryption function, see Enable Video and Image Encryption.

· The default device verification code is usually on the device label. If no verification code found, enter the device verification code you created when enabling Hik-Connect service.

· The live video from the video intercom device lasts 5 minutes.

· Up to 6 users can view the live video of a same door station simultaneously. If the upper-limit is reached, other users can only use the audio function of the door station.

2.Optional: Perform the following operations.

View Full Screen Live Video	Rotate the phone to view live video in full screen mode.
Switch Camera	Swipe the live view page to the left or right to switch camera and view its live video.
Reselect Device for Live View	a.Tap  to reselect device(s) for live view. b.Reselect cameras and then tap OK. Note You can select up to 256 cameras.
Switch to Playback	Tap Playback to switch to playback. Note For details about playback, see Playback.
Toolbar Operations	For details about toolbar operations, see Live View and Playback Icons.
View Events	If there are any events, they will be displayed in the Event Messages section.

a.Press and hold a window under live view.

b.Drag the window upwards to the appearing  at the top of the page.

PTZ is an abbreviation for “Pan, Tilt, and Zoom”. With the PTZ Control functionality provided by the Mobile Client, you can make the cameras pan and tilt to the required positions, and zoom in or out the live video images.

Start live view of the camera, and tap  to pop up the PTZ control panel.

Note

PTZ control should be supported by the camera. For details about starting live view, refer to Start and Stop Live View.

PTZ Control

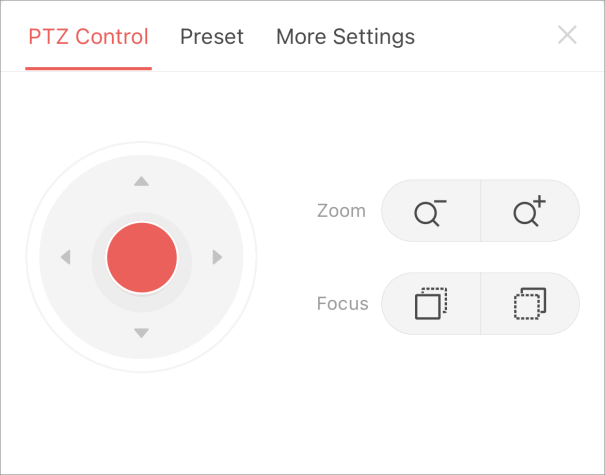

Figure 1 PTZ Control

On the PTZ Control panel, the following operations are supported.

• Drag the red circle button to control the camera to the desired direction.

• Tap / to zoom out/in the lens.

• Tap / to make near objects become clear and distant objects become vague, or make distant objects become clear and near objects become vague.

Preset

On the Preset panel, the following operations are supported.

• Edit Name: Tap  > Edit Name to edit the preset name.

• Set as Preset: Tap  > Set as Preset to set the current scene as a new preset.

More Settings

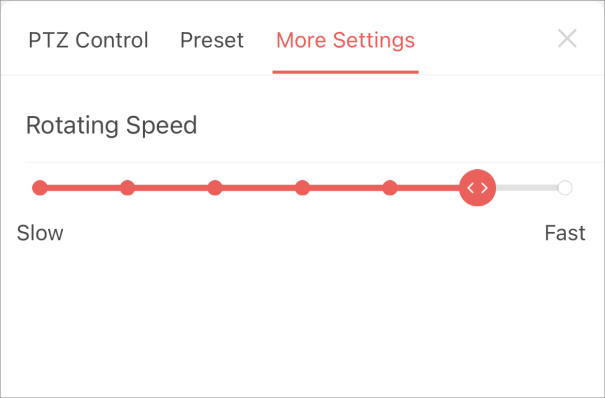

Figure 2 More Settings

Drag  to the right or left to set the PTZ rotating speed.

Set Image Quality for Device Added by IP/Domain

For devices added via IP/Domain, you can set its image quality to Fluent or Clear. You can also customize image quality for the devices.

Note

Live View for Fisheye Camera

In the fisheye view mode, the whole wide-angle view of the fisheye camera is displayed. Fisheye expansion can expand images in five modes: 180° panorama, 360° panorama, 4-PTZ, semisphere, and cylindrical-surface.

Note

The function is only supported by fisheye camera.

1.Start live view of a fisheye camera.

Note

See Start and Stop Live View for details.

2.Tap  to show the fisheye expansion panel.

3.Select mounting type.

Icon	Description

4.

Table 1 Mounting Type
Icon	Description
	Wall Mounting
	Ceiling Mounting

5.Select fisheye expansion mode.

Table 2 Fisheye Expansion Mode
Icon	Description
	Fisheye view for ceiling mounting and wall mounting. In the Fisheye view mode, the whole wide-angle view of the camera is displayed. The mode is the vision of a fish’s convex eye. The lens produces curvilinear images of a large area, while distorting the perspective and angles of objects in the image. In this mode, you can pinch the fingers together to zoom out the image, and spread them apart to zoom in.
	Dual-180° panorama view for ceiling mounting. The distorted fisheye image is transformed to normal perspective image. In this mode, you can swipe to the left or to the right to adjust the field of view.
	360° panorama view for ceiling mounting and wall mounting. The distorted fisheye image is transformed to normal perspective image. In this mode, you can swipe to the left or to the right to adjust the field of view.
	4 PTZ Views for ceiling mounting and wall mounting. The PTZ view is the close-up view of some defined area in the Fisheye view or Panorama view. In this mode, you can pinch the fingers together to zoom out the image, and spread them apart to zoom in. You can also swipe the screen to perform pan and tilt movement.
	Semisphere-shaped view for wall mounting. In this mode, the whole wide-angle view of the camera is displayed. The lens produces curvilinear images of a large area, while distorting the perspective and angles of objects in the image. In this mode, you can drag the image to adjust the view angle, and pinch the fingers together to zoom out the image, and spread them apart to zoom in.
	Cylindrical-surface-shaped view for wall mounting. In this mode, the whole wide-angle view of the camera is displayed. The lens produces curvilinear images of a large area, while distorting the perspective and angles of objects in the image. In this mode, you can drag the image to adjust the view angle, swipe to the left or to the right to adjust the field of view, as well as pinch the fingers together to zoom out the image and spread them apart to zoom in.

Open Door During Live View

You can open or close the door when viewing the live video of a video intercom device, a face recognition terminal, or a related camera of an access control device. This function allows you to check the visitor or the situation nearby the door before you open it.

Note

Note

The default device verification code is usually on the device label. If no verification code found, enter the device verification code you created when enabling Hik-Connect service.

Playback

You can search the recorded video files stored in the added device for remote playback.

Normal Playback

Normal playback refers to the playback based on timeline. You can search the camera’s recorded video files in a selected time period and then start playback.

1.On the device list page, tap  in the upper-right corner or tap Applications > Playback to enter the Select Item(s) page.

2.Set the date and time for playback.

Playback Date

Select a date.

Note

The date during which video files were recorded is marked with a yellow dot.

Playback Time

Set the start time point for the playback in the selected date.

3.Select camera(s).

Note

You can select up to 4 cameras.

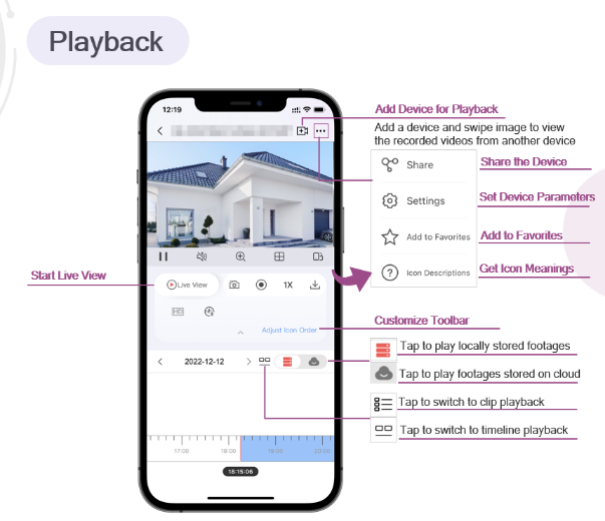

4.Tap Start Playback to enter the Playback page.

5.Optional: Perform the following operations.

Play Video Footage Stored on Cloud	Tap  on the playback page to play back video footage stored on cloud. Note See details in Play Back Video Footage on Cloud.
Play Video Footage Stored on Local	Tap  on the playback page to play back video footage stored locally.
Clip Playback	Tap  to switch to clip playback.
Adjust Playback Time	Tap  to switch timeline playback. Slide the timeline to adjust the playback time. Spread two fingers apart to scale up the timeline or pinch them together to scale down. Note  represents continuous recording and  represents event-triggered recording. You can determine the recording type (continuous or event-triggered) when setting recording schedule. For details, see Set Recording Schedule.
Toolbar Operations	For details about toolbar operations, see Live View and Playback Icons.

Capturing and Recording

During playback, you can capture pictures and record video footage.

1.Start playback.

Note See Normal Playback for details.

2.Capture a picture or record video footage.

Capture a Picture	Tap  to capture a picture.
Record Video Footage	Tap  to start recording video footage, tap again to stop.

3.The captured pictures and recorded videos will be saved in Applications > Personal Applications > Personal Album.

Set Playback Quality for Device Added by IP/Domain

For devices added by IP/Domain, you can set the image quality of playback for them.

Note

For details about adding device by IP/Domain, see Add a Device by IP/Domain.

Download Video Segment from Device

During playback of the cameras linked to a DVR or NVR, you can download a specific video segment as an evidence if it contains important information about incidents such as violent crimes in case of the need for settling disputes or legal cases.

Note

The function should be supported by the device.

1.Start playback.

2.Tap  if important information occurs on the image.

By default, the video segment which lasts 130 seconds (from 10 seconds before the tapping, to 120 seconds after that) will be automatically selected for download. For example, if you tap  when the video footage is played to 00:00:30, the segment from 00:00:20 to 00:02:30 will be selected.

Note

In special occasions when 130-seconds duration is not available to be selected following the above-mentioned rule, the segment will extend afterwards or backwards until the segment duration reaches 130 seconds. For example, if you start downloading from the very beginning of the video footage, the selected segment will be from 00:00:00 to 00:02:10.

3.Optional: Drag the slider(s) to lessen the duration of the segment for download.

Note

The duration should not be shorter than 10 seconds.

4.Optional: Tap the Play icon to preview the selected segment.

Note

If the segment is encrypted, you should enter the device verification code before you can preview it. For details about video encryption.

5.Tap Start Downloading to start downloading.

Note

Downloading at the background is supported. Download task(s) continues if you exit the Download page or the Mobile Client.

6.Optional: Go to Applications > Personal Applications > Personal Album to view the downloaded video segment.

Cloud Storage

With cloud storage, your cameras, DVRs, and NVRs can upload recorded video clips to the cloud automatically. You can easily access, play, and download the video footage of your video devices on cloud.

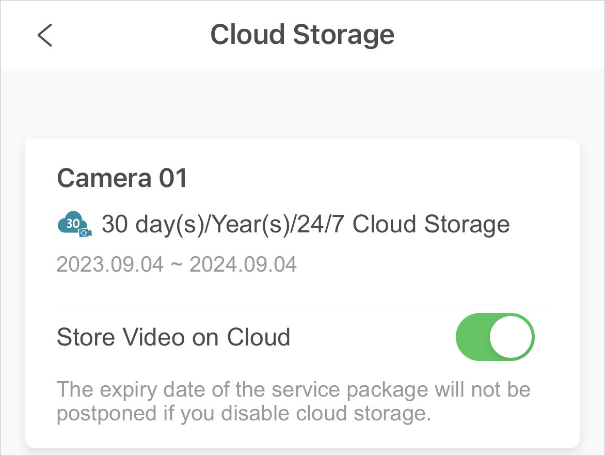

Enable/Disable Cloud Storage Service for a Channel

You can enable/disable cloud storage service for a specific channel of a device supporting storing video footage on cloud. You can also view details of the cloud storage service package, including service package type, effective period, and status (activated or expired).

Make sure your Service Provider has activated the cloud storage service for your device. Otherwise, you cannot enable cloud storage.

Play Back Video Footage on Cloud

You can play back video footage stored on cloud.

Note

Make sure your Service Provider has activate cloud storage service for your devices and you have enabled it.

See details in Enable/Disable Cloud Storage Service for a Channel.

To play back the video footage on cloud:

1.Start playing back the recorded video footage of a video device.

Note

See instructions in Normal Playback.

2.Tap  to play back video footage stored on cloud.

Note

You can adjust the playback speed to up to 8 times faster.

Download Video Footage from Cloud

The Mobile Client allows you to browse through the video footage stored on cloud of each date to quickly locate the footage you need. And you can download the video footage to your phone.

Note

Make sure your Service Provider has activate cloud storage service for your devices and you have enable it.

See details in Enable/Disable Cloud Storage Service for a Channel.

1.Start playing back video footage stored on cloud.

Note

See details in Play Back Video Footage on Cloud.

2.Tap  to play video stored on cloud.

3.Tap  to enter the Download Video page.

4.Select a date.

Note

The date marked with a blue dot is the date during which video footage is recorded.

5.Tap , and then select the video footage you want to download.

6.Tap  to download the selected video footage to your phone.

View Pictures and Videos

After capturing pictures and recording videos during live view, you can view these pictures and videos, and perform more operations such as saving them to the local mobile phone, share them with others, etc.

Go to Applications > Personal Album to enter the Pictures and Videos page, and you can perform the following operations.

Table 1 Supported Operations
Description	Operation
Batch Share Pictures and/or Videos	Tap Edit, select pictures and/or videos, and tap  to share the selected ones with others.
Batch Delete Pictures and/or Videos	Tap Edit, select pictures and/or videos, and tap  to delete the selected ones.
Save to Local Mobile Phone	Tap a picture or video, and tap  in the lower-right corner to save it to the local mobile phone.
Play Video	Tap a video, and tap  in the lower-right corner to play the video.
Share a Picture or Video	Tap a picture or video, and tap  in the lower-right corner to share it with others.
Delete a Picture or Video	Tap a picture or video, and tap  in the lower-right corner to delete it.

.
