(PC) (Mac) – NVMS7000 v2

NVMS7000 Quick Guide

click Picture to download PDF



Technical Troubleshoot Note:

If you got the Runtime DLL error(very few chances happened),  then you might need to reload the WinPCAP software.

NVMS7000 Quick Guide

NVMS7000 (Mac) 64bit version. Download Link: Here
This KB document supports the Catalina or higher version (64bit).  PDF Download Link: Here

Or click the Picture below to download the PDF Quick Guide file.

Remember: During the installation, it will ask you 4 times your Mac Password to complete the installation.  Don't confuse about you type the wrong password.

If you are using OSX or under (less than 10), please use the old version (32bit).
Old Download Link is Here
Old NVMS7000 Mac KB is Here.





Screenshot from Apple M1



---

Troubleshoot:

Upgrade from 32bit to the latest Catalina OS (64bit).  You may have this issue
“NVMS7000 needs update” error message.

But, the latest NVMS7000 Mac (64bit) is already compatible with the Catalina.
The reason is you are still using the old NVMS7000 version. To fix it, you need to uninstall the previous NVMS7000 Mac from the Mac Applications folder.   (Remember) UNINSTALL the broken version,
Do Not Overwrite the existed version.  To uninstall it, select NVMS7000 & dump to the trashcan, will do the uninstall.  Then, reinstall it.  I display the installation in the PDF file already.

This is Broken NVMS7000 icon looks like.

Allow 3rd party App to download and install
Apple System Preference > Security & Privacy > General

Back Video Screen Issue
If you have this issue because your Mac is not allowed to display.  Go To
Apple System Preference > Security & Privacy > Privacy  (see the Red Circle).

How to Login from the PTCloud?
download the PDF to see more detailed information. Page 4.

NVMS7000 PC Client Requirements

 Recommended Running Environment

Operating System: Microsoft Windows 7/Windows 8.1/Windows 10,

Microsoft Windows 2008 R2/Windows Server 2012 (64‐bit).

CPU: Intel Core i5 Processor 3.5 GHZ or above

Memory: 8G or above

Video Card: RADEON X700 Series or above

GPU: 256 MB or above

Network Speed:  Gigabit LAN (recommend)

Notes:

    For high stability and good performance, these above system requirements must be met. The software does not support 64‐bit operating system; the above mentioned 64‐bit operating system refers to the system which supports 32‐bit applications as well. Hardware decoding function is only supported by operating systems the version of which is after Windows XP.

Keep in mind that you may need higher specifications depending on your surveillance system. For instance, playing 64 cameras at once at 5mp will demand much higher system specifications.

If you are running for the Video Wall, please make sure you have 16GB RAM & 1G Video at least.

Adding Devices to the NVMS7000 PC Client

Why Do I Need To Add Devices?

The NVMS7000 PC Client is not the recorder. It is a camera management software that allows you to manage multiple recorders and cameras within a single program. Before you can do any of that however, you must add it to the client itself.

Adding Devices to the Client

Step 1. Run the NVMS7000 PC Client

Step 2. Select “Device Management.” If you do not see device management, you may need to select it under the Control Panel. Depending on your method of remote access set up, you may use one or the other below.

1) IP Adding Method

Step 1. Select “Add” as indicated below

Step 2. Fill in the device information under the IP/DOMAIN adding mode. If you do not know what to use, please refer to our remote access section.

Step 3. Select “Add” to finish adding your device to the client.

Step 4. Check if a group was made for your device by selecting “Group.”

Step 5. Assuming that a group was not made, you may make one by selecting the  add icon below. If you see your group, you may skip to step 10.

Step 6. Type in the desired group name and select “OK.”

Step 7. Click on “Import” to open the import window.

Step 7. On the import window, select the cameras from your devices. This selection allows you to choose which cameras go into the group you made. Otherwise, you may simply use the “import all” function to import everything you have added to the client into your group.

Step 9. Close out of the import window and select “Main View”

Step 10. You should see the name of your group on the bottom left corner. You may now start live view.

2) PT Cloud Adding Method

This section assumes that PT Cloud has already been setup. If you have not done so yet, learn more here.

Step 1. Run the NVMS7000 PC Client

Step 2. Go to “Device Management.” If you cannot find it, it can be found under the control panel.

Step 1. Select “Add New Device Type”

Step 2. Check the checkbox next to “PT Cloud Device” and click “OK.”

Step 3. You should now be able to select “PT Cloud Device” in the device type list.

Step 4. Select the appropriate region you are in and then click on “Login” to log onto your PT Cloud/LTS Connect account.

Step 6. Type in the user login information. This is the account you created for PT Cloud. You may login when you have inputted the correct credentials.

Step 7. By default, your devices will be imported automatically into the client when you log in.

Step 8. The devices are grouped together. You may find the group under the groups tab as shown below.

To learn more about using NVMS7000 with PT Cloud, click here.

If you do not have any devices added to your account yet, learn more here on how to add them using the NVMS7000 PC Client.

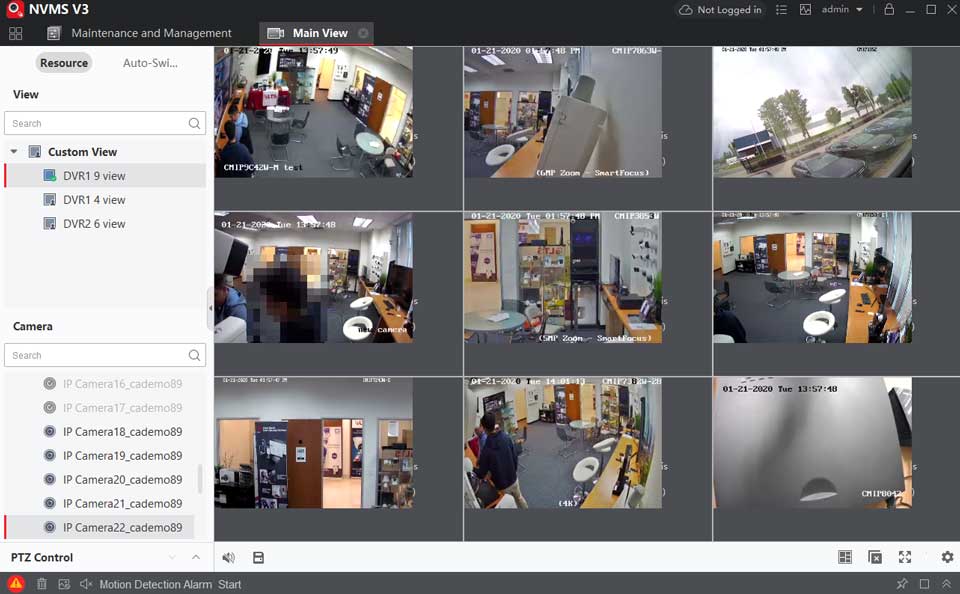

Saving and Viewing Custom Views

Users may want to save the work they've done on creating a custom views in the NVMS7000 PC Client. You would save it in case the program restores the default channel layout.  Having a saved layout allows you to instantly restore the layout setup you've created.

This guide assumes you have already added your devices If you haven't done so yet, learn more here.

First Steps

Step 1. Run the NVMS7000 PC Client

Step 2. Select “Main View.” If you do not see it, you may also find it in the control panel.

Reorganizing Camera Channels

Step 1. To change the camera allocation on your live view, simply select a channel first by clicking it once.

Step 2. While the channel is selected, double click the camera from your device left on the left hand side to assign it to the selected channel.

Step 3. The camera will now appear in that channel. Repeat with other cameras on other channels if desired. If you need to overwrite a channel, simply repeat the first step.

Adjusting the Number of Channels

There are several ways of adjusting the number of channels you have on the main view. You may only save a specific layout using the “Default View” options.

1) Default View

Step 1. Select one of the four default view options. You may rearrange the camera allocation if you desire.

Step 2. Click the   “Save View As” icon

Step 3. Provide a name and then select “Save” to save your custom view and camera allocation.

Step 4. You may find your custom view under the Custom View tab on the left hand side. This will automatically bring up your channel and camera layout.

2) Custom Windows

Step 1. Select the  Window Division icon on the bottom right corner.

Step 2. You may choose from a wide variety of default window divisions to increase or decrease the number of channels you have.

Cycling Live Views on Cameras

By cycling the live view, you can have live view channels continuously switch from one camera to another after a set period of time. This can be set up as long as you have the NVMS7000. Kindly note that this can also be done on the recorder itself.

This guide assumes you have already added a device to the NVMS7000 PC Client. If you do not know how, learn more here.

Live View Cycle Setup

Step 1. Run the NVMS7000 PC Client.

Step 2. Go to your “Main View” by selecting it. If you cannot find it, you may find it under the control panel.

Step 3. Select one of the default view types on the left hand side.

Step 4. Select the cycle icon to begin cycling the cameras. This will cycle all of your cameras across all the channels.

Note: The number of channels you have is dependent on the type of view you selected in Step 3.

Note: If you want to save this layout, learn more here.

Viewing Playback on the Client

You may view playback files on the NVMS7000 PC Client as if you were on the recorder itself.to learn more, continue reading.

Note: This guide assumes you have already added devices to the NVMS7000 PC Client. If you do not know how to add devices, learn more here.

How to View Playback

Step 1. Run the NVMS7000 PC Client

Step 2. Select “Remote Playback.” If you do not see it, you may need to select it under the Control Panel.

Step 3. Select the  calendar icon as shown below.

Step 4. Select the desired start and end time/date that you would like to search under in your recordings. Finish by selecting “OK.”

Step 4. Double click the desired camera to begin searching for that camera's playback files.

Step 5. You may either use the time bar on the bottom to scroll through the entirety of the recordings or you may select the recordings on the right hand side.

Note: If you would like to download the recordings, learn more here.

What Are the Basic Playback Functions?

 Reverse Playback: This plays your recordings backwards.

 Pause: This pauses your playback recording.

   Stop: This stops all recordings from playing and removes them from their channels.

 Slow and Fast Forward: This slows down or speeds up your playback speed

 Volume: This allows you to adjust the volume of your playback recording if it has sound.



Viewing Multiple Playback Recordings

Step 1. Select a different window or channel by clicking it.

Step 2. Double click the camera to have the recordings appear on the selected channel.

Step 3. Repeat this process for other cameras if you desire. If you do not have any open channels, you may increase the number of windows by selecting the icon shown below.

Setting Up Auxiliary Views

Users may have more than one monitor. While you cannot maximize the NVMS700 Client to take up more than one whole monitor, you can create an additional window for the extra monitor. This auxiliary window would serve the same function as the NVMS7000 PC client in regards to live view.

This guide assumes you have already added cameras onto your client. If you do not know how, learn more here.

Auxiliary Setup

Step 1. Run the NVMS7000 PC Client

Step 1. Select “View”

Step 2. Select “Auxiliary Screen Preview”

Step 3. You may now adjust the channels and camera allocation as if it was the main view on the main NVMS7000 PC client.

If you do not know how, learn more here.

Enabling Mainstream While Viewing Multiple Cameras

By default, the NVMS7000 PC Client will use your camera's sub stream when viewing multiple cameras at once on the client. However, users may only want to see the main stream of the cameras. This is possible by configuring the client software itself.

Enabling Main Stream

Step 1. Run the NVMS7000 PC Client

Step 2. Select “Tool”

Step 3. Select “System configuration” to bring up the system configuration window.

Step 4. Select “Image” on the left hand side.

Step 5. Uncheck Auto-Change Stream Type and select “Save.”

WARNING: Viewing multiple cameras on mainstream will increase the resource demand on your computer. Users should only do this if they have the capability to support it.

Managing User Accounts

If you expect other people to use the same computer or program, you may want to create accounts for them that limit their privileges on the program and recorder. Users should keep in mind that every installation of the NVMS7000 PC Client on a new computer will require the super user accounts to be created regardless if you already installed it on another computer.

Setting Up User Accounts

Step 1. Run the NVMS7000 PC Client

Step 2. Select Account Management. If you do not see it, you will find it under the control Panel.

Step 3. Select “Add User”

Step 4. Select the User Type between Operator or Administrator

Note: The difference between the two is based on how many permissions are enabled.

Step 5. Fill in the User Name and Password the account will have

Step 6. Select or deselect the permissions for the account.

Step 7. Select “Save” to finalize the account creation process.

Editing User Accounts

If you have existing user accounts and you would like to know how to edit their permissions, you need to select the user account and then select “Edit Users” to modify the settings as shown below.

NVMS7000 – PT Cloud Setup & Login

You must have the NVMS7000 PC client to be installed on your computer. If you do not have it installed, learn more here. Secondly, your personal computer must be on a Windows OS in order for the setup to work. This method is currently not supported by the Mac equivalent of NVMS7000.

Additionally, basic networking setup must already be done before PT Cloud Setup can be set up. To learn more, click here.

Setup

Step 1. On NVMS7000, go to Device Management.

Step 2. Select “Add New Device Type”

Step 3. Select “PT Cloud Device” and “OK” to confirm your selection.

Step 4. Back at device management, select “PT Cloud Device”

Step 5. Select “Login”

Step 6. Select “Register”

Step 7. You may now create an account for PT Cloud.

Note: You must use a phone number or e-mail for the account creation. You can only use one of the two. The verification code is sent to the contact you chose. You may input the verification code you receive into the verification code section to proceed.

Step 8. Once an account has been made. Log into your account on NVMS7000.Once logged in, select “Add Device.”

Step 9. You will now be prompted for the serial number and verification code of your device. Input the fields and then complete the adding by selecting “OK.”

To learn more about where to find the serial number of your device, click here.

To learn more about where to find the verification code of your device, click here.

How to check the Resource?

NVMS7000 has the resource limitation.    You can check it from the Help Menu



for example, for NVMS7000 only can hold up to 1024 camera from the device management.

Forgot Password on NVMS7000 (PC)

If you forgot the password at the beginning Login Screen, click the Forget Password button.
Copy the Encrypted String and email to LTS Support team.

We can help you to generate a recovery password and email you back to unlock it.
