  1. Preface
    1. Preparation purpose

This user manual is prepared based on Easy7 video monitoring system. In order to provide brief function instruction of the system and help users to systematically understand operation process, this user manual is prepared for reference.

[Note] Product real-time update will not be further notified.

    1. Terms and abbreviations

N/A

Tiandy Easy7 Smart Client Express User Manual

Read More :

  1. How to Add Device to Hik-ProConnect
  2. DSS Express V8 User Manual
  3. Hikvision Password Reset Do It Yourself
  1. 3. Usage Attentions
  2. Current monthly largest quantity of human face pictures received from single channel is 1 million. The current upper limit of quantity of human face pictures received from all channels is 5 million. If the quantity exceeds the upper limit, result of intelligent retrieval cannot be acquired.
  3. Standalone version can 500 point locations at most at present.
  4. Present screen supporting 3,840*2,160 (4K) resolution at most.
  5. This platform is not compatible with cameras in sky-eye series cameras at present.
  6. MAC AIO only supports external microphones.
  7. As for the equipment added in P2P account number way, audio sampling frequency shall be set to be 8kHz. Other sampling frequency may cause program failure on standalone version, so please use it cautiously.
  8. As for the same and IPC, video playback and video download exist at the same time. 5 channels at most are supported at present. Otherwise, download failure or equipment overload will be reminder in download process and video playback will fail.
  9. MAC system authorizes standalone version, such as microphone authority. Restart the standalone version.
  10. As for MAC version, the real-time preview in full screen cannot quit from full screen by pressing ESC (unless equipment list is closed).
  11. Firewall of computer may influence some normal functions of standalone version. Please add white list or close firewall.
  12. Software overview
    1. Software usage

Easy7 Smart Client Express is an application based on MacOS and operation system, which is specially used for managing, previewing and operating network monitoring equipment, suitable for all series of Tiandy NVR, IPC and other devices. The software can realize grouping management of watch points according to different scenarios and customize the group name. It can carry out real-time video browsing, audio preview, voice intercom and other operations based on the device.

It can control the equipment PTZ, set preset position and call. It can switch video playback between user-defined groups, support front-end and local video playback, control playback through time axis, and download video files to the client-side. The rich video monitoring business functions of the software are really suitable for the application of various video monitoring scenarios.

    1. Software operation

Easy7 Smart Client Express Win64 V8.5.exe can install and operate individually and support Tiandy full series of hard disk video equipment and network video equipment.

  1. 3. System configuration

CPU: Intel(R) Core(TM) i5, the 8th generation is recommended

Memory: 8G recommended

System: Support Windows 7 64-bit and Windows10 64-bit system

  1. Software installation and

uninstallation

  1. Software installation

Take the installation of “Easy7 Smart Client Express Win64 V8.5.exe” in Windows 10 64-bit system as an example, the installation of other versions is the same.

  1. Find the installation file “Easy7 Smart Client Express Win64 V8.4.exe” in installation disk, as shown in the figure below:

P] Easy? Smart Client Express Win64 V8,5.exe

Figure 3.1.1

  1. Double click and enter installation program, as shown in the figure below:

word image 1151 1

Figure 3.1.2

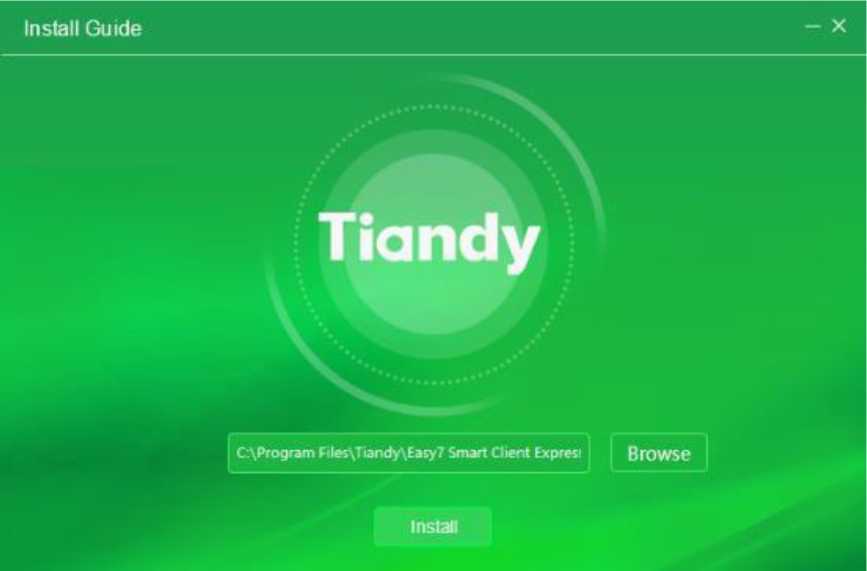

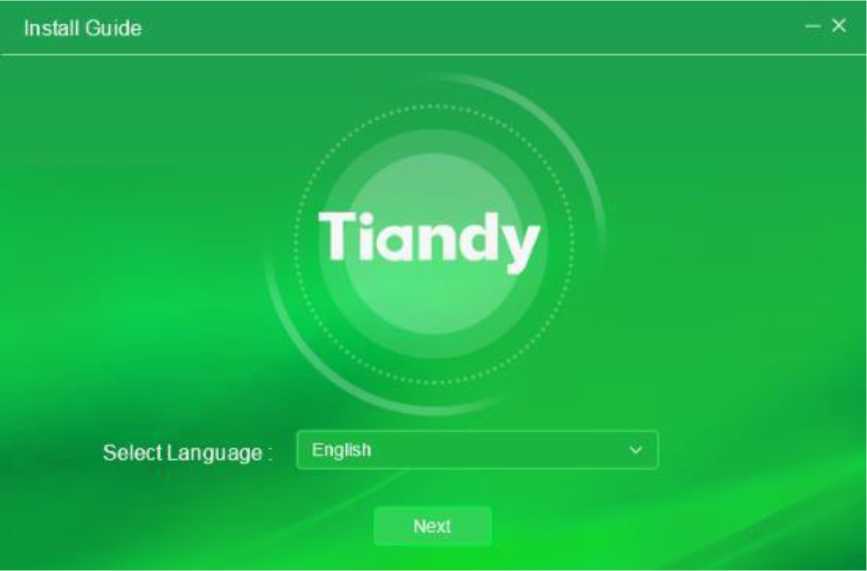

  1. Select installation language, we take English as an example here,

select “English”, click “Next”. It will be installed on Disk C as shown in the

figure below:

word image 1151 2

Figure 3.1.3

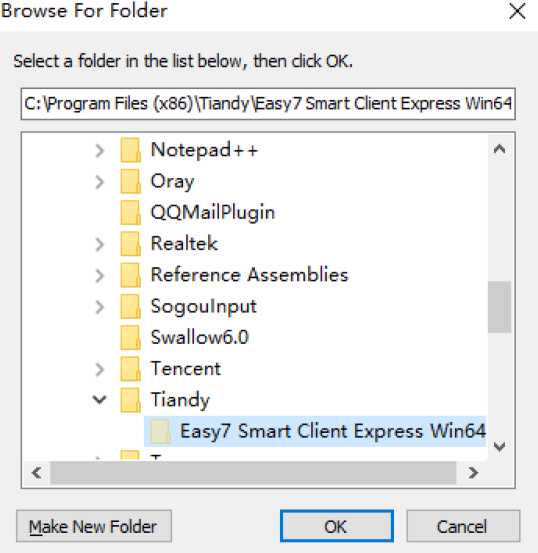

  1. If it's necessary to change installation directory, click “Browse” to

select customized installation directory, as shown in the figure below:

Figure 3.1.4

5) Set installation directory, click “Install” to start installation program,

as shown in the figure below:

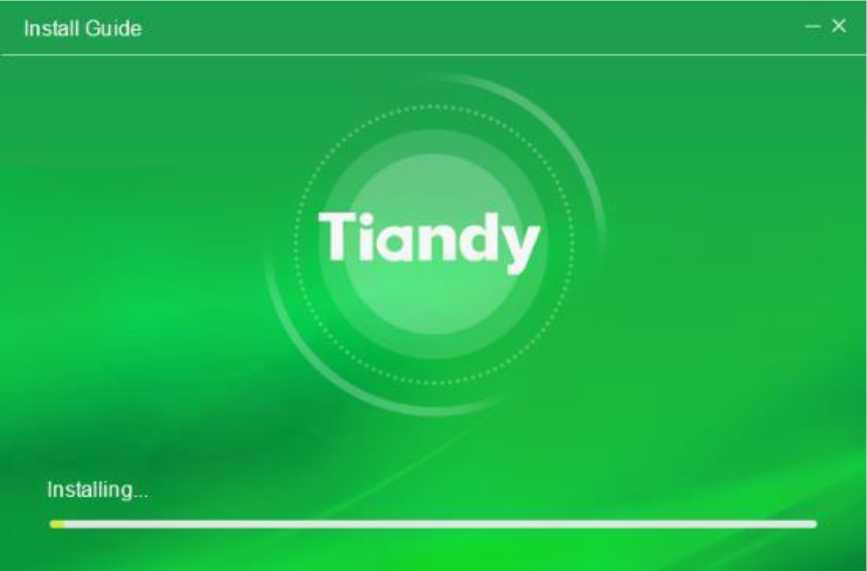

Figure 3.1.5

word image 1151 3 word image 1151 4

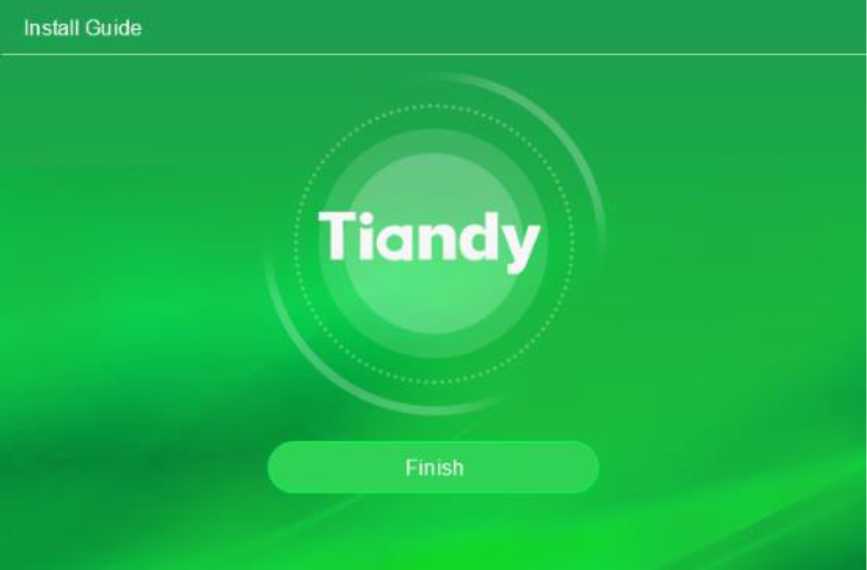

  1. After installation, click “Finish” to complete installation, as shown

in the figure below:

word image 1151 5

Figure 3.1.6

  1. Upgrade package installation

Temporarily not available.

  1. Software uninstallation

Take the uninstallation of “Easy7 Smart Client Express Win64 V8.5.exe” in Windows 10 64-bit system as an example, the uninstallation of other versions is the same.

1) Select “Start”->”All program”->”Tiandy”->”Easy7 Smart Client

Express”->”Uninstall”, as shown in below figure:

V Tiandy jjjjj.pny
O Easy? Smart Client Express
TortoiseSVN Pin to Start
V More >
Video LAN Uninstall

Figure 3.2.1

  1. Click “Uninstall”, enter control panel, select “Program and feature” -> “Uninstall or change program”, then select “Easy7 Smart Client Express”, right key to select “Uninstall” or double click, there will display a pop-up for deletion, as shown in below figure:

word image 1151 6 Easy? Smart Client Express Uninstall

Are you sure you want to completely remove Easy? Smart Client Express and all of its components?

Yes

No

Figure 3.2.2

  1. Click “Yes”, to uninstall the program will terminate all operating

Easy7 related programs and continue uninstallation progress, as shown in the figure below:

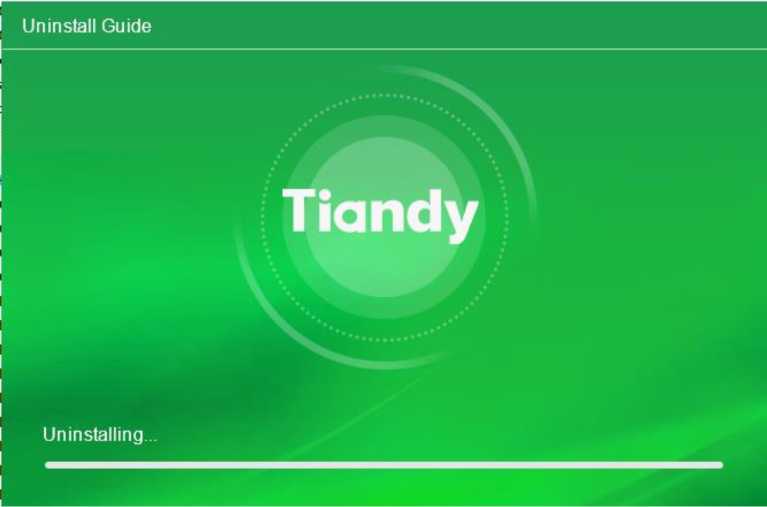

word image 1151 7

Figure 3.2.3

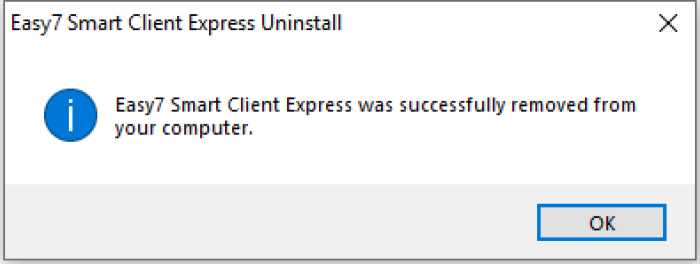

  1. After uninstallation, there will display a pop-up for uninstallation

completion, click “Confirm” and the program is completely removed, as shown in the figure below:

word image 1151 8

Figure 3.2.4

  1. Software login and framework setting
    1. Software login

word image 1151 9

Double click the application icon

on the desktop to enter system

login interface, an initial password is required to be set for the first-time log in , as shown in below figure:

Initial password setting X

Tiandy

£ admin

Û Please enter password

word image 1151 10

Û Please enter the password again

Figure 4.1.1

Note: the password shall be a combination of digits and letters. (Password can be 6-32 characters)

After the initial password is set, enter the password protection setting page, as shown in following figure:

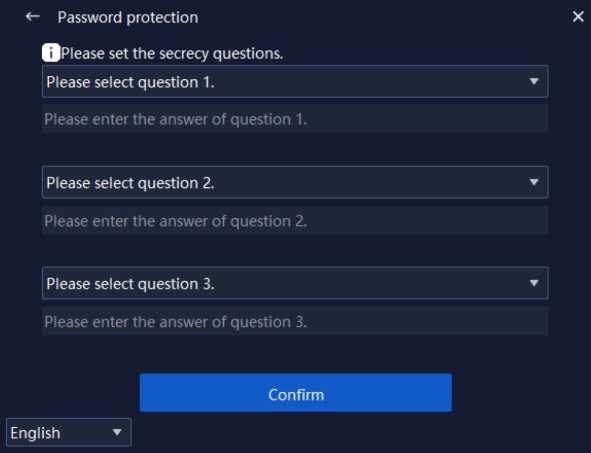

word image 1151 11

Figure 4.1.2

After the password protection question is set, you will enter the login page, as shown in following figure:

Tiandy X
• a admin
Û Please enter password
□ Auto 1… □ Save p… Forgot th..
Login
English Server settings

Figure 4.1.3

The information of related parameters in log-in interface is as follows:

Parameter Description
Auto login Tick and enable the check box. If the user name and
password is correct, there's no need to input user name and password anymore the next time, you may enter automatically.

Cancel automatic login: System configuration -> Common Settings->Login Settings->Automatic Login Software.

Save password Tick and enable the check box. If the user name and password is correct, the current password will be saved and it will automatically fill in the password for the next time.
Login Click and enable it. If the user name and password is correct, you may log in the program.
Forget the password Click enable and click to enter the password verification page. After the password security question is successfully verified, you can re-enter the initial password setting page to set the password.
English ▼



English pyccKHÜ

Im Ei

Tieng viet Le français lingua italiana

Support shifting between multiple languages.
x Click and enable it. Click to close Easy7 login interface.
Server settings Stand-alone enabling. Enter database service port No.
interface through single click. Range of port No.: 1 -65531.

It will take effect after restarting the platform.

Table 4.1.1

    1. Framework setting

Input correct user name and password, click “Login” to enter the main program interface of Easy7 Smart Client Express. The default grouping is

shown in below figure:

word image 1151 12

Figure 4.2.1

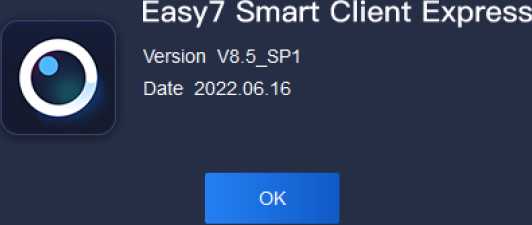

After entering the interface, click V/' on the right upper corner of the interface to display version information and date, as shown in below figure:

About

word image 1151 13

Figure 4.2.2

The mouse slides over “®” on the right upper corner of the interface to display the current CPU occupancy and memory usage, as shown in below figure:

CPU 25.49% | RAM 5381.OOM

Figure 4.2.3

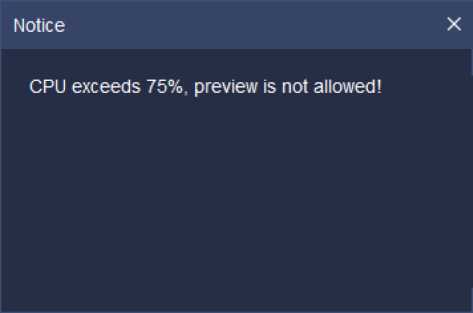

When connecting video, if CPU utilized rate exceeds 75%, it cannot to real-time video. As shown in following figure:

word image 1151 14

Figure 4.2.4

Click “Ö on the right corner of the interface to lock the interface. When correct delock password (i.e. login password) is input, the screen will be delocked, as shown in below figure:

word image 1151 15

Figure 4.2.5

Only accounts with “system lock-in authority” and “system unlocking authority” are able to carry out delock operation.

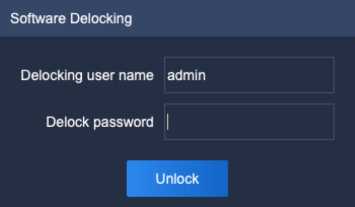

Click O' cancellation button at the right upper angle of interface and a cancellation prompt box will pop out, as shown in the figure below. Click “OK” to exit from the present platform and return to login interface. Click “Cancel” or

x at the right upper angle of prompt box to exit the current prompt box.

word image 1151 16

Figure 4.2.6

Click “_” on the right corner of the interface to minimize the program; click “0/0″ on the right corner of interface to restore/maximize the program; click ” x” on the right corner of interface to quit the program.

In order ensure that users may not close the program by mistake in using process, when “x” is clicked to quick the program, a notice will pop up to confirm whether to quit the program, as shown in below figure:

word image 1151 17

Figure 4.2.7

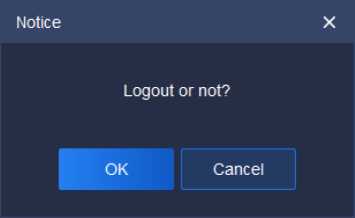

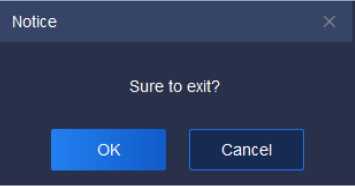

If “x is clicked by mistake, click “Cancel” to return to previous operation interface; if you are sure to quit the system, click “OK” to quit.

The right upper corner of the interface will display current system time ” to facilitate user to check time at any time.

13:54:38

The navigation menu bar on the top of the interface can be separated from the main interface by dragging the menu, or the position can be exchanged by dragging.

Interface function items are divided into: common functions and basic functions. The module icons in basic and common function area can be dragged separately, and the user can choose the common function for convenience, as shown in below figure:

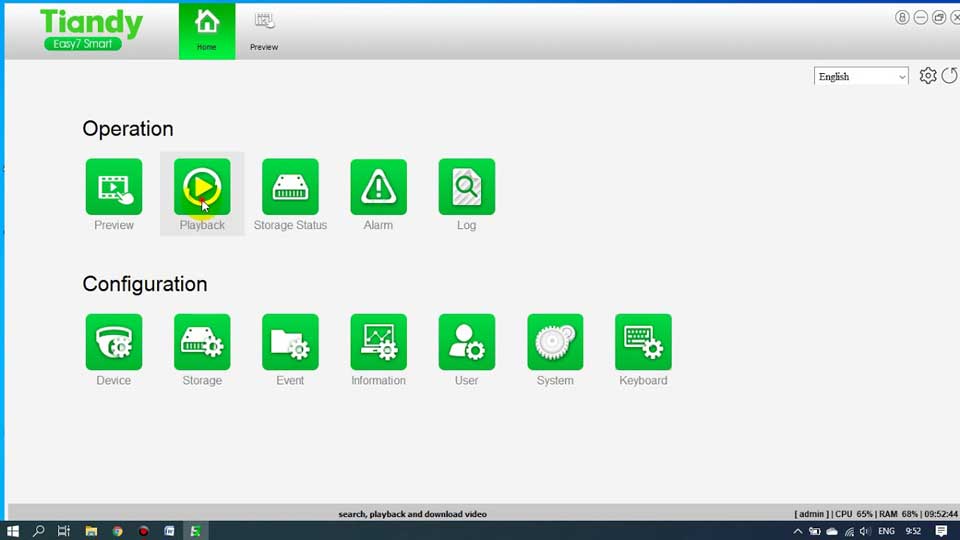

word image 1151 18 word image 1151 19 word image 1151 20 word image 1151 21 word image 1151 22 word image 1151 23 word image 1151 24 word image 1151 25

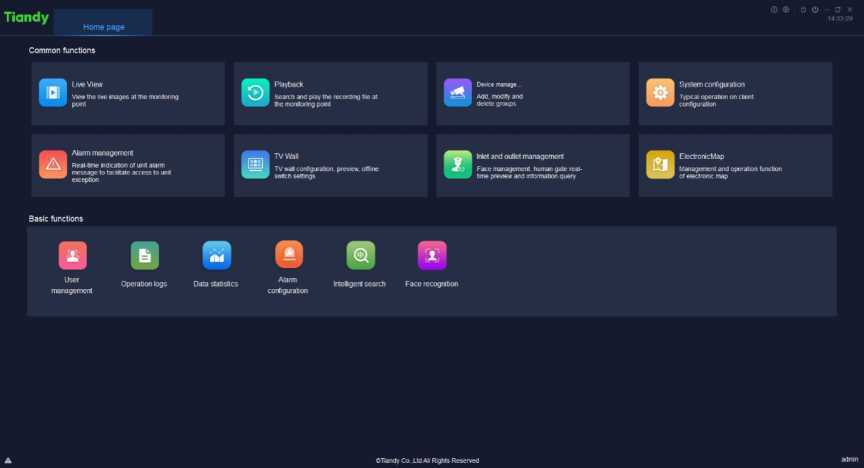

Tiandy Home page

Common functions

Basic functions

Playback

Search and play the recording file at the nonttonng point

TV Wai

TV wall configuratloo. preview, offline

User management

Add, modify and delete groups

„ Inlet and outlet management

Jr .' Face management, human gate real-

Face recognition

, System configuration

Typca operation on client configuration

ElectronicMap

Management and operaton function

eTiandy Co.,Ltd Al Rights Reserved

Figure 4.2.8

Real-time preview: View the live images at the monitoring point.

Video playback: Search and play the recording file at the monitoring point.

Equipment management: General management of monitoring devices to facilitate addition.

System configuration: Typical operation on client configuration.

Alarm management: Real-time indication of unit alarm message to facilitate access to unit exception.

TV Wall: TV Wall configuration, preview, offline switch settings.

Inlet and outlet management: Face management, human gate realtime preview and information query.

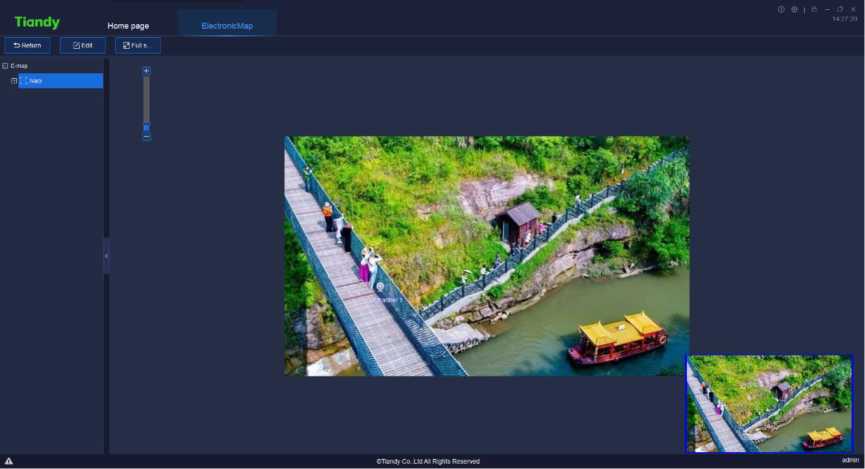

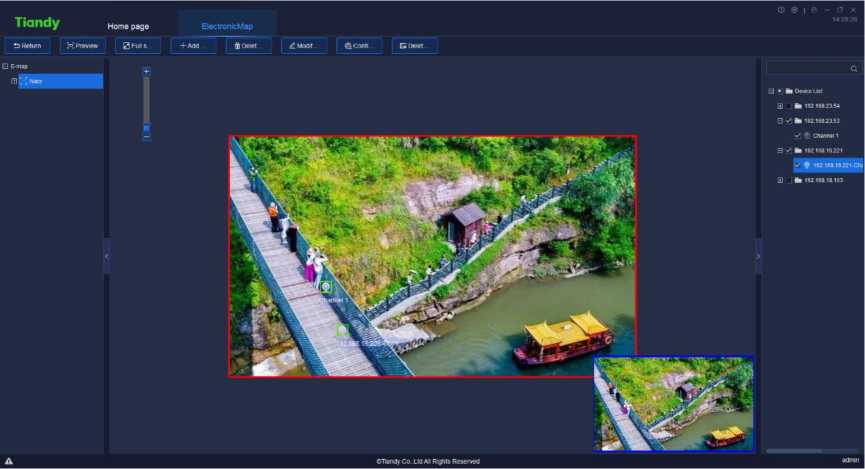

ElectronicMap: Management and operation function of electronic map.

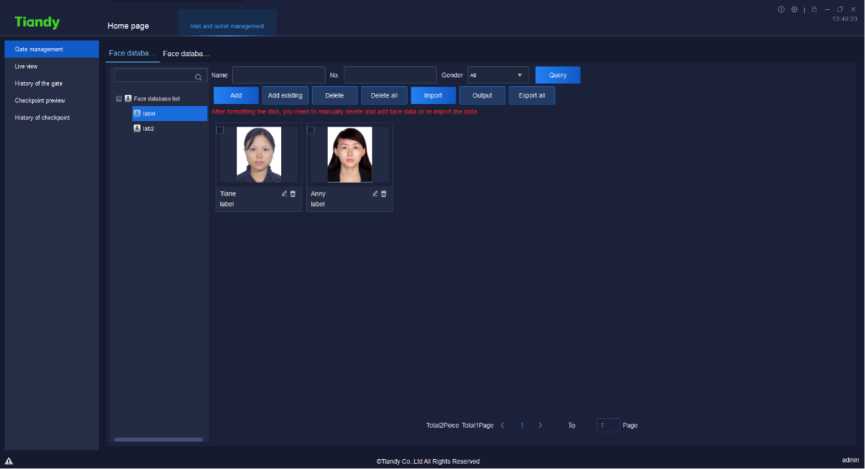

Face recognition: Management and distribution of face database.

User management: User password change allowed.

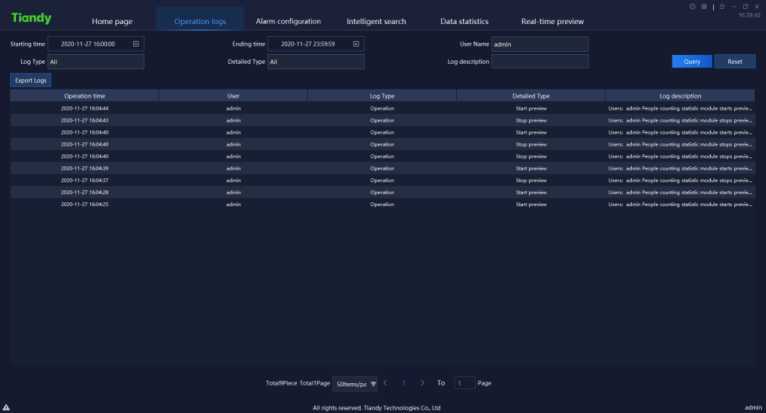

Operation logs: Check the system operations logs to understand the system operation.

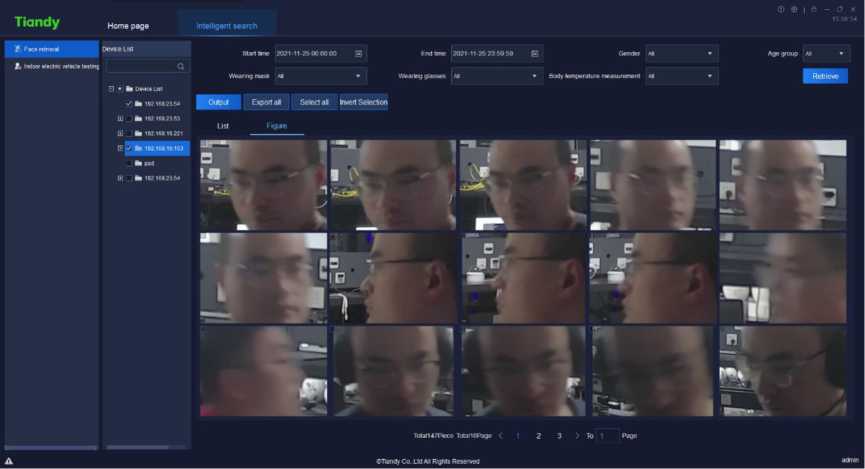

Intelligent search: Intelligent analysis information from search, such as face retrieval, indoor electric vehicle testing and so on.

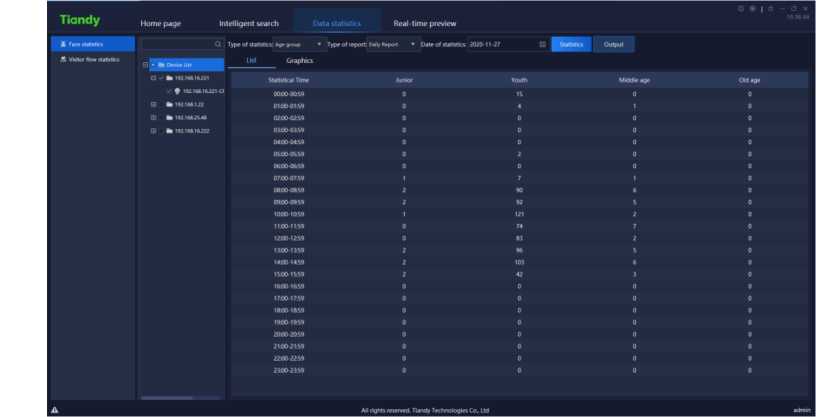

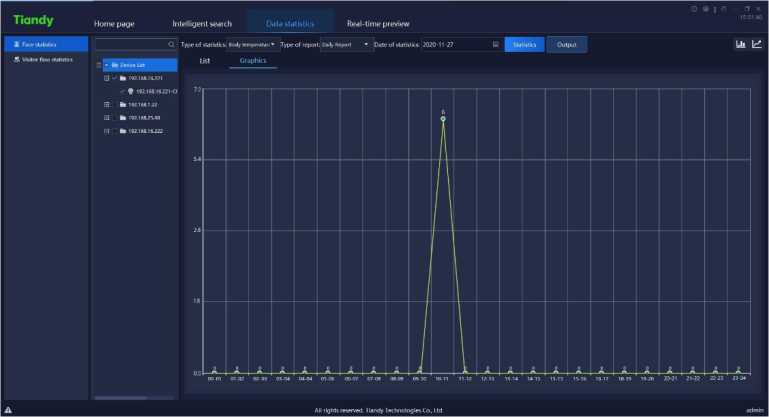

Data statistics: Total amount.

Alarm configuration:Coordinated configuration of various alarms.

[Note] After each login, the module icon will return to the default position, and the navigation menu bar position will be saved as the position when you quit last time.

Click ” ” on the left lower corner of the interface to display real-time

alarm information, as shown in below figure:

word image 1151 26

Figure 4.2.9

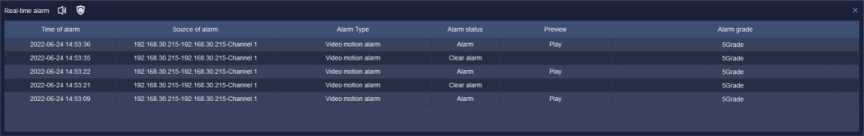

“Real-time alarm” records time, source, type, status, grade and other information of the alarm. When alarm information occurs, click “Play” to check alarm video playback, as shown in below figure:

word image 1151 27

Figure 4.2.10

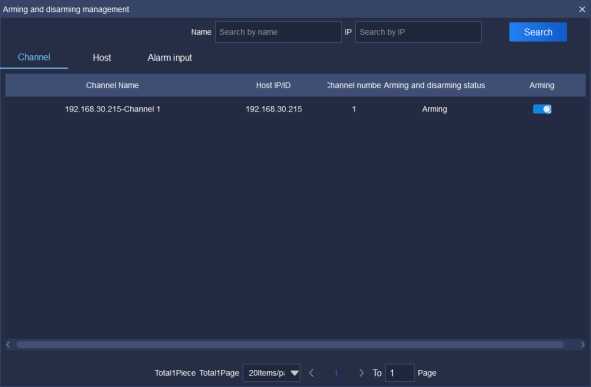

Click “ to enter defense deployment/withdrawal management interface”, where all hosts can be controlled. The defense deployment/withdrawal status of channel and alarm is shown in the figure below:

word image 1151 28

Figure 4.2.11

  1. Function operation instruction
    1. word image 1151 29 Equipment management

Click the equipment management icon l j on home page to enter the equipment management interface.

      1. Encode device management

Click “Device” to enter the device management interface. The device interface displays name, device type, IP address, port, video channel, connection status and other basic information of all added device, in which if the connection status is green, it means the device is on-line, and if it is red, it

means the device is offline; addition, modification, deletion and other operation

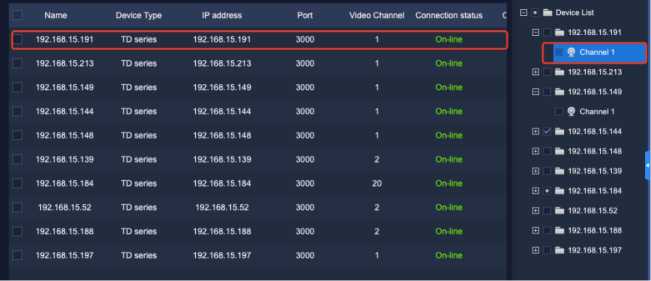

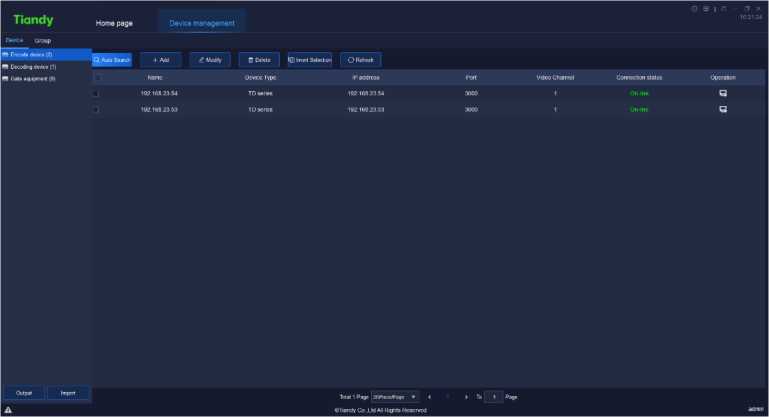

word image 1151 30

of the device can be conducted. As shown in below figure:

Figure 5.1.1.1

The information of related parameters in the interface is as follows:

Description

Parameter

Auto Search Automatically search for devices under the same network segment, batch addition supported.
Add Manually add encode device, support IP method, Standard domain name method, EasyDDNS method , P2P direct connection method, P2P account number method to add device.

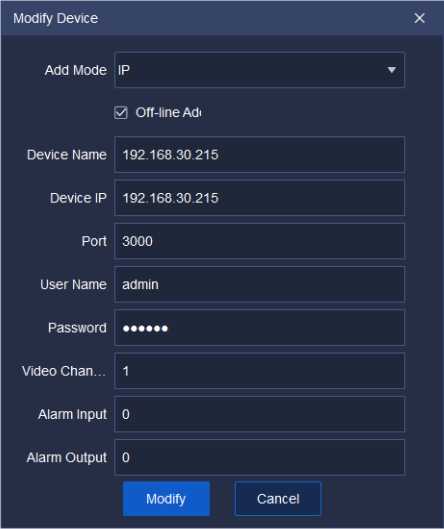

Modify Modify information of already added device.
Delete Delete already added device, batch deletion of device supported.
Output Select the device, and output the device information in three forms of Equipment List, Organization Chart, and Organization Relationship Table.
Import Click the device, and input the information in Equipment List, Organization Chart, and Organization Relationship Table, which are contained in the file.
Invert Selection Select all device that are not selected at that moment.
Refresh Update the status of device at current interface.
Name Display the name of all already added device.
Device Type Display the device type of all already added device, TD series (Tiandy series) supported.
IP Address Display the IP address of all already added device.
Port Display the port of all already added device.
Video Channel Display the maximum number of video channels allowed to play of all already added device.
Connection Status Display the current connection status of all already added device. The reason will be displayed, if equipment login fails.
Operation Click and enable it to open the web user-side interface of the device.

Table 5.1.1.1

        1. Auto search of encode device

Click ”

Q. Auto Search

to enter automatic search interface, as shown in below

word image 1151 31 figure:

Add Device X
1 4-Add C Refresh
Device Type IP address Port Channel No. Product number
IPC/PTZ 192.168.30.28 3000 1
IPC/PTZ 192.168.30.30 3000 1 EV-IP-2B20G1-M-28
IPC/PTZ 192.168.30.32 3000 1
[□ IPC/PTZ 192.168.30.37 3000 1
IPC/PTZ 192.168.30.41 3000 1
IPC/PTZ 192.168.30.42 3000 1
IPC/PTZ 192.168.30.43 3000 1
[□ IPC/PTZ 192.168.30.44 3000 1
IPC/PTZ 192.168.30.45 3000 1
NVR 192.168.30.49 3000 11

Figure 5.1.1.2

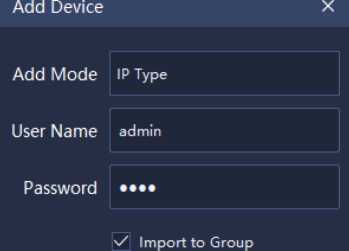

Tick and select one or more device in device column, click and a pop-up to add device will display, input the device's user name and password (it's recommended to set unified user name and password for severaldevice, if user name or password is wrong, the batch addition of partial device

will fail). If you select to import it into a group, the device will be automatically imported into the group, otherwise you need to manually add to a group, as shown in below figure:

word image 1151 32

OK Cancel

Figure 5.1.1.3

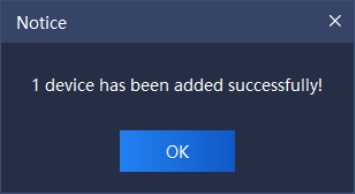

After addition, it will display the number of device successfully and

unsuccessfully added, as shown in below figure:

word image 1151 33

Click ”

O Refresh

Figure 5.1.1.4

to refresh the information of on-line device.

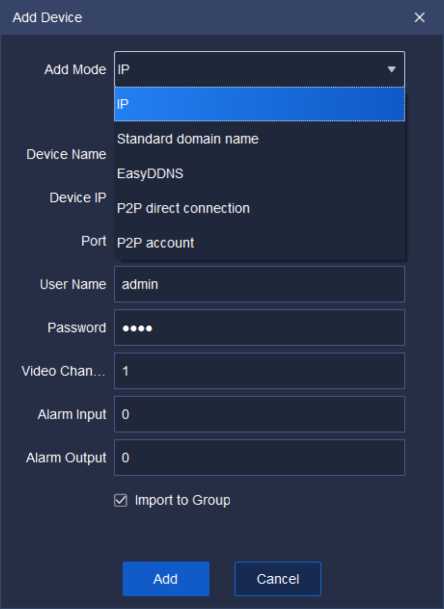

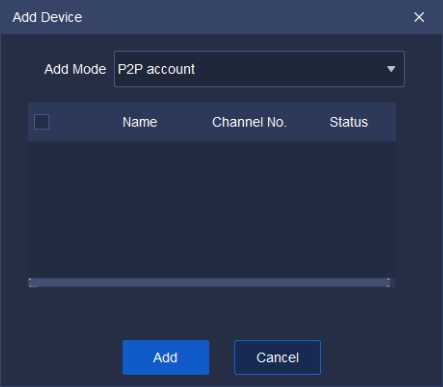

  1. 2. Encode device addition

word image 1151 34

Click

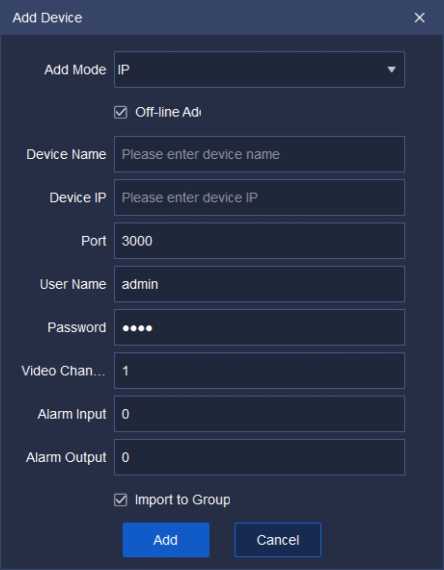

” to enter device addition interface, as shown in below

figure:

word image 1151 35

word image 1151 36

Add Device

Add Mode Standard domain name

Device Name

Device Type

DNS

Port

User Name

Password

Video Chan..

Alarm Input

Alarm Output

Add Cancel

| Please enter device name

TD series ▼

I Please enter DNS

3000

admin

••••

1

0

I» 1

0 Import to Group

Add Device X

Add Mode EasyDDNS ▼

Device Name

Device Type

DNS

Port

DNS usern…

DNS passw…

User Name

Password

Video Chan…

Alarm Input

Alarm Output

Add Cancel

Please enter device name

TD series

Please enter DNS

3000

Please enter DNS username

Please enter DNS password admin

1

0

I”

0 Import to Group

Add Device X

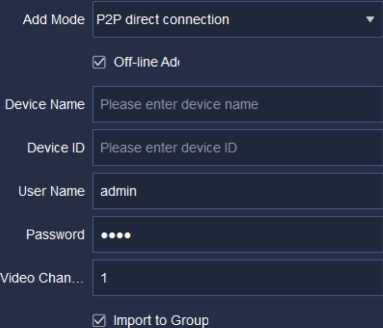

word image 1151 37

Add Cancel

word image 1151 38

Figure 5.1.1.5

Select device addition type and fill in corresponding device name, device ID, port, user name, password and video channel, and tick to select whether it's offline device addition and whether needs to import a group according to requirement, the description of related parameter information is as follows:

Parameter Description
Add Mode Select different add type: IP type, Standard domain name type, EasyDDNS type , P2P direct connection
type, P2P account number.type.
Off-line Add Tick, then both on-line and offline device can be added. Not to tick, then only on-line device can be added.
Device Name Add device name. ( There's illegal character limit when adding device name, following characters are not allowed to be input ~!#$%A
Device Type Optional device type: TD series (Tiandy series).
Device IP Add device IP.
DNS Add device DNS.
Device ID This information needs to be typed in when enabling the P2P direct connection adding model.

Find [Device ID] via Device IE->Config.->System

Config.->System Maintenance->System

Upgrading->Version Info , or Device IE->Config.->Advanced Option->System Settings, then type in the digital characters.

DNS User name It's necessary to input this information when

EasyDDNS type is selected.

DNS Password It's necessary to input this information when

EasyDDNS type is selected.

Port Add the communication port of device.
User Name Add the login user name of device.
Password Add the login password of device.
Video Channel Add the total number of video channels the device has.
Import to Group Tick, then the system will automatically add the device to Customized list and create a group (the same as device name).
Alarm Input Number of alarm input ports of the device
Alarm Output Number of alarm output ports of the device

Table 5.1.1.2

Upon correct information is input, the device will be connected, as shown in below figure:

Notice X

1 device has been added successfully!

OK

Figure 5.1.1.6

  1. 3. Encode device modification

Tick and select the device to be modified, click

& Modify

to enter device

information modification interface, as shown in below figure:

word image 1151 39

Figure 5.1.1.7

Modification of add type, device name, device type, device IP, port, user name and password, video channel and other related information supported.

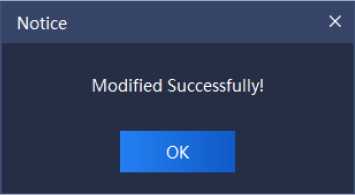

Click “Modify” to complete modification, as shown in below figure:

word image 1151 40

Figure 5.1.1.8

  1. 4. Encode device deletion

Select one or more devices to be deleted, click

□ Delete

to enter device

deletion interface, as shown in below figure:

Notice

Sure to want to delete the selected host?

OK Cancel

  1. word image 1151 41 5. Encode device invert selection

, select

Select one or more devices not to be operated, click

all devices not selected at that moment, and conduct on selected devices.

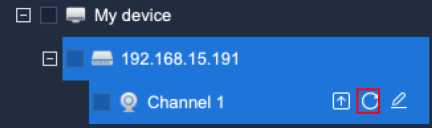

  1. 6. Encode device refresh

word image 1151 42

Click ”

to refresh the information of all devices on current page.

  1. Deciding device management

The operation is the same as 5.1.1 encode device management.

  1. Gate equipment management

The operation is the same as 5.1.1 encode device management.

Note:

  1. The device serial number is the factory number of the gate equipment, such asID060218100922201900889.
  2. When connecting the Tiandy equipment, it should be noted that the port number is 80.
  3. If the device is configured as Tiandy PAD, you need to enter PAD backend – > communication settings to configure the server address (this address is the IP address of the platform).

5.1.4. Grouping

Click “Group” to enter group management interface. Information of all devices and customized groups in current system will be displayed, as shown

in below figure:

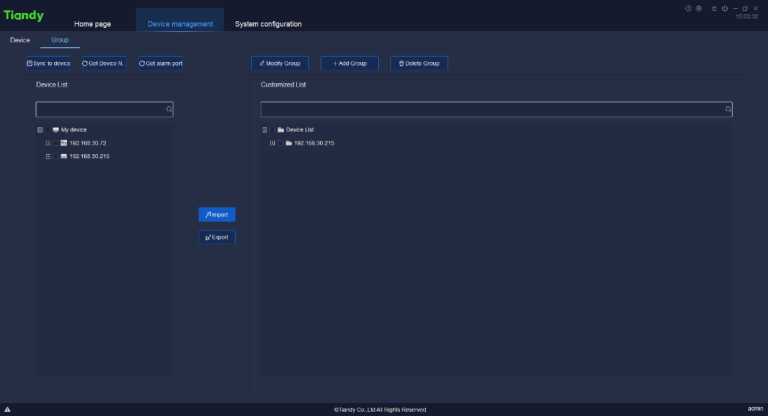

word image 1151 43

Figure 5.1.2.1

The description of related parameters in this interface is as follows:

Parameter

Description

Set the channel name on the local device tree

0 Sync to device

synchronously to the front-end channel.

Get the front-end channel name of on-line channel in

O Get Device Name

Device list.

O Get alarm port

0 Modify Group

Obtain the alarm input and output information of IPC and NVR equipment.

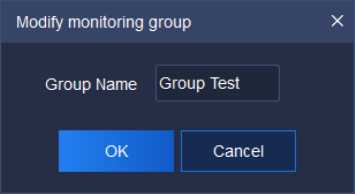

Select a group in Customized list, click to modify the group name.

+ Add Group

Select the list needs to create sub-group in

Customized list, click to add a group.

Tick and select a Customized list group, click to delete the group and delete the sub-groups and channels in the group at the same time.

□ Delete Group

/I Import

t? Export

Tick and select the channel in left Device list, select a group in right Customized list, click to import the device to the customized device list.

Tick and select the channel in Customized list group, click to export that channel.

Quick search of channel name, input key information

and the channel name including that key information

will be displayed in Device list and Customized list.
Sync to device, move the mouse to Device list channel node, click synchronize the channel name to the front­end channel, as shown in below figure:
□ C ■ My device

□ ffi 192.168.15.191

o Get the name, move the mouse to Device list channel node, click to get the front-end channel name of single channel, as shown in below figure:

£

( in Device list)

£

(in alarm list )

Modify channel name, move the mouse to Device list

channel node, click to modify the channel name, as

shown in below figure:

El H My device

□ H 192.168.15.191

Upon acquiring the alarming port information of the present equipment list channel, click to modify the name, No. and descriptions of alarming port, as shown

in the figure below:

□ ■ My device

  • □ S 192.168.30.72
  • ■ “ 192.168.30.215

âb 192 168.30.215-Alarmln 1 £

192.168.30.215 192.168.30.215-AJan âb 192.168.30.215-AlarmO…

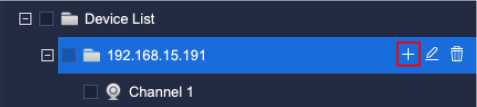

Add group, move the mouse to Customized list group, click to add the sub-group of the group, as shown in below figure:

word image 1151 44 word image 1151 45 word image 1151 46

Modify watch point group, move the mouse to
Customized list group, click to modify the name of the
( in Customized watch point group, as shown in below figure:

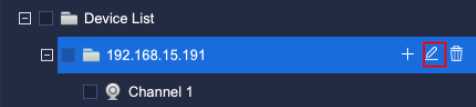

list) word image 1151 47

Delete group, move the mouse to Customized list group, click to delete the group, and delete the sub-

groups and channels in the group at the same time,
n as shown in below figure:

Table 5.1.2

The information in left Device list is the information of all added encode devices and their channels automatically generated by the system. The right Customized list is the group information customized by users themselves. To facilitate user's management, users may add the encode device on the left to the Customized list on the right as necessary. For example, to add all channels of device 10.30.10.12 in Device list to the “Group Test” in customized group of Customized list, the operation steps are:

1) Tick and select all channels of 10.30.20.12 in Device list

word image 1151 48

10.30.10.12

1) Select the customized group to be added in Customized list

(highlighted when selected)

word image 1151 49 word image 1151 50 word image 1151 51

■ Group Test

2)

Click ”

to add channels.

Similarly, select corresponding device channel in Customized list, click ”

t? Export

to delete the device channel from Customized list.

( Note:

Modules other than equipment management all load Customized list, users need to add used devices into Customized list. )

If the name of Channel 1 in device 10.30.10.21 in Device list needs to be modified, click ” —” and a pop-up for modifying device name will display (if the video has been encrypted, it can be decrypted here), as shown in below figure:

word image 1151 52

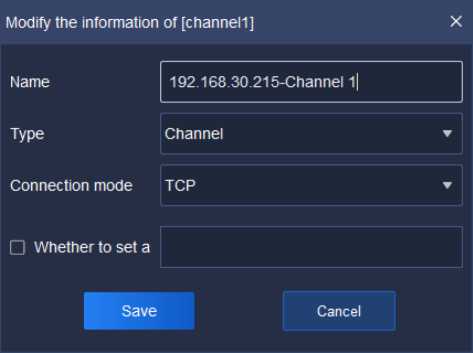

Figure 5.1.2.2

Relevant interface parameters are described as below:

Parameter Description
Name Modify the name of present channel.
Type Support the selection of both channel and bayonet.
Connection mode Support three connection modes of TCP, MCAST
(RTSP) and MCAST (SRTP). In other words, the platform supports video playing in the form of MCAST (RTSP) and MCAST (SRTP) on the real-time preview interface.
Set password or not An encrypted video password can be set after enabling. Decrypt video that has been encrypted here.

Table 5.1.3

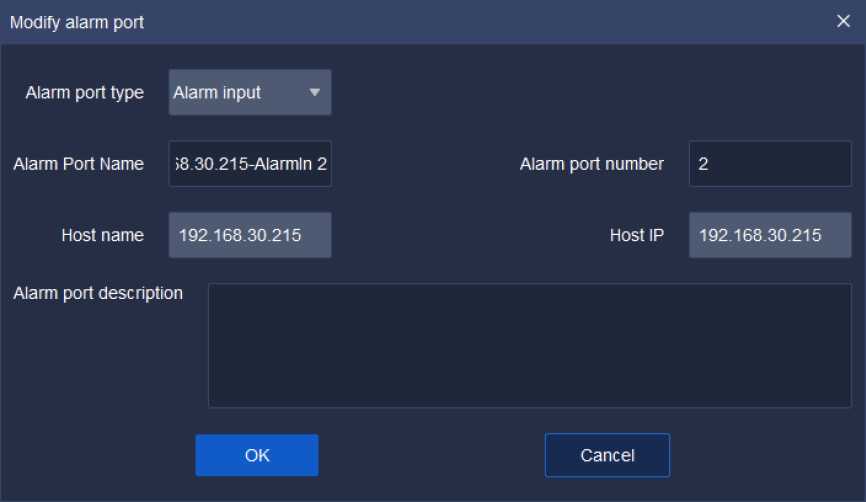

If the alarm port 2 in device192.168.30.215 in Device list needs to be modified, click ” —” and a pop-up for modifying device name will display, as shown in below figure:

word image 1151 53

Figure 5.1.2.3

Relevant interface parameters are described as below:

Type of alarming

port

Obtain the information about the present alarming port and support two types of ports, i.e., alarm input and alarm output.
Name of alarming

port

Name of alarming port can be self-defined.
No. of alarming port The No. of alarming port can be self-defined (ensure port No. cannot be repeated).
Host name Obtain name of the present host automatically. Modify host name by Equipment-> Coding device -> Modify.
Host IP Obtain the IP of the present host automatically
Descriptions of alarming port Add information about the descriptions of alarming port based as required.

Parameters

Descriptions

Table 5.1.4

Similarly, select list group in Customized list, click ” —” and a pop-up for modifying watch point name will display, as shown in below figure:

word image 1151 54

Figure 5.1.2.4

  1. Real-time preview

word image 1151 55

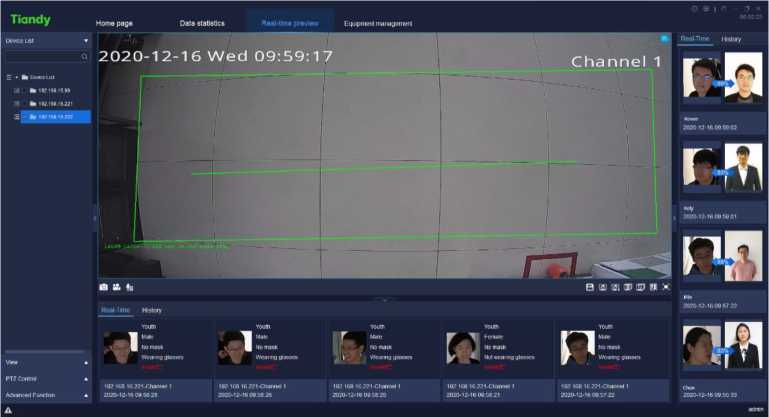

Click the real-time preview icon on the home page to enter real-time

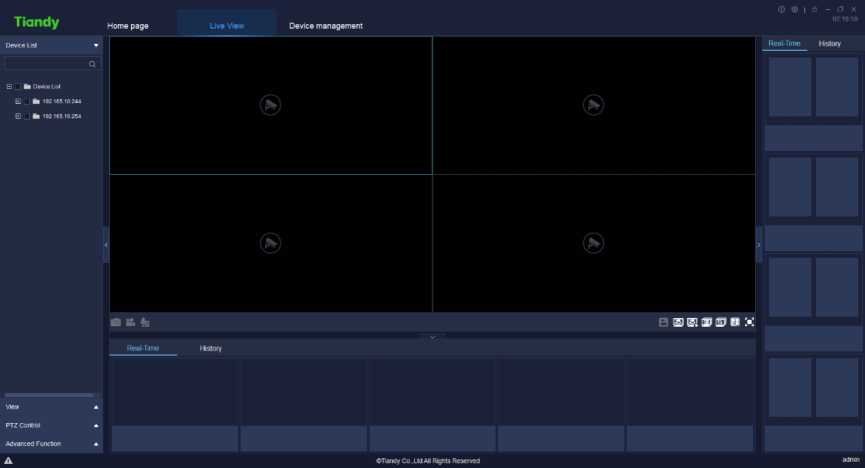

preview interface. The main interface consists of Device list, video preview

window, View, PTZ control ,Senior and Target Information, as shown in below

word image 1151 56

figure:

Figure 5.2

word image 1151 57

Click “

to unfold or hide the view boxes at the left and right sides.

word image 1151 58 to unfold or hide the view boxes below.

or

Position the channel node quickly by clicking video window.

The equipment supports video preview and broadcasting by dragging it from group list to window.

5.2.1. Device list

Click “Device list” on the left to display all customized group list and input key information in search blank, double click to check device watch point, as

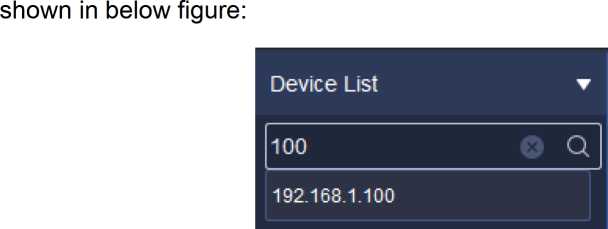

word image 1151 59

Figure 5.2.1

  1. Right key menu of encode device customized group list

Click right key on the customized group list and the right key menu of customized group list will pop up, as shown in below figure:

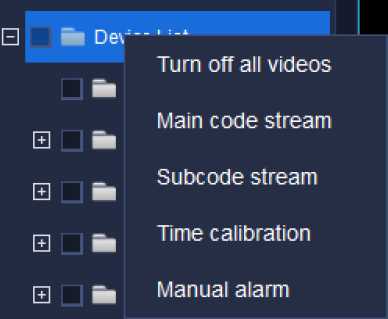

word image 1151 60

Figure 5.2.1.1

The description of related parameters is as follows:

Parameter Description
Turn off all videos Turn off all videos connected at that moment.
Main code stream All the videos in current list are added and played in
main code stream mode (as for the channel being played, the playing code stream will not be changed)
Subcode stream All the videos in current list are added and played in subcode stream mode (as for the channel being played, the playing code stream will not be changed)
Time calibration Conduct time calibration on on-line devices in all group lists.
Manual alarm Cancel the current alarm in the channel in video manually.

Table 5.2.1.1

  1. 2. Right key menu of encode device group list

Select a group in Device list and click right key, the right key menu of device group list will pop up, as shown in below figure:

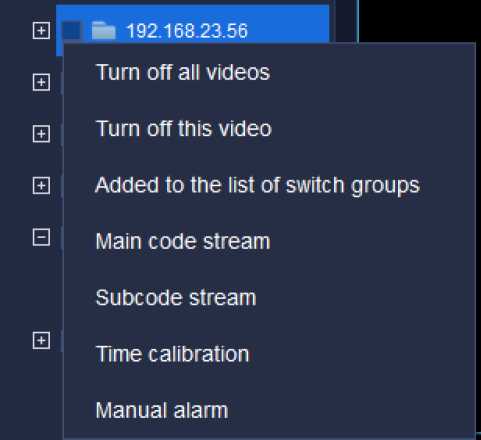

word image 1151 61

Figure 5.2.1.2

The description of related parameters is as follows:

Parameter Description
Turn off all videos Turn off all videos connected at that moment.
Turn off this video Turn off all videos connected in current group.

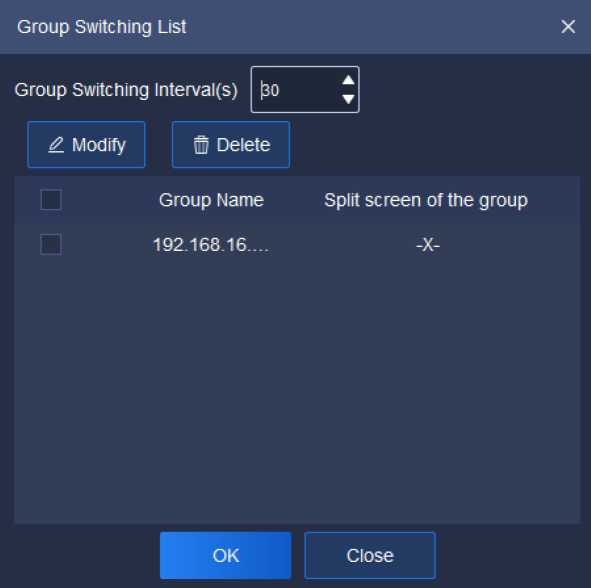

Added to the list of switch groups Add selected encode device to automatic switch group list.
Main code stream All the videos in current list are added and played in main code stream mode (as for the channel being played, the playing code stream will not be changed)
Subcode stream All the videos in current list are added and played in subcode stream mode (as for the channel being played, the playing code stream will not be changed)
Time calibration Conduct time calibration on on-line devices in selected group lists.
Manual alarm Cancel the current alarm in the channel in video manually.

Table 5.2.1.2

  1. 3. Right key menu of encode device list

Select a channel watch point of a device in device list group, click right key, the right menu of device list will pop up, as shown in below figure:

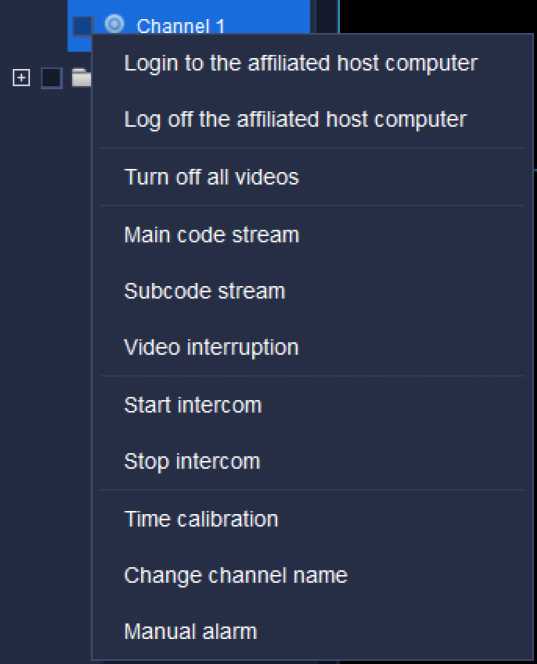

word image 1151 62

Figure 5.2.1.3

The description of related parameters is as follows:

Parameter Description
Login to the affiliated host computer Right click the encode device channel to restore the connection between the device host computer of the channel and Easy7 platform. For example, select Channel 1 in [Device List] in above figure (the affiliated host computer is 192.168.15.191), right click “Login to the affiliated host computer”, the connection status of the host computer 192.168.15.191 is on-line, as shown in below figure:

word image 1151 63

Right click the encode device channel to disconnect the connection between the device host computer of the channel and Easy7 platform. For example, select Channel 1 in [New Group] in above figure (the affiliated host computer is 192.168.15.149), right click “Log off the

affiliated host computer”, the connection status of the host

Log off the
affiliated host
computer

computer 192.168.15.149 is offline, as shown in below

figure:

Name Device Type IP address Port Video Channel Connection status EJ ■ ■ Device List
192.168.15.191 TD series 192.168.15.191 3000 1 Off line J □ ■ 192.168.15.191

n z i

192.168.15.213 TD series 192.168.15.213 3000 1 On-line Channel 1
192.168.15.149 TD series 192.168.15.149 3000 1 On-line □ ■ 192.168.15.213

EJ[ ■ 192.168.15.149

192.168.15.144 TD series 192.168.15.144 3000 1 On-line E 9 Channel 1
192.168.15.148 TD series 192.168.15.148 3000 1 On-line E fc 192.168.15.144
192.168.15.139 TD series 192.168.15.139 3000 2 On-line □ ■ 192.168.15.148 g
192.168.15.184 TD series 192.168.15.184 3000 20 On-line □ ■ 192.168.15.139 1
192.168.15.52 TD series 192.168.15.52 3000 2 On-line
  • ■ 192.168.15.184
  • ■ 192.168.15.52
192.168.15.188 TD series 192.168.15.188 3000 2 On-line □ ■ 192.168.15.188
192.168.15.197 TD series 192.168.15.197 3000 1 On-line □ ■ 192.168.15.197
Turn off all Turn off all videos connected at that moment.

videos

Main code In the channel of login encode device, click this button to
stream connect the main code stream video of the channel.
Subcode

stream

In the channel of login encode device, click this button to connect the subcode stream video of the channel.
Video interruption In the channel connected to video, click this button to disconnect the video of the channel.
Start intercom In the channel of login encode device, click this button to talk to the video source of the channel. Click this button in the channel of DVR/NVR device, the intercom box “Talking to XXXX” will pop up to start talking with DVR/NVR; click this button in the channel of IPC device, the intercom box “Talking to XXX” will pop up to start talking with IPC device.
Stop intercom In the channel of login encode device, click this button to stop the intercom with video source of the channel.
Time calibration To conduct time calibration on this on-line device.
Change channel name Change the name of currently selected channel.
Manual alarm Cancel the current alarm in the channel in video manually.

Table 5.2.1.3

Choose one alarming input port in group in the equipment list, click the right key and the right key menu of equipment list will pop out, as shown in the figure below:

Ş 192.168.30.2′

192.168.““ “

Clear alarm

  • 192.168.^.^
  • 192.168.30.2′

Figure 5.2.1.4

Relevant parameters are described as below:

Parameter Description
Manual alarm If the equipment alarm inputs alarm, click “Manual
cancellation alarm cancellation” to clear the alarm in process.

Table 5.2.1.4

Choose one alarming output port in group in the equipment list, click the right key and the right key menu of equipment list will pop out, as shown in the figure below:

word image 1151 64

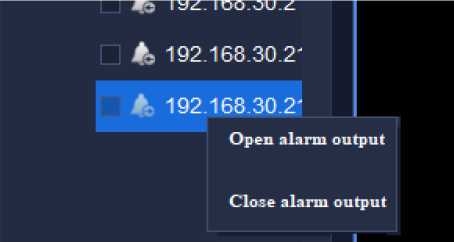

Figure 5.2.1.5

Relevant parameters are described as below:

Parameter Description
Open/close alarm Control the on/off status of alarm output port.
output

Table 5.2.1.5

  1. Video preview window

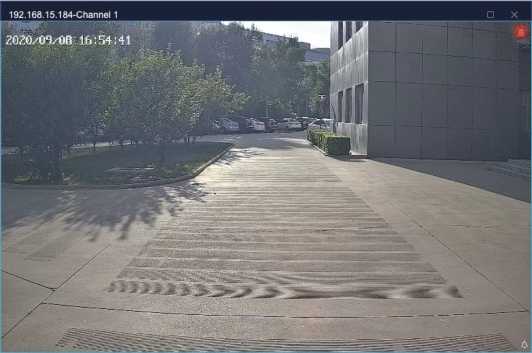

In video preview window, the video will be displayed in the middle, capture menu, video menu and sound menu are in the left lower part, menus can realize its function respectively. Double click video window to maximize it and double click it again to restore, as shown in below figure:

word image 1151 65

Figure 5.2.2.1

During the video preview, the split screen window will self-adapt to the video according to the number of linked videos, and it supports the real-time video playing of devices added in various ways.

The target bar in the below will display human face information, age, sex, whether or not wearing a mask, whether or not wearing glasses and physical temperature, etc.

The target bar in the right will display the comparison similarity result with the human face database, and the strangers' face will not be displayed.

When previewing video, the target bar on the right side can display the real-time detected face information.

When previewing video, the status bar at bottom left (in dark color) may display current channel is connecting respectively, audio preview, capture function, instant playback and channel video recording are supported. The channel name will be displayed at bottom right, when the alert is turned on, the right upper corner of the video window will display the alert icon and not to

display it when the alert is turned off, as shown in below figure:

word image 1151 66

Figure 5.2.2.2

  1. Toolbar in video preview interface

The description of icons in toolbar in video preview interface is as follows:

Icon
Capture all, to capture windows of all connected
videos at current screen.
ilil Start all recording, record windows of all connected videos at current screen.
fc Intercom list, display current intercom status.
Save view, users click to save current view information.
S Rotating display plan, allow users to set their own switch mode, so that Easy7 can automatically switch video channels on [Real-time preview] interface for users' convenient browse.
El Start rotating display, automatically switch video channels to preview according to rotating display plan.
Group switching list, click this button to display group switching list. There will have devices in the list only when right click the device group in customized device list of device list on the left to select and add devices to [Add to group switching list].
|jF|j Last group, which supports the manual switch group to switch the last screen of group.
[5~j] Start/Stop group switching, open video window, click this button to conduct group switching; click again to
stop group switching.
Next group, which supports the manual switch group to switch the next screen of group.
o Set number of video views, click and the setting menu of displayer will pop up.
m Full screen, click to display video window at full screen. Click ESC button or right click the video to cancel full-screen display to escape from full-screen model.
Gb Indicate that the video connecting status is direct connection
e Turn off the video, i.e. disconnect the connection of present video.
*»/♦ Turn on audio / Turn off audio
Screen capture, capture the picture of the present videoo
!& Turn on tape recording / turn off tape recording
Instant replay, which supports timely view of present playback based on demands. The time of instant replay can be modified according to System settings -> Video-related -> Time of instant playback.

Return to preview to exit the page of instant playback.

Table 5.1.2.1

  1. 2. Right key menu of video preview window

Right click video preview window and the right key menu of video preview window will pop up, as shown in below figure:

word image 1151 67

Turn off the video

Audio pre-view

Snap shot

Adjust the video's aspect ratio

control

Switching of main code and subcode streams

16:9

Video parameter

16:10

9:16

Time calibration

Change channel name

Full screen

Clear alarm

✓ Defence

Figure 5.2.2.3

The description of related parameters is as follows:

Parameter Description
Turn off the video Click on the single video window of connected video to turn off the video in the window.
Audio pre-view Click on the single video window of connected video to listen to the audio of video channel in the window.
Snap shot Click on the single video window of connected video to take snap shot of the window.

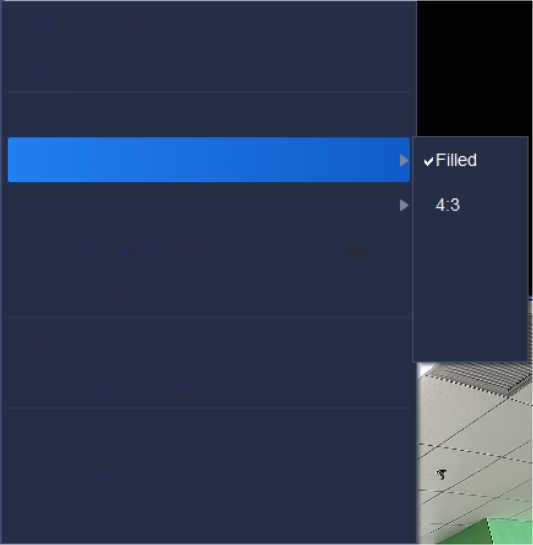

Adjust the video's aspect ratio Adjust the video's aspect ratio, filled, 4:3, 16:9, 16:10 and 9: 16 supported.
Control Electronic amplification and fast ball 3D control are available.
Electronic amplification After enabling the electronic amplification function, press and hold left button of mouse and move the mouse in video & image area to choose the area you want to amplify (roll the pulley of mouse to amplify the image in the area chosen).
Fast ball 3D control By clicking mouse, the scenes monitored are adjusted to video center. In detail:
  1. Click the left button on the point of monitored video and the point will move to center of the video.
  2. Press and hold the left button and move the mouse downward and rightward to choose a rectangular area. The center of the rectangular
area chosen will move to the center of the video and amplify.

3. Press and hold the left button and move the mouse upward and leftward to choose a rectangular area. The center of the rectangular area chosen will move to the center of the video and shrinks.

Switching of main code and subcode streams Auto switch between main code and subcode streams. Support simultaneous switch among native video.
Video parameter Set the display parameter of currently selected video: brightness, contrast, saturation and Hue.
Video parameter X

50 *

Brightness •

50

□ Contrast *

50

Q Saturation ®

50

• Hue •

/♦Restore Default

Modify video parameters of selected video, restore default supported.
Time calibration Conduct time calibration on the on-line device.
Change channel name Change the name of currently selected channel.
Full screen Display video view window at full screen.
Manual alarm Cancel the current alarm in the channel in video manually.
Defense Support one-key defense
deployment/withdrawal function.

Table 5.2.2.2

  1. 3. Rotating display plan

The main function of rotating display plan is to allow users to set their own switch mode, so that Easy7 can automatically switch video channels on [Live

View] interface for users' convenient browse. Notice: A Liveview window supports up to 64 Cameras previews.

  1. word image 1151 68 Add view:

After configuring the split screen scheme and the video played, click

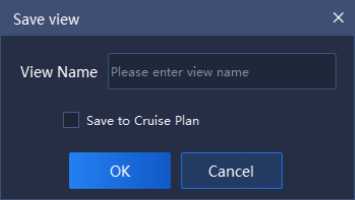

” in preview interface toolbar to save view, as shown in below figure:

word image 1151 69

Figure 5.2.2.4

  1. Add rotating display plan:

Click view bar on the left and select the view to be added, right click “Add to the regular rotating switch program”, as shown in below figure:

Device List

View

test-face

Name change

Added to the regular rotating switch program

Delete

Figure 5.2.2.5

  1. word image 1151 70 Set rotating display plan: in preview interface toolbar in bottom right to enter to List of

Click

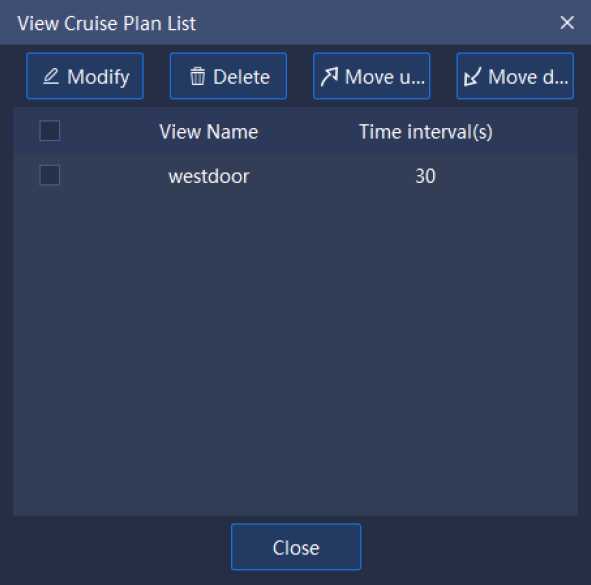

view rotating display plan interface, as shown in below figure:

word image 1151 71

Figure 5.2.2.6

(1) Change the rotating display intervals: tick and select the view to

be modified, click ”

0 Modify

too change the rotating display interval (the

range of interval value is 30~3600s), as shown in below figure:

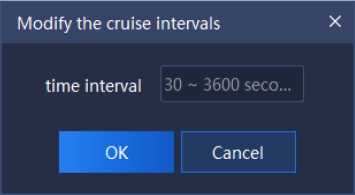

word image 1151 72

Figure 5.2.2.7

(2) Delete: tick and select the view to be deleted, click

n Delete

to

delete the view, as shown in below figure:

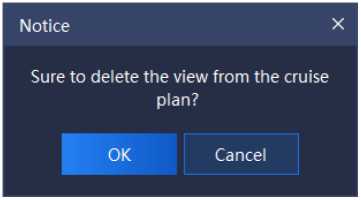

word image 1151 73

Figure 5.2.2.8

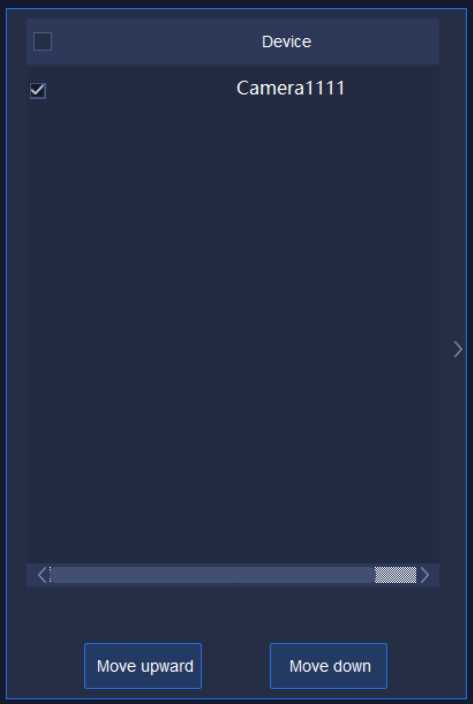

(3) Move upwards/Move down: tick and select the view to be moved,

click ”

/I Move upward

t/ Move down

” to adjust the view play order.

  1. Turn on/Turn off rotating display plan:

Click ” 3 k” in preview interface toolbar on bottom right to turn on rotating display plan, click again to turn off rotating display plan.

  1. 4. Group switching setting
  2. Add group switching:

Right click a group in “Device list” on the left, click “Add to group switching list” to add group switching, the pop-up notice box is shown as follows:

Notice X

Succeeded to add to view cruise plan.

OK

Figure 5.2.2.9

  1. Set group switching:

word image 1151 74

Click

in preview interface toolbar on bottom right to set interval and

group split screen number of group switching, as shown in below figure:

word image 1151 75

Figure 5.2.2.10

(1) Set group switching interval: set group switching interval in upper part of the interface, the range of interval value is 30~3600s.

(2) Set split screen number, -x- screen (not to change split

screen number and keep original split screen number), 1×1 screen and 2×2 screen supported. Two methods can be adopted

to change split screen number, explained as follows:

©Click ”

0 Modify

to enter Set Split Screen Number

interface;

©Double click the split screen number in Group Split

Screen to set enter Set Split Screen Number interface, as shown in below figure:

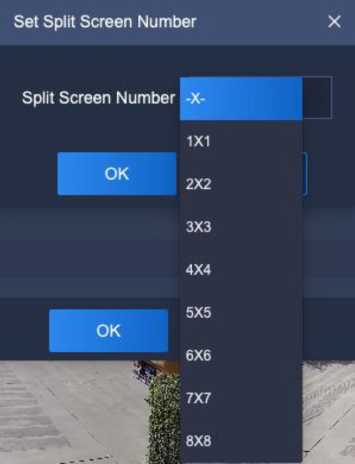

word image 1151 76

Figure 5.2.2.11

  1. Turn on/Turn off group switching:

Click “^^” on preview interface toolbar on bottom right to turn on group switching, click again to turn off group switching.

5.2.2. 5. Target Information

Under and in the right of real-time preview interface, display information of identified persons and the comparison human face database, as is shown in below figure:

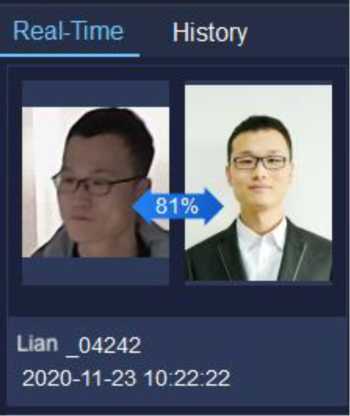

word image 1151 77 word image 1151 78

Real-Time

Youth

Male

No mask

Wearing glasses

192.16 8.16.22.1-Channel 1

2020-11 -23 10:24:29

Figure5.2.2.12

The target information can identify the person's age, sex, whether or not wearing a mask, whether or not wearing glasses, detected physical temperature and detection time in real time. At the same time, it can also identify whether the person matches in the human face database. If yes, it can be compared with the pictures uploaded in the database, and the similarity, the name of the person and the detection time will be displayed, otherwise stranger alarm will be on.

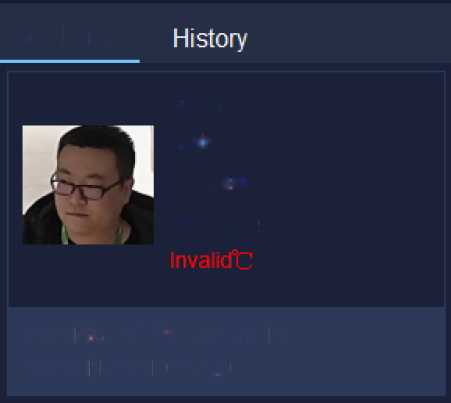

If previous record needs to be checked, shift to “History” to check history information.

5.2.3. View

View list shows currently saved view tag, double click to preview the information of this view. Right click this list view node and a menu will pop up, as shown in below figure:

Name change

Added to the regular rotating switch program

Delete

Figure 5.2.3

The description of related parameters is as follows:

Parameter Description
Name change Click to change view name.
Add to the regular Click to add the view to the regular rotating switch plan
rotating switch plan list.
Delete Click to delete this view information node from view list.

Table 5.2.3

5.2.4. PTZ control

PTZ control may control PTZ speed, preset, etc., as shown in below figure:

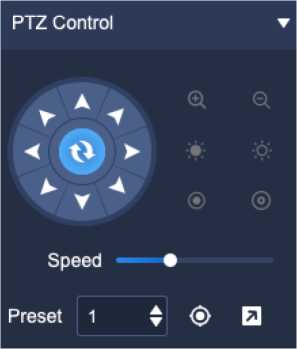

word image 1151 79

Figure 5.2.4

The description of icons on PTZ control interface is as follows:

Description

Icon

8-direction key, press corresponding direction key to control PTZ to rotate in the direction accordingly; the center button is scan shortcut key.
Zoom control button, press “Q” to control the device to perform zoom-out operation, the field of view angle becomes larger and the scene becomes smaller; press “,ja” control device to perform zoom-in operation, the field of view angle becomes smaller and the scene becomes larger.
•*/* Focus control button, press “^ ” to control the device to perform focusing-in operation, the near scene is clear and the far scene is fuzzy; press ” “ ” to control the device to perform focusing-out operation, the far scene is clear and the near scene is fuzzy.
Aperture control button, press ‘©” to control the device to perform aperture reduction operation, press “A:” to control device to perform aperture enlargement operation.
The slider can adjust the rotation speed of the
■Speed ♦ 1
device.
Set the preset number for calling.
Call the preset. Select saved preset, click to call and the screen will jump to the preset part.
EJ Set the preset. Select the preset number to be saved, adjust the screen to the preset to be saved, click Set to save this position.

Table 5.2.4

5.2.5. Senior

Senior may set the light, power and wiper, as shown in below figure:

word image 1151 80 word image 1151 81

Advanced Function

Figure 5.1.5

The description of related parameters is as follows:

Parameter Description
Light

Open

Close j Open/close light.
1 Power

Open

j Close j 1 Open/close power.

word image 1151 82

Open wiper.

Table 5.2.5

5. 3. Video playback

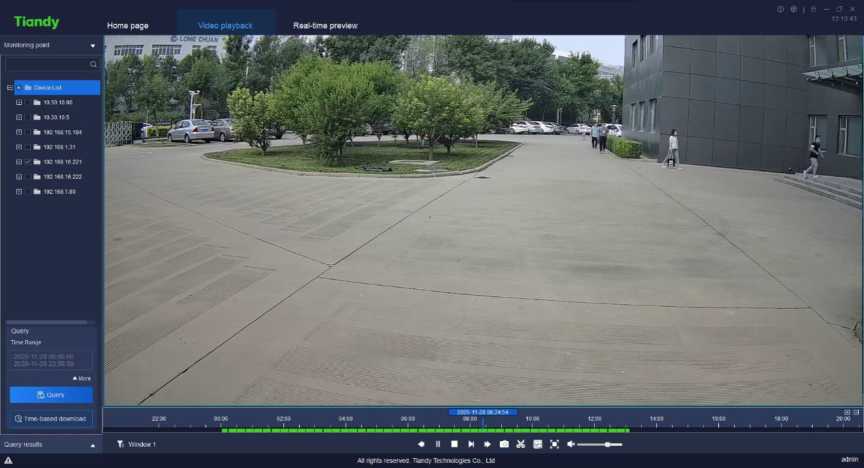

word image 1151 83

Click the video playback icon

on home page to enter video playback

interface, query of video recording and time-based video downloading are

word image 1151 84

supported, as shown in below figure:

Figure 5.3

5.3.1. Video query

In video playback interface, click Watch point on the left, set range of time

for query, if more precise query is required, click

▼ More

to set storage type,

stream type and other screening conditions for query, then click

a More

again

to hide detailed screening condition, as shown in below figure:

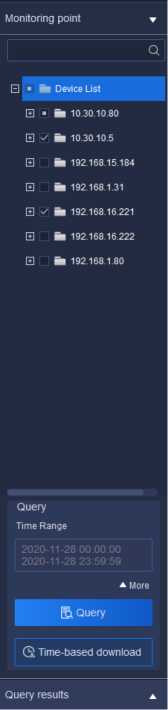

word image 1151 85 word image 1151 86

Monitoring point

Figure 5.3.1.2

El ■ fa Device List

El !■ fa 10.30.10.80

El \Z fa 10.30.10.5

El I fa 192.168.15.184

El □ fa 192.168.1.31

El 0 fa 192.168.16.221

□ fa 192.168.16.222

El I fa 192.168.1.80

Query

Time Range

2020-11-28 00:00:00

2020-11-28 23:59:59

▼ More

Storage location

Remote storage

Stream type

Mainstream

El Query

(5 Time-based download

Query results j

Figure 5.3.1.1

Select range of time, select the start time on the start calendar of the time range and the end time on the calendar for the end time.

When front-end storage is selected in storage type, following stream types can be selected, both main code stream and subcode stream supported.

When conditions are selected, click Query to display query result notice box, as shown in below figure:

Click

Query results

below to check current query results, the

expanded interface is shown in below figure:

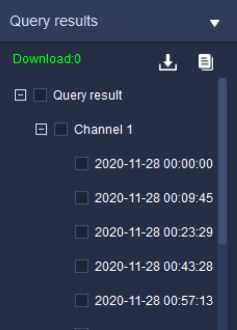

word image 1151 87

Figure 5.3.1.3

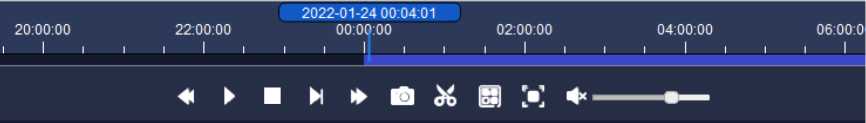

At this time, the query results will be displayed on the progress bar, and users can playback by clicking the time point on the progress bar

Note: The front-end storage video supports synchronous playback (four- channel synchronous playback supports at most).

  1. Video playback

Play mode 1: for queried videos, double click one video file to realize playback of the file.

Play mode 2: select a playback window, click ► of playback control to realize video playback on time axis related to selected window.

Play mode 3: select a playback window, directly click the time point in time axis to play back from that time point.

5.3.2.I. Playback control

The playback control menu is shown as follows:

word image 1151 88

Figure 5.3.2.1

The description of icons on playback control interface is as follows:

Icon Description
On/off synchronous playback; asynchronous playback is set by default. Click to enter synchronous playback mode and click again to exit it. Note: Synchronous playback not supported for local video.
Slow forward button, click to make the video file play slowly.

Note: as for the equipment added by P2P direct connection, click the “slow play” button to slow from 4x to 2x and from 2x to 1x. 1x speed is the slowest. 1/2 speed is not supported.

Fast forward button, click to make the video file play quickly.

Note: the equipment added by P2P direct connection supports 4X speed playing at most.

► / II Play/Pause button, click to control the start/pause of video file.
N Step forward button, click to make the video file play frame by frame.
Stop button, click to stop the playback of current video file.
Ut*) Capturing button. Click it to capture the video file that is selected and being played.
& Video clip button: click it to start video clip and click it again to finish that. The time axis of clipped section will become red and the target section will be saved. The format of video saved can be modified by setting “system settings -> video -> download video format”; three formats sdv ,mp4, and avi are available.
o Set screen number button, click to pop up the menu of playback window split screen.
1×1 screen playback supported, click and the video playback window will display in single screen.
1×2 screen playback supported, click and the video playback window will display in two split screens.
1×3 screen playback supported, click and the video
playback window will display in three split screens.
2×2 screen playback supported, click and the video playback window will display in four split screens.
3×3 screen playback supported, click and the video playback window will display in nine split screens.
■■■■ ■■■■ 4×4 screen playback supported, click and the video playback window will display in sixteen split screens.
M Full screen display button, click to display the playback window in full screen. Click ESC or right click to cancel full screen display to turn off full screen display.
Volume adjustment bar, drag to adjust the sound of video playback. Click on the horn to turn sound on/off.
□/□ Used to adjust the accuracy of time axis.
Window 1 Display the current control window number.
Video type filter button, click to filter the video time axis type, and the time axis of unselected video type will not be displayed. The filter of all types, alarm recording, timing recording and manual recording is supported.

Table 5.3.2.1

  1. 2. Right key menu of playback window

In video playback window, right click, and the right key menu of playback window will pop up, as shown in below figure:

Stop playback

Snap shot

Change channel name

Full screen

Electronic zoom

Figure 5.3.2.2

The description of related parameter is as follows:

Parameter Description
Stop playback Click to stop the playback of current video.
Snap shot Click to snap shot of selected playback window.
Change channel name Click to change channel name of selected playback window.
Full screen Click to display the playback window at full screen.

Click again to turn off full screen display.

Electronic zoom Click the left button of mouse to choose and zoom in the area.

Table 5.3.2.2

  1. Video downloading

The downloading is divided into two modes: by file and by time segment.

5.3.3.I. Download by file

  1. Batch downloading:

In video playback interface, click query result to check query result interface, tick and select several video files and right click, click “^J” to conduct

batch downloading, as shown in below figure:

word image 1151 89

Figure 5.3.3.1

Click ” ” to enter export progress list interface to check the progress of

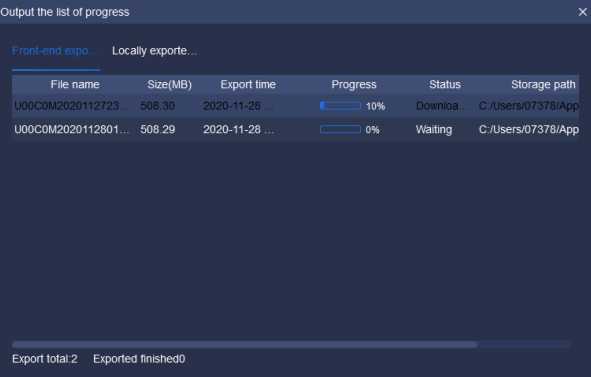

file downloading, as shown in below figure:

word image 1151 90

Figure 5.3.3.2

  1. Stop export:

In export progress list, select the file needs to stop export, right click this

file, select

Stop Export

to stop downloading the file, as shown in below figure:

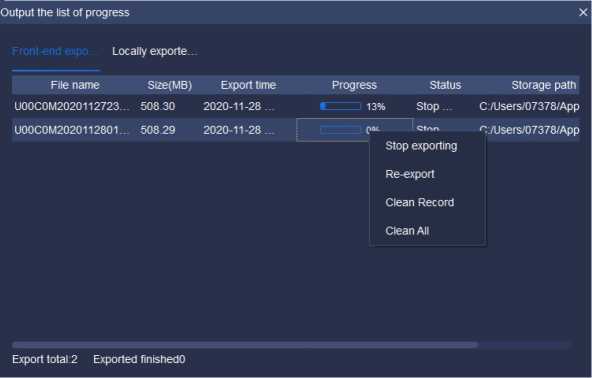

word image 1151 91

Figure 5.3.3.3

  1. ReExport:

In export progress list, select the file needs to re-export, right click this file,

select ”

ReExport

to export this file again to download.

  1. Clean record:

In export progress list, right click a file, select

Clean Record

to delete all

downloaded records.

  1. Clean all: downloaded records in the list.

In export progress list, right click a file, select

Clean All

to delete all

( Note: When downloading front-end storage video files, only one record file can be downloaded at the same time. )

5.3.3. 2. By time segment

The video on the front-end storage supports downloading by time segment.

Select the channel you want to download (either through the drop-down menu or by clicking the channel in the tree list), select the time segment youwant to download, and then click ”

  1. Recent browsing

Q Time-based download

Record the latest video and click to preview it , as shown in below figure:

Recent browsing

192.168.16.221-Channel 1 2020-11-28 00:00:00

Figure 5.3.4

5.4. System Configuration

Click the system configuration icon I J on home page to enter system settings interface.

  1. Common settings

word image 1151 92 word image 1151 93 @ © I e (!) – □ x 16:12:10

Figure 5.4.1.1

admin

The description of related parameters in the interface is as follows:

Parameter Description
Login

Settings

Automatic Login

Software

Tick and select, after fill in correct [User name] and [Password] by users, Easy7 will realize automatic software login function when the operation system starts.

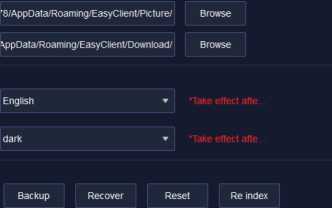

Path Setting Save path of capture photo The save path of capture, preview and playback photo.
Video Download

Save Path

The save path of video download.
System Language Set the language of software system, effective after restart.
Skin Set the skin of software system, effective after restart.
Data backup Data backup path Back up, recover, clean up and re­index software database backup

files.

Configuration Import/export relevant configuration information with one key, such as equipment list, user authority and
electronic map.
Log Settings Period of keeping operation log Set the save time of each operation log.
Period of keeping

alarm log

Set the save time of each alarm log.
Restore Default Restore the configuration of current page to the configuration information when initially installed.

Table 5.4.1

  1. Video Settings
Tiandy Home page configuration
ijt Common Settings
Qi Video Settings ■| □ Automatically restore the stat.
A Alarm grade
Switch between Main and Su… (•) Automatic O Manual
ft Storage management
4b Intelligent application Automatic Switching Screen…
i3i P2P setting Manual Default Connection Substream 1
Play property setting Good fluency | * Take effect after replaying video
Decoding mode setting Software decode | ‘Take effect after reboot
Video download format SDV format 1
Preview frame rate tilde * Take effect after replaying video

Figure 5.4.2

The description of related parameters in the interface is as follows:

Description

Parameter

Automatically restore the state last time you exit from the system The video connected to video preview, when turns on the software again, the video before turn-off will restore connection.
Switch between

Main and Sub

Streams, Automatic

Switching Screen

Number

Set switching screen number, when the number of windows displayed in the client-side video browsing interface is greater than the number of split screens, the connected channel video will default to the subcode stream.
Manual Default

Connection

Set the code stream type of default play.
Play property setting Available to set Good fluency/Minimum delay. Take effect after replaying video.
Decoding mode

setting

Software decode and hardware decoding are supported, effective after restart. Take effect after reboot.
Video download

format

The download recording may set SDV (private format) ,MP4 (general format) and AVI format.
Preview frame rate Show or conceal frame rate on preview screen. Take effect after accessing video again.

Table 5.4.2

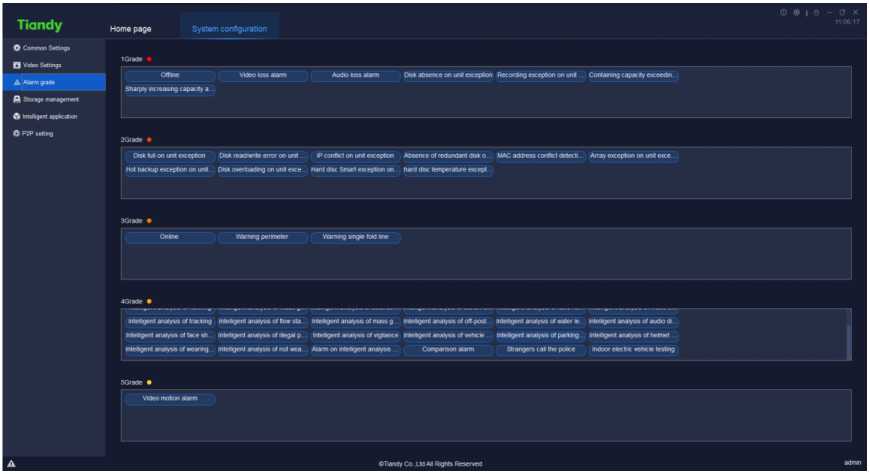

5.4.3. Alarm grade

word image 1151 94

Figure 5.4.3

Drag the alarm type label to other grades to set the type to a new grade.

Alarm grade is used for alarm record filter.

  1. Storage management
Tiandy Home page Device management System configuration a û – □ X 16:14:01
Common Settings
Continuous record!… 30
Q Video Settings
A Alarm grade Record format sdv
fl Storage management
Type of recor. .. Mainstream 71
Intelligent application I
ÖI P2P setting Min. disk space ® By percentag … O By space
10 %
Disk Tull ® Delete data^ Stop storing data
storage local… Location Total size (G) railable space f1; Available space (G)
Store face snapshots and I… □ C'J 150 46.5 70
DJ 261 38.5 100
□ E7 260 7.8 20
260 80.5 209
Restore Default Save
A ©Tiandy Co.,Ltd All Rights Reserved admin

Figure 5.4.4

The description of related parameters in the interface is as follows:

Parameter Description
Continuous recording

time (min)

Set the time of continuous recording (recording packaging), the time range is 5~120 min.
Record format SDV format , mp4 format and AVI format are supported for recording storage.
Type of record streaming Main code stream and minor stream supported.
Min. disk space Supported to set by percentage (%) or by space (G), fill in corresponding parameter in the text box below.
Disk full Supported to select and delete the earliest local recording or stop recording.
Storage location Set the storage location of files.

Table 5.4.3

  1. Intelligence application

word image 1151 95

Figure 5.4.5

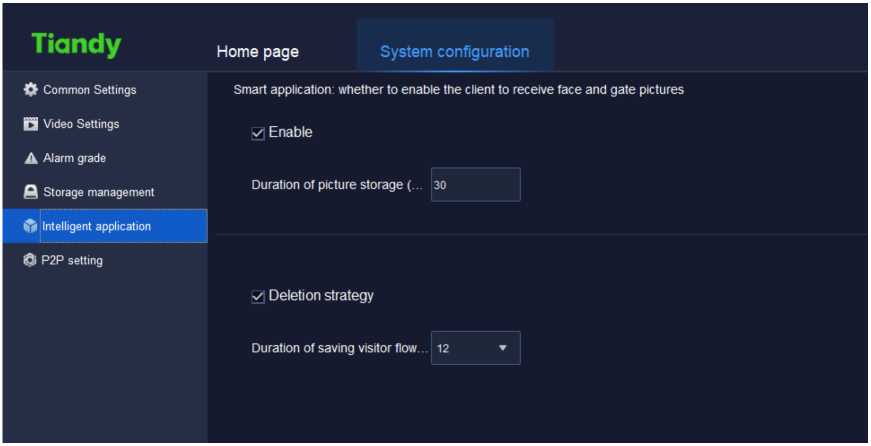

After ticking “enable intelligent applications”, pictures of human face and man lock can be received. The picture snapshot reserve time can be defined for actual need.

After checking deletion strategy, the strategy can be executed after the upper limit of the stored guest flow duration (6-24 months be supported to choose from) is reached.

5.4.6. P2P setting

word image 1151 96

Tiandy

Home page

System configuration

Common Settings

Q Video Settings

A Alarm grade

a Storage management

ft Intelligent application

©P2P setting

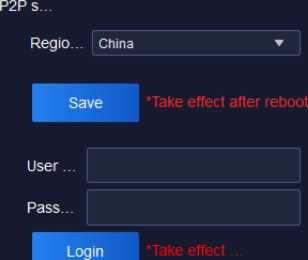

Figure 5.4.6

Parameter Description
Region The place of P2P equipment configuration
User name Enter the user name of P2P mobile phone client side
Password Enter the password of P2P mobile phone client side
Log in Enter correct user name and password to log in successfully.
Save Click “save” to save the current configuration. That

The description of related parameters in the interface is as follows:

takes effect after restarting the program.

Table 5.4.6

5. 5. Alarm management

word image 1151 97

Click the alarm management icon

on home page to enter alarm

management interface.

  1. Real-time alarm

Real-time alarm list displays the alarm received after this login. The list will be refreshed automatically, time of alarm, source of alarm, type of alarm, alarm grade and other alarm information will be displayed, as shown in below figure:

® a l a – □

Tiandy Homepage Alarm management

Real-time alarm History alarm

cnee* C)>) Finer level j Select all £ Grade 1 • 0 Grade 2 • £ Grade 3*0 Grade 4 • Grade 5 •
Time of alarm Source of alarm Alarm Type Alarm status Preview Alarm grade
A 2021-11-2511:17:35 192.168.23.53-Channei 1 Video motion alarm Alarm Play 5Grade •

2021-11-25 11:17:33 192 168 23 53-cnannet 1 Video motion alarm Alarm removal 5Grade •

2021-11-2511:17:22 192 168 23 53-Channei 1 Video motion alarm Alarm Play 5Grade •

2021-11-2511:17:04 192.168.23.53-Channet 1 Video motion alarm Alarm removal 5Grade •

2021-11-2511:16:36 192.168.23.53-criannet 1 Video motion alarm Alarm Play SGrade •

2021-11-25 11:16:33 192 168 23 53-cnanriet 1 Video motion alarm Alarm removal 5Grade ■

2021-11-2511:16:13 192 168 23 53-Ctiannet 1 Video motion alarm Alarm Play 5Graae •

2021-11-2511:16:11 192.168.23.53-Channei 1 Video motion alarm Alarm removal 5Grade •

2021-11-2511:16:00 192168 23 53-cnannei 1 video motion alarm Alarm Play 5Grade •

2021-11-2511:15:29 192168.23 53-Channei 1 Video motion alarm Alarm removal 5Grade •

2021-11-2511:15:19 192168 23 53 Channel 1 Video motion alarm Alarm Play 5Grade •

2021-11-2511:15:09 192168 23 53-Channet 1 Video motion alarm Alarm removal SGrade •

2021-11-2511:12:52 192.168-23.53-Ctiannet 1 Video motion alarm Alarm Play 5Graae •

2021-11-2511:12:47 192168 23 53-Channet 1 Video motion alarm Alarm removal 5Grade ■

HI 0-33 1Ü5 1Î ‘1 (“hanrö 1 Vvtan mntirm alarm Ham mrwu ■

CTianoy Co .Ud Ail Rights Reserved 3

Figure 5.5.1

The description of related parameters in the interface is as follow:

Parameter Description
Check Tick and select alarm records need to be checked, click to fill in handling suggestion, the checked alarm
records will be removed from real-time alarm, the handing suggestion and checking status will update to the history alarm record of corresponding alarm record.
Audio Click to turn on/off alarm audio.
Play Click to play the video 10s before and after the time of alarm, if there's no video, real-time preview will be displayed.
Filter level Tick and select filter level, the selected level will be displayed in the list, nothing will be displayed if on level selected.

Table 5.5.1

5.5.2. History alarm

History alarm list displays all alarms, including checked and unchecked alarms, as shown in below figure:

Tiandy Home page Alarm management © 8 | 0 – O X 11:17:56
Real-time alarm i History alarm
Starling time 2021-11-25 00 00 00 E Endtime 2021-11-2523 50 59 E
Source ol alarm Alarm Type • status check *• > User check . «II ' 1 Query Reset
Check Output Fitter level g Select all v Gradel •/ Grade 2 • -■ Grade 3 • g Grade 4 • s Grade 5 •
Tame of alarm Source of alarm Alarm Type Alarm status Preview Alarm grade Status check User check Time chec
2021-11-25 1117:35 192 1662353-Chanoel 1 Video motion alarm Alarm Play 5Grade Moi confirmed
2021-11-2511:17:33 192.166.23.53-Ctiarwiel 1 Video motion alarm Alarm removal 5Grade Not confirmed
2021-11-25 11:17:22 192.168.23.53-Cnantiel 1 video motion alarm Alarm Play 5Grade Hot confirmed
2021-11-25 11 17:04 192 168 23.53-Ctiannel 1 Video motion alarm Alarm removal 5Grade Not confirmed
2021-11-2511 16:36 192.168.23.53-criarmei 1 Video motion alarm Alarm Play 5Crade Not confirmed
2021-11-2511:16:33 192 1662353-Cnanoel 1 Video motion alarm Alarm removal 5Grade Not confirmed
2021-11-2511:16:13 192.166.23.53-CtiarMiel 1 Video motion alarm Alarm Play &Grade Not confirmed
2021-11-25 11 16:11 1921682353-cnanoeı i Video motion alarm Alarm removal 5Grade Not confirmed
2021-11-251116:00 192 1662353-Ctiarwel 1 Video motion alarm Alarm Play SGrade Not confirmed
2 3 > To 1 Page
A C Tiandy Co .Ltd Ail Rights Reserved admin

Figure 5.5.2

The description of related parameters in the interface is as follows:

Parameter Description
Starting time Available to set the starting time of history alarm query.
End time Available to set the end time of history alarm query.
Source of alarm Available to set the source of alarm of history alarm query, search by key word supported.
Status check Available to set the checking status of history alarm query, including all, unchecked and checked.
User check Available to set the checking user of history alarm query
Query Click to search history alarm information conforms to search condition.
Reset Click to restore to default query condition.
Check Tick and select alarm records need to be checked, click to fill in handling suggestion. Update verification status, verify users, verify real-time, and process comments after verification.
Output Click to output query results to local device.
Filter level Tick and select filter level, the selected level will be displayed in the list, nothing will be displayed if on
level selected.
Play Click to play the video 10s before and after the time of alarm, if there's no video, real-time preview will be displayed.

Table 5.5.2

word image 1151 98 5.6. TV Wall

Click the TV wall icon

on homepage to enter TV wall configuration

interface. There are functions of TV wall configuration, TV wall management

word image 1151 99

and off-line switch settings as shown below.

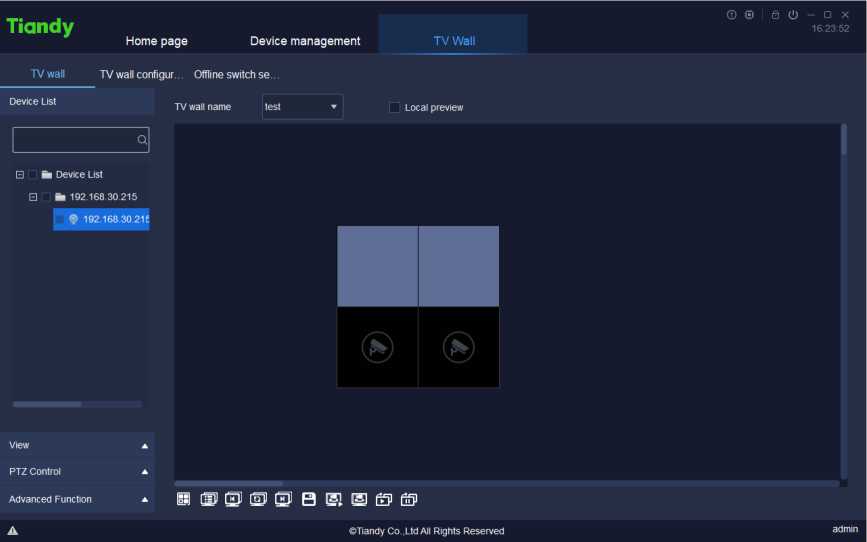

Figure 5.6

  1. TV wall

TV wall interface is mainly used for configuring TV wall video display.

  1. TV Wall Video Configuration

Choose TV wall name on TV wall page to show the current TV wall layout.

Choose a screen that needs video equipment. Choose the video equipment to be added in the left equipment list. One equipment can be added for only one

time.

word image 1151 100

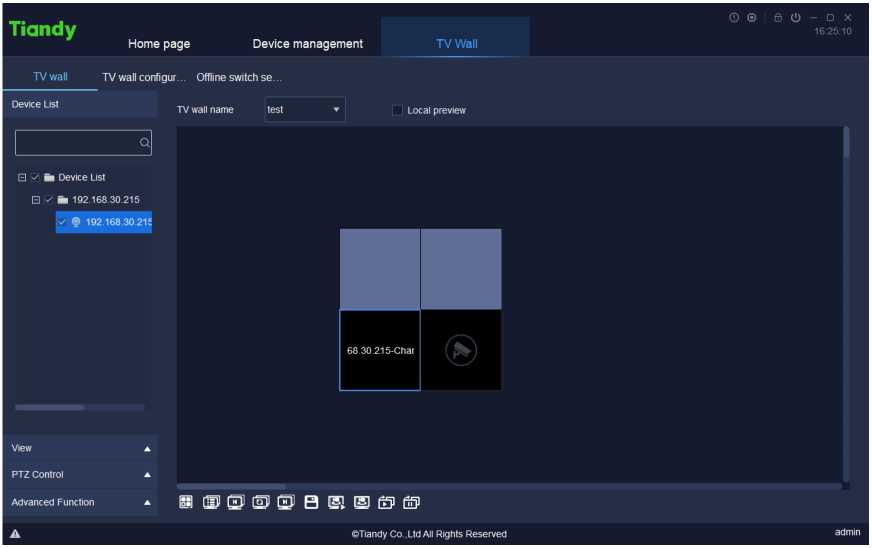

Figure 5.6.1.1

The relevant icons and parameters on the interface are described below:

Parameter Description
Local preview After starting preview, videos can be previewed on current TV wall interface.
(M) Set the quantity of screens. 1 screen, 4 screens, 6
screens, 8 screens, 9 screens, 16 screens, 25 screens and 36 screens can be supported for every decoding output channel. Choose decoding output channel and click screen quantity to set the upper limit of screens of the decoding output channel.
| tg]] Click the button to show switch group list. Click the right button to define the equipment group in equipment list on the left, choose [Add to switch group list] to add equipment in the list.
Last group, which supports the manual switch group to switch the last screen of group.
[oil Start / stop group switch: open video window, click the button to switch group; click it again to stop the group switch.
fr]j Next group, which supports the manual switch group to switch the next screen of group.
B Save the view: click to save the current view information.
@1 View browse plan: users can set suitable switch way and Easy7 can switch video channel automatically on page [Real-time preview], which is convenient for users' browse.
Start view browse and switch video channel automatically for preview according to the view browse plan.
Start all off-line switch, click to enable and start to watch decoding video of all output channels on decoder.
fi fp Stop all off-line switch, click to enable and start to stop all decoded videos.

Table 5.6.1.1

If splicing function of equipment is started, click the splicing screen with the right button as shown below.

Picture setting of splicing unit

Create display area

Create all display areas

Close all display areas

All windows zoom to a single screen

Save screen scheme

Application screen scheme

Restart the host

Figure 5.6.1.2

The relevant icons and parameters on the interface are described below:

Parameter Description
Picture setting of The quantity of screens set by splicing unit can be
spicing unit defined by user.
User-defined X

Number of rows

Number of columns

OK

Create display area Choose the screen in splicing unit, click the right button to create display area.
Create all display areas Click the right button to display the screen areas in all splicing units.
Close all display areas Click the right button to close the screen areas in all splicing units.
All windows zoom to a single screen Click the right button to shrink the maximized screen to the original.
Save screen

scheme

Click the right button to save the display plan of screens in current all splicing units.
Save screen scheme X

Project name

Save

Application screen

scheme

Click the right button to apply existing screen plan to current splicing unit.

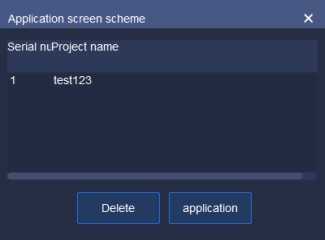

word image 1151 101

Restart the host Restart the current decoder.

Table 5.6.1.2

The display area created by clicking the right button is shown below.

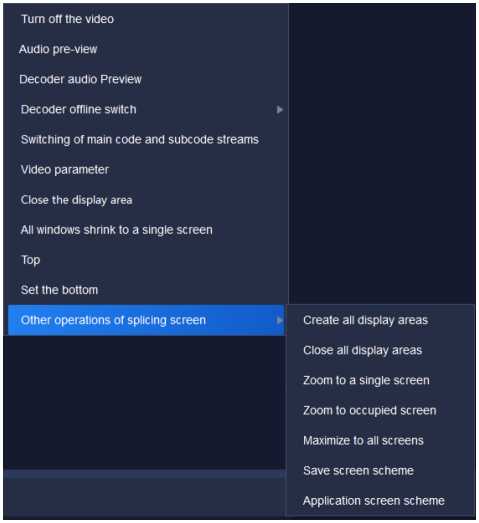

word image 1151 102

Figure 5.6.1.3

The relevant icons and parameters on the interface are described below:

Parameter Description
Turn off the video Close the video preview on current splicing screen.
Audio pre-view Preview the audio effect of current splicing screen.
Decoder audio preview Display audio on decoder.
Decoder offline

switch

It is permitted to set video switching of current splicing screen window.
X

ÇL Offline swtcri setup nitiate offline switch Slop offline «.wile

E . Device Lisi

Switch para…

H Bt 182.1S8.2154

Id . h 102.168.23.55 Stream type Mainstream '

Switching fl_ 30 Set

Display mode ' Move upward Move down

Channel Name Length ol stay (seconds) Stream type

192 168 23 541 30 Mainstream

192 168 23 53 1 30 Mainstream

Switching of main code and subcode streams Video preview effect can be switched between main code stream and subcode stream
Video parameter The brightness, contrast ratio, saturability and chroma of video can be modified.
Video parameter X

-A'- _

” Brightnesi

O Contrast

Ö Saturatior =

Hue

/^Restore Default

Close the display area Close current display area of splicing screen
All windows shrink to a single screen Shrink all screens to single splicing screens
Set to top / bottom Choose the screens in splicing unit, click them to set to top layer / bottom layer.
Other operations of splicing screens As for every splicing screen, create / close display area, shrink to the screen, maximize all screens etc.; screen scheme can be saved and applied.
Create all display areas Click the right button to display the screen area in all splicing units
Close all display areas Click the right button to close the screen area in all splicing units
Zoom to a single screen Choose the screens in splicing unit, click to shrink them to a screen.
Zoom to occupied screen Choose the screens in splicing unit, click to spread them on the screen fully.
Maximize to all screens Choose the screens in splicing unit, click to spread them on all splicing units.
Save screen

scheme

Click the right button to save display scheme of screen areas in all current splicing units.
Save screen scheme X

Project name

Save

Application screen Click the right button to apply existing screen scheme

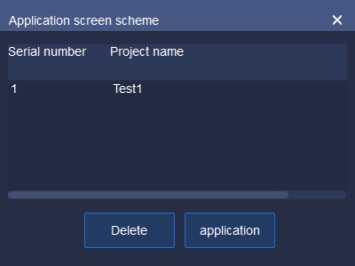

word image 1151 103 word image 1151 104

Table 5.6.1.3

5.6.1. 2. Device list

Same as Real-time preview.

5.6.1.3. View

Same as Real-time preview.

5.6.1. 4. PTZ Control

Same as Real-time preview.

5.6.1. 5. Advanced Function

Same as Real-time preview.

  1. TV wall configuration

Wall layout can be configured on the TV wall configuration page. Click the button© to enter the name of TV wall layout and then click “OK”. In this way, the name of TV wall layout can be added as shown below:

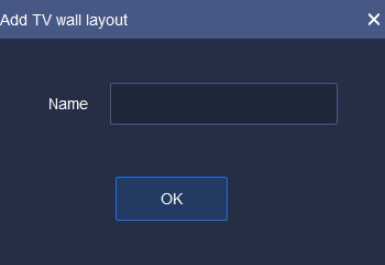

word image 1151 105

Figure 5.6.2.1

The current name of TV wall layout can be modified by clicking the button

Ö. After clicking “OK”, the name of TV wall layout can be modified as shown below:

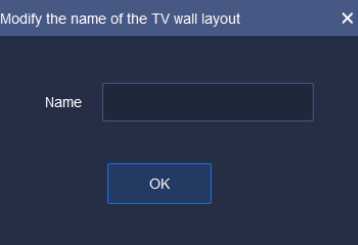

word image 1151 106

Figure 5.6.2.2

To delete a TV wall layout, choose a layout name and click the button O.

The layout data cannot be recovered after the layout is deleted. Therefore, there is a prompt box for your confirmation. Click “Yes” button to delete the current TV wall layout; click “Cancel” to retain the TV wall layout, as shown below:

word image 1151 107

Figure 5.6.2.3

After setting the name of TV wall, click the lower configuration list to configure TV wall layout. It supports 1 screen, 4 screens, 9 screens, 16 screens and user-defined screen settings. At the same time, every screen can be adjusted, such as left justifying and right justifying. The parameters and description are shown below:

Parameter Description
Binding: tick “Decoding output channel” in equipment
list, tick TV wall screen on the right and click it to bind
the current decoding output channel with the screen.
Unbinding: choose TV wall screen on the right and
click it to unbind the current decoding output channel
with the screen.
Add 1 screen
Add 4 screens
Add 9 screens
Add 16 screens
X Define the rows of screens
■ X Click to choose the screen to be deleted
w Clear screens: delete all the screens on current TV wall.
Left justifying: choose two screens at least and click
to justify to the left side of the first screen chosen.
Right justifying: choose two screens at least and click to justify to the right side of the first screen chosen.
Ft Top justifying: choose two screens at least and click to justify to the top side of the first screen chosen.
in Bottom justifying: choose two screens at least and click to justify to the bottom side of the first screen chosen.
:Q Equalize size: choose two screens at least and click to equalize size with that of the first screen chosen.
Ell Splicing: choose two screens at least and bind decoding output channel. The splicing shapes shall be regular (such as rectangle). Click to splice successfully.
El! Cancel splicing: choose the spliced screens and click to cancel the splicing.
Save: Click the button after setting TV wall. In this way, the TV wall screen layout can be saved.

Table 5.6.2.1

Wall resolution can be configured on TV wall configuration page as shown below. There are three resolutions: 1920×1080 50HZ, 1920×1080 60HZ and 4K 30HZ. If 4K 30HZ is set, decoding can be output from only one route.

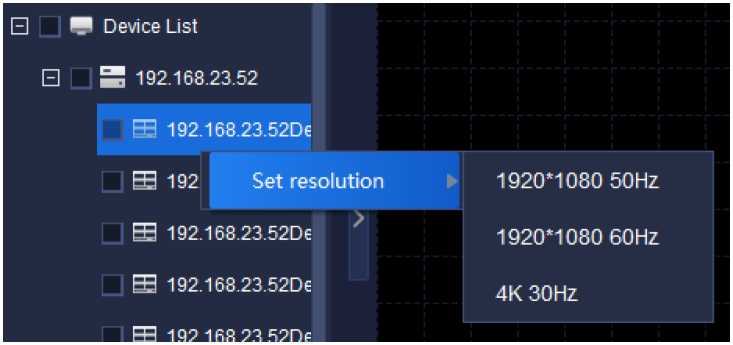

word image 1151 108

Figure 5.6.2.4

  1. Offline switch setup

Offline switch configuration is used for TV wall screen switch setting on decoder, as shown below. Code stream type, switch time and display mode of

every decoding output channel can be set.

Tiandy

Home page

Device management

TV Wall

@ © | e (!) – □ x 16:27:49

TV wall

nitiate offline switch

Stop offline switchini

■ Device List

E ■ 192.168.30.215

Decoding on… 192.168.30.72Decode output 3
Stream type Mainstream w
Switching ti… 30 ▲ ▼ Set
Display mode Single video Move upward Move down

Decode out…

Channel Name Length of stay (seconds)

Stream type

TV wall configur. Offline switch se…

©Tiandy Co.,Ltd All Rights Reserved

admin

Figure 5.6.3.1

Choose decoding output channel and set display mode (such as sixteenscreens) as shown below.

Channel Name 5-nçjtTı of stay (set and' Stream type Channel Name sngih of stay (second: Stream type Channel Name 2ngth or stay (second: Stream type Channel Name angın or slay (second: Stream type
Channel Name angth of stay (second: Stream type Channel Name engin of stay (second: Stream type Channel Name angtn of stay (second: Stream type Channel Name sngtn of stay (second: Stream type
Channel Name ?ngtti of stay (second' Stream type Channel Name scigth of stay (second: Stream type Channel Name ;ngth or stay (second: Stream type Channel Name ;ngth or slay (second: Stream type
Channel Name sngth of slay (sec emit Stream type Channel Name jrigiti of stay (second: Stream type Channel Name angth of stay (second! Stream type Channel Name ength of slay (second: Stream type

Figure 5.6.3.2

Choose the equipment from the left equipment list for offline switch and

drag the equipment to the channel. In this way, equipment can be added to the

screen. As shown below, click

Initiate offline switcfj

” at top right corner to start offline

switching, or click the right button on screen list to start offline switching. One channel cannot be added to any screen repeatedly.

Channel Name sngth of stay (second: Stream type

192.168.23.53:1

‘ Delete

Delete all

Offline switch

Figure 5.6.3.3

Choose the channels on screen, modify code stream type, switch time and sequence of channels on screen in above decoding output setting.

Relevant parameters on the interface are described below:

Parameter Description
Initiate offline switch Click to enable and start it to watch decoding video of the output channel on decoder.
Stop offline Click to enable and start it to stop playing the
switching decoding video.
Decoding output

channels

The equipment supports several decoding output channels. Video effect of every decoding output channel can be set for actual need.
Stream type Set code stream type of channels added to each screen. Choose the channels whose code stream type shall be changed from the following screen list, then choose code stream type from the drop-down box of code stream types. In this way, code stream can be switched.

Note: Before changing code stream type, it is necessary to stop offline switching firstly.

Switching time Set the interval of screen switching (unit: second) in range 10 seconds ~ 1000 seconds. The interval shall be integer. Choose the channel whose switching time needs to change. After changing switching time, click
the button “^^^|” to update duration of screen
stay.

Note: Before changing switching time, it is necessary to stop offline switching firstly.

Display mode Set the screen display mode of decoding output

channel, such as single screen, screen in screen,

four screens, 1-5, 1-7, nine screens and sixteen

screens. 1-5 screen means 1 large screen and 5 small screens; 1-7 screen means 1 large screen and 7 small screens. The sequence of channel screens is in accordance with the sequence of addition. To change the sequence, choose channel firstly and

adjust screen sequence by pressing “

Move upward

or

Move down

Note: Before changing channel display

mode, stop offline switching firstly.

Table 5.6.3.1

5. 7. Face recognition

word image 1151 109

Click the face recognition icon

, on homepage to enter the interface

of face recognition for face database management, face database download and face configuration as shown below:

word image 1151 110

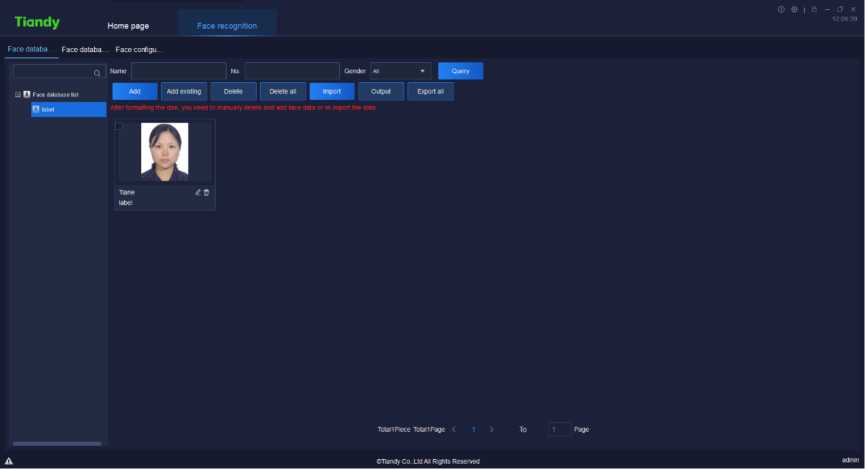

Figure 5.7

  1. Face database management
  2. Personnel Query

Personnel can be inquired based on name, serial number and gender.

  1. 2. Face Database Addition / Modification / Delete
  2. Face database addition

Click the right button on left “Face database list”, choose “

Add

”to create

a new face database as shown below:

word image 1151 111

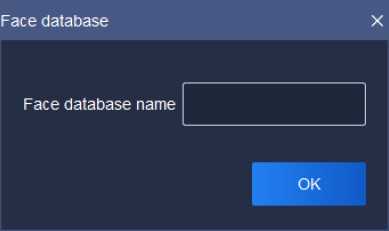

Figure 5.7.1.1

Enter name of face database and click “OK” button to create a new face

database. The name of face database is exclusive.

  1. Face database modification

Click the right button on the name of face database to be modified, choose

enter a new name and click “OK” button to complete the modification.

Modify

  1. Face database delete

Click the right button on the name of face database to be deleted, choose and click “OK” button to delete the face database.

Delete

word image 1151 1125.7.1. 3. Face Image Addition

Choose the face database that needs face image addition, click “

to add face image as shown below:

word image 1151 113

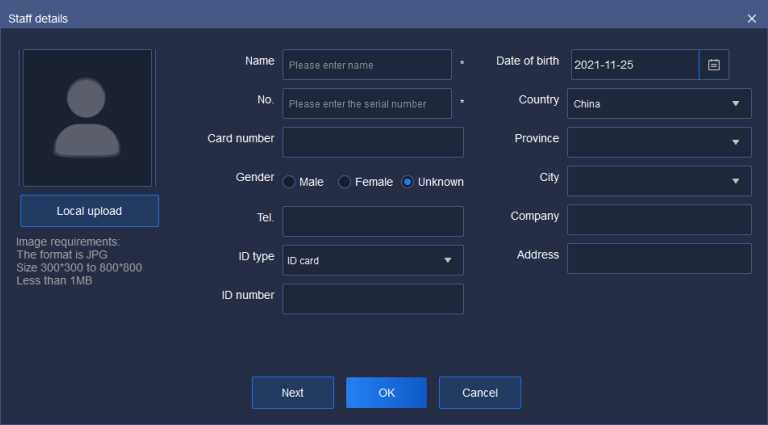

Figure 5.7.1.2

Click “local upload” to upload face image (required item). Image format shall be JPG and the dimensions shall be 300*300~800*800; the size shall not be larger than 1 MB. The image shall be clear enough for easy face recognition.

Enter name of the image (required item).

Enter corresponding serial number of the person (required item). The serial number can be 0~ 999999999.

Other items are not required and can be filled in for actual demand.

word image 1151 114

Click “

” to save information of the current person and create a new

page of person information.

word image 1151 115

Click “

” to maintain current personnel information and close the

page.

Click “

Cancel

” to close the current page of personnel information.

  1. 4. Add Existing Face Image

word image 1151 116

Choose a face database, click “

” and choose the personnel to be

added as shown below; click

” to complete the addition. The page

of

current personnel can be closed by clicking

Cancel

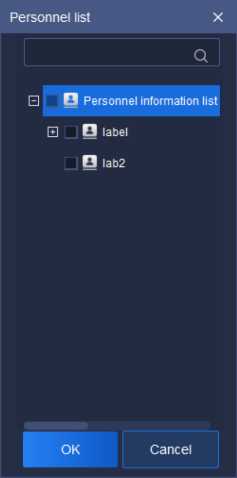

Figure 5.7.1.3

word image 1151 117 word image 1151 118

  1. 5. Delete (All) Face Image(s)

word image 1151 119

Choose the face image to be deleted, click “

” to delete the chosen

image; to delete all face images, click “

Delete all

  1. 6. Face Image Import / Export / Export All

1) Import

Click “ I”

to enter the import page as shown below. Click “download

import template” to download template of personnel information.

word image 1151 120

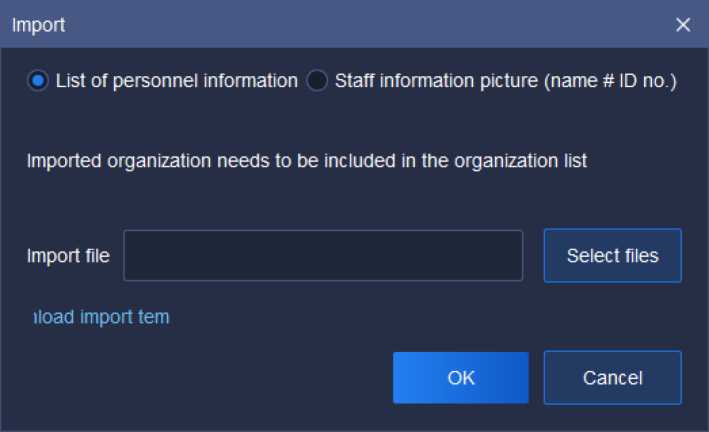

Figure 5.7.1.4

Fill personnel information in the template as shown below:

AttentiorUse the 1

Province City Address Company ID type ID numbeiImage patFace library name

Tianjin Tianjin Xiqing Di**** Co., ID card r12011120CC:/FacePiFace database

Personnel Serial ntCard numtGender (nphone nmrEirthday Country

Zhang Sa/123 r6666 Female ‘12345678^2000-01-lChina

Figure 5.7.1.5

Tick “personnel information sheet” or “personnel information image (name

# job number)”, click “

Select files

” to import file, click “OK” to upload the file; click

cancel” to close the page.

  1. Face database download

Choose the channel of face database download from left “equipment list”

(the channel shall support face recognition).

Tiandy

Home page

Face recognition

Facedataba… Facedataba… Face configu…

q I Add Remove Copy to

□ ■ Device List Q Face database nchronous stat

E M 192.168.23.54

E M 192168.23.53

Operation

©Tiandy Co.,Ltd All Rights Reserved

admin

Figure 5.7.2.1

word image 1151 121

Click “

” to choose a face database to be synchronized, then click

“OK” as shown below.

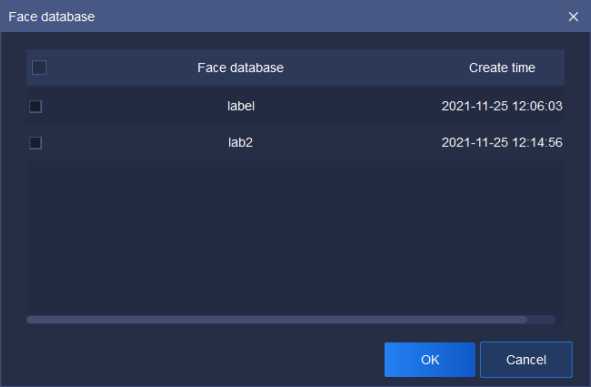

word image 1151 122

Figure 5.7.2.2

Status and result of synchronization can be seen on current page. If the

synchronization fails, click “operation result” on “operation” page to find information of synchronization failure as shown below. If you want to try

synchronization again, choose the content to be synchronized and click

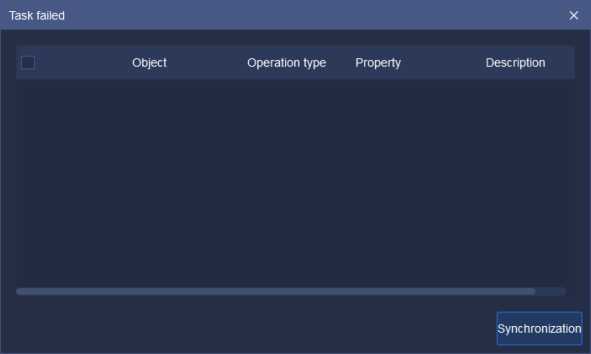

word image 1151 123 word image 1151 124

Click “

Click “

Figure 5.7.2.3

” to delete the current face database in current channel.

Remove

” to copy it to other channel.

  1. Face configuration

On the page of face configuration, face database can be started for current channel; face similarity can be set as shown below.

word image 1151 125

Device management

Facedataba… Facedataba… Face configu.
Q Similarity so % (1-100) Set

Homepage

Face recognition

□ ■ Device List Face database

Enabled

E M 192.168.23.54 label

E M 192168.23.53

E M 192.168.16.221

□ M 192.168.18.103

Ş 192.168.18.103-Chani

©Tiandy Co.,Ltd All Rights Reserved

admin

Figure 5.7.3.1

5.8. Inlet and outlet management

Click the exit I entrance management icon

on homepage to enter

exit I entrance management page. Human gate and vehicle gate can be managed as shown below.

word image 1151 126

Figure 5.8

  1. Gate management

Same as face recognition.

  1. Face database management

Same as face recognition.

  1. 2. Face database download

Same as face recognition.

The monitored areas can be previewed on the page of preview as shown below. Equipment gate opening and lifting linkage is supported.

X Gate management

A Lw view

A History of the gate

R Checkpoint preview

A History of checkpoint

PAD

Open pate

Oîlamly Co..Lid AH Rights Reserved

Figure 5.8.2.1

Click the right “ ” to unfold equipment list, set real-time equipment preview

sequence and the equipment shown. As shown below, choose the equipment

to be moved, click “

Move upward

or

Move down

” to change the sequence.

Device

PAD

>
■İlli
Move upward Move down

Figure 5.8.2.2

  1. History of the gate

On the page of human gate history, access areas, user name and access

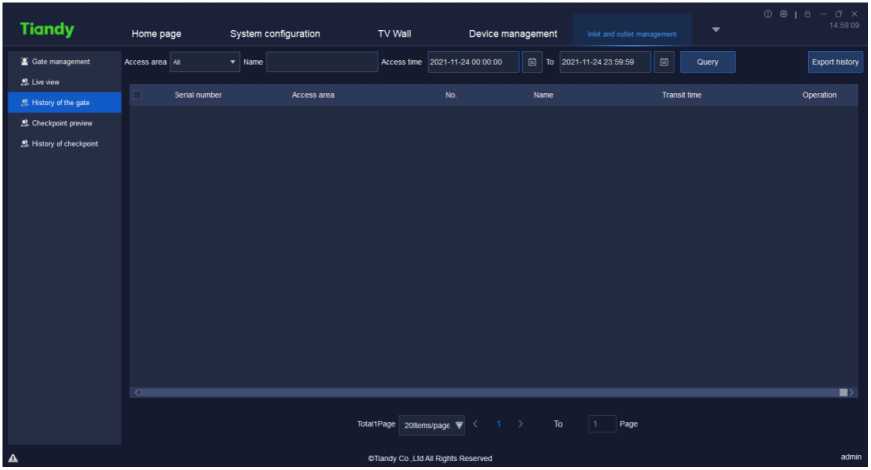

word image 1151 127 word image 1151 128

time can be searched as shown below.

Figure 5.8.3.1

Click “

View

” to find access information of the user as shown below.

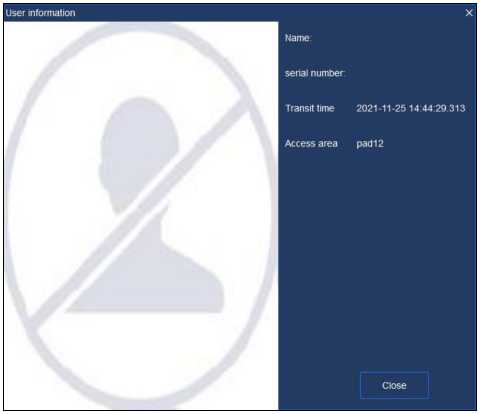

Figure 5.8.3.2

  1. Checkpoint preview

Real-time captured image at checkpoint in current monitored area can beseen on the page of checkpoint preview as shown below. Information of vehicle

can be found.

Tiandy

Home page

System configuration

TV Wall

Device management

ft Gate management

S. Lnewew

A History of the gate

A Checkpoint preview

A History of checkpoint

License plate number

Vehicle color

Vehicle brand

Channel number

Vehicle type

Transit time

Driving direction

OTiandy Co Ltd A* Rights Reserved

admin

Figure 5.8.4.1

Click the right “ ” to unfold equipment list, set real-time equipment preview

sequence and the equipment shown. As shown below, choose the equipment

to be moved, click

Move upward

or

Move down

” to change the sequence.

word image 1151 129

Figure 5.8.4.2

  1. History of checkpoint

Access area, license plate number and access time can be searched on the page of checkpoint history as shown below.

X Gate management

A Lm view

A History of the gate

Access area aii t Number of license plate

Serial number Access area

Access tme 2021-11 -24 00 00 00 0 TO 2021-11-24 23:59 59 m

Number of license plate

Transit time

Operation

A Checkpoint preview

A History of checkpoint

OTtandy Co. .Ltd AH Rights Reserved

Figure 5.8.5.1

Click

View

to find access information of the vehicle as shown below.

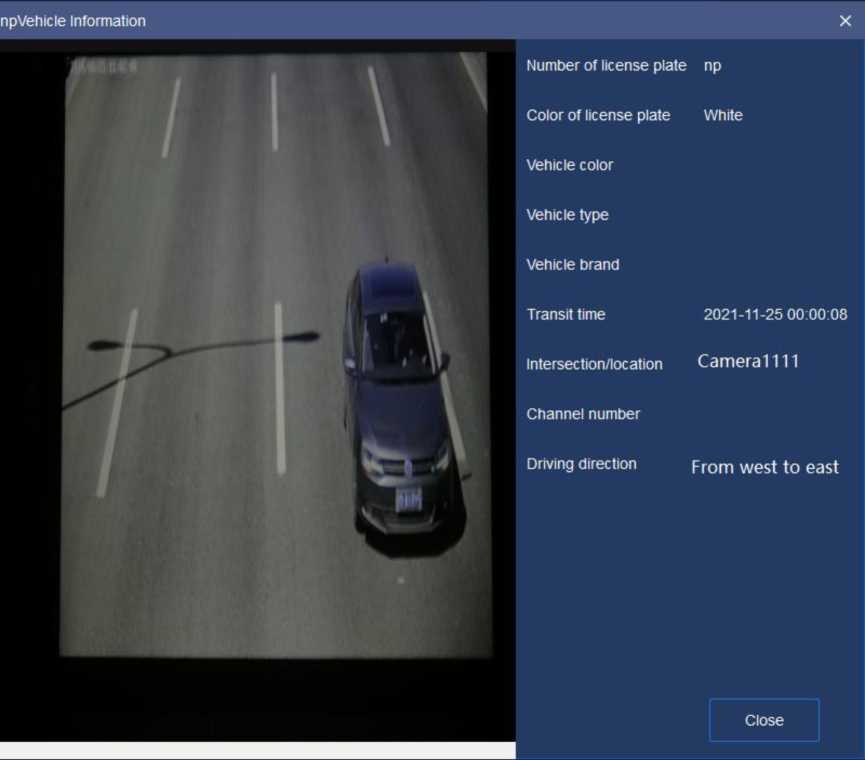

Figure 5.8.5.2

word image 1151 130

    1. ElectronicMap

word image 1151 131

Click the electronic map icon

on homepage to enter the page of

electronic map management and operation as shown below.

Figure 5.9

word image 1151 132

Drag the image manually or operate mouse wheel to change position of the image or zoom it in.

      1. Electronic Map Configuration

word image 1151 133 word image 1151 134

Click

“to configure the electronic map as shown below:

Figure 5.9.1

5.9.1. 1. Add Map

word image 1151 135

Click “

, as shown below, enter map name and choose route of

map, click “OK” to save the current map; or click “cancel” to close the current

page.

word image 1151 136

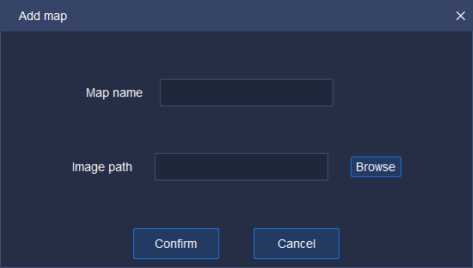

Figure 5.9.1.1

  1. 2. Delete Map

word image 1151 137

Choose an electronic map from right list of maps, click “

” and there

will be a prompt dialog box as shown below. Click “Yes” to delete the electronic map; or click “cancel” to close the prompt dialog box and the map will not be

deleted.

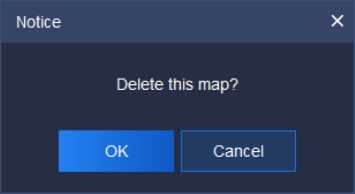

word image 1151 138

Figure 5.9.1.2

  1. word image 1151 139 3. Modify Map

If you want to modify map name or the base map, you can click “ as shown below, click “OK” to save the current map; or click “cancel” to close the current page.

Modify map X
Map name Nacy
Image path J6e35317d777a5bf06cb6c a.jpg Browse
Confirm Cancel

Figure 5.9.1.3

  1. 4. Add / Delete Equipment

In the self-defined equipment list on the right of edit interface, choose the equipment to be added to the electronic map, drag it to the area that needs the equipment. In this way, data collection channel can be added. Drag channel

equipment icon “ ” to change addition position.

Add alarm two nodes, including alarm input

and alarm output

in

electronic map and the input node will lash upon receiving the alarm of alarm input;

cancel alarm

Clear alarm

'via the right key menu. Alarm output can be used for

controlling two status

Open alarm output

Close the alarm output

” of alarm output on and off via right key

menu.

If the equipment was added, “added already” will be prompted as shown

below.

word image 1151 140

Channel 6 Added

word image 1151 141 To delete equipment, choose the equipment and click the right button on

word image 1151 142 ; or choose the equipment in the left list of electronic maps, click

” to delete the equipment on the current electronic map.

5.9.1. 5. Configure Hot Zone

word image 1151 143 word image 1151 144

Click

” to link other electronic maps on the current electronic map

as shown below. Tick the left electronic map and click “

” to add the

word image 1151 145 word image 1151 146

” to move back

Related hot zone

Figure 5.9.1.4

electronic map to the right linked area; or click electronic map from right linked area to area of electronic map. Click “OK” to show the hot zone icon “-•” on current electronic map. Drag it to set position of hot zone anew. Or click “cancel” to close the current page.

Configure hot zone X

word image 1151 147 To delete the hot zone, choose it and click right button on this way, the hot zone can be deleted from current electronic map.

. In

  1. Electronic Map Preview

word image 1151 148 word image 1151 149

Click “

to preview current electronic map as shown below.

Figure 5.9.2.1

On the page of electronic map preview, the image can be dragged

word image 1151 150 manually to change its position; or operate mouse wheel to zoom in.

Click “

” to preview the image on the whole screen.

word image 1151 151

Click “

” to return to the last step.

    1. User management

word image 1151 152

Click the user management icon on home page to enter user

management interface. The interface will display the basic information of all added users at that moment, as shown in below figure:

All rights reserved Tiandy Technologies Co. Ltd

Tiandy

Home page

Uier management

Real-time preview

adminO!

tKlmiri

Figure 5.10

[ Note ] Only admin-super account has the authority to enable this function.

      1. Add user

Click

Add

to enter Add user interface, as shown in below figure:

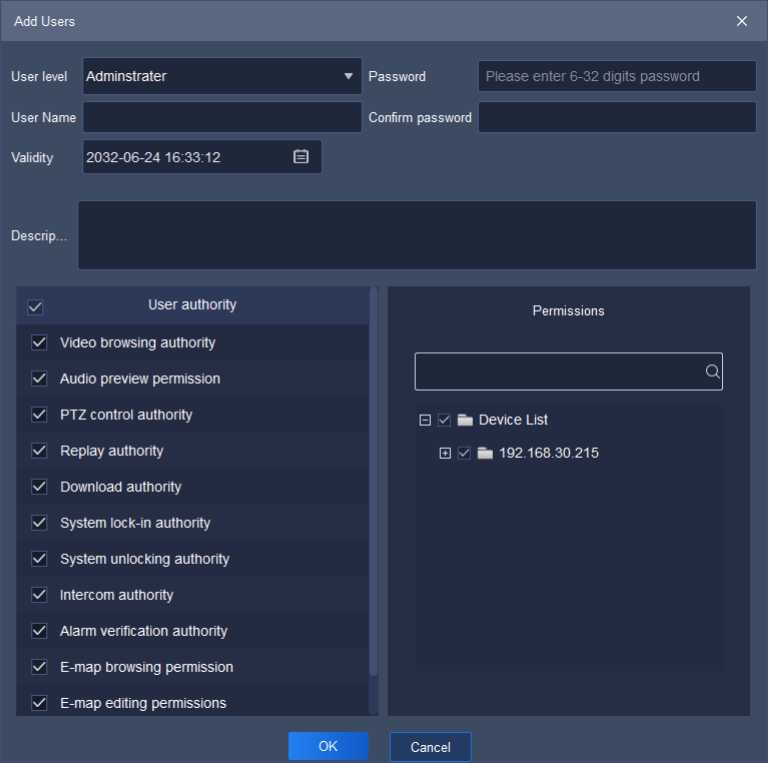

word image 1151 153

Figure 5.10.1

The description of related parameters in the interface is as follows:

Parameter Description
User level Set administrator or operator for current system.
User name Users to fill in any name.

[Note] There's illegal character limit when adding user name, following characters are not allowed to be input ~!#$%A

Password To set password for newly added user.
Confirm password Needs to be the same as input “Password”.
Validity Set the expire date of the authority for users.
Description Supplement and describe user information.
User authority Set the user authority of administrator or operator, such as the authority of video browsing, audio preview authority ,PTZ control, video playback, video download, system lock, system delock, intercom, alarm check, etc.
Permissions Set devices permit user authority to apply.

Table 5.10.1

Note: Audio preview authority is mainly used for controlling the playing of all audios in the control platform.

( 1 ) Audio preview authority, cloud platform control authority, video playback authority and video downloading authority are based on view preview authority. In other words, if any one of video preview authority, cloud platform control authority, video playback authority and video downloading authority of one channel needs starting, start video preview authority first;

( 2 ) Talkback authority is based on audio authority. Talkback authority of the host can be enabled, when audio authority of at least one channel under such host has been enabled;

word image 1151 154 5.10.2. Edit user

to enter Change

Select the user needs to be edited, click

users interface, as shown in below figure:

word image 1151 155

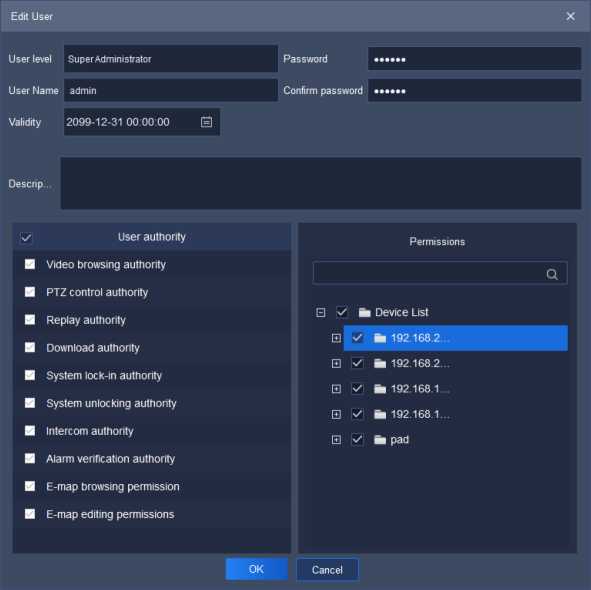

Figure 5.10.2

In the editing interface, the related information of the user can be changed, including user level, user name, validity, password, description, user authority and permissions. Admin-super administrator can only change password.

5.10.3. Delete user

word image 1151 156

Select the user needs to be deleted, click

and a notice box

will pop up, as shown in below figure:

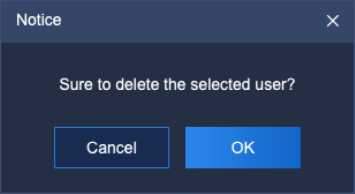

word image 1151 157

Figure 5.10.3

Click “OK” to delete the selected user; click “Cancel” to cancel deletion.

[Note] Several users can be deleted at the same time.

    1. Intelligent search

word image 1151 158

Click the intelligence retrieval icon

on home page to enter the

intelligence retrieval interface.

5.11.1. Face retrieval

Tiandy Homs page Intelligent search
• f. J, _ Device LISI
Startime 2021-11-2300 00 00 S Endtime 2021-11-25 23 59 59 (Ş) Gender «U ' Age group *» '
Wearing mas* m » Wearing glasses « • Body temperature measurement AM » Retrieve
□ • a Deoust
y' 192168 2354 Output Export all Select al twit Selection
El *1» IM 2353
üst Figure
El k 19216816221
b IM 2021-11-2515 55 41 ‘charmeM Male Youlh glasses Nomas* Invalid twaas Plartrack
□ k 192 168 23 S4
2021-11-25 15 55 41 '^L'88'8

Channel 1 glasses

2021-11-25 15 55 41 1^?'88'8, Male Youth Homas* invalid OOls PiaıMr»
Channel 1 glasses

2021-11-25 15 54 05 ''JL'88'8, Mie Youth Homas* invalid OOls Piaitadr

Channel 1 glasses

2021-11-2515 54 05 ,^„188 J,8, Male Youth M^,^2″9 Homas* Invalid OOls Piartwr*

Channel 1 glasses

2021-112515 54 05 1?„!??, J,8, Male Youth Notwearng Moma5k «valid OOls Pl art»»

Channel 1 glasses

2021-1125 15 53 38 ‘onarmeM Ma(e Youth Unknown Nomas* Invalid Mali Piartar*
2021-11-2515:53:37 1 CharmeM Male JunKx Unknown No mas* invalid OOls Piartar*
2021-11-2515:53:37 ‘^cnarmeM Mae Voultl Unknown Nomas* invalid OOls Piartwr*
2021-11-2515 52 46 J,8, Male Youth Unknown Nomas* invalid OOls Piartoa

Channel 1

2021-11-2515:51:10 15?-.16ll8. Male Junior Unknown Nomas* invalid nois piartaa

Channel i

2021-11-25 15 50 19 '“'“J,8, Mae Youth Nomas* invalid non piartoa

Channel i glasses

2021-11-25 15 50 19 ‘■'*« Youth Homas* nvaiid non PUrtwa

Channel 1 glasses

2021-11-25 15 50 18 '“'“J,8, Male Youth Nomas* nvand not. Piartwa

Channel 1 glasses ■

… .
©Tiandy CO ltd Al Rights Reserved ad™

Figure 5.11.1

Retrieve by starting and end time, by gender, by age group, by whether wearing mask, by whether wearing glasses and by body temperature measurement are supported.

Users may select any channel among watch points on the left, set query condition and click “Retrieve” to retrieve the detailed information recorded by this watch point in the time period, both list and figure display form are supported.

Click “List” and the retrieval result will be displayed in list, including capture time, channel name, gender, age group, whether wear mask, whether wear glasses and body temperature measurement; click “Details” to check the detailed information of captured picture, as shown in below figure, click “Playback” to check playback video.

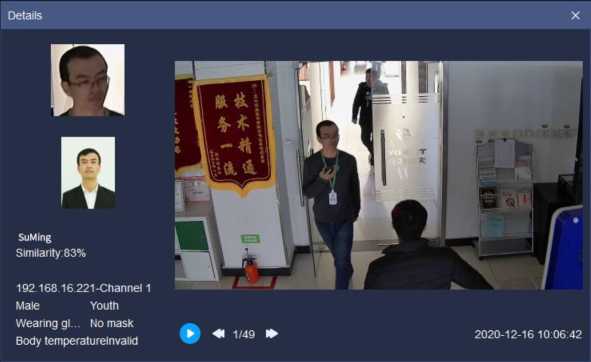

word image 1151 159

Figure 5.11.2

Click “Figure” and the retrieval result will be displayed in figure, the detailed information of captured picture and playback information will be checked, as shown in below figure:

word image 1151 160 word image 1151 161

Figure 5.11.3

Select any data in the retrieval result and click

” to download this

data result to local device, the exported result is shown as in below figure:

Snapshot 2020-11-2 Channel rGender

192.168. liale

Age groupWearing gWearing jt Body tempBig pictLSmall picture path

:/20
Youth Wearing gNo mask
2020-11-3 192. 168. IFemale Youth Wearing gNo mask :/20
2020-11-3 192.168. liale Junior Wearing g Wearing jt :/20
2020-11-3 192.168. liale Youth Wearing gNo mask :/20
2020-11-3 192.168. liale Youth Not weariNo mask :/20
2020-11-3 192.168. liale Youth Wearing gNo mask :/20
2020-11-3 192.168. liale Youth Not weariNo mask :/20
2020-11-2 192.168. liale Youth Wearing gNo mask :/20
2020-11-3 192.168. liale Youth Wearing gNo mask :/20
2020-11-3 192.168. liale Youth Wearing gNo mask :/20
2020-11-3 192.168. liale Youth Wearing gNo mask :/20
2020-11-3 192.168. liale Youth Wearing gNo mask :/20
2020-11-3 192.168. Hale Middle agNot weariNo mask :/20
2020-11-3 192.168. liale Youth Not weariWearing n :/20
2020-11-2 192.168. liale Youth Not weariWearing n :/20

Figure 5.11.4

Click

” Exoc t c

to export all retrieved results.

  1. Indoor electric vehicle testing

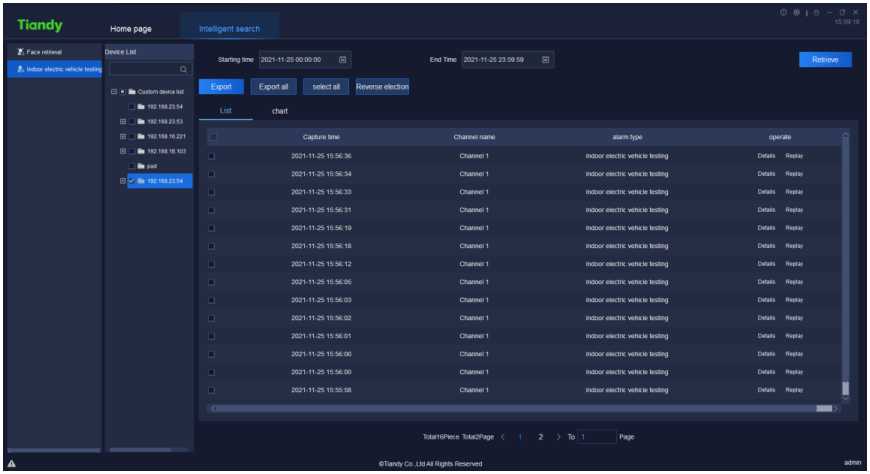

word image 1151 162

Figure5.11.2.1

Search can be based on beginning and ending time.

Users can choose equipment that supports the algorithm from left

monitoring points, set query conditions and click

Retrieve

” to find all recorded

detailed information of the monitoring point during the time. The information can

word image 1151 163 be presented in list format or graph format.

Search result can be presented in list format by clicking

including capture time, channel name, alarm type etc. The detailed information

of captured image can be seen by clicking “

Details

” as shown below. Click

Replay

” to watch playback.

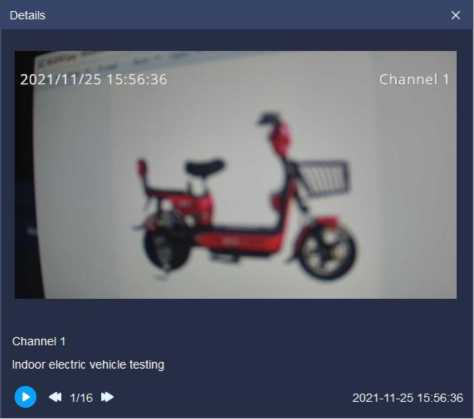

word image 1151 164 Search result can be presented in graph format by clicking

Figure5.11.2.2

word image 1151 165 word image 1151 166 Detailed information of captured image and playback information can be seen as shown below.

Choose any datum from search result and click “

” to download the

data; or click

Export all

” to export all search results.

Details X
2021/11/25 15:56:33 Channel 1
B
Channel 1
Indoor electric vehicle testing
2021-11-2515:56:34

Figure5.11.2.3

    1. Data statistics

word image 1151 167

Click the data statistics icon

on home page to enter the data statistics

interface.

5.12.1. Face statistics

Face statistics supports to carry out statistics by age group, by gender, by the number of people, by whether wear glasses, by whether wear mask and by body temperature measurement.

  1. Statistics by age group

According to age group, the face statistics can be divided into junior, youth, middle age and old age to display. The platform supports list and graphic

word image 1151 168

display, as shown in below figure.

Figure 5.12.1.1

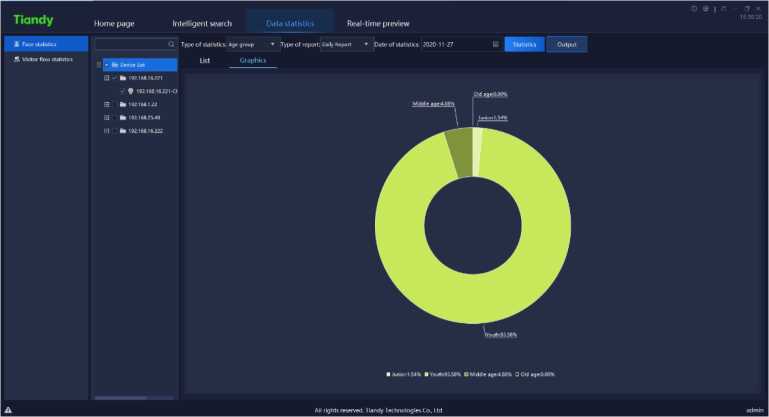

word image 1151 169

Figure 5.12.1.2

  1. Statistics by gender

According to gender, the face statistics can be divided into male, female and unknown to display. The platform supports list and graphic display, as shown in below figure.

[Note] :When the device detects people shape but does not detect face, it will display “unknown”.

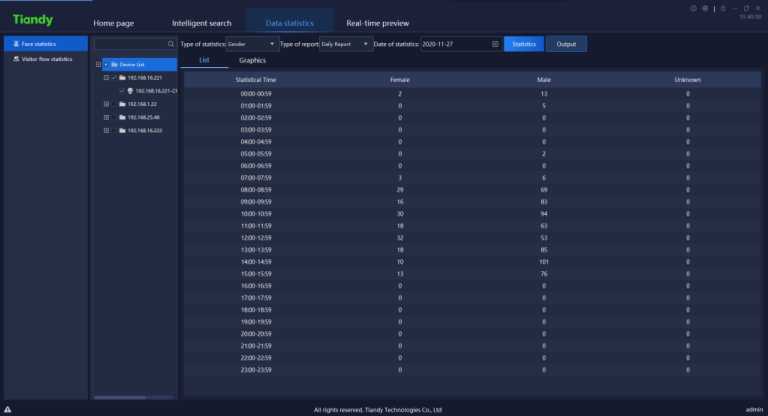

word image 1151 170

Figure 5.12.1.3

word image 1151 171

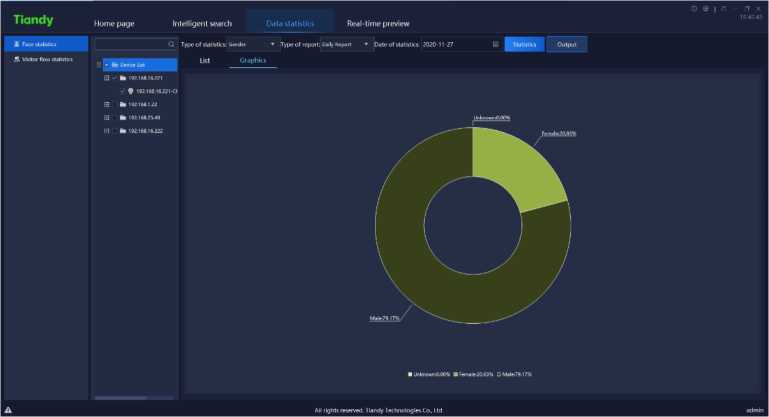

Figure 5.12.1.4

  1. Statistics by the number of people

The statistics of the number of people every hour in face statistics. The

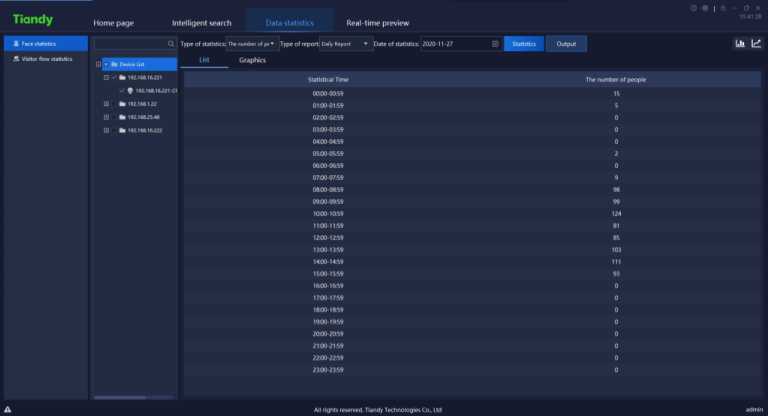

word image 1151 172 word image 1151 173 word image 1151 174

platform supports list and graphic display, as shown in below figure.

Figure 5.12.1.5

In graphic interface, click

to switch to line chart display, click

” to switch to bar graph display.

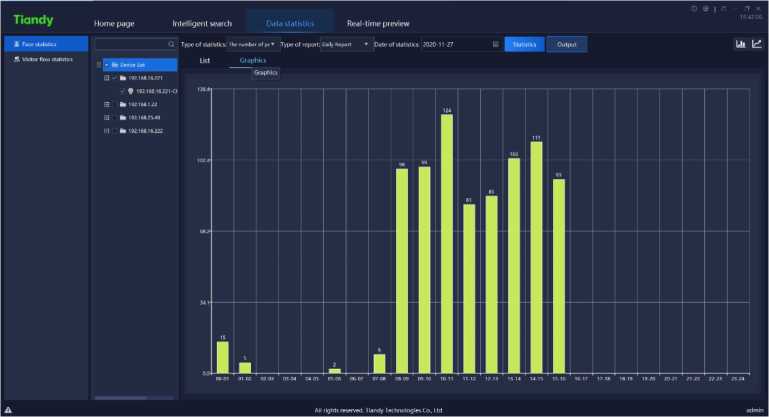

word image 1151 175

Figure 5.12.1.6

word image 1151 176

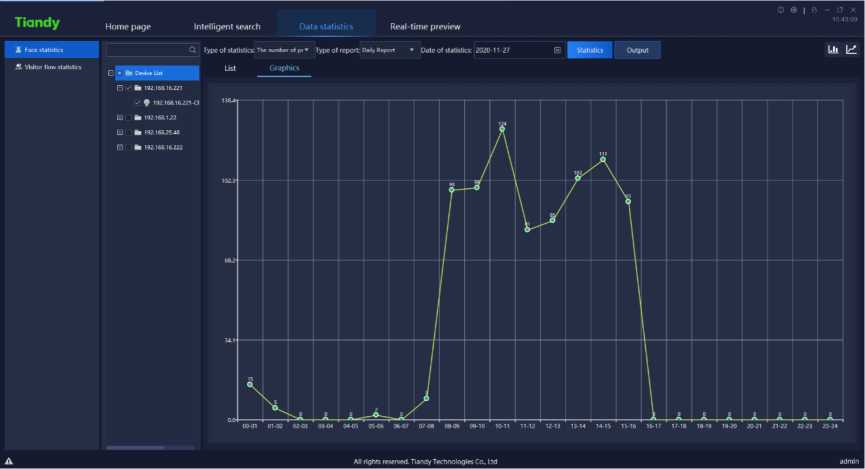

Figure 5.12.1.7

  1. Statistics by whether wearing glasses

The statistics of whether wearing glasses in face statistics, can be divided into not wearing glasses and wearing glasses to display. The platform supports list and graphic display, as shown in below figure.

word image 1151 177

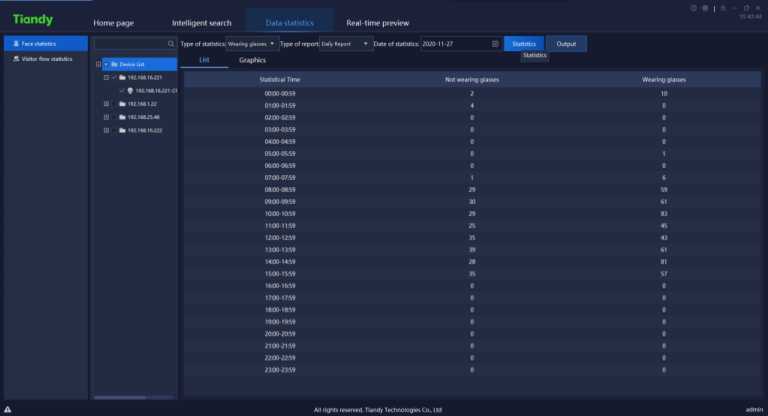

Figure 5.12.1.8

word image 1151 178

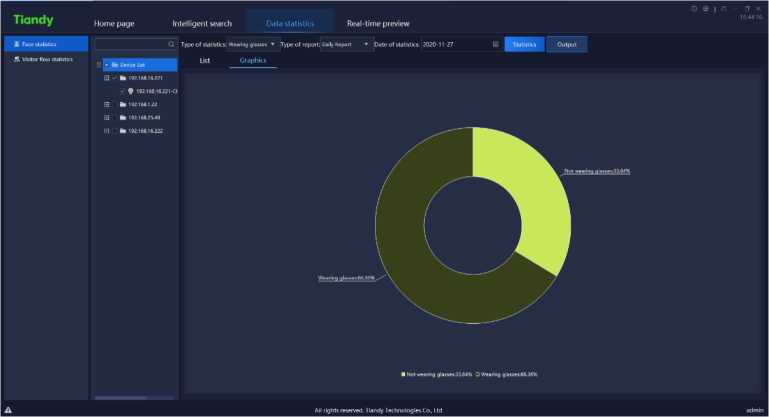

Figure 5.12.1.9

  1. Statistics by whether wearing mask

The statistics of whether wearing mask in face statistics, can be divided into no mask and wearing mask to display. The platform supports list and graphic display, as shown in below figure.

word image 1151 179

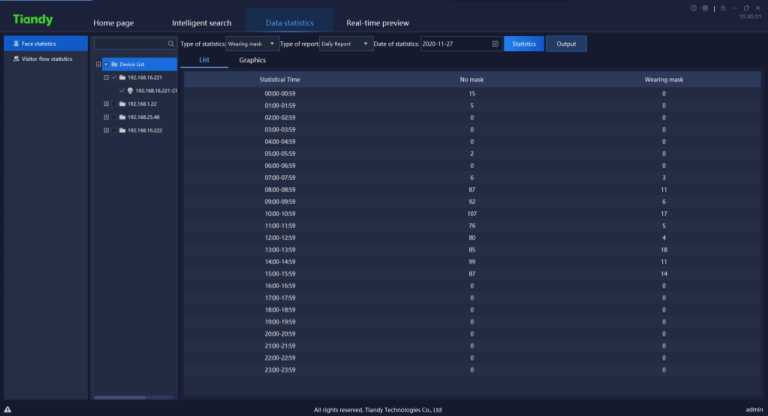

Figure 5.12.1.10

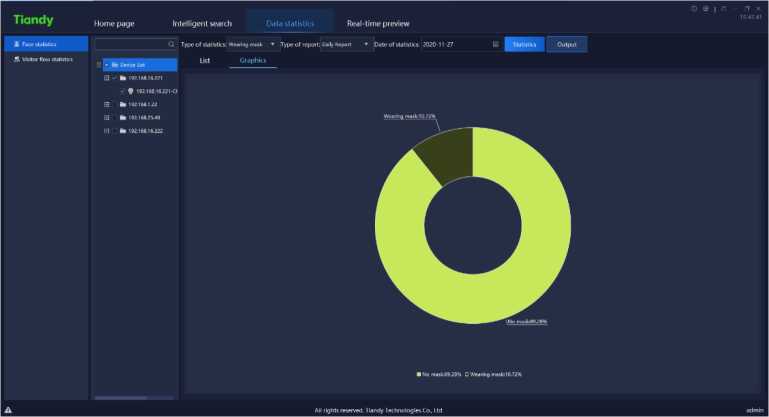

word image 1151 180

Figure 5.12.1.11

  1. Statistics by body temperature measurement

The face statistics will conduct statistics of the number of people with abnormal body temperature every hour by time. The platform supports list and graphic display, as shown in below figure.

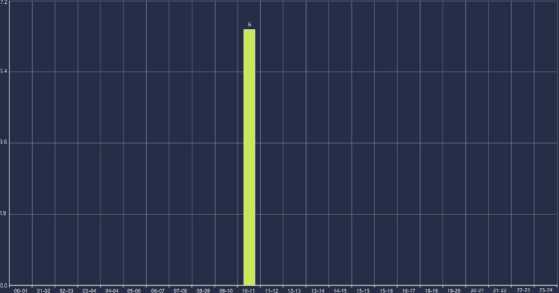

word image 1151 181 word image 1151 182 word image 1151 183 word image 1151 184 word image 1151 185

Tiandy

Intelligent search

Home page

Real-time preview

All rights reservea. lianoy technologies co. Ltd

Figure 5.12.1.12

Tiandy Home page Intelligent search Data statistics Real-time preview IS SI-21
Ldi
vr lypcoi wailSTICS rooy icr-tccrecur. • 1 ypc CT topun. ‘ncpon • vale CT statistics: af£V 1 di Statistics Output
H Visitor flow ctaTotrc * ■■ Device list Lisi Graphics
□ -r fc 192.168.16221 Statistical Time

00000059

01P0-0159

0200 0259

✓ ♦ i9ai«a.r«22io

□ 192.roa.1J2

0 I b l92.lfia.25AS

0 0
Fl k 192168.16222 !İîİSİİi!8!îSݧİİiİSS 0 0

0

0

0

0

0

6

0

0

0

0

0

0

0

0

0

0

0

0 0

A All rights reserved. Handy technologies Co, ltd admin

Figure 5.12.1.13

  1. Visitor flow statistics

Guest flow statistics supports two methods namely real-time statistics and report statistics. Real-time statistics can monitor the real-time guest flow according to the established area, and give an alarm when the number of person hikes too much; the report statistics can count the number of people entering, leaving and passing by in the established area, and display them with a list or a graph, as is shown in below figure:

word image 1151 186

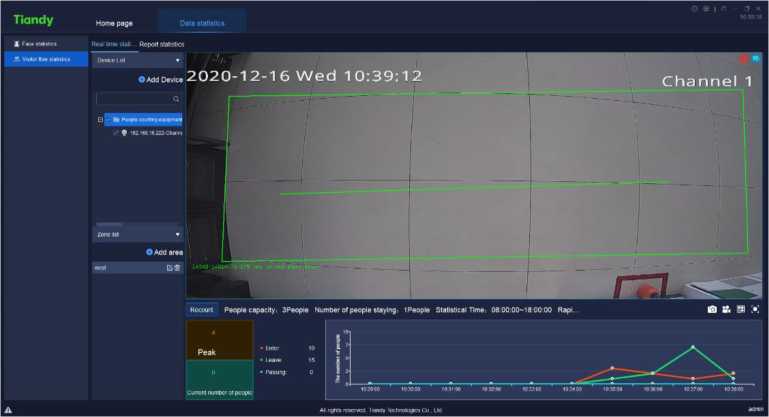

Figure5.12.2.1

  1. Real-timeStatistics Device List

Enter the device list bar, type in the key information in the search box, and double-click to locate the guest flow equipment, as is shown in below figure:

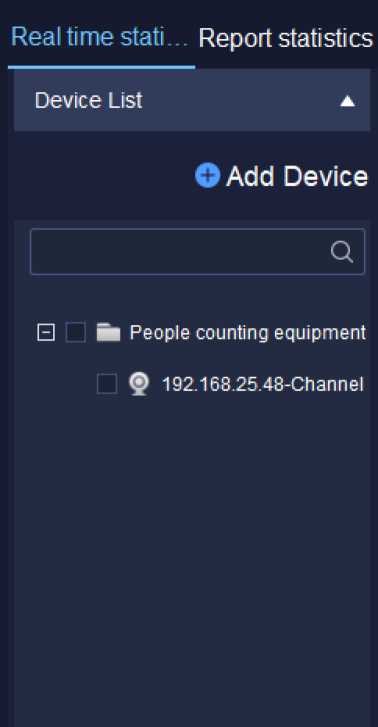

word image 1151 187

Figure5.12.2.2

Select the device in the guest flow device list and right-click to pop up the right-click menu of guest flow device list, as is shown in below figure:

Analysis configuration

Login to the affiliated host computer

Log off the affiliated host computer

Turn off all videos

Main code stream

Subcode stream

Video interruption

Time calibration

Manual alarm

Figure5.12.2.3

Select “ Analyse Config.” to enter configuration tool page to view the

configuration of each present channel, as is shown in below figure:

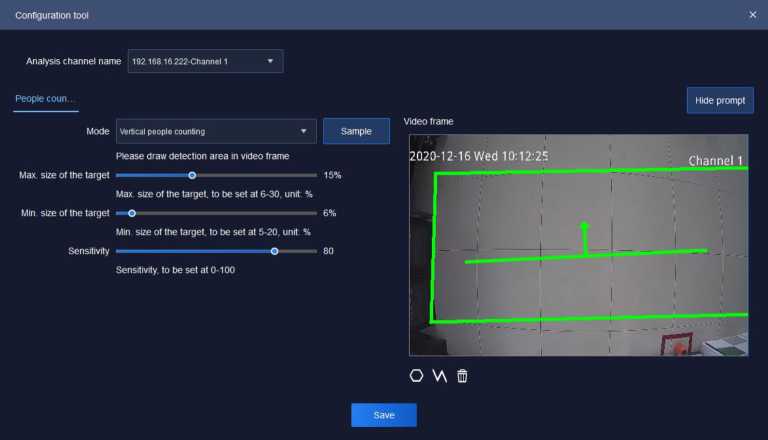

word image 1151 188

Figure 5.12.2.4

Relative parameters explanation of the interface is as below:

Parameters Explanation
Analysis channel name Switch channels and analyse the configuration of each channel.
Mode Read the algorithm supported by the front-end device and draw it in the right video frame or directly in the video frame.
Sample Display the effect sketch shown in the video box.
Max. Size of the target Display the maximum size of the target, and the range can be set from 6% to 30%
Min. Size of the Display the minimum size of the target, and the range can
target be set from 5% to 20%
Sensitivity Set the detection sensitivity. The higher the sensitivity, the more sensitive it is. The range can be set from 0 to 100.
Video frame Display the video and its algorithm under the channel.
Hide prompt Hide the prompts in the configuration information on the left.
o Redraw the statistical area in the video graph.
Redraw the statistical lines in the video graph.
Eliminate the lines.

Table 5.12.2.1

Other right-click menu button 5.2.1 device listo

Click

©Add Device

in device list to enter guest flow camera configuration

page, as is shown in below figure:

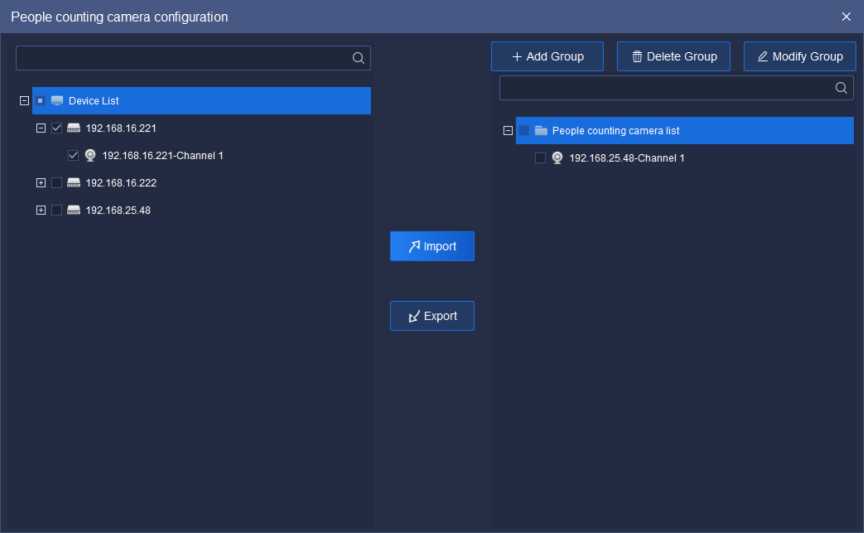

Figure 5.12.2.5

Parameters Explanation
In the left device list, select the device or device channel.

In the right guest flow camera list, select a group, and click to add the device or device channel to the guest flow camera group.

In the right guest flow camera list, select a group or device channel, and click to delete the group and its device channel or device channel from the guest flow camera list.

Relative parameters explanation of the interface is as below:

t/ Export

t/ Export

+ Add Group

In the right guest flow camera list, select the node and click to add the guest flow group.

word image 1151 189 word image 1151 190

In the right guest flow camera list, select a group and click to delete the guest flow group.

O Delete Group

In the right guest flow camera list, select the node and click to modify the guest flow group name.

0 Modify Group

Table 5.12.2.2

  1. Real-time Statistics Area List

Enter the area list to shift area scene, as is shown in below figure:

Zone list

O Add area

Old school

Figure5.12.2.6

In the area list, click “i to delete established area, click “Ej” to update the

configuration information of present area

, click “

©Add area

to enter the area

configuration page to set information of area detection time, capacity, number of people surge, whether or not to enable alarm, detection device channel, etc, as is shown in below figure:

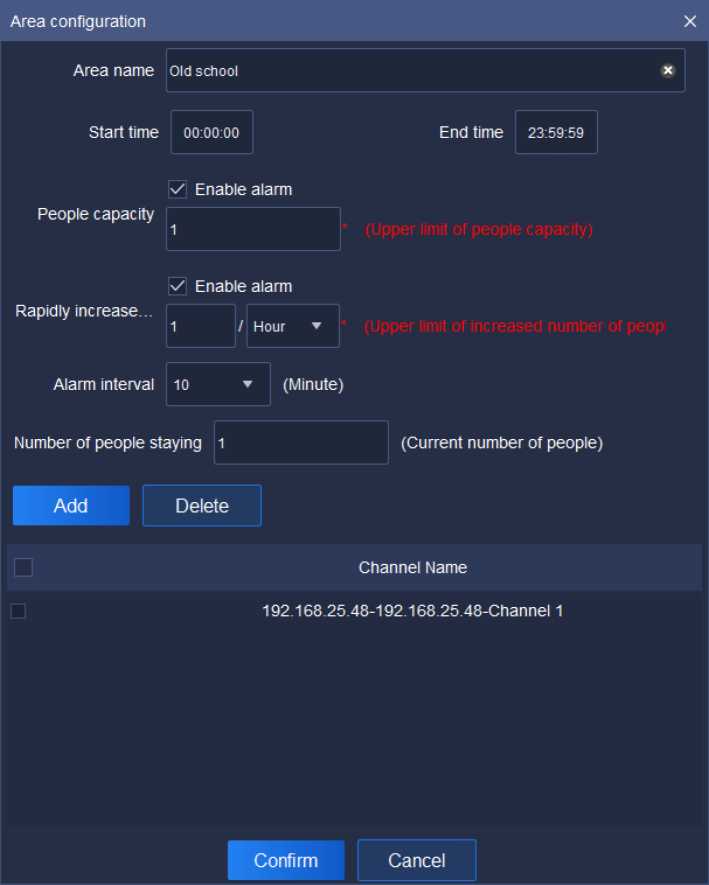

word image 1151 191

Figure 5.12.2.7

Relative parameters explanation of the interface is as below:

Parameters Explanation
Area name Set the name of the detection area to facilitate the rapid positioning of the area.
Start time/End time Set the time of starting and finishing of statistics.
People capacity Set the upper limit of the capacity. This is required.
Set the upper limit of the increase of the number of people
Rapidly increased in the unit time (10 minutes, 30 minutes, 1 hour, 2 hours).
number of people This is a required field.

Set alarm interval, supporting 10, 20, 30, 40, 50, 60

Alarm interval minutes.
Number of people Set the current number of existing people.
staying Set the detected channel video to be detected. Multiple channel videos adding is possible.

Select the channel video to be deleted. Multiple channel videos deletion is possible.

Table 5.12.2.3

Add

Add

Delete

Delete

5.12.2.3. Real-time Data of Real-time Statistics

Select the area to be viewed in the area list, and the configuration information of the area can be viewed at the bottom of the interface, as is shown

in below figure:

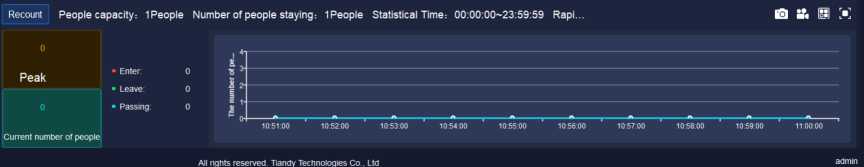

Figure 5.12.2.8

Relative parameters explanation of the interface is as below:

word image 1151 192

Parameters Explanation
Recount Click to eliminate the recorded number of people.
Peak Record the maximum number of people in current area.
Current number of people Record the number of people at current time. If the number exceeds the one that can be accommodated, it will turn into a red box; otherwise, it will be a green box.
Enter/Leave/Passing Record the number of people in three status namely entering / leaving / passing by. At the same time, the color of each case is distinguished. Red colour represents entering, green leaving, and blue passing by.
Real-time Line Chart The number of people is displayed in real time according to minutes. Red represents entering, green represents leaving, and blue represents passing.
B Capture, capture picture save path can be changed from [system settings] > [common settings] > [path settings].
K Start all videos. The video download and save path can be changed from system Settings > Common Settings > Path Settings.
ini Set the number of pictures, supporting picture display amount 1,4, 9, 36, 49, 64.
l”j Full screen, full screen display of video page and real­time data page. Click again to cancel the full screen.

Table 5.12.2.4

5.12.2.4. Video Page of Real-time Statistics

View the video effect of real-time preview in video page, as is shown in below figure:

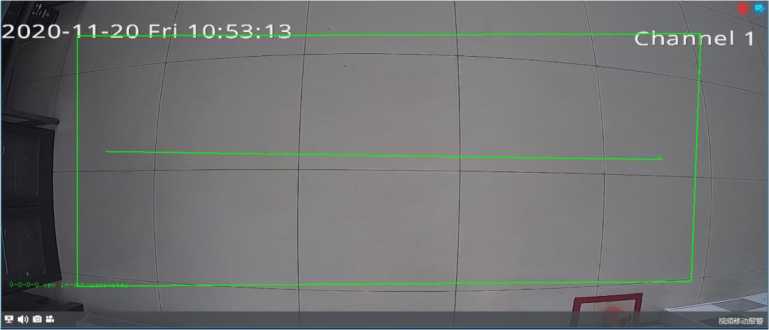

word image 1151 193

Figure 5.12.2.9

Refer to 5.2.2 Video Preview Window for page-related parameters. :

5.12.2.5. Report statistics

On the report statistics page, count the number of people in a selected area. It supports the statistics of the number of people entering, leaving and passing by according to the detailed time, as is shown in below figure:

Tiandy

Home page

System configuration

Real-time preview

Date statistics

Eouipment management

Face statistics

staosiKai me
00 004»»
01 004)1 »
02 004)2»
03 004»»
04:00-04»
05 004»»
06 00 06»
07 00-07»
06:00-08»
09:004»:»
10:00-10»
11:00-11:59
12:00-12»
13:00-13:»
14:00-14:»
15:00-15:»

Number or people entering

M nghts reserved Tiandy Technologies Co. Ltd

Figure 5.12.2.10

Select the report type and statistical time. If statistics need to be made according to the detailed time, enable the “detailed time” check box, and the statistics of the number of people in the detailed period will be displayed during the statistics. Click “export” to export the statistical data to the machine, as is

shown in below figure.

Tiandy

Home page

System configuration

Real-time preview

Data statistics

Equipment management

X Face statistics Real time stati Report statistics

•?. Visitor flow statistics Q

Type or report Daily Repon

□ • * Zoneliol

Statistics Output

□ m Old school

E m Outdoor List Graphics

▼ Date al stall 2020-11 -23

3 E7| Detail lime 09 ▼ 00 »

Number ot people leaving

Number ol people passing

0

All rights reserved Tiandy Ternnotogies Co, Lid

Figure 5.12.2.11

The data can be displayed in the two forms namely list or graph. The

graphic form supports line chart and bar chart, as shown in below figure:

word image 1151 194

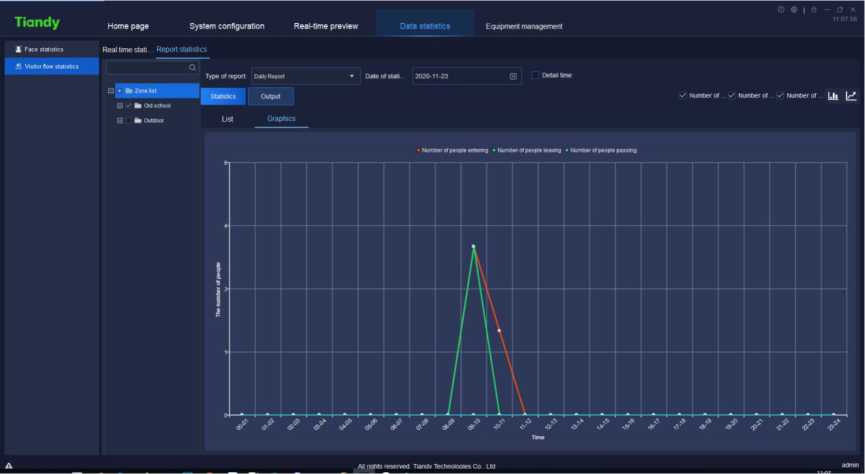

Figure 5.12.2.12

I lunay Homepage System configuration Real-time preview Data statistics tquipmerfl management

I Face statistics Real time stati Report statistics

•5 Visitor flow statistics Q

Type ol report Dmlv Report • Dateotslati 2020-11-23 H Detailtime

LJ ■ k Zonilist Statistics Output

S -r k Oto school '

□ k outdoor List Graphics

v Humber of s Number or Number or l.li \S Histogram

word image 1151 195

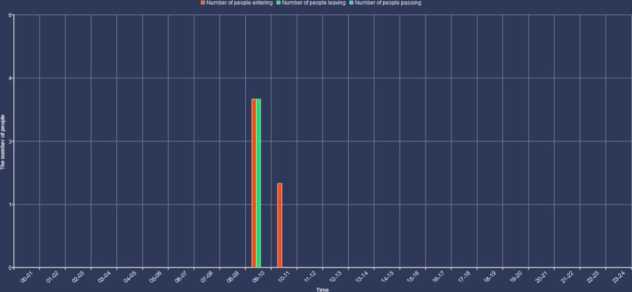

Figure 5.12.2.13

  1. Alarm configuration

word image 1151 196

Click the alarm configuration icon on home page to enter the alarm

configuration interface. To conduct alarm configuration on watch point and device respectively is supported.

  1. Alarm configuration of watch point

word image 1151 197

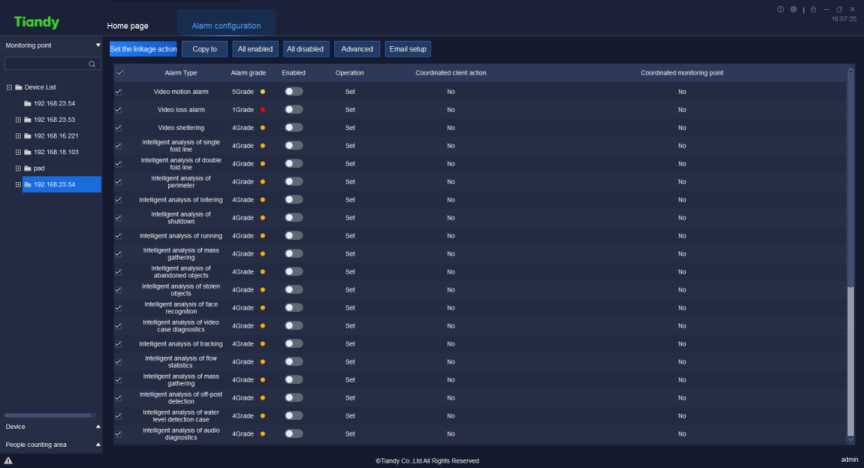

Figure 5.13.1.1

word image 1151 198 Select the channel needs alarm configuration in the watch point on the left,

, click “set”

tick and select required alarm type, set whether to enable

o|set coordinated action

to set the operation of coordinated alarm or coordinated

recording in corresponding alarm type, as shown in below figure:

word image 1151 199

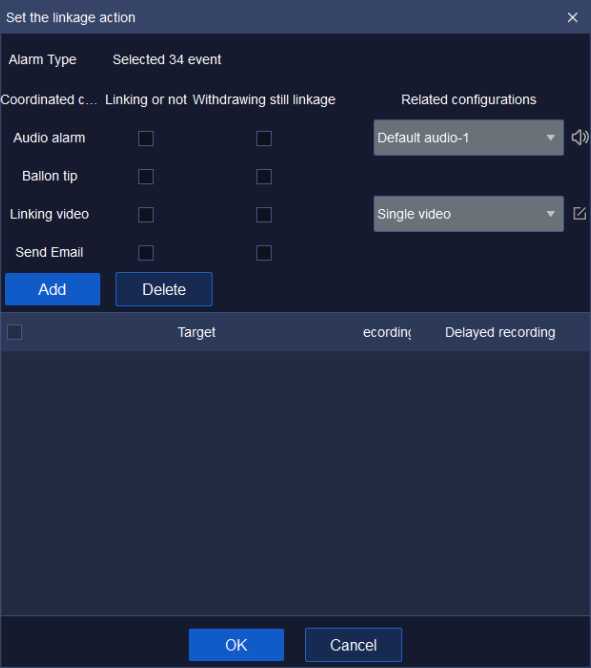

Figure 5.13.1.2

Note: Set linkage under defense deployment status by ticking “link or not”.

Linkage will take effect under defense withdrawal status by ticking “link or not” and “defense withdrawal enabled” at the same time.

  1. Set coordinated alarm

Tick and select the check box ahead of “Audible alarm”, select alarm audio effect in the drop-down list, customized alarm audio supported (supported audio format is .wav), alarm audio audition supported.

  1. Set coordinated recording

Click Add and set “Coordinated monitoring point”, as shown in below figure:

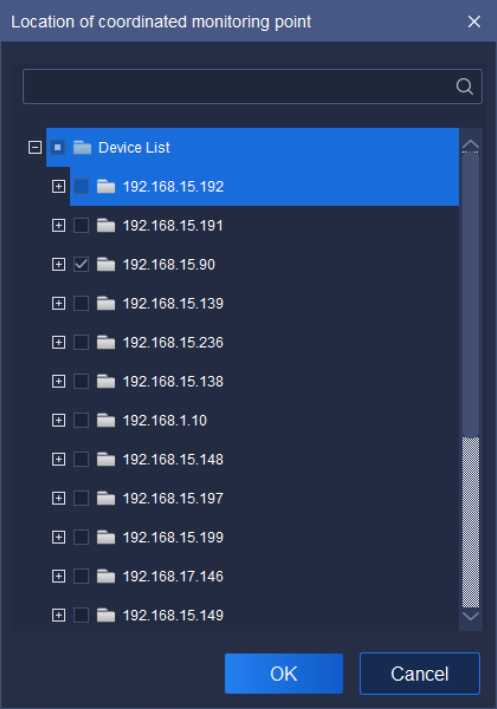

word image 1151 200 word image 1151 201

Figure 5.13.1.3

Select the channel needs to set recording, click

to add the

target channel of coordinated recording, click

Cancel

to restore to last

parameter setting. Click the number below or

Advanced

to continue to set

“Pre-recording” and “Delayed recording” time, as shown in below figure:

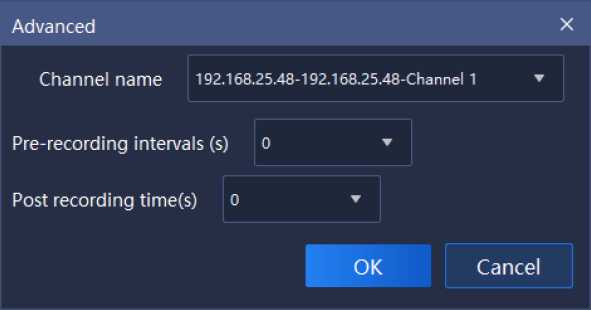

word image 1151 202

Figure 5.13.1.4

Pre-recording and delayed recording interval supports the time setting of

0s, 5s, 10s, 15s, 25s and 30s, click

OK

to save time setting, click ”

word image 1151 203

Cancel

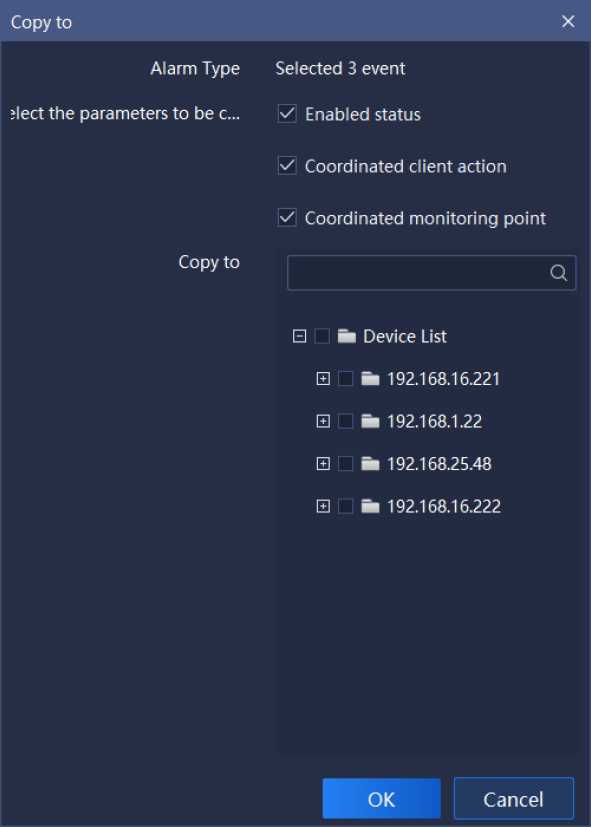

Figure 5.13.1.5

to restore to last parameter setting.

  1. Copy to other channel

word image 1151 204 Click and select the type of alarm, click

to copy the parameter of

Enabled status, Coordinated client action and Coordinated monitoring point of

the selected copy to other channel, as shown in below figure:

Click ”

channel.

  1. All enabled/All disabled

All enabled

or

«disabled

to enable/disable all types of alarm in

the

5.13.1.5. Email setup

Click

Email setup

“button, and the E-mail can be configured. After

the

configuration is successful, the email alarm can be linked. As shown in the

figure below:

word image 1151 205

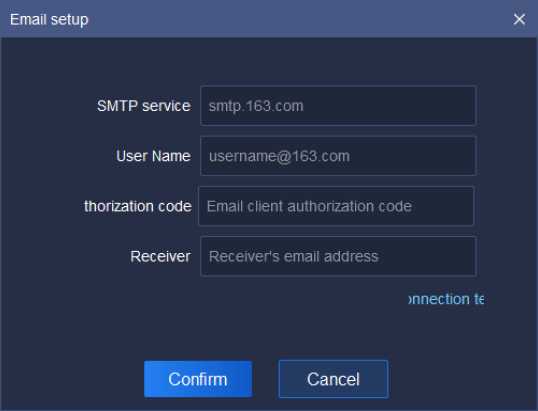

Figure5.13.1.6

Relative parameters explanation of the interface is as below:

Parameters Explanation
SMTP service Configure the E-mail server address.
User name Configure sender E-mail name.
Thorization code Configure sender E-mail authorization code.
Receiver Configure the recipient E-mail address.
Connection testing Verify that this method can connect successfully.

Table 5.13.1

  1. Alarm configuration of the device

word image 1151 206

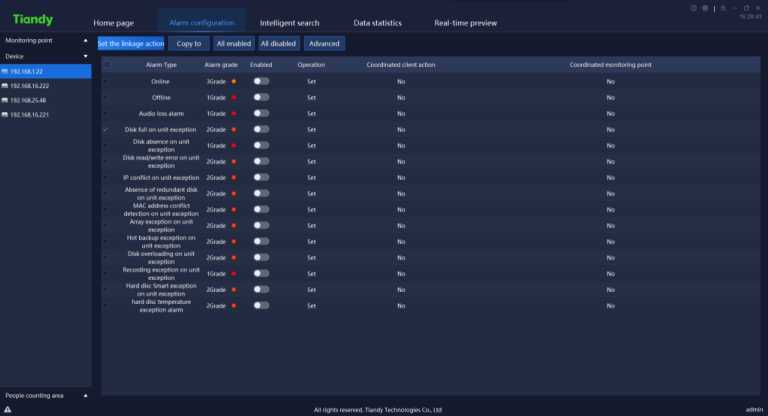

Figure 5.13.2.1

The specific operation is the same as the alarm configuration of monitoring point.

  1. Alarm configuration of people counting area

word image 1151 207

Tiandy

Home page

Data statistics

Equipment management

Alarm configuration

Monitoring point

Device

People counting area

•i westdoor

Alarm Type Alarm grade Enabled Operation Coordinated client action Coordinated mot
Capacity eweeded iGrade • Set NO No
Alarm for surge IGrade • Set No No

Set the linkage action Copy to All enabled All disabled Advanced

All rights reserved. Tiandy Technologies Co., Ltd

Figure 5.13.3.1

The specific operation is the same as the alarm configuration of monitoring point.

  1. Operation logs

on home page to enter the operation

Click the operation log icon I

log interface. Login log, operation log and configuration log query supported, as

shown in below figure:

word image 1151 208

Figure 5.14

The description of related parameter in the interface is as follows:

Parameter Description
Starting time Available to set the starting time of log query.
Ending time Available to set the ending time of log query.
User name Available to query the operation record of one user. Admin-super administrator user may check the operation record of all users.
Log Type Available to query logs by type, including all, login, operation and configuration.
Detail Type Available to conduct detailed classified query of all, login, operation and configuration by type.
Log description Search key word to query log information.
Export Logs Click Export Logs, available to output and save logs.
Query Click Query, available to query logs according to query conditions.
Reset Click Reset, to restore query conditions to default status.
Total X Pages Display how many pages does the query result has.
To X Page Select a page to jump to the log record on that page.

Table 5.14

Print Friendly, PDF & Email

1 thought on “Tiandy Easy7 Smart Client Express User Manual”

  1. Isn’t it just thrilling to figure out how to tackle connection mishaps caused by playful pets? And decoding those mysterious system errors? Now, that’s what I call a tech rollercoaster!

    Reply

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
