Latest Dahua firmware 2024

Dahua 2024, Dahua Technology is a world-leading video-centric AIoT solution and service provider. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.

How to Download and Prepare Firmware

Description

This guide will show how to download and prepare the firmware file for a .

Firmware files for Dahua devices can be found at Firmware by Device or the specific product page for the device

Firmware is typical provided in a ZIP file, a compressed file format

This file will contain the actual firmware file, which needs to be extracted from the ZIP file in preparation for the upgrade

Prerequisites

 Computer with internet access (to download firmware file)
 Dahua device

Video Instructions

Step by Step Instructions

Confirm the Model and current firmware of Dahua device

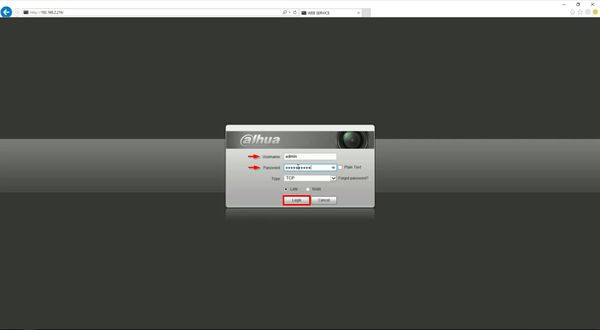

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

download and prepare firmware 1

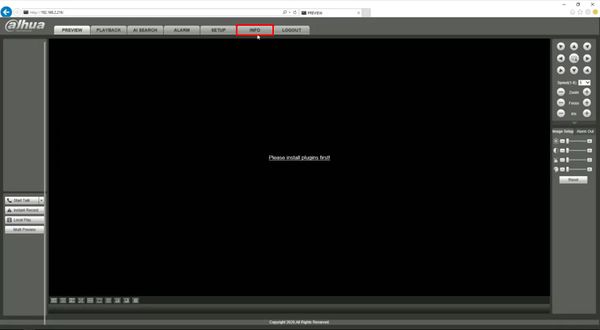

2. Click Info

download and prepare firmware 2

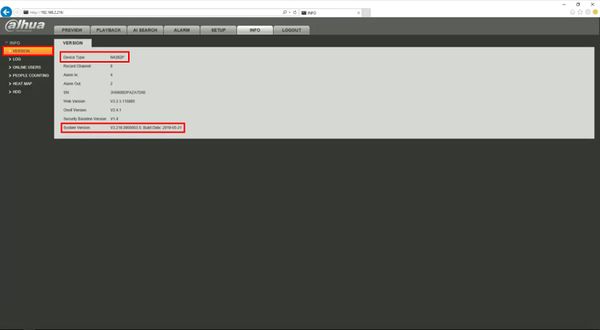

3. Click Version

The Device Type will be displayed

The current System Version will be displayed

download and prepare firmware 3

Download the firmware file for device from DahuaWiki

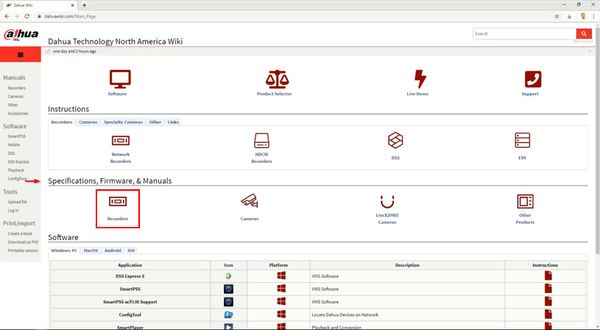

4. In a browser go to DahuaWiki.com

Under Specifications, Firmware, & Manuals

Click the device type (in this example Recorder)

download and prepare firmware 4

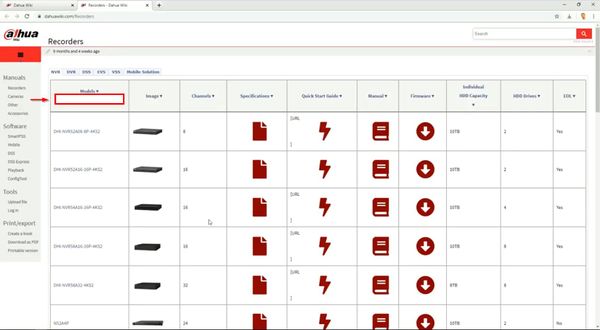

5. Enter the device model into the field

download and prepare firmware 5

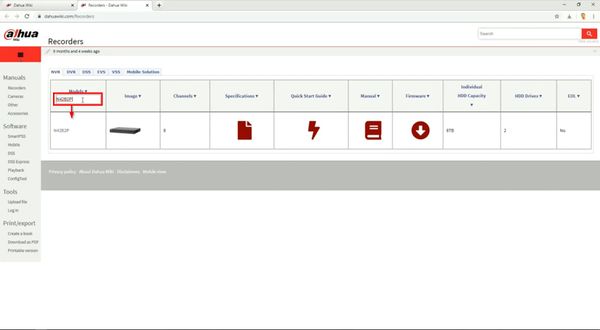

6. The results will be filtered

download and prepare firmware 6

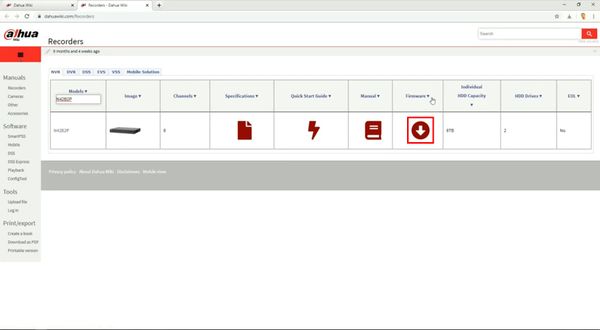

7. Click the firmware icon to download the firmware file

download and prepare firmware 7

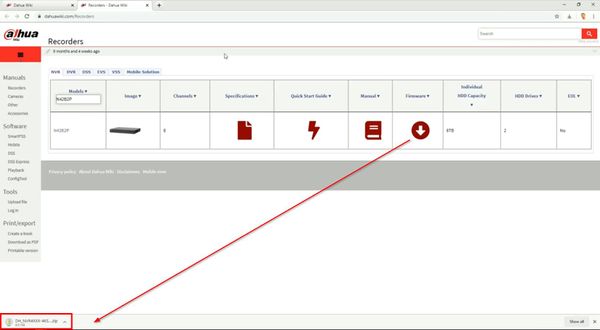

8. The file will download

download and prepare firmware 8

Extract the firmware file to local computer

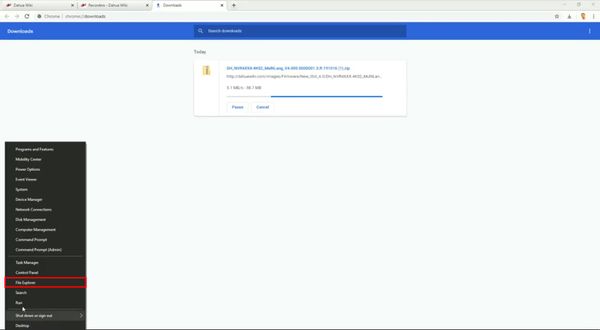

9. Right click the Start Menu / Windows icon in the bottom left of the screen

Select File Explorer

download and prepare firmware 9

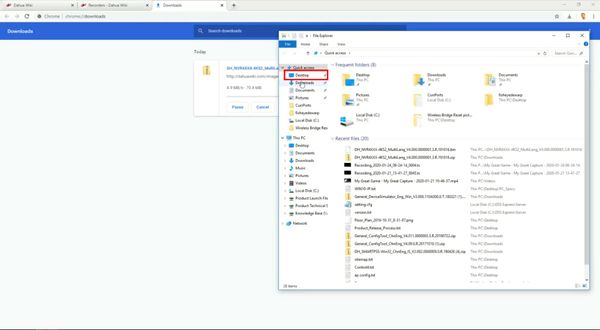

10. Select Desktop

download and prepare firmware 10

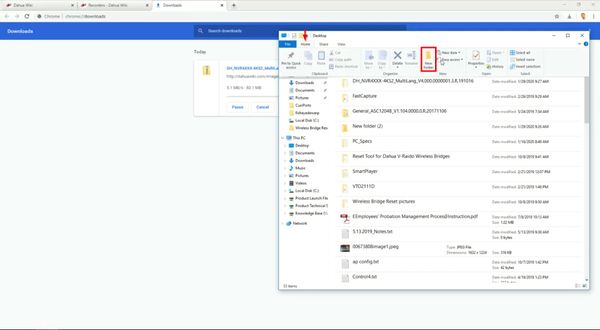

11. Click Home

Then click New folder to create a new folder to extract the contents of the firmware zip file

download and prepare firmware 10 1

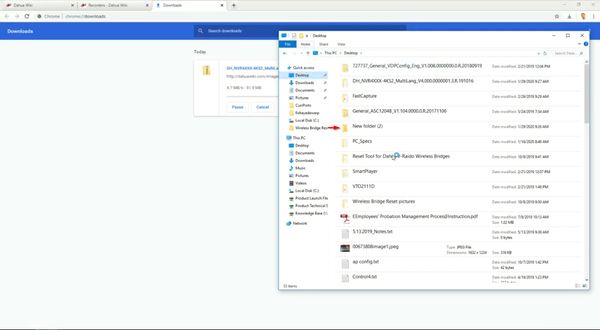

12. Find the created folder in the list, double click to open

download and prepare firmware 11

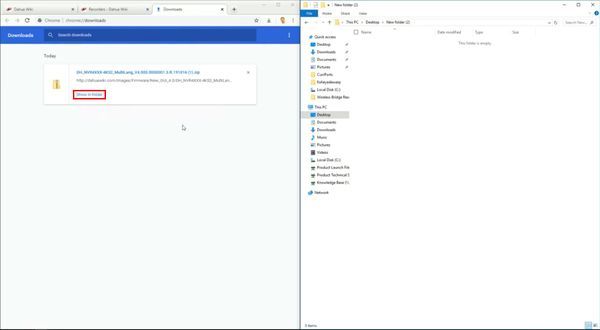

13. Under the Downloads window of the browser, click ‘Show in folder'

download and prepare firmware 12

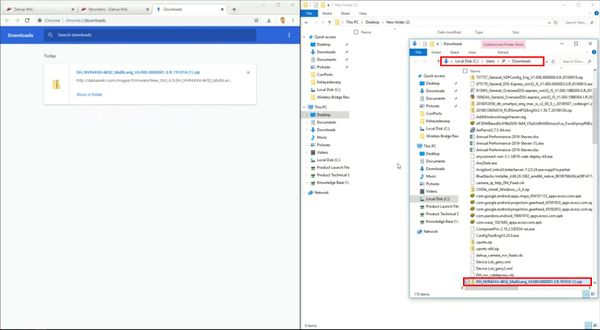

A new File Explorer window should open containing the directory the firmware zip was downloaded to

Locate the file in the list

download and prepare firmware 13

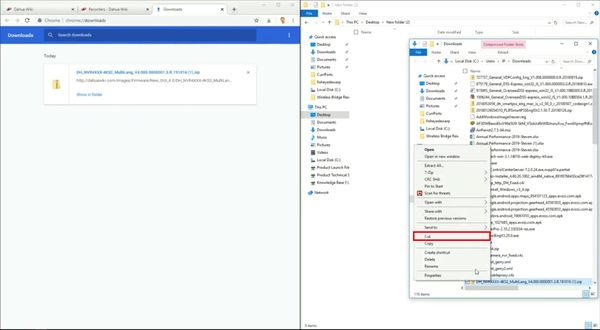

14. Right click

Select Cut

download and prepare firmware 14

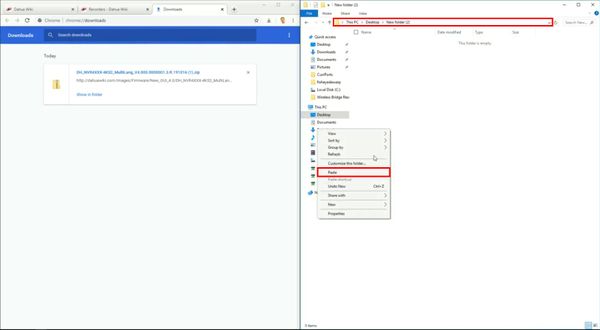

15. Select the window with the new directory

Right click in the window

Select Paste

download and prepare firmware 15

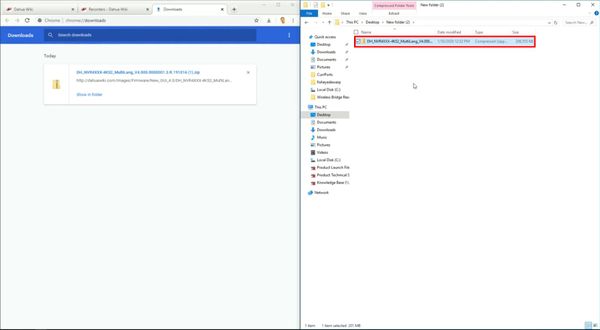

The folder will appear in the directory

download and prepare firmware 16

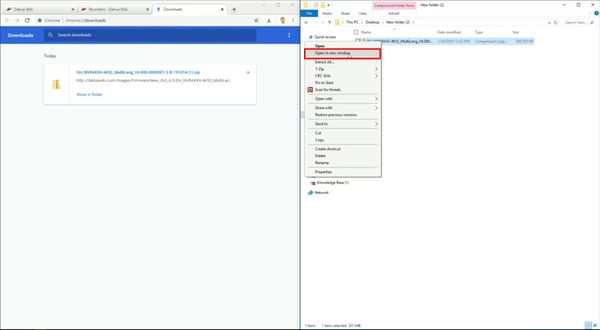

16. Right click the file

download and prepare firmware 17

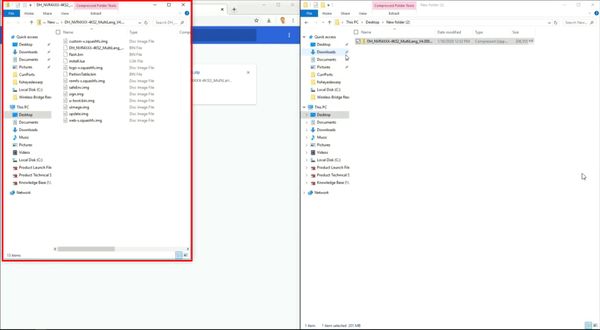

17. The contents of the zip file will appear in a new window

download and prepare firmware 18

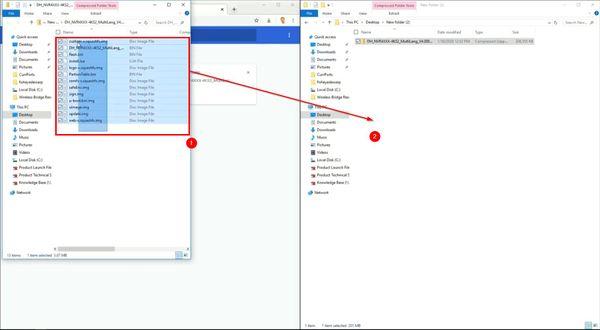

18. Click to select all files in the folder

Drag and drop the files to the created folder

download and prepare firmware 19

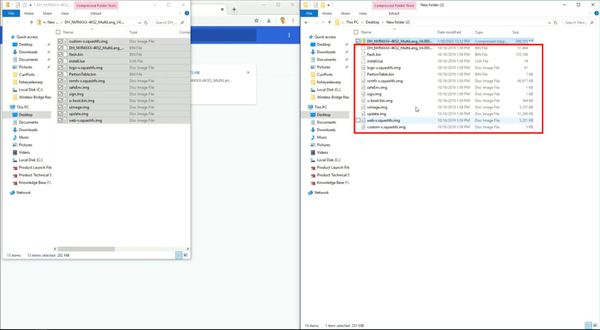

The files will appear in the directory

download and prepare firmware 20

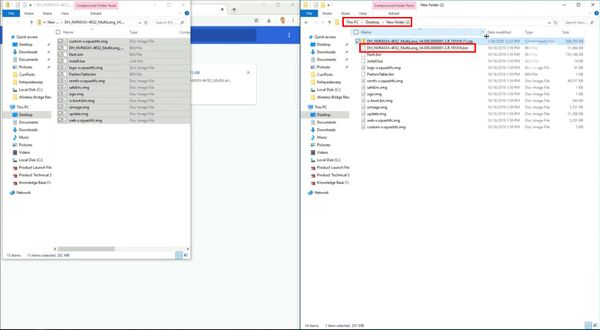

The firmware file will appear in the directory ready to use

download and prepare firmware 21

How to Reset Device to Factory Default

Latest Dahua firmware 2024

Step by Step Instructions

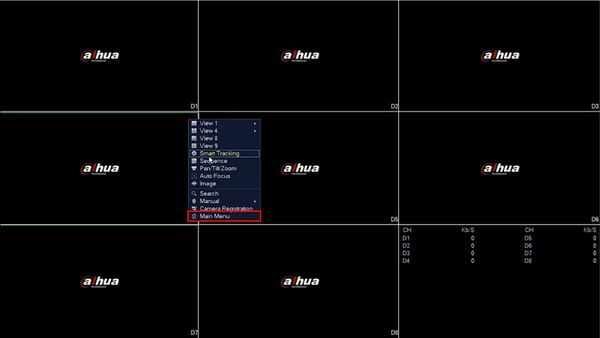

1. From Live View

Right click select Main Menu

factory reset systemui old 1

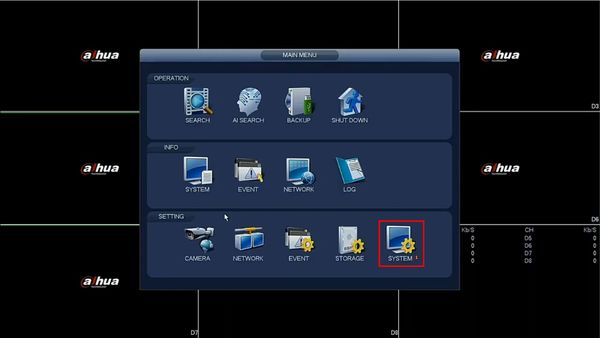

2. Under Setting

Click System

factory reset systemui old 2

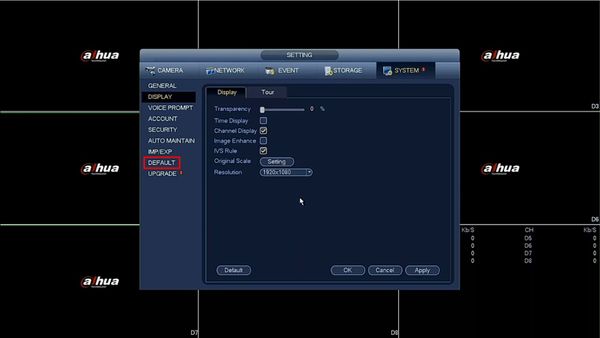

3. Click Default

factory reset systemui old 3

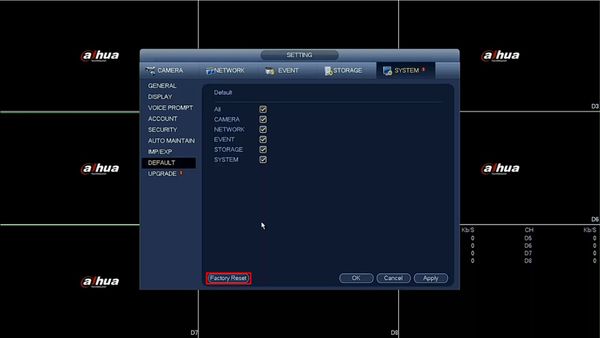

4. Click

factory reset systemui old 4

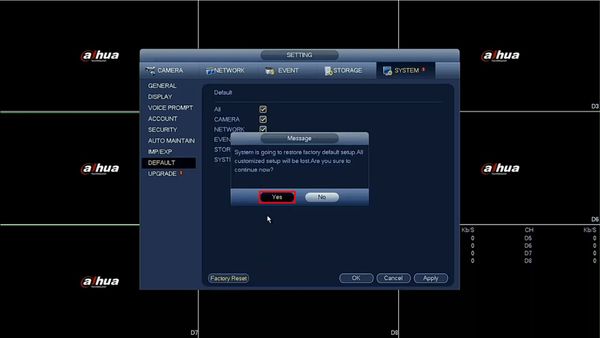

5. A prompt will appear to confirm the factory default

Click Yes

factory reset systemui old 5

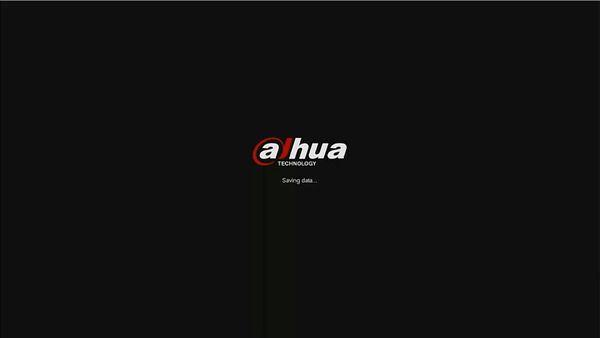

6. The unit will default and reboot

factory reset systemui old 6

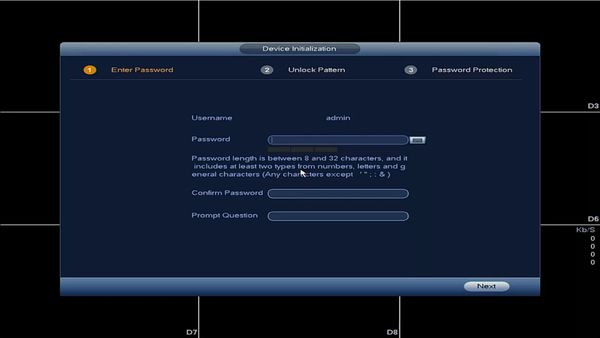

7. When the device has booted back up it will be factory reset and is now ready for device initialization

factory reset systemui old 7

icon for type systemui new

SystemUI New

Step by Step Instructions

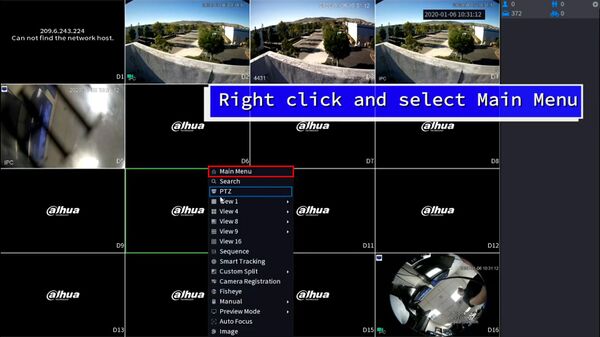

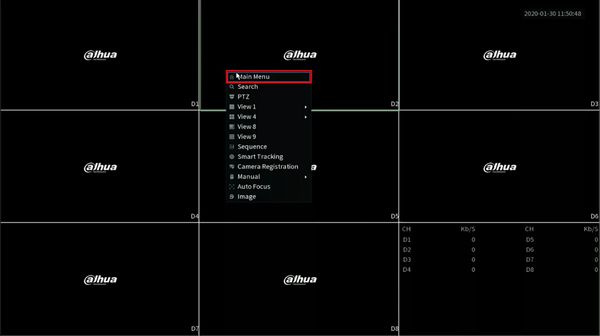

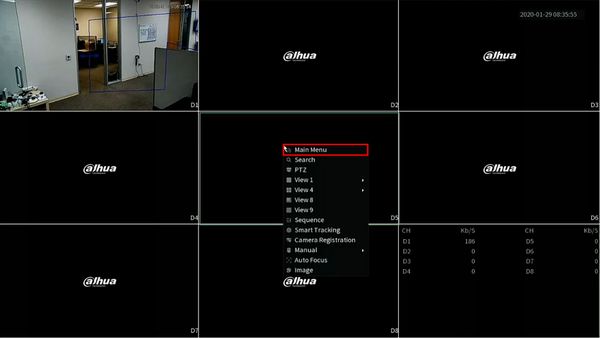

1. From Live View

Right click, select Main Menu

factory reset systemui new 1

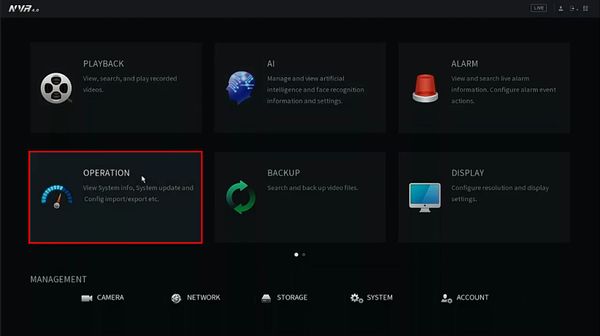

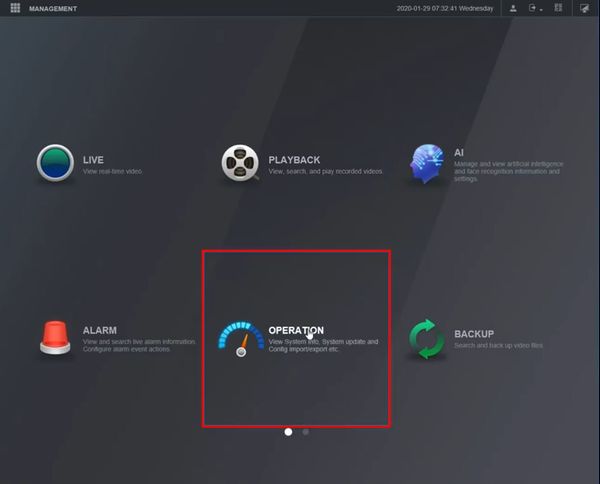

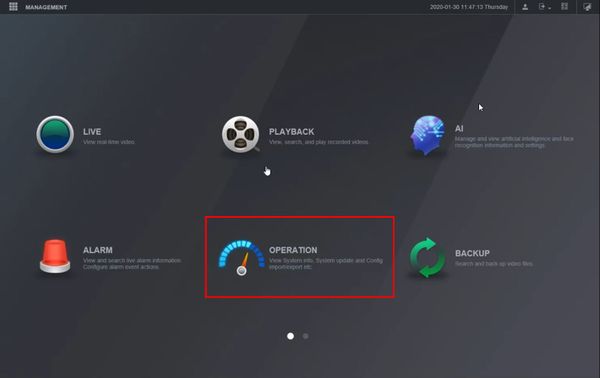

2. Click Operation

factory reset systemui new 2

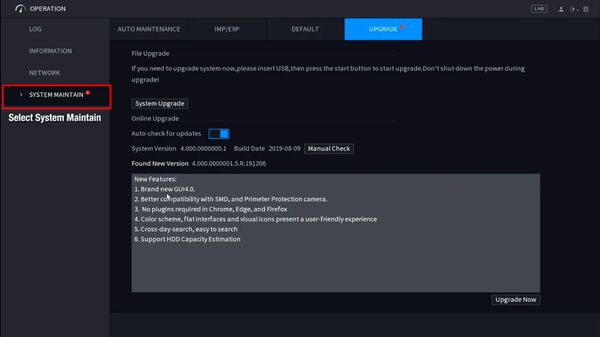

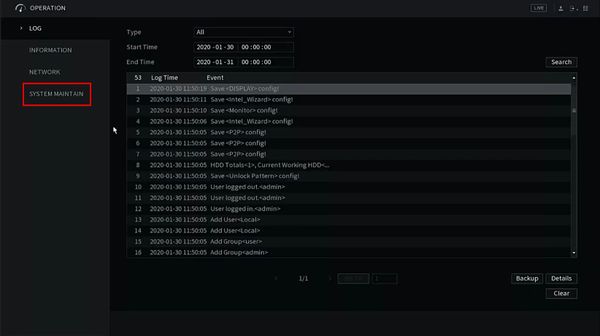

3. Click System Maintain

factory reset systemui new 3

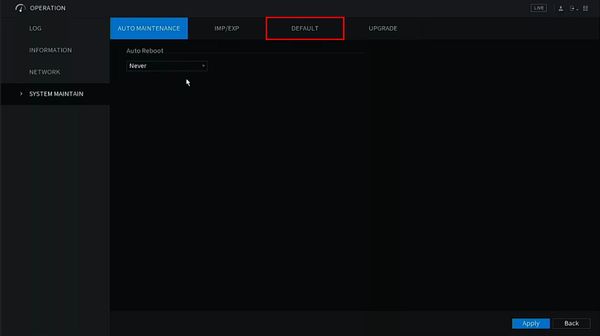

4. Click Default

factory reset systemui new 4

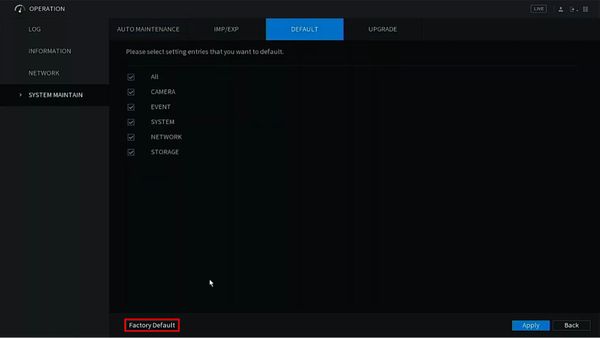

5. Click Factory Default

factory reset systemui new 5

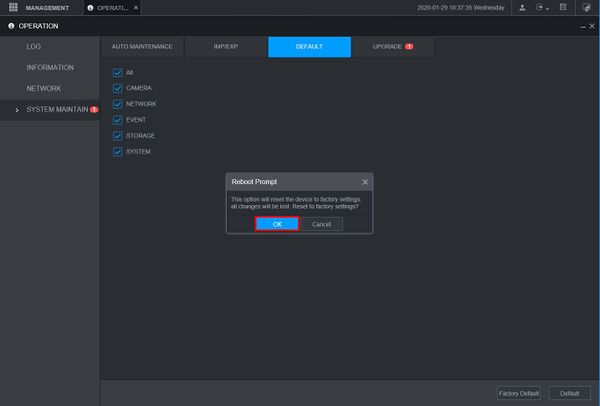

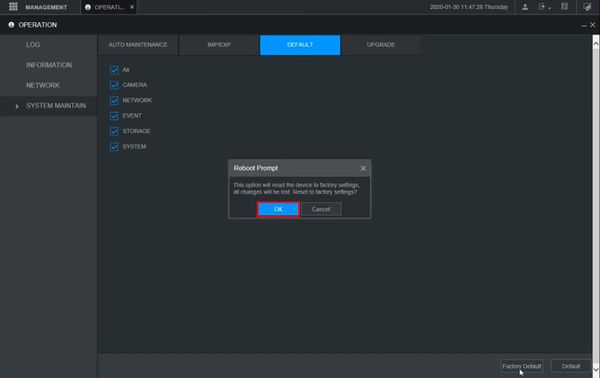

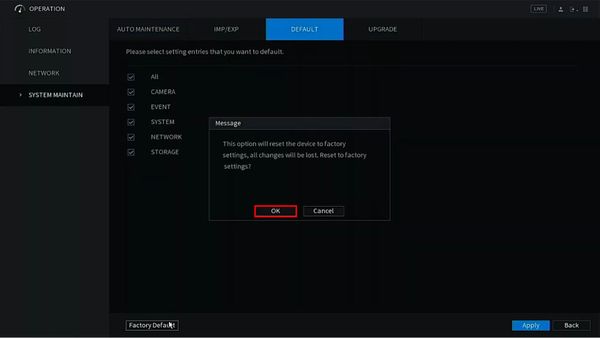

6. A prompt will appear to confirm the factory default

Click OK

factory reset systemui new 6

7. The will default and reboot itself

factory reset systemui new 7

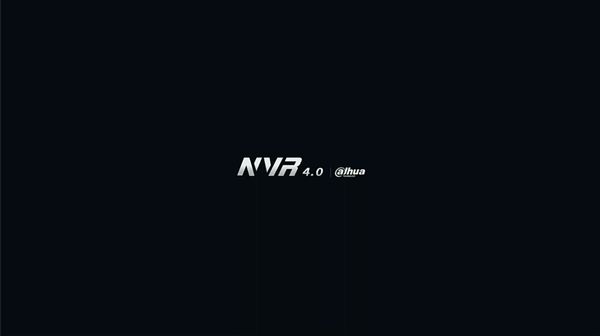

8. The unit will boot back up

factory reset systemui new 8

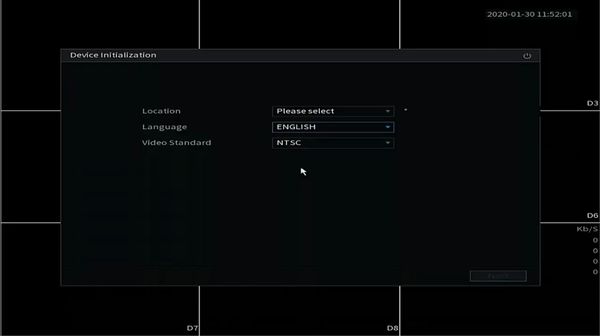

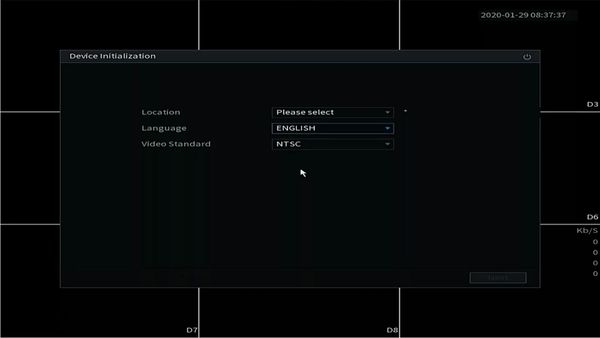

9. The device has been factory reset and is now ready for device initialization

factory reset systemui new 9

WebUI Old

Step by Step Instructions

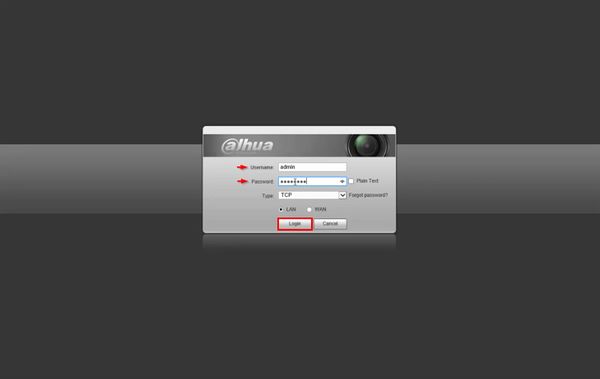

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

factory reset webui old 1

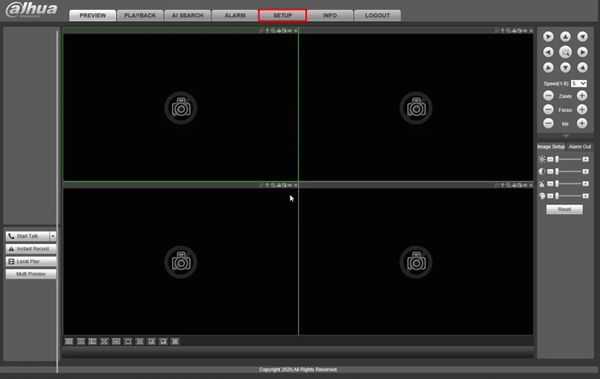

2. Click

factory reset webui old 2

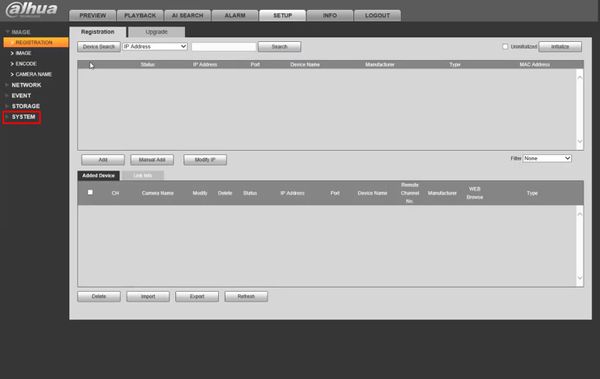

3. Click System

factory reset webui old 3

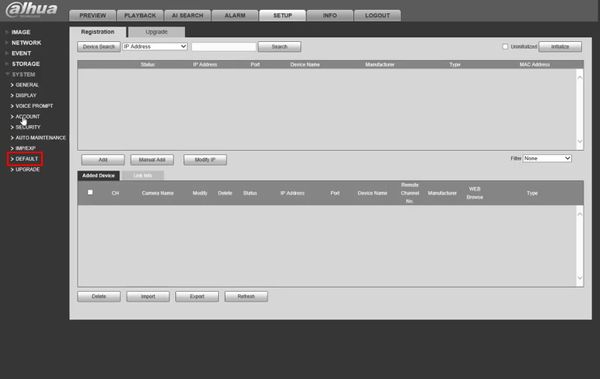

4. Click Default

factory reset webui old 4

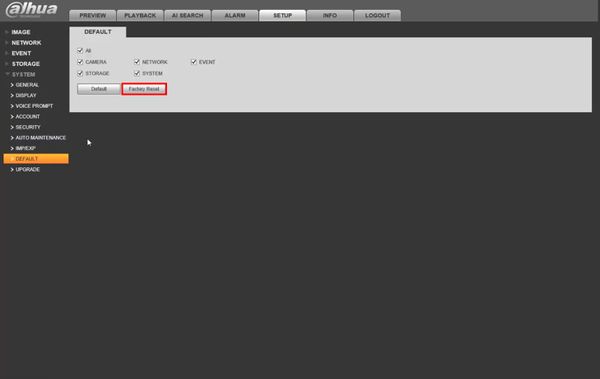

5. Click Factory Reset

factory reset webui old 5

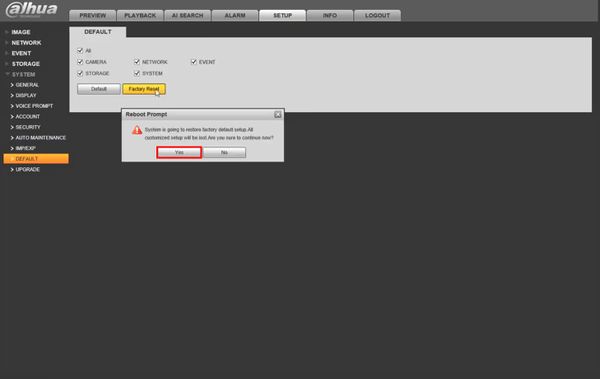

6. A prompt will appear to confirm the Factory Reset

factory reset webui old 6

The unit will reboot and is now ready for device initialization

WebUI New

Step by Step Instructions

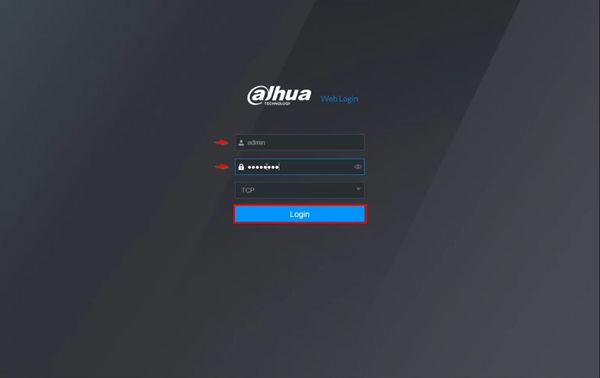

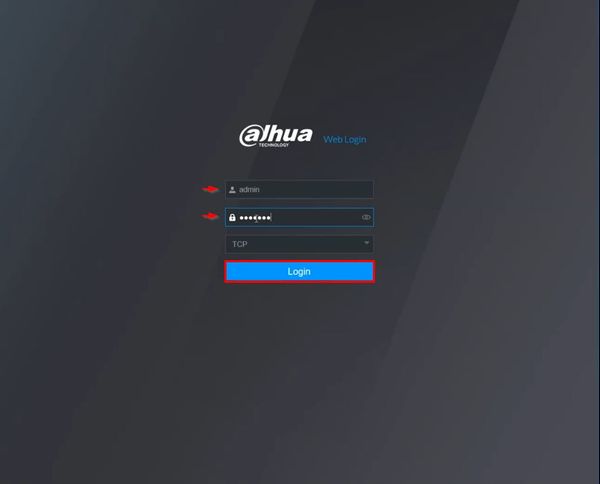

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

factory reset webui new 1

2. Click Setup

factory reset webui new 2

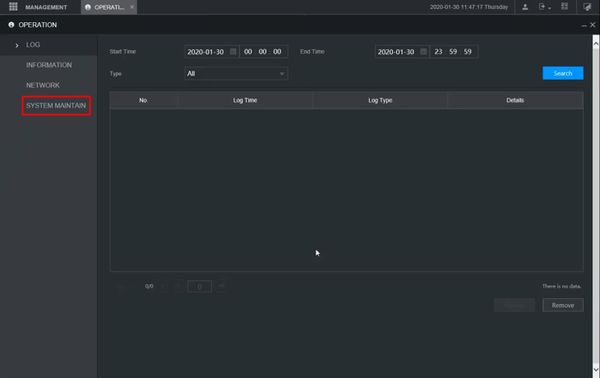

3. Click System

factory reset webui new 3

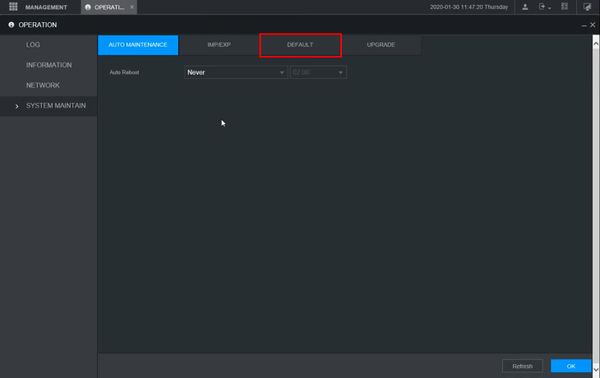

4. Click Default

factory reset webui new 4

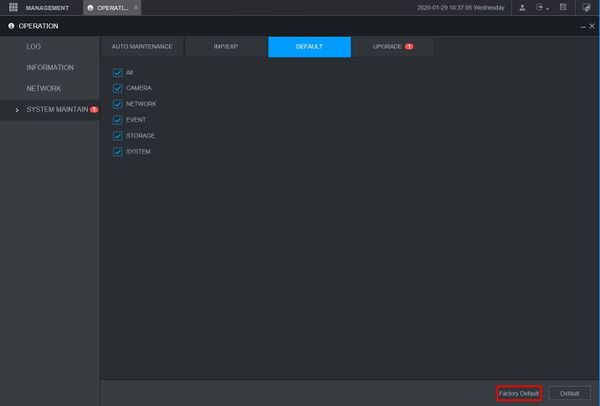

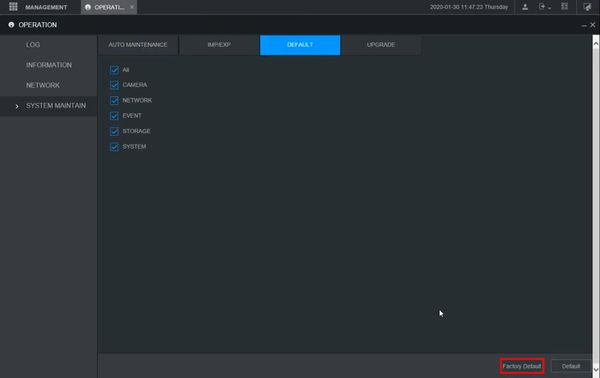

5. Click Factory Reset

factory reset webui new 5

6. A prompt will appear to confirm the factory default

Click Yes

factory reset webui new 6

The unit will reboot and is now ready for device initialization

Firmware Update via USB Drive

Description

This page will show you how to update the firmware of your Dahua device via a USB drive at the recorder

Note: All devices should be “Factory Reset” once the firmware update is complete.

Prerequisites

 Dahua device
 USB drive with the firmware file for the device – Firmware by Device

icon for type systemui old

SystemUI Old

Prerequisites

 USB Drive 1GB or more
 The proper firmware file for the device
 Physical access to the device
 A computer to load the firmware files onto the USB

Video Instructions

Step by Step Instructions

1. Download Firmware and copy to USB such as a flash drive Insert USB into recorders USB port.

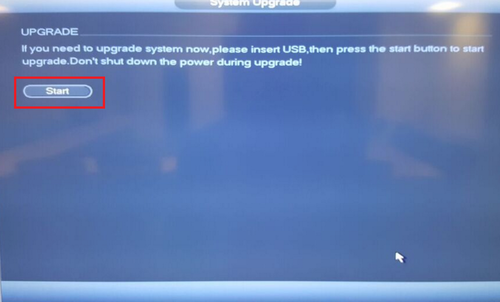

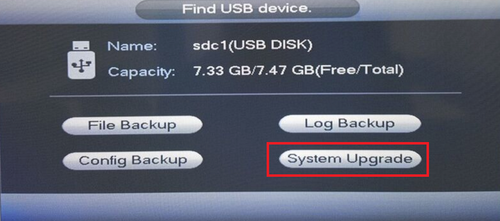

2. It will prompt for option to upgrade, Click System upgrade
Click Start.

usb upgrade 1

usb upgrade 2

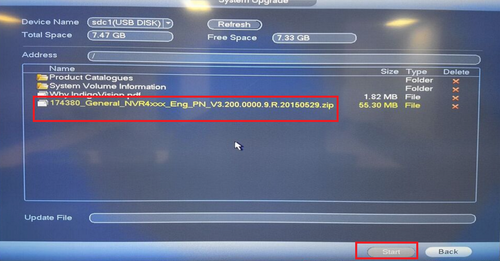

3. Browse for firmware Open firmware folder is in Select Bin File  Click Start. Device will reboot once finished.

usb upgrade 3

SystemUI New

Prerequisites

 USB Drive 1GB or more
 The proper firmware file for the device
 Physical access to the recording device
 A computer to load the firmware files onto the USB

Video Instructions

Step by Step Instructions

USB drive with Firmware file should be plugged into USB slot on recorder

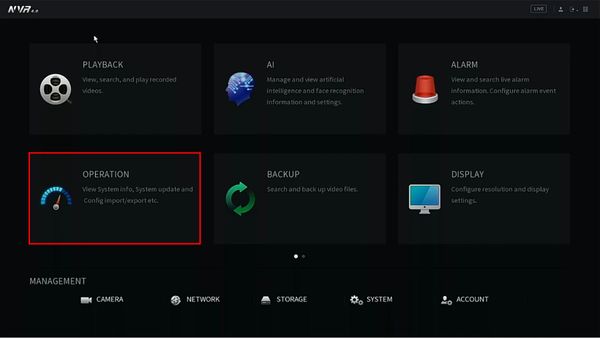

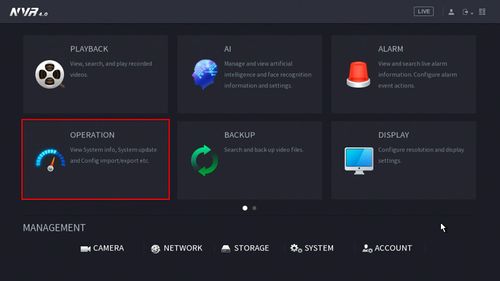

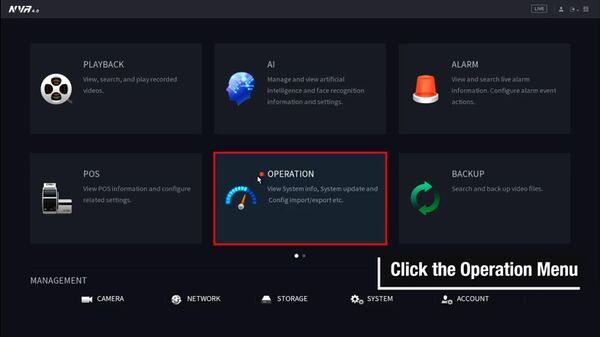

1. From the Main Menu, click Operation

how to update firmware via usb newui 1

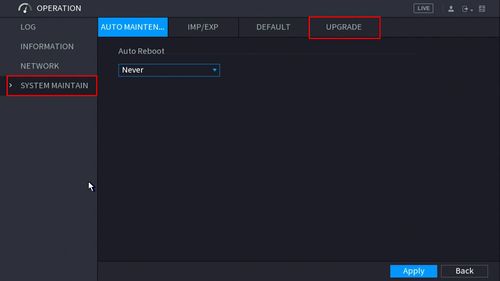

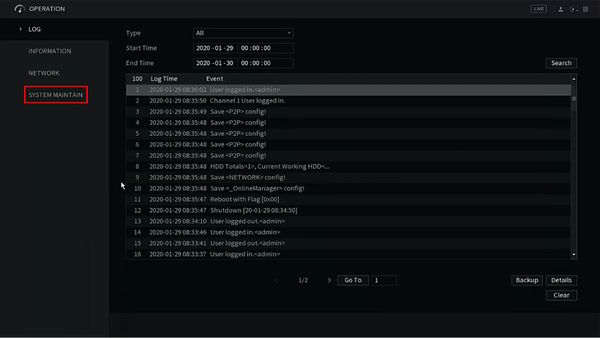

2. Click System Maintain > Upgrade

how to update firmware via usb newui 2

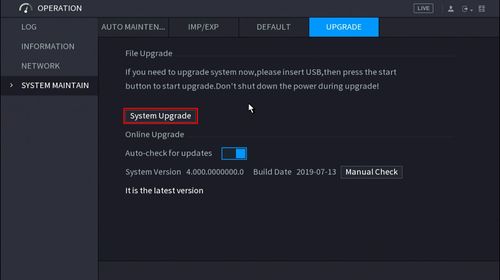

3. Click the System Upgrade in the middle of the page.

how to update firmware via usb newui 3

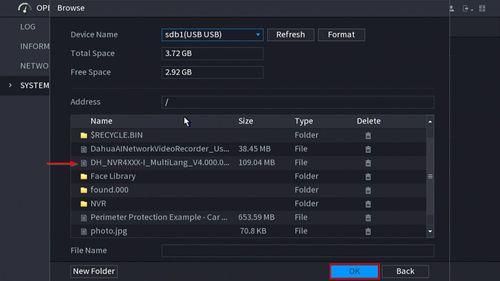

4. Select the Firmware file from the list

Click OK

how to update firmware via usb newui 4

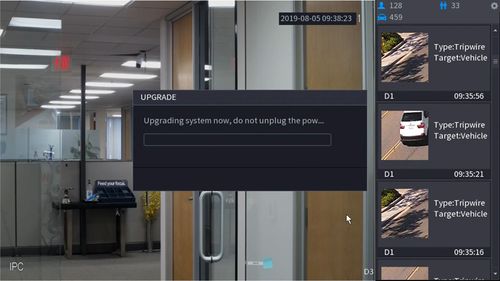

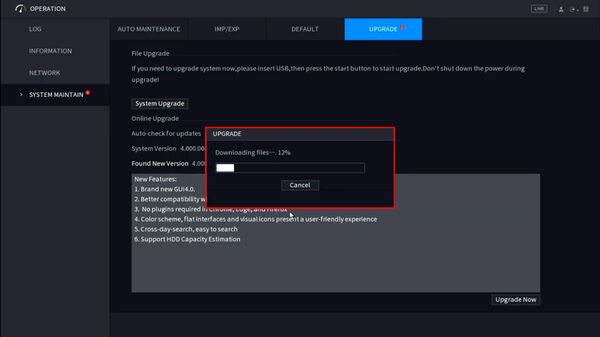

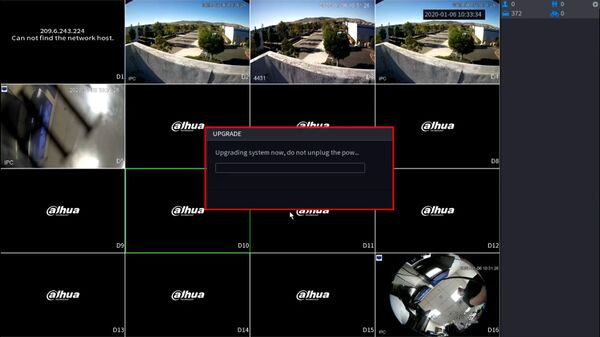

5. The firmware update will begin.

Make sure to not unplug the power during this process.

how to update firmware via usb newui 5

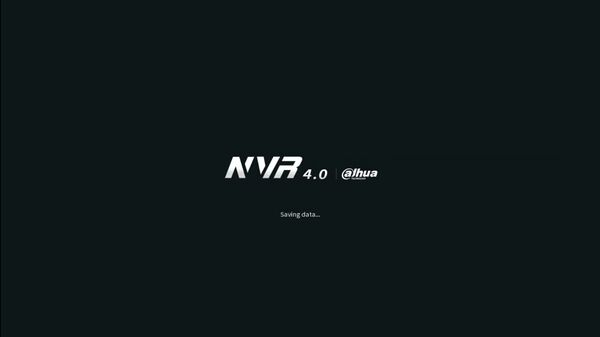

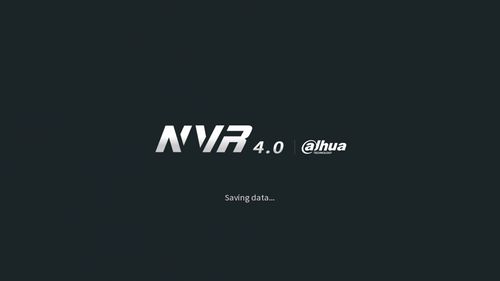

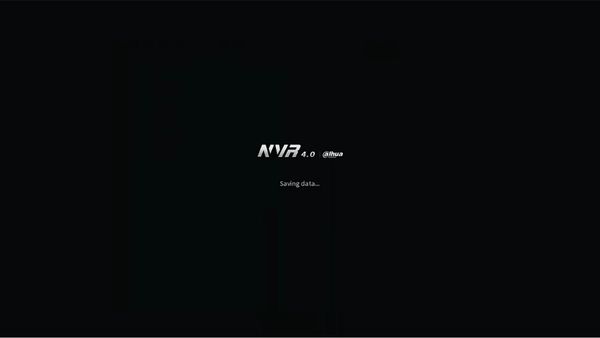

6. The NVR will reboot as the final step of the process

how to update firmware via usb newui 6

Firmware Update via WebUI

Description

This page will show you how to update the firmware of your Dahua device via the WebUI

Note: All devices should be “Factory Reset” once the firmware update is complete.

Prerequisites

 Dahua device with network connection
 Local Windows computer
 Firmware file for device downloaded to computer – Firmware by Device

Instructions

icon for type webui oldWebUI Old

Prerequisites

 Computer
 Internet
 Compatible Browser (Internet Explorer)
 NVR/HCVR/IPC

Video Instructions

Step by Step Instructions

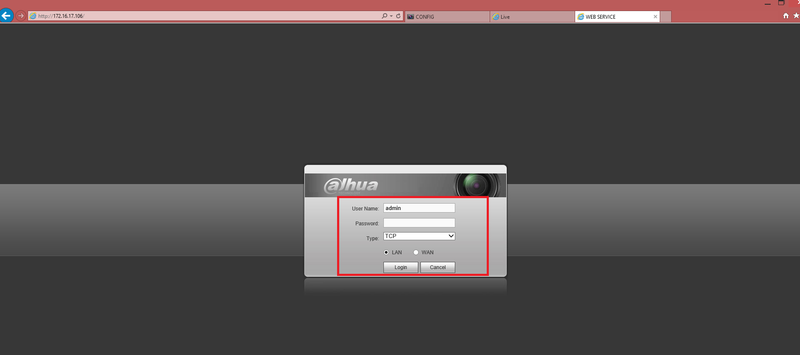

Step 1: From IE(Internet Explorer) type in the devices IP address on the IE address bar  login with credentials.

web upgrade wiki 2

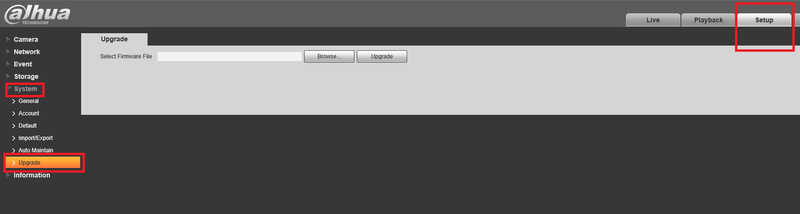

Step2: Setup  System  Upgrade

firmware22

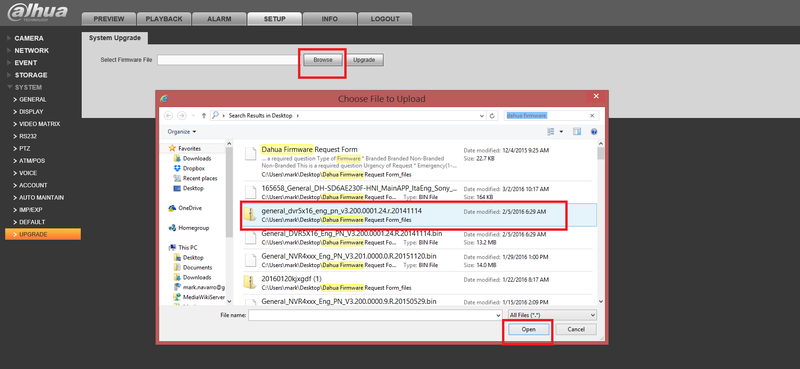

Step 3: Click on “Browse”  Select correct firmware

web upgrade wiki

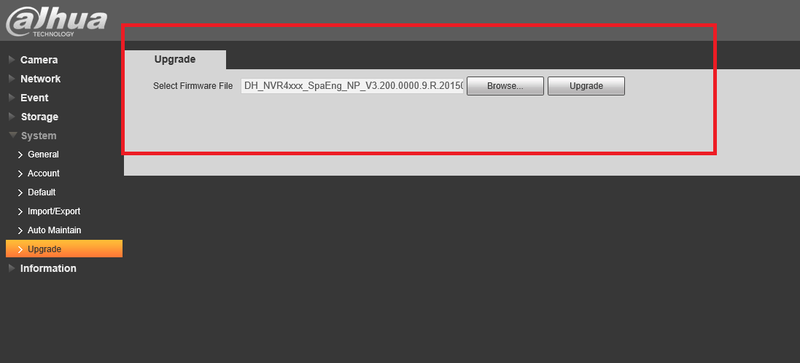

 Click on “Upgrade”

firmware 3

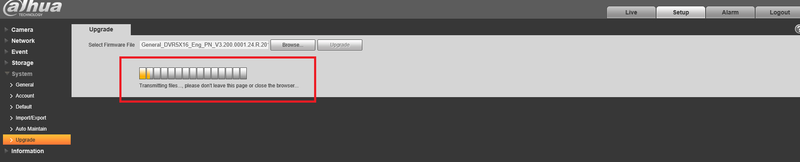

 Device will reboot after upgrade is finished.

updatebrowser 1

USB firmware Upgrade via web.

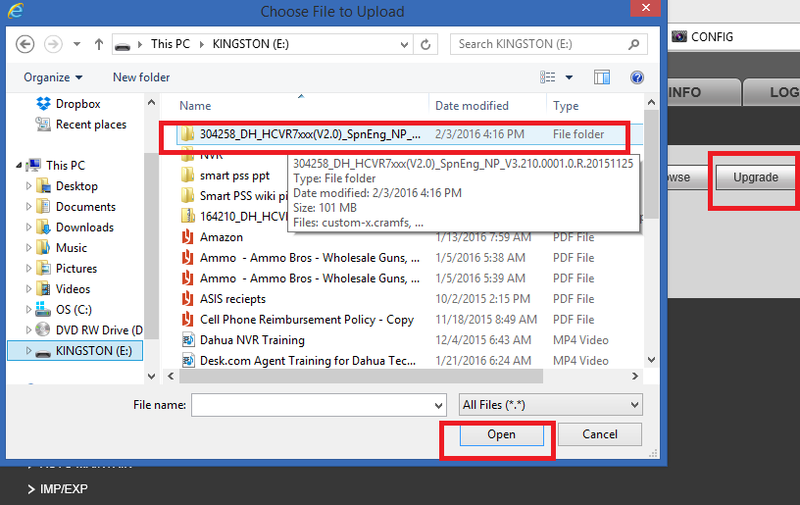

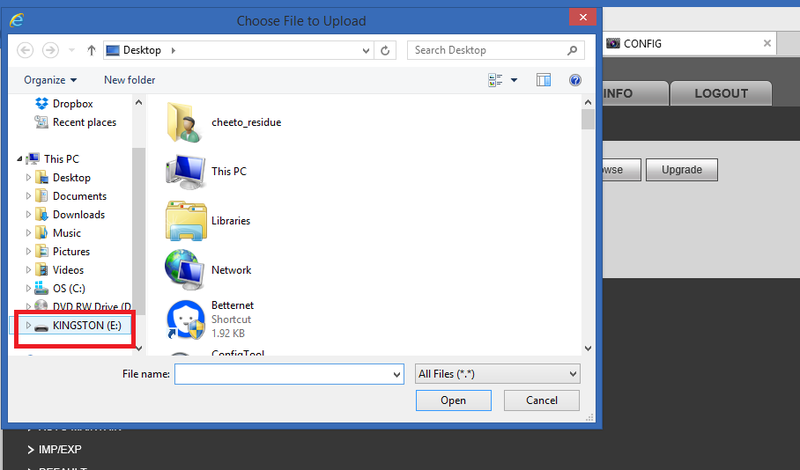

If firmware is on USB Device  Click on browse  Navigate to USB location  Select firmware  Open  Upgrade.

updateusb1

updateusb3

updatebrowser 1 1

icon for type webui newWebUI New

Prerequisites

 Dahua device with network connection
 Local windows computer
 Firmware file for device downloaded to computer

Video Instructions

Step by Step Instructions

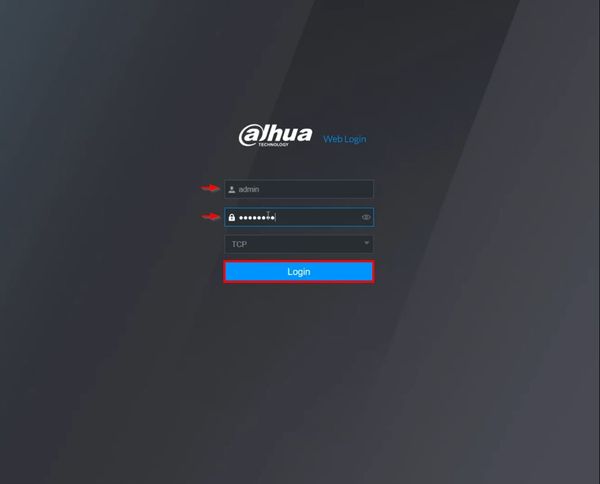

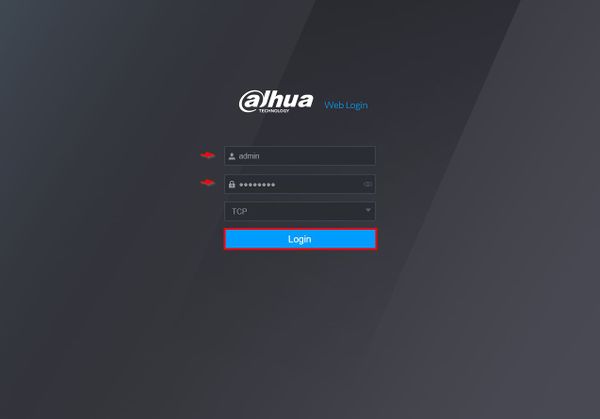

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

firmware update webui new 1

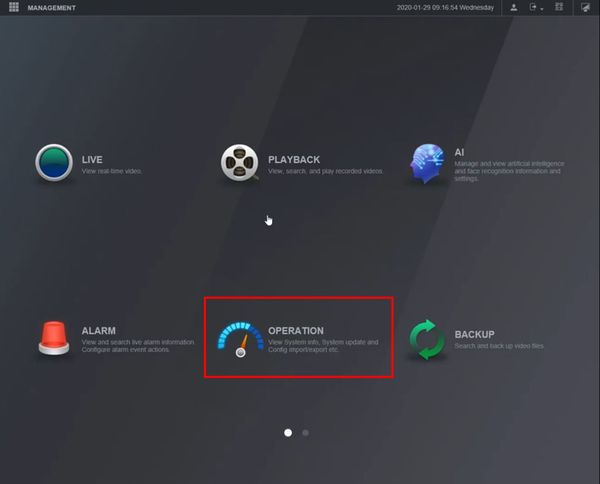

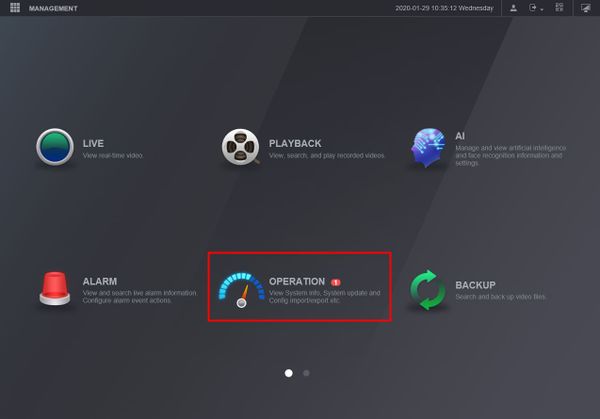

2. Click Operation

firmware update webui new 2

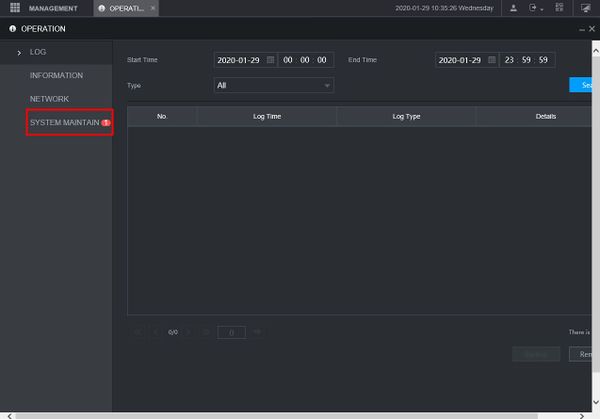

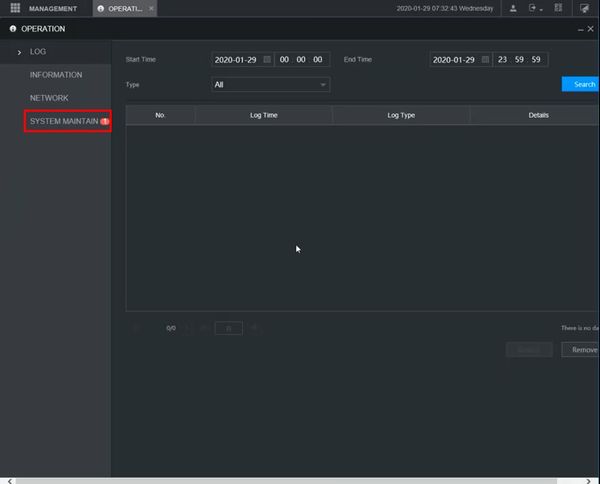

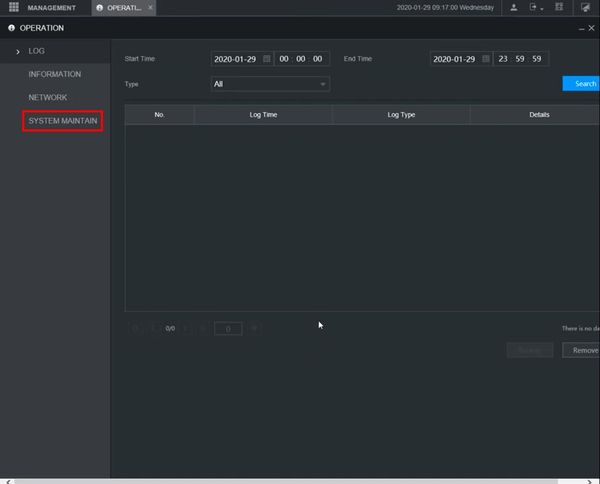

3. Click System Maintain

firmware update webui new 3

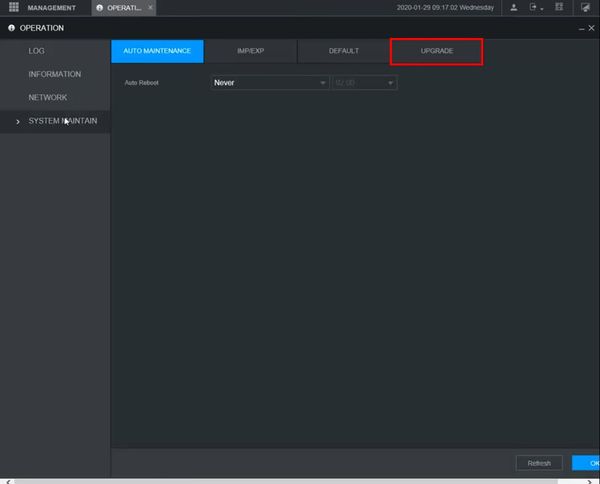

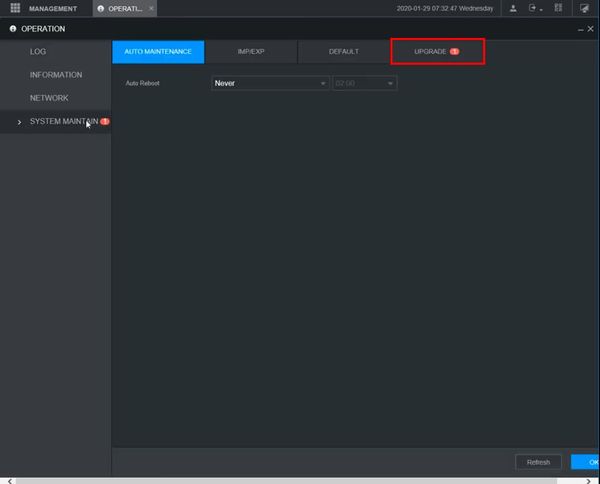

4. Click Upgrade

firmware update webui new 4

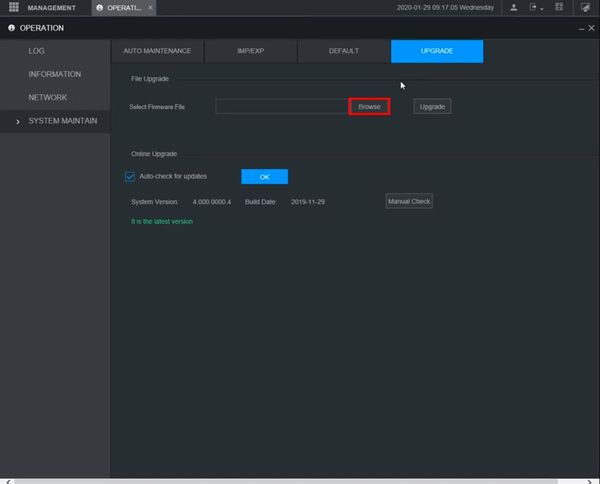

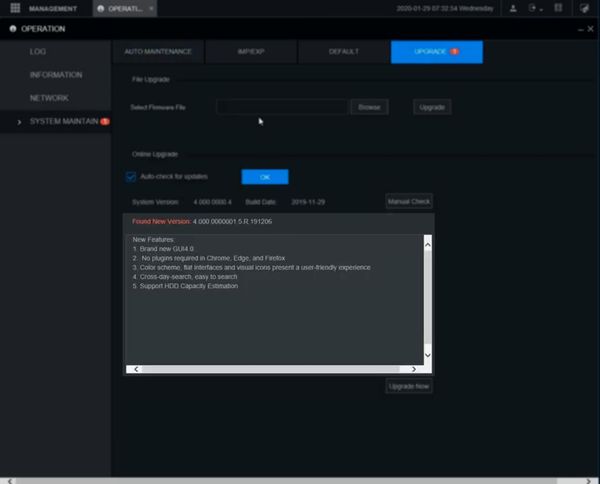

5. Click Browser

firmware update webui new 5

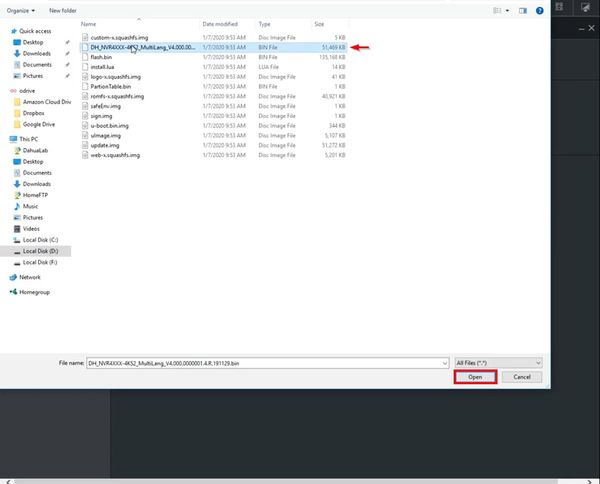

6. Locate the firmware file

Click Open

firmware update webui new 6

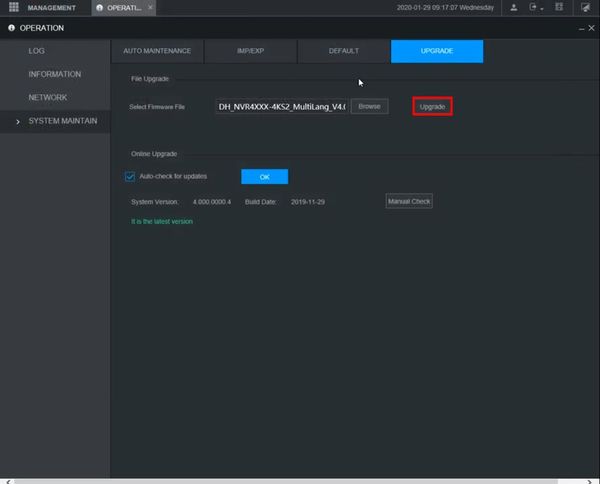

7. Click Upgrade to begin the update process

firmware update webui new 7

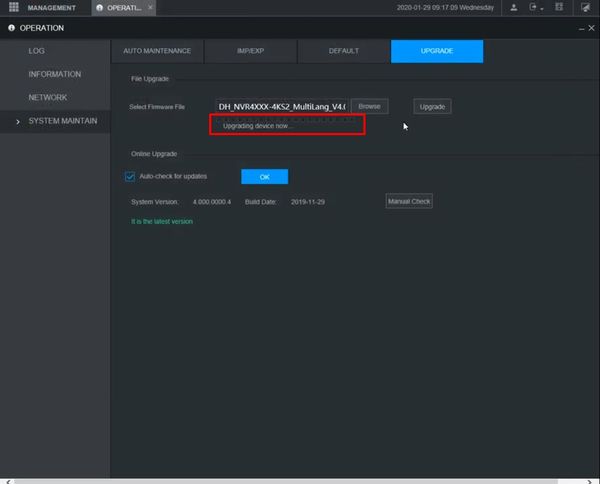

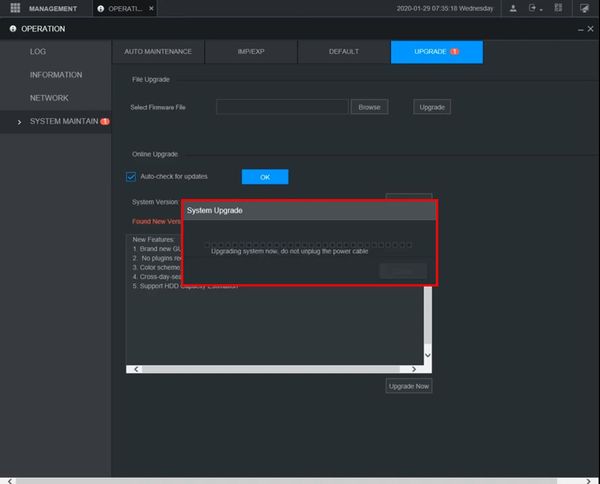

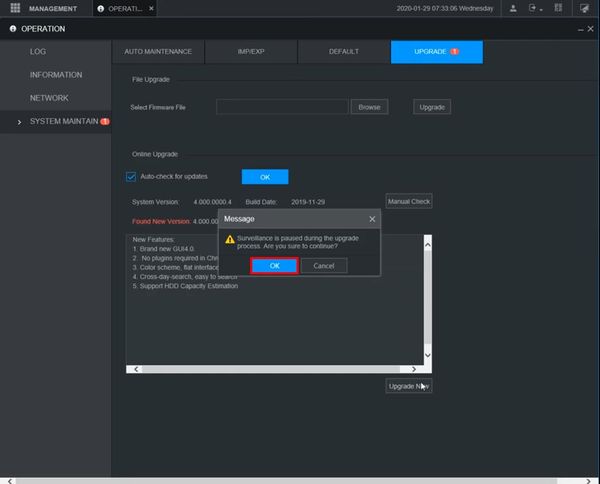

8. A message will appear to confirm the upgrade process

firmware update webui new 8

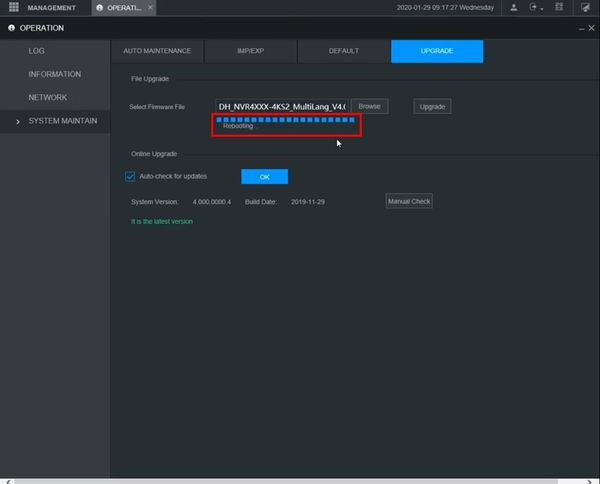

9. When the upgrade is complete the device will reboot

firmware update webui new 9

Firmware Update via SmartPSS

Description

This page will show you how to update the firmware of your Dahua device via SmartPSS

Note: All devices should be “Factory Reset” once the firmware update is complete.

Prerequisites

 SmartPSS installed
 Device added to SmartPSS
 Firmware file downloaded to computer – Firmware by Device

Instructions

icon for type smartpssSmartPSS 2.002

Prerequisites

 SmartPSS installed
 Dahua device added to SmartPSS
 Firmware file for device downloaded to computer – Firmware by Device

Video Instructions

Step by Step Instructions

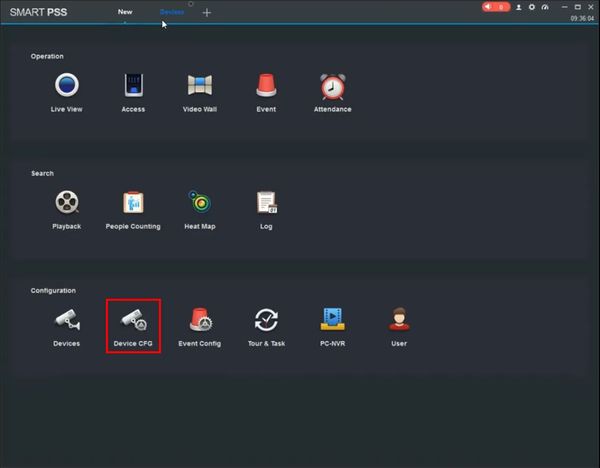

1. From the Main Page of SmartPSS

Click Device CFG

firmware update smartpss 1

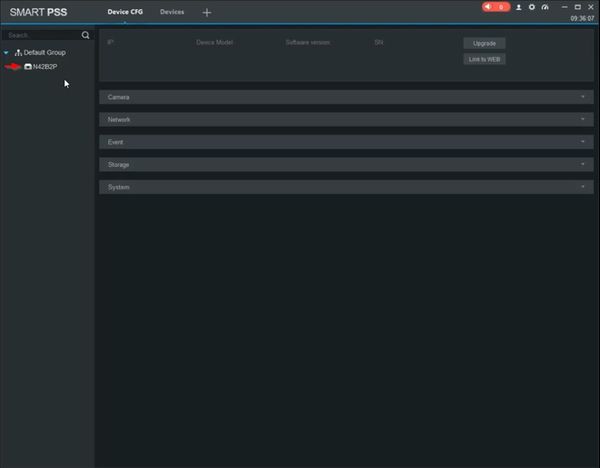

2. Click to select the device from the device tree on the left side of the screen

firmware update smartpss 2

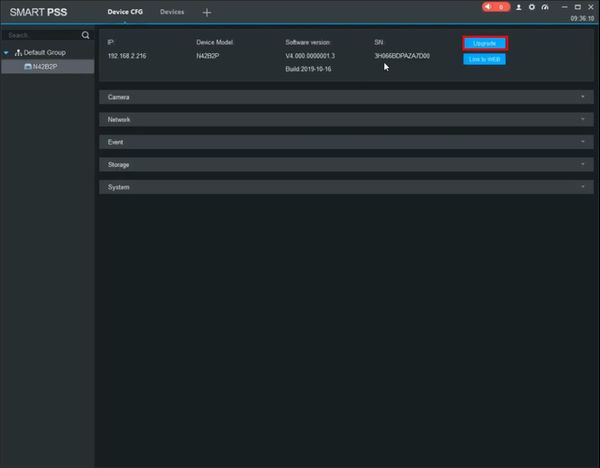

3. Click Upgrade

firmware update smartpss 3

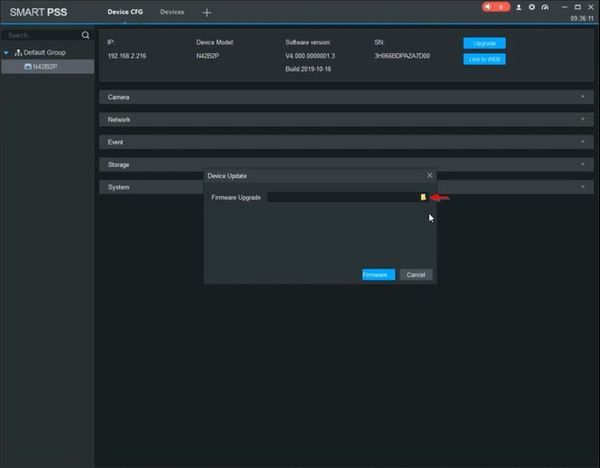

4. Click the folder icon

firmware update smartpss 4

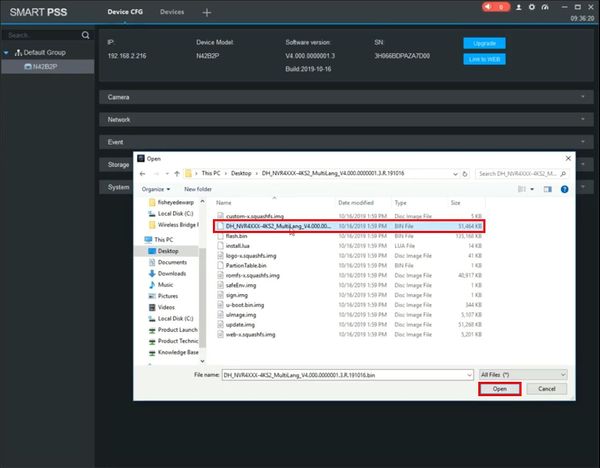

5. Locate the firmware file

Click Open

firmware update smartpss 5

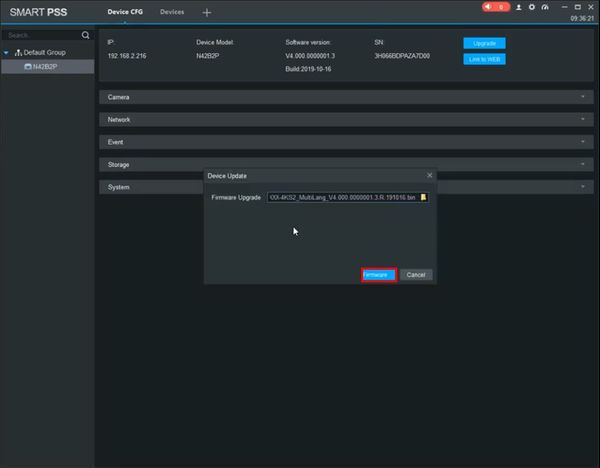

6. Click Firmware Upgrade to begin the firmware update process

firmware update smartpss 6

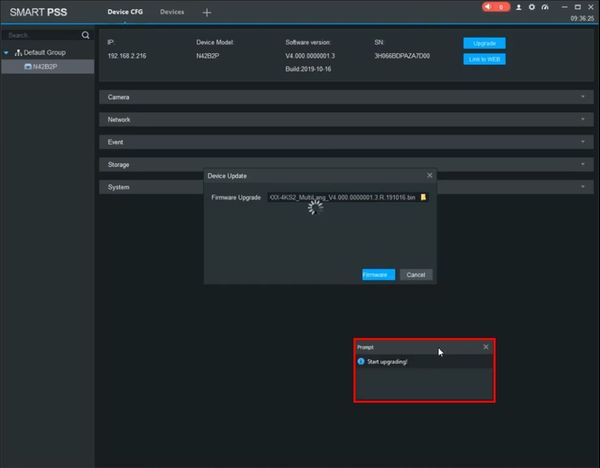

7. A prompt will appear to confirm the upgrade process

firmware update smartpss 7

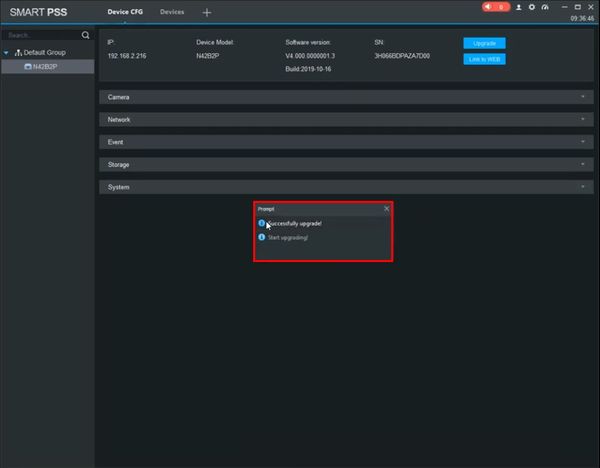

8. A prompt will appear to confirm a successful upgrade

firmware update smartpss 8

Firmware Upgrade via

Description

This page will show you how to upgrade the firmware of your Dahua device via ConfigTool

Note: All devices should be “Factory Reset” once the firmware update is complete.

Prerequisites

 Dahua device(s) with network connection(s)
 ConfigTool installed on a local computer
 Firmware file for device(s) downloaded to computer – Firmware by Device

Step by Step Instructions

Single

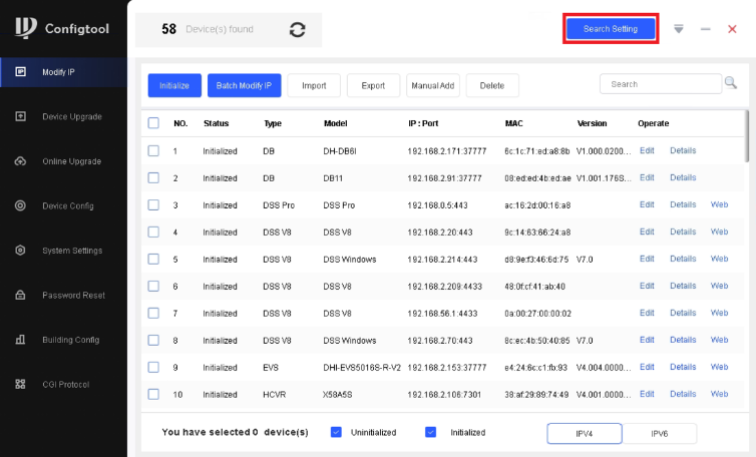

1. Open ConfigTool and click on Search Setting at the top

configtooldevicefirmwareupgrade1 756w457h

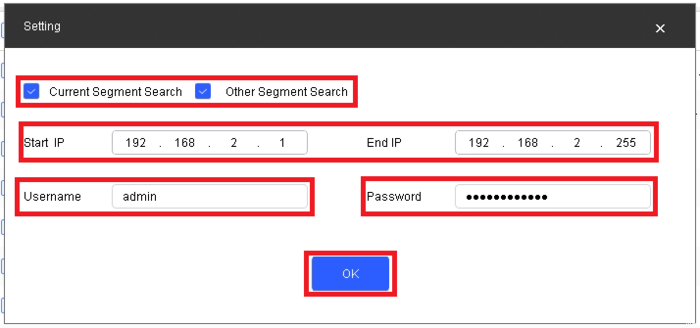

2. Check the boxes for both Current Segment Search and Other Segment Search.
Enter the IP range for the device you are looking for in
Start IP and End IP.
Enter the login for that device in
Username and Password.
Then click
OK at the bottom

configtooldevicefirmwareupgrade2

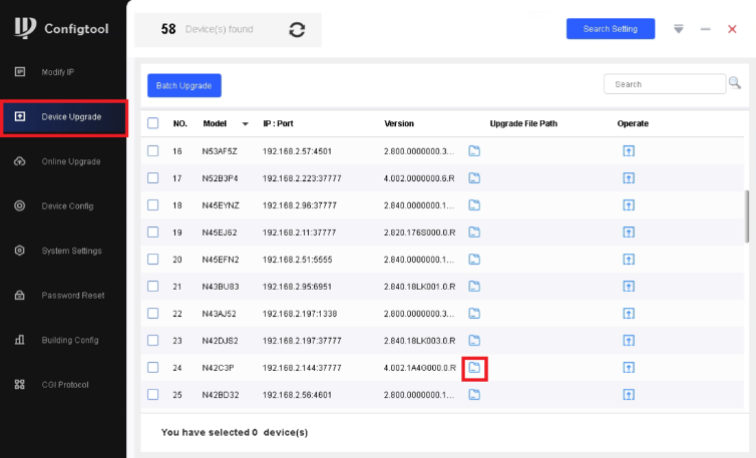

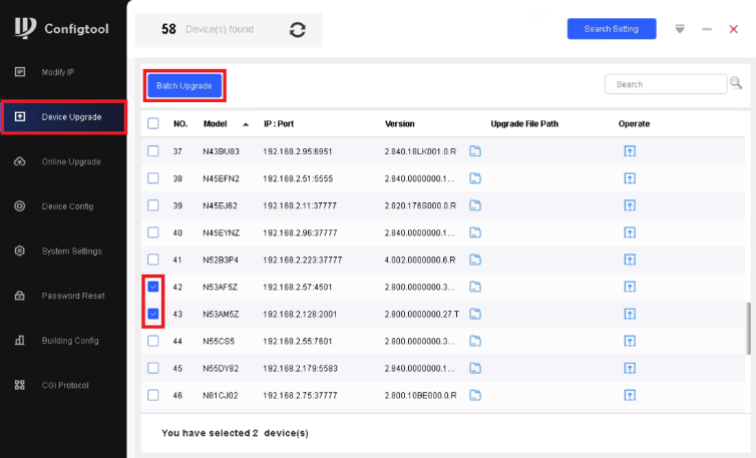

3. Click on Device Upgrade on the left.
Find the device you want to upgrade in the list and click on the Folder icon next to it under the
Upgrade File Path column

configtooldevicefirmwareupgrade3 756w458h

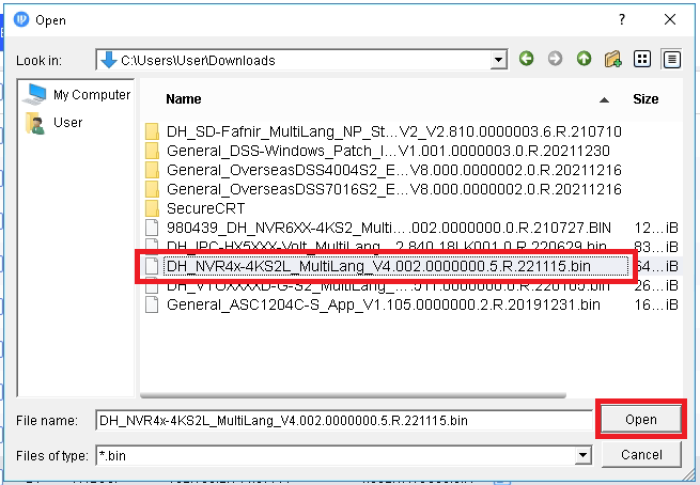

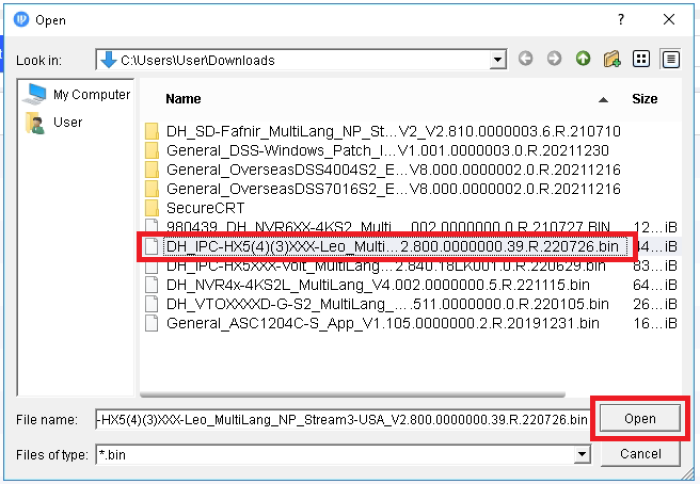

4. Use the file explorer to find the firmware file on your computer and select it.
Then click on
Open

configtooldevicefirmwareupgrade4 700w485h

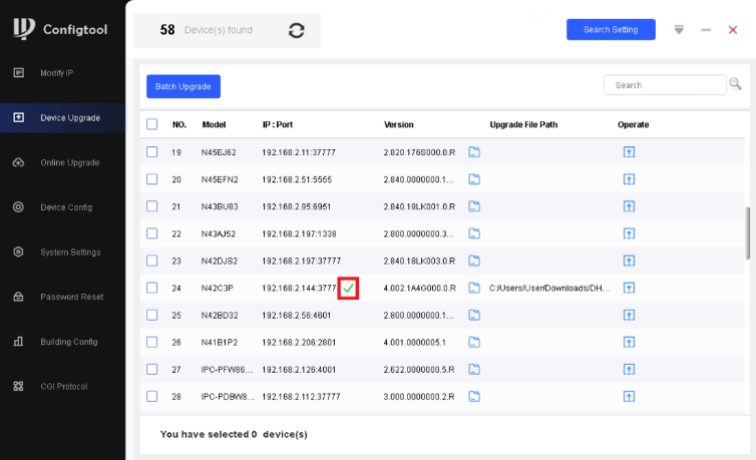

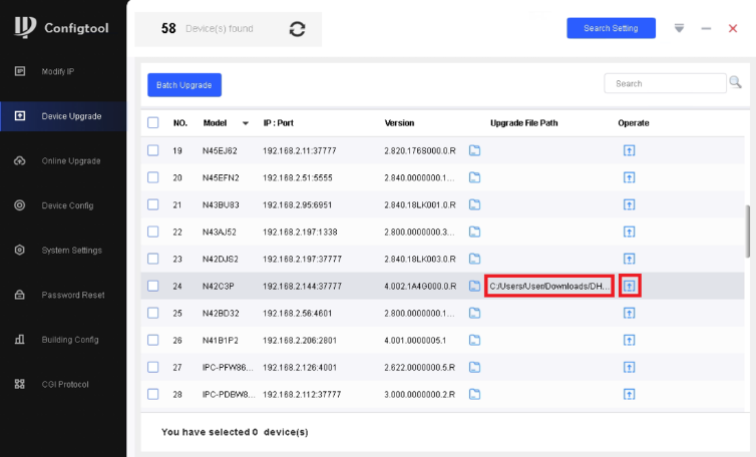

5. Verify the file path is listed next to the device in the list.
Then click on the Upgrade icon to the right of the device in the
Operate column

configtooldevicefirmwareupgrade5 756w457h

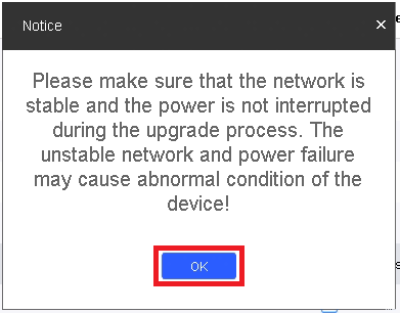

6. Click on OK

configtooldevicefirmwareupgrade6 400w313h

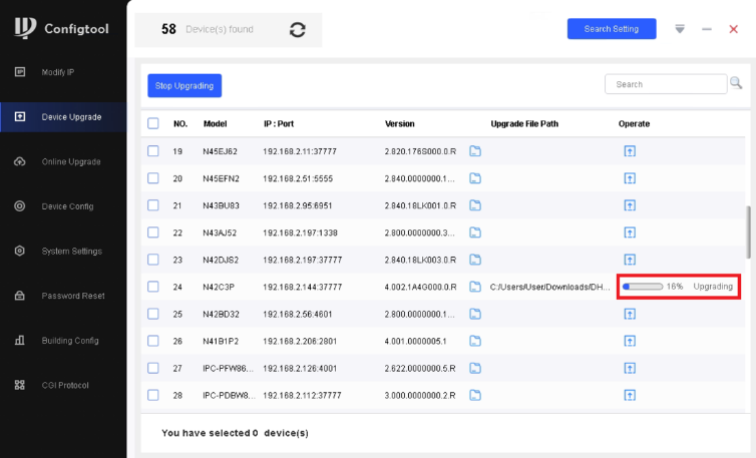

7. The progress bar will fill up as the device is upgraded

configtooldevicefirmwareupgrade7 756w458h

8. Once the device has been successfully upgraded you will see a Green Check Mark next to it in the list

configtooldevicefirmwareupgrade8 756w460h

Batch Device Upgrade

1. Open ConfigTool and click on Search Setting at the top

configtooldevicefirmwareupgrade1 756w457h 1

2. Check the boxes for both Current Segment Search and Other Segment Search.
Enter the IP range for the devices you are looking for in
Start IP and End IP.
Enter the login information for those devices in
Username and Password.
Then click
OK at the bottom

configtooldevicefirmwareupgrade2 1

3. Click on Device Upgrade on the left.
Find the devices you want to upgrade in the list and check the boxes next to them. (Make sure all devices you check require the same firmware.)

Then click on
Batch Upgrade at the top

configtooldevicefirmwareupgrade9 756w458h

4. Click on OK

configtooldevicefirmwareupgrade6 400w313h 1

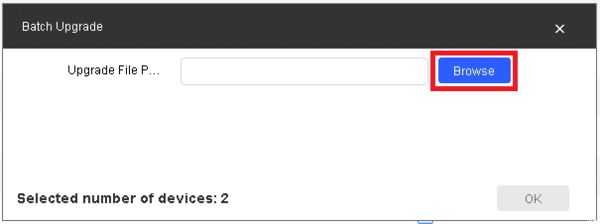

5. Click on Browse

configtooldevicefirmwareupgrade11

6. Use the file explorer to find the firmware file on your computer and select it.
Then click on
Open

configtooldevicefirmwareupgrade12 700w484h

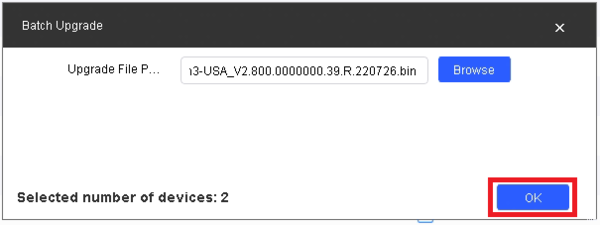

7. Click OK at the bottom

configtooldevicefirmwareupgrade13

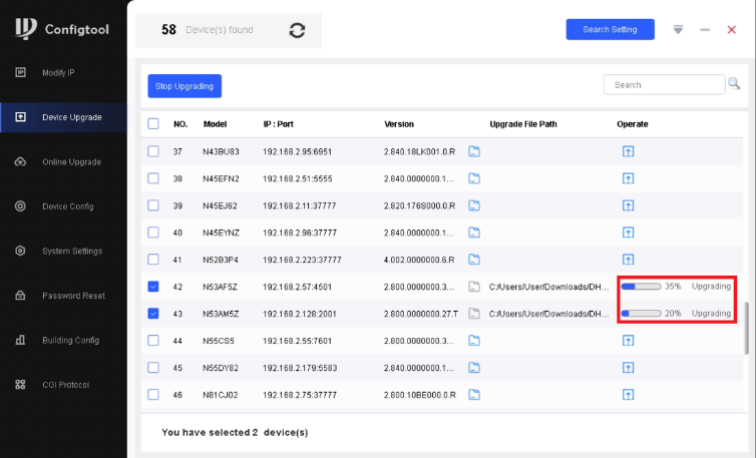

8. The progress bars will fill up as the devices are upgraded

configtooldevicefirmwareupgrade14 756w458h

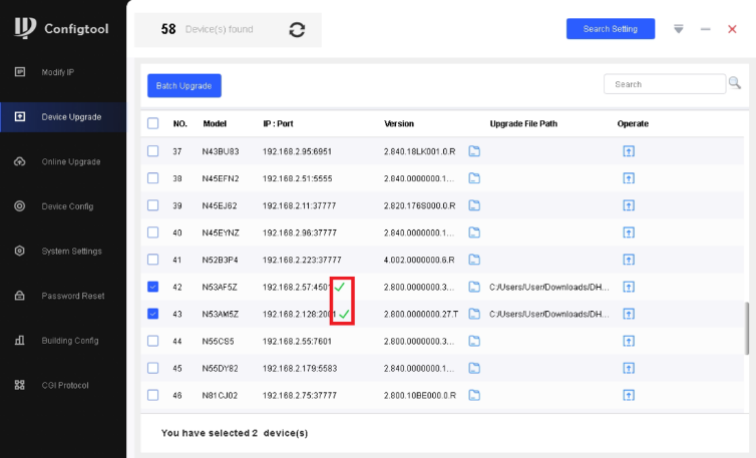

9. Once the devices have been successfully upgraded you will see Green Check Marks next to them in the list

configtooldevicefirmwareupgrade15 756w458h

Recorder Firmware Update via Online

Description

This page will show you how to update your Dahua Recorder online.

Note: All devices should be “Factory Reset” once the firmware update is complete.

When the NVR detects there is a newer firmware in the server, a 1′ icon will appear at the System icon.

The entire process takes about 5 minutes depending on network connection.

Prerequisites

 Dahua device that supports online update
 Internet connection to Dahua device

Instructions

icon for type systemui new 1

SystemUI

Prerequisites

 Dahua device with internet connection

Video Instructions

Step by Step Instructions

1. From Live View

Right click, select Main Menu

firmware update via cloud systemui new 1

2. Click Operation

firmware update via cloud systemui new 2

3. Click System Maintain

firmware update via cloud systemui new 3

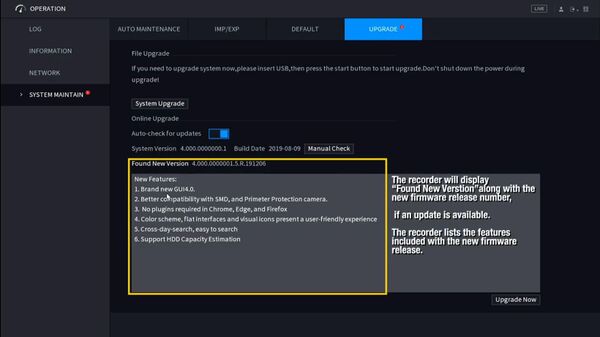

4. The upgrade menu will show if a new firmware version is available

firmware update via cloud systemui new 4

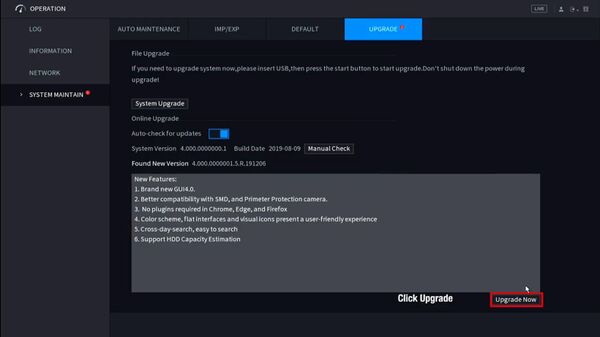

5. Click Upgrade Now to begin the update process

firmware update via cloud systemui new 5

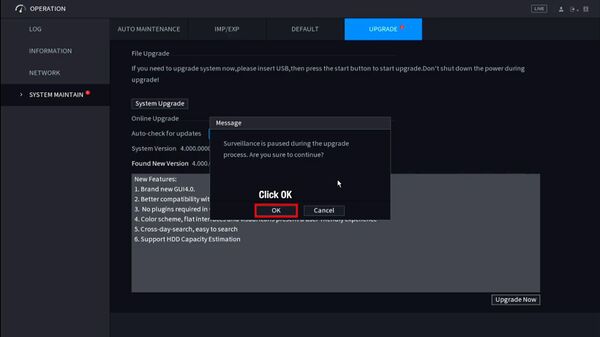

6. A prompt will appear to confirm that Surveillance will be paused during the upgrade process

Click OK

firmware update via cloud systemui new 6

7. The firmware file will begin to download

firmware update via cloud systemui new 7

8. After the download is complete the unit will automatically begin the firmware upgrade

firmware update via cloud systemui new 8

9. The unit will reboot as the final step of the upgrade

firmware update via cloud systemui new 9

10. Once the firmware update is complete the unit will reboot. A factory default is recommended after a firmware update

From Live View, right click Select Main Menu

firmware update via cloud system ui old 10

11. Click Operation

firmware update via cloud system ui old 11

12. Click System Maintain

firmware update via cloud system ui old 12

13. Click Default

firmware update via cloud system ui old 13

14. Click Factory Default

firmware update via cloud system ui old 14

15. A prompt will appear to confirm the factory default

Click OK

firmware update via cloud system ui old 15

16. The unit will reboot

firmware update via cloud system ui old 16

17. When the unit boots back up it will be factory defaulted and ready for the Device Initialization process

firmware update via cloud system ui old 17

icon for type webui new 1

WebUI

Prerequisites

 Dahua device with internet connection
 Local Windows computer

Video Instructions

Step by Step Instructions

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

firmware update via cloud webui new 1

2. Click Operation

firmware update via cloud webui new 2

3. Click System Maintain

firmware update via cloud webui new 3

4. Click Upgrade

firmware update via cloud webui new 4

5. The upgrade menu will show if a new firmware version is available

firmware update via cloud webui new 5

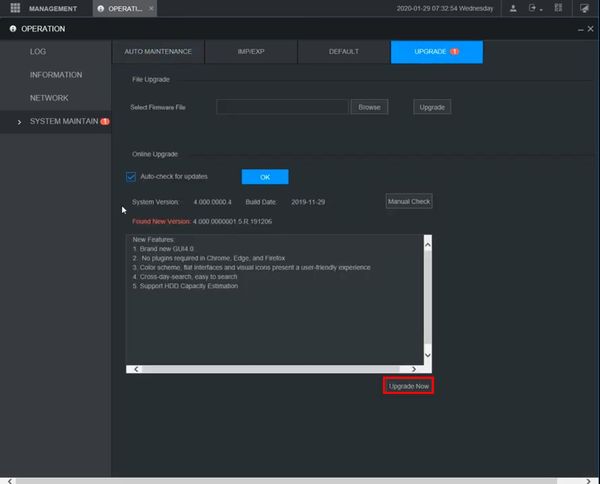

6. Click Upgrade Now

firmware update via cloud webui new 6

7. A prompt will appear to confirm that Surveillance will be paused during the upgrade process

Click OK

firmware update via cloud webui new 7

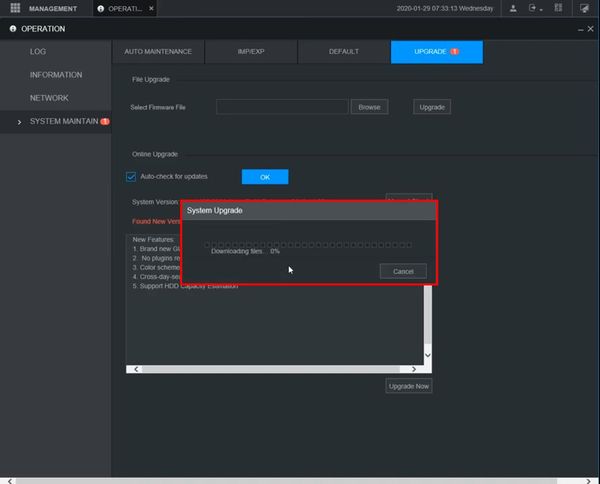

8. The firmware file will begin to download

firmware update via cloud webui new 8

9. After the download is complete the unit will automatically begin the firmware upgrade

firmware update via cloud webui new 9

10. Once the firmware update is complete the unit will reboot. A factory default is recommended after a firmware update

Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

firmware update via cloud webui new 13

12. Click Operation

firmware update via cloud webui new 14

13. Click System Maintain

firmware update via cloud webui new 15

14. Click Default

Click Factory Default

firmware update via cloud webui new 17

15. A prompt will appear to confirm the factory default

Click OK

firmware update via cloud webui new 18

The unit will factory default and reboot

When the unit boots back up it will be factory defaulted and ready for the Device Initialization process

Index of /Firmware

Name

Last modified

Size

Description

.

Parent Directory

 .

 .

Access Control/

2021-07-13 11:30

 .

Dekodery/

2022-11-29 14:22

 .

Digital Signage/

2020-10-07 15:08

 .

Domofony/

2020-04-10 16:26

 .

Kamery -IP- ANPR/

2021-10-12 13:26

 .

Kamery -IP- obrotowe- PTZ/

2021-07-05 12:01

 .

Kamery -IP- stałopozycyjne/

2022-10-12 13:42

 .

Kamery -IP- termowizyjne/

2023-11-20 11:10

 .

Kamery-IP- panoramiczne/

2024-03-07 15:08

 .

Klawiatury/

2019-11-05 13:59

 .

Macierze/

2020-11-17 15:26

 .

Monokulary/

2022-11-15 09:43

 .

Radary/

2020-06-30 14:42

 .

Rejestratory/

2023-03-21 12:24

 .

Switche/

2021-07-07 08:27

 .

TabliceInteraktywne/

2023-03-24 10:49

 .

WiFi/

2020-04-16 11:22

 .

_RTMP/

2021-07-08 12:41

 .

.

.

Print Friendly, PDF & Email

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
