Dahua Configtool Installation Instructions

Dahua Configtool Installation ,ConfigTool is a system tool with the following functions: Real time monitoring preview of IPC and other , and support setting of video effects. Set network, encoding parameter of IPC and other devices. View device SN, version and model. Upgrade device program. View device log info. Batch config device parameters.

Model
Windows Download MacOS Download FAQ Manual
Version: V5.001.0000002.0.R.20230223

Password Using ConfigTool

Description

These instructions will show how to reset the password of a Dahua device using ConfigTool on a local computer

PLEASE NOTE: These instructions can not be completed without assistance from Dahua Technical Support. Please contact Dahua Technical Support via one of the methods HERE

Prerequisites

  • Dahua IP camera, connected to network
  • Local computer , with ConfigTool installed

Read Next :

  1. How to Setup Dahua Toolbox
  2. Dahua Password Reset Instructions
  3. Dahua Config Tool Operating Instructions

Step by Step Instructions

1. Open ConfigTool

Select “Password Reset” on the left.

Find the device in the list, and verify it has the XML reset option under “Support”.

Click the Reset button on the right

You can select Multiple cameras per export file. Please select all the IP Cameras then click on “Batch Reset” to make a single XML file.


2. Click Agree


3. Select the Reset Mode drop-down and then select XML File


4. Click OK to confirm XML password reset method


5. The default location the XML file will be saved to is displayed. Click Browse Path to select a new location. Click Next


6. The ExportFile XML file will be created. Click OK to continue


7. This file will be used in the password reset process. Contact Dahua technical support via one of the methods HERE for the result file. Once you recieve the Result file, select Open and choose the file on your file system. Click Next


8. If the Result file is accepted, it will allow you to set the new password. Input a new password in the New Password and Confirm Password fields. Click Finish


9. If the password is successfully reset, you will see a Green Check Mark next to the camera in the list


Dahua Toolbox ConfigTool Locate Dahua Device

Description

  • How to locate and identify Dahua devices on LAN
  • Note: If your IP Camera is connected to the back of an , these instructions will not apply. Please see, “How to Connect IP Camera to NVR

Prerequisites

  • Dahua-Toolbox Icon.png Dahua Toolbox installed
  • Windows PC.
  • Dahua Devices on the same LAN as the PC for using the ConfigTool.

Video Instructions

Instructions

1. With the Dahua Tool box being already installed onto your PC, from the Toolbox home menu select install/open “ConfigTool”.

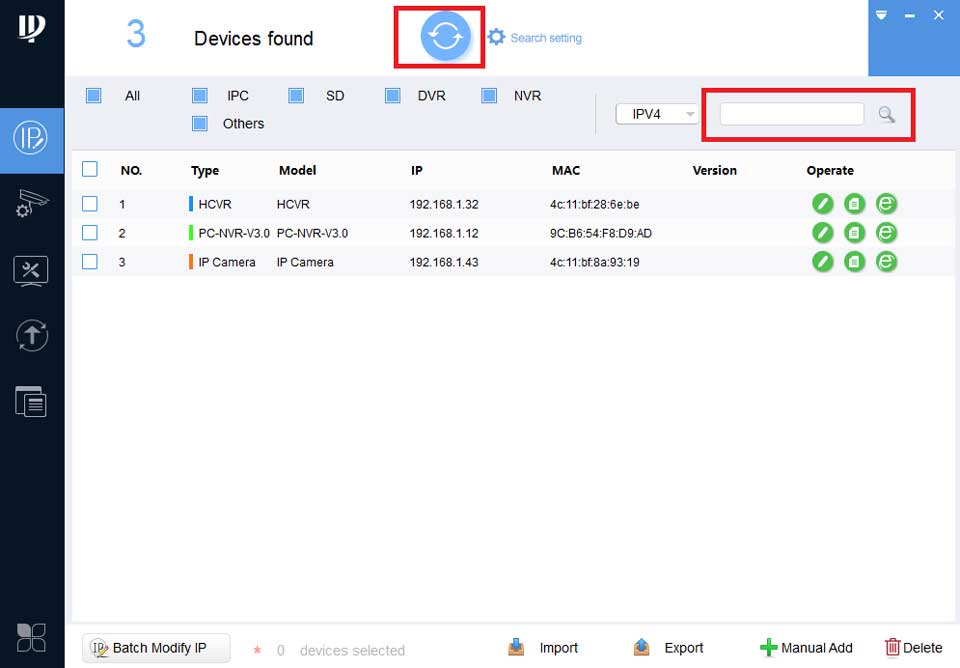

2. Upon opening the ConfigTool application, here you can see Dahua Devices on the same LAN are located. Refresh if Dahua devices are not located. You can also manually locate the device by typing in the IP address of the device in the search.


3. To view the device live click on the IE (Internet Explorer) icon.


  • This will open an IE web browser to access the web service of the device.


  • From this step, by logging in you can select live view.


Update firmware using the ConfigTool via Dahua ToolBox

Description

Prerequisites

  • Dahua-Toolbox Icon.png Dahua Toolbox installed
  • Windows PC.
  • Dahua Devices on the same LAN as the PC for using the ConfigTool.

Step by Step Instructions

1. From the Dahua ToolBox, open the ConfigTool.


2. Upon opening the ConfigTool application, here you can see Dahua Devices on the same LAN are located. Refresh if Dahua devices are not located. You can also manually locate the device by typing in the IP address of the device in the search.


3. Click on the upgrade icon. Here you will see a list of located Dahua devices.


  • With the appropriate firmware for the device model already downloaded, click on browse and locate the upgrade BIN file.


  • Once BIN file is located click on Open.


  • Click on upgrade. Once firmware is upgraded, the device should reboot and be ready to go.


Modify IP address of Dahua Device through ConfigTool via Dahua ToolBox

Description

  • Modify IP address of Dahua Device if user name and password are factory default.
  • Modify IP address of Dahua Device if user name and password are modified.
  • Note: If your IP Camera is connected to the back of an NVR, these instructions will not apply. Please see, “How to Connect IP Camera to NVR

Prerequisites

  • Dahua-Toolbox Icon.png Dahua Toolbox installed
  • Dahua Devices on the same LAN as the PC for using the ConfigTool
  • Windows PC

Step by Step Instructions

1. Launch the Dahua ToolBox and open the ConfigTool.


  • Upon opening the ConfigTool application, here you can see Dahua Devices on the same LAN are located. Refresh if Dahua devices are not located. You can also manually locate the device by typing in the IP address of the device in the search.


2. To modify IP address of selected device, select the edit button.

  • Note: this step pertains if Dahua Devices are using factory default user names and passwords.

600px

  • Select DHCP or for static change the IP address according to the LAN configuration -> Select “OK” to save changes.

600px

  • Refresh to verify modified IP address.


3. To modify IP of device with modified user names and passwords, click on the IE (Internet Explorer) icon of the selected device. This will open the web service of the device through IE.


  • Log in with associated user name and password.


  • Select the setup tab -> Select TCP/IP


  • Select DHCP or Static to modify IP along with associated LAN configuration -> Select Save.


Dahua ConfigTool Version 4.05 Locate Dahua Device

Description

  • How to locate and identify Dahua devices on LAN
  • Note: If your IP Camera is connected to the back of an NVR, these instructions will not apply. Please see, “How to Connect IP Camera to NVR

Prerequisites

  • ConfigTool Version 4.05
  • ConfigTool Downloads
  • Windows PC.
  • Dahua Devices on the same LAN as the PC for using the ConfigTool.

Video Instructions

Step by Step Instructions

1. Install ConfigTool, Run and Open.

2. Upon opening the ConfigTool application, here you can see Dahua Devices on the same LAN are located. Refresh if Dahua devices are not located. You can also manually locate the device by typing in the IP address of the device in the search.


3. To view the device live click on the IE (Internet Explorer) icon.


  • This will open an IE web browser to access the web service of the device.


  • From this step, by logging in you can select live view.


How to locate device on LAN via ConfigTool 3.20

Description

  • How to locate and identify Dahua devices on LAN
  • Note: If your IP Camera is connected to the back of an NVR, these instructions will not apply. Please see, “How to Connect IP Camera to NVR

Prerequisites

  • ConfigTool 3.20
    ConfigTool download
  • Windows PC.
  • Dahua Devices on the same LAN as the PC for using the ConfigTool.

Video Instructions

Step by Step Instructions

Note: If your IP Camera is connected to the back of an NVR, these instructions will not apply. Please see, “How to Connect IP Camera to NVR” ConfigToolIPC.jpg

1. Download and install ConfigTool.

2. Run the ConfigTool.

3. The ConfigTool should display your IP Camera's IP address. Click the, “ConfigToolIPCEIcon.jpg” icon to open Internet Explorer and access your IP Camera. Alternatively, you can input that IP address into your browser manually.


4. Login with the default credentials: User Name: admin Passsword: admin

Modify IP address of Dahua Device via ConfigTool 4.05

Description

  • Modify IP address of Dahua Device if user name and password are factory default.
  • Modify IP address of Dahua Device if user name and password are modified.
  • Note: If your IP Camera is connected to the back of an NVR, these instructions will not apply. Please see, “How to Connect IP Camera to NVR

Prerequisites

  • ConfigTool Version 4.05
  • ConfigTool Downloads
  • Dahua Devices on the same LAN as the PC for using the ConfigTool.
  • Windows PC.

Step by Step Instructions

1. Upon opening the ConfigTool application, here you can see Dahua Devices on the same LAN are located. Refresh if Dahua devices are not located. You can also manually locate the device by typing in the IP address of the device in the search.


2. To modify IP address of selected device, select the edit button

  • Note: this step pertains if Dahua Devices are using factory default user names and passwords.

600px

  • Select DHCP or for static change the IP address according to the LAN configuration -> Select “OK” to save changes.

600px

  • Refresh to verify modified IP address.


3. To modify IP of device with modified user names and passwords, click on the IE (Internet Explorer) icon of the selected device. This will open the web service of the device through IE.


  • Log in with associated user name and password.


  • Select the setup tab -> Select TCP/IP


  • Select DHCP or Static to modify IP along with associated LAN configuration -> Select Save.


Firmware Upgrade via ConfigTool

Description

This page will show you how to upgrade the firmware of your Dahua device via ConfigTool

Note: All devices should be “Factory Reset” once the firmware update is complete.

Prerequisites

  • Dahua device(s) with network connection(s)
  • ConfigTool installed on a local computer
  • Firmware file for device(s) downloaded to computer – Firmware by Device

Step by Step Instructions

Single Device Upgrade

1. Open ConfigTool and click on Search Setting at the top


2. Check the boxes for both Current Segment Search and Other Segment Search.
Enter the IP range for the device you are looking for in Start IP and End IP.
Enter the login information for that device in Username and Password.
Then click OK at the bottom


3. Click on Device Upgrade on the left.
Find the device you want to upgrade in the list and click on the Folder icon next to it under the Upgrade File Path column


4. Use the file explorer to find the firmware file on your computer and select it.
Then click on Open


5. Verify the file path is listed next to the device in the list.
Then click on the Upgrade icon to the right of the device in the Operate column


6. Click on OK


7. The progress bar will fill up as the device is upgraded


8. Once the device has been successfully upgraded you will see a Green Check Mark next to it in the list


Batch Device Upgrade

1. Open ConfigTool and click on Search Setting at the top


2. Check the boxes for both Current Segment Search and Other Segment Search.
Enter the IP range for the devices you are looking for in Start IP and End IP.
Enter the login information for those devices in Username and Password.
Then click OK at the bottom


3. Click on Device Upgrade on the left.
Find the devices you want to upgrade in the list and check the boxes next to them. (Make sure all devices you check require the same firmware.)
Then click on Batch Upgrade at the top


4. Click on OK


5. Click on Browse


6. Use the file explorer to find the firmware file on your computer and select it.
Then click on Open


7. Click OK at the bottom


8. The progress bars will fill up as the devices are upgraded


9. Once the devices have been successfully upgraded you will see Green Check Marks next to them in the list


ConfigTool Template Setup

Description

You can create and apply the templates.

  • Creating the template: Back up or save the video and encoding parameters for the device.
  • Applying the template: Restore or batch configuring the video and encoding parameters for the device.

Please Note:

These instructions do not copy the network settings or email notifications.

Template Import/Export will work only between identical model devices

Prerequisites

For this example we will be using the following:

  • 2x N41BK22s on DH_IPC-HX2X3X-Rhea_MultiLang_NP_Stream2_V2.800.0000008.0.R.190619
  • ConfigTool Version V4.011.00GP001.0 from the Dahua ToolBox

Notes:

  • N41BK22s on Firmware Version: 2.622.0000000.31.R Build Date: 2018-08-13 -DID NOT WORK, UPDATING BOTH IPCs to current fw and trying again

Template Examples

Video Instructions

Export Device Config

Import Device Config

Step by Step Instructions

Export Device Config

1. Launch Toolbox, and login.

2. Download and install ConfigTool.

3. Launch ConfigTool.

4. Click Search Setting at the top of the window

ConfigTool - Template Setup - Import 000.jpg

5. Enter the credentials (username and password) for the device, then click OK

ConfigTool - Template Setup - Import 001.jpg

6. Click on the icon at the bottom of the bar on the left hand side of ConfigTool.

ConfigTool - Template Setup 2.jpg

7. Click on the Folder icon with the two green arrows.

ConfigTool - Template Setup 3.jpg

8. A prompt will pop up asking, “Export template from device?” click, “OK”

ConfigTool - Template Setup 4.jpg

9. Locate the device you want to export the configuration of in the device list, and left click on it.

ConfigTool - Template Setup 5.jpg

10. Click, “Export”

ConfigTool - Template Setup 6.jpg

11. A prompt will pop up asking, “Export template from (IP Address of Device Selected), continue? Click, “OK”

ConfigTool - Template Setup 7.jpg

12. Input a name into “Template Name”

ConfigTool - Template Setup 8.jpg

13. Click, “Save as”

ConfigTool - Template Setup 9.jpg

At this point ConfigTool crashed. I relaunched ConfigTool, and get, “Export Template Failed”

14. A prompt will pop up asking where you would like to save the file. Select where you would like to save the file, and click, “OK”

ConfigTool - Template Setup 10.jpg

Import Device Config

1. Launch Toolbox, and login.

2. Download and install ConfigTool.

3. Launch ConfigTool.

4. Click Search Setting at the top of the window

ConfigTool - Template Setup - Import 000.jpg

5. Enter the credentials (username and password) for the device, then click OK

ConfigTool - Template Setup - Import 001.jpg

6. Click on the icon at the bottom of the bar on the left hand side of ConfigTool.

ConfigTool - Template Setup - Import 1.jpg

7. Click on the Folder icon without the two green arrows.

ConfigTool - Template Setup - Import 2.jpg

8. A window will pop up, click, “Browse” and locate the Device Template file you backed up in the previous instructions.

ConfigTool - Template Setup - Import 3.jpg

9. Click on the Device Template file, then click, “Open”

ConfigTool - Template Setup - Import 4.jpg

10. Click, “OK”

ConfigTool - Template Setup - Import 5.jpg

11. The template settings should load and display in ConfigTool. Verify that all the settings are correct.

ConfigTool - Template Setup - Import 6.jpg

12. Click, “Template Application”

ConfigTool - Template Setup - Import 7.jpg

13. A window will pop up stating, “The file exists, do you want to overwrite it?” select, “OK”

ConfigTool - Template Setup - Import 8.jpg

14. Expand the dropdown box on the right hand side to list all the devices.

ConfigTool - Template Setup - Import 9.jpg

15. Check the box next to the device you wish to apply the template.

ConfigTool - Template Setup - Import 10.jpg

16. Click, “OK”

ConfigTool - Template Setup - Import 11.jpg

17. A window will pop up stating, “Configure 1 device(s) using template “C:/ProgramFiles/Toolsbox/Template_Name.xml” click, “OK”

ConfigTool - Template Setup - Import 12.jpg

A green check mark will confirm a successful import

ConfigTool - Template Setup - Import 13.jpg

NOTE: A yellow exclamation icon will display next to a device when there is an issue with the import.

Click the icon to obtain more details about which setting(s) were not successfully imported

ConfigTool - Template Setup - Import 13-error.jpg

ConfigTool - Template Setup - Import 14.jpg

ConfigTool/How to configure Device

Print Friendly, PDF & Email

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
