QNAP Surveillance Station Setup Guide

The Surveillance Station is professional network Management System (VMS). Being one of the Turbo NAS standard applications, the Surveillance Station can be activated on the QTS App Center to turn the Turbo NAS into a professional Network Video Recorder () system for real-time monitoring, recording, playback, alarm notifications, Intelligent Video Analytics’s (IVA), and management to safeguard your assets and property when used with supported .

In order to integrate your INSTAR IP camera in the QNAP Surveillance Station we recommend you to the latest version from QNAP app store.

QNAP Surveillance Station Setup Guide

Add a HD Camera

Start the Surveillance App from the QNAP web interface and click on the Add button. Now choose type in the address for your local HD camera, the HTTP & RTSP port and your login credentials.

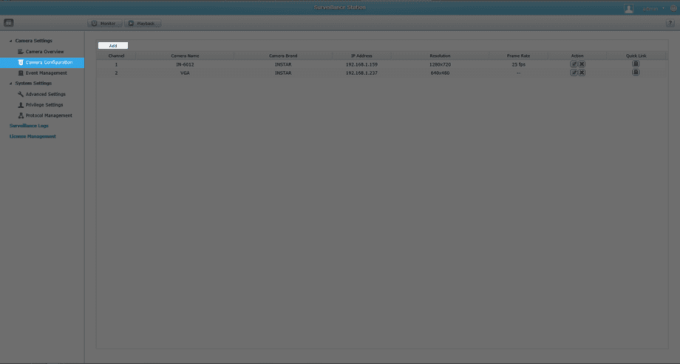

qnap surveillance station for your instar ip camera 680w364h

Fig1. Start the Surveillance App from the QNAP web interface and click on the Add button.

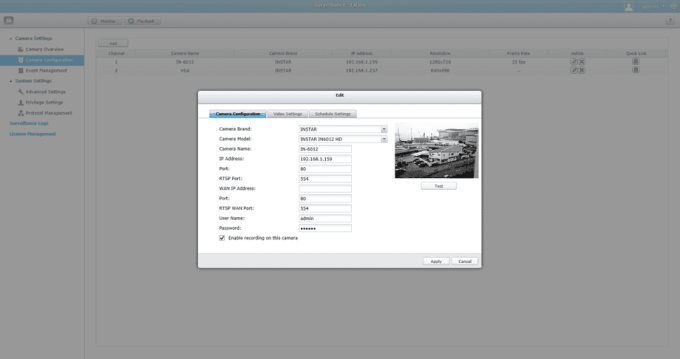

qnap surveillance station for your instar ip camera 680w359h

Fig2. Type in the camera´s local IP address and your login credentials.

qnap surveillance station for your instar ip camera 680w359h 1

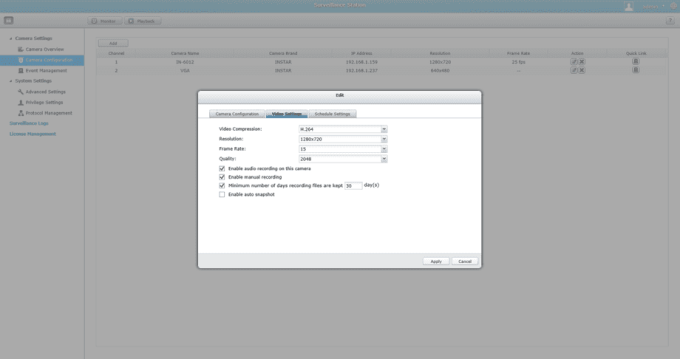

Fig3. Adjust the video quality of the camera´s live stream to fit your needs.

What to do in case of a model mismatch?

qnap surveillance station for your instar ip camera 680w363h

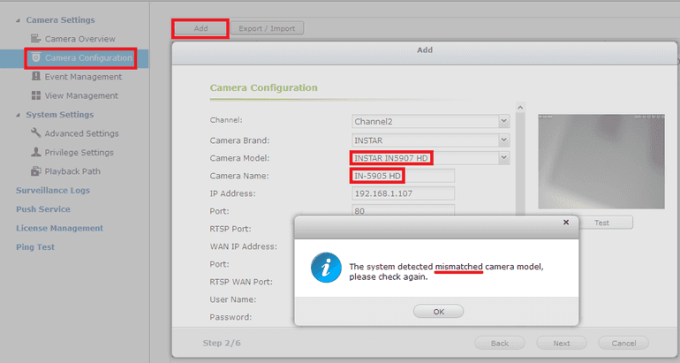

Fig4. If you want to integrate a model that is not supported by the Surveillance Station yet, you will be faced with a Model Mismatch error.

qnap surveillance station for your instar ip camera 680w495h

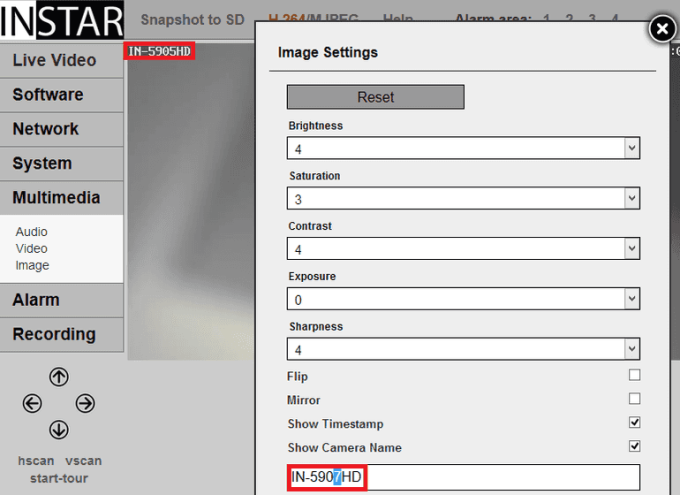

Fig5. Simply change the camera name under Multimedia/Image to a supported camera model and retry.

Add a VGA Camera

Start the Surveillance App from the QNAP web interface and click on the Add button. Now choose type in the address for your local VGA camera, the HTTP port and your login credentials.

qnap surveillance station for your instar ip camera 680w364h 1

Fig6. Start the Surveillance App from the QNAP web interface and click on the Add button.

qnap surveillance station for your instar ip camera 680w362h

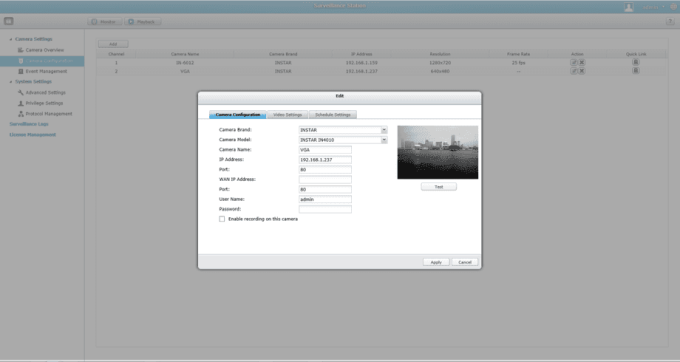

Fig7. Type in the camera´s local IP address and your login credentials.

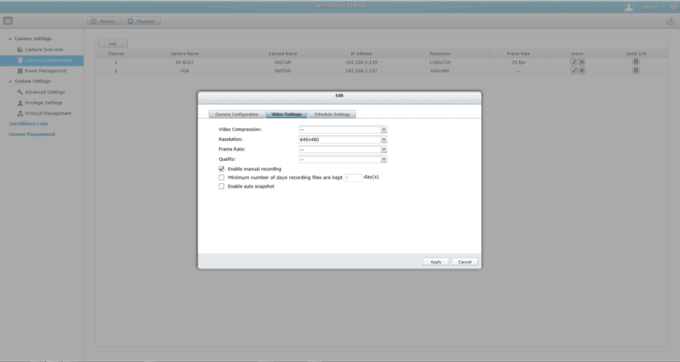

qnap surveillance station for your instar ip camera 680w362h 1

Fig8. Adjust the video quality of the camera´s live stream to fit your needs.

qnap surveillance station for your instar ip camera 680w364h 2

Fig9. Both cameras are now available after confirming your settings.

Event Management

Open the event manager to activate the alarm recording in case of a motion detection event or bind the recording function to the external alarm input – so that an external sensor (e.g. a PIR motion detector) can trigger an alarm recording. Go to Advanced settings to adjust the length of the alarm recording and for a simple storage management.

qnap surveillance station for your instar ip camera 680w362h 2

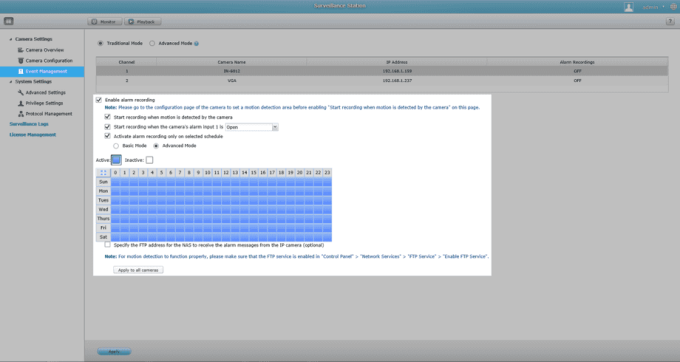

Fig10. Set your camera to a video in case of an alarm trigger event.

and Playback

Use the Monitor window to keep an eye on your cameras real-time feeds from your INSTAR cameras. Whenever a suspicious event is found, take a snapshot to keep a record and take immediate actions accordingly. The Playback window allows you to quickly find videos of suspicious incidents on the Surveillance Station with the of an intuitive timeline, image preview, Intelligent Video Analytics’s (IVA), and more.

qnap surveillance station for your instar ip camera 680w364h 3

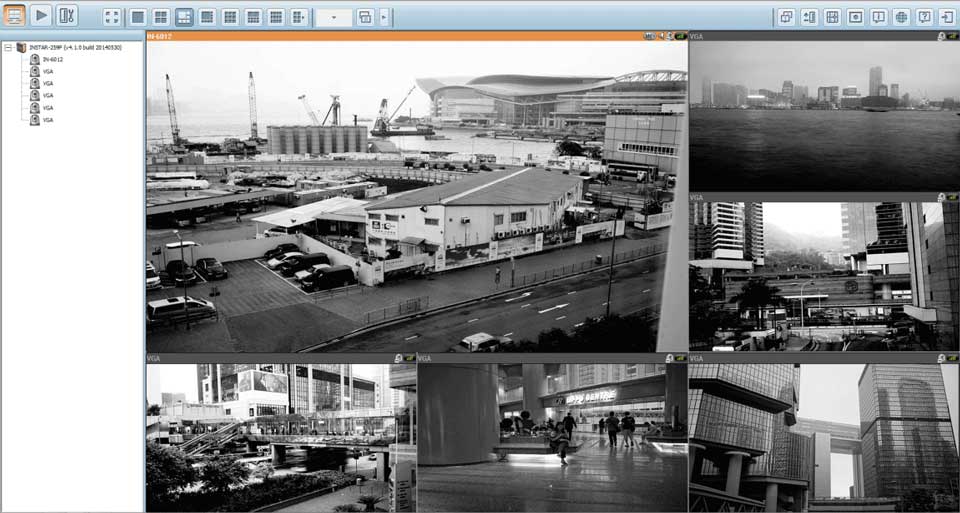

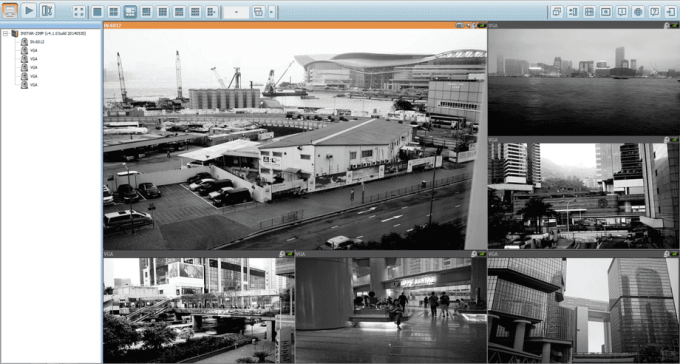

Fig11. Use live-view to watch real-time feeds from the IP cameras.

qnap surveillance station for your instar ip camera 680w362h 3

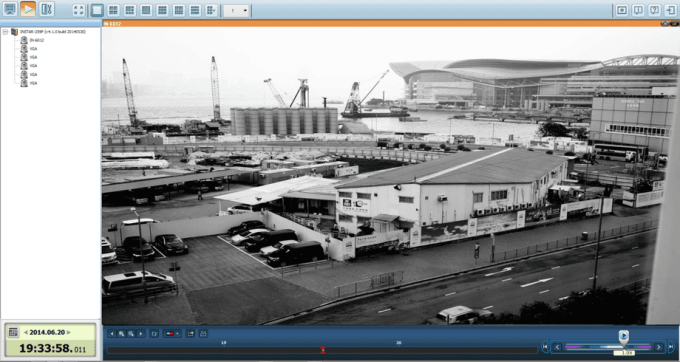

Fig12. Quickly find videos of suspicious incidents on the Surveillance Station with the support of an intuitive timeline.

QVR Pro 2.1

Adding a Camera

QVR Pro is built-in in the QVR Pro appliance provides embedded monitoring channels, allowing you to quickly build a home surveillance environment.

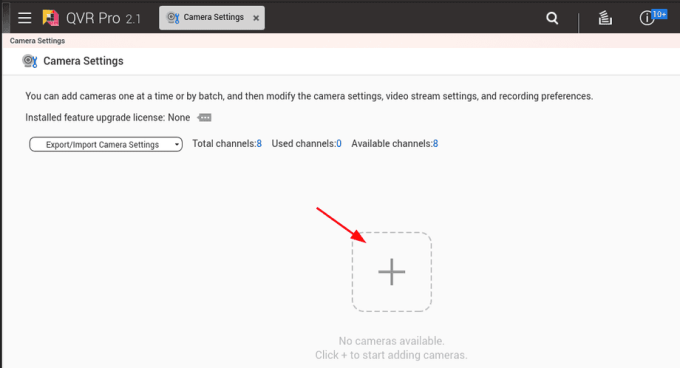

Open the QVR Pro application from your QNAP dashboard, select Camera Settings and click on the Plus icon to add a new camera:

qnap qvr pro 2 680w368h

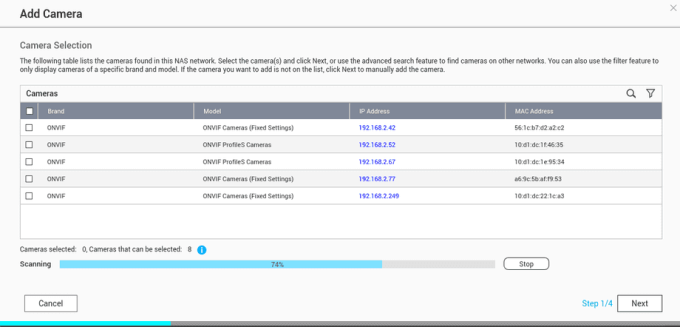

qnap qvr pro 2 680w327h

You now have 3 choices:

1.Add your Camera as an generic camera by simply selecting it and clicking on Next.
2.Click Next and add your camera manually via the INSTAR profile from the following page.
3.Click Next and add your camera as a generic RTSP camera.

ONVIF

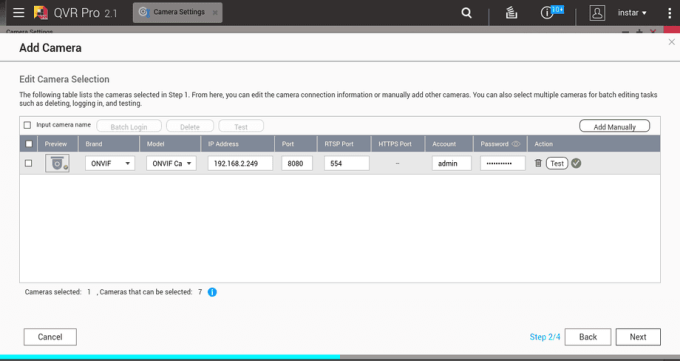

If you choose to add your camera via it’s ONVIF service you don´t have to change anything. Just click on Test to verify that everything is set up correctly. And click Next to continue:

qnap qvr pro 2 680w361h

Note that all INSTAR HD and Full HD camera models support the ONVIF S Profile. Only the 2k+ WQHD models provide support for the newer T Profile. The main difference here is, that the latter allows you to use the camera’s PIR sensor as an alarm trigger for the QVR Motion Detection.

INSTAR Preset

By stopping the ONVIF network and clicking on Next you now have the option to add your camera manually:

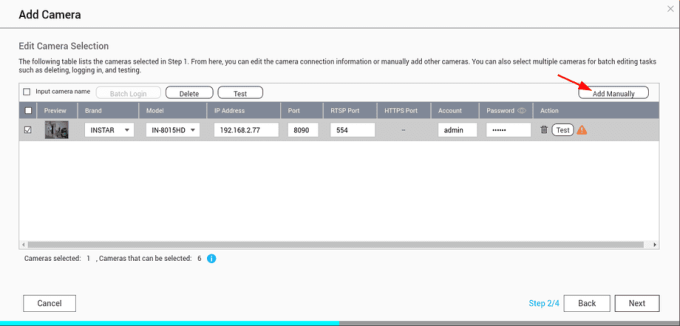

qnap qvr pro 2 680w326h

Select INSTAR as Brand and your camera Model. In addition you now have to specify your camera’s IP Address, HTTP Port and RTSP Port. Test your settings and click next.

Note that the INSTAR profile allows you to use the (HD, Full HD and WQHD) camera’s PIR sensor as an alarm trigger for the QVR Motion Detection.

Generic RTSP

By stopping the ONVIF network and clicking on Next you now have the option to add your camera manually:

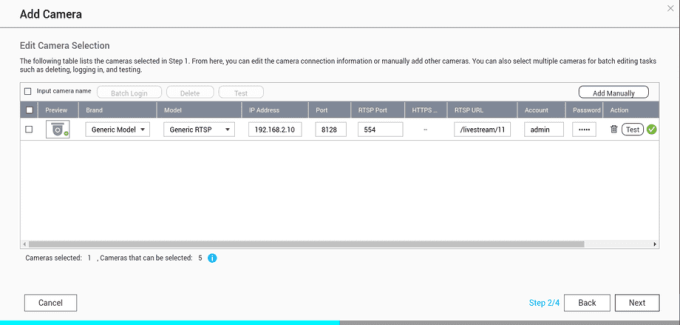

qnap qvr pro 2 680w325h

Select Generic as Brand and RTSP Model as Model. Add your camera’s IP Address, HTTP Port and RTSP Port. In addition you now have to specify your camera’s RTSP Streaming URL. Test your settings and click next.

Default Streaming URLs (high, middle and low resolution):

• INSTAR HD & Full HD Cameras: /11, /12 and /13
• INSTAR WQHD Cameras: /livestream/11, /livestream/12 and /livestream/13

Activating the Video Recordings

You will now be asked to set the video streaming and recording settings. Make sure to add the tick to Enable Recording or you won´t be able to see your camera’s video stream:

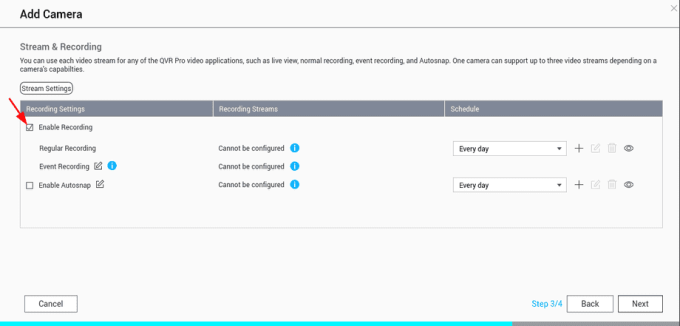

qnap qvr pro 2 680w326h 1

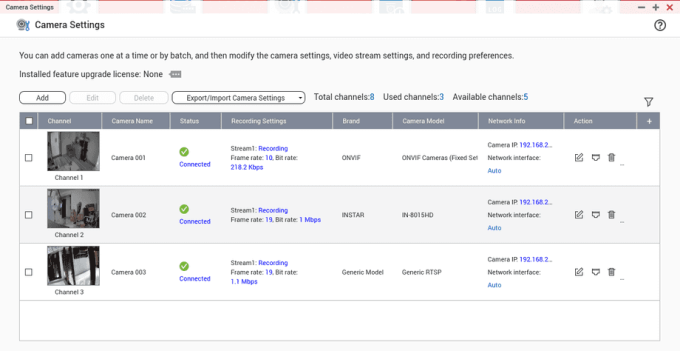

Click next and you will see an overview over all connected cameras:

qnap qvr pro 2 680w351h

Motion Detection

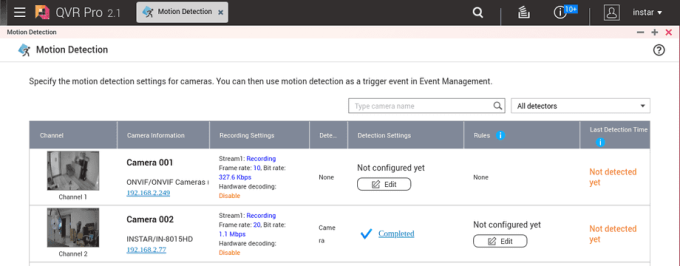

Close the Camera Settings menu and open the Motion Detektion menu:

qnap qvr pro 2 680w266h

Here you can now configure the motion detection and select action rules that should be triggered when motion was detected.

Detection Settings

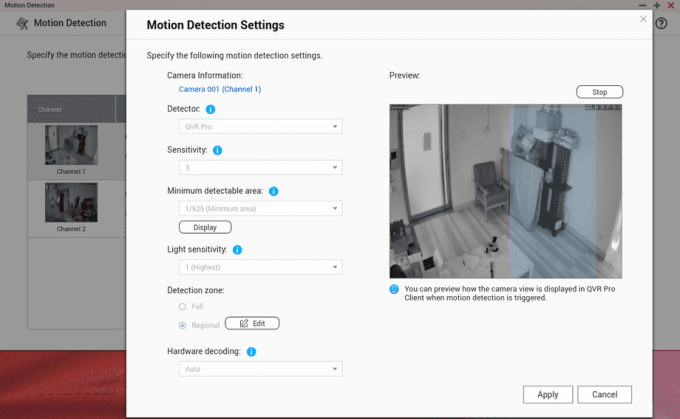

qnap qvr pro 2 680w419h

Select if you want the QVR Pro Software to use it’s internal, software-based, motion detection, or if you want your camera to use it’s own motion detection (including the PIR motion sensor – only available if you added your camera via the preset or the ONVIF T Profile).

If you use the QVR Pro motion detection you can set sensitivity levels and motion detection areas.

Rules

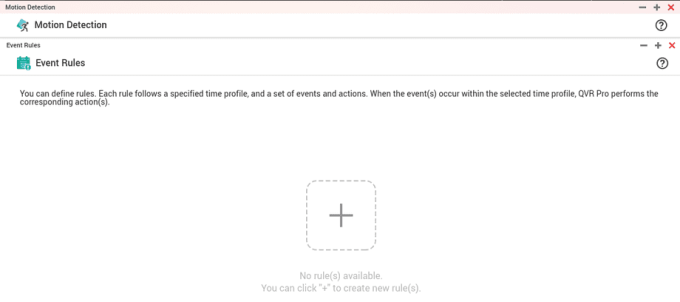

With the motion detection configured we can now add an If/Then rule set to specify what we want to happen when motion is detected:

qnap qvr pro 2 680w302h

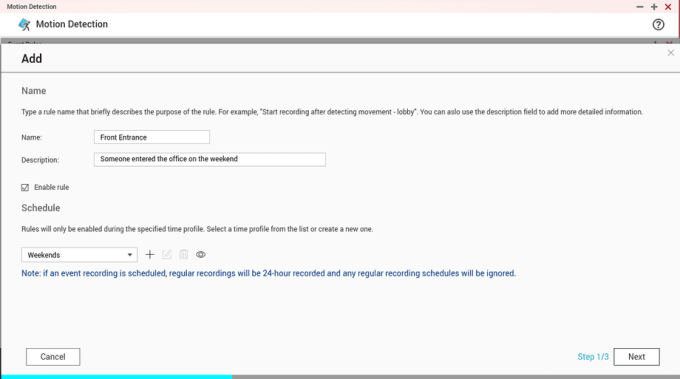

The first step is to name your rule, activate it and set a time schedule when it should be applied:

qnap qvr pro 2 680w379h

The event we want to react to is of type “Motion Detection” from a specific camera:

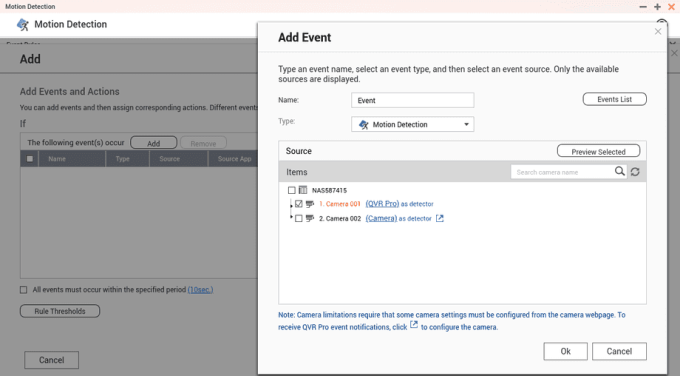

qnap qvr pro 2 680w376h

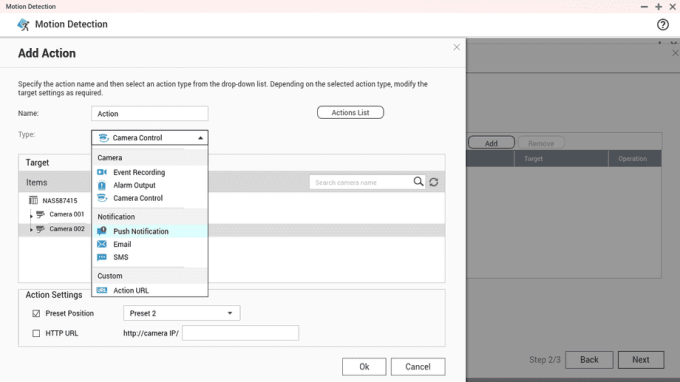

When this event occurs we want to trigger an action – e.g. an Email or Push Notification or sending a command to another camera to move to one of it’s preset positions:

qnap qvr pro 2 680w382h

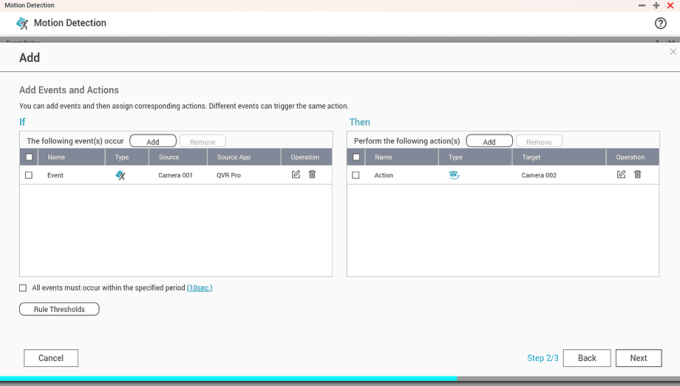

Once everything is set up click on Next to save the configuration:

qnap qvr pro 2 680w386h

The Rule specified above waits for a motion detection event from camera 1. When this event occurs it will send a command to camera 2 to move to a specified preset position.
