Aibien Cameras Full User Guide

Cameras Full User Guide, Free live video with the Aibien surveillance system using our free APP. Connect multiple cameras to your wireless network to watch your valuables even in different locations. It is also a good listener for voices of unwanted visitors or when your teens are home from school alone. Wherever you are you can see your camera from your phone or tablet.

Aibien Security Cameras User Manual

Notice Before Using The Camera

NOTICE Before Starting Using Aibien Gardview!

  • When start to add the camera to the network, please make sure it's under a full Wi-Fi signal.  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-20.png?resize=44%2C38&ssl=1 (You can test with your smartphone)
  • Make sure connect the device to your smartphone (successfully monitored on app) before installing on the wall.
  • This camera only supports 2.4GHz Wi-Fi router. Please make sure you are using 2.4GHz Wi-Fi router (the same as the smartphone).
  • Wi-Fi password does not support special characters (Eg. * / @ $). Please reset the WiFi password only with English letters and numbers if the original password has special characters.
  • Please install the camera under a stable Wi-Fi coverage area. If the Wi-Fi signal is unstable in the place where you install it, we suggest purchasing an additional Wi-Fi amplifier. Contact us at support@aibien.net for more advises if necessary.

Aibien Cameras Full User Guide

Read Next :



Starting Using The Camera

Now Let Start Using the Aibien Gardview!

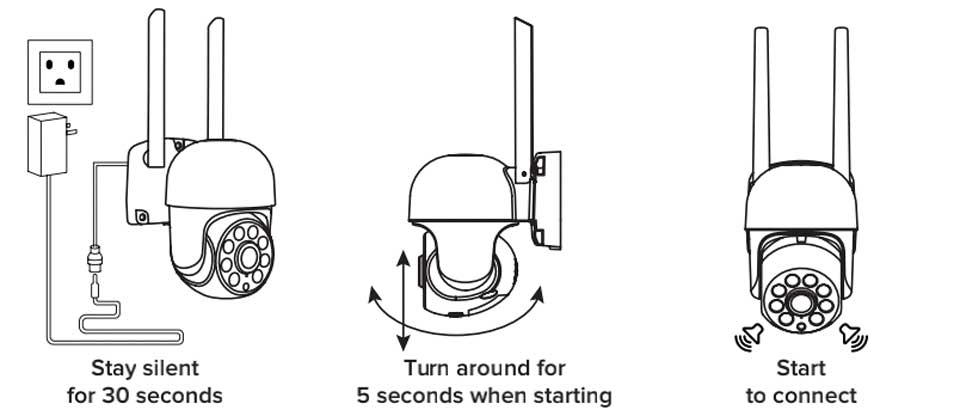

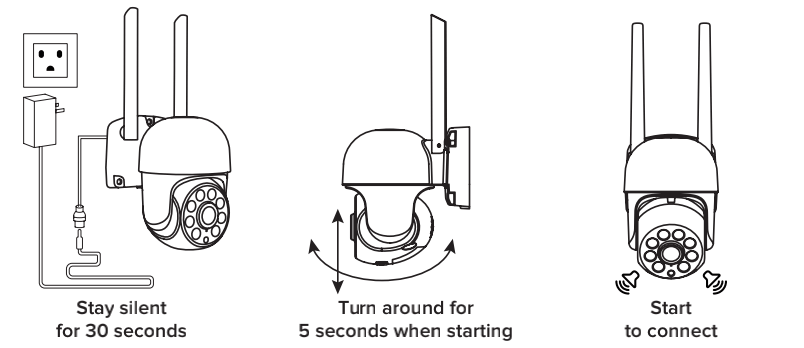

Connect The Power

  1. It takes 30 seconds to get ready after connecting the power. The camera will stay silent during this 30 seconds.
  2. When the camera is starting, it will turn up and down, right and left for 3-5 seconds. We suggest holding the camera when it's starting.
  3. When the camera turns to silent again, a voice will remind us start to connect the smartphone!

Connect The Power

Download The “Aibien” App

1. Search “Aibien” on Apple Store (iPhone) or Google Play (Android phone) to download the app.

2. Use the phone camera to scan the following to download the “Aibien” app.

Download The "Aibien" App

Only support 8.0 or higher version for iPhone, Android 10.0 or higher version for Android.

3. For New user, Please Select ‘Agree' To The Tips Pop-Up
1). Allow Aibien to access mobile cellular data and wireless LAN, otherwise you cannot .
2). Allow Aibien to receive pushed messages, otherwise the phone will not receive an alarm push message.
3). Allow Aibien to use the microphone when you want to use 2 way audio function.

Account Sign Up (On Aibien App)

  1. Open the app and click Sign up.
  2. Enter your email or phone number, click send verification code.
  3. Get the verification code from your email or message, input it and set up the password
  4. Sign in with the account and password.

Add Device

Before Adding the Device:

  1. Connect your phone to 2. 4G Wi-Fi (5G is not supported)
  2. Wi-Fi password does not support special characters (Eg. * / @ $). Please reset the Wi-Fi password only with English letters and numbers.
  3. Make sure the Wi-Fi signal is full. https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-20.png?resize=44%2C38&ssl=1

Adding the Device

  1. Tap ‘Add Device' or ‘+.
  2. Connect the power and the camera is boosting, Please wait for 30 seconds, the camera will start to move around. Follow the prompts on the screen. Click here to confirm the camera status, click ‘Next'.
  3. Enter the Wi-Fi password, and click ‘Next'. Confirm the Wi-Fi Information.
  4. A QR code will show up on the smartphone, Use the camera to scan the QR code. Please follow the advice in the app.
  5. A voice will sound after the QR code is scanned successfully. And then the camera will start the auto binding and configuration.
  6. Wait for 10-120 seconds during the configuration. If the binding is successful, you will hear ‘binding successful'. Then the app will automatically jump to the camera list page.

Tip: If you do not hear a voice saying “binding successful”, it means the binding is failed. Please try to reset the camera and bind again.

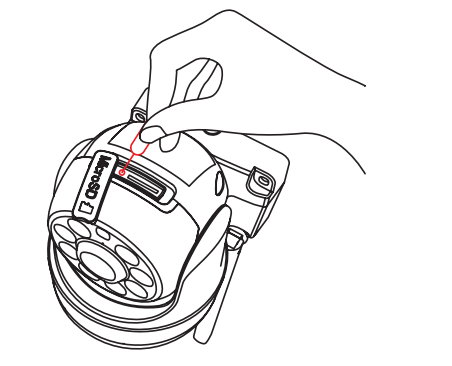

Use the reset needle (can be found in the package) to hold the reset button for several seconds, until you hear deng~deng~deng~ prompt voice means the camera has been reset successfully.
If you still can't bind the camera, please contact us for more advises.

See also  Aibien Camera frequently asked questions

Adding the Device

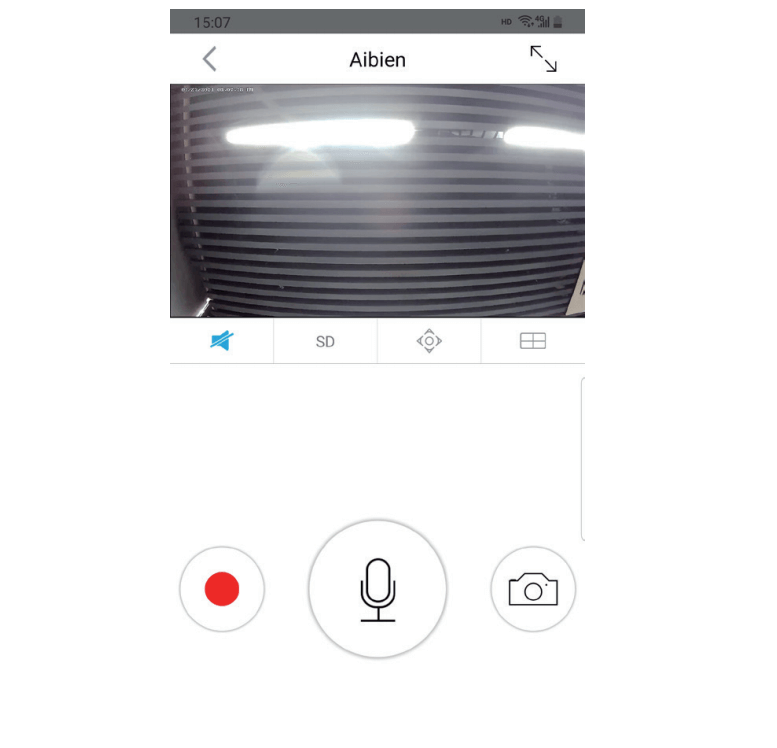

Use The App

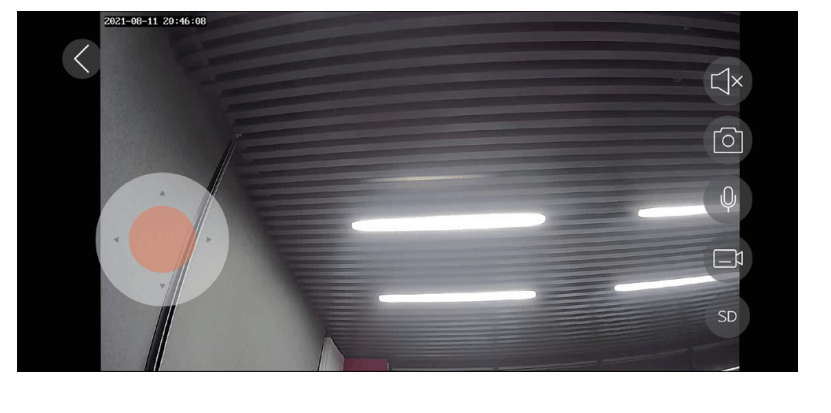

Press anywhere on the camera screen to enter the Live View.

How To Use The App How To Use The App

https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-22.png?resize=45%2C39&ssl=1 Tap this icon to enter the full-screen mode.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-21.png?resize=42%2C29&ssl=1 Tap this icon to enable or disable audio.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-23.png?resize=34%2C24&ssl=1 Tap this icon to modify the image quality.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-1.png?resize=43%2C37&ssl=1 Tap this icon to adjust the monitoring area
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-3.png?resize=40%2C31&ssl=1 Tap this icon to enter the 1/4windows division menu.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-4.png?resize=40%2C38&ssl=1 Tap this icon to record live video
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-5.png?resize=42%2C33&ssl=1 Long press this icon to start a conversation
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-6.png?resize=39%2C36&ssl=1 Tap this icon to take a photo of the live view

Please read the manual to learn more about how to use our product.

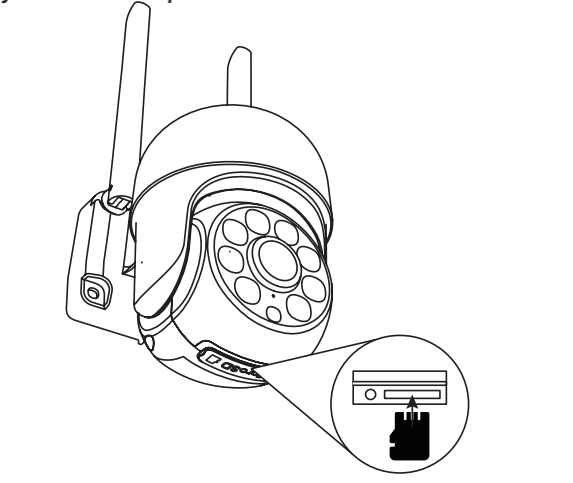

Insert Micro SD Card (not included)
Tip: Video playback function requires a micro SD card inserted.

 Insert Micro SD Card (not included)

Open the bottom micro SD Card slot cover. Insert a micro SD card 8G, 16G and 32G micro SD cards, the format must be FAT32. 64G, 128G micro SD cards, the format must be exFAT format.

Note: Please power off the camera when inserting the micro SD card.

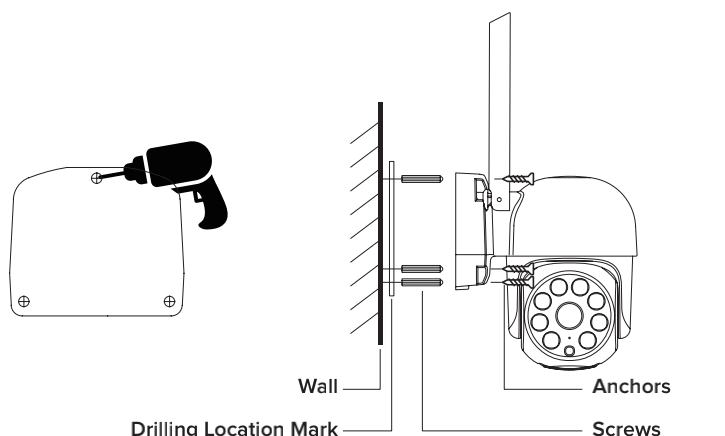

Install The Camera On The Wall

Paste the drilling location mark on the wall, then drill the hole according to the mark and Insert the anchors, pass the screws through the back of the bracket, and fix the top of the bracket on the wall.

Install The Camera On The Wall

  1. Mark Position
    Place the mounting template where you want the camera. For wall mounting, drill three holes through three circles.
  2. Mount Camera
    Affix the camera base using the screws. For wall mounting, insert three anchors into the holes and use the screws to affix the camera base over

Camera Placement Do's & Don'ts

For reducing false alarms, please note that:
1). Do not install the camera facing any objects with bright lights, including sunshine, bright lamp lights, etc.
2). Do not place the camera too close to a place where many vehicles move frequently; 15 meters (55ft) away from the vehicle is the recommended distance based on our numerous tests.
3). Stay away from the outlets, including the air conditioner vents, humidifier outlets, the heat transfer vent of projectors, etc.
4). Do not install the camera facing the mirror.
5). Keep the camera at least 1 meter away from any wireless devices, including Wi-Fi routers and phones in order to avoid wireless interference.

Camera Management

After the camera is powered on, wait for about 30 seconds, the camera rotates left and right up and down to complete the self-check.

Add New Camera

Pay attention to the following points before add the camera in the app. (For new users)

  1. Please use supplied power adapter, and make sure your router is working properly.
  2. Please add a camera when the Wi-Fi signal is full.
  3. About 30 seconds after powering on, the device starts to rotate left and right, up and down to complete the self-check, and the device emits a tone to start binding.
  4. We've provided a power extension cord in the package for installing the camera far away from the power supply.
  5. Please bind the device before installing it on the wall.
  6. This camera only support 2.4GHZ Wi-Fi router, please make sure you are using a 2.4GHZ Wi-Fi router. Wi-Fi password does not support special characters.
  7. This camera doesn't support WEP safe mode, please switch the Wi-Fi WEP safe mode to another mode.
  8. Please follow the instructions and make sure the password is entered correctly.
  9. If the camera failed to be added, please press the reset button for 5 seconds until you hear deng~deng~deng~ prompt voice, then you can try again.
  10. If the camera is always failed to be added after repeated attempts, please contact the customer service.
  11. One camera can only be added with one APP account, if the camera has been added with another account already, then it can't be added with any account again.
  12. Please delete the camera in the APP firstly if you want to connect the camera to a new APP account.
  13. A camera can only be connected to one APP account. An APP account can connect maximum 20 cameras.

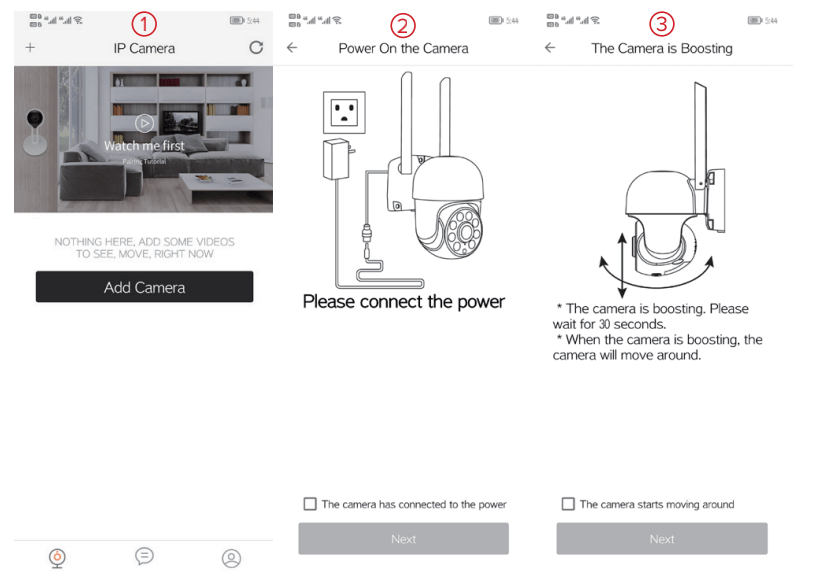

Adding the device through the following steps

1 Please tap Add Device or Click this icon ‘+' button on the upper-lift corner of the screen.

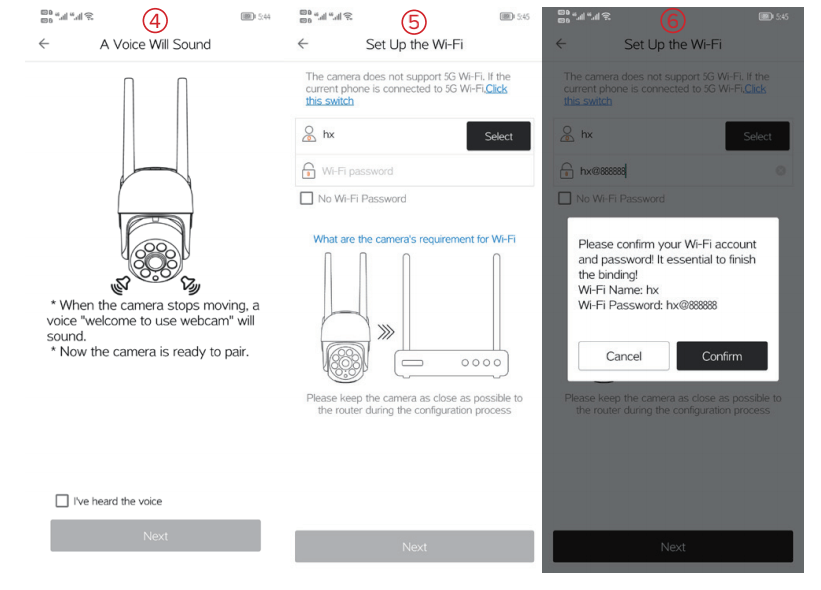

2 & 3 & 4 Connect the power and the camera is boosting, Please wait for 30 seconds, the camera will start to move around. Follow the prompts on the screen. Click here to confirm the camera status, click ‘Next' to enter the next step

Add New Camera Add New Camera

5 & 6 Connect to your Wi-Fi network (only support 2.4GHZ Wi-Fi router), Enter your WiFi password. If your wireless network does not have a password, click on the ‘No Wi-Fi password' box. Then click ‘Next'.

Check if the WiFi password is entered correctly, if it is correct, click this icon Cofirm to confirm.

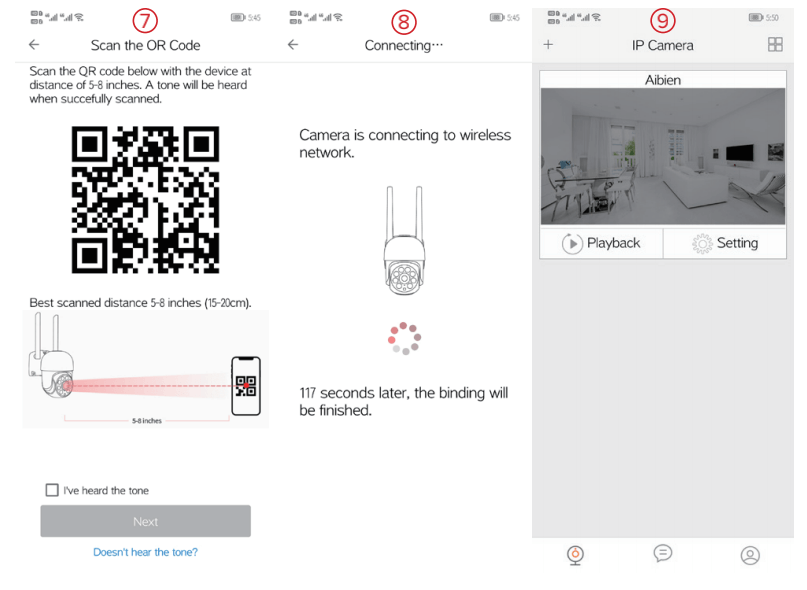

7 Follow the instructions on the screen and aim the QR code at the camera lens, the distance is about 5-8 inch (15-20 cm), and keep the phone still.
8 Wait for 10-120 seconds during the binding and configuration.
9 The device is connecting to the network. After successful addition, you will hear ‘binding successful'.

See also  How to use Aibien PC Software

Add New Camera

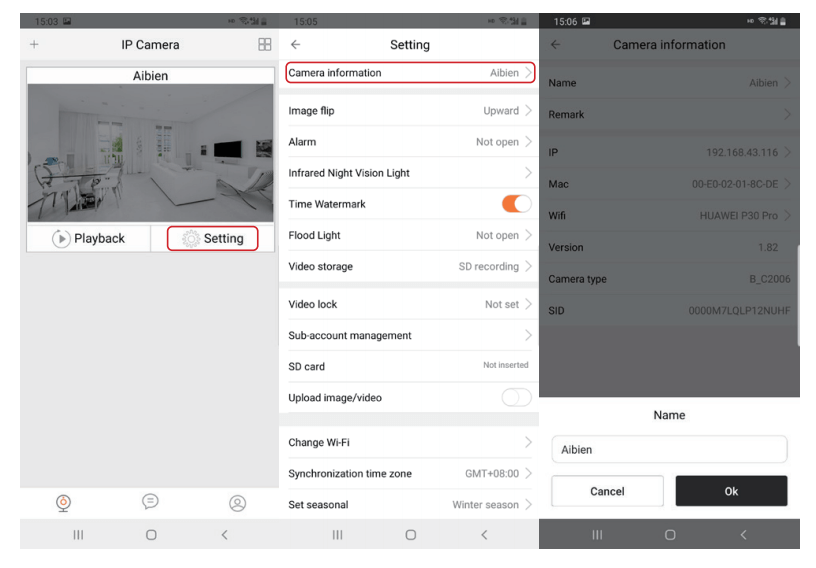

Editing The Camera Information

To modify your camera name, please follow the steps below:

  1. Click ‘' > ‘Camera information' > ‘Name'.
  2. You can change the camera name in the field, then enter the name and click ‘OK' to save.

Editing The Camera Information

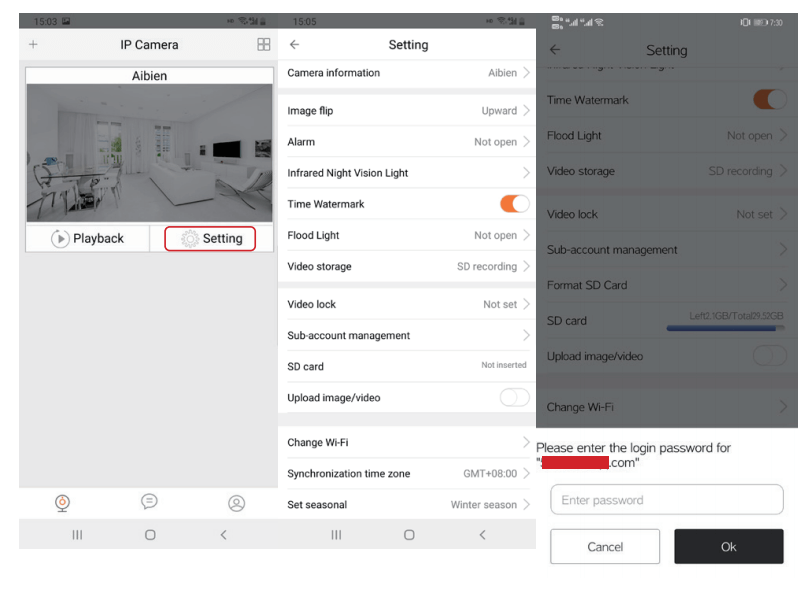

Delete Camera

Tap ‘Setting' and choose ‘Delete' on the screen. Enter the login password for your account and click ‘OK' to delete

Delete Camera

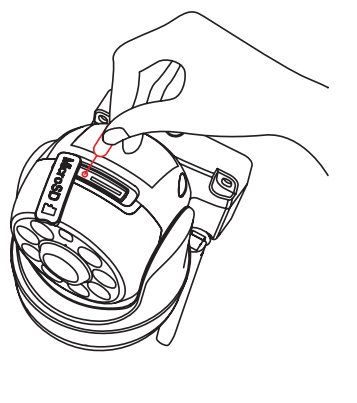

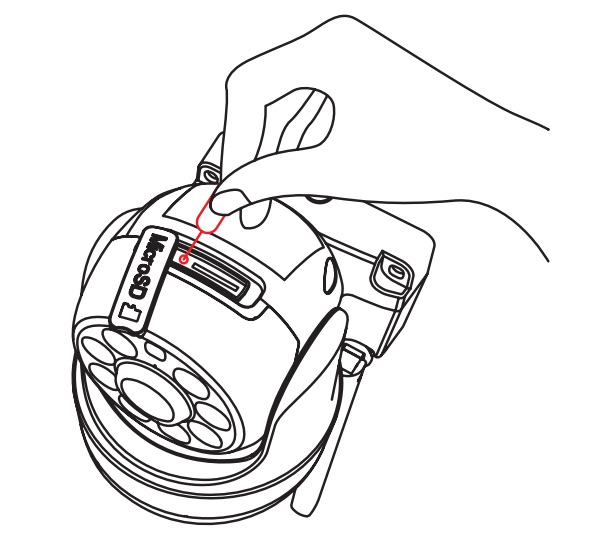

Reset Camera

To rest the camera, use the provided reset needle to hold the reset button for several seconds, until you hear “deng~deng~deng~” prompt voice means the camera has been reset successfully.

Reset Camera

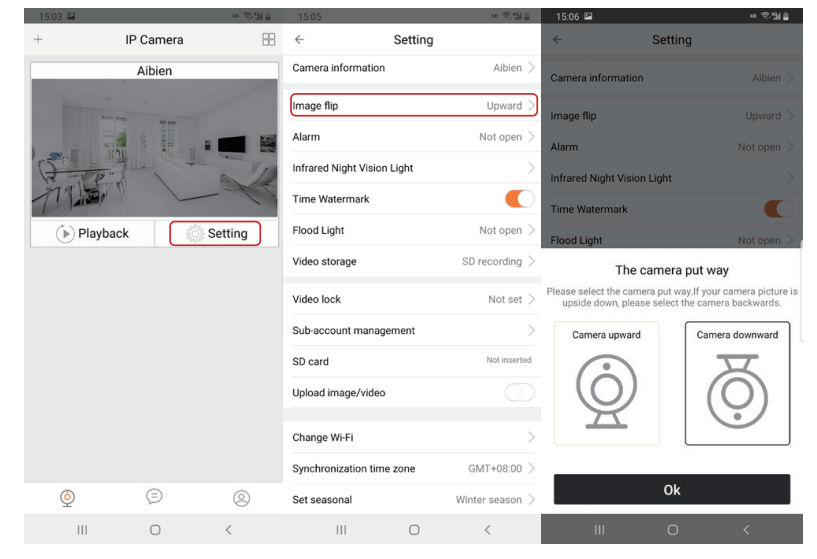

Image Flip

When you need to flip the camera, you can flip it in the APP setting screen
Step: Click the ‘Setting' > ‘ Image flip' > Option the camera put way > Click ‘OK' to save.

Image Flip

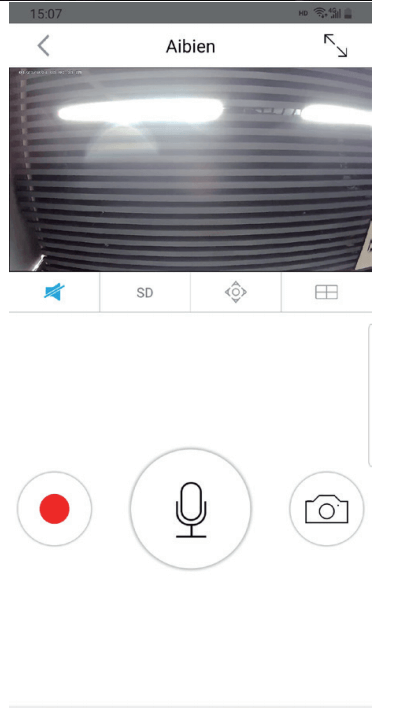

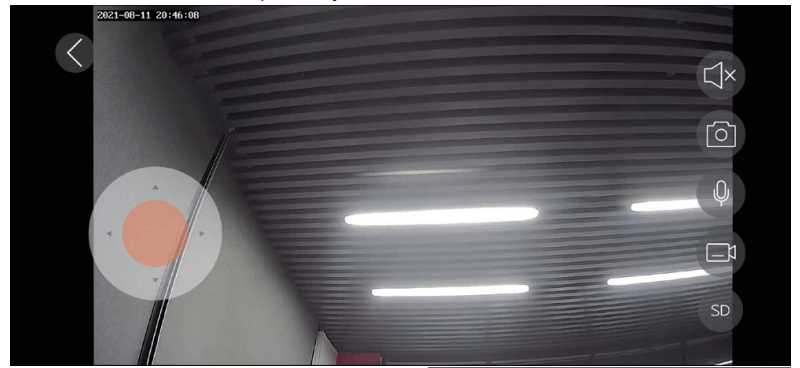

Live Viewing

To view the live video source, press anywhere on the camera screen to enter the Live View.

 Live Viewing  Live Viewing

https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-22.png?resize=45%2C39&ssl=1 Tap this icon to enter the full-screen mode.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-21.png?resize=42%2C29&ssl=1 Tap this icon to enable or disable audio.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-23.png?resize=34%2C24&ssl=1 Tap this icon to modify the image quality.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-1.png?resize=43%2C37&ssl=1 Tap this icon to adjust the monitoring area
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-3.png?resize=40%2C31&ssl=1 Tap this icon to enter the 1/4windows division menu.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-4.png?resize=40%2C38&ssl=1 Tap this icon to record live video
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-5.png?resize=42%2C33&ssl=1 Long press this icon to start a conversation
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-6.png?resize=39%2C36&ssl=1 Tap this icon to take a photo of the live view

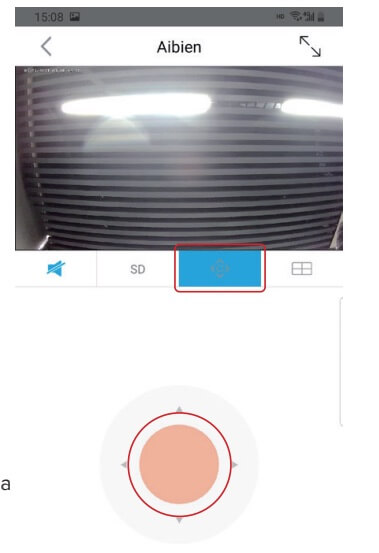

Manually Adjust The Camera Monitoring Area

  1. Tap this icon  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-1.png?resize=43%2C37&ssl=1 to open the operation panel.
  2. Press and hold the orange area https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-8.jpeg?resize=41%2C39&ssl=1  , drag the orange dot to the direction you want to adjust, adjust to a suitable screen, and release your finger.
  3. Click this icon  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-1.png?resize=43%2C37&ssl=1 again to return to the live view.

Manually Adjust The Camera Monitoring Area

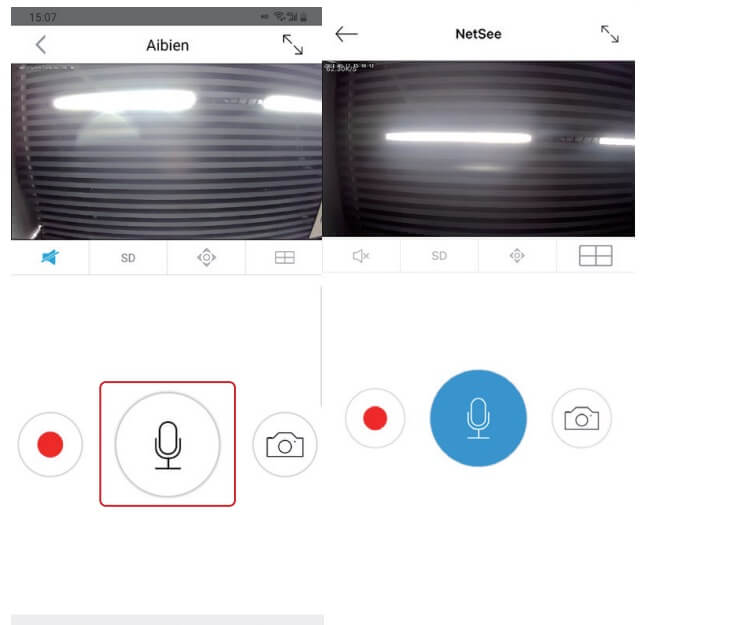

Two-way Audio

Two-way audio allows you to talk and listen.
Follow the steps below to enable it:

  1. Long press this icon  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-5.png?resize=42%2C33&ssl=1 and wait for the icon to turn blue  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-10.jpeg?resize=43%2C46&ssl=1 Now you can talk with the camera
  2. Release your finger to end the conversation.

Two-way Audio

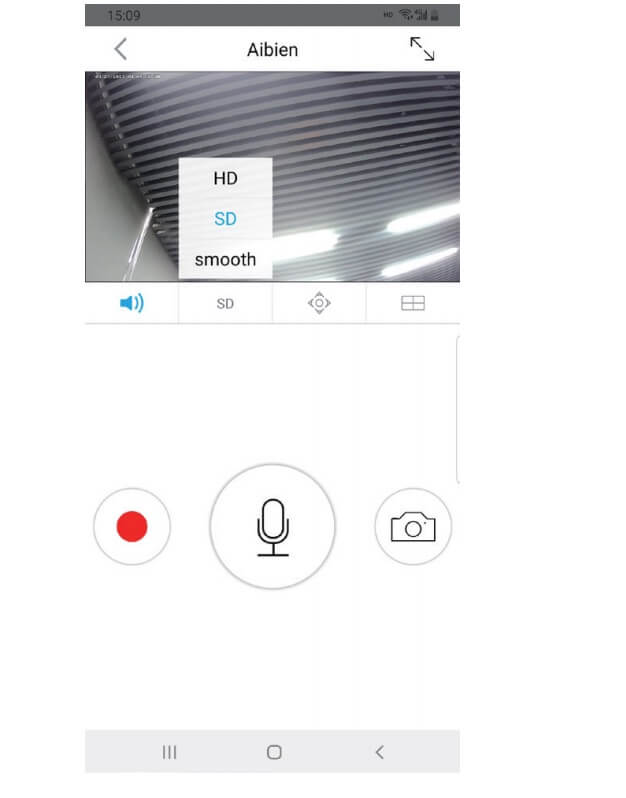

Video Quality

In the tab, you can click ‘HD', ‘SD' or ‘smooth' to select the video stream type according to your needs.

Video Quality

Note:
1.SD: By default, the live video will stream in SD.
2.HD: The highest-quality stream, clear stream has the highest quality of picture, but it also consume more bandwidth
3.Smooth: Lower quality streams consume less bandwidth

Record Live Video/Take Pictures

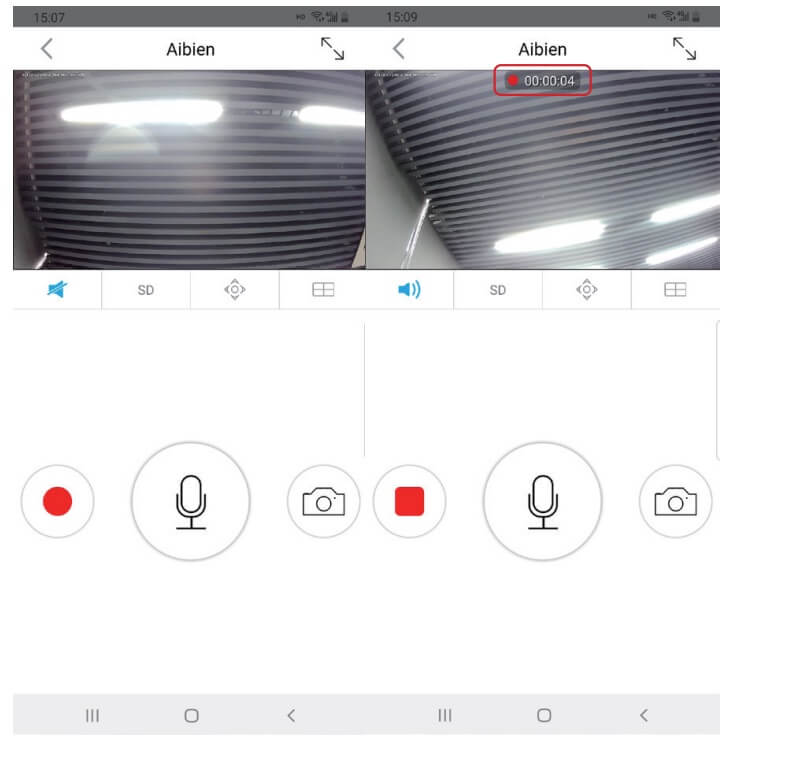

Record live video

  1. Click this icon https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-4.png?resize=40%2C38&ssl=1  , when the icon turn into this https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-16.jpeg?resize=40%2C42&ssl=1  , indicating that it is recording, click again, the recording ends.
  2. The recording time is displayed on the screen, and the video is stored in your phone.

Record live video

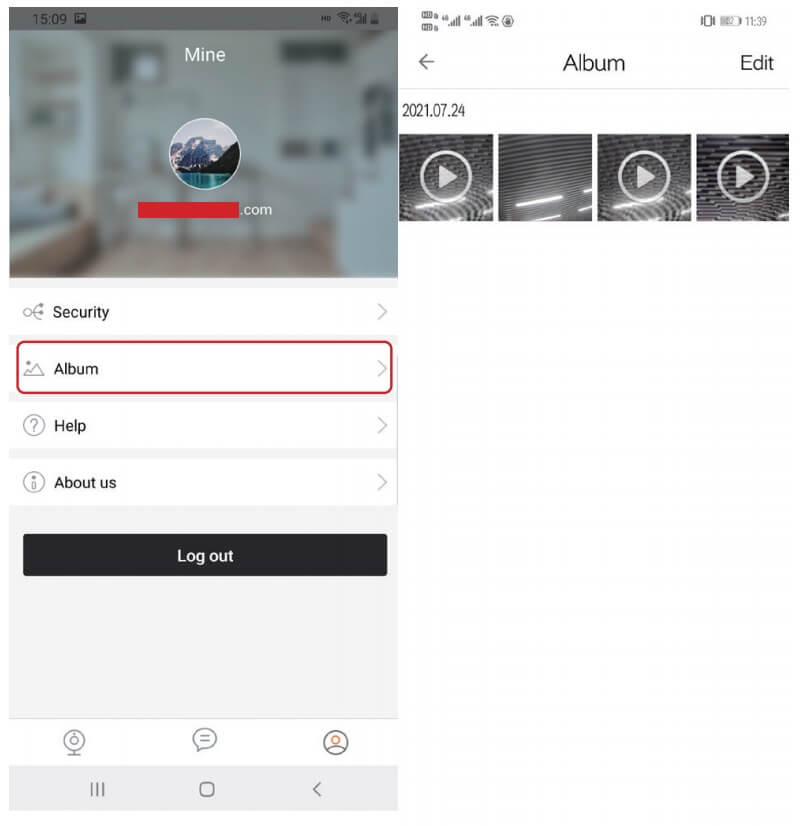

Note: You can view the recorded video in the phone album or APP album.

Record live video

Take live photos

  1. Tap this icon https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-6.png?resize=39%2C36&ssl=1  to take a live view photo. The photos are stored in your phone.
  2. You can view the recorded video in the phone album or APP album.

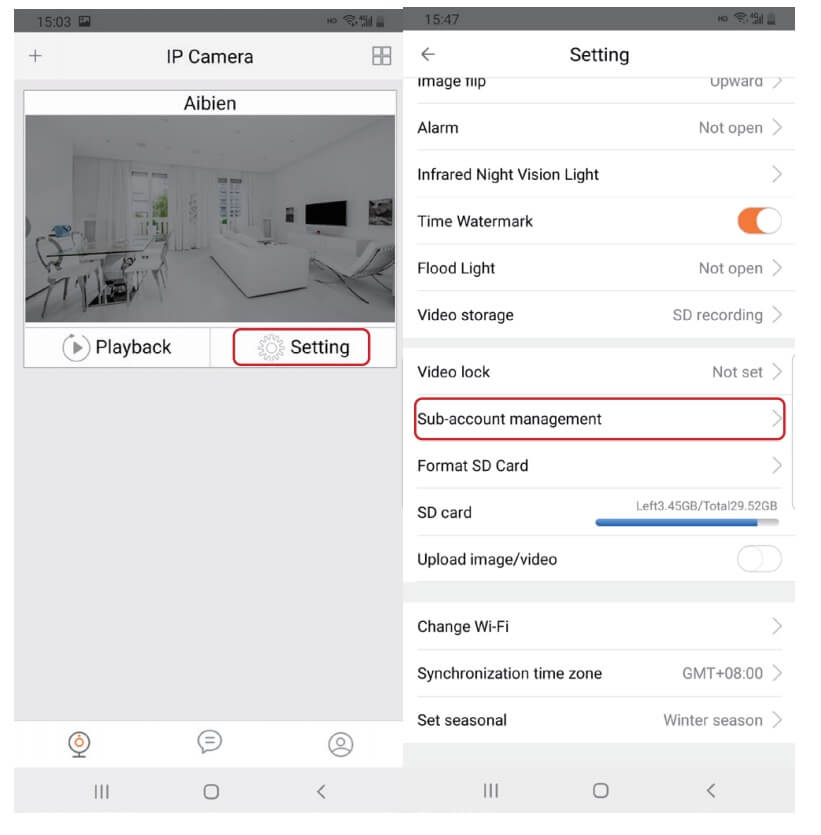

Multi-person Sharing

Each camera can be managed by several Aibien app. The camera can be shared with up to 14 accounts for simultaneous viewing.

  1. After you setup the camera connected to your home Wi-Fi, go to setting page.
  2. Tap ‘setting' > ‘Sub-account management' > Enter the sharer's account and save.
  3. The sub-account can use all the functions of the real-time video page.
  4. The sub-account can NOT change the .

Multi-person Sharing

Playback

This part will cover how to play back the videos recorded to your Micro SD card.
Playback is only available when the SD card is inserted and recognized by the camera.

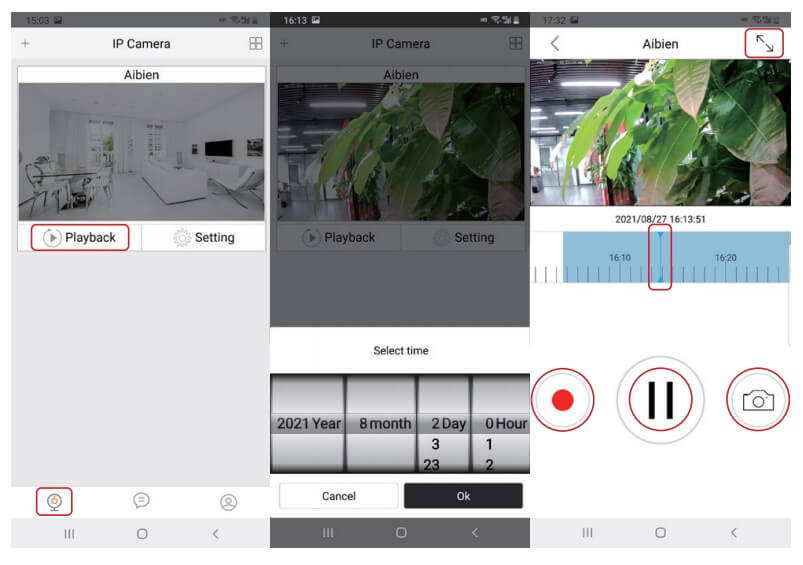

How To View Video Playback

  1. Tap  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/4AA994D1-5D4E-4DCD-9946-04E4BD5A093D.jpeg?resize=91%2C27&ssl=1 to enter the playback page.
  2. Scroll to select the start time of the video and click ‘OK' to confirm.

 How To View Video Playback

  1. Tap this icon https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-22.png?resize=45%2C39&ssl=1  to enter the full-screen mode.
  2. Drag this icon to quickly select the start time of the video.
  3. Click this icon  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-4.png?resize=40%2C38&ssl=1 , when the icon turn into this https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-16.jpeg?resize=40%2C42&ssl=1  , indicating that it is recording,
    click again, the recording ends. The recording time is displayed on the screen, and the video is stored in your phone.
  4. Click this icon  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-18.jpeg?resize=35%2C36&ssl=1 to play, click again to pause.
  5. Tap this icon  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-6.png?resize=39%2C36&ssl=1 to take a live view photo. The photos are stored in your phone.
  6. When the SD card space is almost full, the oldest videos will be deleted automatically, freeing up some space to store new videos.

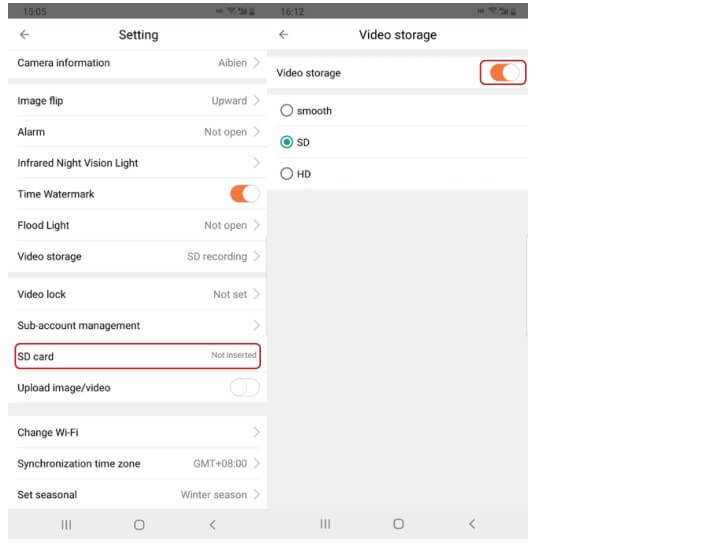

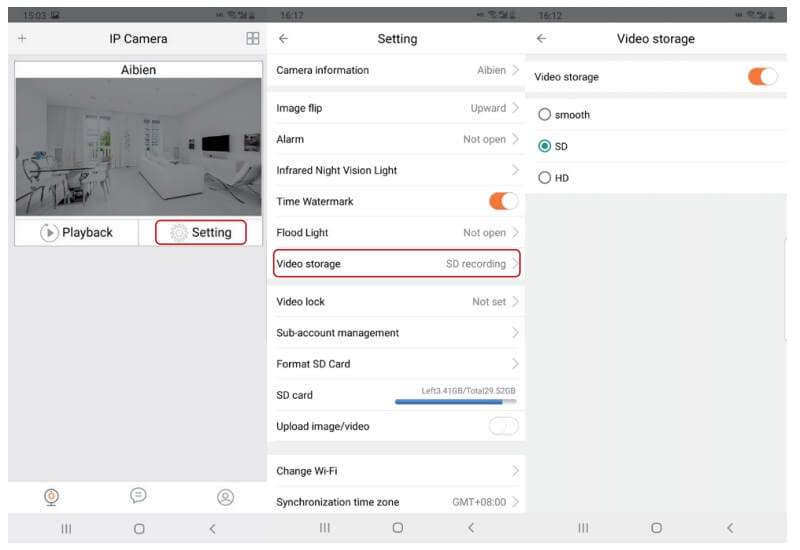

Set Recording Video Quality

You can set the quality of the recorded video in the APP. Please follow the steps below
Steps: Go to ‘Settings' > ‘Video storage' > Choose the picture quality you need.

Set Recording Video Quality

Note: You can set the recording video quality and real-time image quality separately, they are different functions. HD quality occupies the highest memory, Smooth occupies the lowest memory

See also  How to use Aibien PC Software

Alarm Setting

When the system detects a movement change, it will trigger an alarm and prompt the camera to take the following actions: sound an alarm, push a notification to your smartphone, and record the movement to your Micro SD card.

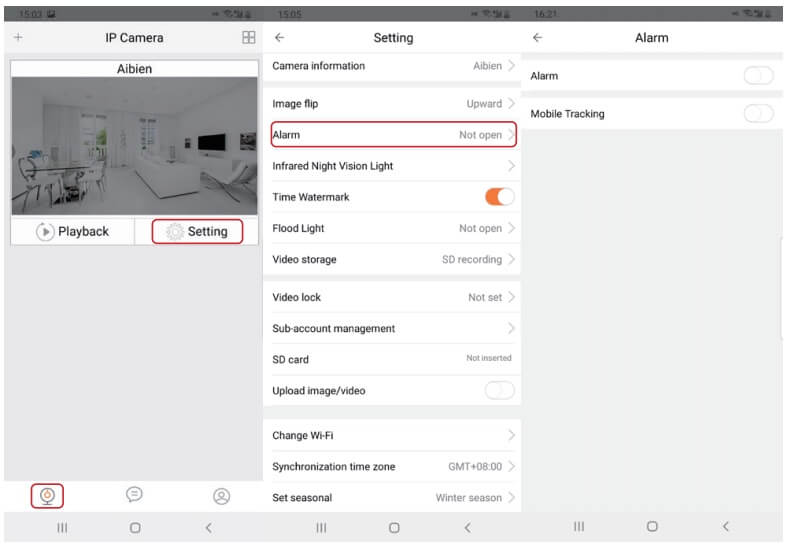

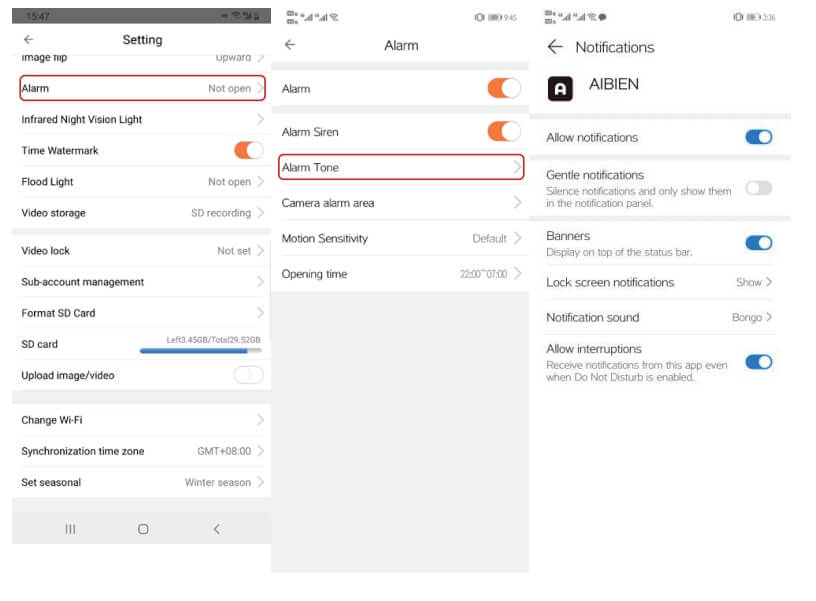

How To Turn On The Alarm

Steps: Go to ‘Settings' > ‘Alarm'
To enable the alarm, tap the icon  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-13.jpeg?resize=36%2C26&ssl=1 , change it to https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-12.jpeg?resize=40%2C26&ssl=1  . To disable it, tap the icon again.

How To Turn On The Alarm

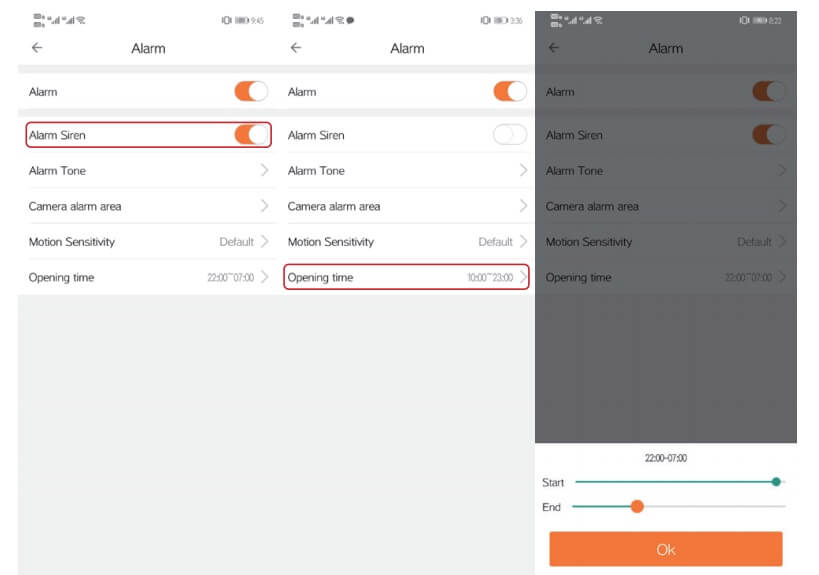

Motion Alarm

Steps: Go to ‘Settings' > ‘Alarm' >turn on ‘Alarm' >turn on ‘Alarm Siren' > Setting ‘Opening time'.
Set the alarm time according to your needs. During the opening time, if movement is detected, the camera will sound an alarm.

Motion Alarm

Flood Light

The flood light function has two modes: ‘ Flood Light' and ‘ Turn on Flood light with alarm'.
Set an alarm schedule and turn on Flood light with alarm. During this period, when movement is detected, the flood light will automatically turn on, and the monitoring screen will automatically switch from infrared night vision to full-color screen.
Steps: Go to ‘Settings' > ‘Flood Light' >turn on ‘ Flood Light ‘ or ‘ Turn on Flood light with alarm'.

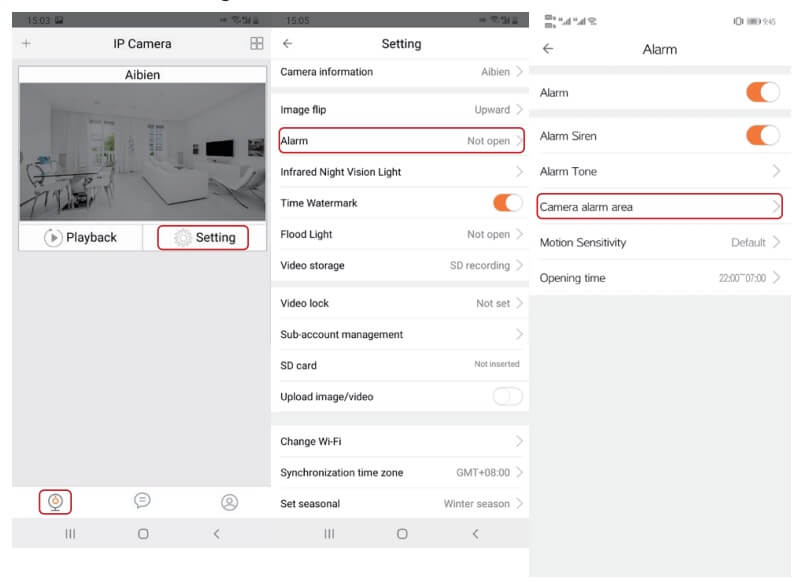

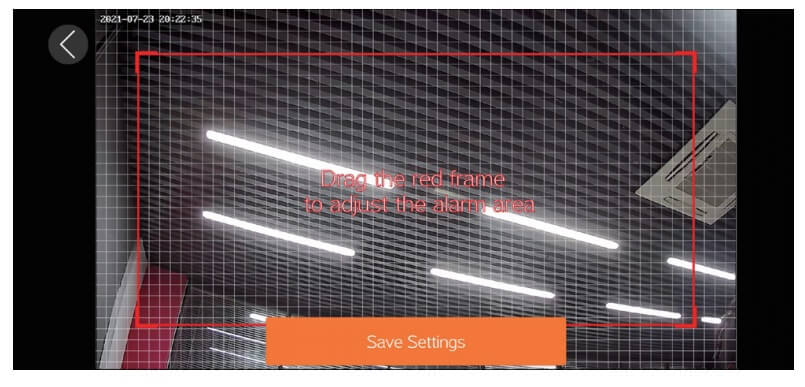

Camera Alarm Area Setting

Set up key monitoring areas, such as windows, swimming pools, gates, etc.

When someone enters the areas, the alarm will sound, and the APP will push notifications to your smartphone. The camera will record movement on your micro SD card.
If people or animals enter the non-monitoring areas, the alarm will not sound.
Steps: Go to ‘Settings' > ‘Alarm' > ‘Camera alarm area' >Drag the red frame to adjust the alarm area> Save Settings.

Camera Alarm Area Setting Camera Alarm Area Setting

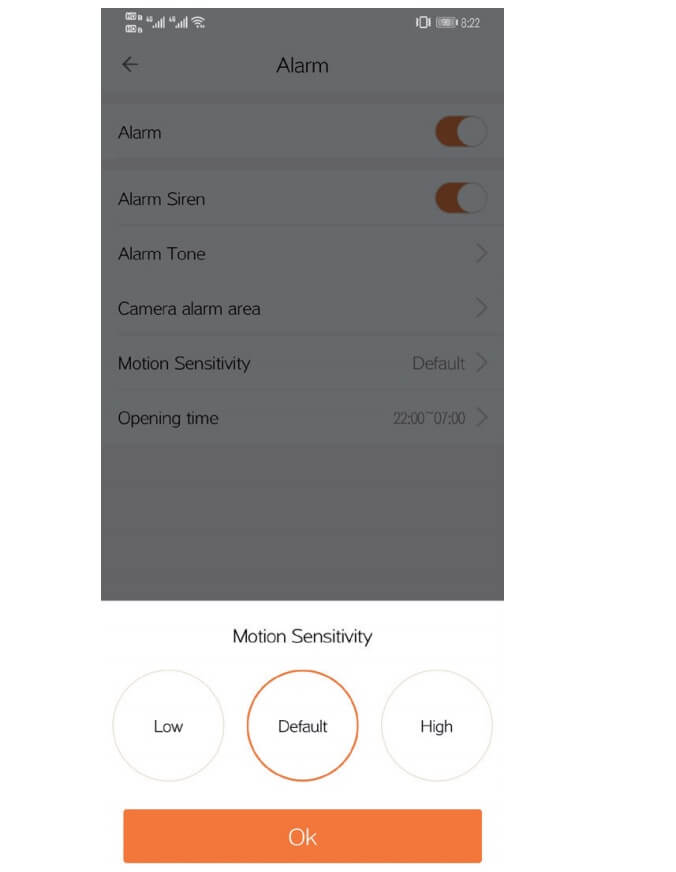

Motion Sensitivity

The camera has 3 types motion sensitivity

Sensitivity Detecting Distance (for  moving and living things) Detecting Distance (for moving vehicles)
Low Up to 4 meters (13ft) Up to 10 meters (33ft)
Mid Up to 6 meters (20ft) Up to 12 meters (40ft)
High Up to 9 meters (30ft) Up to 15 meters (50ft)

Note: Higher sensitivity offers longer detecting distance, but it would lead to more false alarms. We advise setting the sensitivity level to ‘low' or ‘Default'.

Motion Sensitivity

Disable/Enable Push Notification

Receive alarm information on your smartphone, please open ‘Allow notifications' on the APP.
There are two ways to open:
Way 1: Go to ‘Settings' > ‘Notifications' on your smartphone, and then click Aibien Camera App to allow notifications.
Way 2: Click ‘setting' on the camera management page and follow the icon.

Disable:Enable Push Notification

Video Lock

This chapter will cover how to set video lock in APP. When you turn on the camera, you need to enter a gesture to open it to better protect your privacy.

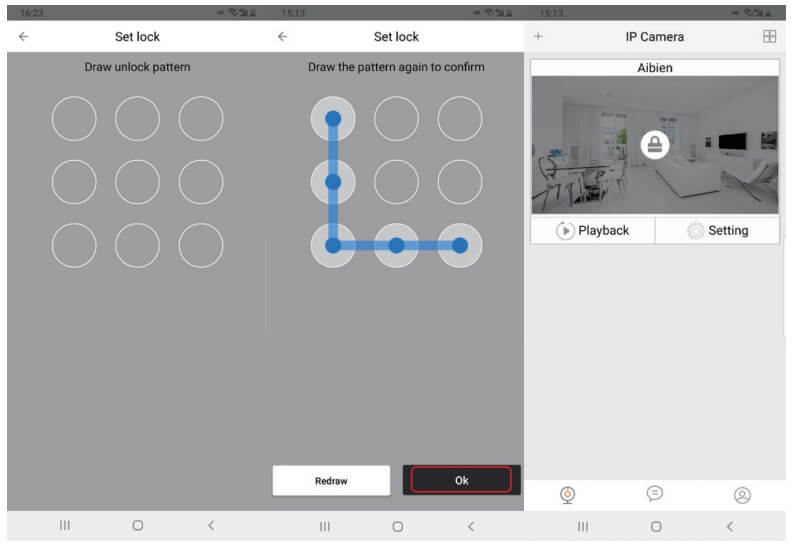

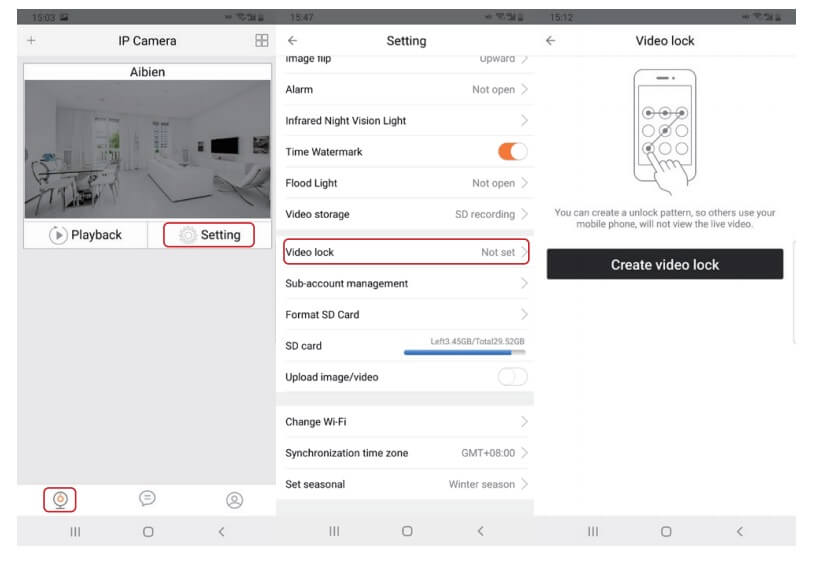

Step: Go to ‘Settings' > ‘Video lock' > ‘Create video lock' > Draw gesture > Draw gesture again > Click ‘OK' to save.
After the setting is completed, a lock symbol  https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/ICON-19.jpeg?resize=46%2C43&ssl=1 will appear on the camera management page.

Video Lock Video Lock

SD Card

Local Storage

Aibien cameras support SD card storage (default 24/7 recording). If you don't need it, you can choose to turn off this feature. There are three emotional modes for the resolution of locally stored videos: smooth / SD / HD, smooth is the most space-saving, and HD is the clearest.

Local Storage

SD Card Statue In Setting

  1. It shows “Not inserted” if the SD card is not inserted or can't be detected.
  2. It shows the memory statue if the SD card is available to recorder.

If you want to clear the recording content in the SD card, click ‘Format SD card'.

About Micro SD Card

1. Functions and requirements
(1) The camera can work without installing micro SD card, but it cannot record. Only when the micro SD card is inserted into the camera will it record automatically, without manual operation. After ten minutes, you can click playback to view video.

(2) When the SD card space is almost full, the oldest videos will be deleted automatically, freeing up some space to store new videos, no need to replace the micro SD card.

(3) The card's reading and writing speed must be higher than c6+. If the speed is lower than this, the camera will not be able to record or slow down.

2. The camera cannot recognize micro SD card
(1) 8G, 16G and 32G micro SD cards, the format must be FAT32.
(2) 64G and 128G micro SD cards,the format must be exFAT format.
(3) If the card cannot be recognized, please format it on the computer and confirm whether the format of the micro SD card is correct.
(4) If the memory card is still not recognized, you can restart the camera after inserting the memory card.

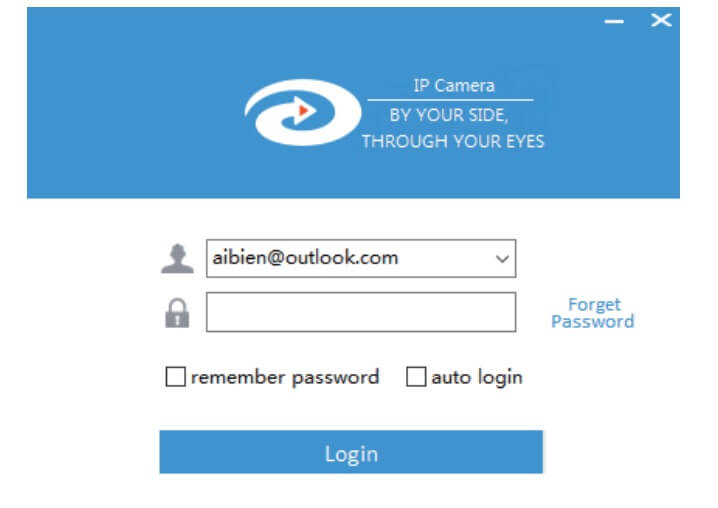

How to use Aibien PC Software

We support viewing your camera on the PC. Only supports windows. After successfully installing the software on your computer, you can use it to manage your camera.
The device must be connected on the before using the PC software.
Login your account and all the camera will be automatically showed on the PC software.

Aibien PC Software Aibien PC Software

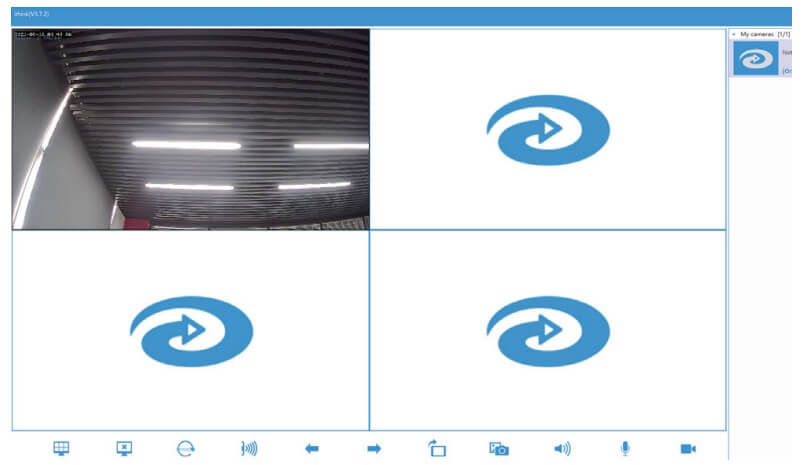

My cameras 【1/1】View all the devices under your account, click on the device, the right window will display the device.

https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-1.jpeg?resize=41%2C40&ssl=1 Click this icon to switch window display type.

https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-2.jpeg?resize=40%2C37&ssl=1 Close selected window.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-3.jpeg?resize=53%2C40&ssl=1 Click this icon to modify the picture quality
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-4.jpeg?resize=48%2C45&ssl=1 Click this icon to set alarm information
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-5.jpeg?resize=106%2C30&ssl=1 Click to see the cameras on the next page or previous page.
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-6.jpeg?resize=50%2C41&ssl=1 Click this icon to change the screen orientation
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-7.jpeg?resize=51%2C37&ssl=1 Click this icon to take a real-time picture
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-8.jpeg?resize=41%2C41&ssl=1 Click this icon to open the screen sound
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-9.jpeg?resize=42%2C41&ssl=1 Click this icon to achieve two-way conversation
https://i0.wp.com/www.camapp365.com/wp-content/uploads/2021/12/aibien-icon-10.jpeg?resize=45%2C31&ssl=1 Click this icon to record the screen video
Note: The pictures and videos will be stored in *:\VideoFile\

Aibien Camera frequently asked questions

You can check here for frequently asked questions about Aibien Camera, such as camera offline, resetting the camera, etc.

How do I connect my Aibien Camera to my phone?

You need to download the Aibien APP before you can add a camera.
Click on this to view the user manual

Why is my Aibien Camera offline?

It may be that the camera is not connected to the wifi.

Confirm whether the network between the phone and the camera is normal, and check whether the camera is turned on.

  1. lf the camera is powered off and then turned on, the camera does not rotate after 30 seconds, it means the device is not turned on. Please check if the power cord is properly connected.
  2. If the network and power supply are normal, reset the camera. If you still cannot view after resetting, please delete the device and add the camera again and try again.

How do I reset my Aibien Camera?

hold the reset button for several seconds, until the camera gives a voice prompt that it has been successfully reset.

How do I reset my Aibien Camera?

How to buy Aibien Camera?

Click the link to buy on Amazon.
Outdoor CameraIndoor Camera

How do I contact Aibien Camera technical support?

Aibien Technical Support Email: support@aibien.net

Are Aibien Camera Wireless?

Aibien camera is wireless and supports wifi connection, but the camera needs power connection

Does Aibien support PC?

Aibien supports Windows computers, download Aibien For PC.
View the tutorial for PC use

Print Friendly, PDF & Email

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
