Dahua SmartPSS AC Complete User Guide

Complete User , SmartPSS-AC is new platform featuring lightweight, flexibility and specialization. It is designed for small and medium scenarios in solutions and can connect to various Dahua security products. Users can easily obtain the needed platform client that is used by corresponding solution.

Currently SmartPSS-AC has full function modules for attendance check and access solutions. It can connect to Dahua attendance check terminal, fingerprint/card/password , and access controller. It can meet the needs for attendance check of small and medium enterprises, such as making shift schedule, arranging staff shift, extracting attendance data, processing abnormality data, and exporting report.

In access solution, there are some new functions, such as scheduled extraction of attendance records at multiple time points, feedback function to improve user experience and more.

Features

  • Connect to attendance terminal and access controller.
  • Up to 64 channels access (64 channels of attendance terminal and access control).
  • Make attendance check for up to 1000 people.
  • Report real-time attendance data.
  • Extract staff information from device.
  • Extract attendance information from device.
  • Send staff information from platform to device.
  • Support maintenance functions, such as IP modification, initialization, time configuration and restart.

Instructions

Dahua SmartPSS AC Complete User Guide

Read Next : Dahua Password Reset Instructions

Technical Specifications

SmartPSS-AC
Device
Device Quantity Max 64 (64 channels of attendance terminal and access control)
Channel Quantity Max 64 (64 channels of attendance terminal and access control)
Attendance Check
Personnel Quantity Up to 1000 people
Records Quantity Supported for Export Max 100,000
Period Max 32
Shift Max 32
Holiday Max 32
Shifts for One Person Max 32
Access Control
Personnel Quantity Up to 1000 people
Time Template Max 128
Period of One Day Max 4
Holiday Plan Max 16
Anti-passback Group Max 2
First Card Unlock Record Max 64
Multi Card Unlock Record Max 64
Other Features
Client Status CPU status, storage status and alarm status
User role and authority
Log Client log and device log
Operation System
Minimum Configuration Requirement CPU: Intel i3
Memory: 4gb
HDD: 80gb
System Requirement Windows 7, , Windows 10
Resolution 1280×800 or higher

Description

This article will show the steps on how to add an Access Controller to SMARTPSS-AC and change the Door Names easily identify the doors as we go through the configurations.

Important

 Access Controller must be on latest firmware or it may continuously go offline. Please check the firmware version of your controller before continuing through the instructions.

Pre-requisites

Having an initialized Access Controller on the local network ready to go. Please Follow these instructions if not already done so:

Step by Step Instructions

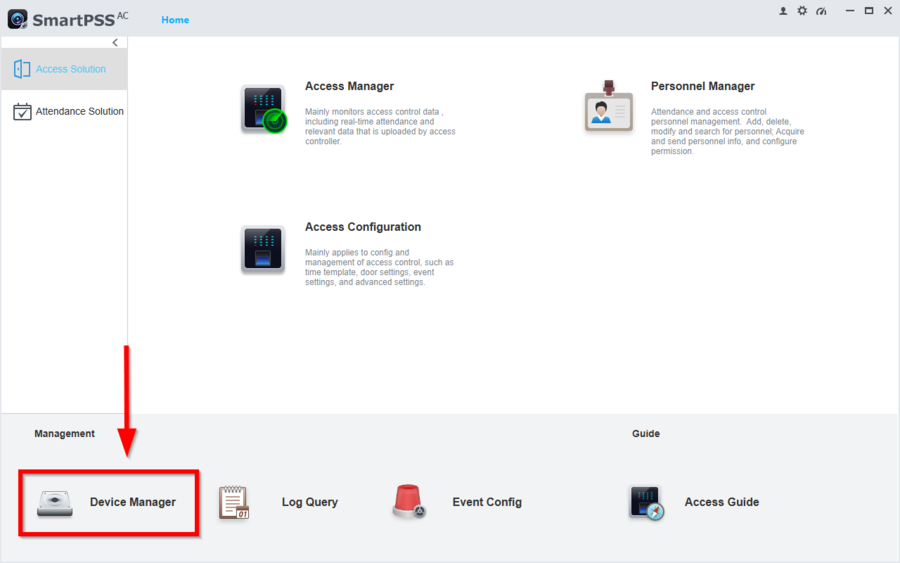

1. Open SmartPSS-AC and go to

How to Add Access Controller to SmartPSSAC-1.png

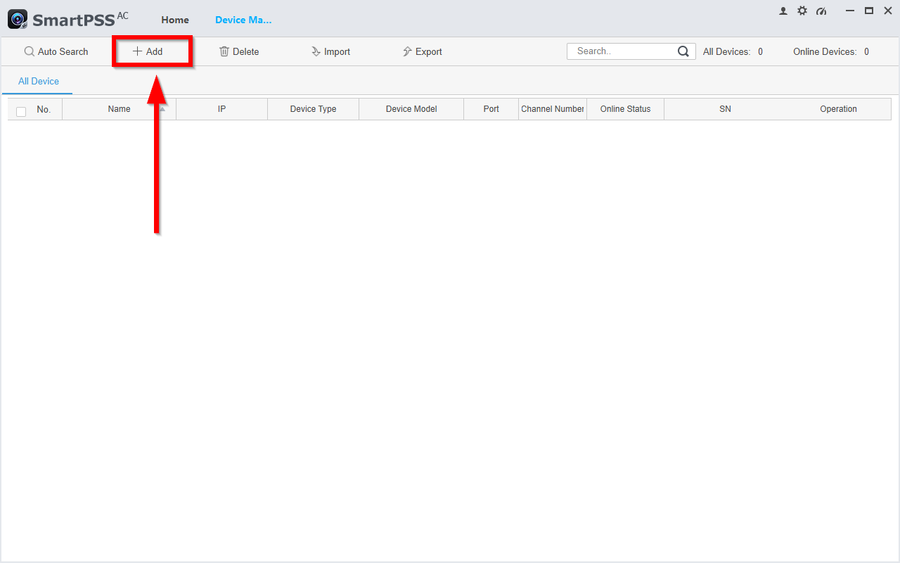

2. Click on Add

How to Add Access Controller to SmartPSSAC-2.png

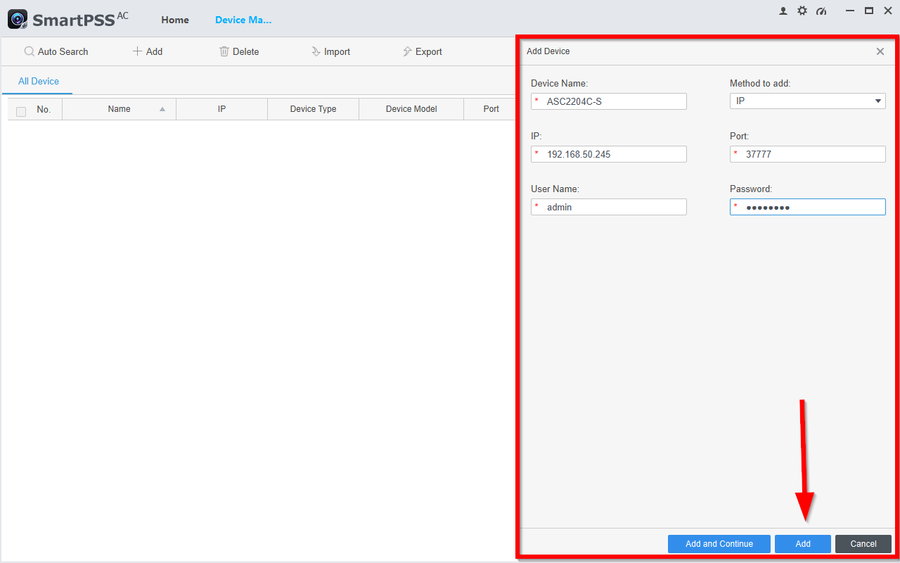

3. Enter the appropriate information of the access controller then click on add to finish adding the device.

How to Add Access Controller to SmartPSSAC-3.png

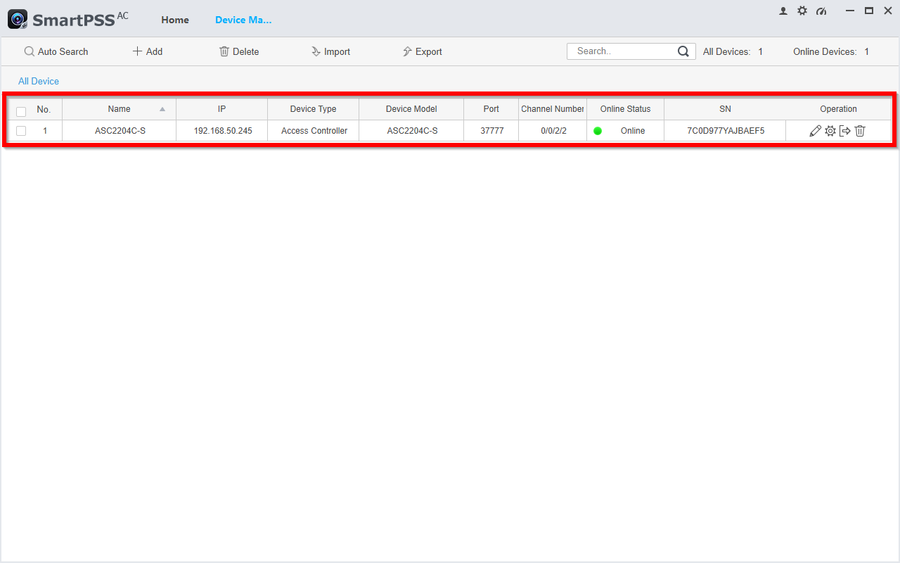

4. You know it was successfull once you see the green status with Online.

How to Add Access Controller to SmartPSSAC-4.png

5. At this point we recommend you go into the configuration of each door to rename them for an easier experience going forward.

Go back home and go to Access Configuration

How to Add Access Controller to SmartPSSAC-5.png

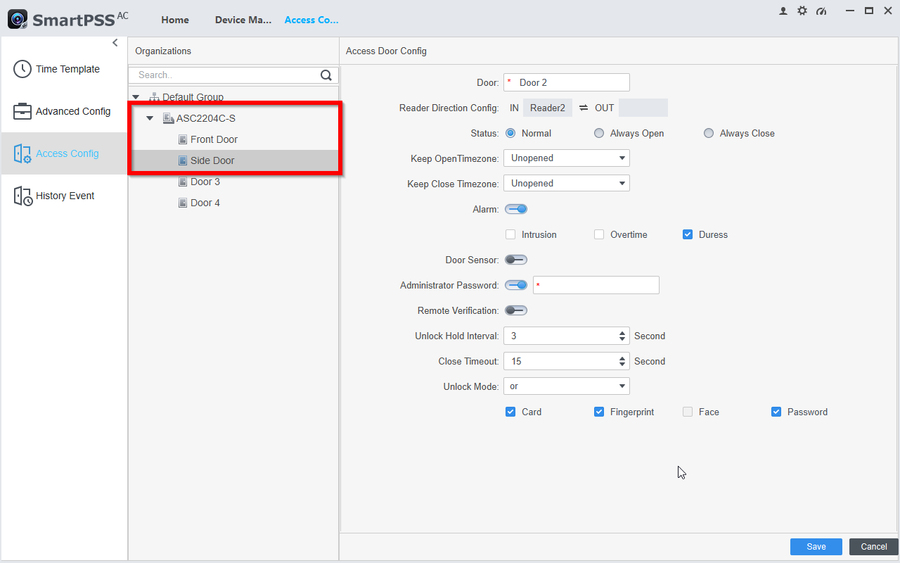

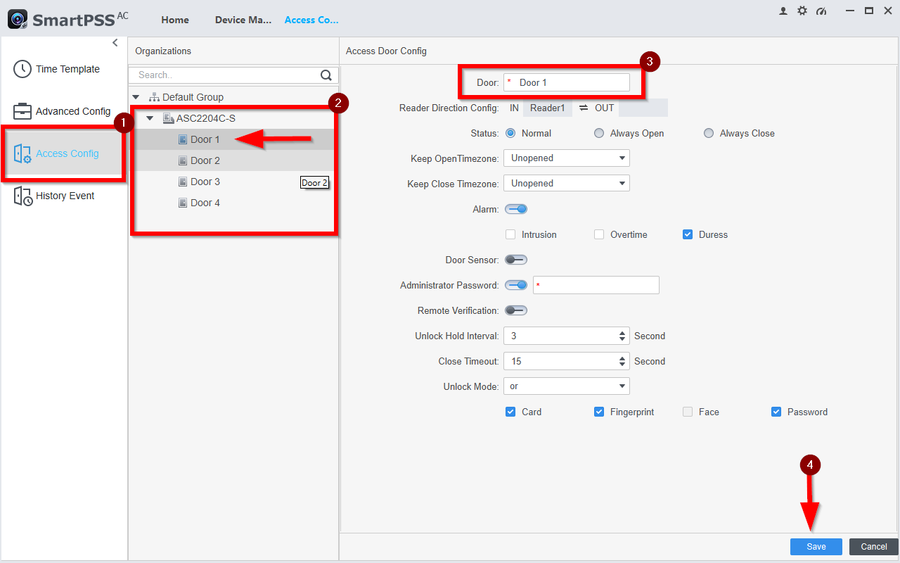

6. On the left tabs click on Access Config -> then click on the door you want to rename -> then under the Door entry type the new name
Then click on Save

How to Add Access Controller to SmartPSSAC-6.png

7. You should now see the Doors renamed

How to Add Access Controller to SmartPSSAC-7.png

To continue with the setup please follow these next instructions How to create Time Templates and Holiday Schedules on SmartPSS-AC

.

Access Control/How to Create Time Templates Holidays on SmartPSSAC

Description

This article will show how to setup and create Time templates and Holiday schedules.

Time Templates are your normal everyday time schedules. These can be linked to your Permission Groups or Door Configuration Timezones.
Holiday
Plans with override regular Time Templates on specific dates. These need to be linked with the Time Template creation.

Prerequisites

This article is a part of series of instructions. Please follow the Previous article before continuing with the configuration.

Step by Step Instructions

Time Template

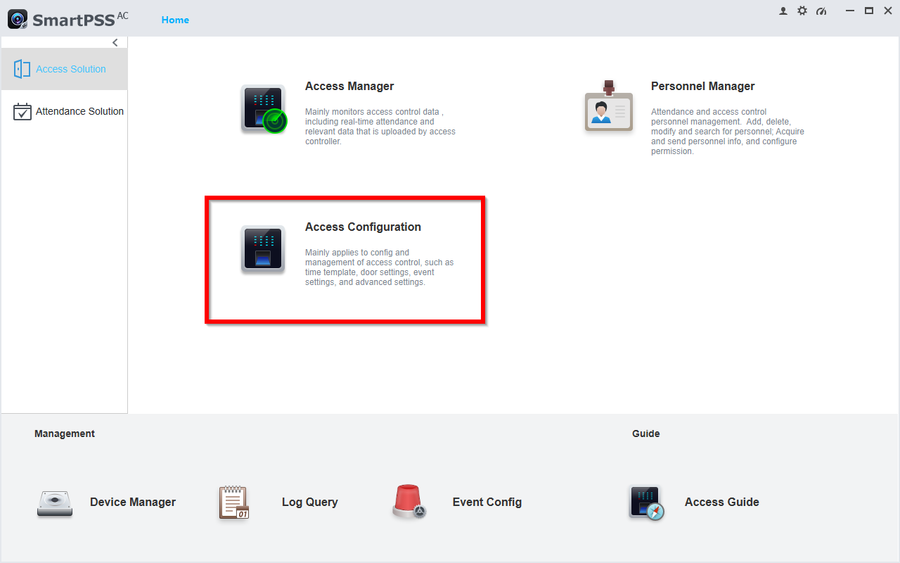

1. Go to Access Configuration

How to create Time Templates and Holiday Schedules on SmartPSS-AC-1.png

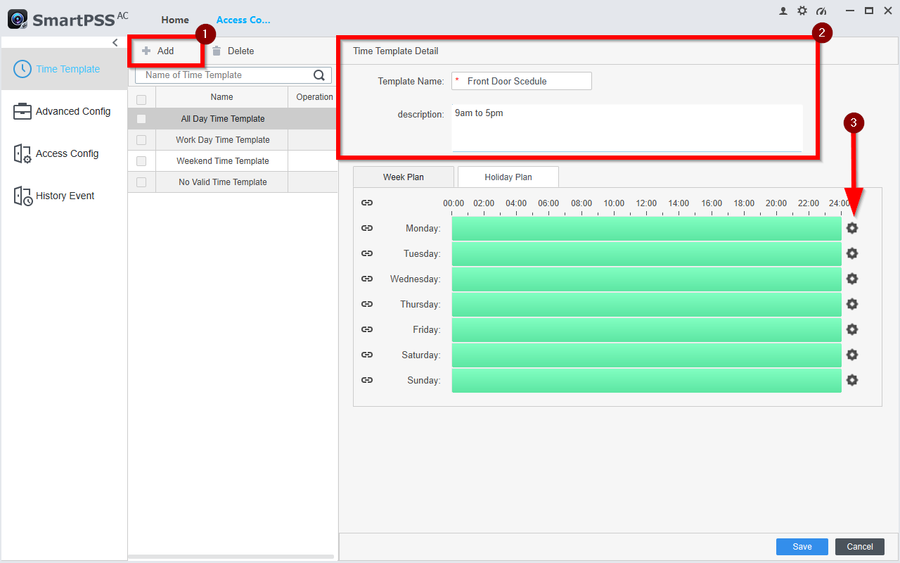

2. For these instructions we will create a 9am to 5pm Shift. Anything filled in with green is considered the Granted Access time. Greyed-out areas mean No Access

Click on Add
Give the Schedule a name and enter a description

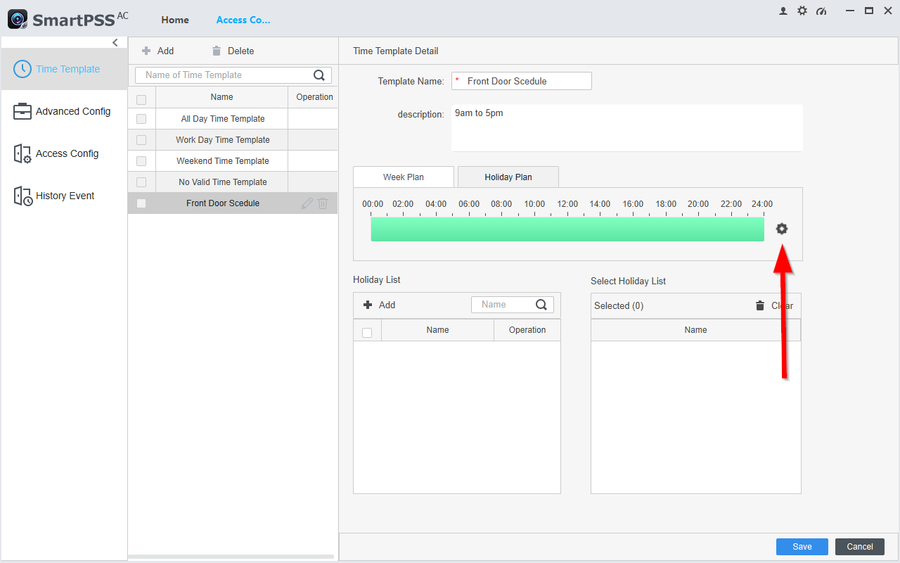

Click on the gear icon to edit the schedule

How to create Time Templates and Holiday Schedules on SmartPSS-AC-2.png

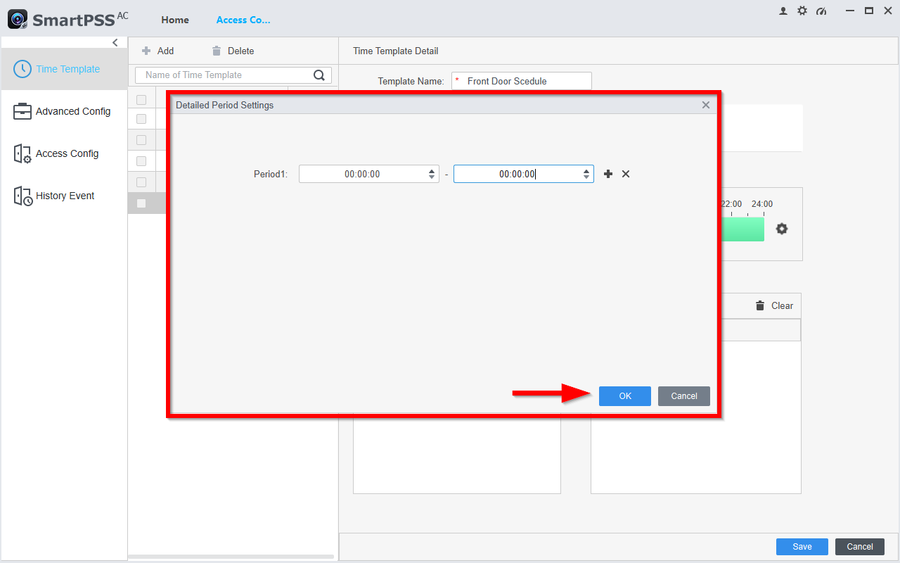

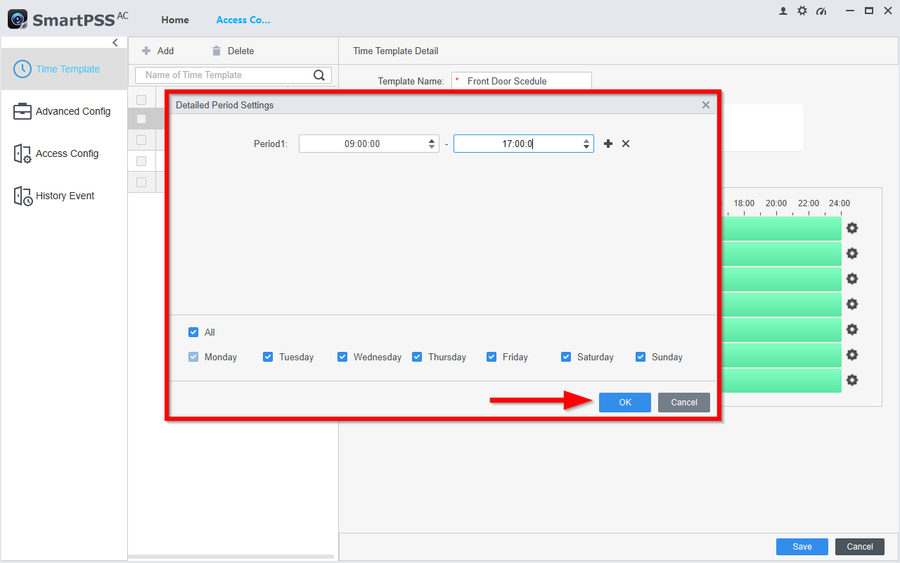

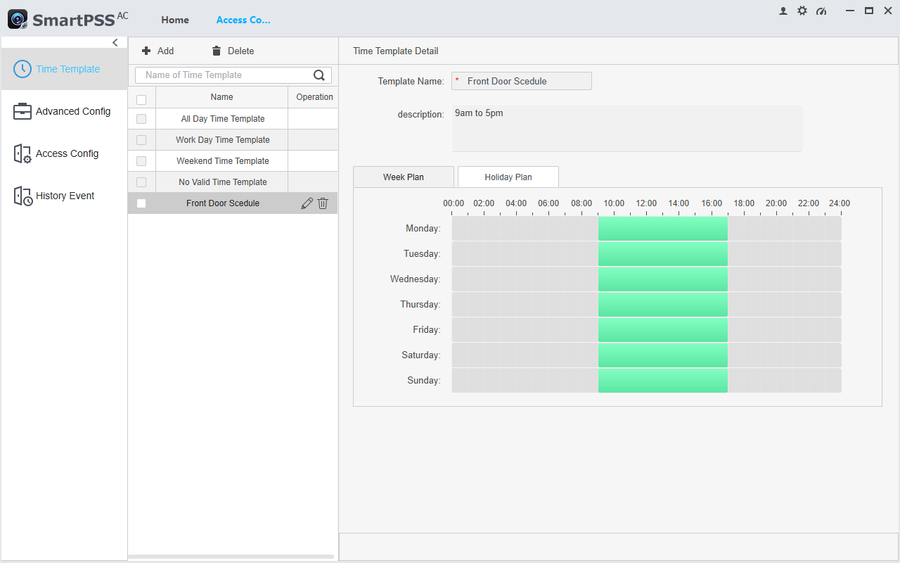

3. Now enter the time frame you want the doors to be active. You can also add multiple periods by clicking on +. You can also select the days you want the periods to take affect. For these instructions we will have a single period from 9am – 5pm ever single day of the week.

How to create Time Templates and Holiday Schedules on SmartPSS-AC-3.png

Holiday Plan

This section of the instructions will go over the Holiday Plan creation. Holidays will override the Week Plan we just created on specific days. In this example we will show a New Years Holiday plan with No Access during that date.

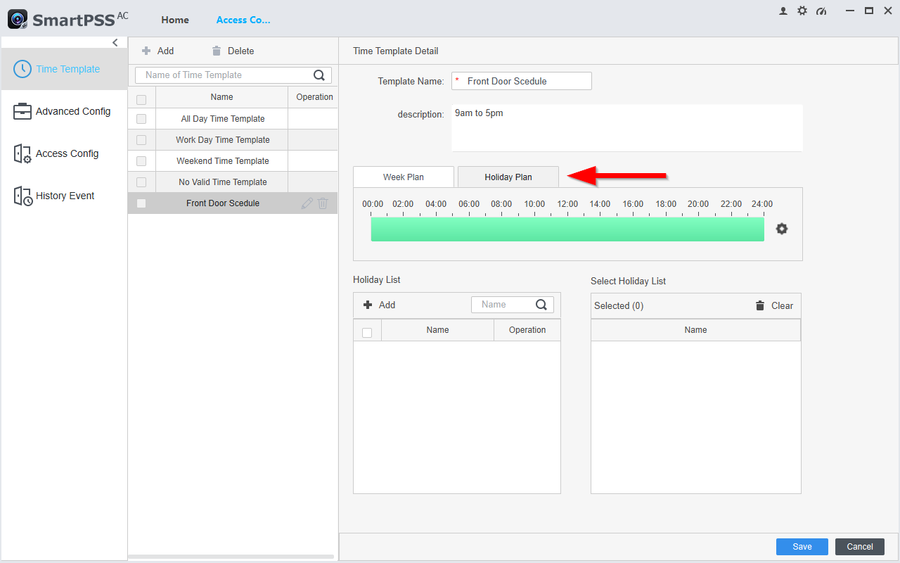

4. Go to Holiday Plan

How to create Time Templates and Holiday Schedules on SmartPSS-AC-4.png

5. Select the gear icon to modify the schedule

How to create Time Templates and Holiday Schedules on SmartPSS-AC-5.png

6. Edit the schedule you would like the Holiday plan to take. Then click on OK

How to create Time Templates and Holiday Schedules on SmartPSS-AC-6.png

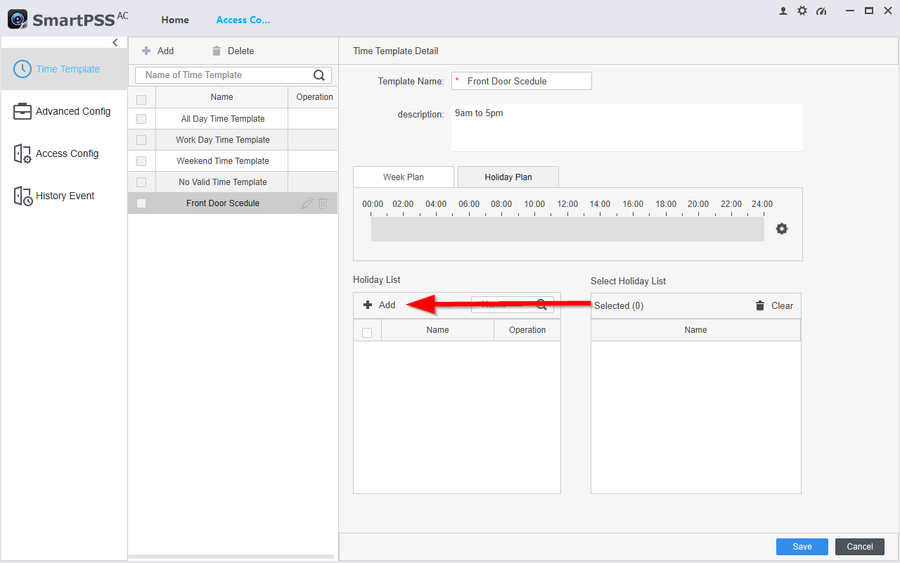

7. You can now see the schedule take affect on the timeline. Now go to Add under “Holiday List

How to create Time Templates and Holiday Schedules on SmartPSS-AC-7.png

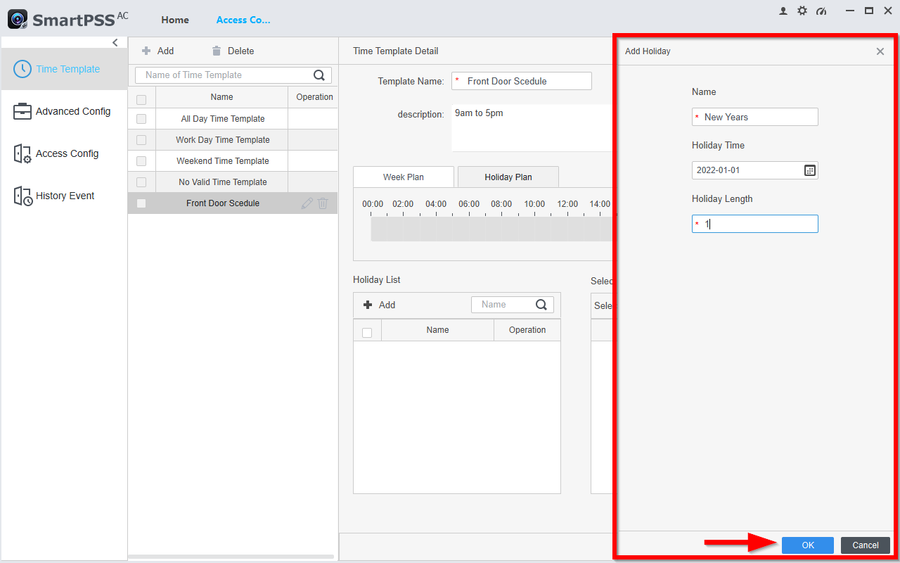

8. Here you will create the Holiday plan details

Give the Holiday Plan a name
-Set
the date you would like the Holiday Plan to take
-Set
the amount of days the Holiday will take affect

Then click on OK to continue

How to create Time Templates and Holiday Schedules on SmartPSS-AC-8.png

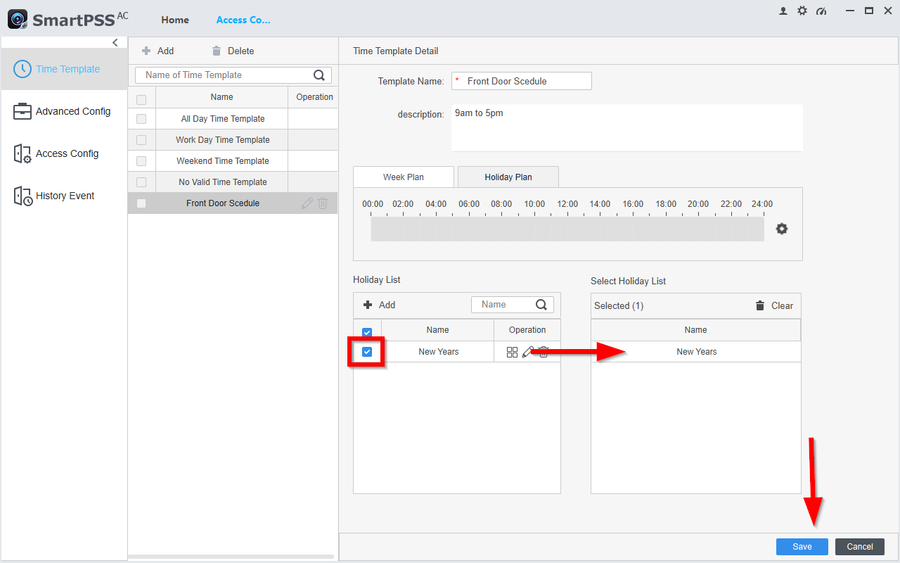

9. Make sure you check the Holiday we just created to link it to the Holiday Schedule. Then click on Save

How to create Time Templates and Holiday Schedules on SmartPSS-AC-9.png

10. The Holiday is now in effect

How to create Time Templates and Holiday Schedules on SmartPSS-AC-10.png

To continue with the setup please follow these next instructions How to add Users with Pins, Cards, and Fingerprints on SmartPSS-AC

Access Control/How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC

Description

This article will go over adding users with all three methods of authentication for doors on SmartPSS-AC.

 How to add a user: Adding users through thePersonnel Manager” tab will allow you to open doors via the three authentication methods (Pins, Cards, Fingerprints)
 How to assign PINs to Users: PINs can be assigned to each user to be able to open a door. PINs need to be at least a 6 digit number.
 How to assign Cards to Users: Cards can be assigned via Dahua Card Reader or using Dahua Card Enrollment Reader (ASM100)
 How to assign Fingerprints to Users: Fingerprints can be assigned to users via Dahua Fingerprints Reader or Dahua Fingerprint Enrollment Reader (ASM202)

Prerequisites

This article follows a series of instructions. If you have not followed our previous instruction please do so before continuing.

Step by Step Instructions

How to add a User

1. Go to Personnel Manager

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-1.png

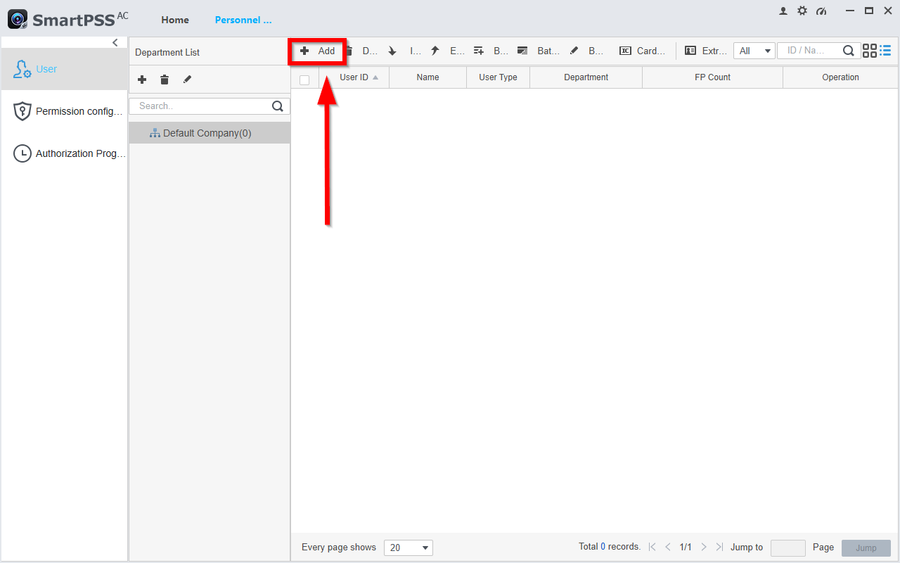

2. Click on Add

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-2.png

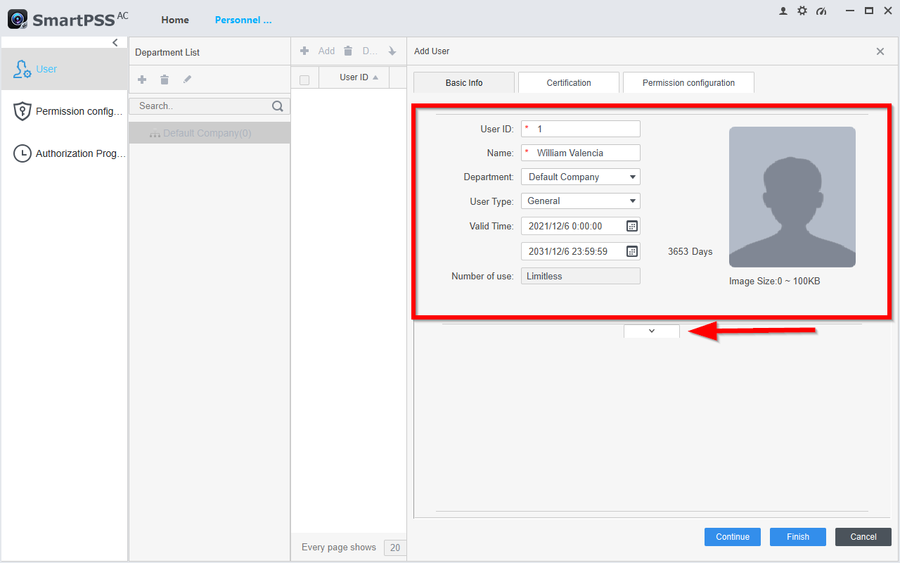

3. Assign the user a User ID and a Name. Click on the dropdown arrow to reveal more details.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-3.png

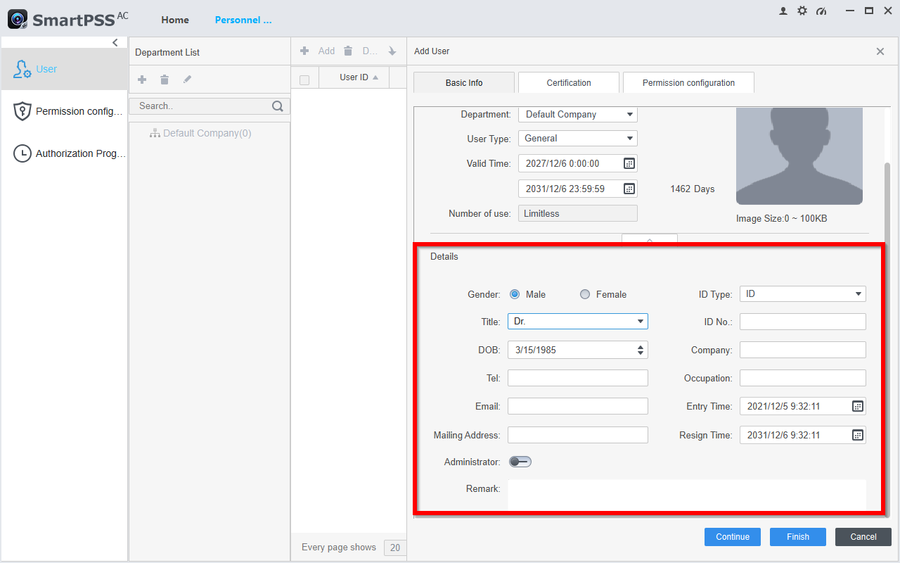

4. You can now further customize the user's entry. Click Finish to complete adding the user.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-4.png

How to assign PINs to Users

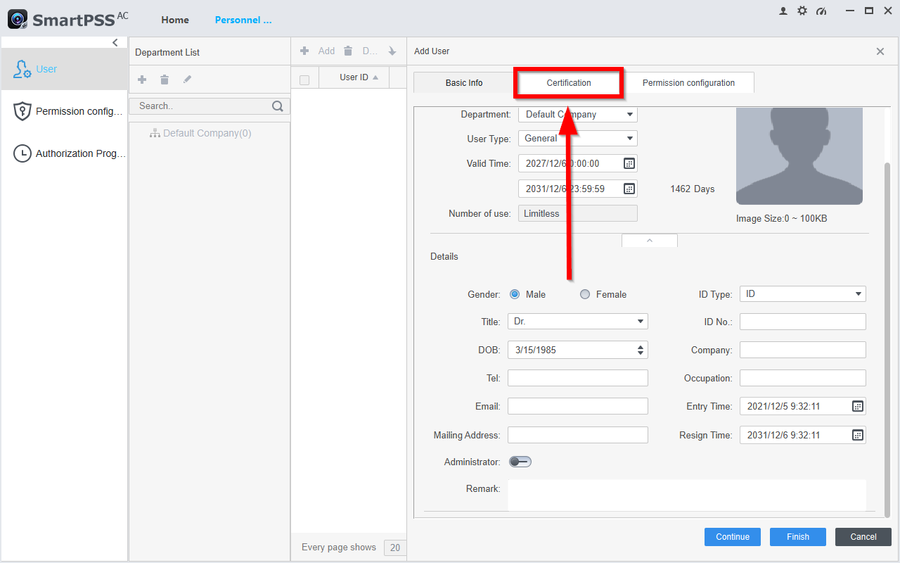

5. Go to Certification on the user.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-5.png

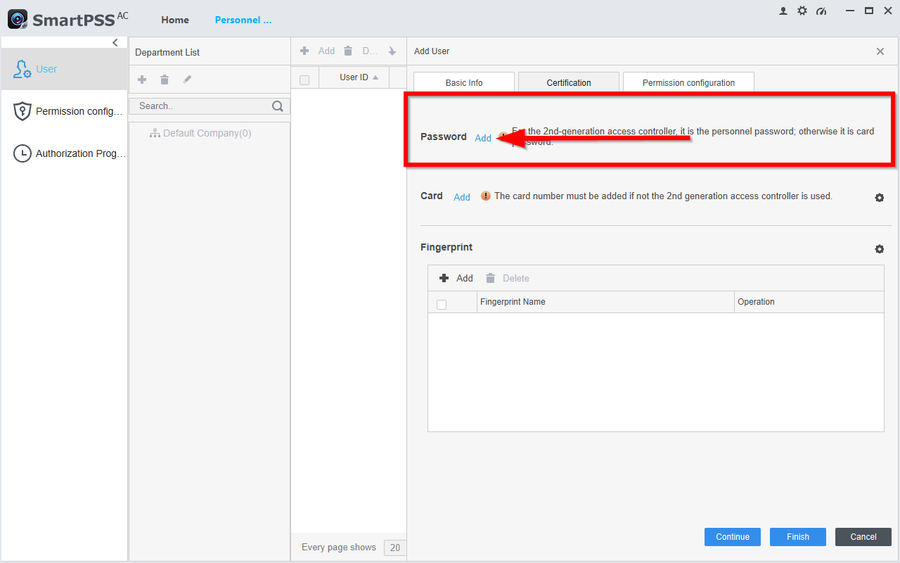

6. Click on Add to create a PIN

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-6.png

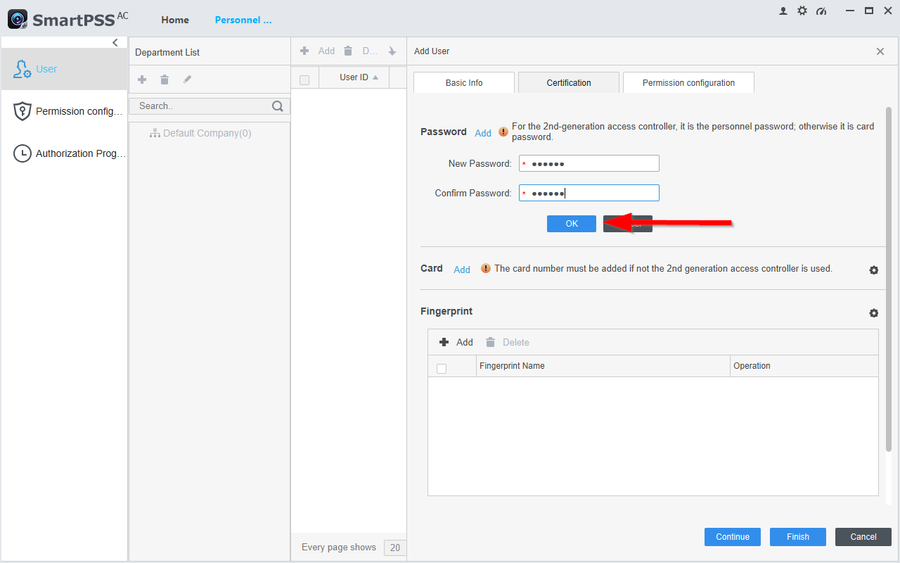

7. Enter at least a 6-digit password and confirm it. Then click on OK to save the entry. Then click on Finish to finalize the new PIN.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-7.png

Note: to enter the PIN you will need to enter the UserID#6-digit# (i.e. 1#123456#)

How to assign Cards to Users

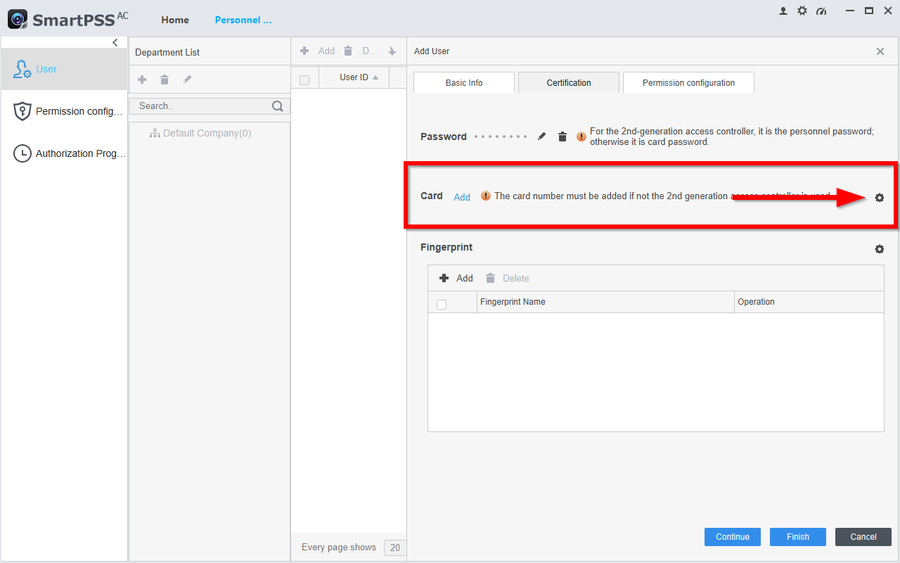

8. To add a card you first need to select the method. Click on the Gear Icon to select the method of adding the card.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-8.png

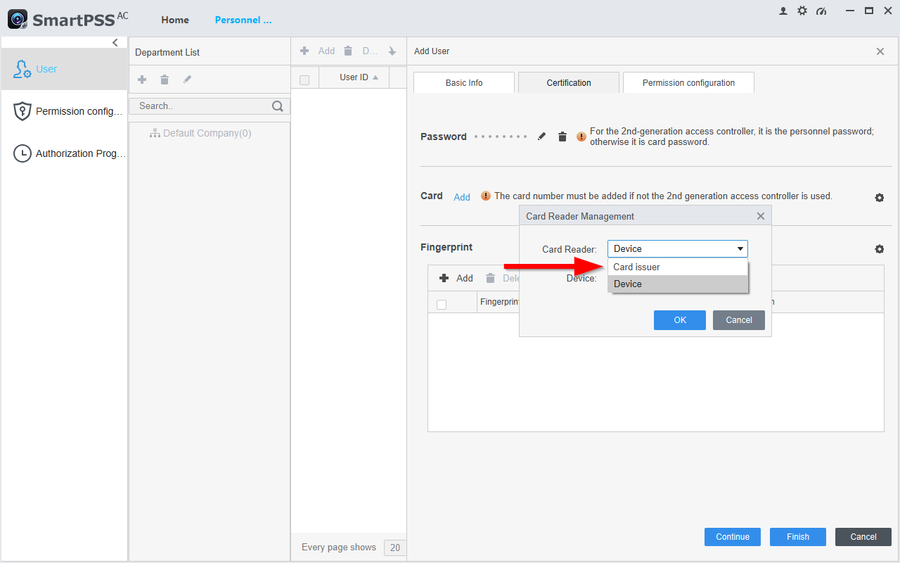

9. If you purchased the ASM100 then select Card Issuer

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-9.png

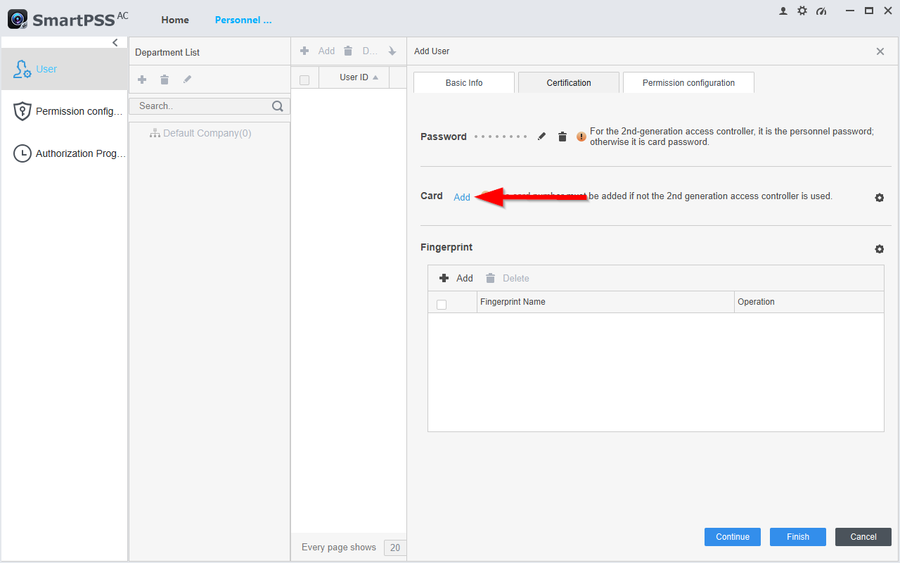

10. Then click on Add

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-10.png

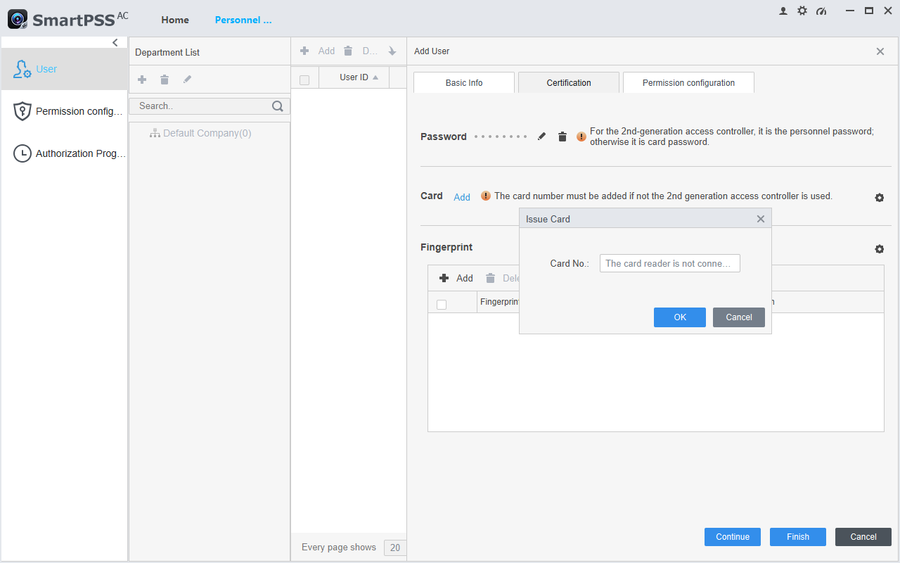

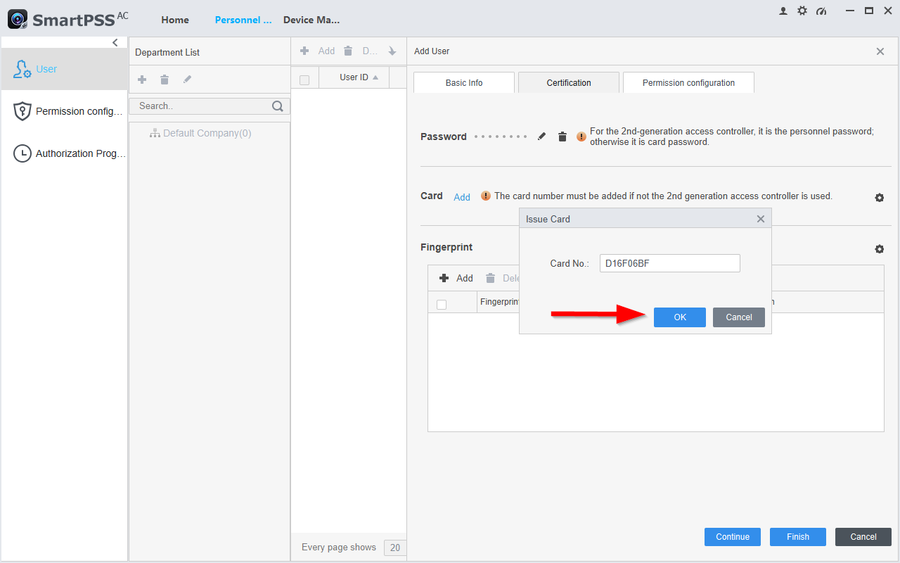

11. Scan the card on the ASM100 and the number will populate on the box entry. Click on OK to confirm.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-11.png

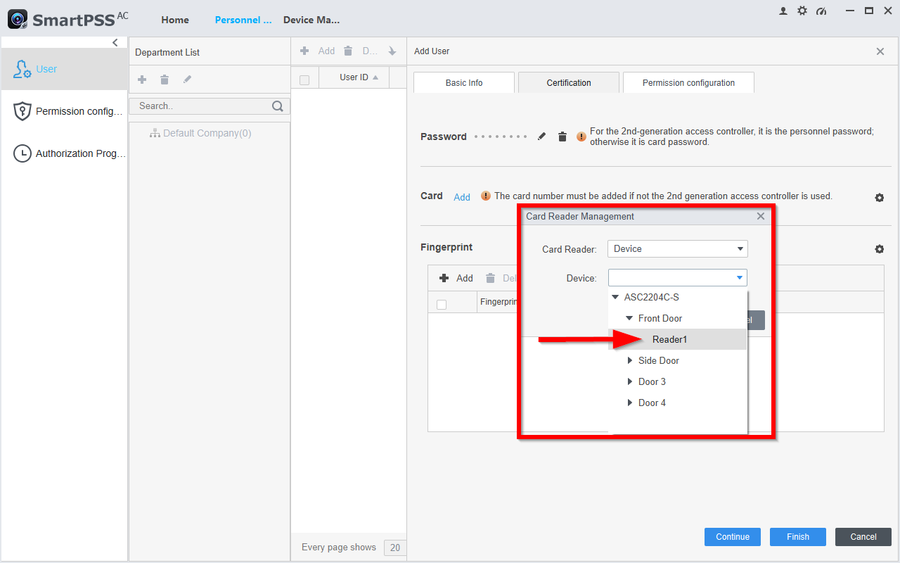

12. If you are using an existing Card Reader on the Access Controller then select the Door the reader is on. In this example I have the Card Reader on Door 1 which I renamed to Front Door.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-12.png

13. Scan the card and the number should populate on the box entry. Click on OK to confirm.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-13.png

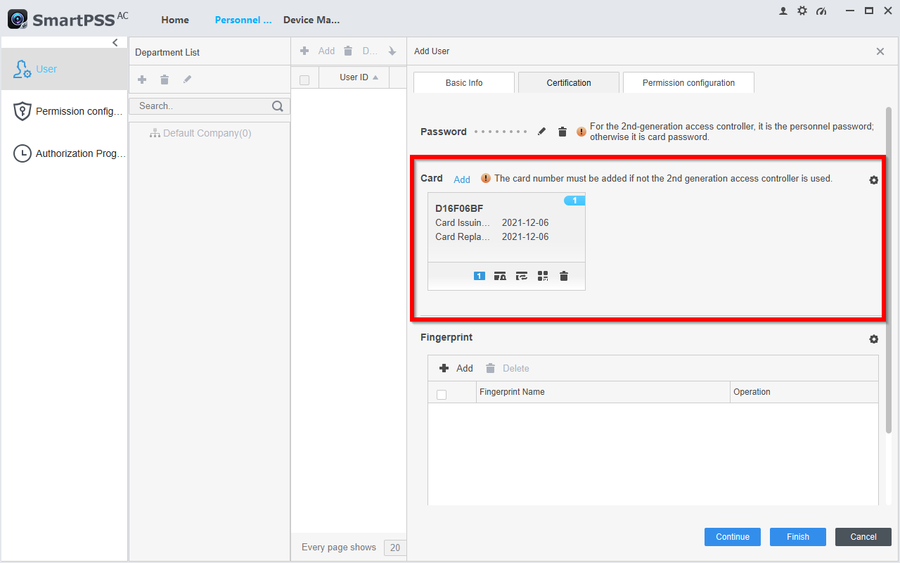

14. You will now see the Card entry if done correctly. Click on Finish to save any changes.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-14.png

How to assign Fingerprints to Users

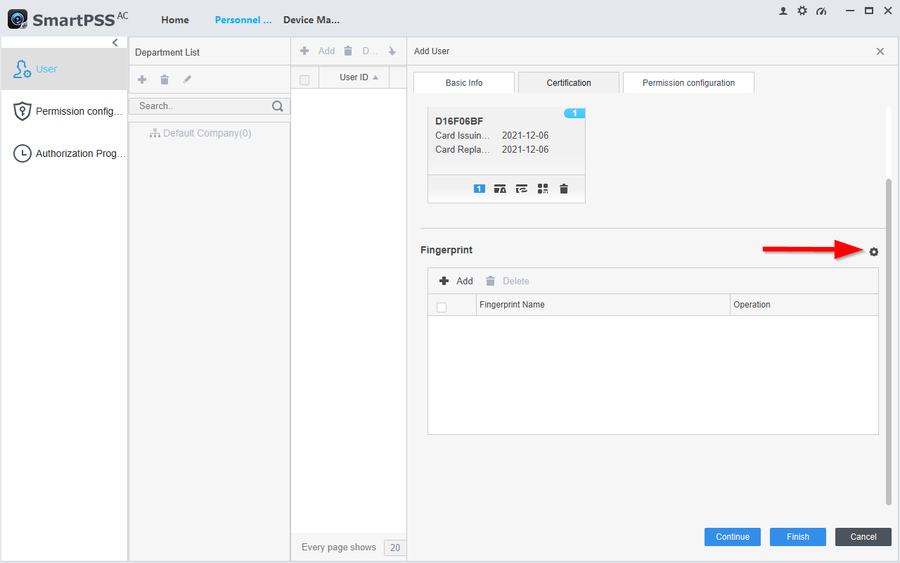

15. To add a Finger print you first need to select the method. Go to the gear Icon to select how you will be registering the fingerprint.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-15.png

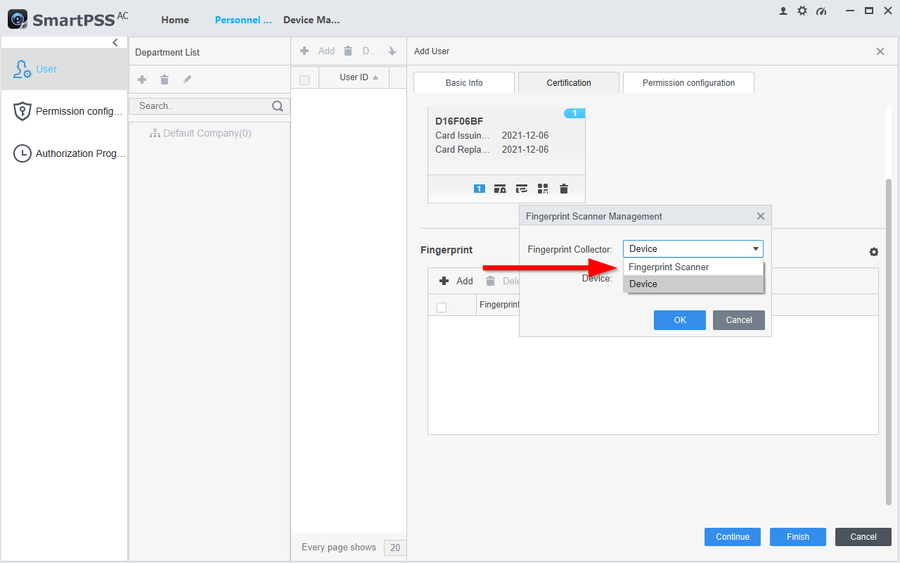

16. If you purchased our ASM202 select Fingerprint Scanner

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-16.png

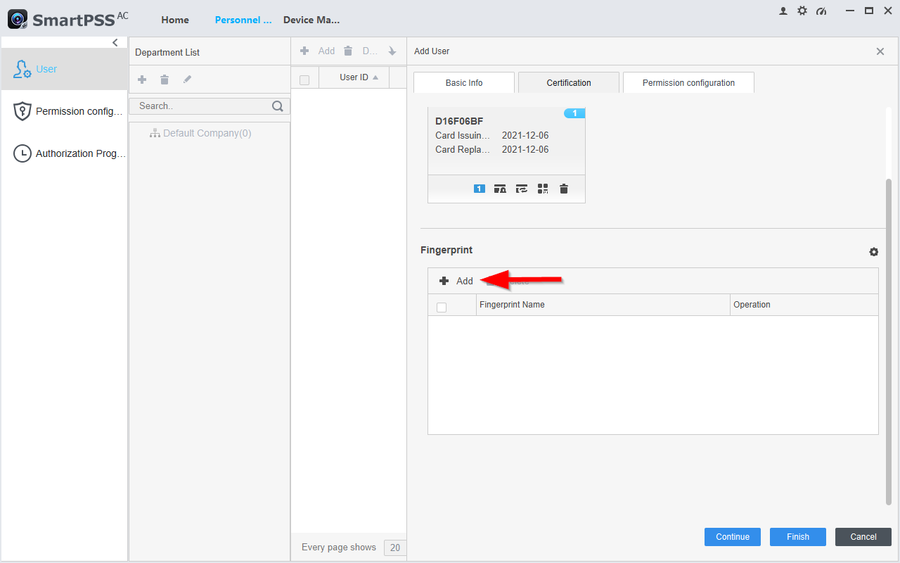

17. Then click on Add

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-17.png

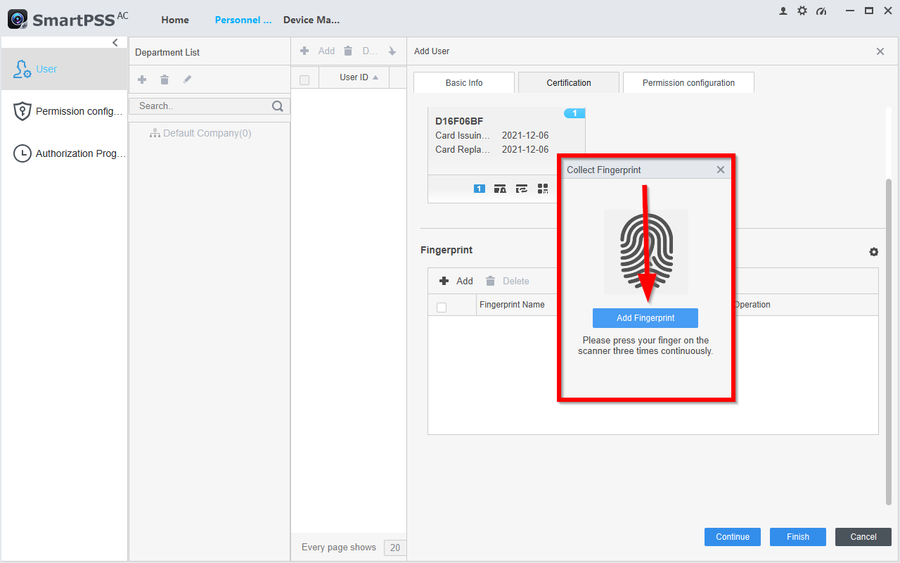

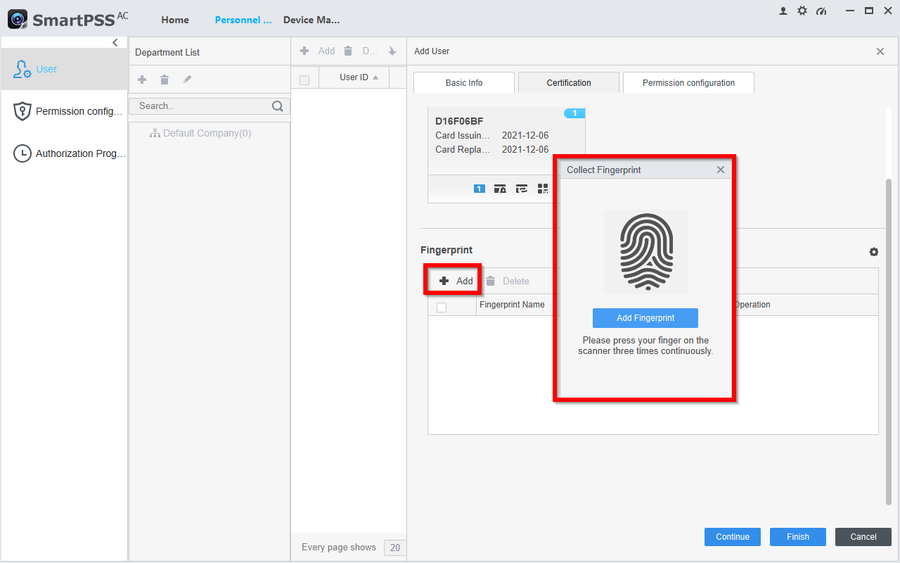

18. Select Add Fingerprint, then place your finger on the scanner. It will need to scan your finger a total of three times. Please wait for the beep after each scan.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-18.png

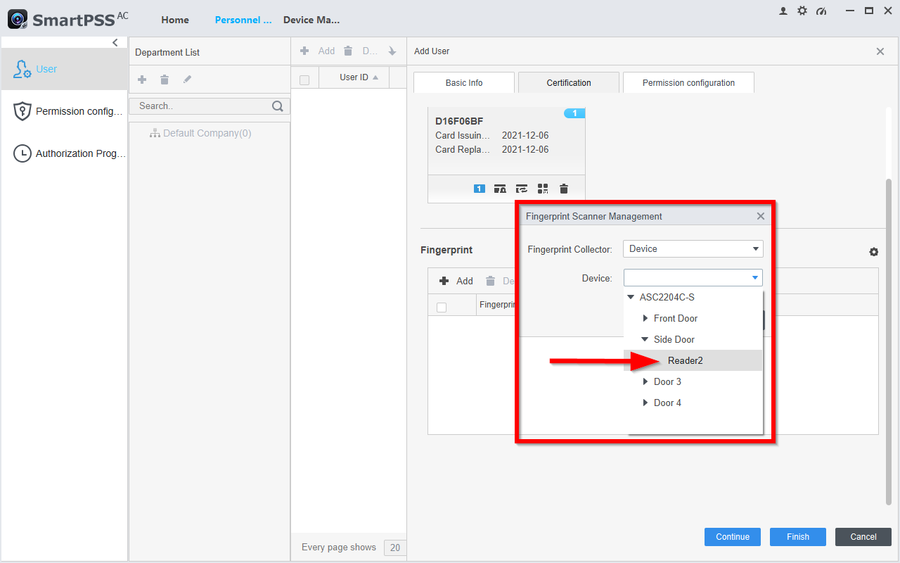

19. In this article we will be using a Fingerprint reader on door 2 named Side Door.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-19.png

20. Select Add Fingerprint, then place your finger on the scanner. It will need to scan your finger a total of three times. Please wait for the beep after each scan.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-20.png

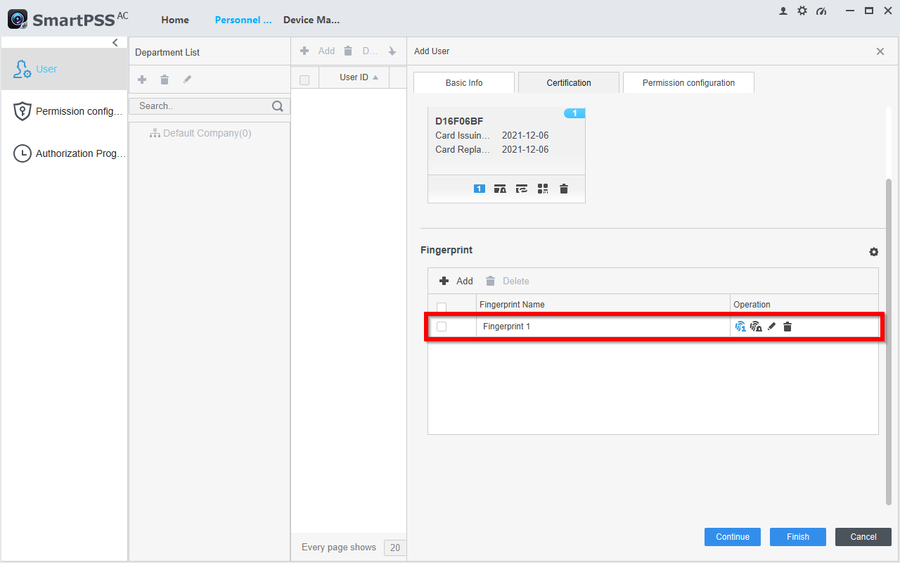

21. You will see the fingerprint entry if done successfully.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-21.png

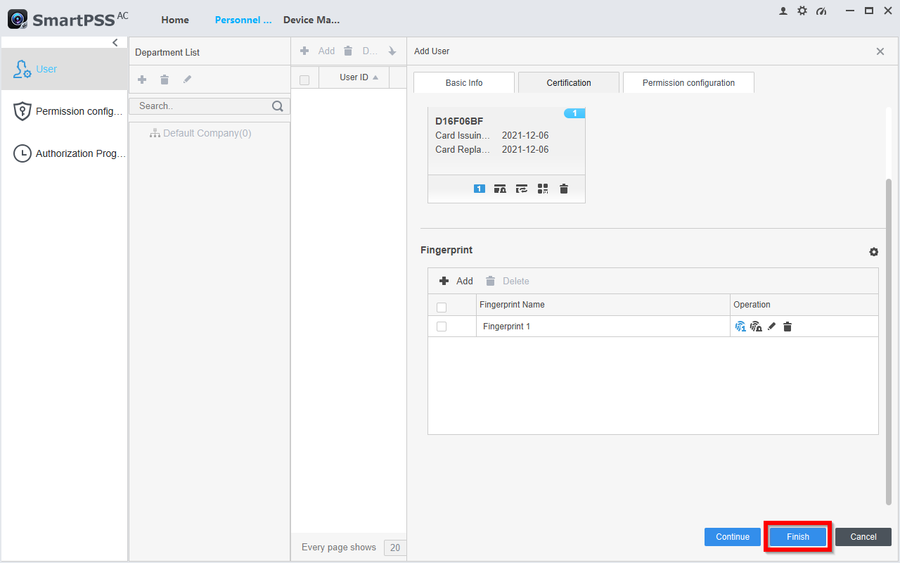

22. Click on Finish to save any changes.

How to Add Users With Pins Cards and Fingerprints to SMARTPSS AC-22.png

To continue with the setup please follow these next instructions How to Create a Permission Group on SmartPSS AC

How to Create a Permission Group on SmartPSS AC

Namespaces



Page actions



Description

This article will go over how to create a permission group to SmartPSS-AC.
Creating a Permission Group will allow you to select one or several doors then be able to link users and time templates for those doors.

You can create multiple Permission Groups to fulfill specific entry permissions.

Prerequisite

This article follows a series of instructions. If you have not followed our previous instruction please do so before continuing.

Step by Step Instructions

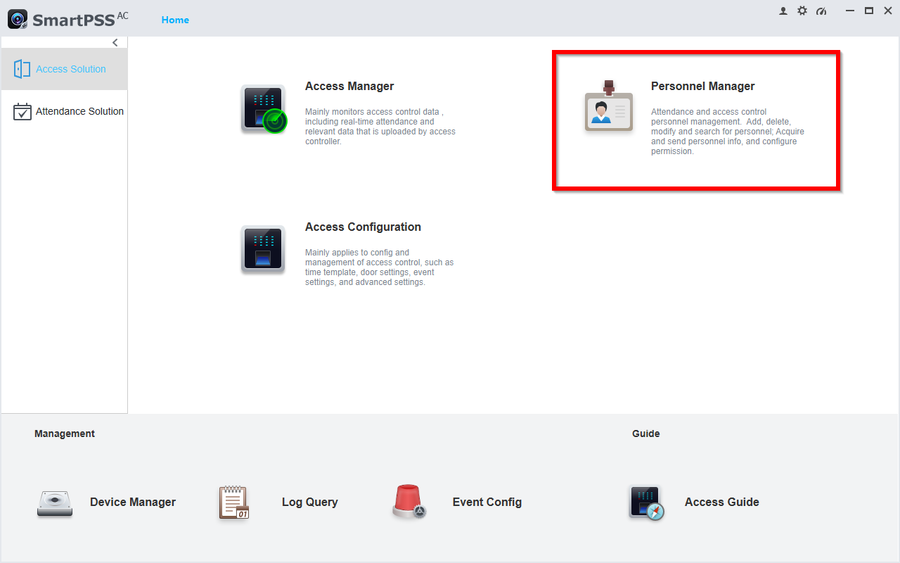

1. Open SmartPSS-AC and go to Personnel Manager

How to Create a Permission Group on SmartPSS-AC-1.png

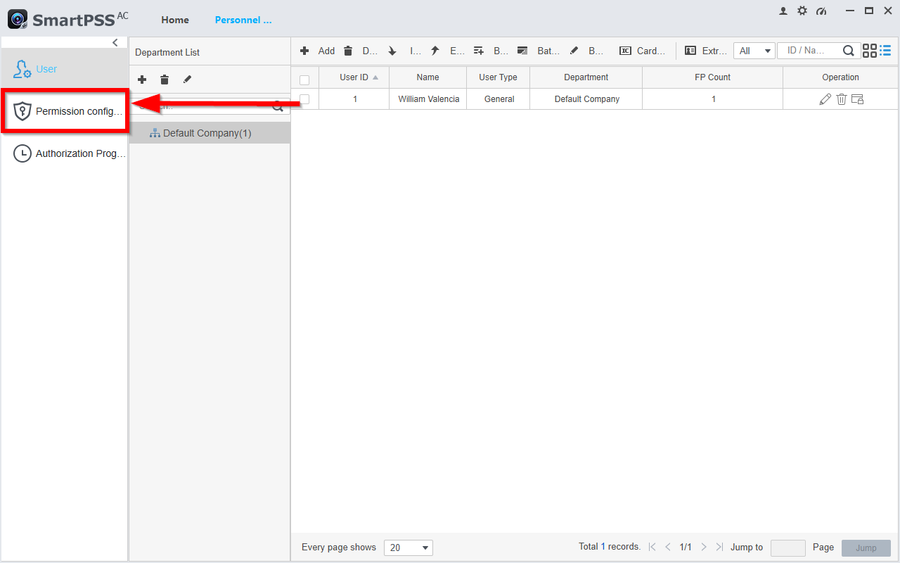

2. Click on the Permission Configuration tab on the left menus

How to Create a Permission Group on SmartPSS-AC-2.png

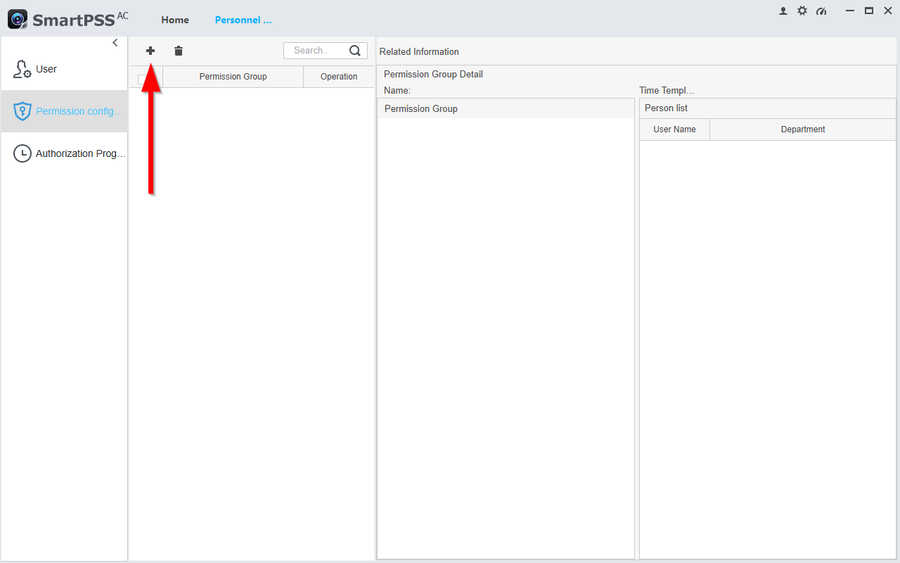

3. To start creating a Permission Group click on the + icon

How to Create a Permission Group on SmartPSS-AC-3.png

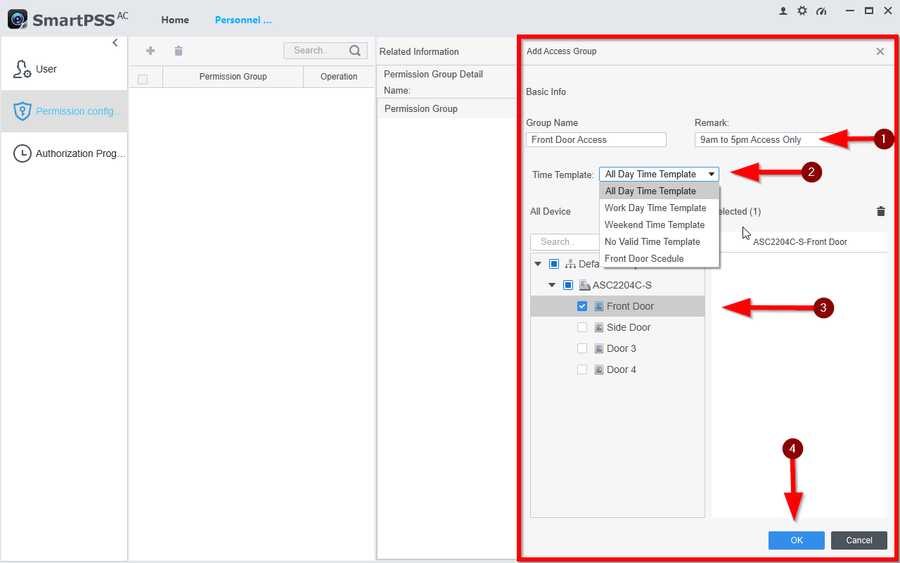

4. Follow these next following step

1. Give the door group a name and add a decryption or remark
2. Select the time template you created or select any of the pre-configured ones. In this we will be selecting the one we created “Front Door Schedule”

3. Select the Doors that will follow the time template

4. Click on
OK to save it.

How to Create a Permission Group on SmartPSS-AC-4.png

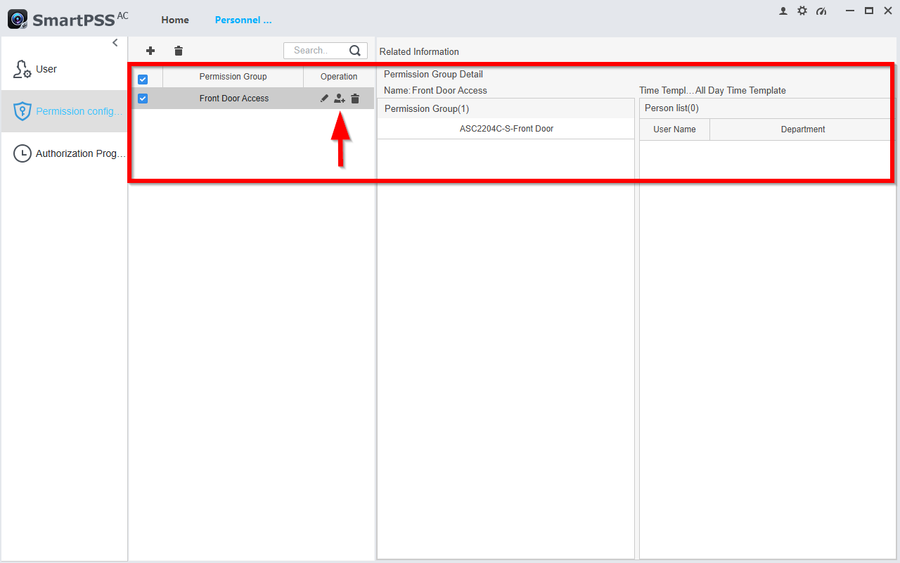

5. We now need to add users to the Permission Group to give them authorization to the linked Doors. Click on the “User” icon to start.

How to Create a Permission Group on SmartPSS-AC-5.png

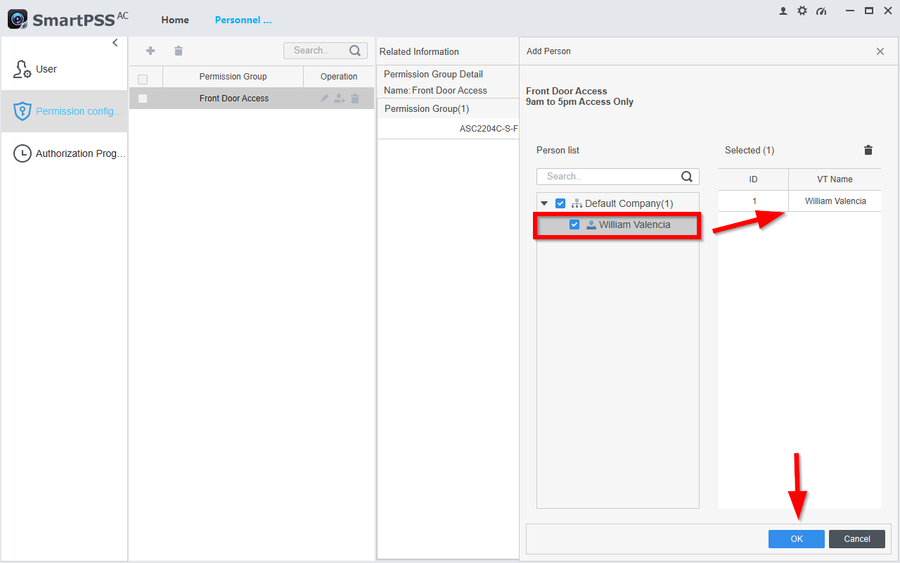

6. Select the users you want to give permission to the doors. Then click on OK to save the changes.

How to Create a Permission Group on SmartPSS-AC-6.png

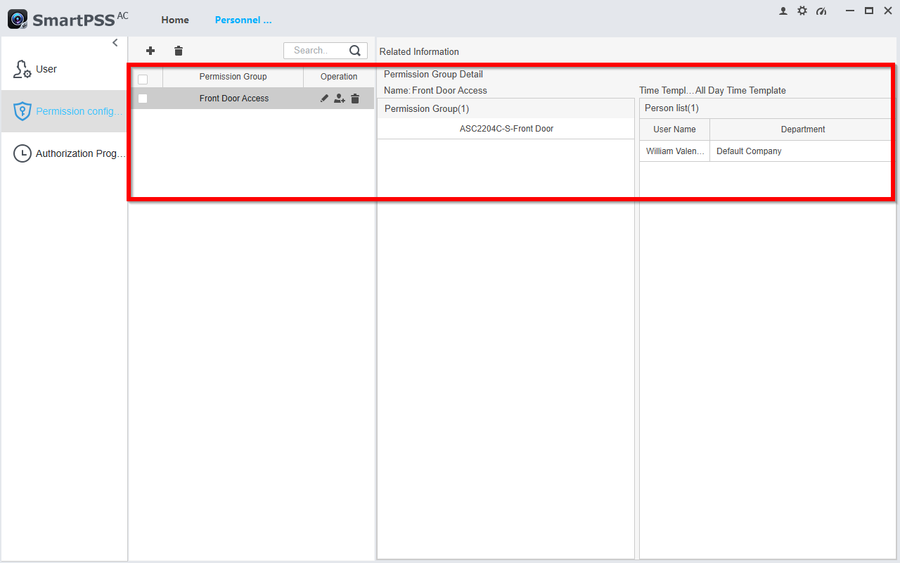

7. The Door group has now been created and you can verify to make sure the users and doors were saved correctly by checking on the permission group.

How to Create a Permission Group on SmartPSS-AC-7.png

.
