ACTi CMS 2.0 Installation Guide

ACTi CMS 2.0 Installation Access and control all servers and cameras, even if they are on the other side of the world.
Powerful tools to centrally manage NVRs and cameras in multiple locations – no matter if on different floors or different continents.

Connecting Vision

1| LOGIN & LOGOUT

ACTi CMS 2.0

Quick User Guide

BEFORE YOU START

Thank you for using ACTi CMS 2.0 server system. This guide will demonstrate the fundamentals of how to:

  • live view and operate relevant live view functions
  • Search recordings
  • Export video

You may download ACTi CMS 2.0 User's Manual for detailed operation instructions from product page: http://www.acti.com/CMS2

For technical support, please contact your system supplier or contact our technical support team via http://www.acti.com/chd.

ACTi CMS 2.0 Installation Guide

Read More :

  1. Ganz CORTROL VMS Client Setup Guide
  2. How to Configure Gmail for Device Notifications
  3. XMEYE VMS PC CLIENT Setup Guide

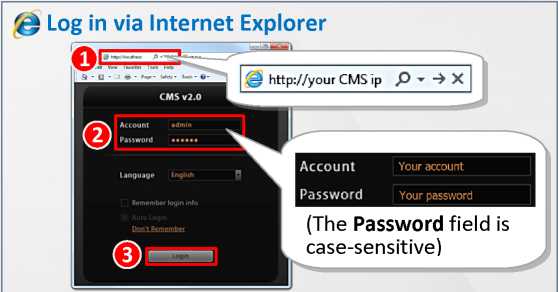

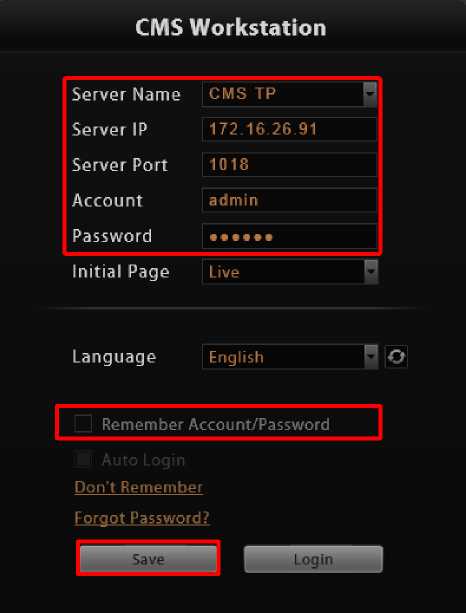

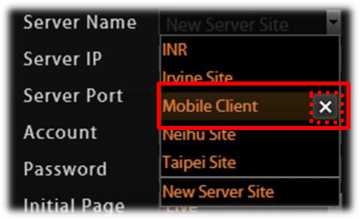

Log in via CMS2 Workstation

(The Password field is case-sensitive)

İ2İ OVERVIEW

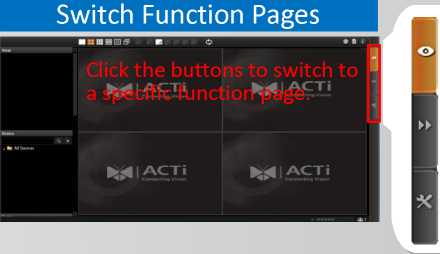

Click the buttons on the right to switch between two main screens:

Live View

  • See live view
  • Control a PTZ camera
  • Receive event alerts
  • Record manually or take a snapshot

Playback

  • Search / Play back recordings
  • Export snapshots or video

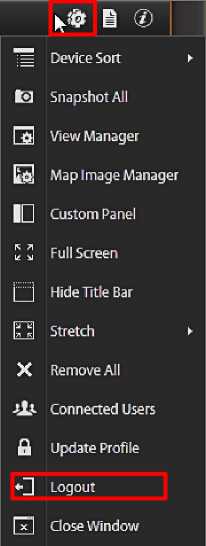

Log out from CMS On top of the screen,

click Options ^

Logout

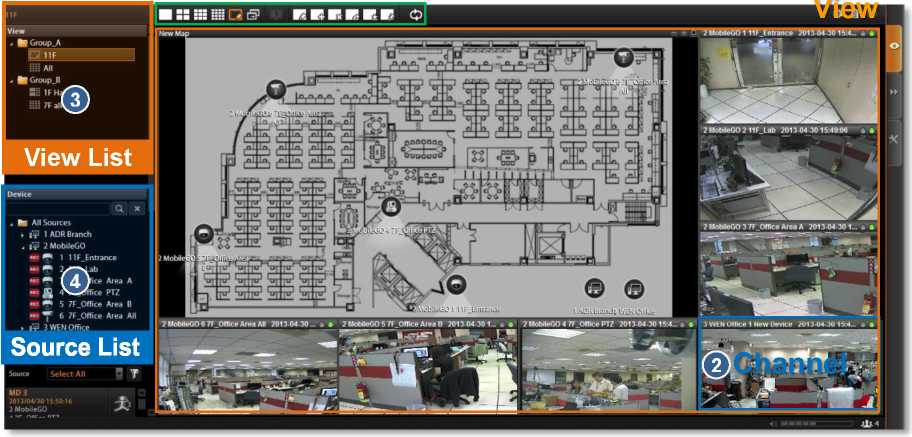

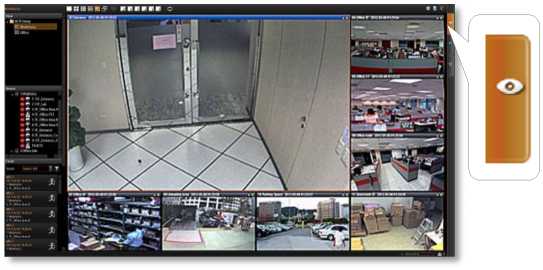

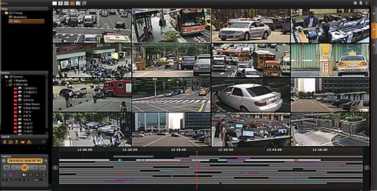

3İ LIVE VIEW

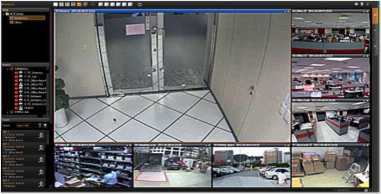

You will enter the default live view layout after logging

in.

•Apply a preset view:

Left-click on a view

□2

‘Channel

Event

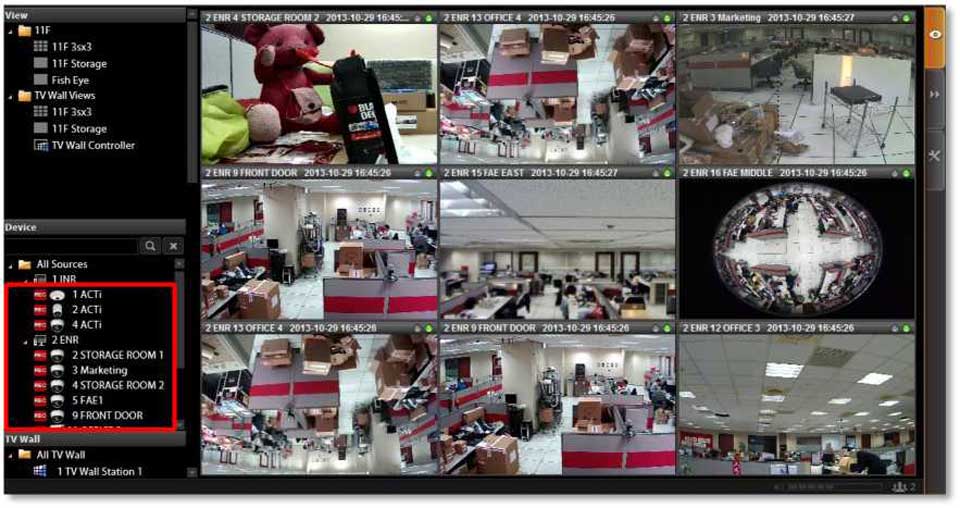

•Watch all cameras ■ of an NVR site :

Click on the NVR

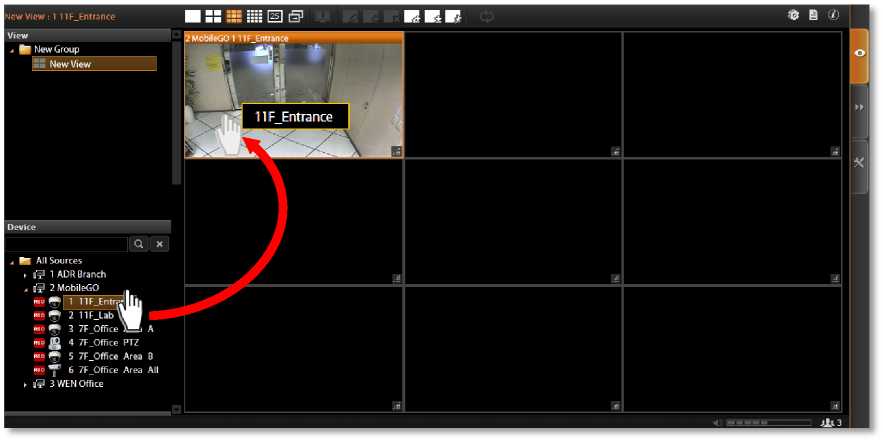

Watch a camera: Drag it into layout

Q

|| All Sources

I j îğj 1 MobileGo |

1 11 F_Entrance B© 2 11F_Lab B © 3 7F_Office Area A rec IS 4 7F Office PTZ

5 7F Office Area B =T 6 7F Office Area All B© 7 7F Entrance e®[8 7F_Entrance_Coi rec Q 11F Entrance OiJ

Device

View

Watch an instant event playback: Select the desired NVR source, and double-click on the event.

word image 840 2

word image 840 3 word image 840 4 word image 840 5 word image 840 6

word image 840 7 word image 840 8 word image 840 9 word image 840 10

word image 840 13

word image 840 14

Connecting Vision

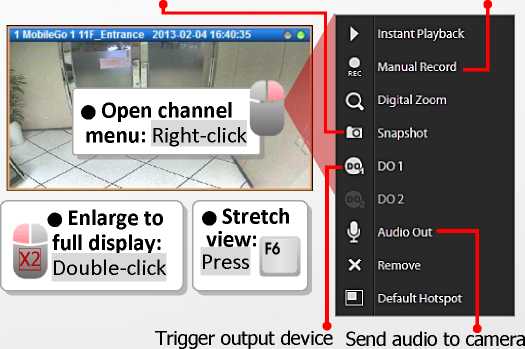

4 SINGLE CHANNEL OPTIONS

5 PTZ OPERATION

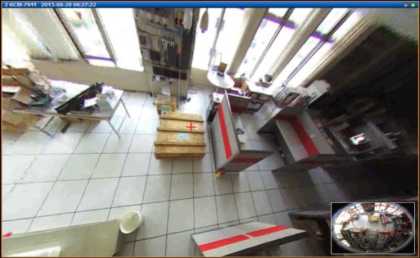

Operate digital PTZ function

Use the mouse to do digital PTZ operation on a selected

On Live View screen, select a single channel on layout.

Take a snapshot to client PC Start/Stop manual recording

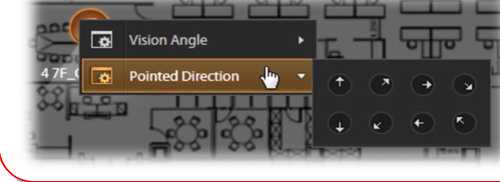

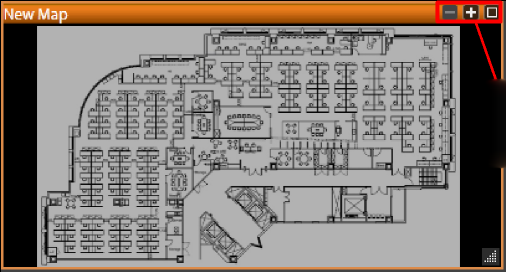

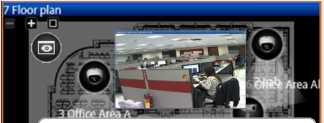

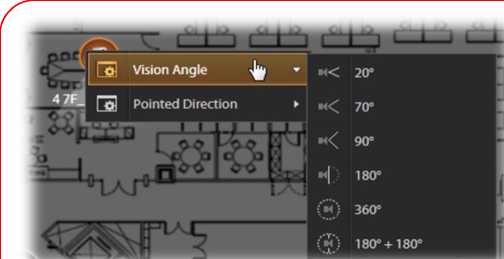

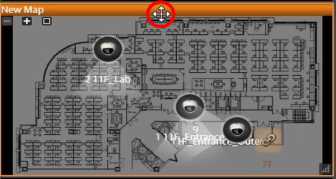

Show live view windows on a map

• Show single camera live view: Double-click on the camera icon

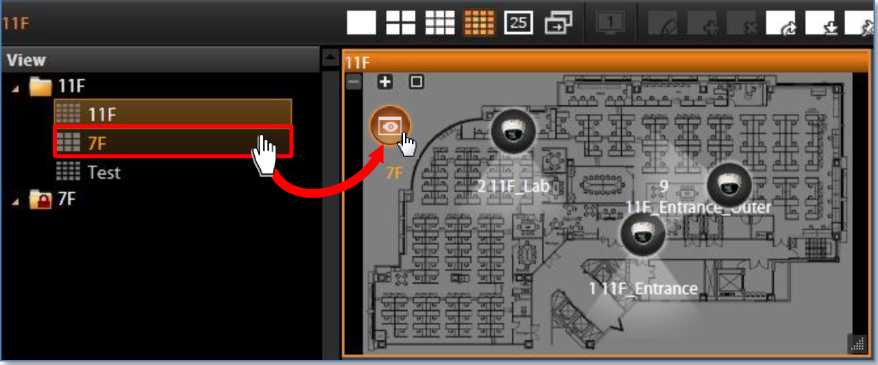

Link to another map: Click

□2

• Show all camera live view:

Right-click to open channel menu^ “Show All Live View'

O Draw a zoom area:

Hold left button and draw.

& Navigate:

Hold left-button and move the red frame.

0 Cancel digital PTZ:

Right-click in PiP window.

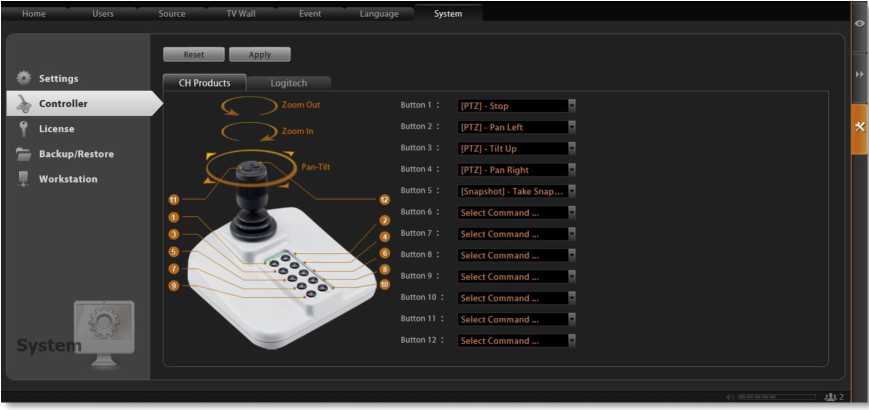

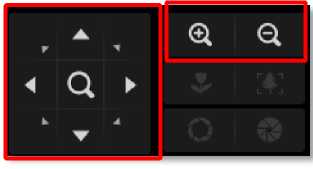

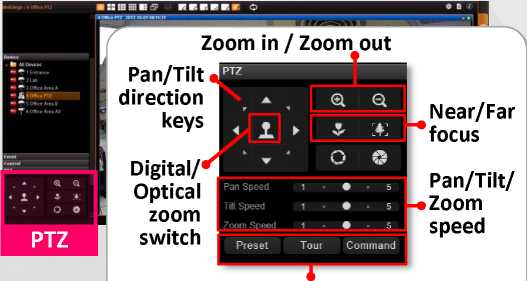

Operate optical PTZ function

Operate a PTZ camera with on-screen controls/joystick.

Preset/Tour /Command menu

word image 840 16

word image 840 17

word image 840 18

word image 840 19

7İ EXPORT VIDEO

Msearch PLAYBACK

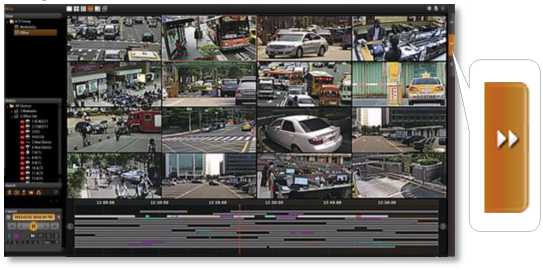

  1. Enter Playback screen, select a View or drag a camera to Display area.
  2. İDrag the Time Bar to find specific scene, and use the controls on Control panel to play and search.

•Apply a preset view

View

Device

a

camera: Drag it into layout

•Watch all I cameras of an

NVR site :Click on

the NVR

Time Bai

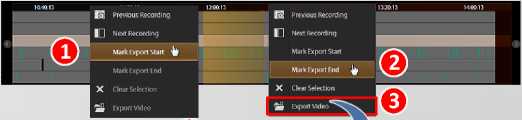

  1. Enter Playback screen, drag the Time Bar to video start point, right-click and select “Mark Export Start” on quick menu.
  2. Drag to video end point, right-click and select “Mark Export End” on quick menu.
  3. Right-click and select “Export Video”.

Control

Rewind /Pause /Play Go to specific time

Previous •­Display*, event

Go to current time

Next Search Export video

• *

Play speed Time bar scale

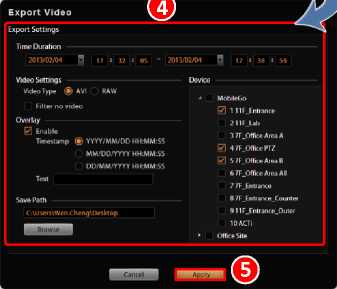

4. Set the export settings, and then click “Apply”.

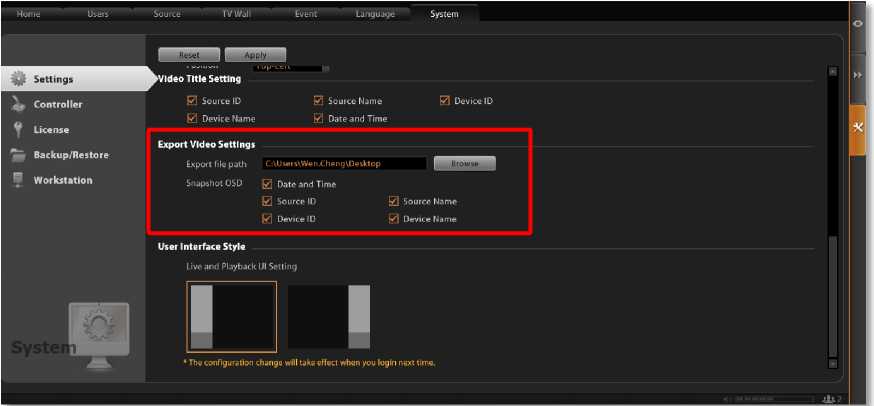

NOTE: The exported video and snapshots are saved to your designated file location, the default location is Windows desktop.

word image 840 20

word image 840 21

word image 840 25

word image 840 26

INSTALL THE SERVER

Step 1

word image 840 1 1

ACCESS VIA BROWSER

Step 2

ACTi CMS 2.0

Quick Installation Guide

BEFORE YOU START

Thank you for using ACTi CMS 2.0 product. This guide will demonstrate the fundamentals of how to ACTi CMS 2.0 system. For detailed instructions, please refer to ACTi CMS 2.0 System Administrator's Manual from http://www.acti.com/downloadcenter

Pre-requisites before installation:

  • Ensure that your CMS server meets the minimum system requirements.
  • Uninstall other ACTi NVR or previous CMS server product on the CMS server computer, and manually delete ACTi Corporation program folder.
  • Disable UAC function in Windows.
  • Make sure your NVR servers have been upgraded to the latest version.

Customer Help Desk: http://www.acti.com/CHD US/Canada Toll-free Helpline: 1-866-410-2284 (ACTi)

ACTi CMS Server v2A01 – InstallShield Wizard

ACTi

Connecting Vision

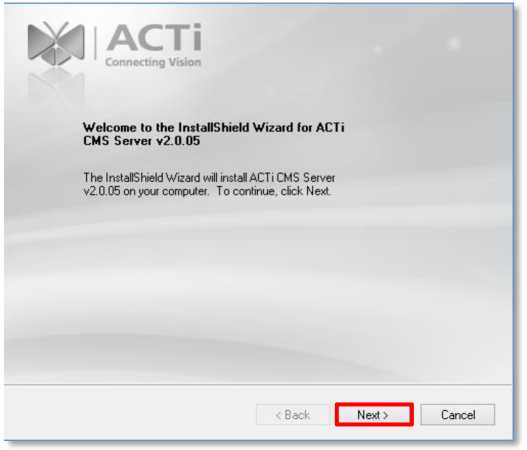

Execute install shield

ACTi_CMS_Server_ v2.0.10.exe.

Welcome to the InstallShield Wizard for ACTi CMS Server v2.0.01

The InstalSfeeM Wizard veil nstal ACTi CMS Server v2.0.01 on you computer. To continue, click Next

Follow onscreen instructions to complete the installation.
Back | Next > |_. Cancel |

Wait for a few seconds until the server is ready.

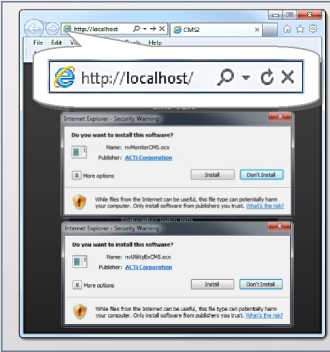

Connect to http://localhost/ via

Internet Explorer.

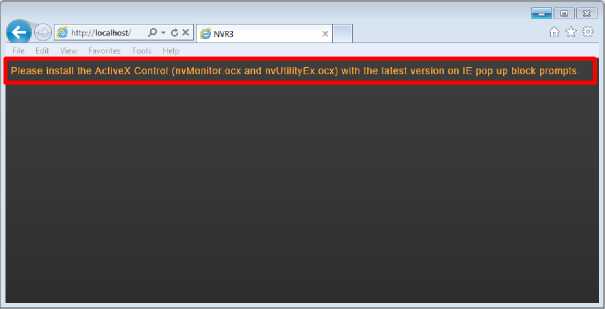

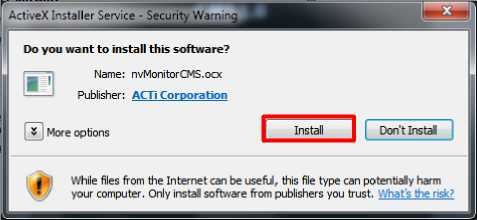

Install two ACTi ActiveX control components.

Step 3

LOGIN

CMS v2.0

Account admin

Password ••••••

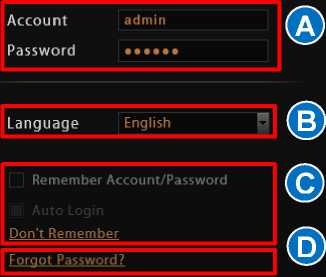

On Login page, enter: •Account: admin Password: 123456

Click “Login”.

Live View

Playback

Setup

Language English

Remember login info

Don't Remember

Note

If you meet any of the following problems, please try the methods below to fix it or contact our technical support team:

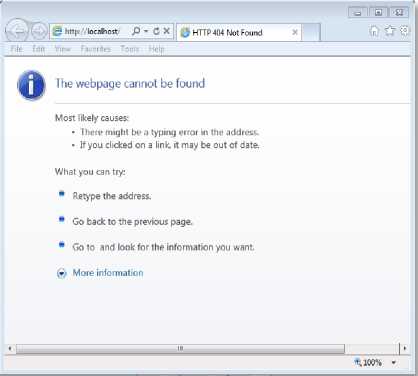

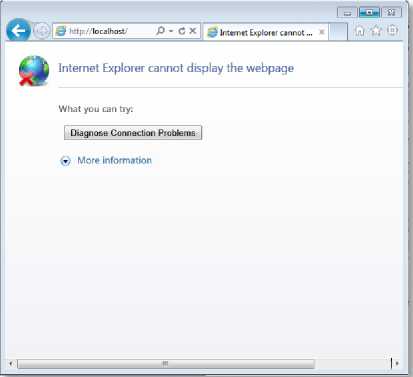

  1. Cannot access Login page
  2. Server is not ready, please wait for a while and connect again.
  3. Your CMS server port is being used by another application, please close that application. For instance, if you use default port 80, Skype might have taken it.
  4. Cannot install the ActiveX controls
  5. Use Internet Explorer browser 32-bit version.
  6. The UAC function in Windows Vista or Windows 7 restricts the installation of add-ons. Please turn off the UAC function.

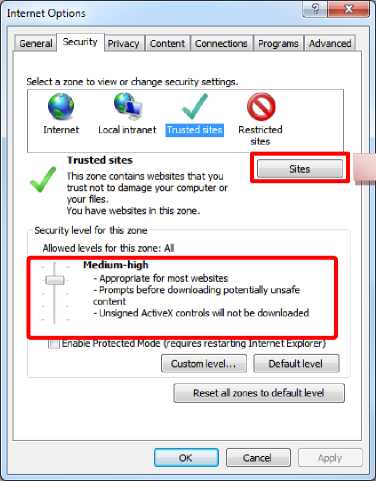

  7. Internet Explorer security settings restrict the installation of add-on components. Please turn off the browser's ActiveX Filtering function, add this CMS server site to Trusted sites list, and set the security level to Medium-high or lower.

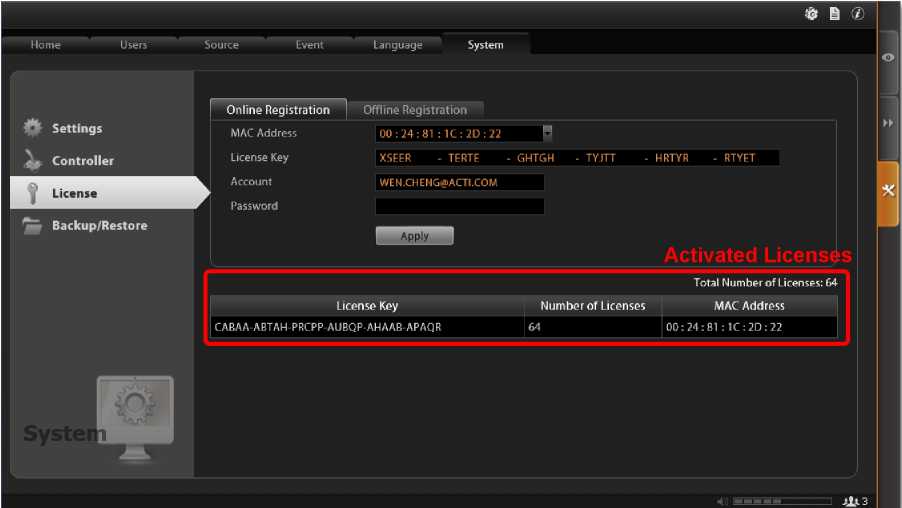

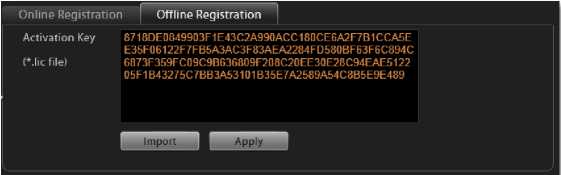

REGISTER THE LICENSE

Step 4

1′ Make sure you have the information on hand:

License key and ACTi member account/password

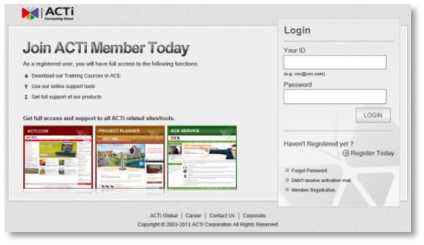

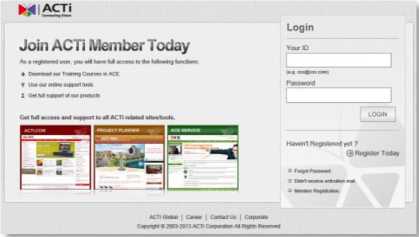

(ACTi Member Center – http://member.acti.com/)

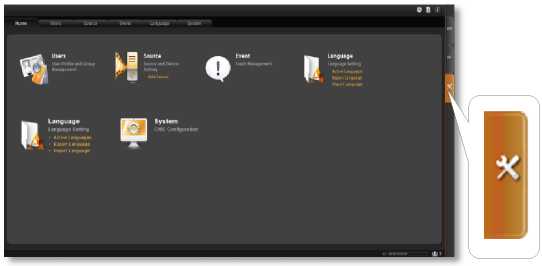

■Go to Setup page ^ System tab ^ License

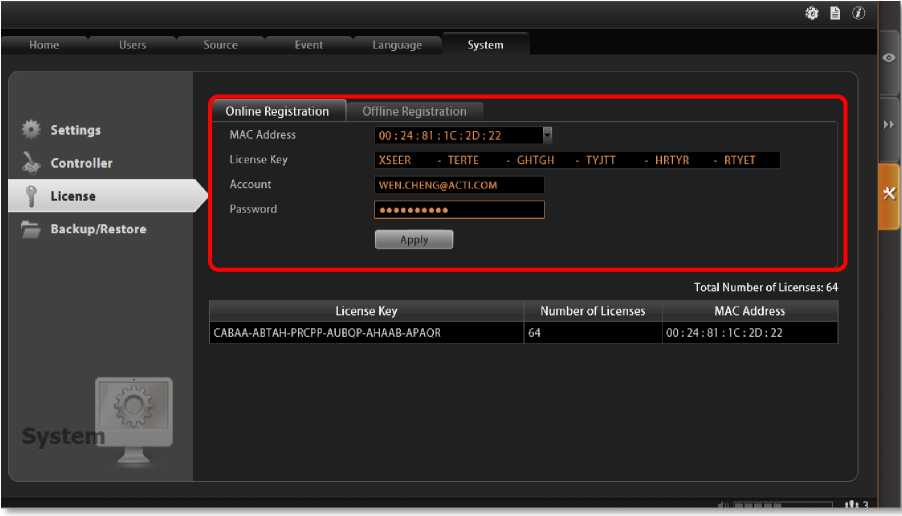

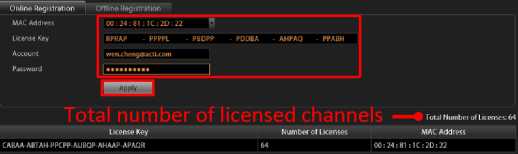

3′ On Online Registration tab, fill in the required fields, and then click “Apply”. Make sure the total of licensed channels is enough for the number of devices you are going to add to CMS server.

word image 840 2 1 word image 840 3 1 word image 840 4 1

Connecting Vision

CREATE USERS

Step 5

ADD NVR SERVERS

Step 6

word image 840 5 1

word image 840 6 1 word image 840 7 1 word image 840 8

(fl Enter Setup page ^ Users tab ^ ,■

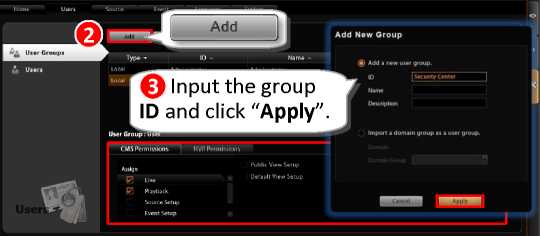

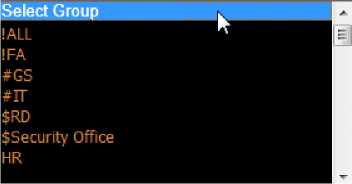

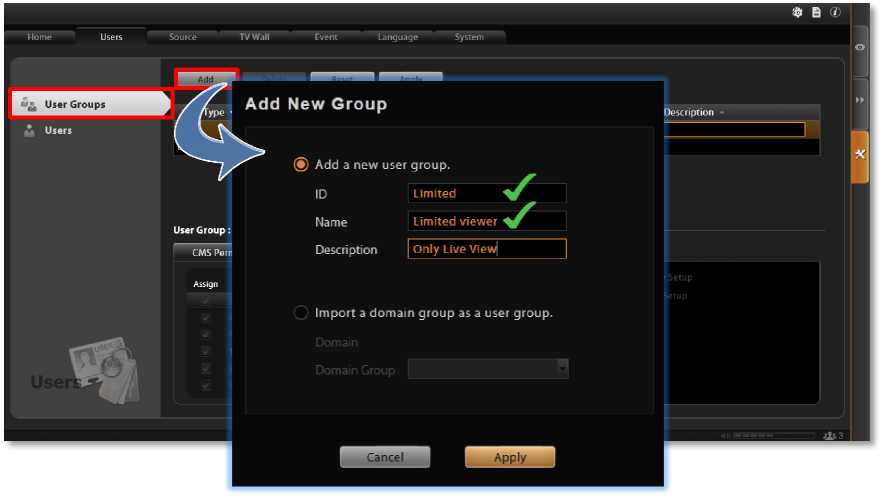

Add a user group:

expand its properties.

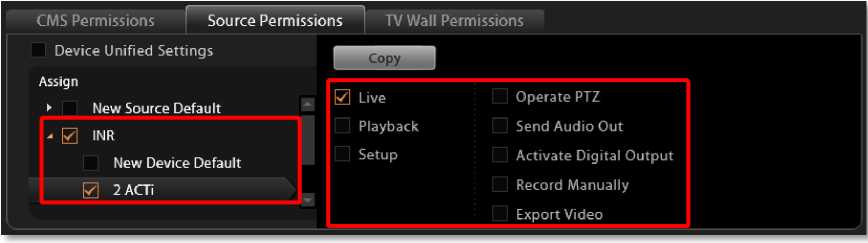

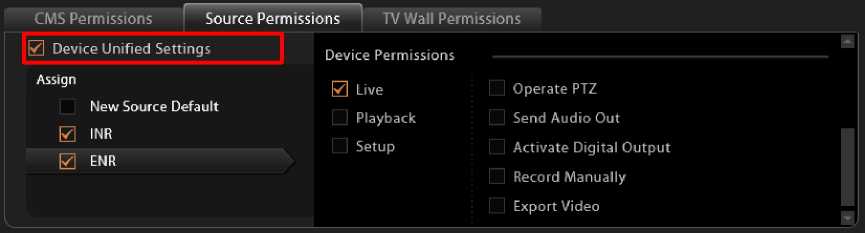

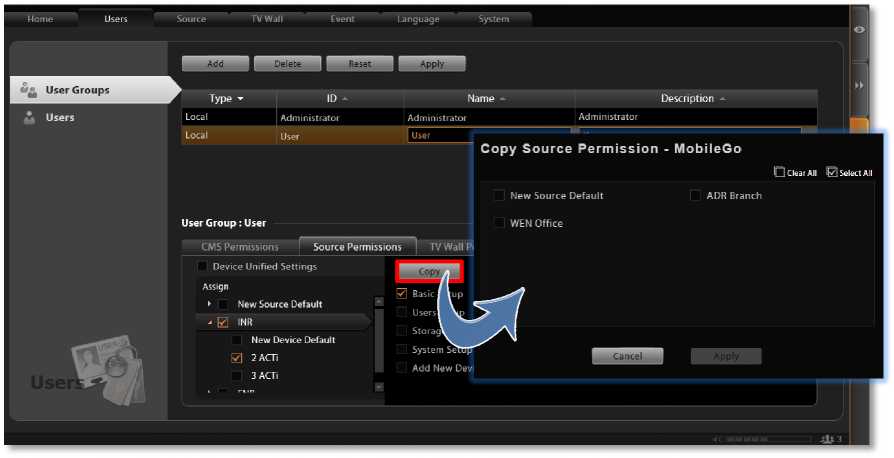

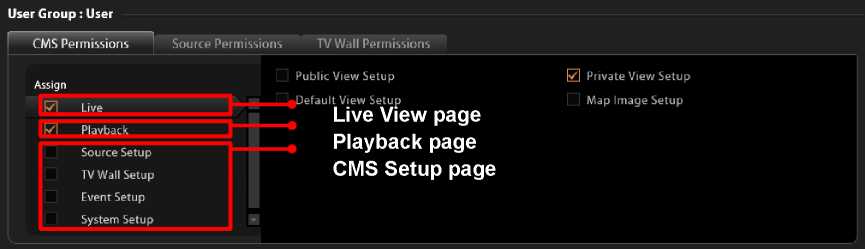

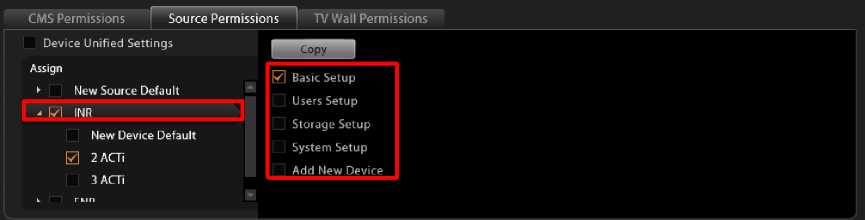

■Select the newly-created group on the group list and modify its CMS Permissions and NVR Permissions.

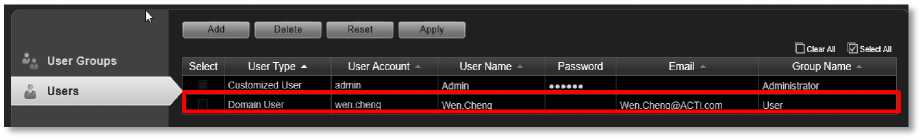

■On Users tab, select | Users

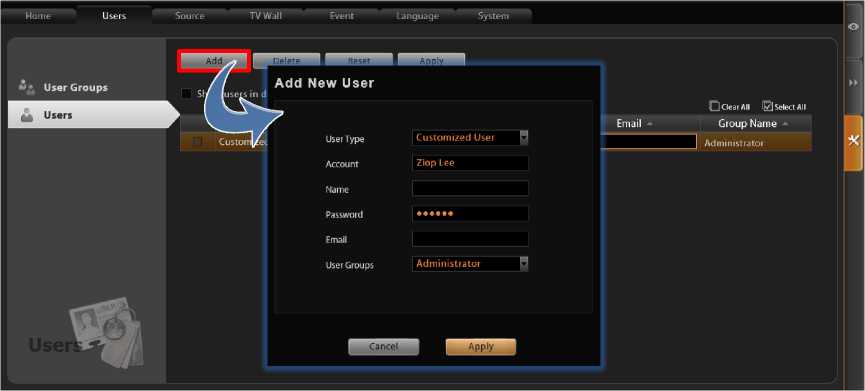

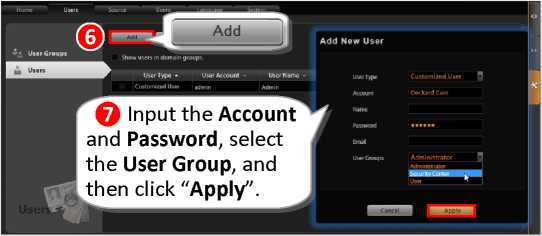

Create a new user account:

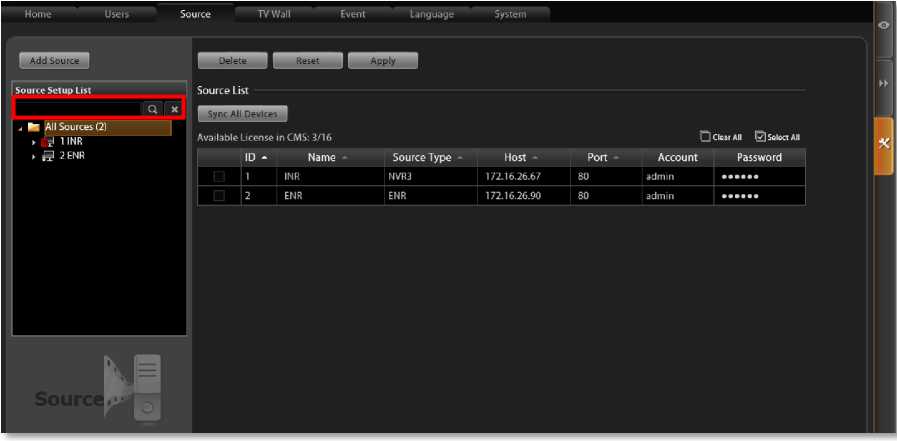

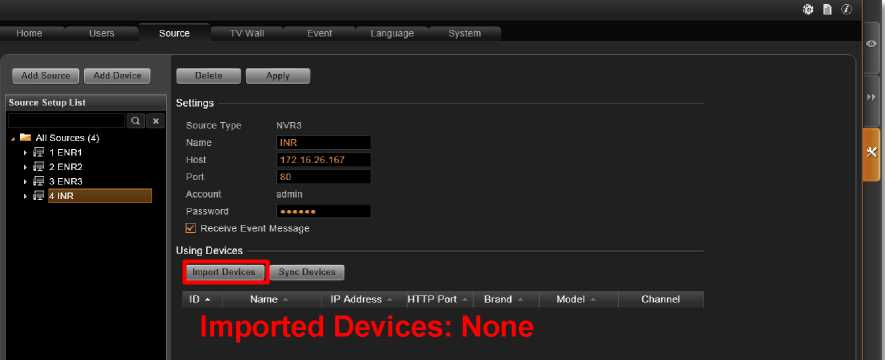

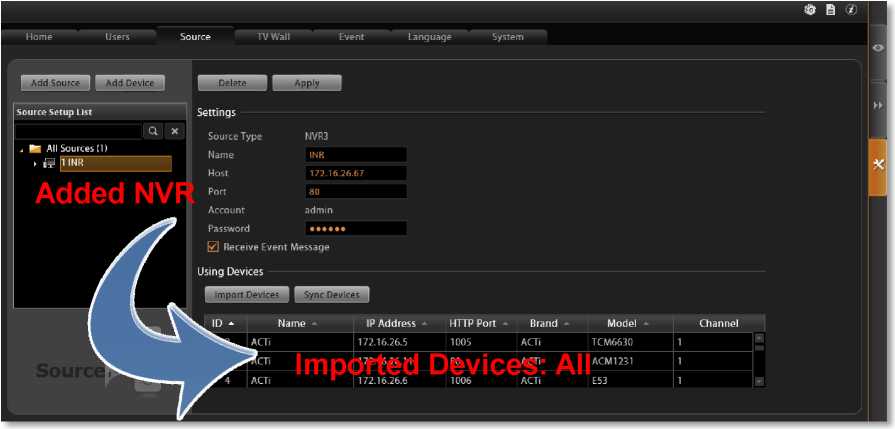

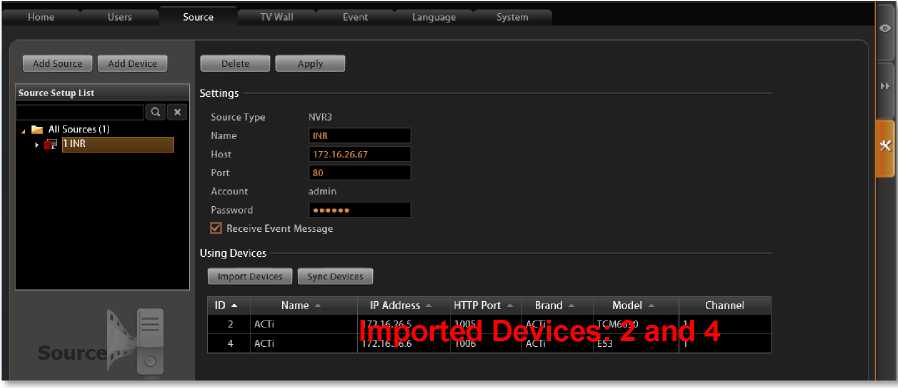

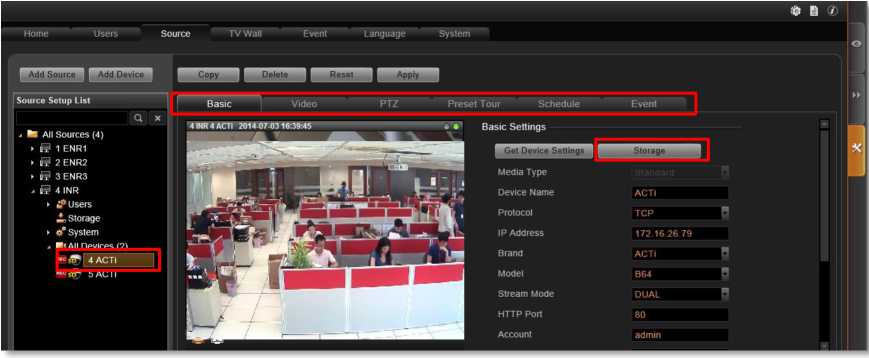

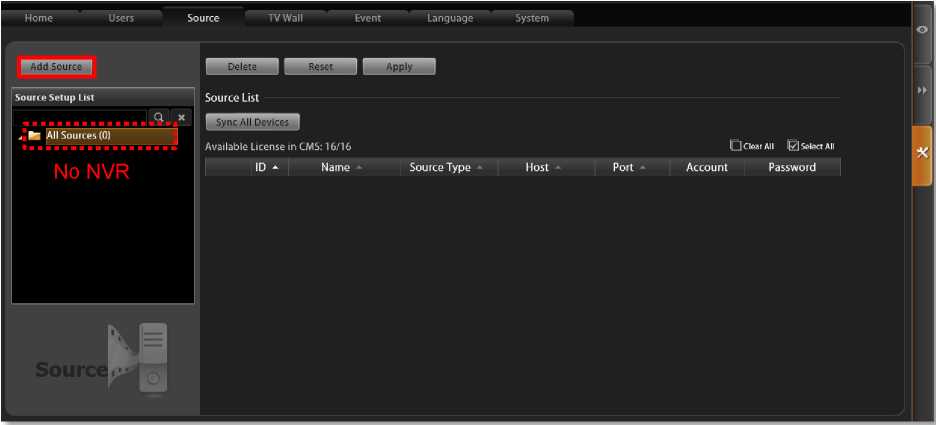

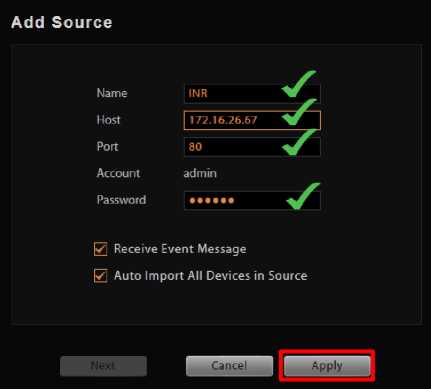

(fl Enter Setup page ^ Source tab, and click “Add Source”.

word image 840 9 1

(fl Input the NVR server information and the NVR Administrator's password, and then click “Apply”.

word image 840 10 1

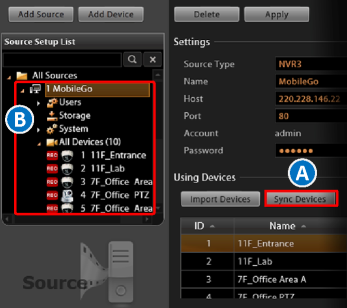

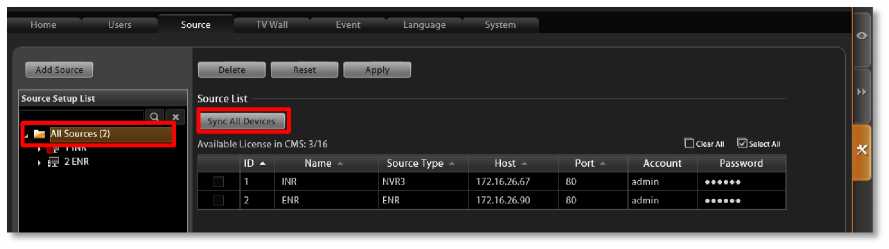

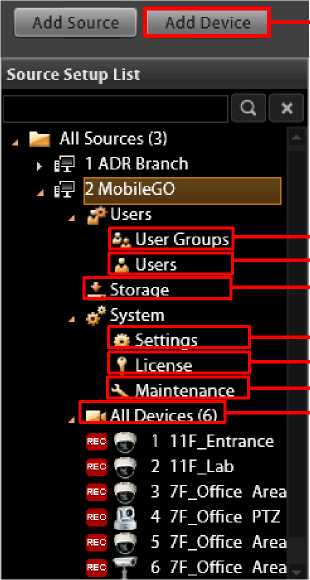

On All Sources tree, click □ by the NVR sever name to

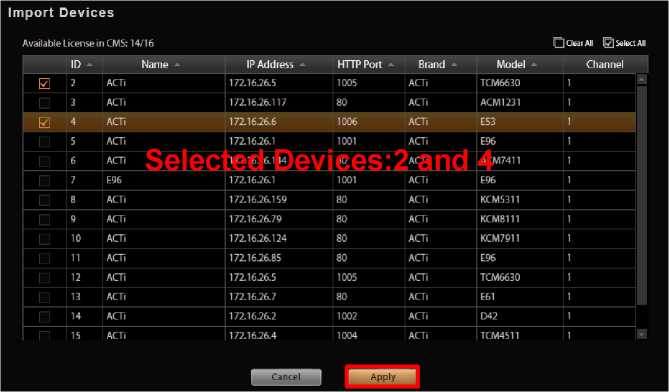

(A) To synchronize with the devices, click i (B) To modify NVR server or device settings, click the item in the NVR category to enter setup page.

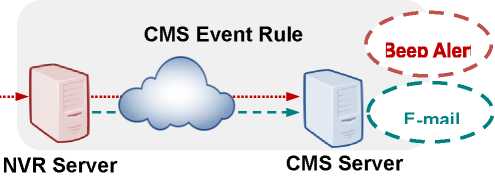

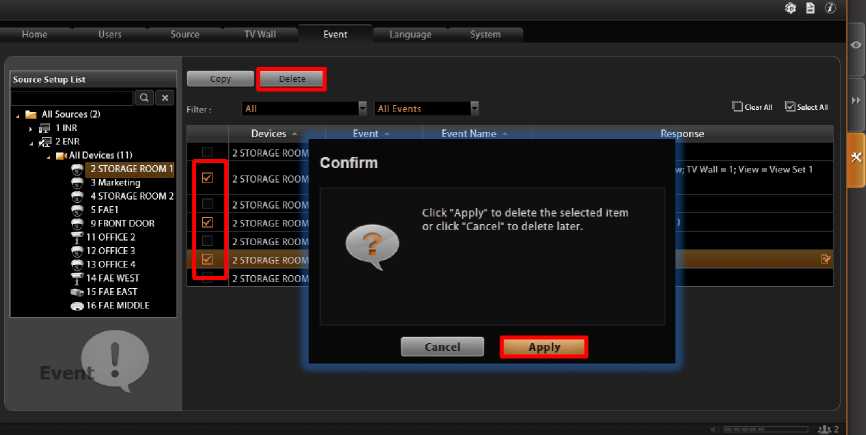

SET EVENT RULES

Step 7

CUSTOMIZE LIVE VIEWS

Step 8

word image 840 11 1 word image 840 12 1 word image 840 13 1

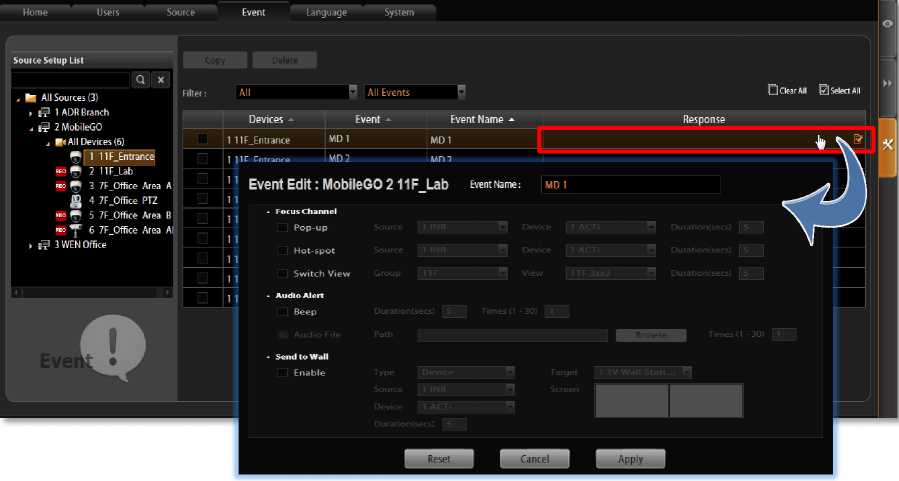

O Select an event type from the event list.

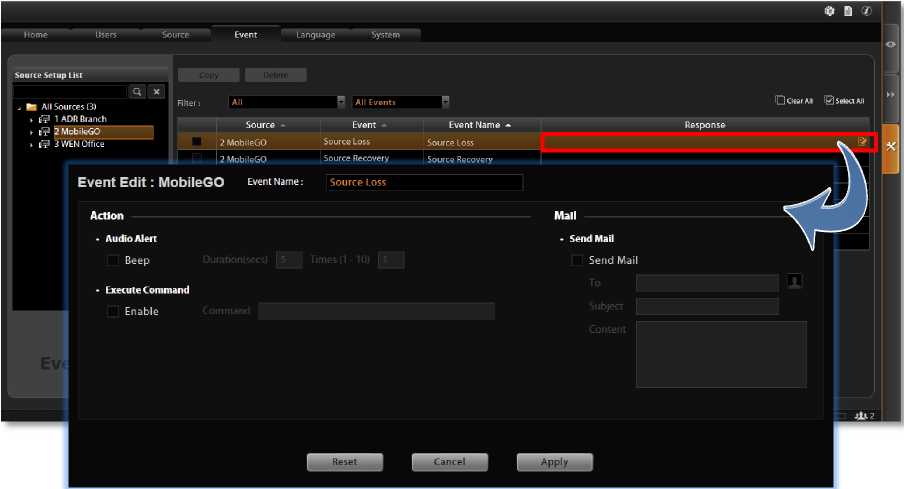

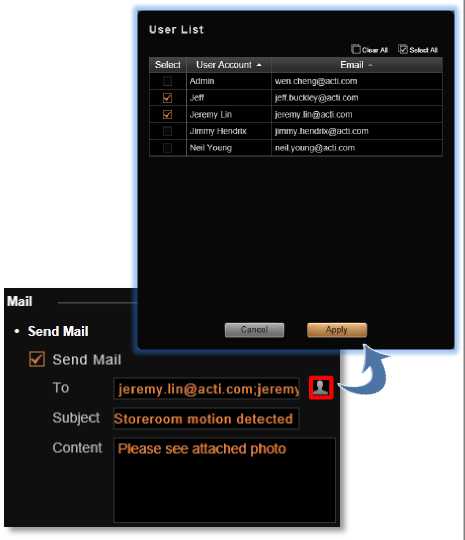

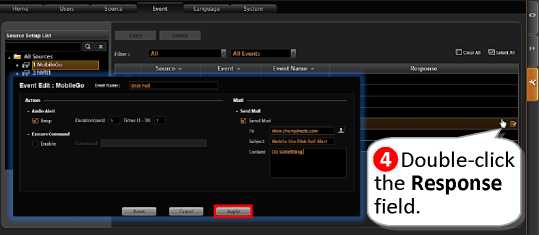

(■Configure the response settings on Event Edit window, and then click “Apply”.

VALIDATION

Step 9

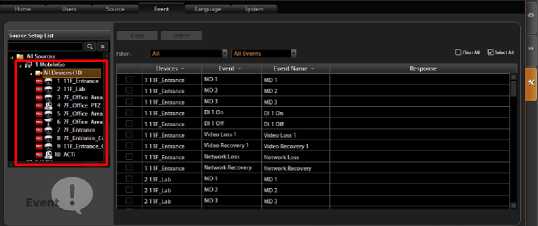

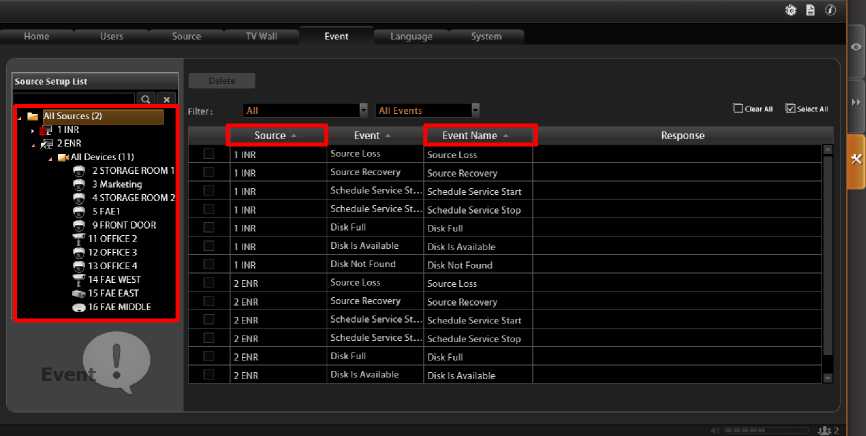

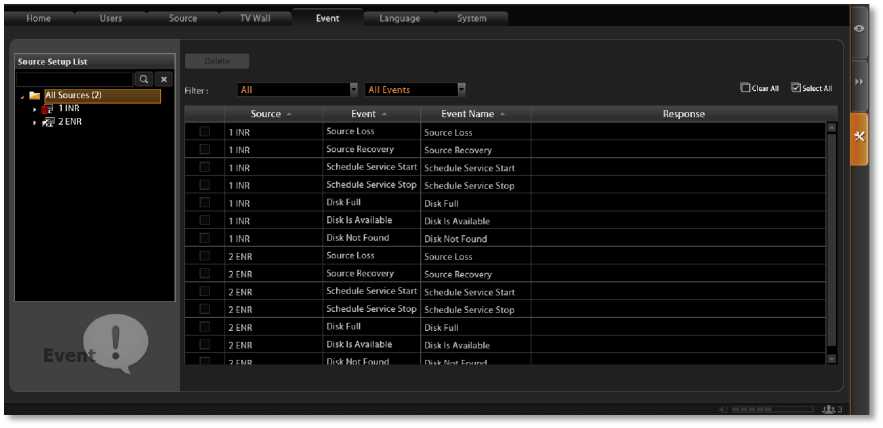

fl Enter Setup page ^ Event tab

fl From All Sources t ree, select your event source: an NVR server or a device – .

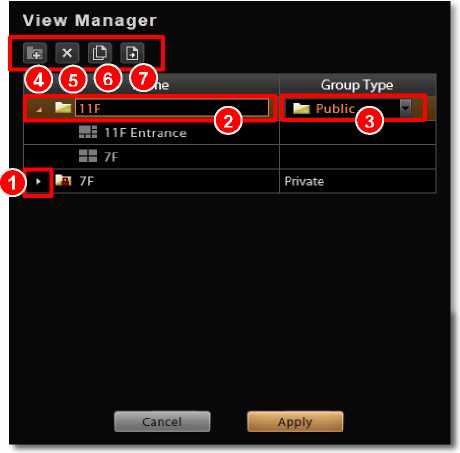

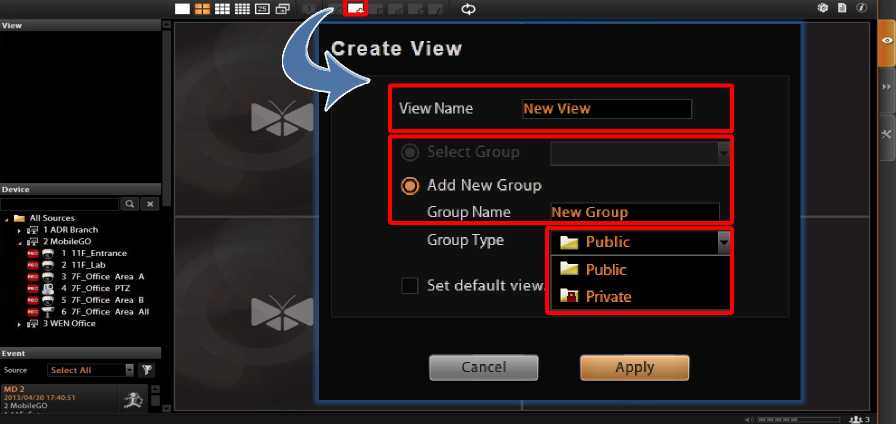

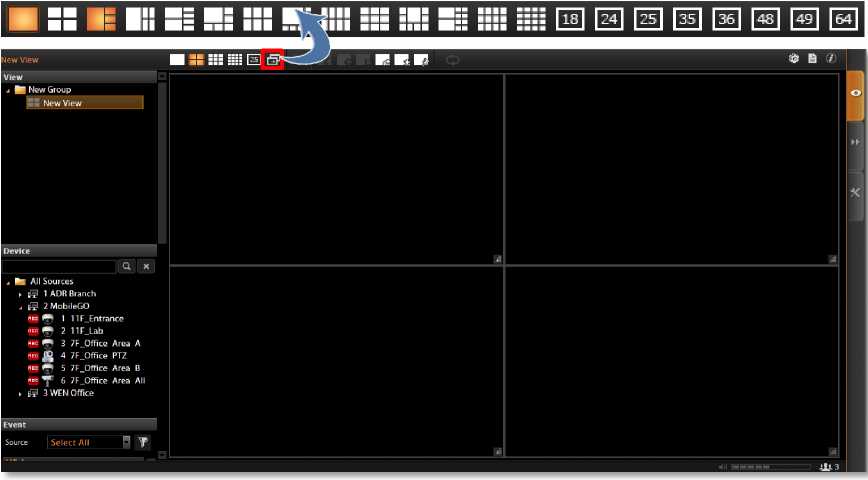

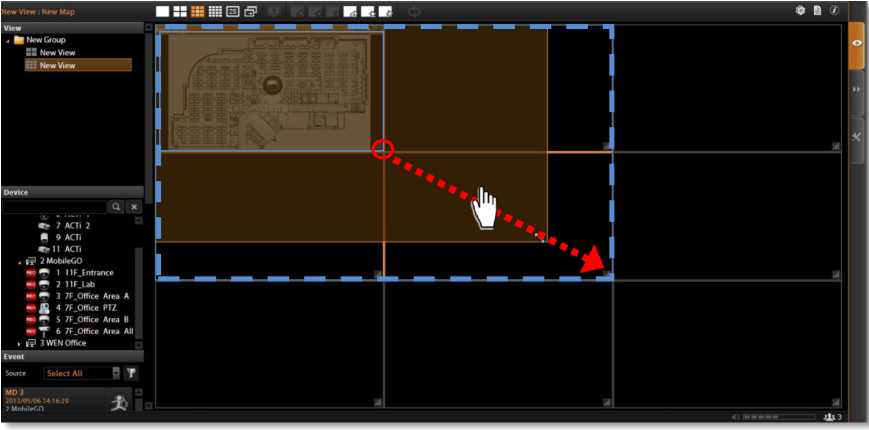

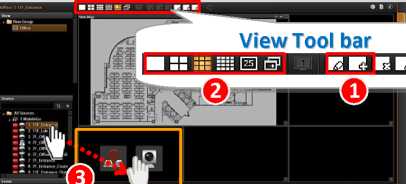

  1. Go to Live View page. On View Tool bar, click O to create a new view, then clickQ to enter edit mode.
  2. Select a layout style.
  3. »To add a camera view: Pull a device from Device list to a channel.

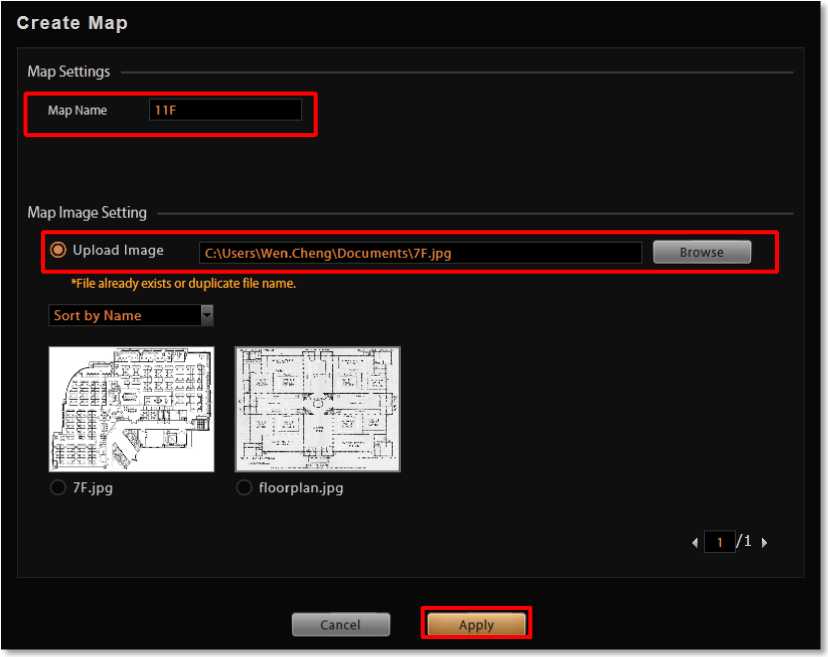

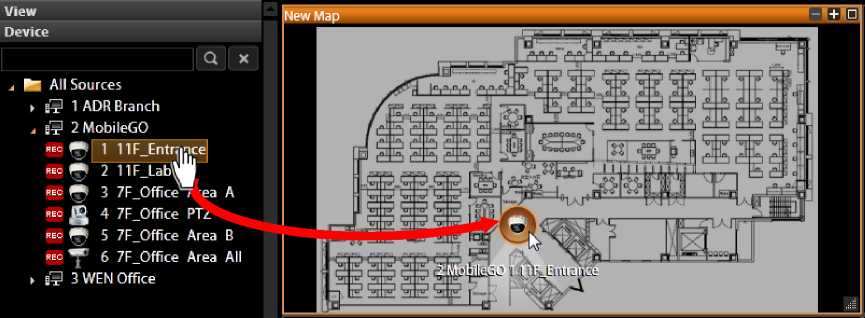

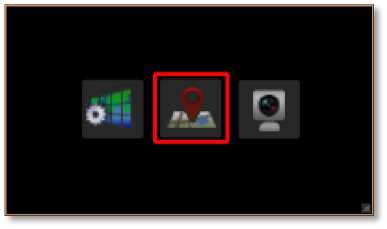

•To add a map view: Select a channel and click I , upload the map, drag the lower right corners to adjust map size, and add devices from Device list.

  1. On View Tool bar, click ! to save the view.
  2. ClickO to set this view as default live view.
  3. On Live View page, check live streaming by selecting a view on View list or an NVR in Device list.
  4. On Live View page, check the Event list for instant event notifications from devices.
  5. On Playback page, check the recordings by selecting a view on View list or an NVR in Device list, drag the time bar and use the Control buttons to play.

Connecting Vision

Overview

Designed for large-scale multi-site video surveillance solution, Central Management System 2.0 (hereafter referred to as CMS) software allows its user the full capabilities to monitor and manage multiple Network Video Recorders (NVR) via network. It also possesses full functionalities to manage not only NVRs but devices (, video encoders, etc.), users and events.

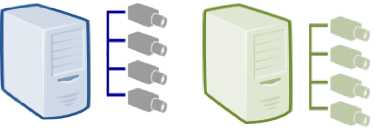

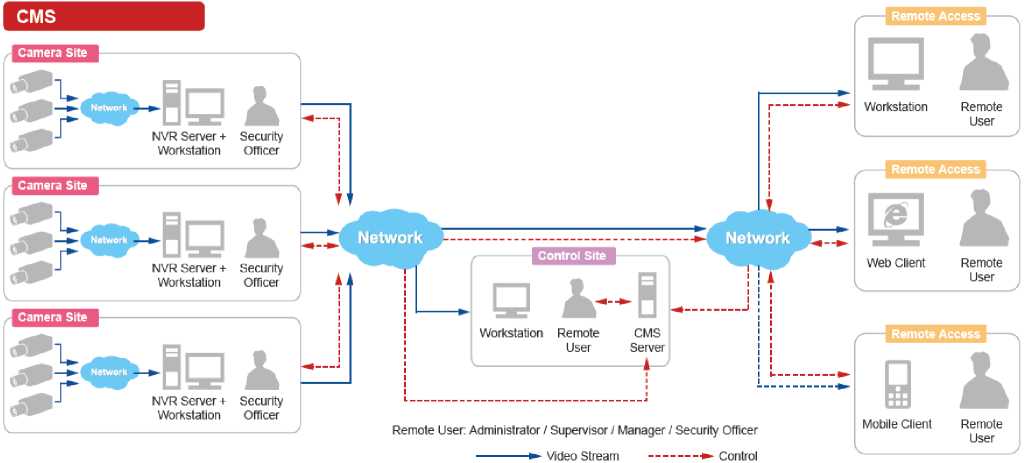

CMS Server / Client Architecture

CMS is a typical web-based server/client system. In a multi-site surveillance solution, CMS Server serves as a management command center; a Client makes requests of monitoring video streams or playing recordings sent to CMS Server, and CMS Server will pass this request to the involved NVR Server to send data/video stream to the Client. CMS Server starts automatically as soon as the Server computer (where it is installed) boots up, and operates in the background without requiring the login of administrator. It would provide services over the TCP/IP network to multiple Clients upon requests coming through HTTP protocol.

There are two types of Clients in CMS system: Web Client and Workstation Client. A user, connecting from whether or workstation, will be provided with the same user interface and be CMS functions.

  • Web Client: the web version of interface to access CMS Server without the need of installing any client program. Logging in to the CMS Server is as simple as visiting a website through the browser.
  • Workstation Client: the client application making accessing CMS Server free from the use of browser .The workstation includes a set of programs that provide interface between users and the CMS Server.

word image 840 1 2

Prerequisites

Please preview these prerequisites below and make sure they are met before installation:

  1. Upgrade All the NVR servers

Please upgrade all the NVR servers to the latest version.

  1. Suitable System Specifications

Ensure that the server computer meets the minimum system requirements.

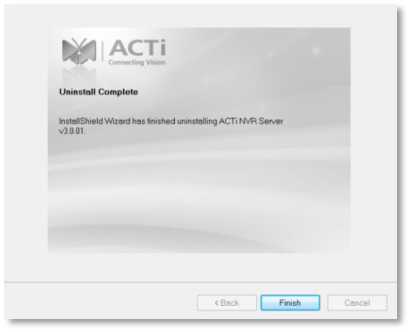

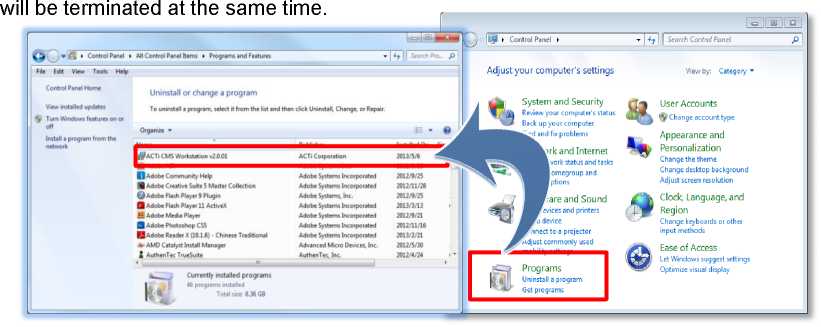

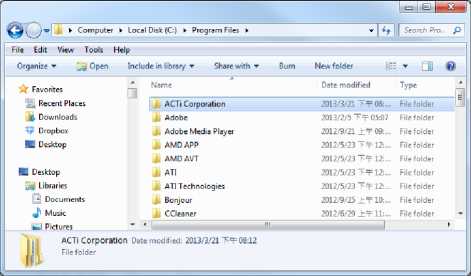

  1. Uninstall Previous ACTi NVR or CMS Products

As the previous ACTi NVR server software ( NVR 2.X) or previous CMS server software (CMS1.X) cannot co-exist with CMS 2.0 server on the same computer, please uninstall their main program and patches from Windows ^ Control Panel before installing CMS 2.0 server. Please also manually delete the program folder. By default, this folder ACTi Corporation is under C:\Program Files.

word image 840 2 2

  1. Turn off UAC in Windows

UAC (User Access Control) is a security setting that restricts access in Microsoft Windows.

You must disable UAC before installing CMS 2.0 in Windows 7, for the installation of application components and certain program features would be interrupted by this security rule. If you are using , please enable the built-in Administrator account and log in with this identity, or add this CMS site to IE browser's trusted sites (please follow the solution provided for Condition 2: Why can't I install Active X controls after logging in? on page 29 to do so).

Disable UAC in Windows 7

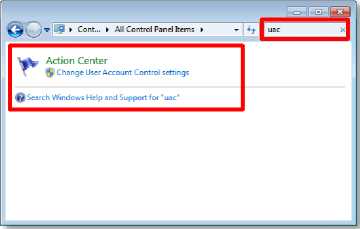

  1. Go to Windows Control Panel, type “UAC” in search box.
  2. Click “Change User Account Control settings

word image 840 3 2

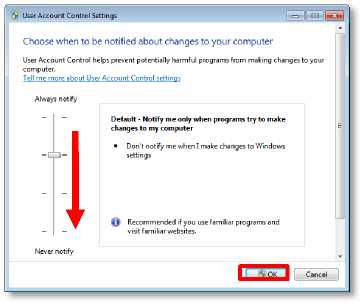

  1. Move the slider to “Never notify position”, and then click “OK”. You will have to restart

the computer for this change to take place.

word image 840 4 2

1.

Disable UAC in Windows Vista

Go to Windows Control Panel, click “User Account and Family safety”.

System and Maintenance Get started with Windows

Back up your computer

Security

«jPw Check for updates

Check this computer's security status

»

Allow a programı through Windows Firewall

Network and Internet View network status and tasks Set up file sharing

^■7 Hardware and Sound

Play CDs or other media automatically

Mouse

Programs

■-tt|| Uninstall a program

Change startup programs

User Accounts and Family Safety

SŞ Set up parental controls for any user ®Add or remove user accounts

m . Appearance and Personalization Change desktop background Change the color scheme Adjust screen resolution

jLjh Clock, Language, and Region j” Change keyboards or other input

methods

Ease of Access Let Windows suggest settings Optimize visual display

I y I Additional Options

Select the account, then “Turn User Account Control on or off”.

2.

  1. On the “Turn on User Account Control (UAC) to make your computer more

secure” window, uncheck the “Use User Account Control (UAC) to help protect

your computer“. Click on the “OK” to apply, you will have to restart the computer for this change to take place.

word image 840 5 2

Server Installation

The server program installation is as easy as 1-2-3 by following the installation wizard's instructions. The server would start its service right after installation completes, without the need to restart the server computer.

Install the Software

  1. Execute the install shield application .
  2. Follow the onscreen instructions of InstallShield Wizard, accept the license agreement and proceed.

A<=Ti

Connecting Vision

License Agreement

Please read the following license agreement carefully.

Important Notice A

Please read the terms and conditions of this license agreement carefully before installing the software. This end user license agreement (EULA) is between you (either an individual, or a single legal entity) and ACTi. By installing the software and clicking on the “agree” button, you agree to the term and conditions of this agreement. If you do not agree to this v

^^^TccepUh^erm^Uh^icens^gr^^^^^] | Print

O I do not accept the terms of the license agreement

InstallShield I

< Back Cancel |

word image 840 6 2

When selecting Setup Type, the default “Complete” will have the program installed on default C drive, you may select “Custom” to choose another program location.

MI ACTi

Connecting Vision

Setup Type

Select the setup type to install.

word image 840 7 2

Please select a setup type.

All program features will be installed. (Requires the most disk space.)

Select which program features you want installed. Recommended for advanced users.

I nstallShield

J < Back Cancel |

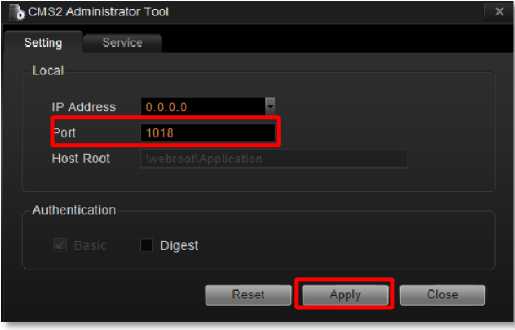

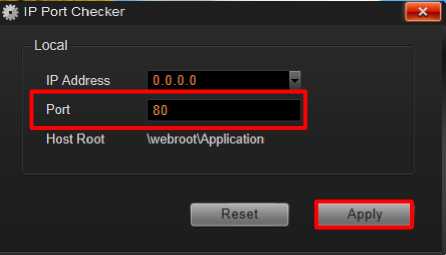

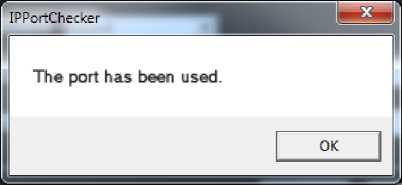

The IP Port Checker will pop up to confirm the CMS port number. The installation program will use 80 as default. You may enter another available port number in “Listen Port” field and click “Apply”.

3.

word image 840 8 1

You may just click “Apply” if you are not sure whether this port has been taken or not. If the port is being used by another service, you will be asked to input another available port number.

word image 840 9 2

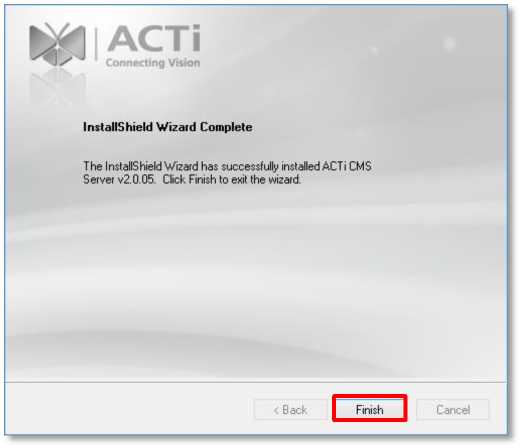

4. As the server port is confirmed, the installation process is done, click “Finish”.

word image 840 10 2

5. After the installation completes, connect to http://localhost:port number with Internet

Explorer browser, you will see CMS Login page.

Note

If IIS Web Server has been installed on the computer and you are asked to restart the computer during installation process, please

  1. Choose Yes. I want to restart mjj computer now. to restart right away.
  2. After the computer reboots, this install shield will automatically continue the installation.

Workstation Installation

CMS2 Workstation provides interface between users and the CMS server. It may be installed on the server computer or on a separate computer with internet access to CMS server.

Install the Software

  1. Execute install the shield application LE .

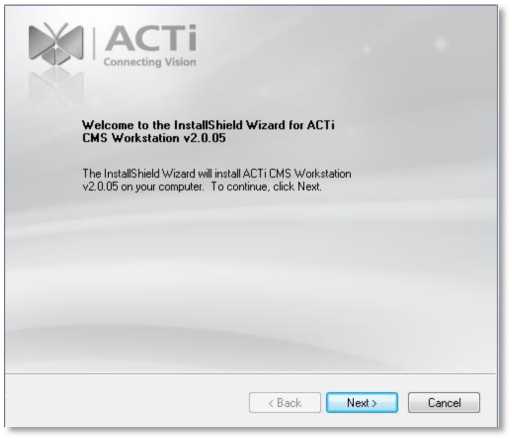

  2. Follow the onscreen instructions of InstallShield Wizard, accept the license agreement and proceed.

fed1ACTi

Connecting Vision

License Agreement

Please read the following license agreement carefully.

Important Notice *

o

Please read the terms and conditions of this license agreement carefully before installing the software. This end user license agreement (EULA) is between you (either an individual, or a single legal entity) and ACTi. By installing the software and clicking on the “agree” button, you agree to the term and conditions of this agreement. If you do not agree to this ▼

^^^ccepÛh^erm^Hh^îcens^^^^^^^ prjnt

ö I do not accept the terms of the license agreement

I nstallS hield

< Back Next> Cancel

word image 840 11 2

ferf ACTi

Connecting Vision

Setup Type

Select the setup type to install.

Please select a setup type.

o Complete

A” Pr°gfam Matures will be installed. (Requires the most disk space.)

O Custom

Select which program features you want installed. Recommended for advanced users.

I nstallS hield

[ < Back 11 Next > Cancel

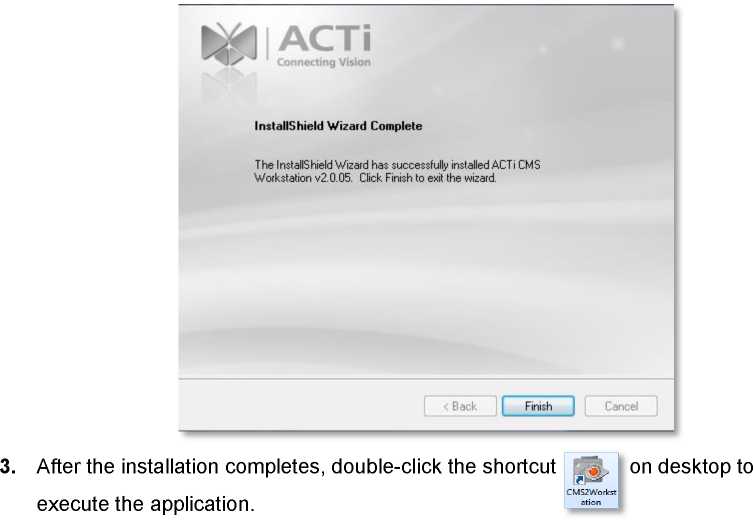

word image 840 12 2

License and Activation

In CMS system, the maximum number of channels is unlimited; your required number of channels should be licensed and activated before adding the devices to the system. To get the license, you may contact ACTi sales representatives to purchase the licenses and obtain the License Key. Upon the activation of license with the License Key, the channels will automatically become available.

Please note:

The license is cumulative and perpetual.

The license is not version-specific, software version upgrading will not influence the existing license you have activated on CMS server.

How Does License Activation Work

License activation is the process of unlocking the channels on CMS server with the received License Key. License Key is a serial number delivered as a printed card or by email after the purchase is carried out. During license activation, your License Key is matched against the MAC address of the Network Interface Card (NIC) on CMS server computer. Once this license key is used by the computer with given MAC, it cannot be activated with another MAC. This matching record will be stored on the activation database. If your computer has more than one network cards, CMS server will detect them and provide you a dropdown list to select from.

How to Activate the Licenses

There are two ways to activate the licenses depending on your CMS server network condition:

Online Activation

If your CMS server computer has available Internet access, you should take online activation.

| On CMS2 server, input the

Purchase licenses 1 from ACTi, get the Lucense key

J

word image 840 13 2 word image 840 14 12 LICENSE KEY to activate the license directly.

CMS server

(Internet access)

Step 1: Membership ID in ACTi Member Center is required for activation. Register one for free at http://member.acti.com/

word image 840 15 1 word image 840 16 1Step 2: Log in CMS server, go to Setup page^System tab^License^“Online Registration”. Select the MAC Address, enter your License Key, member Account and Password, and then click “Apply”. CMS server will connect to the activation database via Internet to register the license key, and unlock the channels.

word image 840 17 1 word image 840 18 1 word image 840 19 1 word image 840 20 1 word image 840 21 1 word image 840 22 1

Purchase licenses 1 from ACTi, get the Lucense key J

P Load the 1

3 ACTIVATION FILE

into CMS server

Computer

(Internet access)

CMS server

1. Membership ID in ACTi Member Center is required for activation. Register one for free at http://member.acti.com/

  1. Access http://www.acti.com/support/LicenseMgt/CMS registration.asp, enter the License

Key and the MAC address of CMS server computer, click “Submit”. An email with

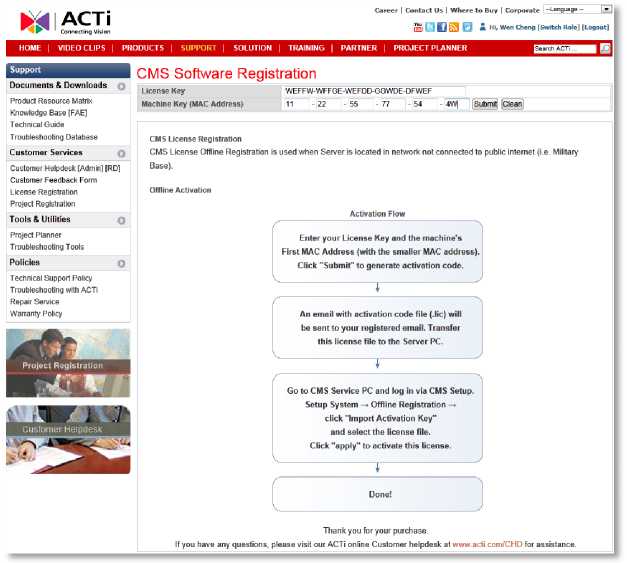

Offline Activation

Offline activation does not require Internet access for CMS server. It is used when CMS is located in a network not connected to public Internet (e.g. in a restricted military base). You will need to get an activation file (AUL.lic file) from another computer and transfer it to CMS server computer.

word image 840 23 1 On another computer, access ACTi website to activate the licenses using the

activation code file (AUL.lic) will be sent to your registered e-mail account.

  1. Log in CMS server from local or via web client. Go to Setup ^ System tab ^ License ^ “Offline Registration”^ click “Import” and upload the license file (AUL.lic). Click “Apply” to activate this license.

word image 840 24 1

Verify Your License

Once your license is successfully activated, the license information will be shown on License

page.

word image 840 25 1

Important

The license data will be erased once CMS server is uninstalled. Be sure to retain your license key information in a safe place because you may need to reinstall the software. After the software is uninstalled, you should contact ACTi Customer Help Desk http://www.acti.com/CHD to clear the ^original registration data in our database, and then you may activate the license again.

Tip

How to find MAC Address

  1. Click Windows Start, in the run box on Start menu, input “cmd”.
  2. Execute the cmd program, and input the command “ipconfig /all” or “getmac
  3. The MAC address will be referred to as the Physical Address, made up of 12 characters

e.g. 00-1E-65-FE-8E-98

Log in to the System

Access CMS via Internet Explorer

word image 840 26 1

httpy/localhosv

Network

220.228.146.21

(Example)

http://172.16.26.82/

(Example)

From Server Computer Using Local Client

Open Internet Expolrer. If your computer is where CMS server is installed, type http://localhost/ or the computer's IP address in URL box.

From Remote Client Computer

A remote client refers to any client using a computer over WAN or LAN other than server computer. If you are connecting to a CMS server as a remote client, please type server computer's IP (e.g. local network ip: http://172.16.26.217 within LAN; public IP http://220.228.146.21 or domain name http://cms.acti.com over WAN ) in URL box. If the port number is 80, you can omit it when typing the address.

Accept ActiveX Controls Installation Requests

CMS interface requires the add-on ActiveX Control components, please make sure browser's security settings allow ActiveX controls to be downloaded and installed. When your browser asks if you allow ACTi Corporation's add-on components to run, please allow them.

word image 840 27 word image 840 28 word image 840 29 word image 840 30 word image 840 31

ActiveX Installer Service – Security Warning

Do you want to install this software?

Do you want to install

) More

While files from fr your computer. 0

While files from your computer.

ActiveX Installer Service – Security Warning

Login Failure

Once you confront with problems accessing CMS server, refer to the possible conditions below and follow the instruction to solve your issues.

Condition 1: Why can't I access CMS server via my browser?

After typing in the correct CMS server IP, if you cannot access CMS Login page, you may get the below browser screens:

word image 840 32 word image 840 33

Cause: Server is not ready

Solution: It will take a little while for the server to get ready to run after the installation is completed, please wait a few seconds and connect again.

Condition 2: Why can't I install Active X controls after logging in?

ActiveX Control components are essential for CMS server to present user interface. The message below will show if these controls were not installed.

word image 840 34

Cause 1: Your Internet Explorer browser version does not support CMS.

Solution: Make sure you are using the 32-bit version of Internet Explorer.

Cause 2: Your browser restricts the installation of add-on components.

Solution: Internet Explorer security settings may restrict the installation of add-on components. To ensure CMS server is always accessible from your web client regardless of any change in browser's overall Internet security settings, you may add CMS server site to Internet Explorer's Trusted sites. These sites are which you consider safe and wish to visit with low security restrictions while maintaining higher security for the rest of the Internet.

  1. On IE browser, click Tools ^ Safety and make sure ActiveX Filtering is unchecked.
  2. On IE browser, go to Tools ^Internet Options^Security tab, select “Trusted sites”, set the security level to “Medium High”, and then click “Sites”.
  3. Add http://localhost or server IP to the zone, and clear the box “Require server verification (https:) for all sites in this zone”.
  4. Back on Security tab, click “Apply” to apply the changes. This will allow ActiveX and

scripting to be available for the chosen sites but not for the Internet as a whole.

sites

You can add and remove websites from this zone. All websites in

this

zone

will

use

the

zone':

rity settings.

website

the

zone:

http://localho5t/

Websites:

Require

server

verification

(https:

for

all

sites

[ Remove

this zone

[ Close

word image 840 35 word image 840 36 word image 840 37

word image 840 38

CMSv2.0

Login

  1. Enter Account & Password

Account (non case-sensitive):

Admin (default)

Password (case-sensitive): 123456 (default)

  1. Change UI language

To change UI language, select the desired language from “Language” dropdown list.

word image 840 39

word image 840 40 word image 840 41

  1. Remember Account/Password

To have the server remember your Login Account and Password for future, check “Remember Account/Password”. Clicking “Don't Remember” will clear your input text and reset to default.

To directly enter the main page every time you log in from this PC in the future Check “Remember Account/Password” then “Auto Login” to skip the Login page. If your computer may be accessed by someone without proper authority, please DO NOT use either of these functions.

To cancel auto-login, on title bar, click G ^ “Logout” to return to login page, and this function is cancelled.

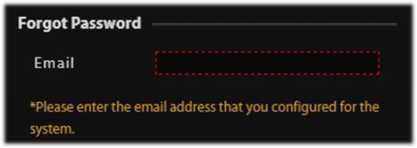

  1. Retrieve the Forgotten Password

CMS Server can send the password of the User's account to the saved email address. To have Users be able to use this service, please make sure (1) the SMTP settings have been configured (refer to How to Setup SMTP Settings for Event Rules on page 53) and (2) a valid email address has previously been saved in Setup page ^ Users tab ^ User list.

The email address input in Forgot Password window should match the one under your User account saved in CMS server.

word image 840 42 word image 840 43

application.

CMS Workstation

G

Server Name

Server IP

172.16.26.91

A

Server Port

Account

admin

Password

C

Initial Page

Live

D

Language

English

Remember Account/Password

E

Don't Remember

F

got Password?

Live H
Live
Playback Setup *

Access CMS Server via Workstation

CMS Workstation includes a set of programs that provide interface between users and the CMS server. It may be installed on the same PC as the CMS server, or on a separate client computer.

Double-click the shortcut icon on your desktop to execute this workstation

Login

Fill in the following fields then click “Login” to log in to the system. The login process of

Workstation is very much the same as that of Web browser:

  1. Server IP & Server Port

In Server IP field, key in localhost or 127.0.0.1 if CMS Workstation is on the same computer with CMS server. If you are connecting from a non-server computer, please input the IP address of server computer, for example: 220.228.146.22.

In Server Port field, key in the port number (default is 80).

  1. Enter Account & Password

Account (non case-sensitive) Admin (default)

Password (case-sensitive) 123456 (default)

  1. Choose the Initial Screen

CMS user interface consists of three main module screens: Live

View, Playback and Setup, you may choose one where you would like to enter after logging in. Default is Live View screen.

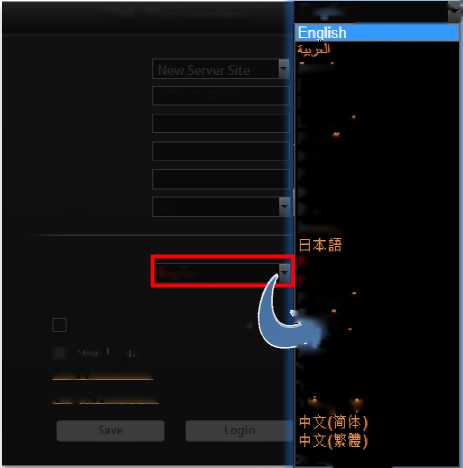

  1. Language

Choose a UI language from drop-down list.

i
Device Sort ►
Snapshot All
S View Manager
£3 Map Image Manager
ID Custom Panel
R

U 14

Full Screen
lJ Hide Title Bar
n Stretch ►
X Remove All
Connected Users
fi Update Profile
*3 Logout 1

remembered.

  1. Remember Login Information

To have CMS2 Workstation remember the Account, Password, your choices of Initial Page and UI Language, simply check “Remember login info”. Click “Don't Remember” will clear your input text and reset to default.

To directly enter the desired page every time you log in from this PC , check “Remember login info” then “Auto Login” to skip the Login page. If your computer may be accessed by someone else, you might consider not to use either of these functions.

To cancel auto-login, on title bar, click EZ ^ “Logout” to return to login page, and this function is cancelled.

  1. Retrieve the Forgotten Password

Please refer to D. Retrieve the Forgotten Password on page 28.

  1. Server Name/Server Sites List

CMS2 Workstation can remember multiple server sites and their login settings and show the

word image 840 441. Click in the Server Name box and input the server site name.

site lists on Login window. To add a new site:

2. Fill in the other fields. If you disable the “Remember Account/Password”, then only the Server Name, Server IP and Server Port of this server site will be

  1. Click “Save
  2. After a server site is saved, it will be shown on Server Name dropdown list.

You may click on its name to enter its

word image 840 45 Login window or 0 to delete it from the

list.

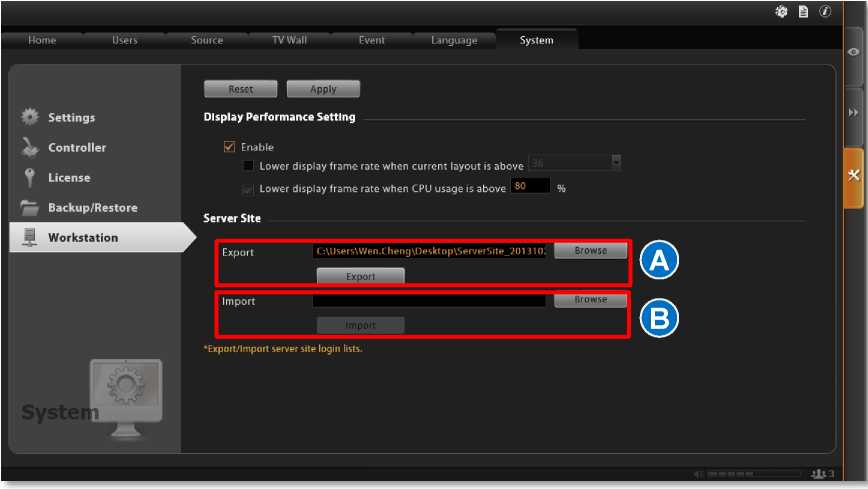

  1. You can export the saved server sites, or import it to another Workstation client computer.

Access CMS server via CMS2 Workstation, go to Setup page ^ System tab ^ Workstation.

  1. Export current server sites list

Click “Browse” to select a folder to save the list, and then click “Export”. This file will be saved as an *.xml file.

  1. Import a server site list

Click “Browse” to select the *.xml file, and then click “Import”. The server sites will appear in Server Name dropdown list on Login window of your next login.

word image 840 46

word image 840 47 word image 840 48 word image 840 49

Live View

Playback

This module includes user setup, NVR source/device setup, TV Wall setup, event setup and CMS system-wide settings.

Set up the System

This chapter will guide you through everything you need to know in System Setup procedure from first time connection with CMS server to general system configuration.

CMS Main Screen

On the right are link buttons to three CMS major functions: (1) Live View, (2) Playback and (3)

Setup. You can click the orange button to enter the function page.

In this module, you can see live view from NVRs, perform PTZ operations with a mouse or a joystick, view system log, receive alerts on the event panel, set view layouts, perform manual recording or take a snapshot.

You may search and play existing recordings in multiple channels synchronously. Snapshots or video segments can be taken from playback files. Recorded files can also be exported to AVI format here.

Setup

Manage Users

The User Groups/Users page allows you to (1) manage the access permissions of different user groups, (2) add users to or delete them from user groups, (3) assign users to specific user group. This chapter will take you through these settings.

Access Permissions

In CMS, the access permissions are managed by User Groups. User Groups defines which CMS operations and NVRs are allowed for the group users. Different User Groups will have different access rights. For example, an Administrator User is allowed for the complete operations in CMS system, while a standard User may only be permitted to see Live View and do Playback with limited NVRs. The chart below displays an example consisting of different employees as CMS Users and their access rights in this system:

word image 840 50 word image 840 51 word image 840 52 word image 840 53 word image 840 54

Limited Group

Monitor

Security Group

Monitor

Playback

Setup

Overview

Go to Setup page ^ Users tab. There are two sections to manage User Groups and Users individually.

User Groups: To setup user groups and its permissions for device and functionalities.

Users: To manage user accounts and configure user information.

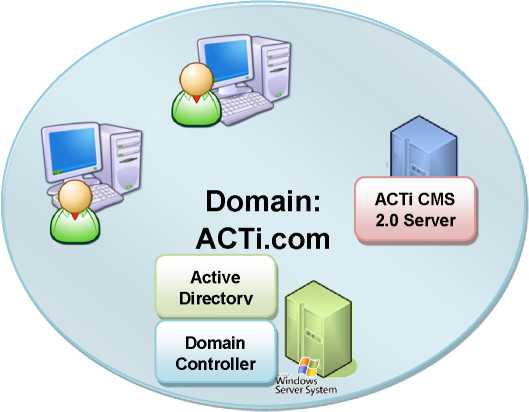

CMS has integrated Microsoft Active Directory® service to provide network administrators a more convenient choice for user management. Active Directory is a directory service built in Microsoft Server products to manage user identities and privileges within the domain network. As CMS runs on a server computer logged on to the same domain with an Active Directory

►4 ACTİ

Connecting Vision

server, you can import a user account or a group from those concurrently existing in Active Directory into CMS server. In this way, the user identification is processed by Active Directory centrally, and there is no need for CMS administrator to maintain these user accounts.

User Groups

You can specify access permissions to each NVR for an entire user group. This user grouping can save you significant amount of works if you have multiple users performing similar tasks and acting as similar roles.

There are already two default User groups

  • Administrator: With full permissions in CMS interface.
  • User: With the permissions to watch all camera live view and playback(Default).

The Administrator User is predefined with full permissions in the CMS server, and cannot be deleted. You can choose to create a new user group on CMS server or import an existing group from the Active Directory database within your domain.

  1. Select User Gr0Lips , click “Add” and then choose the group type:

•Add a new user group:

Insert ID, group Name and group Description, your input in the Name field will be the name of this User group. Click “Apply” to finish.

word image 840 55

• Import a domain group as a User group:

Choose an existing user group from your domain, and click “Apply” to finish.

Add New Group

C Add a new user group.

word image 840 56

Name

Description

Domain: ACTi.c

® Import a domai

Domain Group ‘ Select Group

Blank is not allowed or format error for required fields.

The domain users within that group will all be added to CMS server at the same time. To view the whole users within this group, please select Users 2 and enable the “Show

users in domain groups.” The account information of these domain users, unlike those user

accounts you add one by one to CMS server, are not editable on Users page.

0 Show users in domain groups Ü Clear Al 10 Select All
User Type ■* User Account User Name Password Email Group Name
Customized User admin Admin Administrator
Domain User Deckard Cain Deckard Cain Deckard.Cai@acti.com $Security Office
Domain User John.Bourne John.Boume John.Bourne@acti.com $Security Office
Domain User Steve.Lin Steve.Lin Steve.Lin@acti.com SSecurity Office
Domain User Joyce Holiday Joyce.Holiday Joyce. Holiday© acti com General Service 1

Domain users added as a whole group

  1. Assign CMS Permissions for created group. This will define what functions this User

group is allowed to access. By default, a User group will initially be allowed to access only

Live View page and Playback page on CMS, but without any permission to CMS or NVR

word image 840 57

settings, so you may have to assign the Source Permissions later.

3. Assign Source Permissions for created groups. This will define which NVRs this User

group is allowed to access. If this User group is allowed to access later-added NVRs, check

New Source Default” and edit the permissions.

CMS Permissions ‘ Source Permissions TV Wall Permissions
0 Device Unified Settings

Assign

New NVRs
0 New Source Defaul
Existing NVRs

[vj Storage Setup 0 System Setup 0 Add New Device

0 INR

0 ENR

7

You may individually check the NVRs this user group is allowed to access, and set the permissions to configure NVR settings.

word image 840 58

You may also enable the permissions related to a specific camera under the NVR.

word image 840 59

Instead of tailoring the settings for each device, you may click “Device Unified Settings” and

set universal settings, which will be applied to any device you check under this NVR.

word image 840 60

You may copy the Source Permissions Settings to other sources. Click “Copy” under Source Permissions tab to bring up the target NVR menu, check the target sources, and click “Apply”.

word image 840 61

Click “Apply” on the top to save the settings.

Add Users

To create a user account with on CMS server.

  1. Select Users , and click Add button.
  2. Select User Type as Customized User or Domain User.

Customized User: an account created and managed on CMS server only. You will input an account name, its password and e-mail address for this User.

Domain User: an account that already exists in Active Directory database within the domain. Since this is an existing account in your domain, you will have to select this account from Account dropdown list.

  1. Insert user account, name, password, and the account e-mail (For Customized User).
  2. Assign this created user account to a specific user group.
  3. After you click “Apply”, this new user will be added to the list on the top.

word image 840 62

Note

CMS server provides a procedure to help Users who have forgotten the password retrieve the original information, which relies solely on the “e-mail address” authentication. It is strongly recommended that you input an e-mail address that this User has access to when you establish the User account. To update the e-mail address of an account, go to Setup page^ Users tab ^ edit “Email” of an selected User account; the Users can also update the e-mail addresses themselves after logging in to CMS on Live View page ^ ^

Update Profile

Note

Account /Password Rules

  1. Account and Password fields allow alphabets, numbers, and symbols except the following: / \ [ ] : ; | = , + * ? < > “
  2. In Account field, for alphabets, the input will be recognized as lowercase letters. Space is only allowed between characters; the space in the beginning or at the end will be deleted when it is saved.
  3. The Password field is case-sensitive, and the space is allowed.

Note

Admin is the default user account and belongs to “Administrator” user group. Hence, the user Admin and its group Administrator cannot be deleted; it possesses full permissions to all NVRs, devices, and CMS settings.

Domain Users Management

As CMS server computer is logged on to a domain Active Directory, it can import a user account from Active Directory.

word image 840 63

This type of User account is “Domain User”. Upon being added to CMS server, the User properties stored on Active Directory database including account name and e-mail address will

be imported to CMS server.

word image 840 64

Whenever the Domain User client tries to log in to CMS server, CMS server will first verify if

this account exists in CMS server database, if not, it will then have Active Directory verify the user account and password.

As Active Directory owns the privilege to create, edit and delete domain users, the Domain User's account and password are not editable through CMS user interface but via Active Directory Administrative tool.

Manage NVRs

A CMS server manages multiple NVR severs, whose fundamental building blocks are the cameras or video encoders. The first thing you should do after you have registered the license is to setup your NVR connections in CMS Setup page. In this section, we will guide you through how to manage the NVRs and their devices.

Add an NVR

To start adding a new NVR, please follow steps as below:

1. On Setup page^ click “Source”. There is no source in All Sources list. Now click “Add

Source”.

word image 840 65

word image 840 66

2. On the Add Source window, fill in the following fields and click “Apply”: •Name – title of this NVR

Host – the NVR's IP address

Port – the NVR's port number

Password – the Administrator's password of this NVR. By default, all the devices in the NVR will be automatically added to CMS server after you click “Apply”. If you want to select only the desired devices rather than import all the devices at this stage, de-select “Auto Import All Devices in

Source” before clicking “Apply”.

Import Devices from NVRs

In most cases, with limited licenses, you do not import all devices of all NVRs to your CMS server. After an NVR is added, you may start selecting your desired devices to be imported to CMS server. Once a device is imported, on CMS interface you can (1) modify this device directly, (2) see its live stream ,(3) receive the instant event notifications from this device and (4) watch the recorded video of this device.

  1. On All Sources list, select this NVR, the Using Devices list on the right will display the imported devices. By default, all the devices of an NVR were already imported as you added it to CMS server.

word image 840 67

2. If you have unchecked the box “Auto Import All Devices in Source” when adding this

NVR source, you have to select the devices to be added by yourself.Click “Import Devices

to enter NVR device list.

word image 840 68

  1. On the Import Devices list will show all devices of this NVR. Select the desired devices you

want to import and click “Apply”.

word image 840 69

  1. The Using Devices list will be updated in accordance with your selection on Import

Devices list.

word image 840 70

Synchronize Device Settings

The configurations done on NVR site will not be synchronized with CMS server actively. For example, an NVR administrator may replace several cameras (which have also been imported to CMS server) with new ones, and therefore the CMS site would lose the connections between those replaced cameras. On CMS site, you can synchronize with an NVR server via one click:

  1. Go to Setup page ^ Sources tab, on All Sources list, select this NVR.
  2. On the right, click “Sync Devices” button.
  3. Click “Apply”.

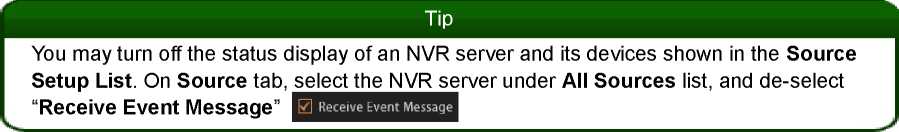

Tip

Whenever your CMS server loses connections with certain devices, it is always suggested that you click this button , sync Devices t first, since the loss of connection probably resulted from some changes done on the NVR site.

word image 840 71

Manage Multiple NVRs

You may centrally manage multiple NVRs on the All Sources Setup List easily.

Go to Setup page ^ Sources tab. Under

j M All Sources

lists all the NVRs you added.

Search an NVR

To locate a specific NVR in the All Sources tree, you may input the keyword in its name in the search bar, click to start searching, and click I to show all sources.

word image 840 72

Delete NVRs

All Sources

Highilight

, a list of connected NVRs will appear on the right. Select the NVRs

you want to delete, and click “Delete” then “Apply”.

Synchroinze with All Devices

word image 840 73

Highilight

and click “Sync All Devices”, CMS server will synchronize with all

M All Sources

the NVRs and imported devices.

Configure NVR / Devices Settings

As CMS administrator owns unrestricted rights to control all the NVRs and their devices, it is sometimes more convenient to modify the NVR settings directly from CMS interface. On CMS

Source management page, you may change any property of an NVR or its devices.

NVR Settings

To enter an individual NVR's settings, Go to Setup page ^ Sources tab, on All Sources list,

to expand its sub category. By selecting a title, the setup page will appear on the right. Any change applied to the NVR will be saved to both

select an NVR, and click on the arrow

word image 840 74Add Devices to this NVR by auto-search or manually

NVR itself and CMS server.

Device Settings

NVR User Group/Permissions management

NVR User Account management

NVR Storage setup

NVR System setup (Email/SMTP/FTP/Export folder/UI style)

NVR License management

NVR Backup/Restore/Language file management

NVR Device list

word image 840 75 To configure the settings of a device, select the device from Source Setup List, and modify

the available settings on the right.

Note

Please note the following before applying any change to an NVR server:

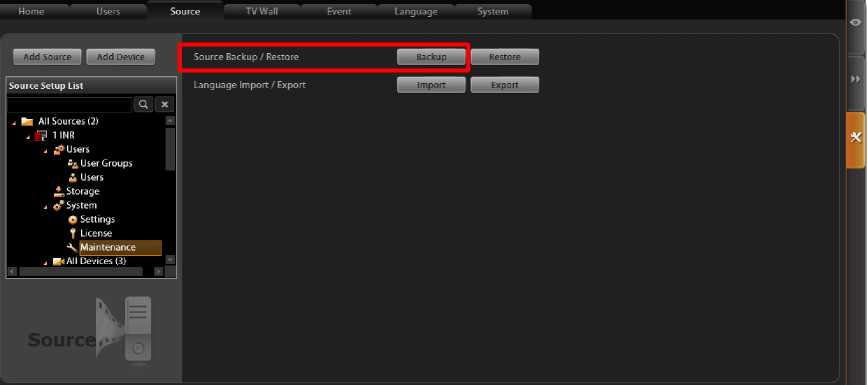

  1. It is strongly recommended that you make a backup of the original NVR settings.
  2. Only the devices in the same network segment with the selected NVR can be found or manually added by clicking “Add Device”.
  3. To modify a device's schedule or event rules, please select the device and enter the Schedule or Event tab on the right.
  4. The customized views saved on an NVR server cannot be configured via CMS interface.
  5. ENR system settings and storage settings are accessible only via ENR interface.

Status Icon Description

On Live View screen or Setup page ^Source tab, the icons shown under All Sources category will display the status of each NVR server as well as the devices.

word image 840 76 word image 840 77 word image 840 78 word image 840 79 word image 840 80 word image 840 81 word image 840 82

Example Icon

Status Description

Video loss:

CMS cannot retrieve the video stream.

Modification has not been saved:

This device's settings have been modified but not saved yet. If you leave these modifications unsaved, they will not take effect.

Connection loss:

CMS cannot build up connection with this NVR or device. Please check the connection settings (including IP Address, Port number, Account Name and Password); or increase the “Connection Timeout” to allow more time for the device or NVR to respond.

Disk Full:

The storage space of this NVR server is full, and no recording is taking place. You will need to go to Setup ^ Source tab and configure the Storage settings in Source Setup List.

Recording:

This device is currently connected, and video is being recorded either manually or according to the schedule. The orange “SD” sign indicates that this device supports local storage.

Connected:

This device is currently connected, and the video stream is viewable on Live screen.

You have blocked the system event messages sent from this server, which means the current status of this server is invisible now.

Event Management

Under CMS's management, an event detected by a single device can be notified not only to the NVR clients but to CMS clients at the same time. For example, once a camera detects a motion, both an NVR client and a can receive the alerts via emails. To do so, you have to set even rules in CMS Setup page ^ Event tab. The event rules set here will be independent from those set on NVR.

word image 840 83 word image 840 84

Camera

Server disk is full!

How to Edit an Event Rule

Go to Setup page ^ Event tab. All the editable event rules are listed on the right.

word image 840 85

NVR Status Event Rule

An event rule set for an NVR will trigger actions to notify CMS client.

  1. Select an NVR source to edit an NVR event rule. There are seven types of NVR status that

can be set as event triggers – Source Loss, Source Recovery, Schedule Service Start, Schedule Service Stop, Disk Full, Disk is Available and Disk Not Found.

word image 840 86

  1. Highlight the rule you wish to edit. Double-click the “Response” field to edit the response action.
  2. On Event Edit window, you can enable multiple response actions by first checking the box(es) to enable the items:

Action Items Function Description

Set to play beep sound for a number of repetitions.

word image 840 87 word image 840 88 On CMS2 Workstation client computer, you can upload a WAV file or an MP3 file as the alert sound, and set how many times this audio file is play when event occurs.

* Audio Alert Times (1-10) 1 |
n Duration(secs) 5
* Audio Alert

[LI Beep

Duration(secs) | 5 Times (1-30'
0 Audio File Path C:\tokyo hot .mp3
Times (1-30) 1

Beep and Audio file responses cannot be executed at the same time.

Enables CMS server to execute a specific command upon this event. You can use it to integrate CMS event with other programs. Enter the path of the command to be executed upon event.

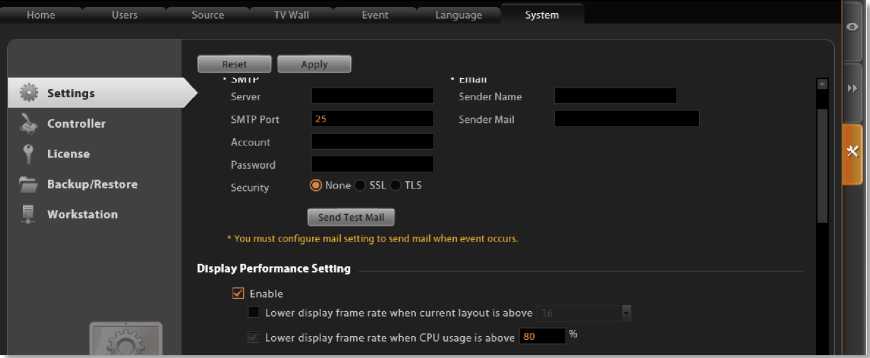

Enables CMS server to send an email notification via SMTP server. The default SMTP and sender's e-mail settings can be set in advance in

Setup page ^System tab^Settings ^ Email& SMTP Settings.

  1. Type one or more recipients' email addresses in “To” column (if more than one, please separate them by “;” symbol) or click the O icon to select recipients from existing NVR User list. The User's Email address should be set in advance (in Setup page^ Users tab^ Users) so that it can be selected in this list.
  2. Edit the e-mail subject and content.

Device Status Event Rule

An event rule set for a specific device will trigger actions to notify CMS client.

1.

Select an NVR, click the arrow

re

to expand its sub-categories, and select the device.

There are five types of device status that can be set as event triggers – Motion, DI Trigger,

Video Loss, Video Recovery, Network Loss and Network Recovery.

  1. Highlight the rule you wish to edit. Double-click the “Response” field to edit the response action.

word image 840 89

3. On Event Edit window, you can enable multiple response actions by first checking the

box(es) to enable the items:

Action Items Function Description

This kind of action will focus your attention on the channel on client's Live

• Focus Channel
0 Pop-up Source \2 ENR a Device 9 FRONT DOOR Q Duration(secs)
0 Hot-spot Source 1 2 EHR H Device 5FAE1 Q Duration (secs)
Group Duration(secs)

View page when triggered.

Pop-up:

Brings up event pop-up playback window of selected channel upon trigger. You may also define the display duration of video on the window.

Hot-spot:

Displays video in Hot-spot window (red flashing frame) upon event. You may also define display duration of video on the

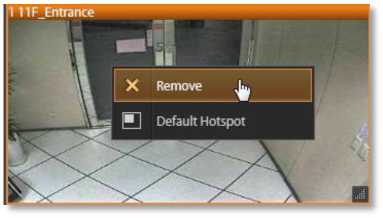

Hot-spot window

You may also define duration of the temporary View. Only Public Views are selectable for Switch View event rule.

Hot-spot and Switch View responses cannot be executed at the same time.

Focus Channel 0 Pop-up Source 2 ENR E Device 9 FRONT DOOR E Durationfsecs) 5
B Hot-spot Device Duration(secs) | 5 |
0 Switch View Group 111F H View 111F 3sx3 Durationtsecs) 3

Switch View:

The current Live View will be switched to another one for a while. To enable this option, you will need to customize and save Views on Live View screen first.

Makes CMS client computer play beep sound for a number of repetitions.

word image 840 90 word image 840 91 On CMS Workstation client computer, you can upload a WAV file or an MP3 file as the alert sound, and set how many times this audio file is played when the event occurs. (This CMS server has to be already on Server Site list, see G. Server Name/Server Sites List on page 30)

• Audio Alert
0 Beep Duration(secs) 5 Times (1-10) 1
Audio Alert

| Beep

Duration(secs) | 5 Times (1-30) | 1
0 Audio File Path C:\tokyo hot .mp3 i|||İ®|| Browse ]
Times (1 – 30) 1

Beep and Audio file responses cannot be executed at the same time.

Pushes any of the following to a designated TV Wall monitor: a specific live view of a device, a customized CMS View, all devices of an NVR, or a TV Wall View Set to. Please check the box “Enable” first to enable this configuration:

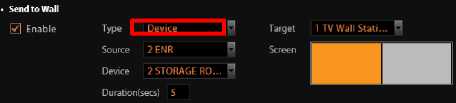

Send live view of a device

Select Type as “Device”, the NVR Source and the Device name, define how long this live view will stay on the screen, and click the monitor from the Target TV Wall station you select on the right.

Send live view of all devices

Select Type as “Source” and the NVR Source, define how long this live view will stay on the screen, and click the monitor from the Target TV Wall station you select

nn tho rinht

Send a CMS View

Select Type as “View”, the name of the View Group, and the View name, define how long this live view will stay on the screen, and click the monitor from the Target TV Wall station you select on the right.

– Send to Wall

0 Enable

Type View

Group 11F

View 11F Storage

Durationfsecs] 5

Target 1 TV Wall Stati… B

Scree 1 1

• Send to Wall

E Enable

Type TV Wall View

TVWall 1 TVWallStati..r3

View View Set 1 3x3_l W

Duration(secs) 5

Send a TV Wall View Set

Select Type as “TV Wall View”, the TV

Wall station, and the name of the View

Set, at last, define how long this live view will stay on the screen.

To validate if this rule is successfully set, please make sure you have properly configured the involved settings like Motion Detection Regions or hardware devices like an audio speaker.

Manage the Event Rules

Event List panel gives an overview on event rules set on the CMS server. Go to Setup page ^ Event tab ^ select All Sources on the left. As the entire available rules of all NVRs are listed here, you may want to sort out some of them from the long list.

View the Event Rules

To sort by NVR Source name or Event Name, click the titles to list the entries in ascending or descending alphabetic order; another way is to click an NVR source of a single device in

Source Setup List to view their own event rules.

word image 840 92

Delete the Event Rules

word image 840 93

On Event List, select the rules you wish to delete, and then click “Delete” to clear this rule.

How to Setup SMTP Settings for Event Rules

CMS supports email notification sent through an SMTP server. You can specify the email and

word image 840 94 word image 840 95

server settings here.

1. Go to Setup page^System tab^Settings ^ Email& SMTP Settings.

Fill in each of the following fields.

Field Name Description
Server Input the sender's SMTP server address. Only alphabets, numbers, and the symbols (.), (_), (-) are valid.
SMTP Port Set the SMTP port, allowed value is from 1~65535, default is 25.
Account Input the name of the SMTP server account. Only alphabets, numbers, and the symbols (@), (.), (_), (-) are valid.
Password Input the password of the SMTP server account. Only alphabets and numbers are valid.
Security Certain webmail providers provide the SSL/TLS-encrypted SMTP connections to secure your data when sending/receiving e-mails. Please check if the SMTP
connection settings you use (especially the SMTP Port) now require to enable either SSL or TLS.
Sender Name Input the name or title of the sender. You may input a name different from the account name.
Sender Mail Input the sender's e-mail address, which should be the same account you set for SMTP server.
  1. As all necessary information is filled in, click “Send Test Mail” to try sending an email according to your settings, and then log in to your SMTP server to check incoming emails. If the test mail is sent successfully, CMS server is ready to send out emails.
  2. As the settings are confirmed, click “Apply” to save.

System Log

The activities performed by logged-in Users are recorded on server as System Log. With the access permission, a user may view, search and export this record for analysis or investigation. This section will provide the instructions on how to read and search data in the system log.

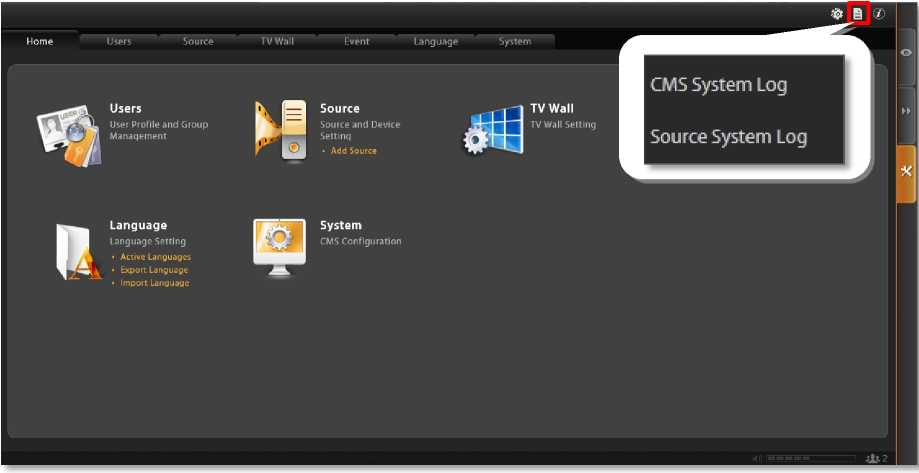

System Log” Q is one of the resident buttons on top of CMS server user interface, click it to enter either “CMS System Log” or “NVR Source System Log”.

word image 840 96

CMS System Log

Upon entering the log page, you will be provided with a blank result list. After you define the searching criteria and click “Search”, the CMS System Log will search the activities performed on CMS.

CMS System Log x

Search Time 2013/04/29 H 16 ! 49 Type Select All

User Account Select All B Source | Select All fl Device Select All »WWW

no

Date Time Type User Account Source Device Description

To start, please define the search criteria.

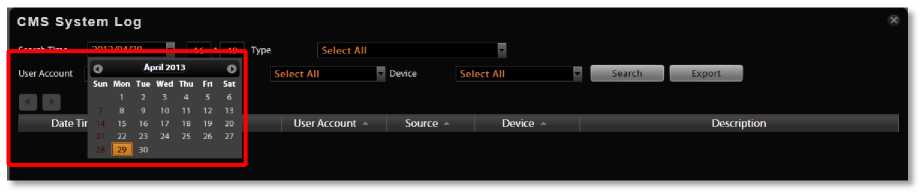

Search Time

The default is your current client time.

word image 840 97

Log Type

You may filter the logs by activity Type. By default, all types are selected.

CMS System Log

Search Time 2013/04/29 H 16 J 49 Type

User Account Select All B Source Select Al

Select All B

0 Select All

10 User Operation

0 Setup Source

0 Setup Source Basic

0 Setup Source System

5^
■ D |
Date Time Type User »vice Description
0 Setup Source User

0 Setup Source Schedule

0 Setup Source Event

0 Setup Source Device

10 Setup System

0 Setup Users

0 Setup Event

10 System Status

10 Request Log

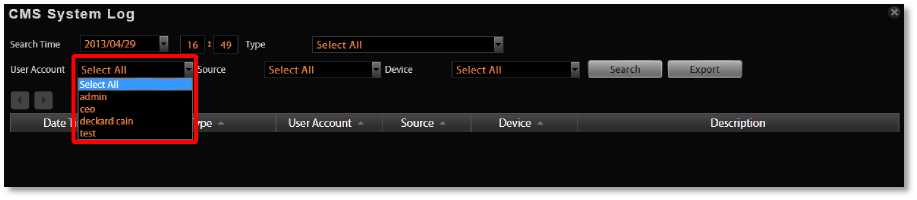

User Account

You may filter the activities performed by a specific user.

word image 840 98

NVR Source / Device

You may filter the activities related to a specific NVR or a device.

CMS System Log

word image 840 99

Search Time

2013/04/29

49

Type

Select All

User Account

Select All

B Source

Date Time

Type

| Select All Select All 11 ADR Branch 2 MobileGO

13 WEN Office

Device

Select All

Source

Select All

1 ADR Branch: 2 ACTi 1

1 ADR Branch: 7 ACTi 2

1 ADR Branch: 9 ACTi

ADR Branch: 11 ACTi

MobileGO: 1 11F_Entrance

2 MobileGO: 2 11F_Lab

2 MobileGO: 3 7F_Office Area A

2 MobileGO: 4 7F_Office PTZ

2 MobileGO: 5 7F_Offke Area B

MobileGO: 6 7F_Office Area All

WEN Office: 1 New Device

Description

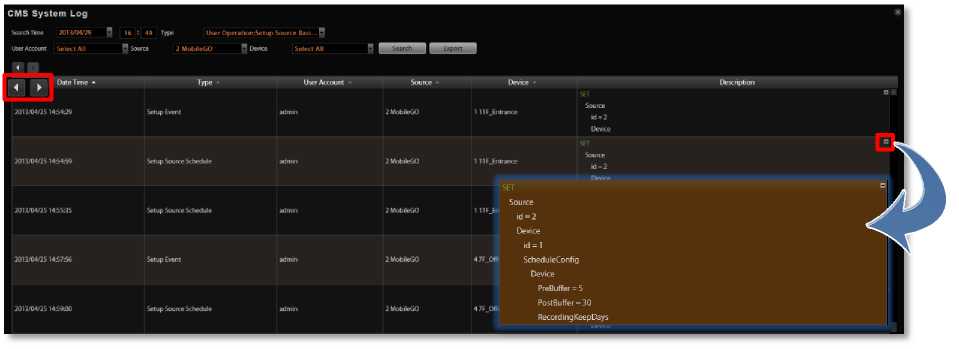

Read the Log

The search result will show 1000 records before and after your query time. You may click the pagination buttons I 1 I to navigate earlier or later records. If there is an icon + on the top right corner of an entry, click it to view the full description content.

word image 840 100

A log entry contains several kinds of information including Date Time, Type, User Account, Source, Device and Description. Check Type and Description fields to know what the user has done or what happened to the whole system. In Type field shows what major functions this behavior was involved in, in Description field narrates how the change was done (in green font color, uppercase) and the result (in white font color).

Take the case below for example, you can tell that the admin user set up an event rule on 2013/4/25 for #1 device(11F_Entrance) on #2 NVR(MobileGo) to trigger a response upon the motion detected by #1 device(11F_Entrance)'s motion region 1.

Date Time Type User Account Source Device Description
SET

source id = 2 Device

s
2013/04/25 14:54:29 Setup Event admin 2MobileGO 1 11F_Entrance id = 1

EventHandleConfig

EventHandle

Event id = Motionl

Note

If the pagination button appears to be disabled, that means no more records are found on CMS server. By default, the server will keep the logs for 30 days. If you wish to adjust the

period, please go to Setup page ^ System tab ^ Settings, in System Log Settin gs

section, key in the value in this field:

Keep System Log for (1-999 days) 30

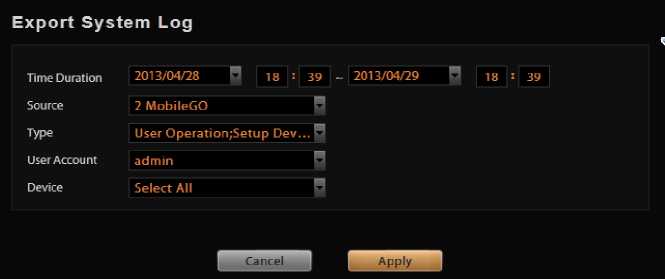

Export the Log

Click “Export” button to export the log as .csv file. You can specify the Time Duration, NVR

Source, User Account and the involved Device of the logs, and click “Apply”.

word image 840 101 word image 840 102

Source System Log

Search Time

2013/04/22

Type

User Operation;Setup Dev…11 user Account

NVR Source System Log

As the CMS administrator owns the same privileges of an NVR administrator, it is able to acquire the NVR system log from CMS interface. Unlike CMS System Log, NVR Source System Log records an NVR user's activities on NVR. Click , enter Source System Log, specify the NVR Source name and other criteria, CMS will start searching.

Source System Log

Search Time 2013/05/03 H 13 t 36 Source 1 ADR Branch

Type Select All n User Account I Select All n Device

Select All

on

Date Time

Type

User Account

Device

Description

Customize Views

After all NVRs and devices are added, you may start customizing the views for different users and purposes. This chapter will teach you how to add video source, arrange the channels and manage live view layouts.

In CMS system, a View refers to the layout where the live images of Cameras or Maps are placed in proper positions to suit the monitoring purpose. This is very similar to a camera group, which often consists of cameras in the same physical location. For example, a View named 11F Emap & Camera may contain the 11F floor plan and the cameras actually placed on 11F.

On CMS Live View, a saved View not only remembers (1) layout style, (2) which channel to display which camera, (3) but the fisheye view mode (for fisheye cameras only.

Live View Interface Overview

O View Toolbar

word image 840 103

  1. View Toolbar: Provides 24 options for layout styles and the functions keys for editing a view.
  2. Channel: Each channel window may display a camera view or a map. In edit mode, you can adjust the channel size at will.
  3. View List: All the saved Views are shown here. On Live View, you can go to ^

View Manager to group and manage these views (refer to Manage the Views on page 66).

  1. Device List: In edit mode, drag a camera from here to your desired channel.

Step 1: Create a New View

On View Tool Bar, click the Create View button | | input the View Name, add a New

Group for this View and decide whether this group is to be Public or Private, and then click

Apply”.

word image 840 104

•The views under Private View Group La) are only available to the User who created them.

•The views under Public View Group □ are open to every User.

word image 840 105 word image 840 106

Step 2: Enter Edit Mode

this view will turn into edit mode. In edit

layout that is perfect for your required channel number and ideal arrangement.

On View Toolbar, click the Edit View button mode, you may add a video source to a channel, and adjust the channel size.

Step 3: Select a Layout

On View Toolbar, click the Expand button to find all provided layout styles. Select a

word image 840 107 word image 840 108 word image 840 109

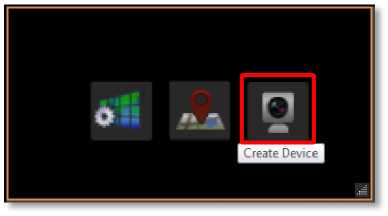

Step 4: Add Video Source

In edit mode, move the mouse over the channel

and click

to select a camera from the source

list. You may also directly pull a camera from the

Device panel to your desired channel.

Remove the camera view: right-click on the channel and select “Remove”.

word image 840 110

word image 840 111

Step 5: Add a Map

By adding a map, you put a picture on the channel, where you may place camera icons later to

make it an “e-Map.

In edit mode, move the mouse over the channel and click to upload a map. Please input the

Map Name, select the image location (file format must be JPG) and click “Apply”.

word image 840 112 word image 840 113

I

0% 10% 20% 30% 40%

50% 60% 70% 80% 90%

Map size:

•Map brightness:

To change the map brightness, right-click on the map, select “Map Mask” and the brightness percentage level.

By default, the map will be displayed in its original size. Use the button s on upper right to adjust the map size.

TO Enlarge to fill channel height

i ] Original image size

a Zoom in

la Zoom out

• Edit map title:

The map title will be shown on channel title bar. In edit mode, right-click on a map channel and

select “Edit Map Information

•Remove the whole map:

Right-click on the map and select “Remove”.

•Manage maps:

All the uploaded images are managed under Map Image Manager. On Live View screen, you may go to ^ Map Image Manager to view, upload or delete the maps.

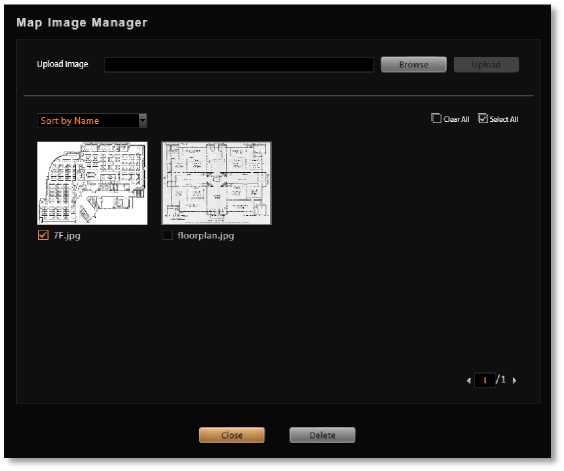

word image 840 114

Step 6: Add Devices to the Map

Pull a device from Device List to the map.

word image 840 115

word image 840 116

•To remove this device from map:

Click E3

•To move this device:

Left-click on the device icon and drag.

•To change the pointed direction:

Mouse over the viewing angle area, left-click on the clockwise arrow to turn the direction.

word image 840 117 word image 840 118 word image 840 119 word image 840 120 word image 840 121 word image 840 122 word image 840 123

•To adjust precise pointed direction: Right-click on the device icon, select “Pointed Direction”.

•To adjust device's viewing angle:

Right-click on the device icon, select

Vision Angle”.

If this is a device of an NVR3 server (including GNR-3000 server, INR-410 server or INR-420

server) and its stream mode is set to DUAL or multi-streaming, you can choose a desired

stream from View Toolbar. This choice of stream will be remembered by this View.

Click S

on right lower corner of the channel window, drag and then release.

Switch channel windows:

Step 7: Adjust the Channel Size & Layout

Adjust the channel size:

word image 840 124 Click on a channel title until the cross arrow appears, hold it to drag this device or map to your desired channel.

Step 8: Save the View

Click | J on View Toolbar to save it.

Step 9: Set Default View

To set a View as default, select it in the View List panel and then ch on View Tool

Bar. By next time you log in, you will directly enter this View.

Step 10: Set Default Hotspot Channel (Optional)

By system default, the global hotspot channel will always be the top left one. You can set any

other channel on your live view screen to be the default hotspot channel. Right-click on the channel and select “Default Hotspot Bar to save it.

!■ I Default Hotspot

, then click

on View Tool

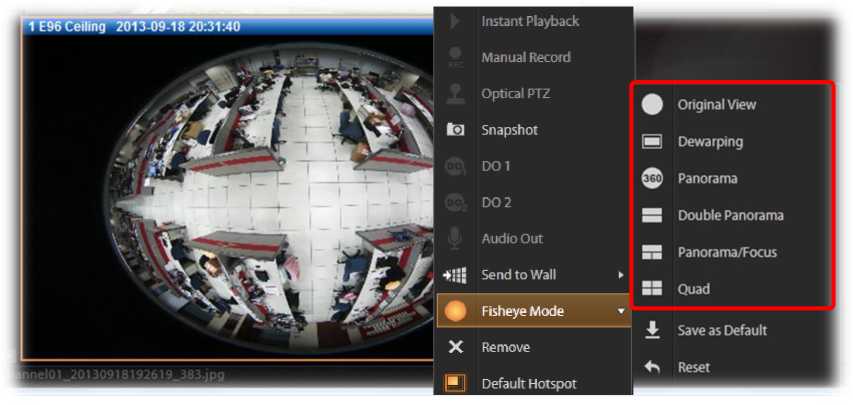

Step 11: Set Fisheye Camera Mode

Define a view for a fisheye camera channel by selecting its mode and using ePTZ control.

Please note that the maximum number of fisheye channels on the same View is 16.

  1. On this channel, right-click to bring up channel menu, click “Fisheye Mode” and select

word image 840 125

one mode.

2. After the fisheye mode is selected, click a region of interest.

•Use PTZ Panel controls to operate PTZ movements:

word image 840 126

ePTZ Controls on PTZ Panel

8 directional buttons

Zoom in / Zoom out

•Click the mouse anywhere on the view to pan/tilt, scroll the mouse wheel to zoom

in/out.

word image 840 127 word image 840 128 word image 840 129

To reset the ePTZ navigation area back to default viewing angle, right-click to bring up

channel menu, and then click “Reset”.

3. click on View Tool Bar to save the configuration.

Note

Once a channel is changed to any of the following fisheye modes: Dewarping, Panorama, Double Panorama, Panorama/Focus or Quad, the resolution of this live stream will become 1920×1080, while NVR still records the live stream at the resolution you set on Setup page.

Manage the Views

Each View belongs to a specific View Group. With the group management, CMS makes it easy to deal with Views you created for multiple Users.

After you created and saved the Views on Live View screen, click ^ View Manager.

Click on the arrow icon in front of a group folder to reveal its Views.

(21 By selecting a View, you may directly modify its name in Name field.

(31 You may change a group's Group Type. Upon the change, for example, by changing a

group from “Private” to ''Public”, all the views belonging to it will be open to every User.

[4] Click this icon to add a new group. |__O_

1 New Group Public

(5j Click this icon to delete a selected group.

[61 Click this icon to copy a selected group to another group.

(7J Click this icon to move a selected group to another group.

word image 840 130

Set View Link

By creating a link button on a map view, you can directly be linked to another view. On the picture below shows how to create a link button to 7F View on 11F map.

word image 840 131

  1. Select a map View, on which you will place a link button to another view.
  2. Click on View Tool Bar to enter edit mode.
  3. From View List, drag the target View to current View, a link button will appear.
  4. Click on View Tool Bar to save it.

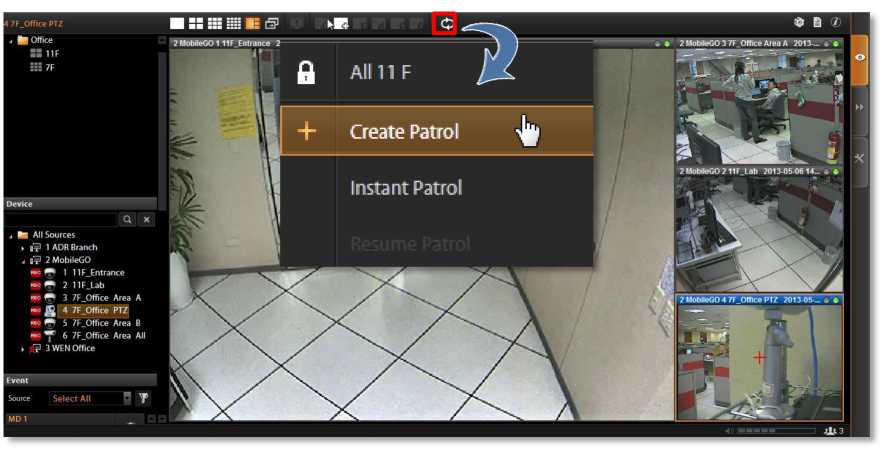

Set View Patrol

You may have the saved Views patrol in turns. In this way, the views in different area in your

site may cycle through themselves for you automatically.

word image 840 132

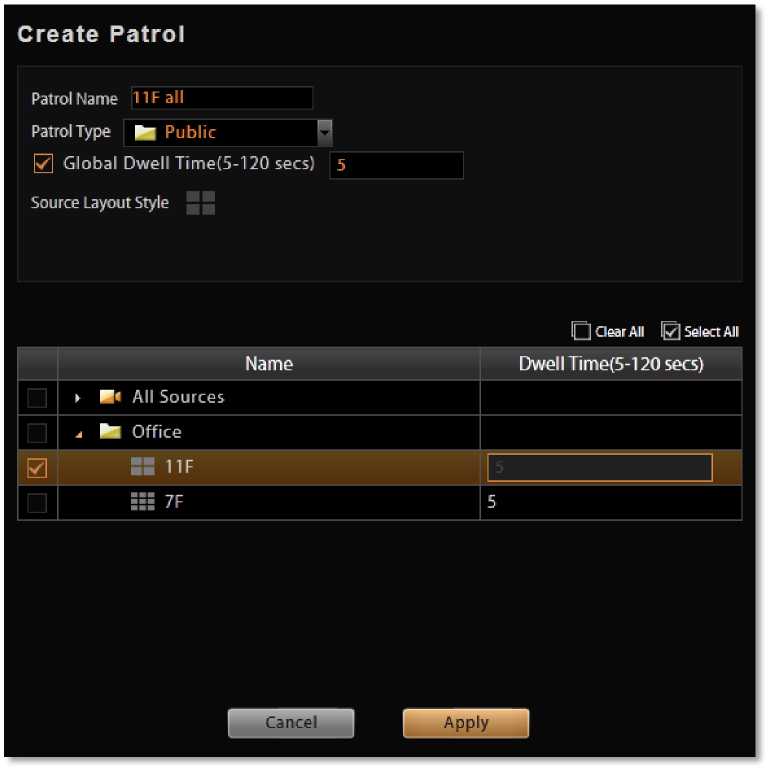

On View Tool Bar, click then Create Patrol.

  1. Input the Patrol Name.
  2. Select the Patrol Type to be open to all Users or to the creator only.
  3. Define the Global Dwell Time between the views. If you want to set different dwell time length for individual Views, do not check this option, and configure them separately in below table.
  4. Choose the Views to display in patrol. If you select the All Sources group, you will also need to select “Source Layout Style” for it.
  5. Click “Apply” to save the settings.

word image 840 133

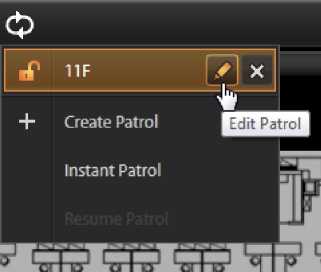

The saved patrols will be shown on the patrol list after you click on View Tool Bar, you may

6.

word image 840 134 delete and edit a saved patrol or select it to start patrolling.

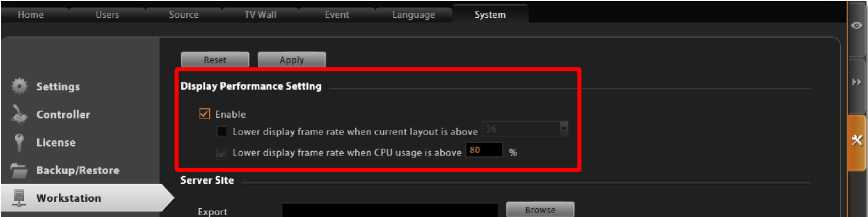

Tips to Enhance Live View Performance

Live view for multiple channels requires sufficient computing power to run the performance.

In certain extreme cases, like when viewing several megapixel H.264 video streams at the same time, client computer will be overloaded and hence affect browser's performance. This is a common limitation imposed upon all Windows based video management programs and web browser.

To enhance live view performance, below are several tips you may try:

  1. Use another browser client to share these high-resolution channels. Given that there are 32 megapixel channels to be monitored, you may have Layout 1 to display channel 1~16, set Layout 2 to display channel 17~32, then open one browser client to show Layout 1 and the second browser on an extended monitor to show Layout 2.
  2. Have CMS automatically lower the frame rate of live streams when system loading is high. Go to Setup page ^ System tab^ Settings ^ Display Performance Setting and enable this function. Basically, this setting will lower frame rate when the CPU usage is above certain percentage. You may also enable “Lower the frame rate when current layout is above_”, in this way, when the layout is displaying over certain number of channels, the frame rate of all live streams will be declined. By default, this setting will be applied to the live display of all connected web clients and Workstation clients.

word image 840 135

A Workstation client computer can have its own specific display configuration without being affected by CMS universal setting. Log in as CMS2 Workstation client, go to Setup page ^ System tab^ Workstation and configure the Display Performance Setting.

word image 840 136

Let Windows Automatically Start up CMS Live View

You may have the CMS client application automatically run and open the live view after Windows starts. In this way, you may save steps and time before you eventually see the desired live view screen. Additionally, whenever a power breakdown takes place, the live view may recover as soon as your computer resumes.

If more than one users would log in to this computer, this tip might not be suitable due to account security issues.

  1. On CMS server, set a Default View for your account. For detailed procedures, please refer to this section in this manual: Customize Views on page 59.
  2. Set Auto-login for your Workstation client or web browser client. For detailed procedures, please refer to this section in this manual: C. Remember Account/Password on page 28.
  3. word image 840 137 If you are using a browser client, open the browser, and set the CMS server IP as default homepage.
  4. Set your browser or Workstation application to start right after Windows has started. Click Windows Start ^ Programs ^ Startup to open the Startup folder, and drag the application shortcut into it. In your case, you will have to drag the Internet Explorer shortcut or CMS2Workstation shortcut into the Startup folder.
  5. The next time you start Windows, CMS live view will be running automatically, and you may start monitoring the system in no time.

Customize System Language

CMS server supports multiple languages for user interface display. There are already several translated language files in the server system. Each language is open to customization based on your own needs. This section will describe how to choose or customize language strings for your site.

Change System Language

You may decide which languages to be selectable on Login screen. The chosen languages will appear on the “Language” dropdown list.

word image 840 138

Live

Language

English

cesky

Dansk

Deutsch

EAAqviKa

Espanol

Suomen kieli

Français

Magyar

Bahasa Indonesia

Italiano

Nederlands Polski Portugues tfi^pnâ

Anil a3blK 5%nska Tna Türkçe Tieng Vret nnin

English Q

CMS Workstation

Forgot Password?

Server Name

Server IP

Server Port

Account

Password

Initial Page

Remember Account/Password

Auto Login

Don't Remember

172.16.26.91

1018

Go to Setup page ^Language tab, click “Active Languages”. On popup window, check the languages you need, and click “Apply”. By default, all languages are selected. As English and

Traditional Chinese are the default system language, they are not removable from this list.

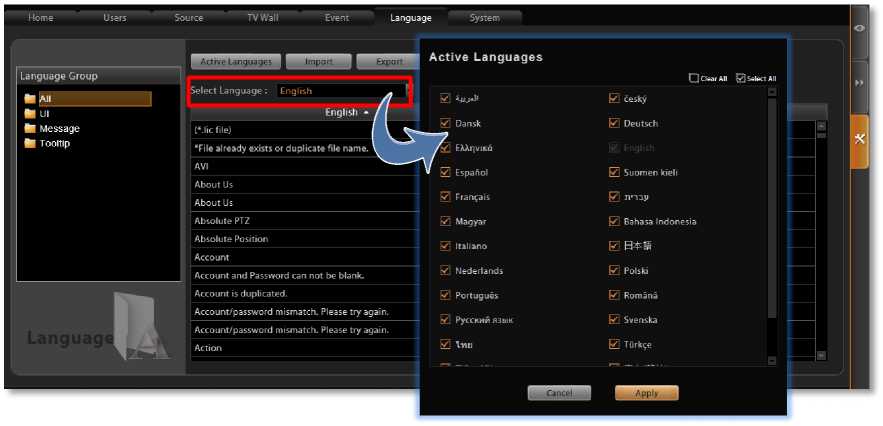

word image 840 139

Edit User Interface Wordings

Each language file contains four editable string tables. Each table displays the default wordings in English and the translation in target language.

To view the string table:

  1. Select the language from “Select Language” dropdown list, then select a table from the

Language Group” list on the left column.

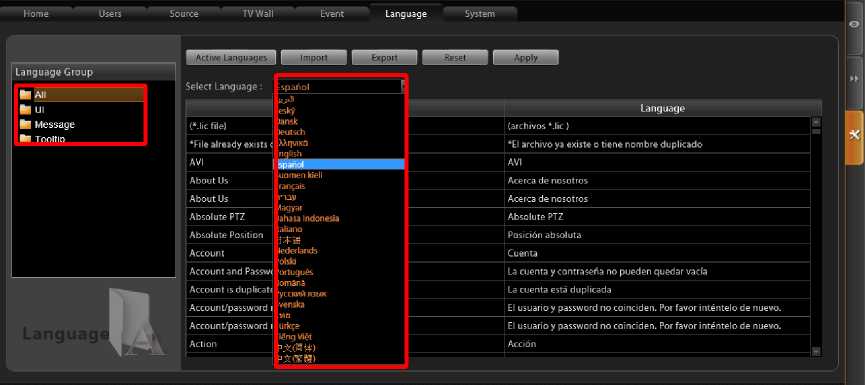

word image 840 140

  1. Your target language will be displayed on the right column, while the default system

language “English” appears on the left for reference. Click in any field on right column to

customize your desired wordings, and click “Apply” to overwrite the current.

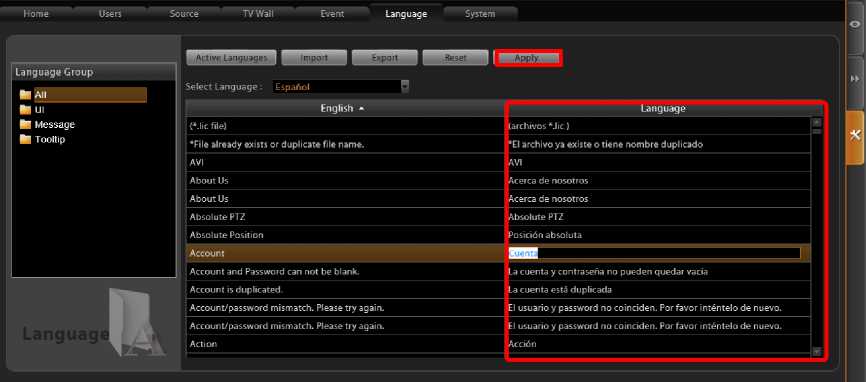

word image 840 141

The new string will be applied by next time you log in. If you log in as a CMS2 Workstation client, please pres button on Login page to synchronize with the latest modified

language file, then log in to the system.

CMS Workstation

Server Name
Server IP 172.16.26.91
Server Port 1018
Account

Password

Initial Page

Live

Language

English

Remember Account/Password

Don't Remember

Forgot Password?

Export / Import Language String File

You may also click “Export” to export the language file as .xml format to edit in Notepad, or

Import” to import a language file to use in the system.

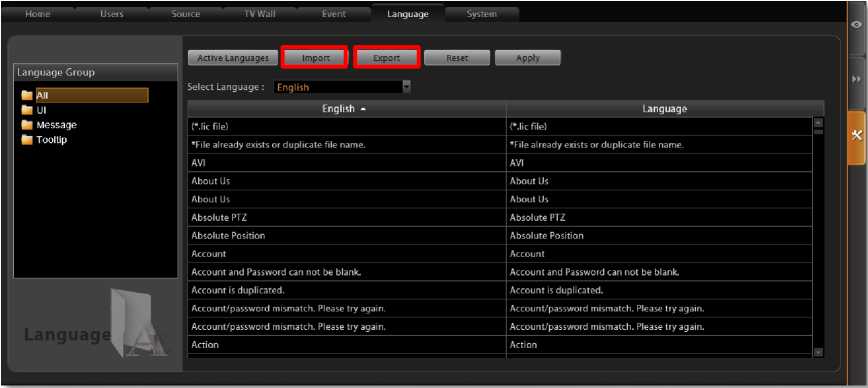

word image 840 142

In general, it is suggested that you always save a modified language table with a different file name in a location other than default system language folder on server computer C:\Program Files\ACTi Corporation\CMS2\Language, then import it to use. In this way, you can avoid overwriting the original language file.

Display Configurations

You can change the user interface style by arranging the main screen and Panel/Device List on the right or left. Go to Setup page^System tab^Settings, scroll down to the User Interface Style section, select the setting style then click “Apply”. The change will be applied upon your next login.

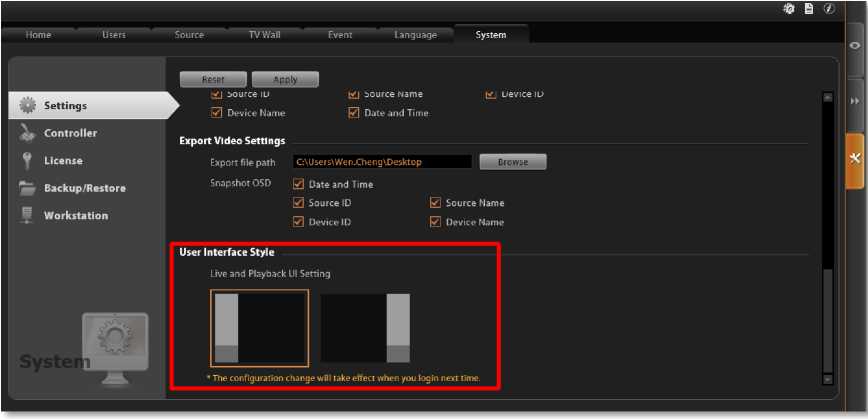

word image 840 143

Video & Snapshot Export Configurations

By default, the snapshots taken by Users on Live View and all exported video files are saved to the current client's Desktop. You may configure the destination by selecting another available file location on your client's computer. Go to Setup page^System tab^Settings, in Export Video Settings section, click “Browse” to choose the file path.

You may also define what information is printed on each snapshot by checking the items: Date and time, Source ID, Device ID, Source Name and Device Name.

These configurations will take place after you click “Apply”.

word image 840 144

Joystick

In CMS, other than user interface PTZ panel and mouse operation, you may also control the PTZ movements by physical controllers. CMS supports two types of controllers, which both feature in a joystick with twelve buttons for users to assign specific actions.

word image 840 145 word image 840 146

Model: IP Desktop

Manufacturer: CH Products

Model: Extreme™ 3D Pro

Manufacturer: Logitech

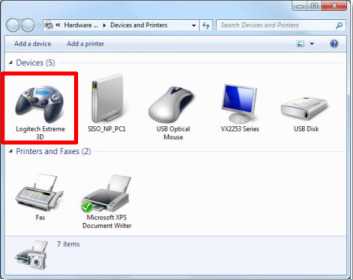

word image 840 147

How to Install the Joystick

  1. Log out from CMS client interface.
  2. Connect the controller device to your computer. To make sure the device is installed properly, open Windows Start menu and enter Devices and Printers to check the status.
  3. Log in to CMS server, go to Setup page ^System tab, enter “Controller” section and select your product.
  4. You may assign specific commands from dropdown list to buttons 1~12 of the controller. When setting is done, click

Apply”. The modification you did on one controller model will be applied to the other

joystick model as well.

5. To validate its function, go to Live View page and focus on a PTZ device channel to

word image 840 148

operate the supported PTZ operations.

Un-install Server Software

In certain cases, un-installation of CMS system is necessary, for example, (1) you want to terminate CMS server and clear all the evidence due to privacy and security reasons, (2) you need to reinstall the system due to an unsuccessful installation.

Before starting un-installation, please back up important data (please refer to Back up System Data on page 79) first and prepare the CMS server install shield application. This chapter will describe un-installation process.

Step 1: Remove CMS Server Program

1. Go to Windows Control Paneli Programs and Features (in Windows Vista /Windows

word image 840 149

7/Windows 2008) to remove it. When you un-install CMS server program, the web client

word image 840 1502. After you choose to uninstall “ACTi CMS Server” program, the uninstallshield will execute and notify you when it is completed.

Step 2: Remove CMS Server Program Folder (Optional)

If you are performing a complete un-installation without leaving any CMS server related data on the current computer, you may consider deleting this folder.

After un-installation, the CMS system folder will remain under ACTi product folder ACTi Corporation on your hard drive, the system configuration data here will not be removed until

you delete them manually. By default, the path of CMS system folder is C:\Program Files\ACTi Corporation.

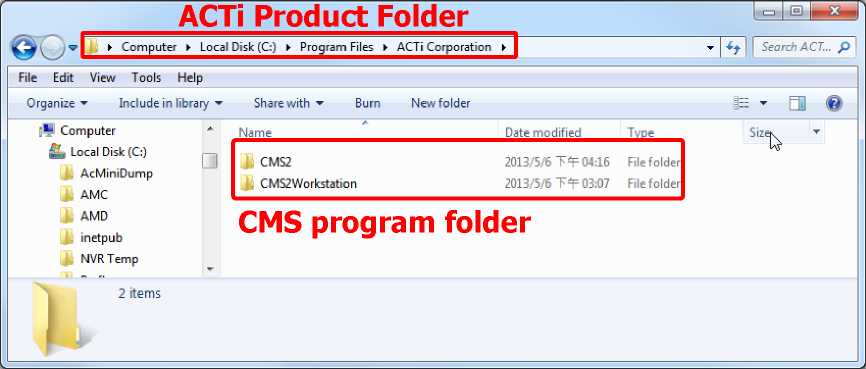

word image 840 151

However, keeping this folder is convenient for a un-installation followed by an instant re-installation, for the previous system settings can directly be applied to the new server.

Back up System Data

Making regular system backups is always recommended in case of unexpected disasters or accidents that may damage CMS server. Other than this, you may need to perform an on-demand backing up to (1) migrate the whole CMS server data to another computer, or (2) re-install the CMS server on current computer. There are several types of data on CMS server essential to your surveillance system please consider your purpose and follow the below instructions to create their backups.

CMS Settings Backup

CMS server can create a backup file of the whole system settings within one click. The settings being backed up include the following properties you set for system: (1) Users (2) Imported NVR Source & Device properties (3) Event Rules (4) System ^Settings / User Interface Style / Joystick, and (7) the saved Views in Live View page, and (8) TV Wall Server information and TV Wall Views.

Step 1: Back up CMS System Settings

1. Go to Setup page ^System tab^ Backup / Restore

  1. In Backup section, click “Browse” to select the destination for backup file, the file will be

saved as Backup_YYYYMMDD.xml file. Then click “Backup” to export the file.

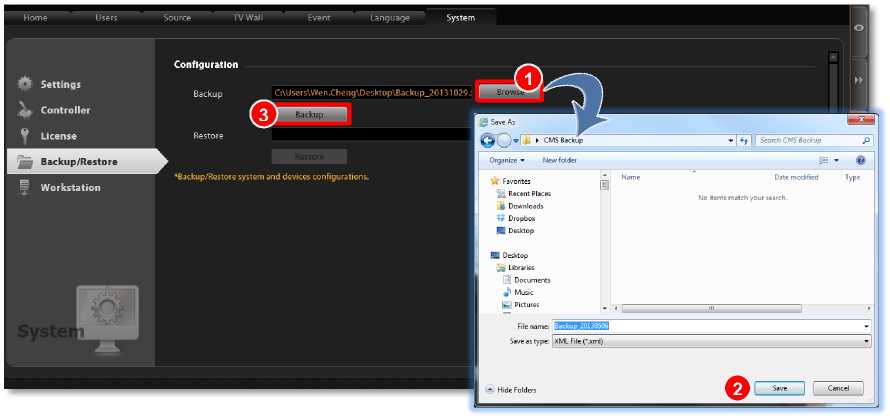

word image 840 152

Important Notice

The license data is not included in the system backup file. You have to preserve the license key information provided in email or printed card to you after the purchase takes place.

Step 2: Back up CMS System Log (Optional)

The system log records the operations Users perform during logging in to CMS server. You may export the system log of latest three days as *.csv file as backup. Please refer to the section in this manual: Export the Log on page 58 for instructions.

Step 3: Back up NVR Source Backup (Optional)

You may also back up individual NVR's system on Setup page ^ System tab^Source tab. This backup file is the same with that made on the NVR interface, which contains the entire system settings of an NVR server and its customized Views.

On Source tab, select your desired NVR and enter its sub category Maintenance. Click

Backup”, select a file destination path and click “Apply”.

word image 840 153

Restore System Data

Before starting restoring the system, make sure you have done the following:

  1. Re-activate the license

If you have activated the CMS licenses then done un-installation previously, please contact ACTi Customer Help Desk http://www.acti.com/CHD to clear the original registration data in ACTi license database, prepare the license key information for online activation or the activation file(.lic) for offline activation, and follow the instructions How to Activate the Licenses on page 21 to activate your license. The license should be activated before settings are restored so that the licensed channels are ready for recovery.

  1. The backup file(.xml).

To start,

  1. Go to Setup page ^System tab^ Backup / Restore
  2. In Restore section, Click “Browse” to select the backup file, and then click “Restore” to start restoring the settings.

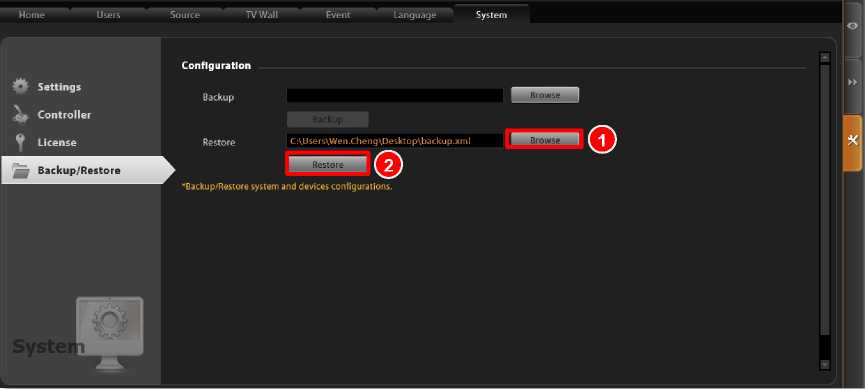

word image 840 154

  1. The restoring process requires logging out of CMS server. After restoring is done, you may log in using your previous user account properties.

Advanced Administrative Tasks

To assist the CMS administrator in monitoring the server status and basic trouble-shooting, the CMS2 Administrator Tool is installed along with CMS server program on the server computer. This tool will start running as the server computer starts up, and resides in the system tray. You may double-click the icon to open this tool.

word image 840 155 word image 840 156 word image 840 157 word image 840 158 word image 840 159

CMS Server Status

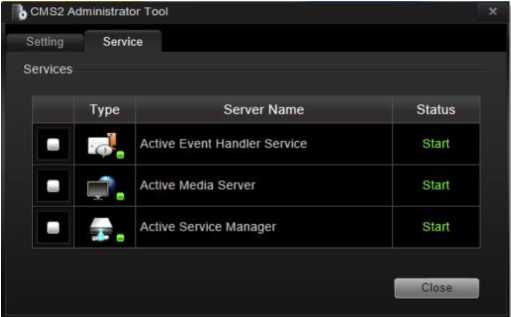

word image 840 160

You may observe the CMS services status on Service tab.

Change Server Port

word image 840 161

On Settings tab, input a new port and then click “Apply

Change Authentication Method

You may enable the Digest authentication other than the basic way. With this method, when logging in to CMS server, User's credentials are encrypted using MD5 algorithm. In this way, there is more secure protection to prevent from unauthorized access.

Please also note that, with Digest authentication method enabled, a mobile client user or a

domain user will be blocked from CMS system.

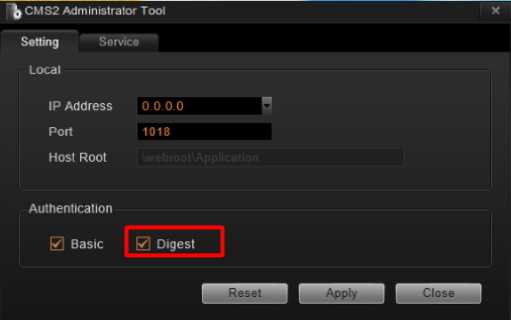

word image 840 162

Print Friendly, PDF & Email

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
