Amcrest Orion review and installation guide 2024

review and installation guide 2024, This software the most stable and recommended method of accessing your devices from your . It is free software provided by Amcrest that can provide a means of accessing all your devices in one central location without the use of a plugin or web browser.

To download the latest version of Amcrest Orion software to your Windows device please click on the link provided below.

Amcrest Orion Download for Windows PC

To download the user manual for the Amcrest Orion software, click here.

For additional , such as useful articles or other information related to the Amcrest Orion surveillance software, click here.

Amcrest Orion Surveillance Software Download

To download the latest version of Amcrest Orion Surveillance software to your Windows device please click on the link provided below.

Amcrest_Orion_Surveillance_Software.exe

Amcrest Orion Surveillance Software User Manual

To download the Amcrest Orion Surveillance Software user manual, please click on the link provided below.

Amcrest_Orion_Software_User_Manual.pdf

Amcrest Orion Datasheet

To access the datasheet for the Amcrest Orion software, please click on the link provided below.

Amcrest_Orion_Datasheet.pdf

How To Install The Amcrest Orion Surveillance Software

Amcrest Orion is a video surveillance software application that provides an all-in-one, full-featured solution to manage and monitor Amcrest network cameras, NVRs, and DVRs, etc. The software supports up to 64 devices for free with a maximum of 256 channels. It is currently a Windows based only software, however, to download the latest version of this software click here.

For more information on how to install the software, please refer to the information provided below.

Step 1: Download the Amcrest Orion software and open the .exe file.  Select the software license agreement and click Next.

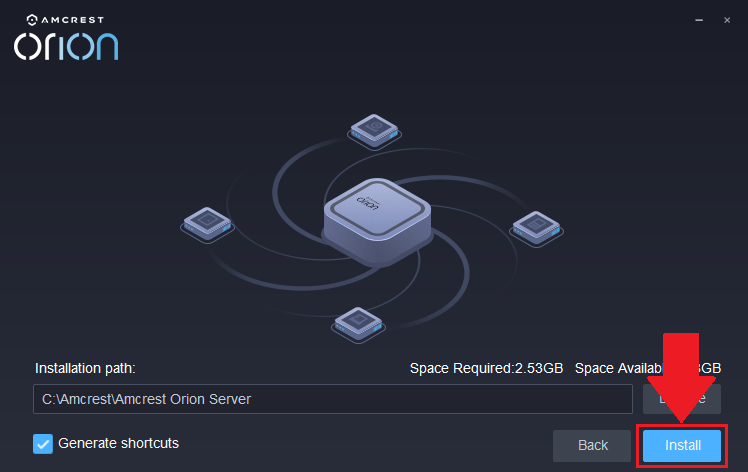

Step 2: Select an Installation Path if needed using the Browse option. Click Install.

Screenshot 2023 08 24 143522

Note: Allow the components to install on your computer.

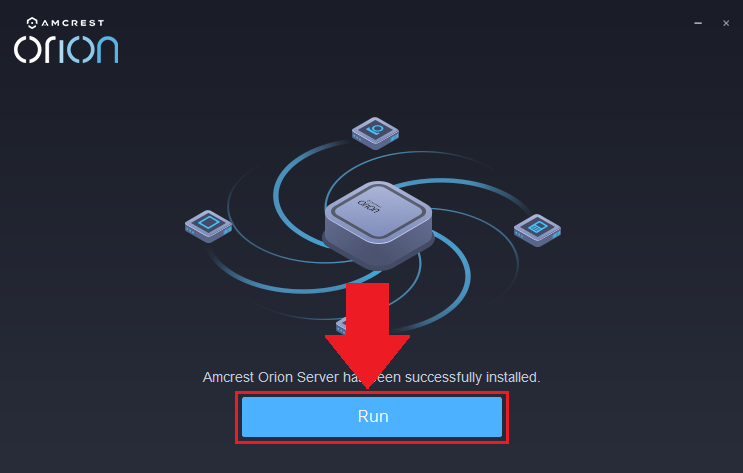

Step 3: Click Run.

Screenshot 2023 08 24 143905

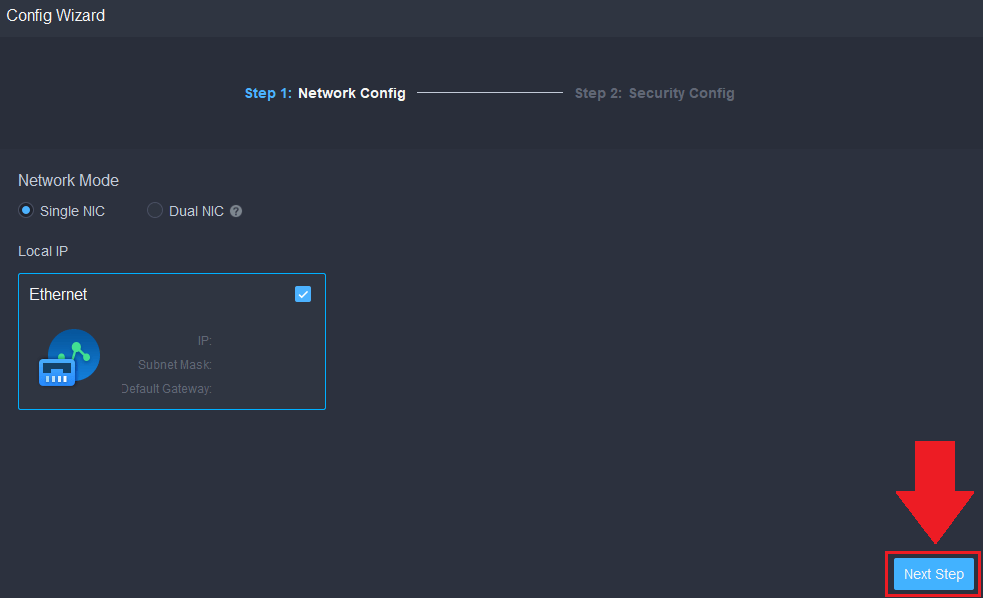

Step 4: Select a network mode and the network card and click Next Step.

Screenshot 2023 08 24 144157

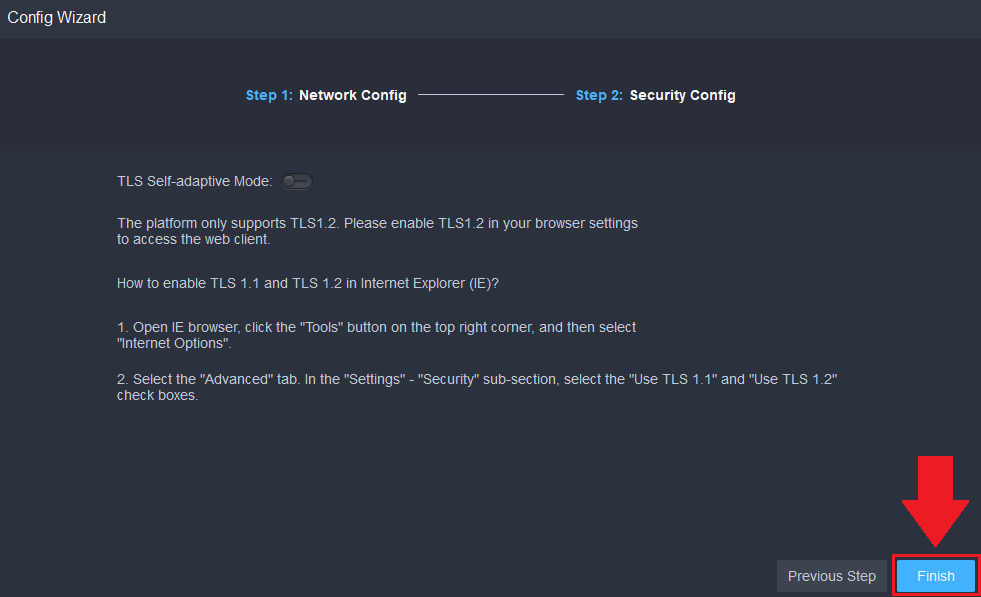

Step 5: Set the TLS self adaptive mode if necessary. Please note, this is disabled by default but can be enabled if needed. Click Finish.

Screenshot 2023 08 24 144529

Note: TLS self adaptive mode is a security feature that allows Amcrest devices to automatically switch between Transport Layer Security (TLS) versions 1.2 and 1.3 depending on the capabilities of the connected device. This ensures that the highest level of security is always used, while also avoiding compatibility issues with older devices.

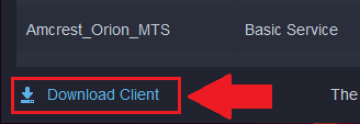

Step 6: Download the Client software to your computer.

Screenshot 2023 08 24 144713 360w124h

Note: Click proceed anyway in the browser if needed to download the client software.

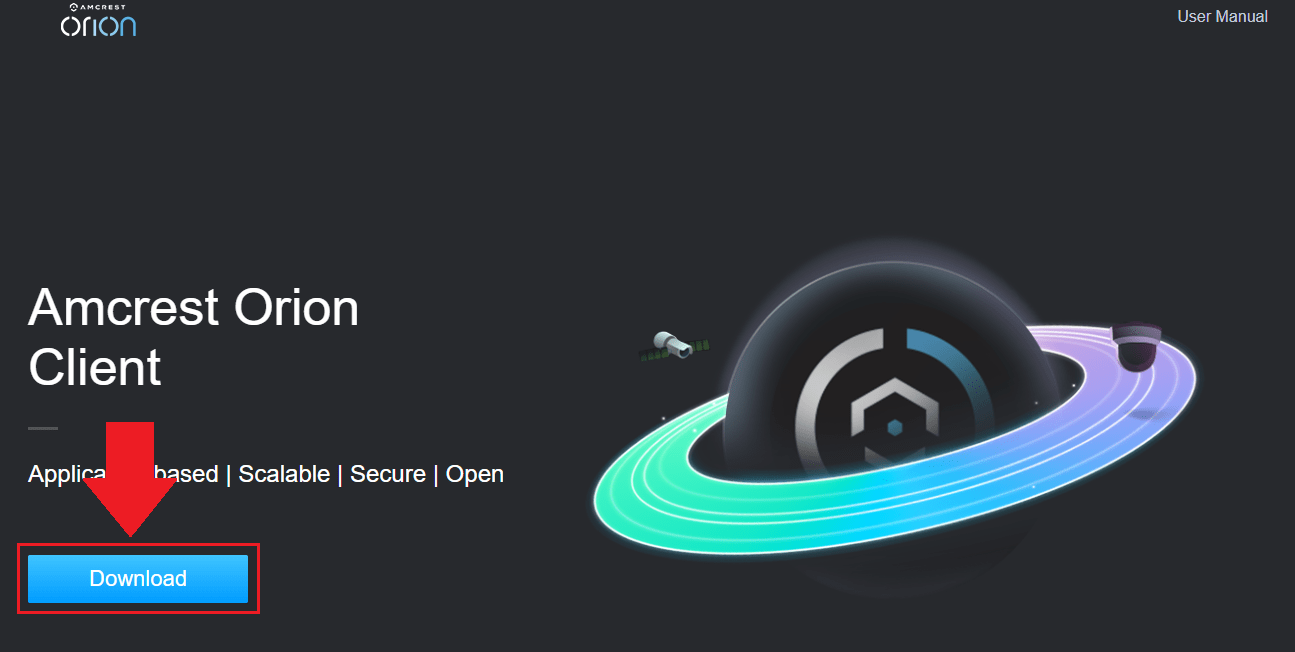

Step 7: Click Download and follow the steps to install the client software to your computer and run the client software.

Screenshot 2023 08 24 144838

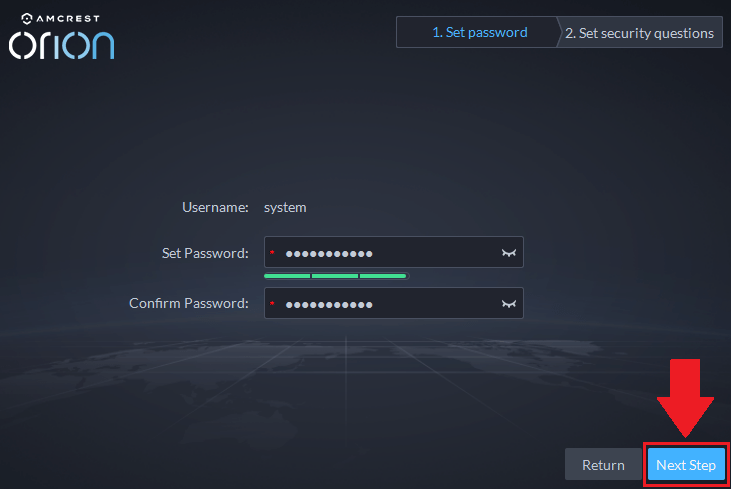

Step 8: Enter the IP address found on the server client into the Server Address field. The default username will be system. Enter a for the client account into the interface, click Next Step.

Screenshot 2023 08 24 150119

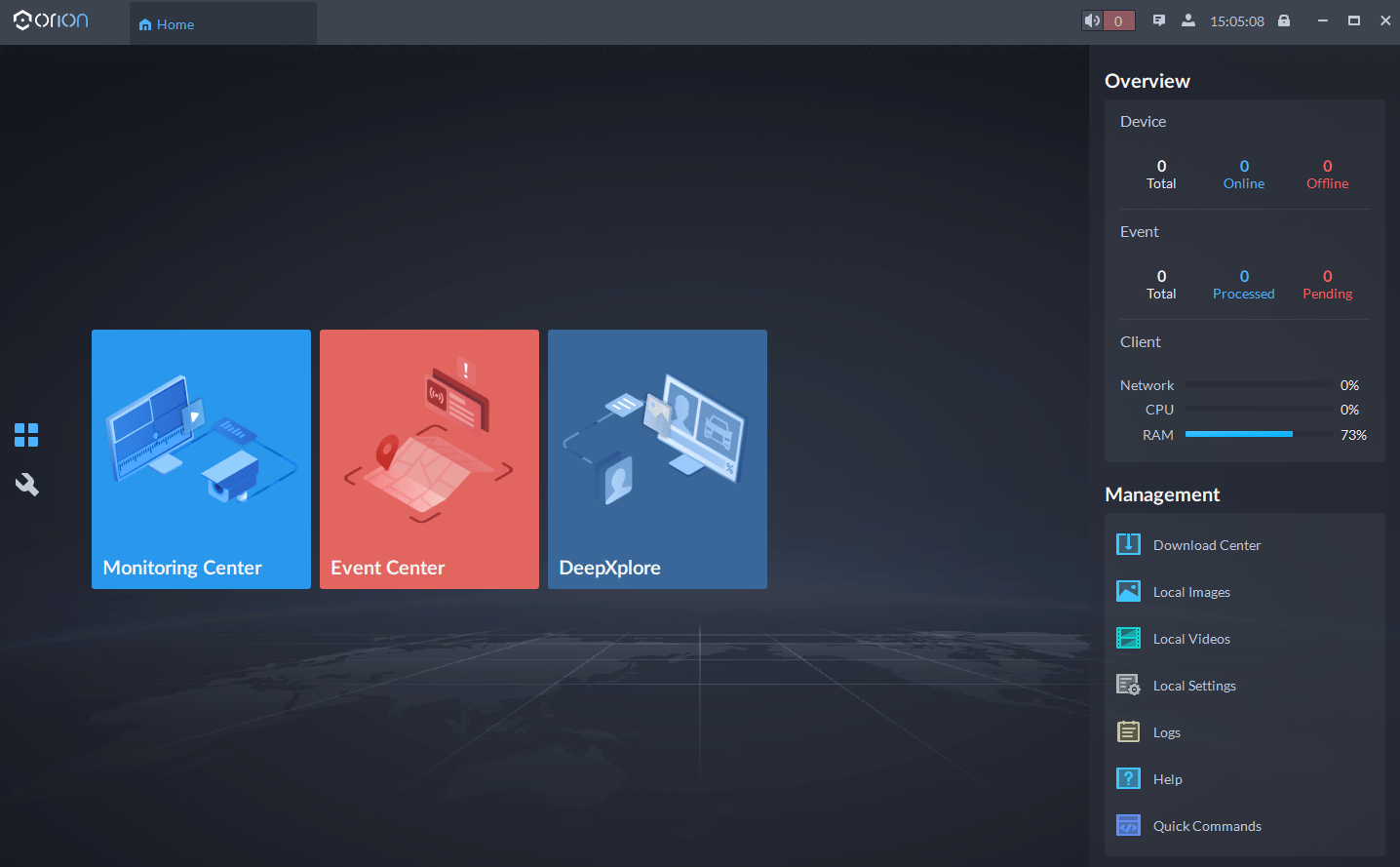

Note: Set security questions, this information will be used to access your client software if you forgot the password. Click OK. This will load the client software.

18848404958989

How To Add An Amcrest Camera To Amcrest Orion Surveillance Software

Before connecting your device to the Amcrest Orion software, please make sure the device is initialized and on the same network as the computer. You will need the username and password for the device before you are able to add it to the camera. For more information, please refer to the information provided below.

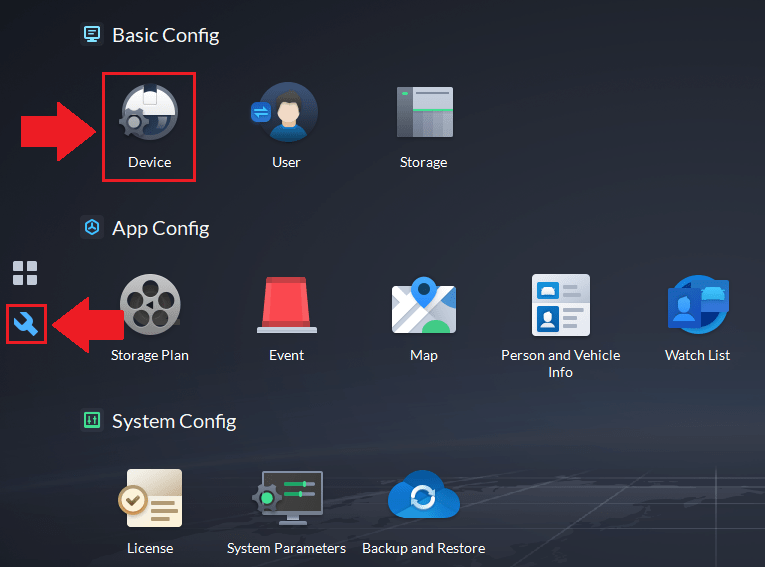

Step 1: Access the client software and select the icon. Select Device.

Screenshot 2023 08 24 151702

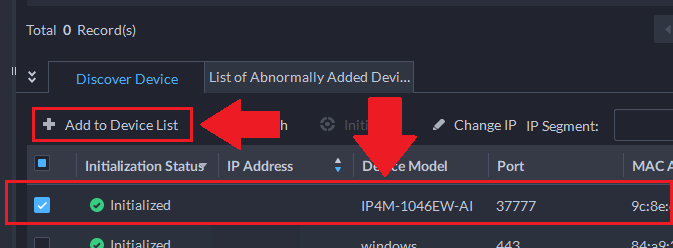

Step 2: All connected devices should be displayed in the Discover Device menu, however, click the Refresh button to refresh the interface if needed.  Select the device and click Add to Device List.

Screenshot 2023 08 24 152220

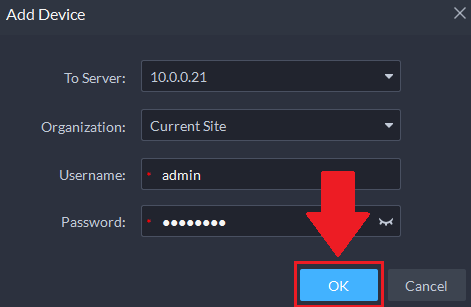

Step 3: Enter the password for the device and click OK.

Screenshot 2023 08 24 152423

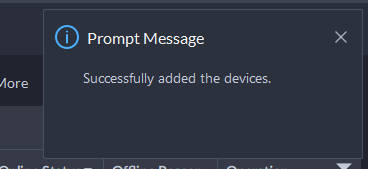

The device will be added successfully.

18849297414541

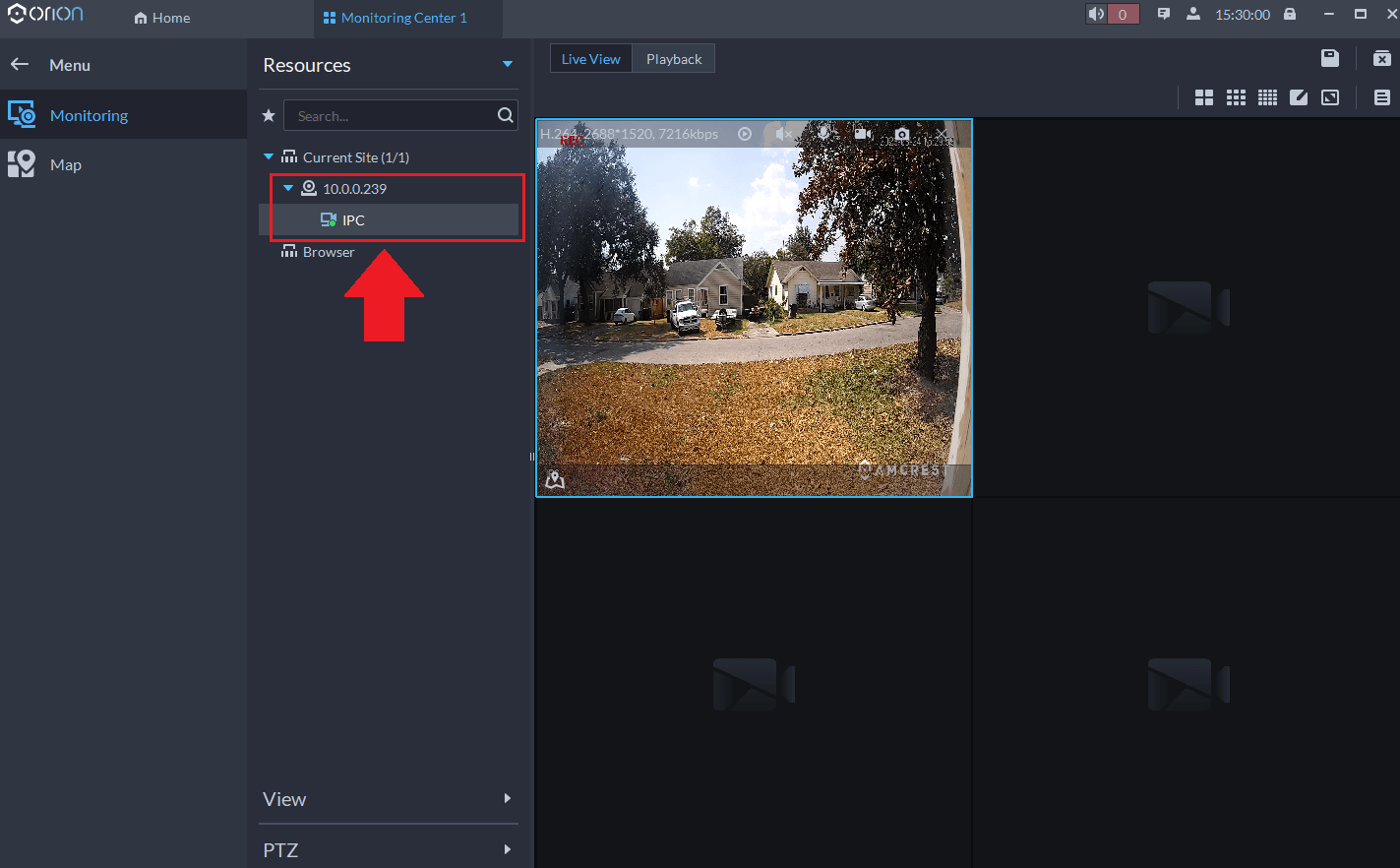

Step 4: To view the device, access the main menu and click on Monitoring Center. Double click the device from the device list to view the live feed.

Screenshot 2023 08 24 153015

How to Use the Dewarping Features on a Fisheye Camera Using Amcrest Orion Surveillance Software

Fisheye dewarping (Fisheye unwrapping) provides a correction in the distortion of images obtained from a camera equipped with a fisheye lens. This allows the user to view different aspects and views of the 360° image provided by the fisheye lens of the camera. For more information on how to use the fisheye dewarping functions in the Amcrest Surveillance Pro software, please refer to the information provided below.

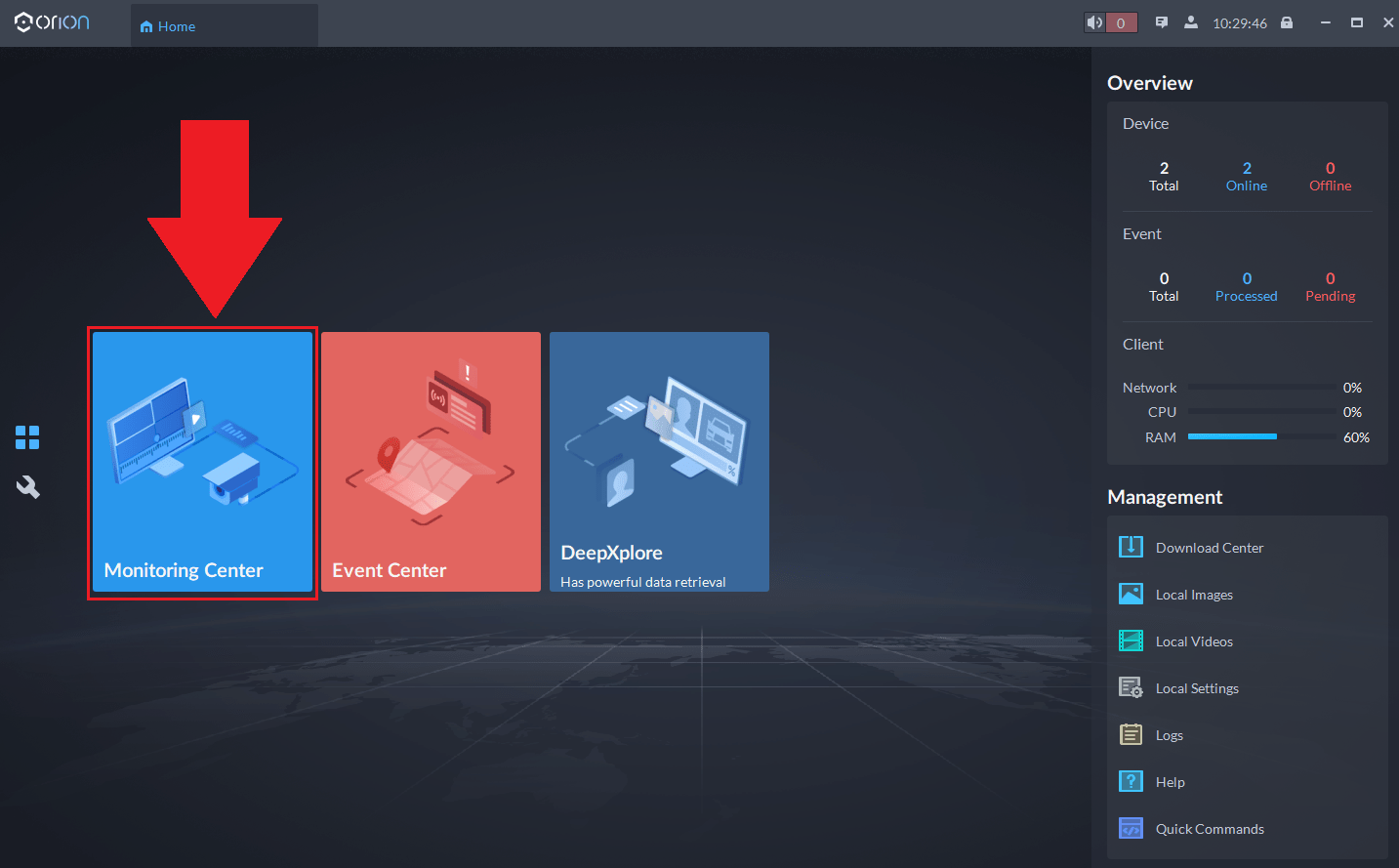

Step 1: Log into the Amcrest Orion Software and select Monitoring Center.

Screenshot 2023 08 28 103003

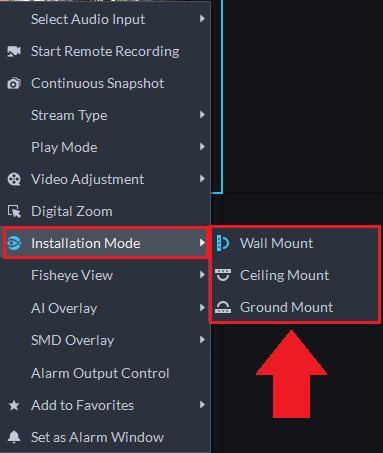

Step 2: Select your fisheye camera from the device list to view the live feed. Right-click on the live feed to access the options menu. Hover your mouse pointer over Installation Mode and select an installation mode.

Screenshot 66

Installation Modes Explained

mceclip1 43w41h Wall Mount: This allows you to access preset fisheye features based on a wall or sideways mount installation.
mceclip2 Ceiling Mount: This allows you to access preset fisheye features based on a ceiling or straight mount installation.
mceclip3 47w41h Ground Mount: This allows you to access preset fisheye features based on a ground position mount installation.

Note: Different installation modes will provide different dewarping functions. For more information on the dewarping functions provided with each installation mode, please refer to Dewarping Features Explained.

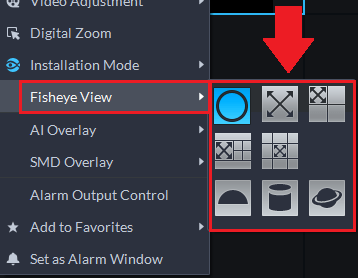

Step 3: Hover your mouse over Fisheye View and select a dewarping option from the provided list of icons.

Screenshot 67

Dewarping Features Explained

Wall Mount

Screenshot 2023 08 28 104423 58w55h Provides the user to view a full spectrum live feed of the camera without dewrapping features enabled.
18945053093517 Provides a full, square image, of the live feed. The live feed can be controlled with the mouse in an up and down motion.
18945027976077 Provides a four-layered, square image of the live feed. The live feed can be controlled using the control center in the first quadrant of the live view screen. Each layer is depicted with different colors: First Quadrant (Control): Red, Second Quadrant: Neon Green, Third Quadrant: Blue, Fourth Quadrant.
18945030729485 Provides a four-layered, square image of the live feed with a central control center. Hover the mouse over the center to populate the control center. Each layer is depicted with different colors: First Quadrant: Neon Green, Second Quadrant: Blue, Third Quadrant: Yellow, Fourth Quadrant: Purple.
18945071849741 Provides an eight-layered image view of the live feed with one central control center. Each layer can be moved in the layer or via the control center and is depicted with different colors: Feed 1: Neon Green, Feed 2: Blue, Feed 3: Yellow, Feed 4: Purple, Feed 5: Turquoise, Feed 6: Red, Feed 7: Orange, Feed 8: Green
18944962832141 Drag the image in upper/lower/left/right direction. Press I to display the panorama and press O to resume the original size. Press S to rotate the image in a counterclockwise direction and press E to stop the rotation. Scroll the mouse wheel to zoom the image.
18944973779725 Display the feed in 360° circularity. Use your mouse to drag the image in an upper/lower/left/right direction. Press I to display the panorama and press O to return to the original size. Press S to rotate the image in a counterclockwise direction and press E to stop the rotation. Scroll the mouse wheel to zoom the image.
18945033708813 Use your mouse to drag the image in upper/lower/left/right direction. Press I to display the panorama, and press O to return to the original size.

Ceiling Mount

Screenshot 2023 08 28 104423 58w55h 1 Provides the user to view a full spectrum live feed of the camera without dewrapping features enabled.
18945859379213 Provides a 360°expanded panorama of the live feed as well as an independent sub-image on the top. The 360° panorama supports zoom and left and right scanning. All movements are controlled by the top sub-image.
18945853804429 Provides two inverted live view images on both the top and bottom feed. Use the mouse to adjust and move the feed in a left or right simultaneously.
18945916422157 Provides a 360°panorama view based on two independent left and right sub images. The sub images support zoom and 360° left and right pan. Hover the mouse over the bottom center to display a panoramic viewing option.
18945978331277 Provides a four-layered view of the live feed. Each quadrant is centrally controlled via a control center and depicted with different colors. First Quadrant: Green, Second Quadrant: Blue, Third Quadrant: Yellow, Fourth Quadrant: Purple.
18946878591629 Provides a four-layered view of the live feed. Each quadrant is centrally controlled via a control center and depicted with different colors: First Quadrant: Green, Second Quadrant: Blue, Third Quadrant: Yellow, Fourth Quadrant: Purple.
18946922520717 Provides a six-layered view of the live feed with one sub-image. The sub-image is used to control the corresponding layered views. Each view is depicted with different colors: Feed 1: Neon Green, Feed 2: Blue, Feed 3: Yellow, Feed 4: Purple, Feed 5: Turquoise, Feed 6: Red.
18946956169229 Provides an eight-layered image view of the live feed with one central control center. Each layer can be moved in the layer or via the control center and is depicted with different colors: Feed 1: Neon Green, Feed 2: Blue, Feed 3: Yellow, Feed 4: Purple, Feed 5: Turquoise, Feed 6: Red, Feed 7: Orange, Feed 8: Green.
18944962832141 1 Drag the image in upper/lower/left/right direction. Press I to display the panorama and press O to resume the original size. Press S to rotate the image in a counterclockwise direction and press E to stop the rotation. Scroll the mouse wheel to zoom the image.
18944973779725 1 Display the feed in 360° circularity. Use your mouse to drag the image in an upper/lower/left/right direction. Press I to display the panorama and press O to return to the original size. Press S to rotate the image in a counterclockwise direction and press E to stop the rotation. Scroll the mouse wheel to zoom the image.
18945033708813 1 Use your mouse to drag the image in upper/lower/left/right direction. Press I to display the panorama, and press O to return to the original size.

Ground Mount

Screenshot 2023 08 28 104423 58w55h 2 Provides the user to view a full spectrum live feed of the camera without dewrapping features enabled.
18945859379213 1 Provides a 360°expanded panorama of the live feed as well as an independent sub-image on the top. The 360° panorama supports zoom and left and right scanning. All movements are controlled by the top sub-image.
18945853804429 1 Provides two inverted live view images on both the top and bottom feed. Use the mouse to adjust and move the feed in a left or right simultaneously.
18945916422157 1 Provides a 360°panorama view based on two independent left and right sub images. The sub images support zoom and 360° left and right pan. Hover the mouse over the bottom center to display a panoramic viewing option.
18945978331277 1 Provides a four-layered view of the live feed. Each quadrant is centrally controlled via a control center and depicted with different colors. First Quadrant: Green, Second Quadrant: Blue, Third Quadrant: Yellow, Fourth Quadrant: Purple.
18946878591629 1 Provides a four-layered view of the live feed. Each quadrant is centrally controlled via a control center and depicted with different colors: First Quadrant: Green, Second Quadrant: Blue, Third Quadrant: Yellow, Fourth Quadrant: Purple.
18946922520717 1 Provides a six-layered view of the live feed with one sub-image. The sub-image is used to control the corresponding layered views. Each view is depicted with different colors: Feed 1: Neon Green, Feed 2: Blue, Feed 3: Yellow, Feed 4: Purple, Feed 5: Turquoise, Feed 6: Red.
18946956169229 1 Provides an eight-layered image view of the live feed with one central control center. Each layer can be moved in the layer or via the control center and is depicted with different colors: Feed 1: Neon Green, Feed 2: Blue, Feed 3: Yellow, Feed 4: Purple, Feed 5: Turquoise, Feed 6: Red, Feed 7: Orange, Feed 8: Green.
18944962832141 2 Drag the image in upper/lower/left/right direction. Press I to display the panorama and press O to resume the original size. Press S to rotate the image in a counterclockwise direction and press E to stop the rotation. Scroll the mouse wheel to zoom the image.
18944973779725 2 Display the feed in 360° circularity. Use your mouse to drag the image in an upper/lower/left/right direction. Press I to display the panorama and press O to return to the original size. Press S to rotate the image in a counterclockwise direction and press E to stop the rotation. Scroll the mouse wheel to zoom the image.
18945033708813 2 Use your mouse to drag the image in upper/lower/left/right direction. Press I to display the panorama, and press O to return to the original size.

.

How To Download Recordings Using Amcrest Orion Surveillance Software

Recordings in the playback menu can be downloaded (exported) using the Amcrest Orion Surveillance software. To download the free software click here.

For more information on how to add a device into Amcrest Orion Surveillance software click here.

Downloading a Recording

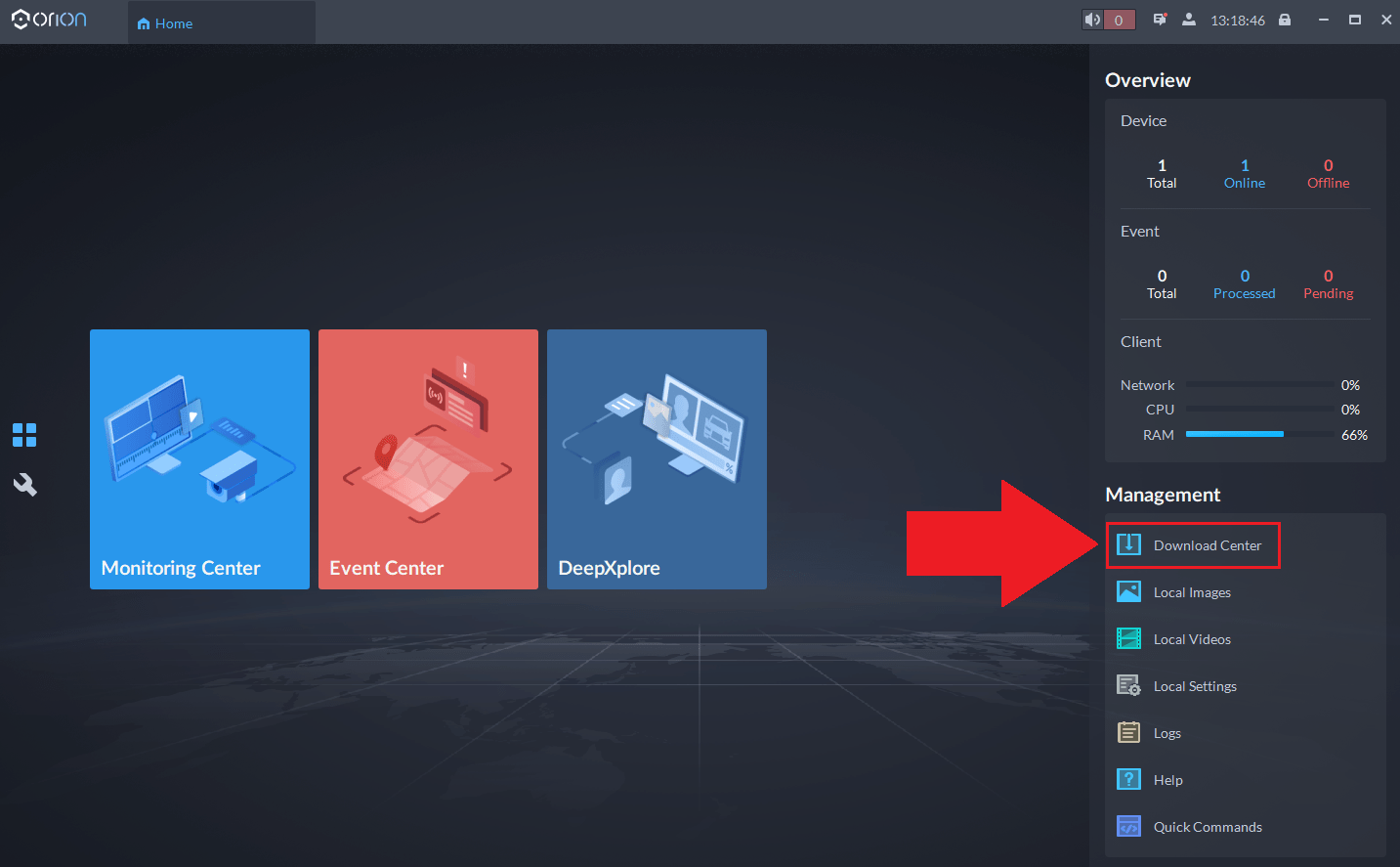

Step 1: Open the Amcrest Orion surveillance software and select Download Center.

Screenshot 2023 08 29 131901

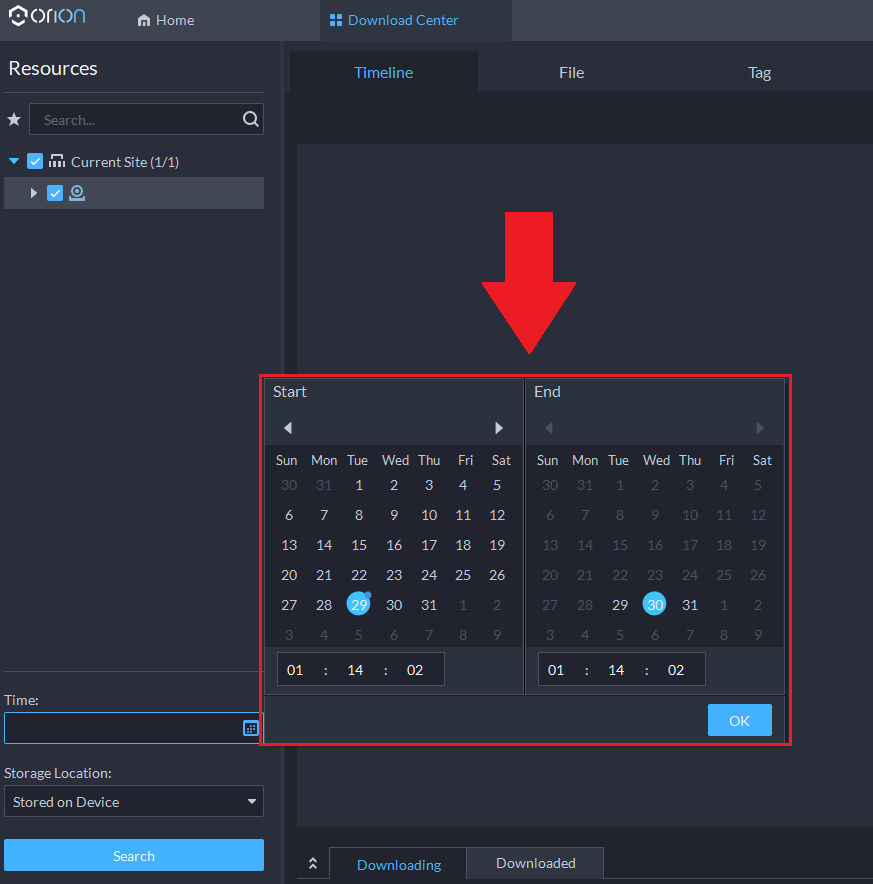

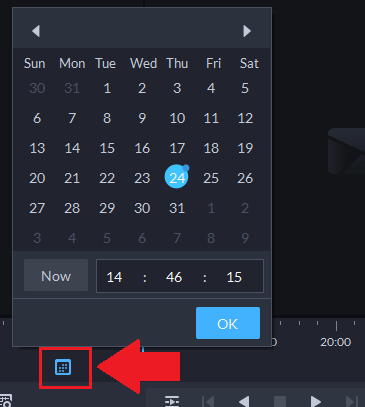

Step 2: Select the device in the Resources menu and click the calendar option in the Time menu. Select a date and time range of the recordings. Click OK.

Screenshot 79

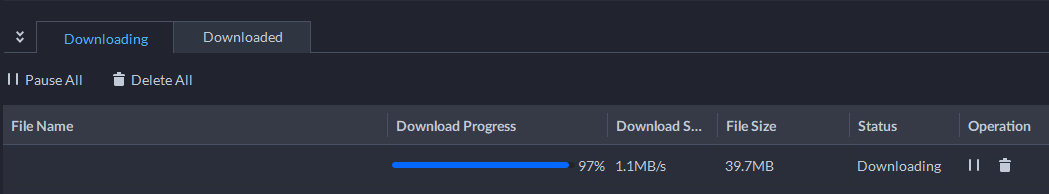

Step 3: Click Search. Recordings can be accessed in a timeline or file format. If downloading from a timeline range, select a start and end time in the timeline, enter the software user password and click OK. Verify the start and end time of the recording and click OK. The recording will begin to download.

Screenshot 2023 08 29 132943

Step 4: Click the Downloaded tab to view and locate the storage path of the recording. Click the 18994528296973 icon to locate the downloaded recording on your computer.

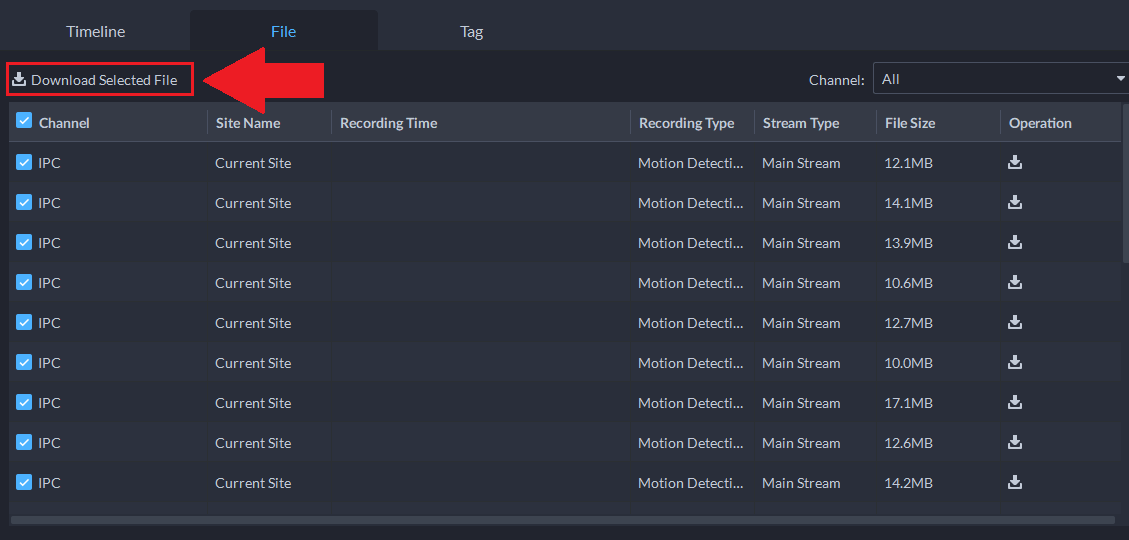

Note: If downloading multiple recordings, it is recommended to use the File menu. Select all recordings you want to download and select Download Selected File. To download a single file, click the Operation icon.

Screenshot 2023 08 29 133421

How to Customize Video Settings Using Amcrest Orion Surveillance Software

If you are having issues customizing the video settings for your device in the app then you can use Amcrest Orion Surveillance software to adjust these settings. This is free software provided by Amcrest and can be used as a one-stop surveillance source for all your Amcrest devices. To download the free software, click here.

For more information on how to customize the video settings, please refer to the information provided below.

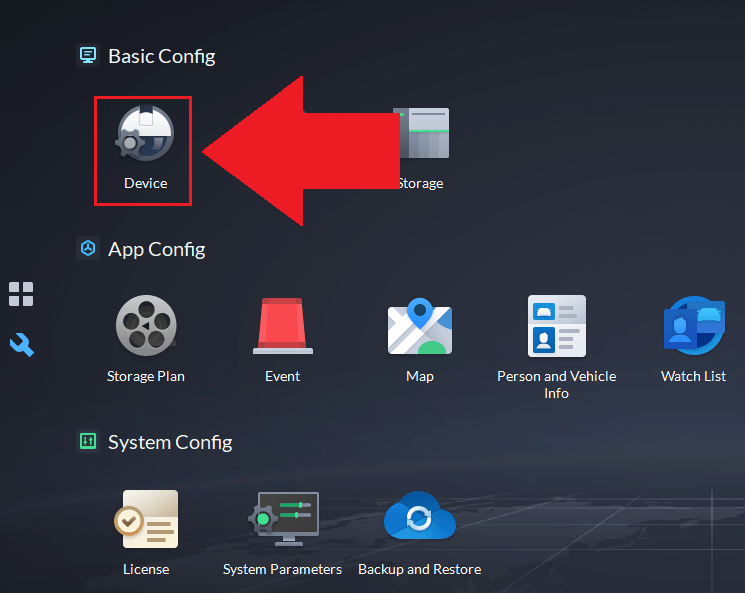

Step 1: Open the Amcrest Orion software and select the settings mceclip0 icon. Select Device.

Screenshot 2023 08 29 123513

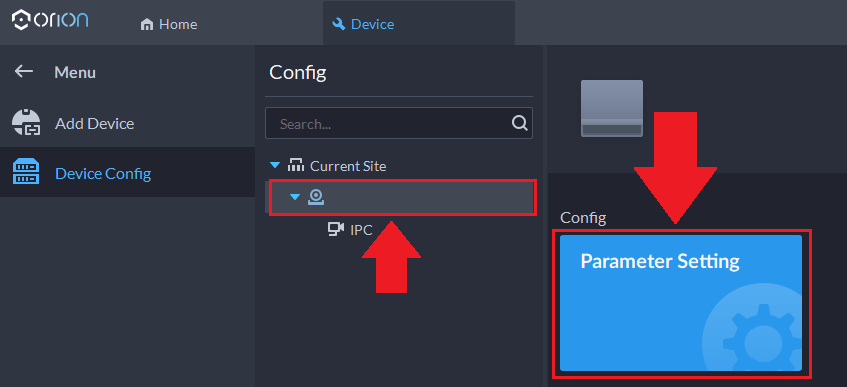

Step 2: Select , select the device, and click Parameter Setting.

Screenshot 2023 08 29 123744

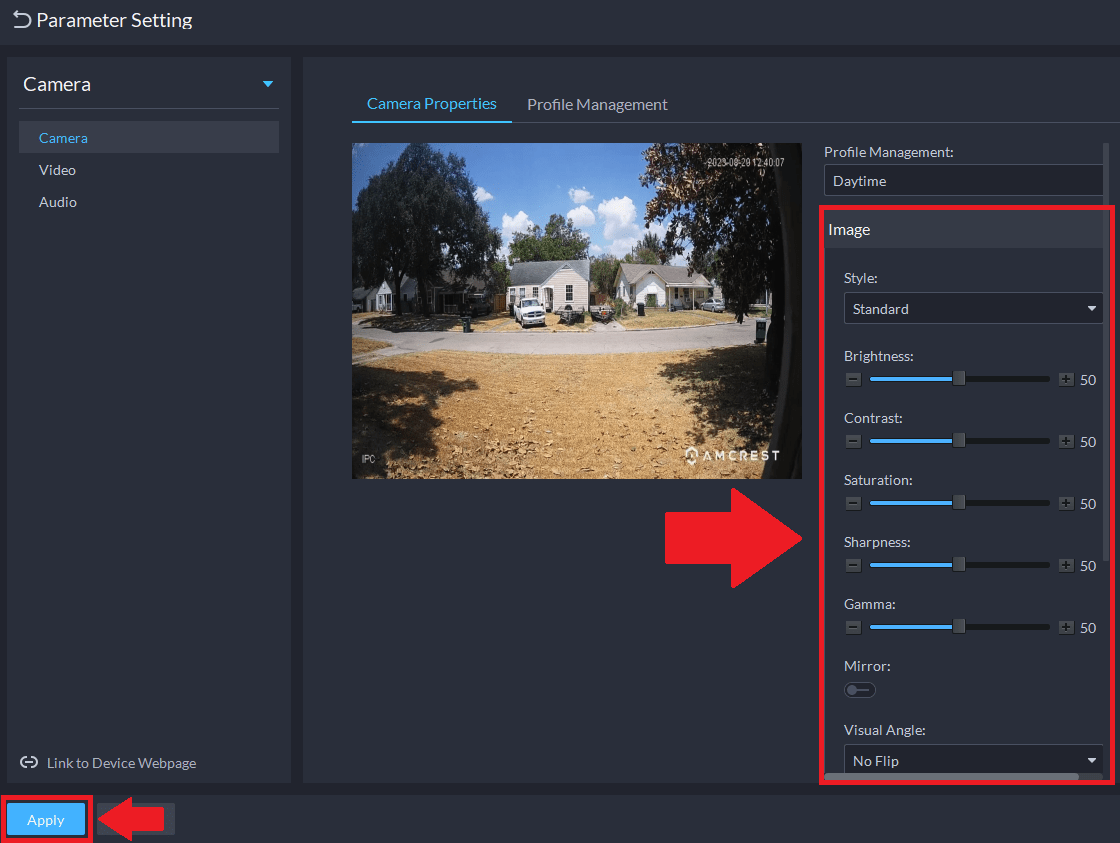

Step 3: Use the video settings options provided in the camera properties menu to customize the video settings. Click Apply.

Screenshot 2023 08 29 124023

Note: If you would like the video settings to apply to the device's web UI, click Link to Device Webpage

How To Setup Recording Schedules In The Amcrest Orion Surveillance Software

The Amcrest Orion Surveillance software allows you the opportunity to set your added device to on motion or on the continuous (general) recording schedules. The software uses a recording plan template to set recording schedules. For more information on recording schedules, please refer to the information provided below.

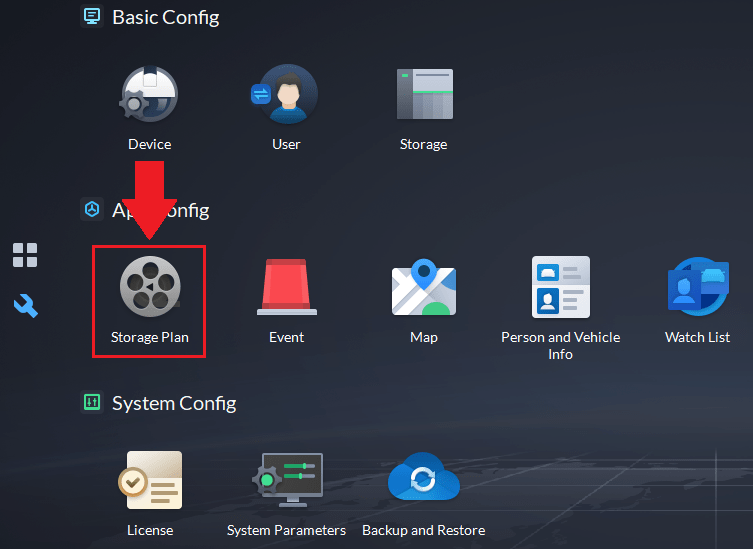

Click on the 18987800365069 icon located in the Home menu and select Storage Plan.

Screenshot 2023 08 29 110844

Setting a Recording Plan

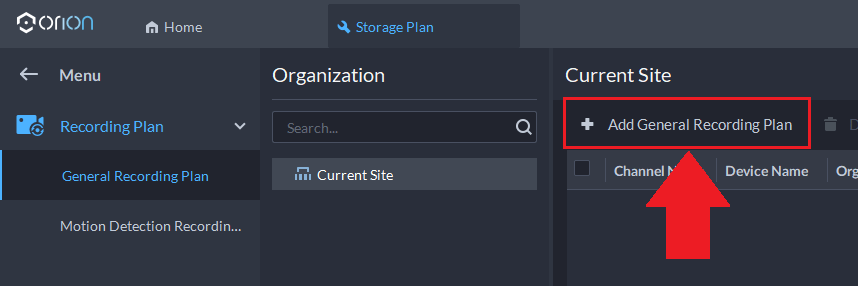

A general recording plan will allow the software and selected devices to record 24/7.

Screenshot 2023 08 29 111612

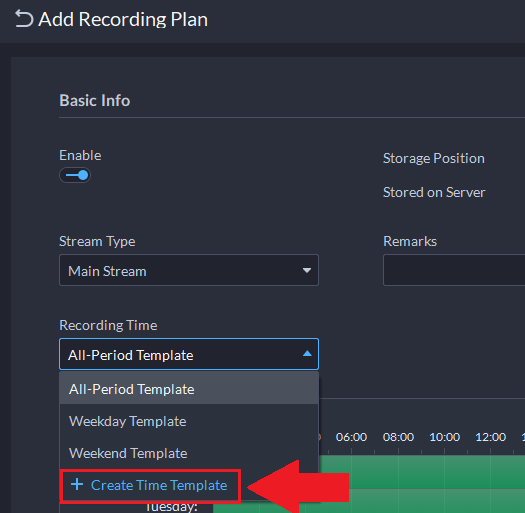

Ensure the option is enabled and click the Recording Time dropdown menu. The schedule will be set to record 24/7, all days of the week, however, can be set to recording during the week or only on the weekends. However, a custom Time Template can be used if needed.

Screenshot 76

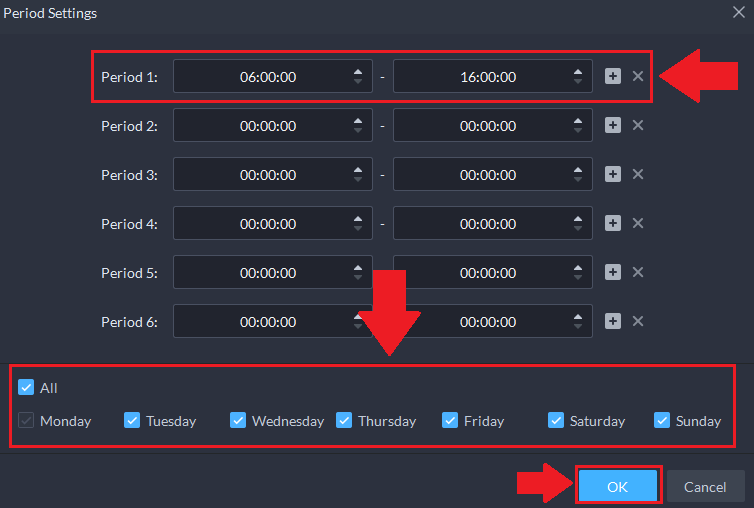

Enter a name for the custom time template and click the period settings ( 18988516846221 )option. A total of 6 periods can be set if needed by clicking the “+” icon. Enter a start and end time for the schedule. For instance, in this example we will set it to only recording from 6am (0600) – 4pm (1600). Select which days the schedule will apply and click OK.

Screenshot 2023 08 29 112750

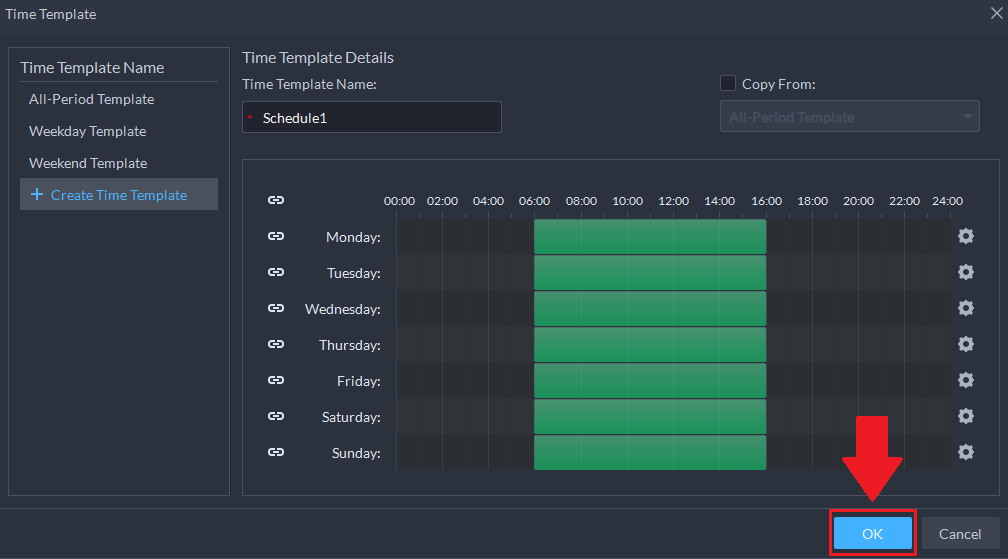

The schedule will now be set in the software. Click OK.

Screenshot 2023 08 29 112941

Select the newly created recording schedule template from the Recording Time menu. In the Recording Channel, select the devices you would like the schedules to apply. Click OK.

Screenshot 2023 08 29 113210

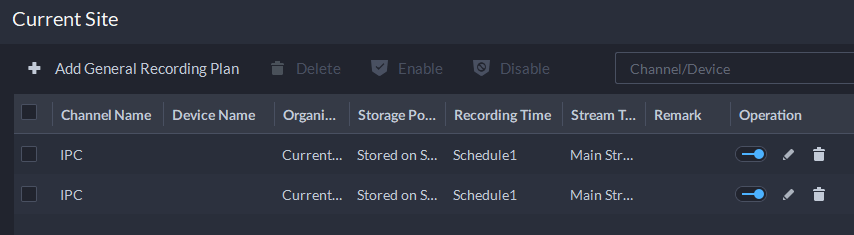

The storage plan will be will now be applied to the selected devices.

Screenshot 2023 08 29 113444

The same concept can be applied to motion detection recording plans as well if needed.

How To Set an Email Server In Amcrest Orion Surveillance Software

Email Setup will be dependent on your specific email provider. In this example, we will be using Gmail. A email server can be used to send email notifications or during password recovery. For more information on how to setup an email server, please refer to the information provided below.

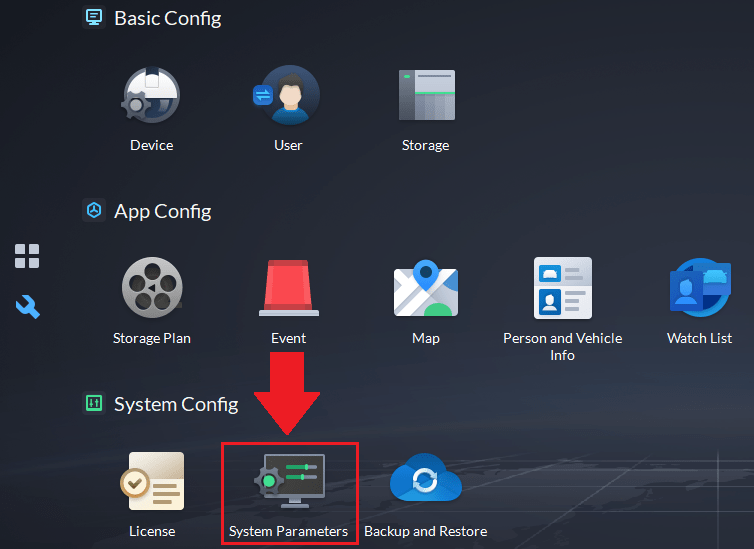

Step 1: Open the Amcrest Orion Surveillance software, select the mceclip0 1 option, and select System Parameters.

Screenshot 2023 08 29 153758

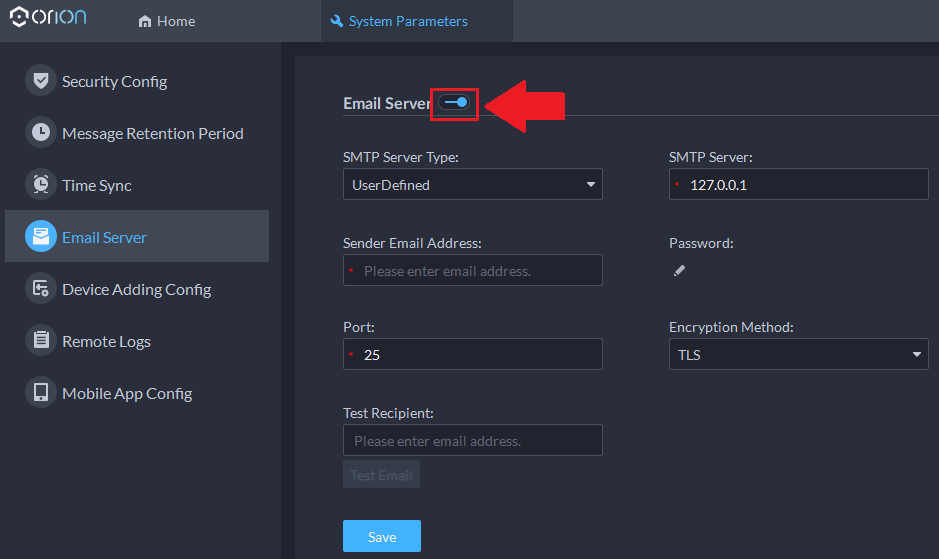

Step 2: Select Email Server and enable the option.

Screenshot 2023 08 29 154430

Step 3: Select the email provider from the SMTP Server Type dropdown menu and enter all requested information into the interface. Please note, the password should be your Gmail generated app password. **Please refer to Allow Less Secure Apps (Updated) section for more details.

Allowing Less Secure Apps (Updated)

As of May 30th, 2022, Google will be removing the allow less secure apps option, this means a generated password will need to be entered that will allow email alerts to come through on your account. Before proceeding, please ensure 2 factor authentication is enabled in your account settings. For more information on how to do this, please refer to the information provided below.

1.) In Gmail, click the account avatar/icon picture located in the upper right of the window.
2.) Now click the blue button that says “Manage Your Google Account”

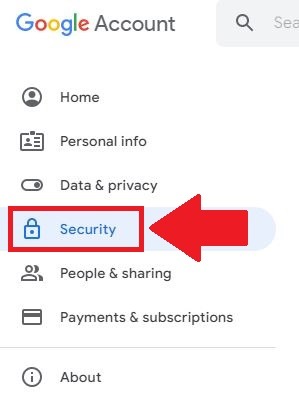

Once on the account setting page please click “Security”

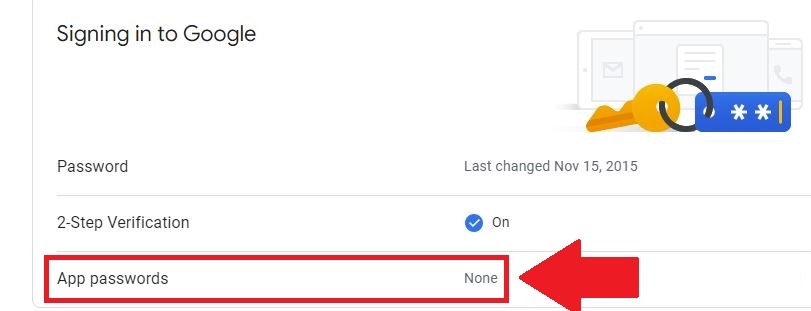

3) Click onApp passwords


4) Enter your email password, and click Next.

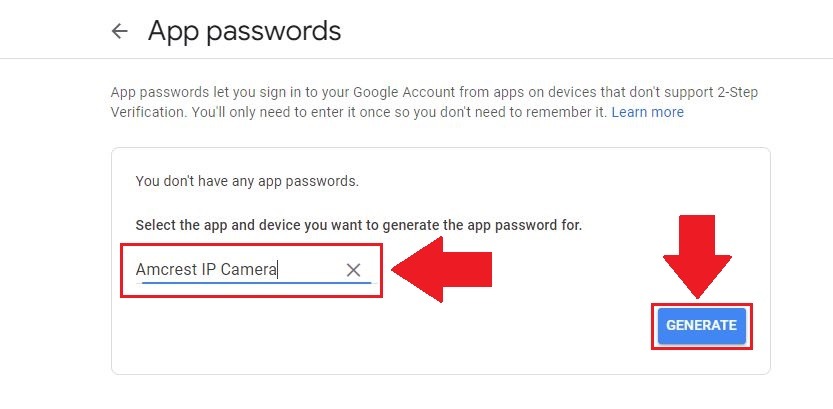

5) Select an option from the provided drop down menus and select Custom. Enter a name for the authentication and click Generate.

image2 1

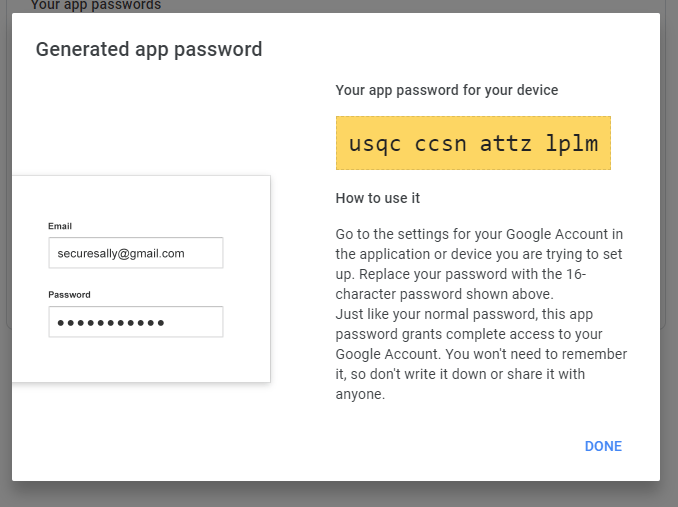

6) Google will provide a security password which must be entered into the device's Email Setup interface in the device's web UI.

mceclip0 2

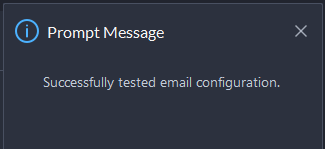

Step 4: Click Test Email. Once confirmed, click Save.

19001100626061

How To Setup Views and Tours Using Amcrest Orion Surveillance Software

How To Create a View

When creating a tour it is highly recommended to create a view first before creating the tour. A view is a collection of cameras/channels shown in a window. This can be a collection of devices from the same DVR/NVR or a collection from different devices in a single view. For efficiency purposes, it is recommended to keep cameras from the same NVR in the same view. Conversely, this is not mandatory and each view can be customized based on your needs.

Step 1: Log into the Amcrest Orion Software and select Monitoring Center.

Screenshot 2023 08 28 103003 1

Note: Views can be customized to a range of a single camera to 64 cameras simultaneously. Please keep in mind the more cameras that are opened the more network resources are being used. Our recommendation is to set a max of 9 camera views or less but in our example, we will use a wide variety to show the flexibility of the feature.

18949338259853

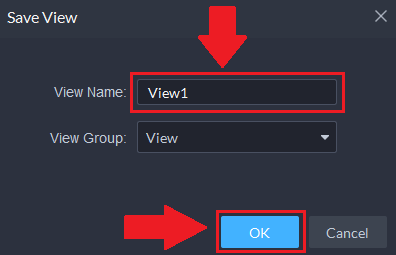

Step 2: Select each device from the device list and click the save icon ( 18949432356749 ). Enter a name for the View and click OK.

Screenshot 2023 08 28 122603

Note: If you are using a DVR/NVR with multiple channels, it is necessary to expand the device to show the individual channels associated with your device.

If you are performing this procedure on multiple computers, the process will need to be performed on each desktop/laptop. For this reason, we recommend renaming the cameras in a way to know which cameras/channels go together.

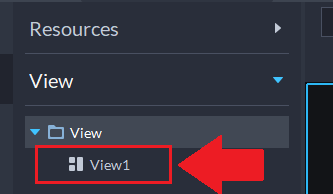

Step 3: Select View. Select the dropdown option next to the View folder. Select the newly created view to load the live feed of the cameras in the interface.

Screenshot 2023 08 28 123033

Tour Setup

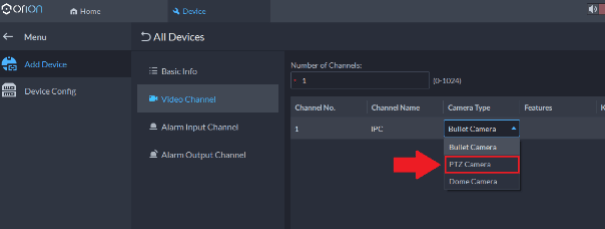

When you have finished creating the view you can now start configuring a tour. A tour will allow the software to shift between multiple PTZ presets set by the user in the software. If using a PTZ camera, please navigate to Add Device menu and select the edit icon ( 18985532308749 ) for the device. Select Video Channel  and ensure the Camera Type is set to PTZ Camera. Click OK.

Screenshot 72 605w229h

Note: At least 2 presets must be set to configure a tour.

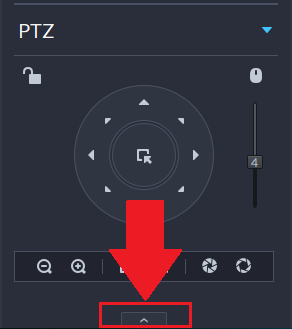

Step 1: Access the Monitoring Center, select the device, access the PTZ menu, and select the down arrow.

Screenshot 2023 08 29 102657

Step 2: Use the PTZ option to rotate the camera to a specific point. Click the Edit ( 18986033905677 ) icon and name the tour. Click the checkmark ( 18986149055501 ) when finished.

Screenshot 74

Note: Click the Go icon ( 18986286950541 ) to call a preset. The camera will rotate to a related position.

Step 3: Once the presets are created, click the 18986338976141 icon and select the Edit ( 18986411481741 )icon.

Screenshot 2023 08 29 104135

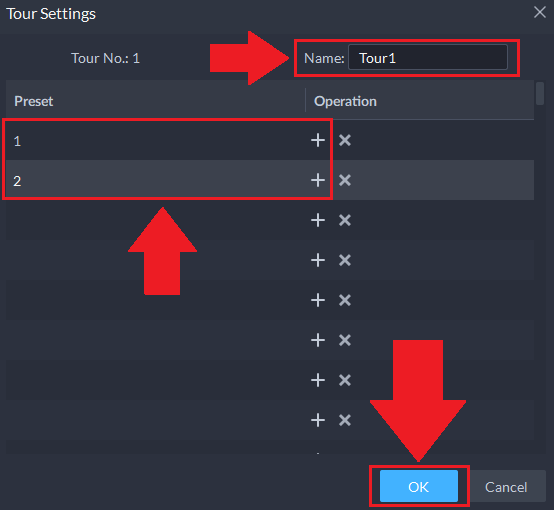

Step 4: Enter a name for the tour and click the add ( 18986479223309 ) icon. Select all applicable presets related to the tour and click OK.

Screenshot 2023 08 29 104606

Note: Click the play ( 18986771735821 ) icon to run the tour.

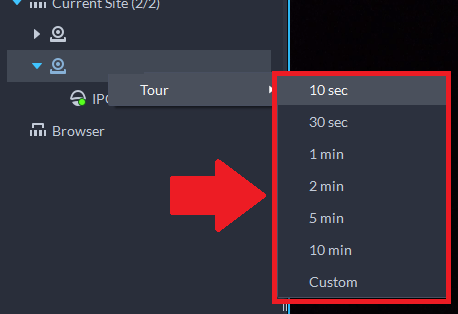

Step 5: Navigate to the Resources menu, right click on the device to set a tour duration.

Screenshot 75

Note: To stop the tour, click on the stop ( 18987580249741 ) icon in the Tour ( 18987637652749 )menu.

How to Recover a Forgotten Admin Password on Amcrest Orion Surveillance Software

If you have forgotten the admin password to log into the Amcrest Orion Surveillance software, the password can be recovered using the Forgotten Password option. This option can be found on the login screen once the software has been opened. For more information on how to retrieve your forgotten password, please refer to the information provided below.

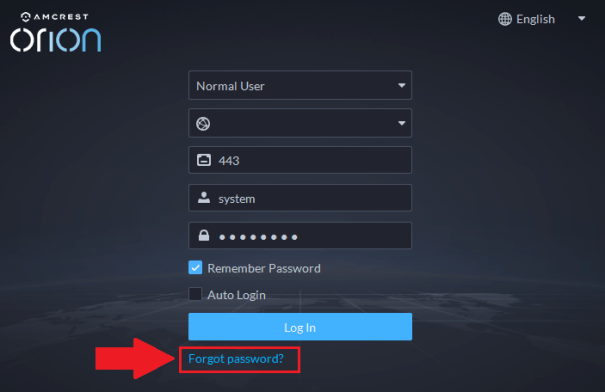

Step 1: Open the Amcrest Orion Surveillance software and click Forgotten Password.

Screenshot 2023 08 29 133906 605w392h

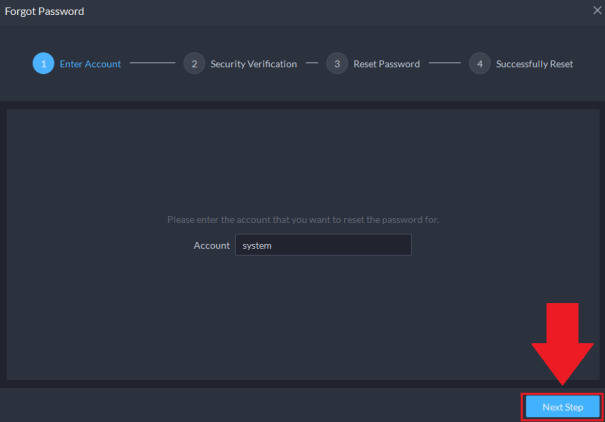

Step 2: Verify the account's username and click Next Step.

Screenshot 2023 08 29 134105 605w422h

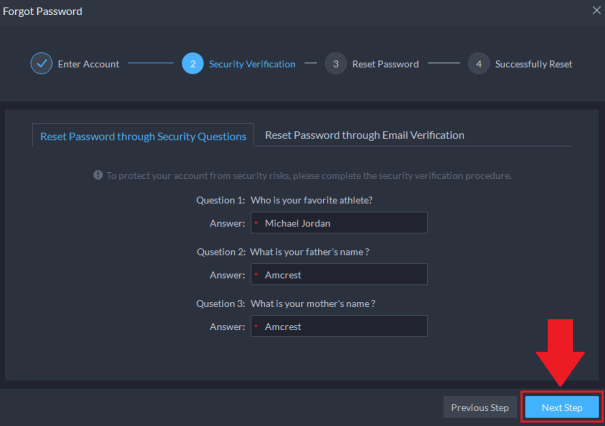

Step 3: The password can be reset using security questions or through email verification. Please note, the password cannot be reset if there is no email server established. Once the security questions or answered, click Next Step.

Screenshot 2023 08 29 134501 605w426h

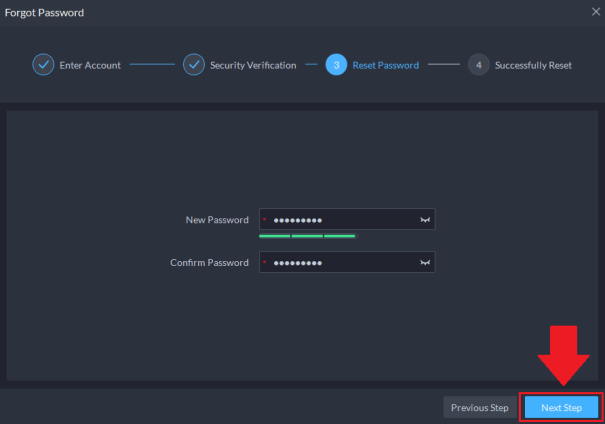

Step 4: Enter the new password into the provided fields, click Next Step.

Screenshot 2023 09 06 145329 605w424h

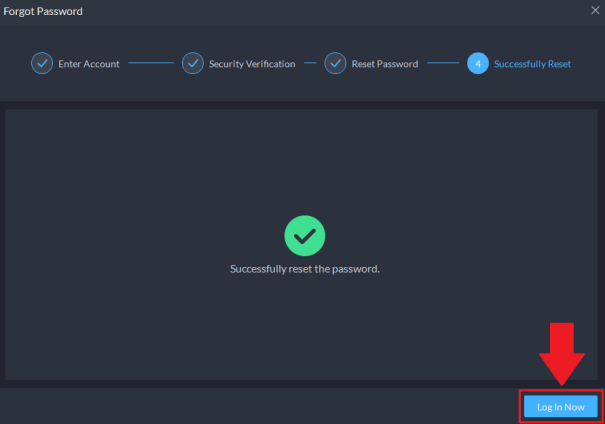

Step 5: Click Log In Now.

Screenshot 2023 09 06 145525 605w424h

Note: Enter the new password and click Log In to open the software. Select Remember Password or Auto Login to allow the software to open on your machine without having to reenter it.

How To View Events Using The Playback Feature In Amcrest Orion

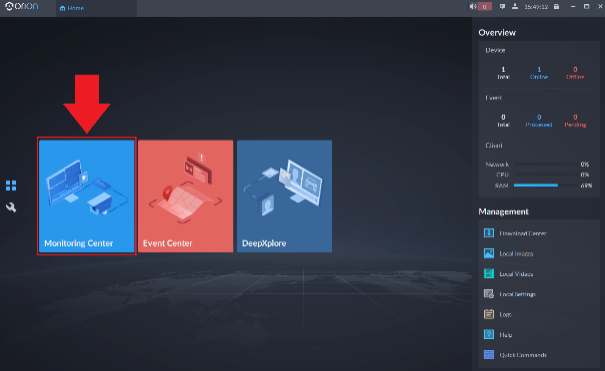

The monitoring center allows the user to view both the live view and playback of a connected device. The monitoring center can be found on the Home menu of the software. The playback option allows the user to view motion, human, or vehicle detection events retained on the device.

Screenshot 2023 08 24 154922 371h

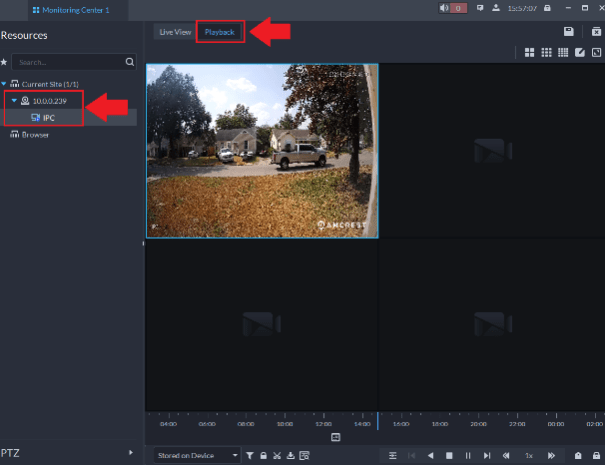

Step 1: Click on the Playback option and select your device. Double click to load the initial recording in the timeline.

Screenshot 2023 08 24 155722 605w465h

Note: Use the timeline to manually scroll through the events of the day. The calendar option can be used to choose different dates and times of the events.

Screenshot 65

To view filter and view specific record types, such as human/vehicle events, click the filter icon ( 18851311061133 )

.

Print Friendly, PDF & Email

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
