How to Set Up SuperLive Plus

How to Set Up SuperLive Plus, SuperLive Plus is a professional mobile phone client software for digital video recorders and IP cameras in CCTV surveillance (compatible models only). The software is for professional usage and copyright protected.

This is valid for our older 2MT-7XXX models and 2MT-7XXX-O models only.

First, you will need to download the application onto your phone and ensure that the DVR is connected to a network. We will focus on obtaining information from the DVR first before we focus on the phone app.

On the DVR, log into the menu, and then navigate to   Network  NAT. Make sure that NAT is enabled (Note: you will not be able to access the cameras if NAT is not enabled).

https://i.imgur.com/M7Rrkp1.png

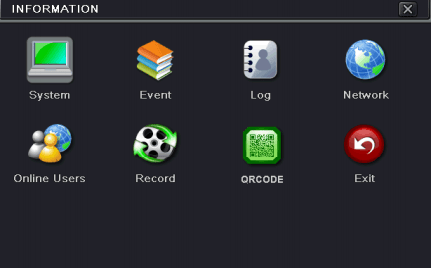

Once NAT has been enabled, a QR code should appear. But if it does not, do not worry. The QR code can be found in a different section. If the QR code does not appear in NAT, it can be found in Information  QRCODE. If you are unable to scan the QR code for some reason, there will also be a serial number that will show below the QR code that you can input manually in order to your cameras to your phone.

https://i.imgur.com/JJ6JkN4.png

Now that the QR code/serial number has been found we can focus on setting up the application. The first screen that you will see when you open the app is the screen. From here, you can add a device by hitting the icon in the upper-right hand corner. This will open up the Server List.

https://i.imgur.com/aULWSqt.jpg

https://i.imgur.com/SBoOoPB.jpg

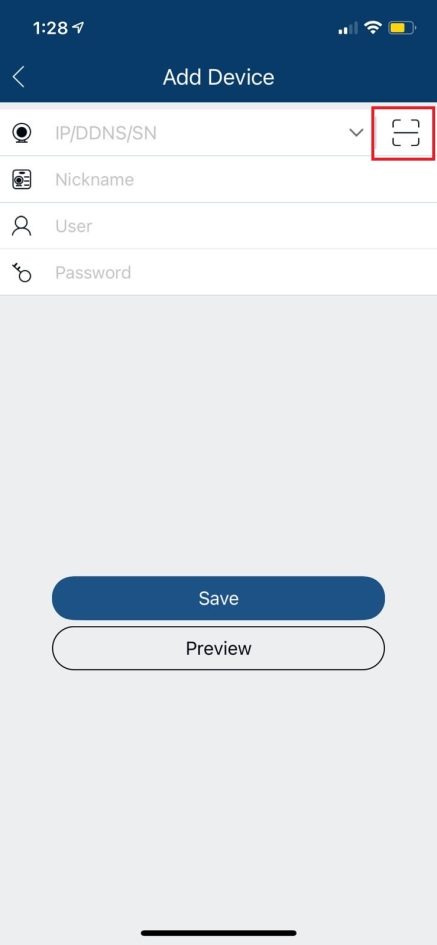

Hit the Plus sign to add your device by either scanning the QR code or manually inputting the serial number that shows beneath the QR code. If you choose the QR code method, tap on the square icon and enable access to the phone's camera. Then, the only other information that will need to be filled out is the name of the device (can be anything you would like for it to be), the username, and the password of the DVR.

https://i.imgur.com/zfExYLX.jpg

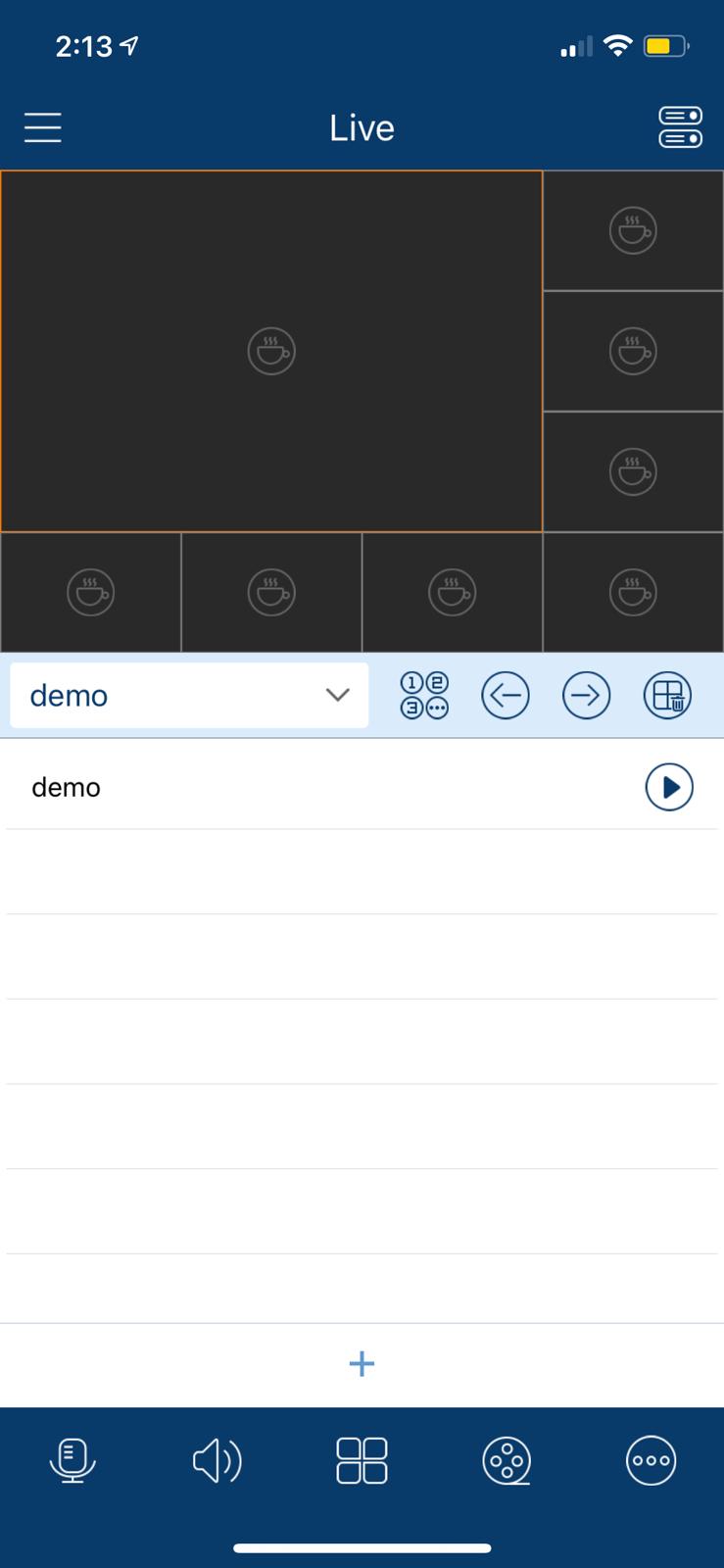

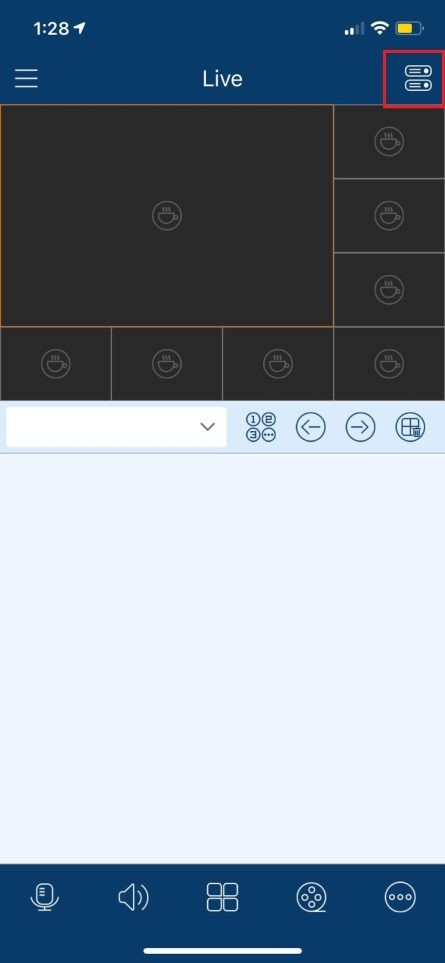

Save the device, and go back to the Live View screen so that we can add your device to the Live View windows. There should be a drop down list underneath the windows that show your online devices. Just select the device, and the cameras should show on your screen.

https://i.imgur.com/ZzaMXnY.jpg



Read Also : How to Set Up SuperLive Plus

.

How to setup my CCTV remote connection for viewing
on smartphones and tablets.

We have put together this guide for setting up a remote connection with our DVR's so you can view your cameras from potentially anywhere in the world. We can also offer our Remote Setup Service where we can setup the system for you, this utilises port forwarding on your router and has the added ability to view your cameras from a Mac or PC.

We will need to set up the DVR firstly so that it is ready to accept the connection from your devices this can be done by the follow steps:

First and foremost connect the the DVR to your router either by an ethernet cable or, if running an ethernet cable is a problem, using a wireless extender which will allow your router to pick up the DVR or a Home Plug can also be used.

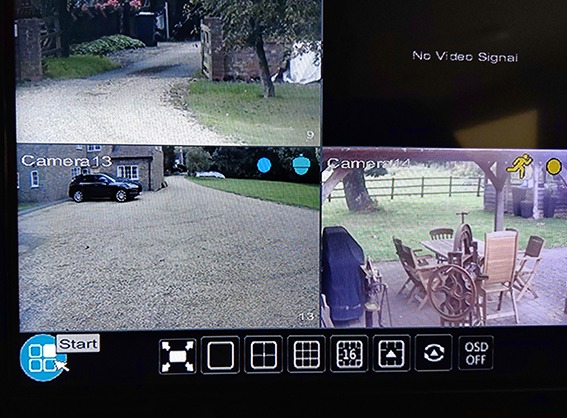

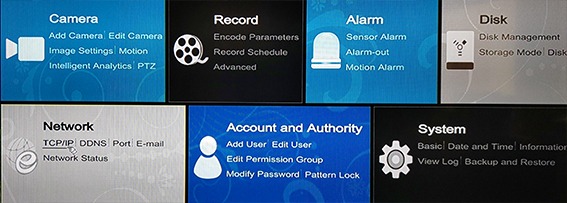

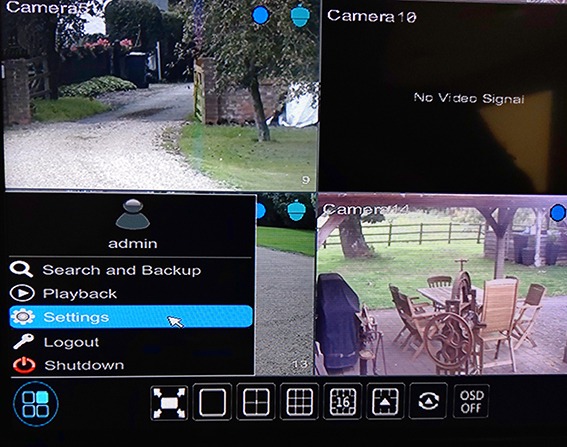

On the DVR click on the “Start” button in the bottom left corner of the screen and then choose “” from the popup menu, if you can not click it or its greyed out login to the DVR and try again.

remotestart

remotesettings

Then under Network click on the TCP/IP link.

tcpoption

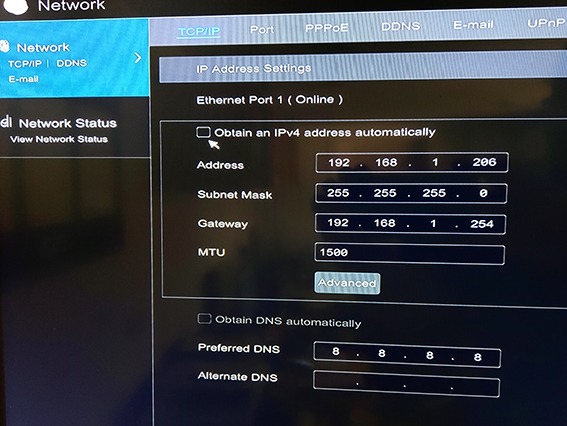

On this page make sure there is a tick in the “Obtain an IPv4 address automatically” box and then click apply to save.

automaticip

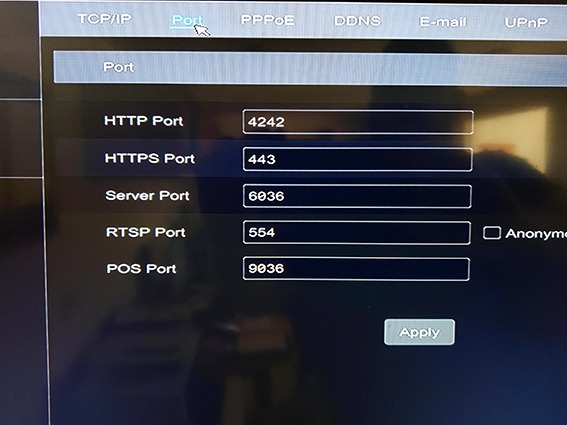

Once done, across the top of the page next go to Port and change the HTTP port and Server port to any 3-5 digit number but they need to be different from each other, then click apply to save.

remoteports

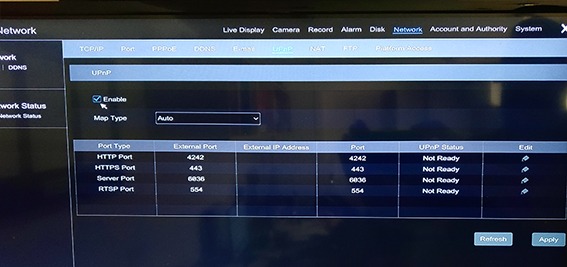

Across the top again to UPnP and make sure there is a tick in the “Enable” box and that the map type is set to auto and click apply to save.

remoteupnp

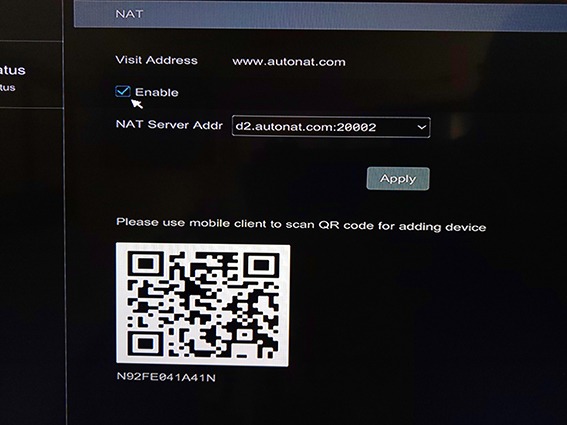

Across the top again to NAT and make sure there is a tick in the “Enable” box and click apply to save.

remoteqrcode

Leave this page open on your screen as we will be needing the serial number which you can see under the QR code or the QR code itself later in the guide.

We will now be covering the app side of the connection.

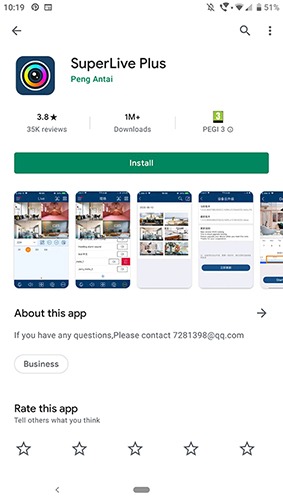

So on your phone or tablet go to your app store, either the Appstore on Apple or Play store on Android and search for an app called “SuperLive Plus”, it should look like the image below and install the app and agree to any permissions it asks for.

download superlive plus

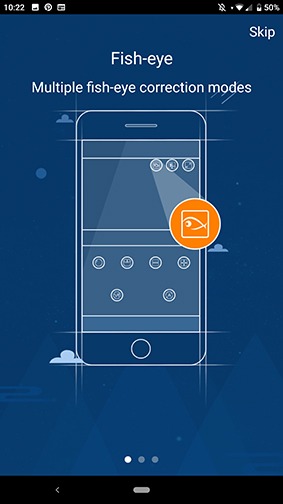

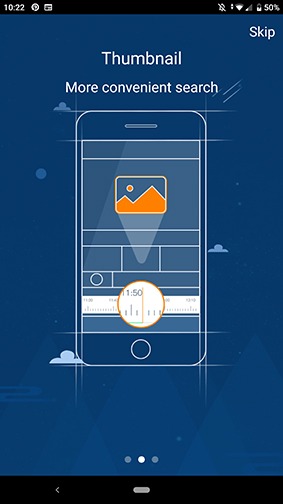

When first starting the app it will take you through several tutorial pages which you can either swipe through or tap on skip and you will then be presented with the option of local or start, tap on start.

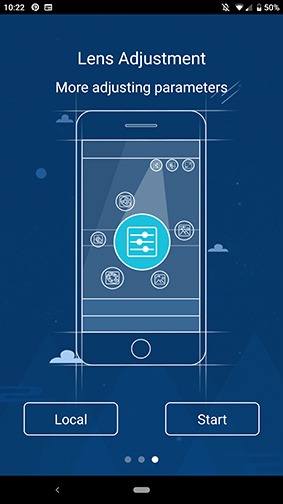

superlive plus startup fish-eyesuperlive plus searchsuperlive plus lens adjust

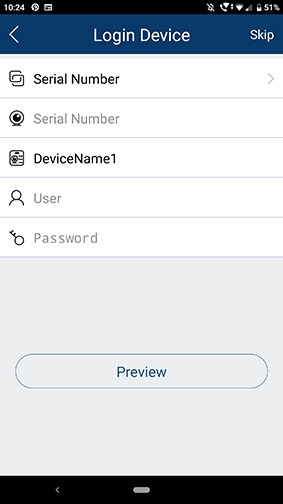

You will now need to fill in the details for the connection: The serial number (which can be found on the NAT page which should still be displayed on your monitor). A nickname of your choosing the default being “DeviceName1” and Username/Password for the DVR. If you would like to bypass this stage tap on skip in the top right corner which will then take you to the Live page.

superlive plus add device

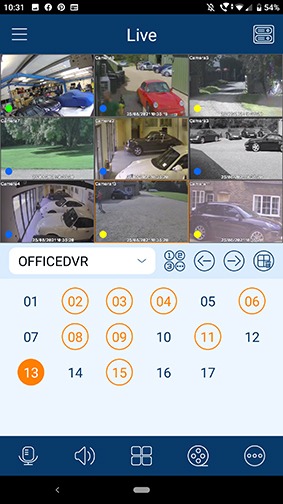

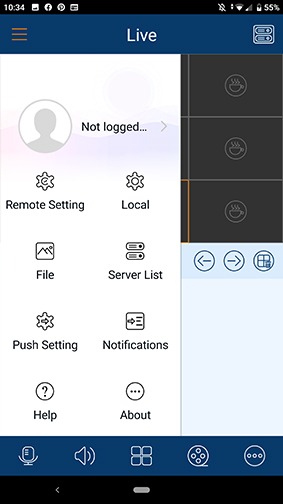

From here you can access other features or add multiple DVRs or connections if you have them by doing the following. Tap on the three little lines in the top left to bring up the options menu and choose Server List.

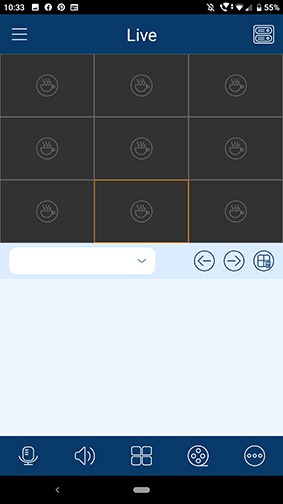

superlive plus livesuperlive plus live options

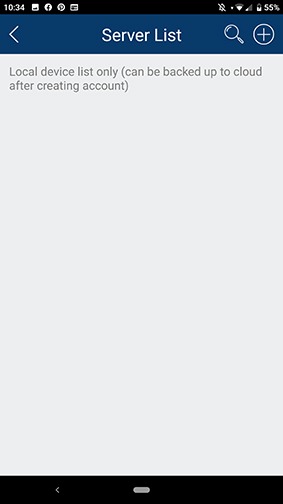

This page will list all of you connection entries, but at the moment there should be none. Tap on the “+” symbol in the top right and choose scan code and then scan the QR code on the DVR monitor screen, the information will be filled out for you for adding a device. You may still need to fill out the device name, user and password for the DVR and tap save.

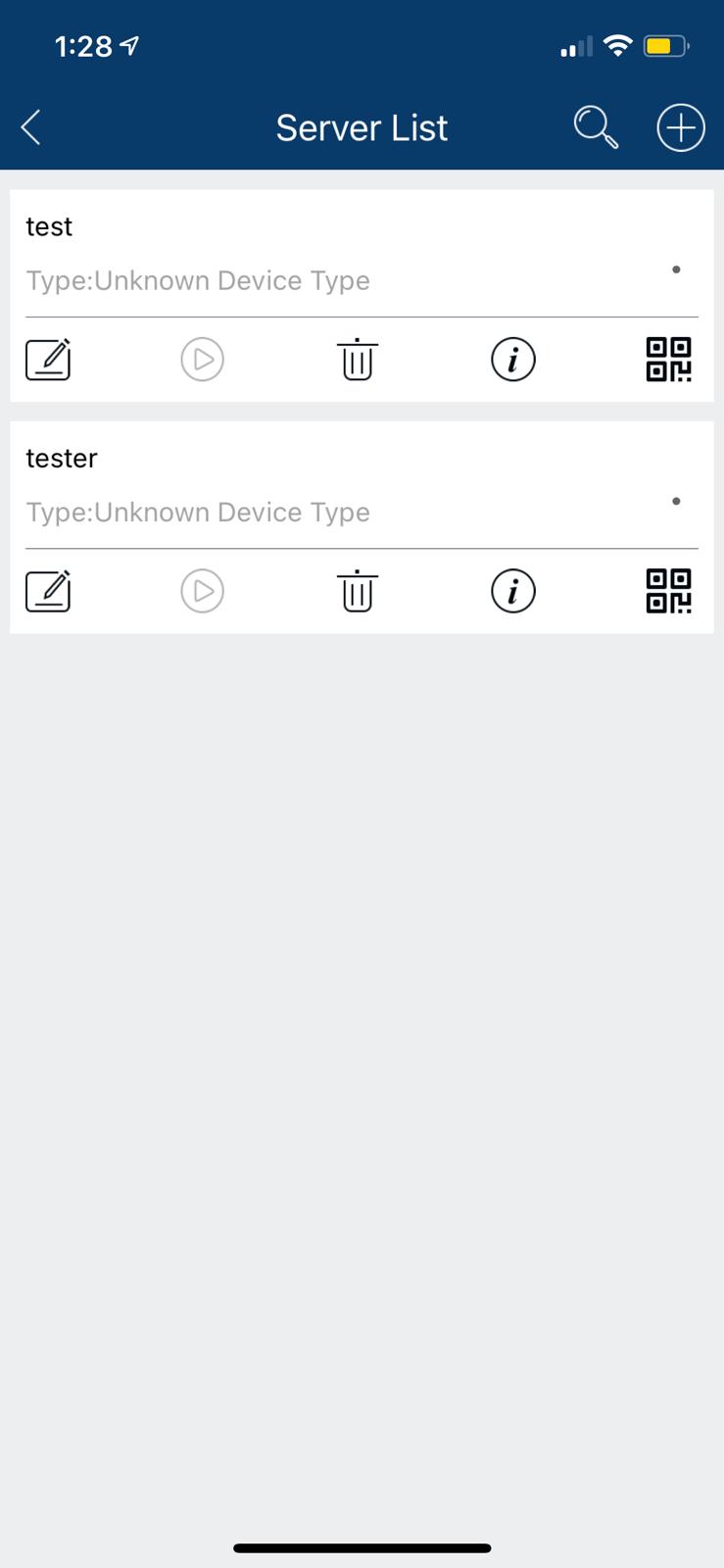

superlive plus server list start

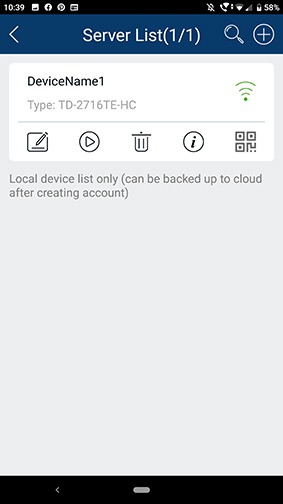

Once saved it will take you back to the server list page and there should now be one entry. All things being well the little wifi icon on the entry should be a solid and green colour at which point you can tap on the back arrow (top left) to take you out and back to your live camera feeds. If the Wifi icon is a grey/black colour and searching then tap on the pen and paper icon to allow you to edit the information and make sure all information is correct re-typing the password for example is a common culprit as is auto correcting on the user and domain host and save to keep the settings.

superlive plus server endsuperlive plus now working

.

Superlive Plus For PC: Free Download for windows 7/8/10/MAC

Here we are going to discuss SuperLive Plus for PC including window 7/8/10 and for MAC os as well. There are two methods by which you are able to take a good view of your

In this post, you can free download setup for Superlive plus for PC. After downloading the setup we will learn how to configure Superlive plus for PC.

SuperLive Plus For Windows PC

SuperLive Plus For MAC

Here we are going to use windows 7 and MAC but you can use the same setting for Windows 8 and Windows 10 as well. You can also use another application named “superlivepro for PC” So let's start from the downloading the setup.

For the TVT DVRs and NVRs, a new app has been launched for remote monitoring. It is known as ‘NVMS Lite.' Gradually, its updated versions are also introduced by the TVT Company. Here, we will learn to download and install the NVMS Lite 2.1 CMS App on Windows & Mac OS.

Download NVMS Lite 2.1 (Windows)

Download NVMS Lite 2.1 (Mac)

The NVMS Lite 2.1 CMS Software connects all TVT products seamlessly. Additionally, it also supports renowned manufacturer's products like Hikvison, Dahua, Honeywell, etc.

Key Features & Functions of the NVMS Lite 2.1 CMS

Following are the key characteristics of it.

 It connects CCTV Cameras through QR codes, serial numbers or IP addresses. You can use any mode to add these cameras or recorders.
 The app gives you remote access. You can watch live at your locations from any place. There is no time lag.
 The CMS software supports the storage of data in the device or on the server.
 You can watch the playback from your location. You can even take snaps and preserve recordings.
 You can operate devices with the help of the CMS App. You can pan, tilt or zoom them. You can even talk to them and exchange messages. You can also hear them from your remote place.
 It sends you alert signals from threats. The smart sensors detect and audio.

Download SuperLive Plus for Windows App to Monitor on Windows OS

The application file for Superlive plus for Windows CMS is shared here. The application is given in the below download button. Press the button to get the software. The complete installation process is defined below.

First you have to decompress the executable file and then download it. The complete installation part is demonstrated here step-by-step. It is shared in three parts. The first part denotes the installation of the app, the second step defines the sign-in process and the third step is reserved for the device addition.

Download NVMS Lite 2.1 (Windows)

Superlive-plus-for-pc

Download SuperLive Plus for Mac CMS to Monitor on Macintosh PC

The company has provided the software for the SuperLive Plus for Mac CMS. It is given in the below download button. Click the button to get the executable file. Decompress them to install on your PC.

The installation to monitoring process are same as done for Windows OS.

Download NVMS Lite 2.1 (Mac)

Install SuperLive Plus for Android App to Monitor on Android Devices

The company keeps on updating its software for better user experience. It keeps on adding new features for safety and security. The SuperLive App is available for Android devices. The download link is given in the download button. Press it and get the link for your gadget.

Install SuperLive for Android

Install SuperLive Plus for iPhone App to Monitor on iOS

The SuperLive Plus App is given below. It is attached in a link button. You have to click the button to get the iOS software. After that, you can easily monitor your locations on Apple mobile.

Install SuperLive for iPhone

Install NVMS Lite 2.1 CMS, Log in & Connect Device to Monitor on Windows OS

The complete installation to monitoring steps are explained here. They are demonstrated with images and narrations for a better understanding. It is defined in three steps.

Step 1- Install NVMS Lite 2.1 on Windows

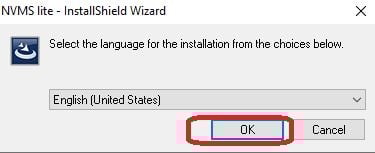

When we open the executable file, we get the following page. Here, we have to select the language.

select the language of the application

Chooseyour language of preference and then press the ok button.

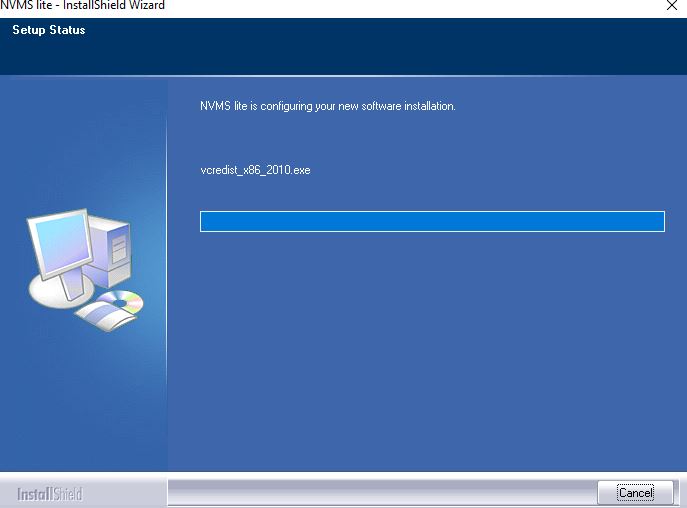

This page appears on the screen. It shows that the setup files are preparing to install.

https://cctvdesk.com/wp-content/uploads/2024/02/NVMS-files-are-setting-2.jpg

When the setup file becomes ready, we get the next page.

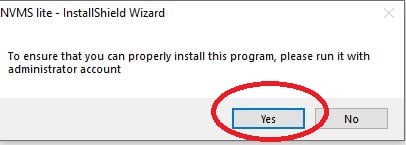

run the app to the administrator account

It says that to install properly, take it with administrator account. Press the OK button and move to the next window.

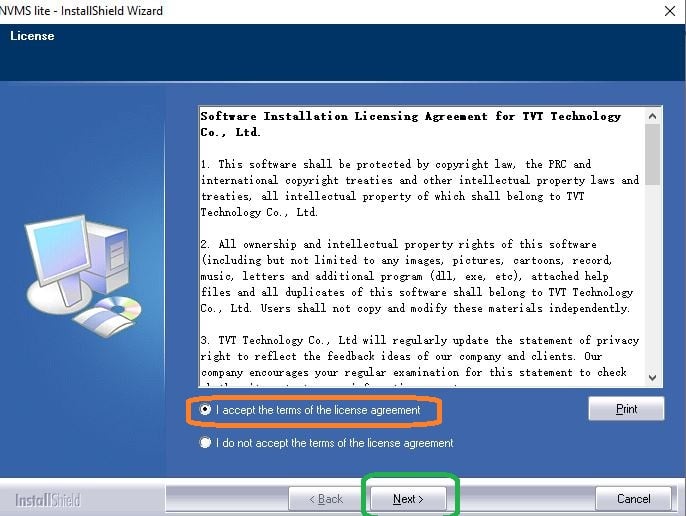

The agreement page appears on the screen.

Software terms and conditions

Select the ‘I accept the terms of the license agreement' option and then press the next button.

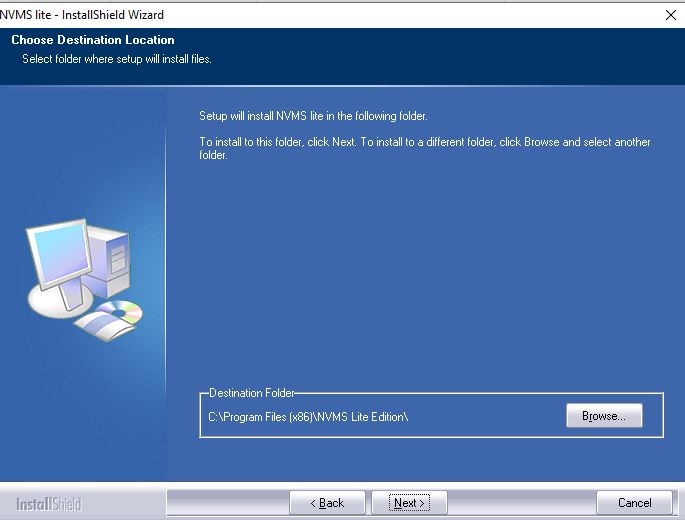

The page for giving path and folder location to the software appears.

Choose the destination locations of the application

Give the proper path and folder location and then press the next button.

The files will begin to transfer on the PC.

File installation process

App installation process is going on. When the process is finished, we get a new page informing it.

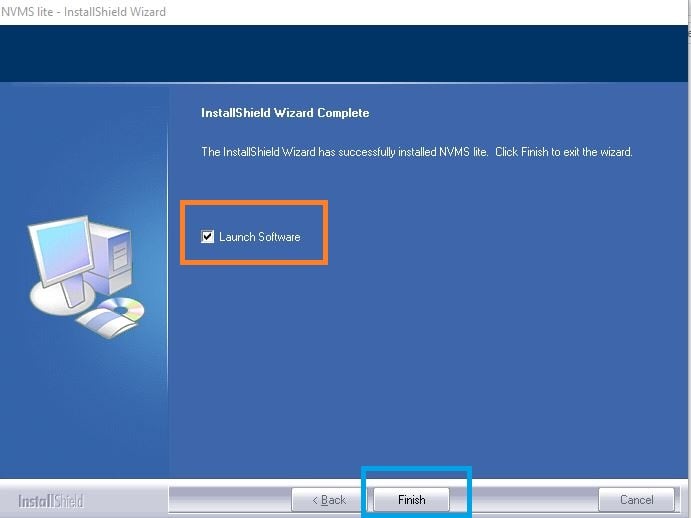

Installation is finished, select the launch software

The installation process is finished. Press the ‘Finish' button for the next step.

The step- 2 is about the login process.

Step 2- Log in to the NVMS Lite 2.1 App

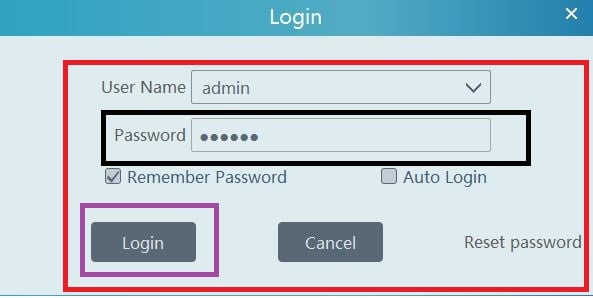

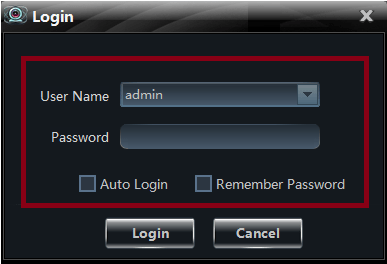

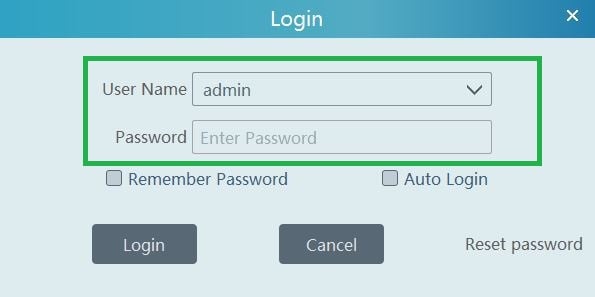

When we open the installed app, we get the following page. It is the login page.

Login to the application

You have to fill the Username and password of the application. The by default username and password are respectively “admin” and “123456“.

enter the username and password

You will login to the software. This way the step 2 is complete.

Now, we will go to add the devices.

Step 3- Add Devices for Monitoring

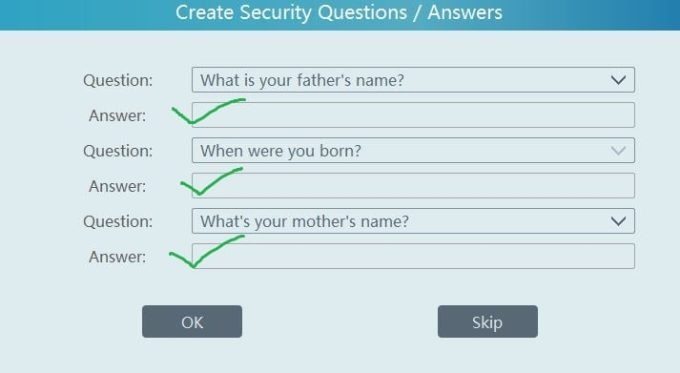

After the sign-in, we have to give these optional answers to recover password in case we forget them. It is an option. You can skip the process too if you want.

answer these security questions

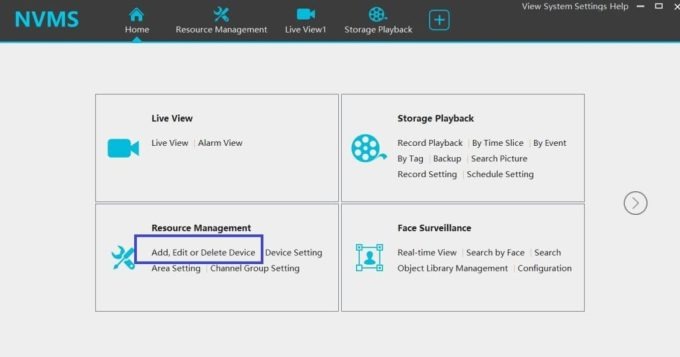

After that, the homepage of the NVMS Lite 2.1 appears.

Homepage of the software

We have to add the device. Press the marked option to connect devices.

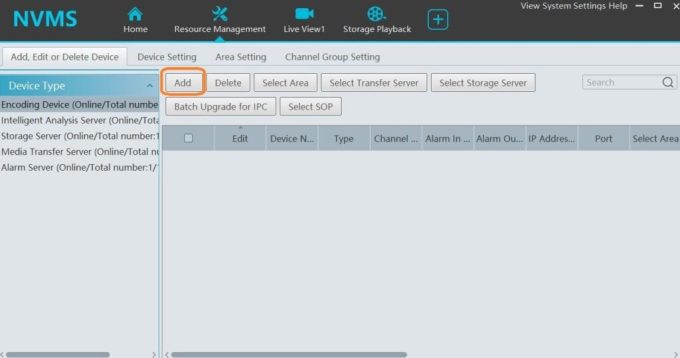

This page surfaces. Press the add button now for connecting cameras.

Add cameras to monitor

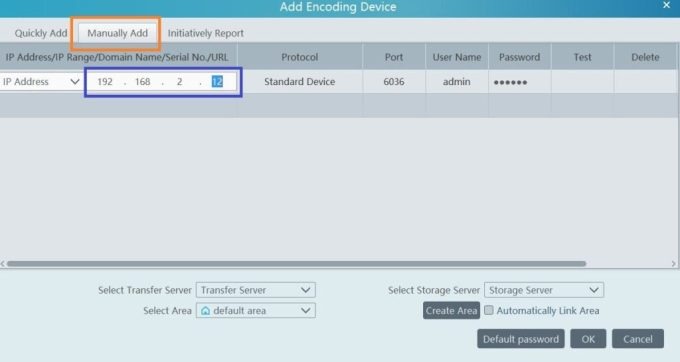

When you press the add button, you get this page. Here, you can add cameras or devices. To add manually click the encircled button.

Mention the IP address of the software

Fill the IP address and press ok to connect. You can add all the devices similarly.

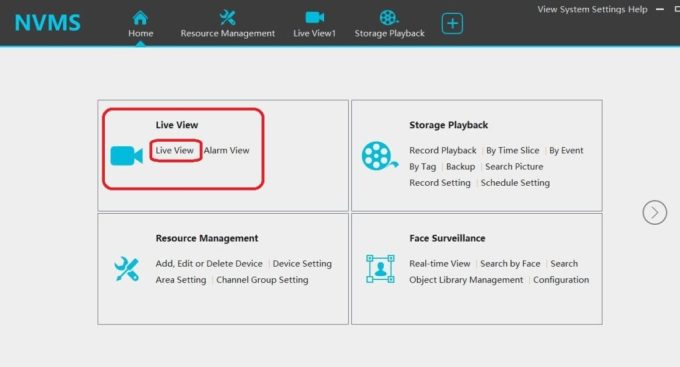

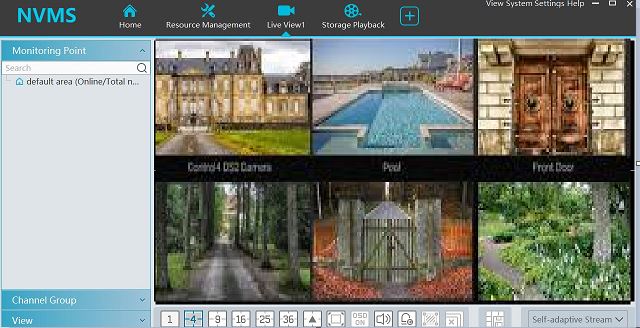

Now move to the home page and select the live view option.

Check the live view on the monitor screen

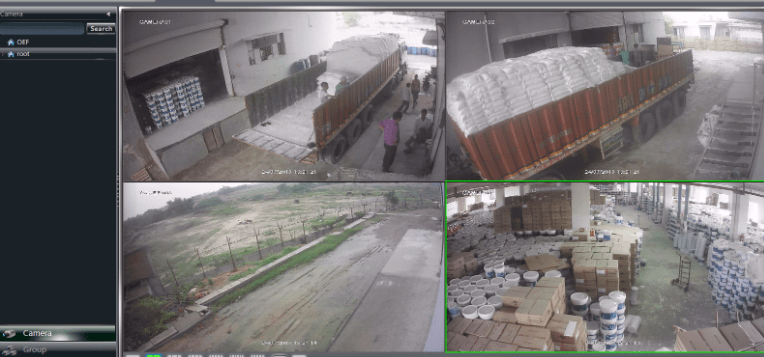

Added device will appear on screen. This way you can monitor from remote areas.

Monitor cameras from anywhere

The full demonstration of this app must be helpful for readers and users.

SuperLive Plus For PC Free Download For Windows

Here you can download the latest version of Superlive Plus on your computer.

All you have to do is click on the download button according to your choice.

Superlive Plus is also available for MAC PC you can live your cameras on your MAC PC also.

Apply any given method and then you can see the live view of your cameras on your PC.

Method 1 (SuperLive Plus For PC using NVMS 1000)

Every CCTV company offers a CMS for Windows setup of its cameras. Superlive plus also offers its called NVMS 1000.

By using this, you can get a view of SuperLive plus camera on your computer screen. So download the setup for that from the given link.

Step 1.

Download the Setup from the given link below (Old Version).

Download Superlive Plus For PC

Download Superlive Plus for MAC

After downloading the setup open the folder where it has been downloaded the file name is “Superlive-Plus-for-PC. Just install this setup on your PC.

Step 2

Now come to the of superlive plus for PC (windows).

After completing the installation process you will get an icon on your desktop named “NVMS-1000″. Just double click on that icon and it will ask for the registration of the user.

Here assign a user name and password and register the user. You may leave other options on the registration screen. This user name and password are only for this software not for your DVR/NVR.

Step 3

Now a new screen will open asking for the username and password. Insert the username and password that you registered at step 2. A screen will appear in front of you as shown below.

superlive-plus-for-pc

Step 4

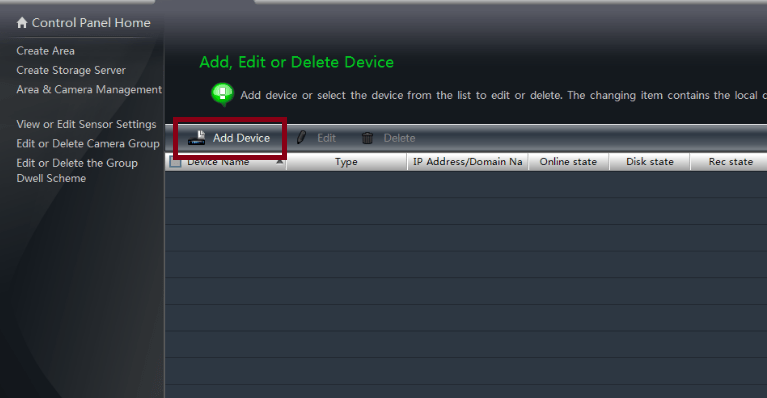

Just click the option “Device” and you will find the next screen as shown below.

superlive-plus-for-windows

Click on the “Add Device” option and come to the next screen.

Step 5

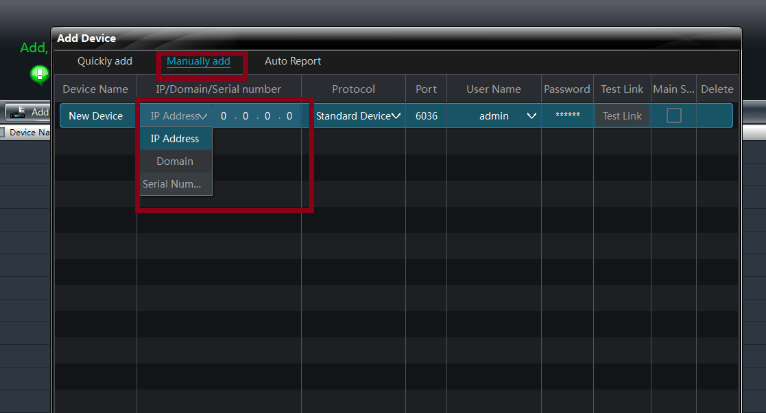

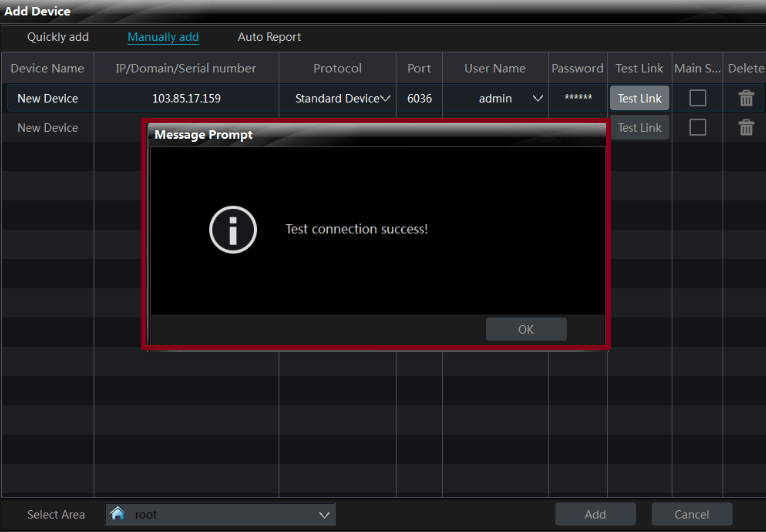

Click on the “manually add” option from the top of the screen. Here, you have to add a device serial number, IP address or a domain as per your mode of DVR/NVR's registration.

superlive-plus-for-pc

superlive-plus-for-windows

So choose one of them as per your desire. After filling the information. Just click on the “Test link” button. Test link must be popped up “Test connection success” then clicks “ok” and then “Add” button.

superlive-plus-for-pc

Now the device is registered successfully now you can see all the cameras on your computer screen. To do this you should go to the “live preview” option.

superlive-plus-for-windows

Method 2 (SuperLive Plus For PC using BlueStack)

To use this method you have to use an android emulator on your PC. One of the best emulators is  Bluestack. Just install it on your PC and follows the steps.

 Download and install the emulator.
 You will get an icon of the emulator to appear on the desktop.
 Now find the play store icon on the emulator. It is just like your android phone.
 Login to your play store.
 Search for the Superlive plus and install it.
 Now just put the information in the process of registration device.
 Just enjoy  Superlive Plus for PC.

SuperLive Plus For PC Free Download For MAC

If you have a MAC system then you can also get your cameras on your MAC system. The company also offers set up it on your MAC OS. Here we are going to demonstrate how to download and configure super live plus for PC(MAC).

Step 1

Download the setup of superlive plus for pc from the given link below.

Download Superlive Plus for PC (MAC)

Just install it on your PC and come to the second step.

Step 2

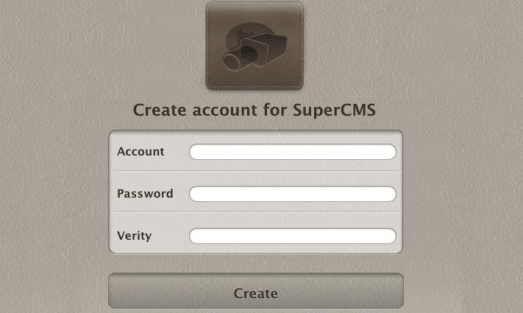

Now you can see an icon on your computer screen named “MAC Super CMS…app”. Just open it and the screen will ask you for the account creation. Just create an account for that by putting a username and password.

superlive-plus-for-pc

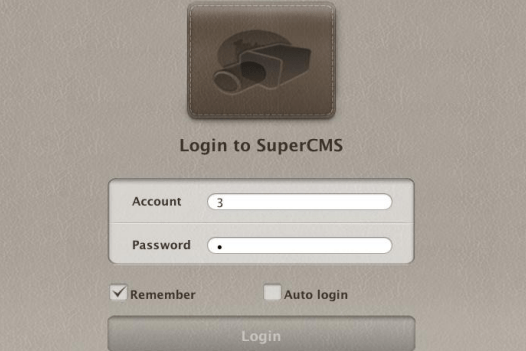

After the registration window will ask you to log in. just logged in by using the username and password that you registered.

superlive-plus-for-mac

Step 3

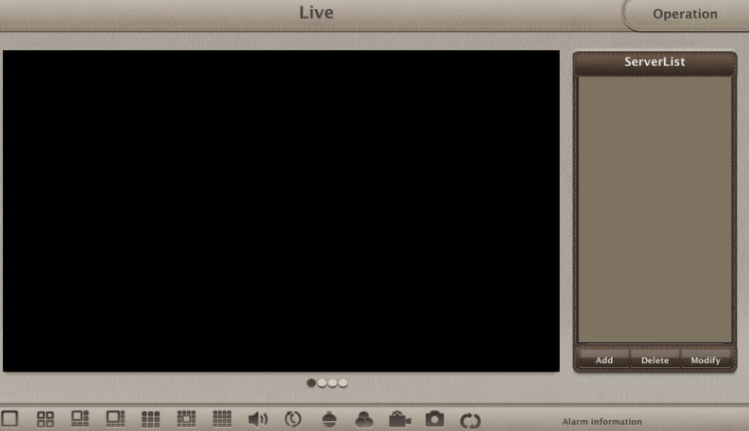

After logging in you can see the screen as shown below.

superlive-plus-for-pc

On your right bottom, an option shows as  “Add”.  Click on that icon and you will see the next screen.

Step 4

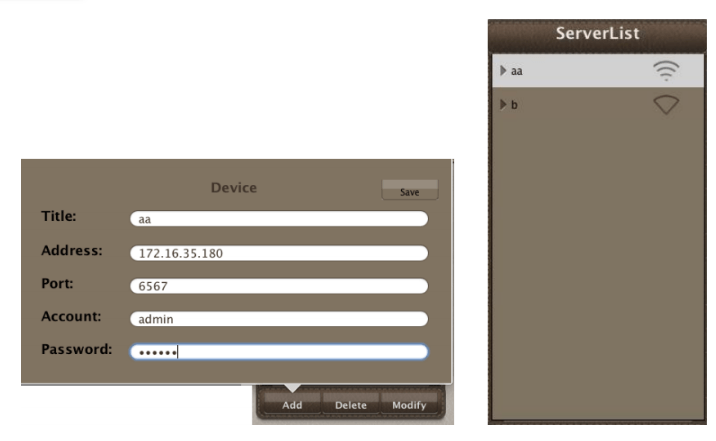

In this step, a screen will appear as shown below.

superlive-plus-for-mac

It asks for some detail related to your device. Just fill it up. In the “Title” option you can choose a title your device as per your choice.  In the address, you have put the IP address of the device(DVR/NVR/).

Title: As per your choice.
Address: The IP address or domain name of the device you want to add.
Port: The HTTP port of the device you want to add.
Account: The login account of the device. The default account is “admin”.
Password: The login password of the device. The default password is 123456.

Step 5

Now click on the  “Save” button to save the information. Now you can see the DVR/NVR list in the device list as shown in the below picture.

superlive-plus-for-pc

Conclusion

So this is all about Superlive plus for PC. Using these steps you can easily configure the SuperlivePro DVR/NVR/IP camera for your window laptop and desktop. If you have any queries or suggestion please write to us in the comment box below.

Frequently Asked Question

What is NVMS Lite Edition?

NVMS Lite Edition and NVMS Lite 2.1 Edition are security management platforms given by TVT. They are software for connecting CCTV devices for remote access. You can be live from any place and monitor your locations.

What is the password for Nvms Lite Edition?

The by-default username and password for the NVMS lite are “admin” and “123456” respectively.

What is NVMS software?

It is a security surveillance app. It is designed to monitor CCTV devices from remote areas. It is available for Android, iPhone, Windows and Mac versions. It supports TVT cameras and recorders. It also connects some third-party devices.

What is the default IP address of the TVT CCTV camera?

The company has provided the following IP address and by default setting. IP address: 192.168. 226.201 Subnet Mask: 255.255. 255.0 Gateway: 192.168. 226.1 HTTP: 80 Data port: 9008 The default password of the administrator is “123456”

What is the default password for TVT security cameras?

The default password for CCTV cameras is 123456.

.
