ClareVision App Guide

ClareVision App Guide, The guide covers the entirety of the ClareVision App. Learn about the various new screens, features, video recordings, and more. You can download the app guide below.

ClareVision App Guide

ClareVision_Solution_Collage_1

The guide covers the entirety of the ClareVision App. Learn about the various new screens, features, download video recordings, and more. You can download the app guide below.

Download ClareVision App Guide

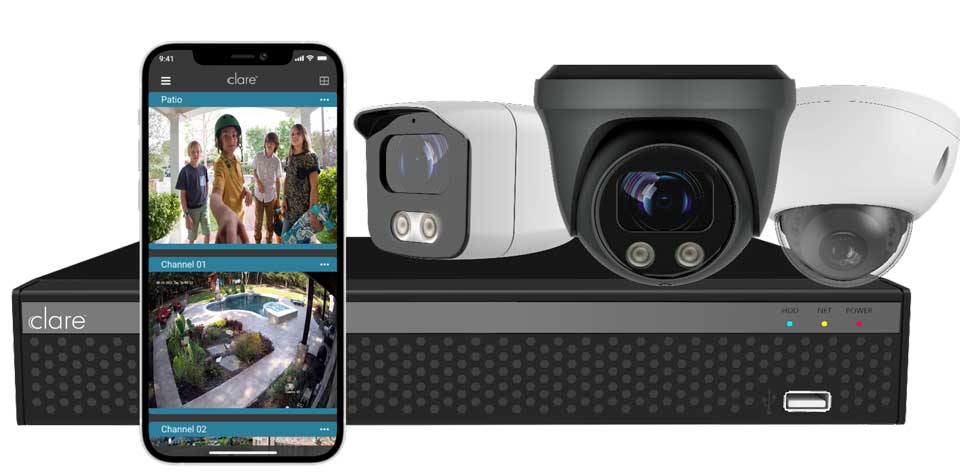

The ClareVision App



word image 1911 1

word image 1911 2

11:40:45

Event History

• Motion Detected Yesterday at 11:35:23 am

• Smart Event Detected Yesterday at 11:35:23 am

• Motion Detected Yesterday at 11:35:23 am

Read More :

word image 1911 3

word image 1911 4 word image 1911 5 word image 1911 6

FT”| Easily receive push notifications if motion is detected from any of your installed .

Not at home? No problem! ClareVision allows you to stay connected to your home from anywhere in the world.

Using the ClareVision App makes it simple to stay secure and safe while at home or away.

Available on the

W AppStore

GET IT ON

Google play

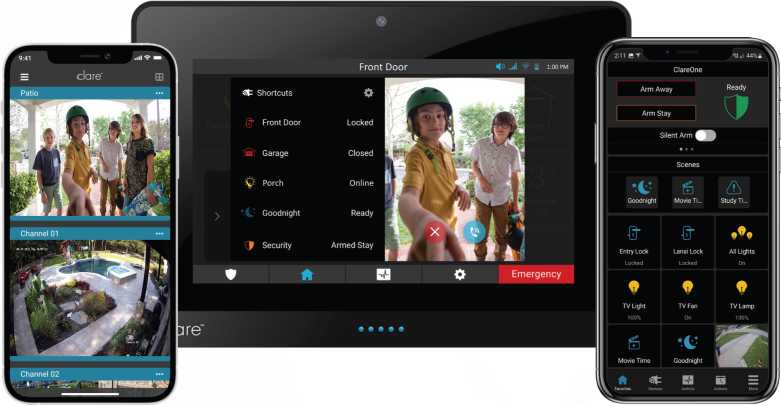

Available for iOS and Android devices, the ClareVision App puts complete
control of your installed security cameras at your fingertips. Know when a visitor is at
your front door, or get a notification if something is happening around your home.

Using our technology, view your cameras on your smartphone device or through the ClareOne Panel and ClareHome App.

Download ClareVision for iOS and Android devices

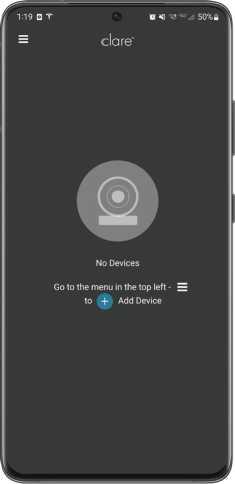

After launching the App, you will be presented with the home screen of the App. Here you will be able to add cameras, view existing cameras, chaging the camera display order, manage , and more.

word image 1911 7 word image 1911 8

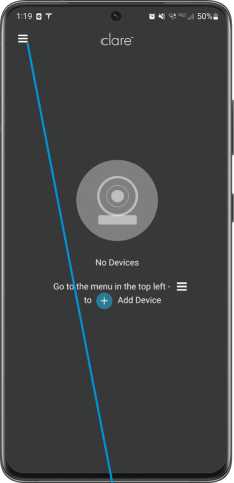

When opening the App for the first time, you will be prompted to add your cameras or .

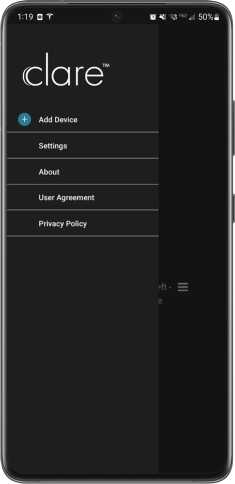

Tap the menu icon to open the main app menu. Here you can add devices, change global app settings, and view information.

word image 1911 9

Note: Cameras should be pre-configured by an authorized Clare dealer before they are added to the ClareVision App.

Settings:

Settings allows you to edit Global app settings such as Push Notifications and .

About:

View app software version information.

Privacy Policy:

View the Clare Privacy Policy Statement.

word image 1911 10 word image 1911 11 word image 1911 12 word image 1911 13

It's simple to add and configure cameras and NVRs with the ClareVision App.
See the steps below on add your ClareVision camera or NVR.

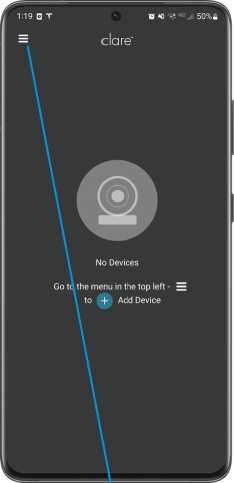

Tap the main menu icon to expand the dropdown list.

Select + Add Device to begin
adding a new device.

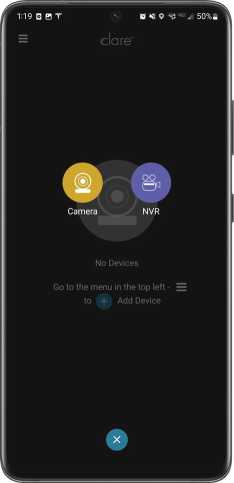

Select Camera to add a
standalone camera or NVR to
add an NVR and its channels.

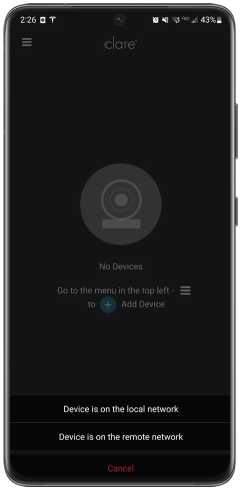

Select Device is on the if you are connected to the same network as your cameras.

Select Device is on a remote network to add cameras remotely if not on the same network.

word image 1911 14 word image 1911 15 word image 1911 16

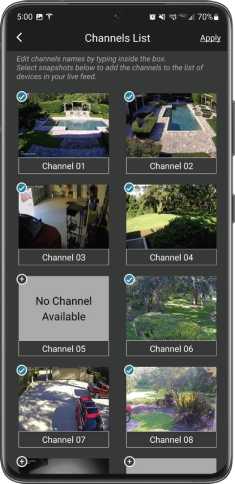

Your added camera or NVR will display. On this
screen, you can edit device names or select the
channels to display if you added an NVR. Tap the
+ icon on each image to add to the home screen,
then tap Apply when finished.

If your mobile device is connected to the same network as the camera or NVR, the app
will search and display available devices. Select your device from the list to add it.

a b *ii 50%a

Network Search Ô

P5WREGMHT3DJXY3C111A 192.168.1.187

X4WJDBFXRGFRZZMD111A 192.168.1.100

A list of discovered cameras and NVRs
will display. Select your device.

Input the device password and
desired device name. Tap Done.

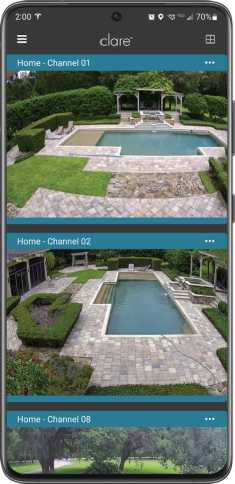

Your selected cameras will be displayed
on the home screen. Tap on any video
feed to expand it into focus view.
That's it!

By selecting this option, you will be able to add any camera or NVR remotely as long as you
have the device QR code or UUID. You will need to input the device password.

word image 1911 19

4:27

Add Device

No devices found

You may add a device using
one of the options below:

Scan a QR code from the device

Enter the device UID and password

To add devices remotely, tap the QR scan
button or pencil icon to add the device UUID.

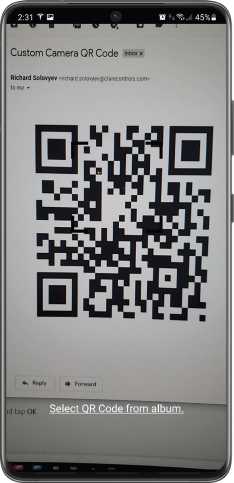

Scan the device QR code which can be
found on the camera, box, or manual.

word image 1911 20 word image 1911 21

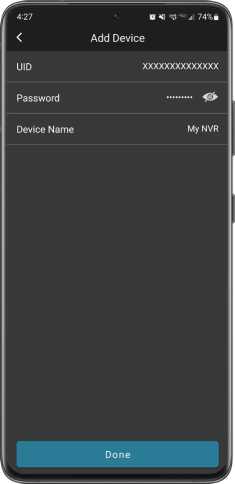

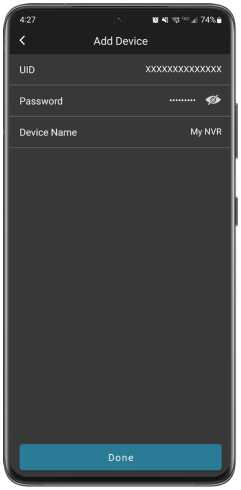

Input the device password and
desired name. Tap Done.

Your added camera or NVR will display. On this
screen, you can edit device names or select the
channels to display if you added an NVR. Tap the
+ icon on each image to add to the home screen,
then tap Apply when finished.

Viewing Live Video Footage

The ClareVision App makes it easy to view live video straight from your mobile device. Stay
connected and always aware of what's happening around your home.

word image 1911 22

Tap on a video feed to expand the camera into Live View.

Tap the grid icon to reorganize the layout view to Grid View.

Tap the ••• icon to expand the Device Menu. Here you can view the device UUID QR code, or reorganize the the order of displayed cameras.

Note: You can view all your available camera feeds by scrolling the screen up/down.

word image 1911 23 word image 1911 24

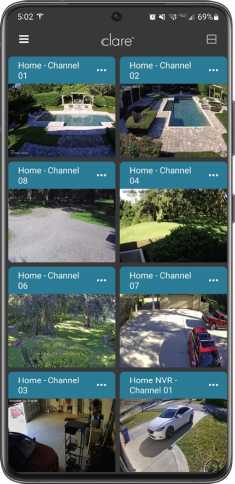

Grid View allows you to view more cameras
on screen. This is useful for users who have
an NVR with many cameras. Switch back to
Waterfall View by tapping the grid icon again.

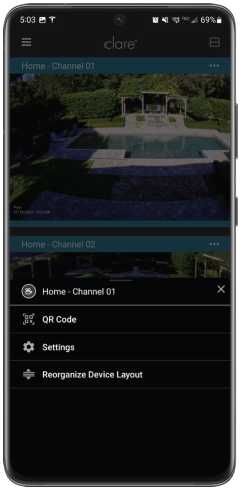

The Device Menu allows you to view the
device UID QR code, access Device Set-
tings
, or Reorganize the Device Layout.

Camera Live View Tab

You can tap on any live video feed to open Live View mode. Here you can view the camera
feed, settings, event history, save recordings, and use two-way voice with supported cameras.

word image 1911 25 word image 1911 26

word image 1911 27

Tap a camera feed to open the
camera in Live View.

Device or Channel Name

Access PTZ controls for supported cameras.

View Live video feed.

Instantly start a video of the scene. The video will automatically save to your device once stopped.

Instantly save a screenshot of the scene to your device.

Return to home screen.

Access Device Settings.

In Live View, you can view live video,
access events, screenshot, save video, share,
and manage audio feeds.

View video feed in full screen view. You can also enter full screen view automat­ically by rotating your device.

Access camera Event History.

Start live audio playback. (Supported cameras only).

Turn on the microphone on your device to speak through your device. (Supported cameras only).

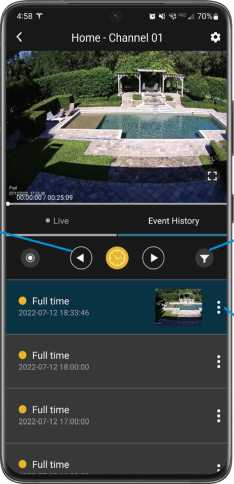

Event History

The Event History tab allows your to playback events based on your configured settings.
Cameras that support smart events will display additional event filter options.

word image 1911 28 word image 1911 29 word image 1911 30

Switch between events.

Open Event Filters to filter by event type.

Open Event Menu. Here you can download and share events.

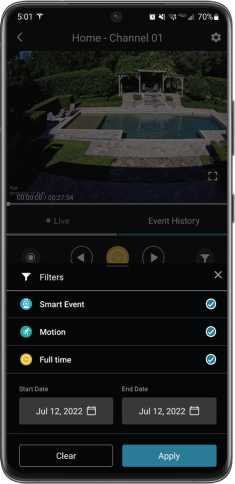

Event Filters allows you to filter
events by the event type or date range.

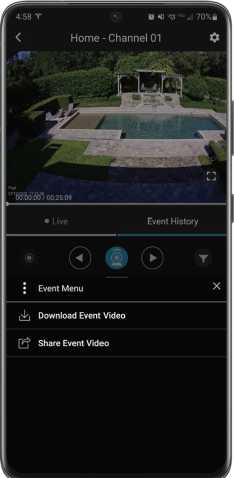

Event Menu allows you to Download the
Event Video
or open your device share menu
to Share the Event Video with a person.

PTZ Controls and Full Screen Mode

PTZ Controls allow you to pan, tilt, and zoom cameras that support PTZ. You can access full
screen mode by tapping the Full Screen button or automatically by rotating the phone.

word image 1911 31 word image 1911 32

PTZ Controls

Full Screen

Pan Camera

Tilt Camera

Zoom

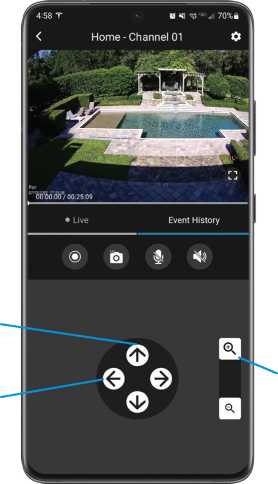

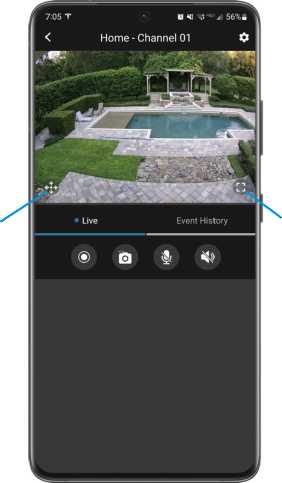

You can access PTZ Controls by
tapping the PTZ button. Your camera must
support PTZ Controls to use this feature.

PTZ controls allow you to pan, tilt, and zoom
the camera image. You can digitially zoom your
image by pinching and zooming the screen.

word image 1911 33

Open PTZ Controls Controls for starting a recording, taking a Close Full Screen mode

snapshot, and turning on audio controls.

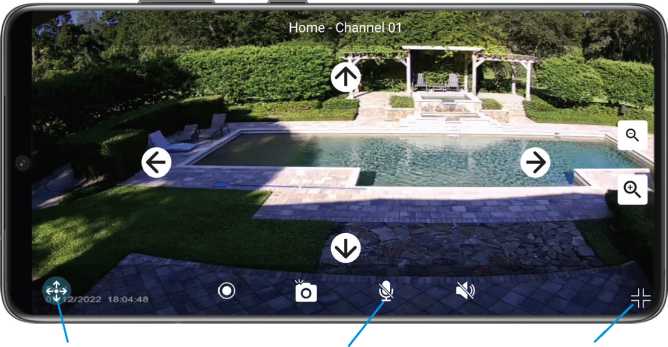

Enter Full Screen mode by rotating your device or tapping the Full Screen mode button.
You can exit full screen mode by rotating the phone back or tapping the Full Screen
mode button again. You can also pinch to digitally zoom the image.

You can easily toggle motion notifications, rename your devices devices, change passwords, manage
displayed channels, format the hard drive, view software information, and more from the Settings screen.

word image 1911 34

Access

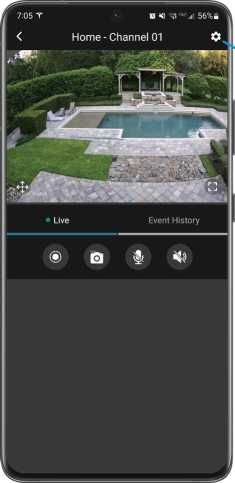

Access Device Settings by
tapping the gear icon.

Device Settings.

word image 1911 35   word image 1911 38

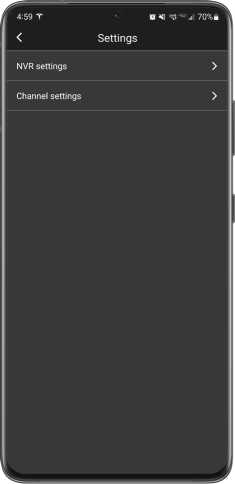

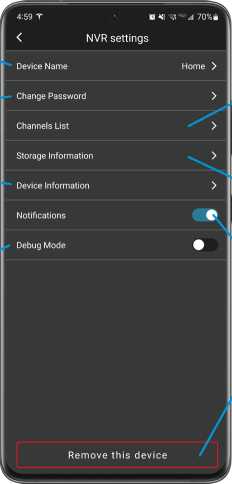

Device settings allow you to change
standalone camera or NVR settings.

Change Name

Change Password

View NVR Details and-

Software Information

Toggle Debug Mode.

Change Displayed Channels

View Storage Information and Format Hard Drive

\ Toggle Notifications

Remove the NVR from your app.

F 5:00 T Ct Ki 70%. 1

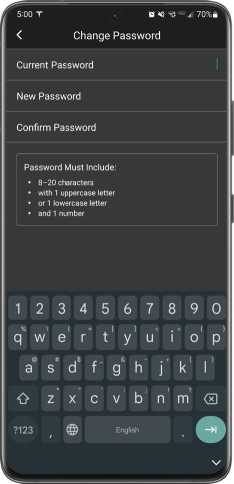

< Change Password

Current Password

New Password

Confirm Password

Password Must Include:

  • 8-20 characters
  • with 1 uppercase letter
  • or 1 lowercase letter
  • and 1 number

1234567890

% \ I – . t I < . > ( )

qwertyuiop

a s d f g h j k I

O zxcvbnm

?123 z © English —>l

NVR Settings: These settings allow you to
change the global settings for your NVR.

Change Password: Enter the
administrator password and the
new desired password to change.

You can manage global settings for NVRs and all connected cameras or for individual cameras.

word image 1911 40 word image 1911 41

Channel List: Enable or disable NVR
channels to display. Tap Apply to save.

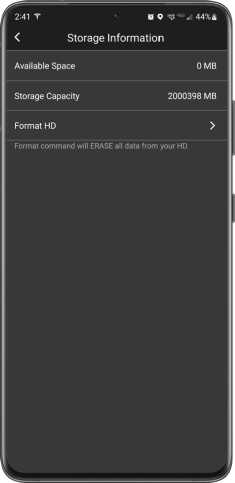

Storage Information: View storage
information and format the hard drive.

word image 1911 42 word image 1911 43 word image 1911 44

Change Name

Channel settings

Device Name

Channel 01 >

Change

Channel/Camera

Display Settings

Display Settings

Light Settings

Change Light Intensity Settings for Color at Night Cameras

Rotate the

Camera Image

Orientation

Change Live Video Resolution:

Auto: Adjust resolution automatically

SD: Standard Definition

HD: High

Definition

Channel Settings: These settings allow
you to change the individual channel or
camera settings.

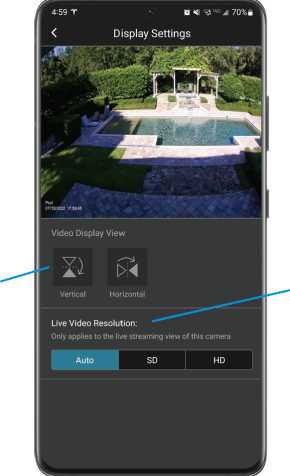

Display Settings: Adjust individual im-
age display settings for your camera such
as orignetation and stream quality.

Reorganize the Device Layout

You can reorganize the order of displayed camera or channel feeds by opening the
Device Menu and selecting Reorganize Device Layout.

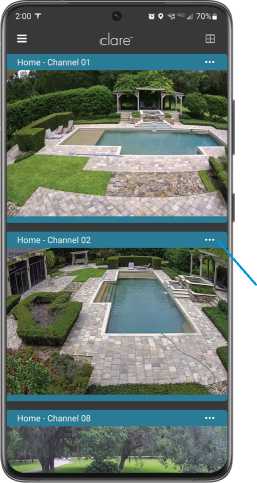

Tap the ••• icon to expand the Device Menu.

Reorganize

Device Layout.

word image 1911 45 word image 1911 46

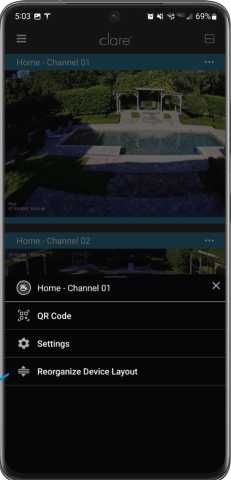

Open the Device Menu on your
home screen.

Select Reorganize Device Layout.

word image 1911 47 word image 1911 48

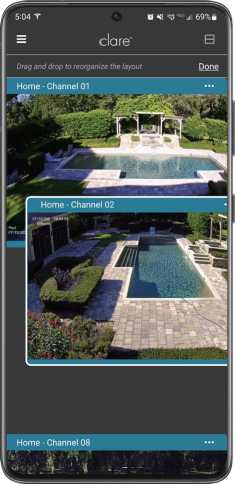

Drag and drop the video feed to
reorganize the layout. Tap Done
when finished.

Change Password: Enter the
administrator password and the
new desired password to change.

Updating Device Firmware

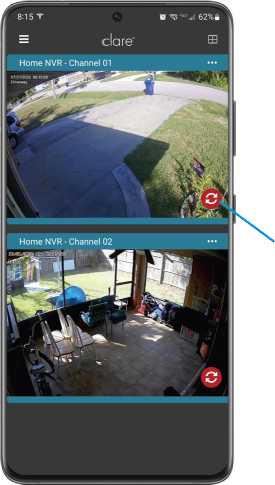

When new firmware is available, a red update icon will display in the
bottom right-hand corner of your video feed.

word image 1911 49

Red update icon indicates an update is available for your camera or NVR.

Note: Tapping the red update icon when using an NVR will update the NVR. Tapping the icon
when using a standalone camera will update the individaul camera only.

word image 1911 50 word image 1911 51

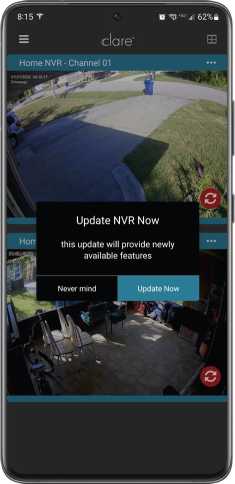

Tap Update Now to begin the update
process. This will restart the device.

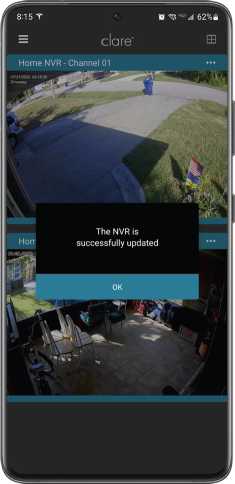

Tap Ok once the device update is finished
