JFTech VMS setup and user guide

setup and user guide, JF-Video Management Software (hereinafter referred to as VMS ) is developed software for our products. The suppressible toolbar, succinct GUI and rich functionality make it very intelligent and user-friendly monitoring management software which can be used in various scenes.

1.Overview

.

JF-Video Management Software (hereinafter referred to as VMS ) is latest developed client software for our products. The suppressible toolbar, succinct GUI and rich functionality make it very intelligent and user-friendly monitoring management software which can be used in various scenes.

This software could be used for connecting kinds of devices, such as DVS, DVR and so on. This introduction only presents the operation on software, if need detail function settings please refer to product specification.

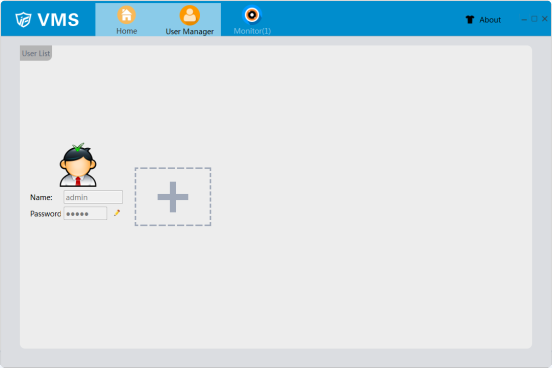

User & privacy management

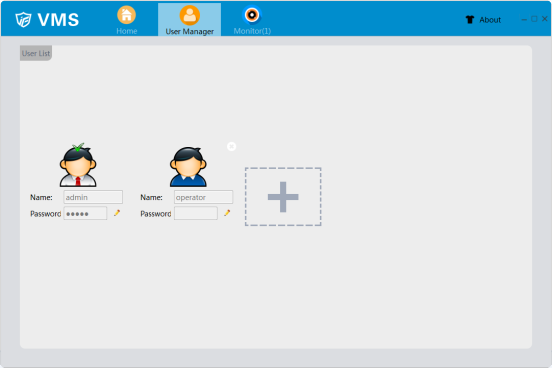

VMS support three-level organization management system, user management and permissions management.

Use data interface

System data interaction use data interface, could support kinds of database flexibly, like SQL, MYSQL, XML and so on.

Support edit and add device by Excel table

Allows users to import or export devices using the binary filesfilename extensionbin,much more easier in coping with the maintenance of a large batch devices. which improves system's useability and significantly reduces the workload of maintenance.

Smart video transmission protocol

Using the Smart video transmission protocol, the system can fully utilize the bandwidth of a network. Especially in situations when the bandwidth of the front-end network condition was limited. The system can still operates under a narrow bandwidth, without reducing the quality of the images.

Perfected video system

Allows the real-time surveillance and many other abilities. Such as alarm activated video record, auto-surveillance record, record and etc. Able to control the recording on every channel.

Dynamic decoding buffer adjust

The real-time surveillance is able to modify the priority setting between the video's fluency and it's real-timing with flexibility. Should the user chose to give fluency the priority, the system will provide much fluent images. Otherwise , the system will focus on providing real-time images. Thus, the system is capable of satisfying all kinds of needs.

Centralized management

All the data of the system is under centralized management. This allows remote users to conduct real-time surveillance and video playback via internet.

Fine operability

With the control authority, users can control and configure every surveillance post via client software. Also has an function integrated.

High integration level

Other kinds of relevant information such as alarm information, voice message are also integrated in the system.

High reliability

There is also a fault-tolerant mechanism designed for the system, in order to keep the data intact, and to keep the system reliable.

Fine expansibility

Service-oriented system design, provides fine ability to expand and to adapt. Which can considerably protect user's investments.

Other features

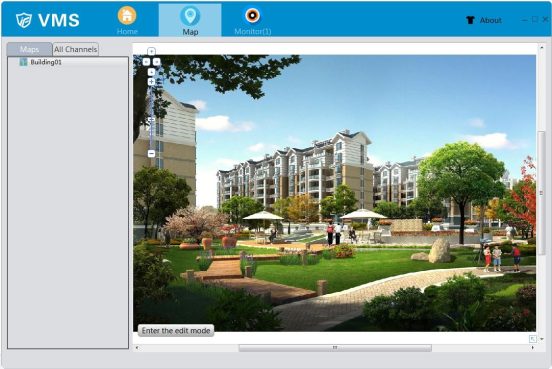

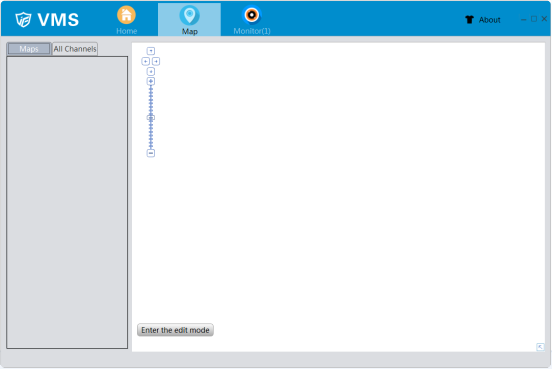

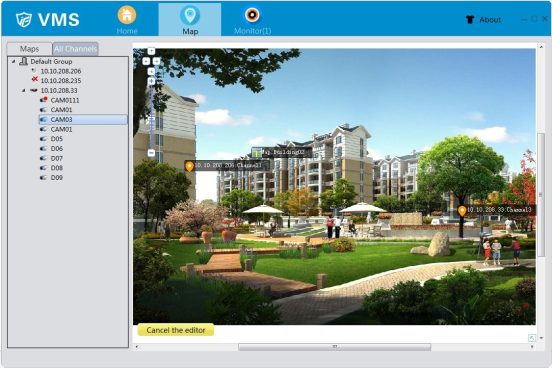

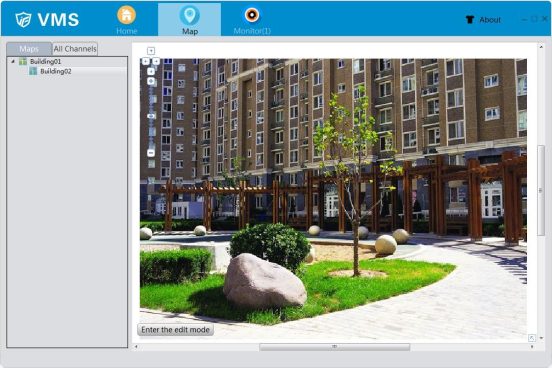

Allows to use E-map

Allows multi-channel playback

Able to connect to multiple devices and check their video(both real-time and playback) XML data storage

Compatible with multiple protocols for rocker keyboard Multiple kinds of alarm devices are allowed, such as CK,VISTA

Compatible with multiple kinds of 3D positioning protocols. Able to perform 3D positioning within the viewing area.



JFTech VMS setup and user guide

Read More : XMEYE VMS PC CLIENT Setup Guide

.

2. Instructions

.

2.1Software Environment

.

2.1.1Hardware

CPU  P4/2.0G

Graphics CPU:  ATI9800 or above(two channels) Graphics memory:    128MB or above

Graphics bus Width  128bit

The graphics card must be able to perform hardware scaling(such as ATI and TNT2 PRO). Network interface card100/1000M

.

Note: If devices have high resolutions or there are too many channels at the same time, in order to have a good performance, system requires much advanced hardware than we listed above.

.

2.1.2Software

This software is compatible with windows Vista/Xp/2000/2003/7/8/10(windows 98 is not recommended)

Please shut down all activated anti-virus software and firewalls during the installation process, otherwise the device may not be detected.

2.1.3Installation
(1)image2 339w263h
Clickimage3 55w66hto start the VMS setup sequenceselect your language in the following dialog box.

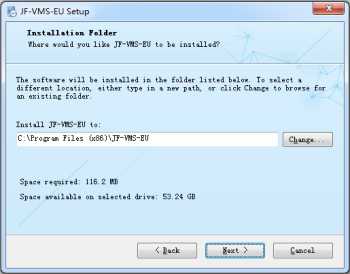

(2)Then click “next” to select your installation path.

.

image4 350w274h

.

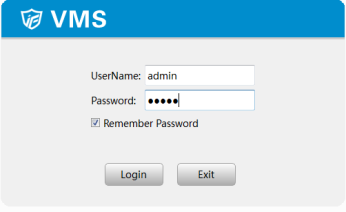

(3)Click “next” to proceed and to finish. As the picture shown below, as the installation sequence finished, appears the log in interface.

.

image5 346w212h

Default password: admin

(4)When the logging in is finished, An iconimage6 43w45h appears on your desk top.

.

3.Function modules

.

Note: Different devices may have different functions and options in the menu)

.

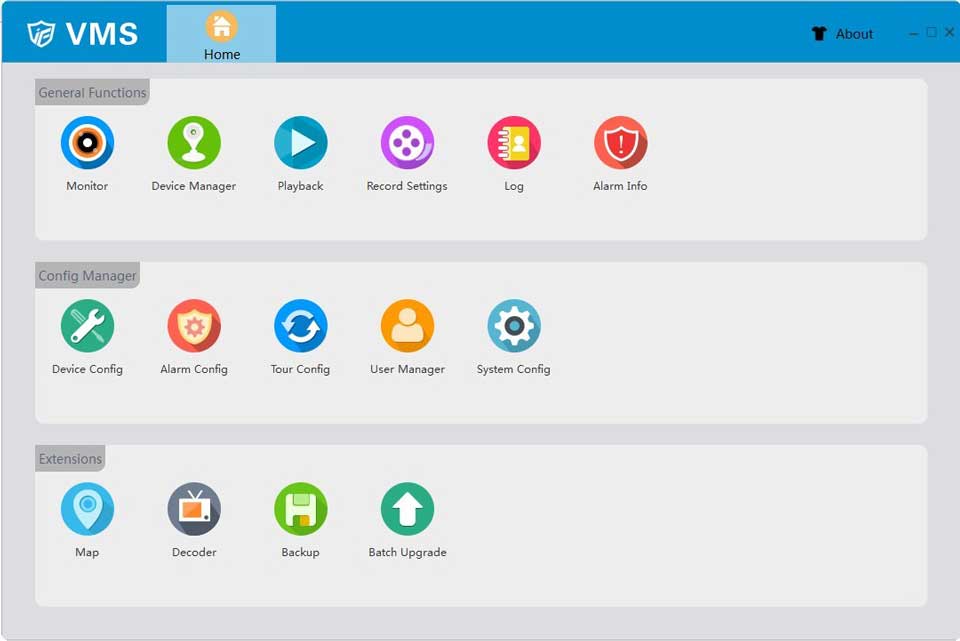

3.1VMS home page

.

image7 551w368h

The home page of VMS is shown below.

.

3.2Monitor

.

image8 550w368h

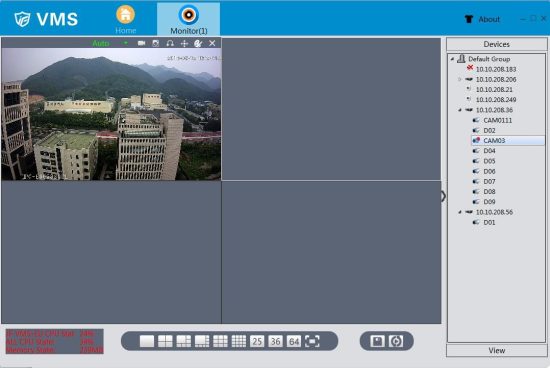

Click the “monitor” button to open the monitor page.

Monitoring view

.

Monitoring view

The monitoring view provides live view of every monitoring channel

Window operation

menu

The menu controls all the devices within the window

Device list button

Click “Device” to show the list of all devices

View list button

Click “View” to show the list of all views

.

Multi-screen switch

To change the viewing number of multi-screen monitoring, simply select the “single screen” ,“four screens” ,“six screens”

Save view

Save the current monitoring view

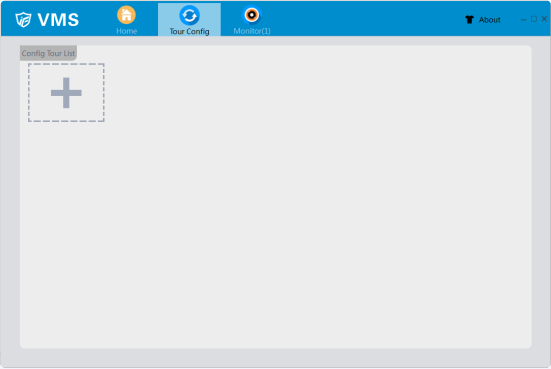

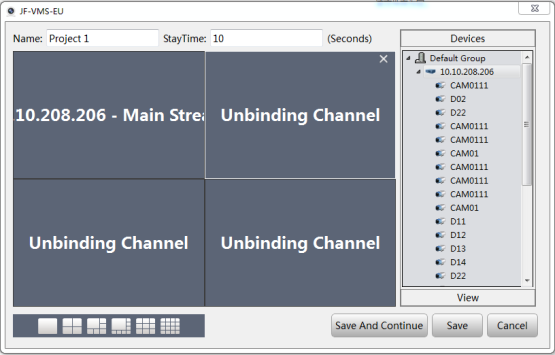

tour

Follow the preset tour plans to tour

.

Open the channels

Select one of the windows in monitoring view, then double click one of the channels in Devices list

.

operation menu

Choose display scale,

auto resize turned on by default.

.


.

.


Temporary manual

record.

.


Instantaneous manual

record.

.


Click to enable audio.

.


.

image14 146w103h

.


Adjust the color of video on VMS, Not of the device.

image16 146w97h

.


Disconnect the video.

.

.

PTZ control

Click the button of PTZimage18 1and pop up the control interface.

image14 146w103h 1

.

Video color

.

.

image19 1Click the button of color adjustment  and pop up the interface for adjusting video color.

image16 146w97h 1

.

3.3Device Manager

.

.

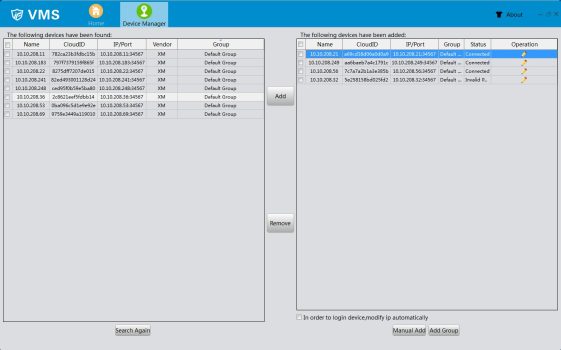

Click the button of Device Manager, then enter the page of device manage, as it is shown below:

image20 561w350h

.

.

Search againClick this button, the software starts to search for online devices, the result of the search will be listed in the left block.

AddSelect the device which have been found in left block(single click to select) and clickadd” button, it could be added in the right block.

RemoveSelect the device in the right block and click “remove” button, this device could be removed.

Manual AddWe could add device by input device's IPportusername and password manually.

Add GroupAdd new group which could place different kinds of devices inside, makes it simple to manage.

EditClick the “Edit” buttonimage21to modify added device's information.

.

3.4Playback

.

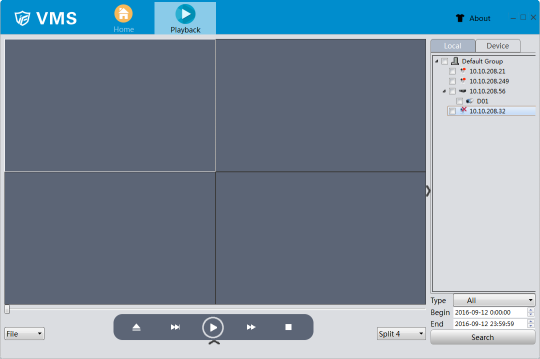

Click the Playback button and enter the playback page, as it is shown below:

image22 540w359h

.

.

Video playback

interface

This interface is used to show playback videos

Playback operate

menu

Able to operate on record files

Playback type

Able to choose to playback in chronological order or in file type order

Multi-screen switch

To change the viewing number of multi-screen playback, simply select

the “single screen” ,“four screens” ,“nine screens”

Local /device list

Set to search local or device for record files

Search list

List the record files that has been found

Search time window

Set the time window that you want to search for record

.

Playback operate menu

.

image23 25w23h

.

Open file

.

image24 16h

Fast play

.

image25 25w23h

.

Play

image26 35w19h

Slow play

.

image27 30w24h

.

Stop

.

3.5Record Settings

.

image28 550w367h

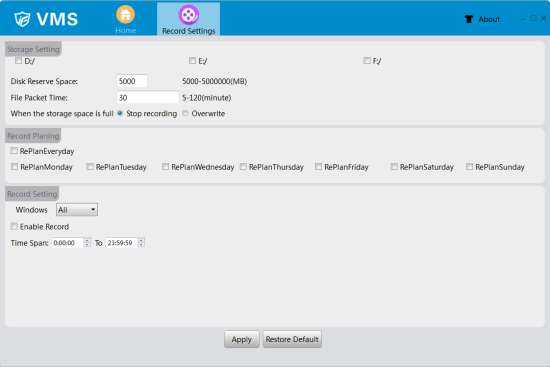

Click “Record Settings” to enter it's page, As shown in Figure below

.

Storage settings

Storage settings allows users to set a disk letter in order to store record files into the corresponding disk

The disk reverse space is specially set aside not to store video

User can set the file packet time , in order to pack the files at corresponding time

when the storage reached it's full capacity, users can choose to stop recording or overwrite old files.

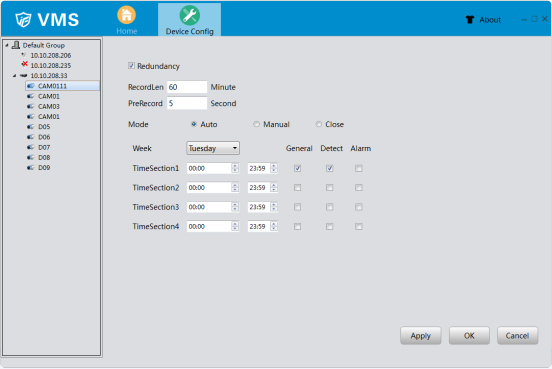

Record PlanningSet record planning

Record settings

Select corresponding window, set user's time span and tick Enable Record, click apply to save the setting. Thusly the VMS will start recording appointed window once reach the selected time span.

.

3.6Log

.

image29 551w368h

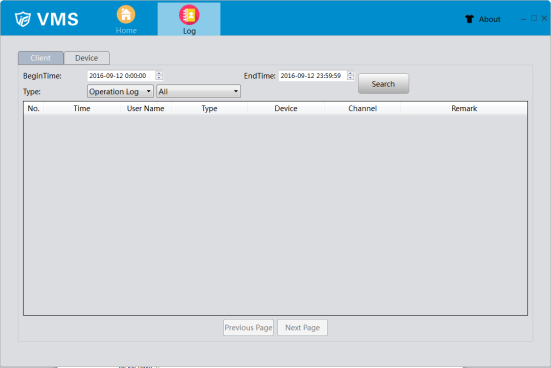

Click “Log” button to enter the log page, as the picture shown below.

.

client end

Click the “client” button, set designated time span(type in begin time and end time)and start searching, the system can find client's logs during the chosen time span. And also can search by log types.

.

device end

Click the “device” button, set designated time span(type in begin time and end time)and start searching, the system can find device's logs during the chosen time span. And also can search by log types.

.

previous/next page

Click to turn the log page.

.

3.7Alarm Info

.

.

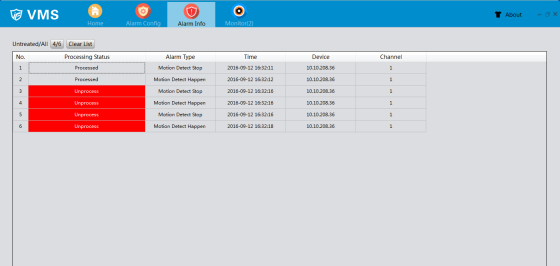

Click Alarm Info to enter the Alarm Info page, as the picture shown below.

image30 560w266h

.

alarm information list

.

In the list all the unprocess and processed alarms are shown, double click the unprocess information will change it's status into processed. Click “Clear list” will clear all alarm information.

.

4.Config Manage

.

.

.

.

4.1Device Config

.

image31 546w338h

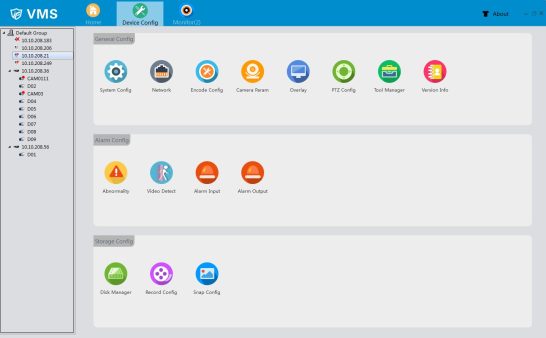

Click “Device Config” to enter Device Config page, as the picture shown below.(display differences might exist when it comes to different devices).

4.1.1System Config

.

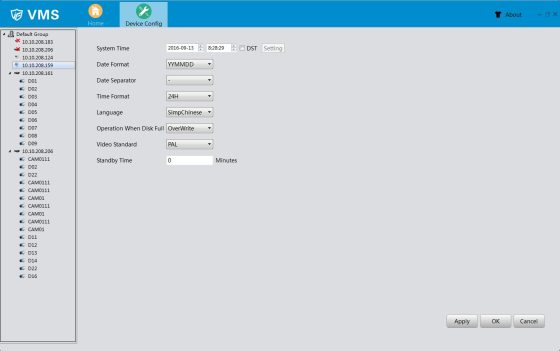

Click “System Config” to enter System Config page , as the picture shown below.

.

image32 560w351h

.

System timeto set time for recorder

DSTtick DST, click setting to set the beginning and the end of summer time=

Date formatset the display format of date

Time formatset the display format of time

Language28 kinds of languages such as Simplified Chinese, traditional Chinese, English, Persian, Finnish, French, Greek, Hungarian, Italian, Japanese, German, polish, Portuguese, Russian, Spanish, Thai, Turkish, Vietnamese, Romanian language, language of Brazil, Indonesian, Swedish and Arabic, Bulgarian, Czech, Hebrew

Operation when disk fullwhen the storage reached it's full capacity, users can choose to stop recording or overwrite oldest files.

Video standardthere are two kinds of video standard, PAL and NTSC. the standard in the recorder should be in correspondence with it's front end cameras

Standby timeable to set standby time from 0 to 60 minutes

.

4.1.2Network settings

.

TCP/IP setting

.

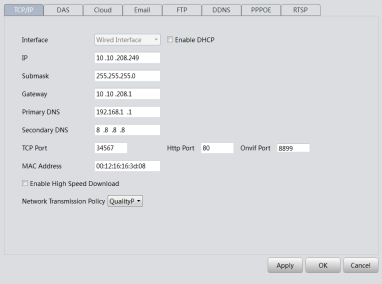

Click “Network settings” to enter network setting page, select “TCP/IP” to config, as the picture shown below.

.

image33 382w284h

.

.InterfaceTo show the type of network interface the device is using

IPTo config the IP address of the device

SubmaskTo config the subnet mask of the device

GatewayTo config the gateway of the device

Primary DNSTo config the primary DNS of the device

TCP PortTo config the TCP of the device

Http portTo config the Http of the device

Onvif portTo config the Onvif of the device

MAC addressTo config the MAC address of the device

Enable high speed downloadTick this option to speed up the download process

Network transmission policyAble to choose adaptive/quality Pre/fluency Pre/transmission Pre

.

DAS setting

.

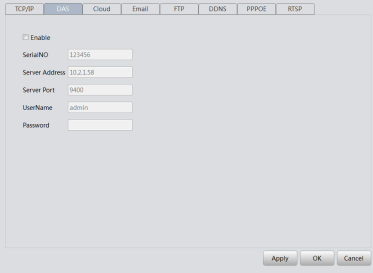

Click “DAS” to enter DAS page, as the picture shown below.

.

image34 373w273h

.

Enabletick to activate DAS

SerialNOconfig serial number of the device

Sever addressconfig the sever address for the device

Sever portconfig sever port for the device

Usernameconfig user's name

Passwordconfig user's password

.

setting

.

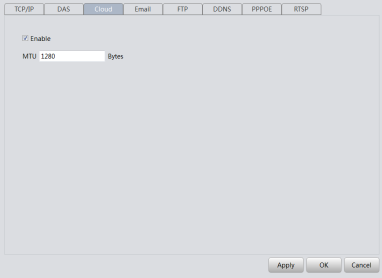

Click “cloud” to enter cloud page , as the picture shown below.

image35 382w278h

Enabletick to activate the cloud service, users are able to remotely login using the exclusive serial number of the recorder via http://cloud.jufenginfo.com/index?request_locale=en, to view and to manage the recorder. The serial number can be found in Home/Device Config/Version Info

MTUconfig Maximum Transmission Unit figure

E-mail setting

.

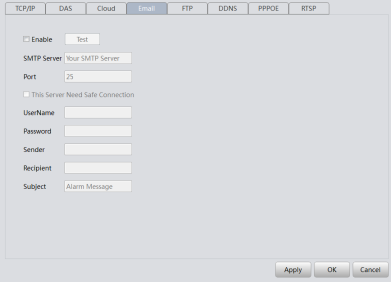

Click “E-mail” to enter E-mail page , as the picture shown below.

image36 391w282h

.

With necessary parameter settings, the device will send alarm information and snapshot picture to appointed mailbox.Please enable the snapshot function in the alarm setting before use, otherwise there will be no photo.

SMTP severthe SMTP sever address, could be an IP address or a domain name (the DNS should be set correctly in order to use domain name )

Portsever port number

SSLchoose to use secure socket layer or not

Username/Passwordsender's username and password

Senderexact address of sander's mailbox

Recipientexact address of alarm recipient's mailbox. three recipient's addresses at most, use a semicolon to separate.

Subjectthe subject of the alarm E-mail, users can config according to their own needs

.

FTP setting

.

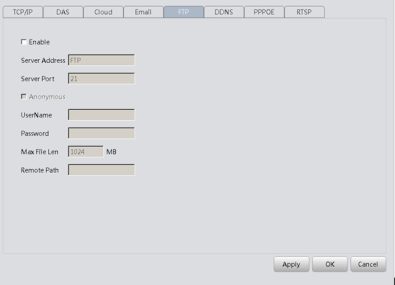

Click “FTP” to enter FTP page , as the picture shown below.

.

image37 395w285h

.

Sever Addressappointed FTP sever's address, if the sever is in wide area network, the recorder must be connected to the wide area network , too

Sever portFTP sever's port number FTP (default number 21)

Username/passwordthe username and password that user registered on the FTP sever, which also requires it's authority.

Anonymoustick the anonymous allows users to upload files to the FTP sever without logging in, in order to make this work, please make sure the FTP sever allows anonymously access.

MAX file lenthe max file volume of each file packet, default value 128M

Remote paththe file path in the sever that is meant to receive uploaded data Note: this account have upload authority to the sever.

DDNS setting

.

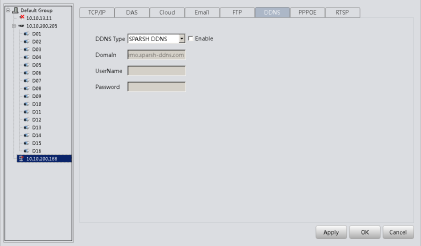

Click “DDNS” to enter DDNS page , as the picture shown below.

.

image38 421w246h

DDNS typeto choose the DDNS service provider

Domainthe domain name binding with the record's IP , usually provided by DDNS service provider

Username/Passwordthe username and password registered in DNS service provider Notethe DNS setting should be configured correctly

PPPOE setting

.

Through the PPPOE, The recorder can be remotely accessed through Wide Area Network. This requires an exclusive dial-up networking

.

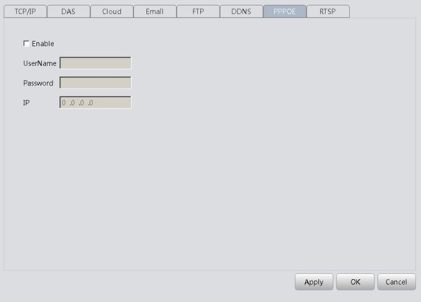

Click “PPPOE” to enter PPPOE page , as the picture shown below.

.

image39 421w302h

.

Enabletickenable” to activate PPPOE

Username/Passwordtype in username and password provided by ISP, save and restart recorder according to the tips. The recorder will establish Internet connection after restart, the IP address will be shown in the IP column

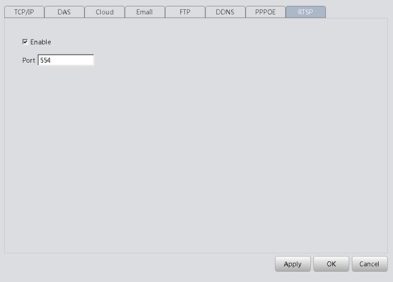

RTSP setting

View recorders' videos using non IE kernel browsers and streaming media.

.

image40 393w282h

.

Portthe default port number for devices is 554

.

4.1.3Encode Config

.

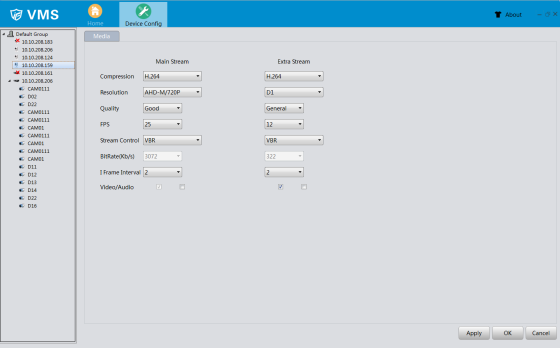

Click “Encode Config” to enter Encode Config page , as the picture shown below.

image41 560w348h

.

Compressionstandard H.264

Resolutionable to select display resolution , multiple choices such as 1080P ,720P, 960H…

FPSable to select FPS frame rate, when under PAL standard, the frame rate is adjustable from 1 to 25, when under NTSC standard, the frame rate is adjustable from 1 to 30

Note: low frame rate will have an impact on the fluency but occupies smaller flow

Stream controltwo strategies for stream control VBR and CBR. When user sets VBR, there are six grades of quality choices. When the system is under CBR setting, users can manually sets the bit rate to suit the network condition.

Qualitywhen VBR was chosen in the stream control. Users are able to choose the quality of the videos. High quality videos also requires a large bit rate. the bit rate changes in different situations, dynamic scenes need larger bit rate than steady scenes, the scenes' high complexity also contributes to a larger bit rate.

Bitratewhen CBR was chosen in the stream control , users are able to control the bit rate by setting the ideal bit rate number. Once set, the bit rate will not rise or fall dramatically with the changes of scene, it fluctuates around preset number.

I frame intervalinterval time between key frames, optional from 2 to 12, smaller this figure was set the larger bit rate there will be, hence the better video quality

Video/Audiotick theaudioto enable audio function, then user are allowed to click the audio sign in the monitoring view to conduct audio surveillance .only when extra stream was enabled can users view video through extra stream

.

4.1.4 Param

.

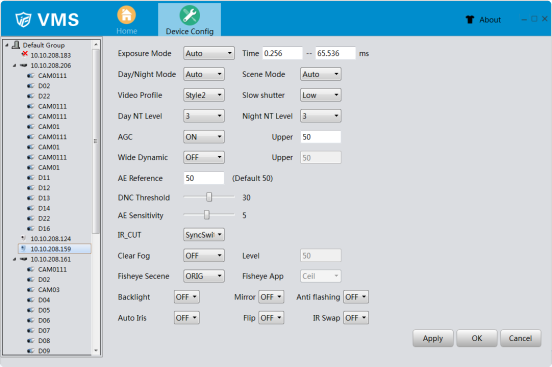

image42 552w367hClick “Camera Param” to enter Camera Param page , as the picture shown below. Users are able to modify IPC parameters

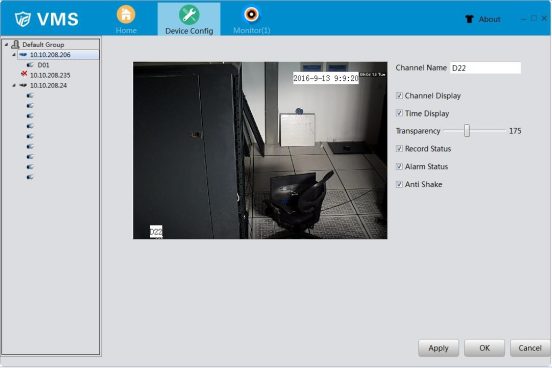

4.1.5Overlay

image43 552w368h

Click “Overlay” to enter Overlay page, as the picture shown below.

Channel Nameable to change channel names21 Chinese symbols or 42 English letters maximal

Time Displaytick to display time and date on surveillance view

.

Channel Displaytick to display channel number on surveillance view

.

Record statustick to display record status on surveillance view

.

Alarm statustick to display alarm status on surveillance view

.

Transparencyadjust transparency of the back ground from 128 to 255

.

Region mask overlay tick to select region mask overlay, click “setting” to enter the corresponding channel. user can select an area to cover up by using the mouse. The covered area are black blocks .

4.1.6PTZ Config

.

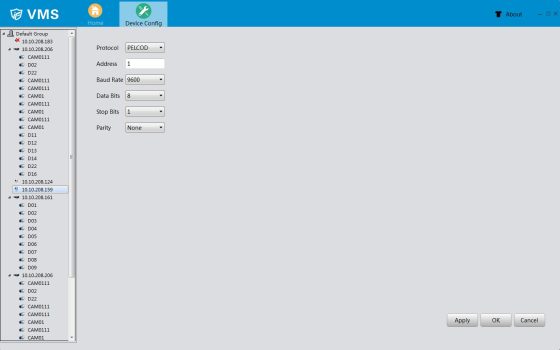

Click “PTZ Config” to enter PTZ Config page, as the picture shown below.

image44 560w350h

.

.

Channelusers can choose the channel they would like to config in the menu

Protocolselect the chosen PTZ protocol

Addresschosen PTZ address, default figure is 1

Baud ratechoose PTZ baud rate, default figure is 115200

Data bitsincluding 5 to 8 options, default figure is 8

Stop bitsincluding two options, 1 and 2,default figure is 1

Parity4 kinds of check methods: odd parity check , even parity check , mark check and space check , default method is none

.

4.1.7Tool Manager

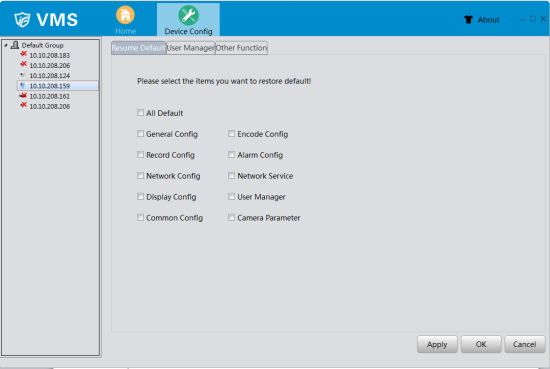

Click “Tool Manager” to enter Tool Manager page, as the picture shown below.

.

image45 550w369h

Restore default configuration (able to set default selectively)

.

image46 550w367h

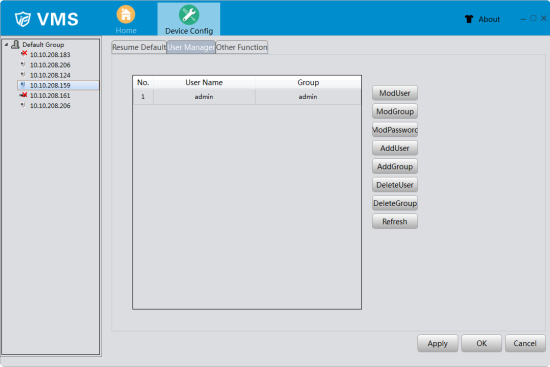

Click “User Manager” to enter User Manager page , as the picture shown below.

.

.

To manage users' authorities

note: 1.The length of all username cannot be more than 8 bytes, spaces can only  be among the string , not at the beginning or the end of the string. only legitimate characters

Letters, numbers, underline, minus, point .

.

2.There are no limit to users' amount, add / delete accounts are user-defined. There are two kinds of default usersuser\admin, user are free to set group , users among a group can specify authority within the group.
3.User management have user groups and individual user group names and user names can not be the same, every user can and can only belong to one user group.

ModUsermodify existed user account

.

ModGroupmodify existed user group account

.

ModPasswordmodify existed user's password, the length of all password cannot be more than 6 characters, spaces can only be among the string , not at the beginning or the end of the string.

AddUseradd user account to group and modify user's authority. Enter the menu type in username and password, than choose group. also have to choose to allow account multiplexing or not

AddGroupadd a new user group and modify user group's authority. There are 33 authorities are provided, including shut down device, real-time surveillance, playback, record setting , back up…

DeleteUserdelete chosen user ,first choose the user than clickdelete”

.

DeleteGroupdelete chosen user group, first choose the user group than clickdelete”

.

RefreshRefresh device list

.

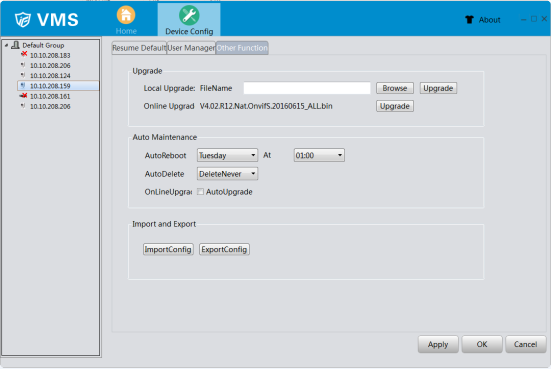

Click “Other Function” to enter Other Function page , as the picture shown below.

.

image47 551w369h

UpgradeSelect upgrade file to upgrade the device or upgrade online

Auto MaintenanceConfig auto reboot time and auto delete type; Activate auto upgrade or not

Import and ExportImport or export config file.

.

4.1.8Version Info

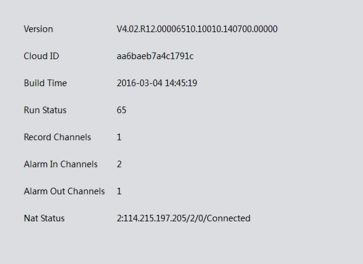

Click “Version Info” to enter Version Info page, as the picture shown below.

image48 363w264h

4.1.9Abnormality

.

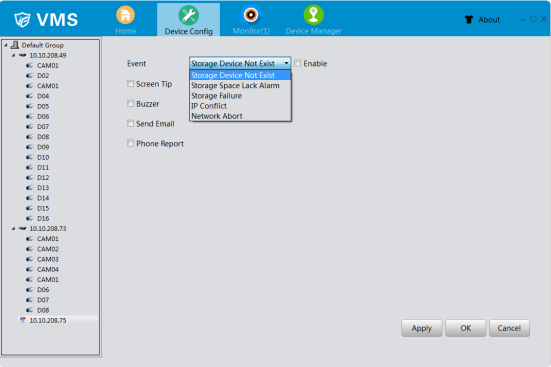

Click “Abnormality” to enter Abnormality page , as the picture shown below.

To supervise the storage of the recorders and network condition. Alarm when any abnormality occurs.

.

image49 551w367h

eventfive different settings for each kind of event

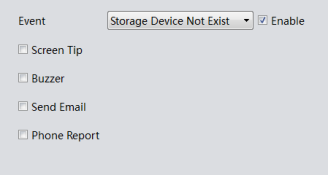

Storage Device Not Exist】:the recorder can not detect storage device(Could be a damaged link to the storage device or storage device damage),will trigger alarm according to preselected alarm mode.

image50 328w175h

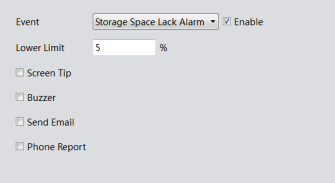

Storage space lack alarm】:allows users to set a minimum threshold for Storage space, once breached, will trigger alarm according to preselected alarm mode.

.

image51 335w183h

image52 336w180h

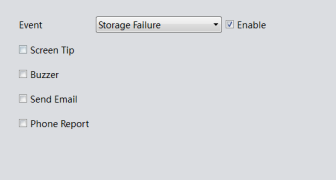

Storage Failure: It would happen alarm once device detect the storage device is damaged.

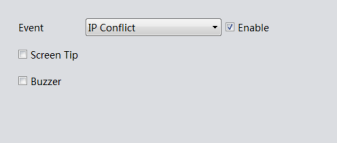

IP Conflict】:recorder find a device using same IP address as it's own, and triggers the alarm

image53 337w143h

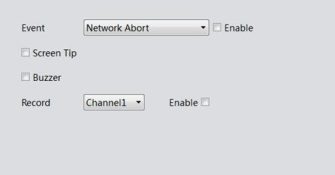

Network Abort: It would trigger alarm and record the video if these functions are enabled when the device lose network connection.

image54 335w175h

4.1.10Video Detect

.

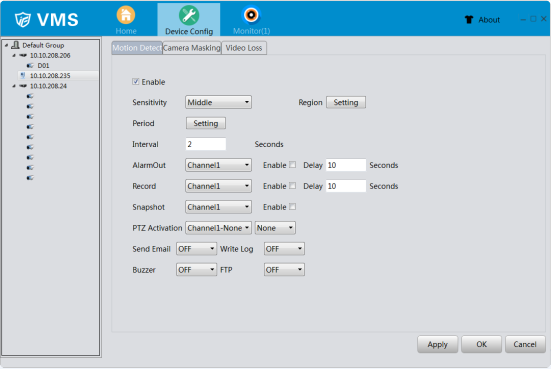

Click the button of Video Detect, it would appear the interface accordingly, as shown below:

image55 551w369h

.

EnableTick the check box in front of enable means that the motion detect function is on. Then you can the corresponding settings.

SensitivityChoose in the six options according to the sensitivity, Lowest, Lower, Middle, High, Higher and Highest.

Note: Only the motion detect under hybrid mode/ full analog mode have this function of setting sensitivity, and also only the analog channel can set region.

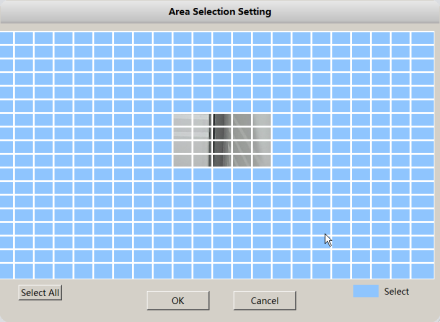

RegionClick [setting] to enter the set area. The area is divided into PAL22X18. Black block means the motion detect defensive area. Blue block means the unfenced area. You can set the area as followed, Drag the mouse and draw the area. Default: all selected blocks are detection area.

Note: Only the motion detect under hybrid mode/full analog mode have this function of setting region, and also only the analog channel can set region.

.

image56 440w322h

.

.

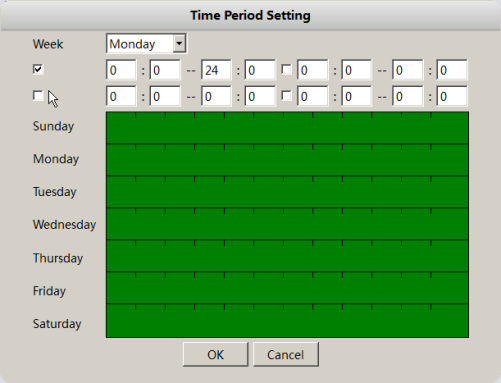

PeriodTrigger the motion detect signal in the set time section. You can set according to week or set uniformly. Each day is divided into four time sections.

image57 501w383h

.

.

Alarm OutStart the external equipment of corresponding linkage alarm when the motion detect is turned on.

DelayDelay a few moments and stop when the alarm state is turned off. The range is 10~300 seconds.

RecordChoose the recording channel (multiple option supportive). Trigger the video signal when the motion detect is turned on.

Note: Set in the [recording setup] and perform the linkage recording. Start detecting video files in the corresponding time section.

SnapshotChoose the recording channel (multiple option supportive). Trigger the snapshot when the motion detect is turned on.

PTZ ActivationSet the PTZ activation when the motion detect is turned on.

*Hybrid mode, PTZ link to the related PTZ information of analog channel, While digital channel model, the PTZ is link to the related PTZ information on the remote device connected.

Send EmailTurn on it means sending an email to user when the alarm is turned on. Note: Set in the [Network] and Email.

Write LogTurn on it means sending a log when the alarm is turned on, you can search the log from device log.

BuzzerWhen alarm happens, device will come out with buzz

FTPTurn on it, the video & picture of related record channel & snapshot channel will be uploaded to assigned position.

NoteFTP upload need be set at [Network]

.

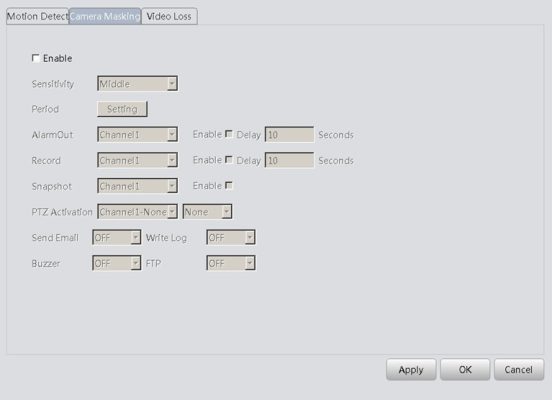

Select the button of Camera Masking, then could enter the interface accordingly, as shown below:

.

image58 552w400h

.

.

Set method: refer to Motion Detect.

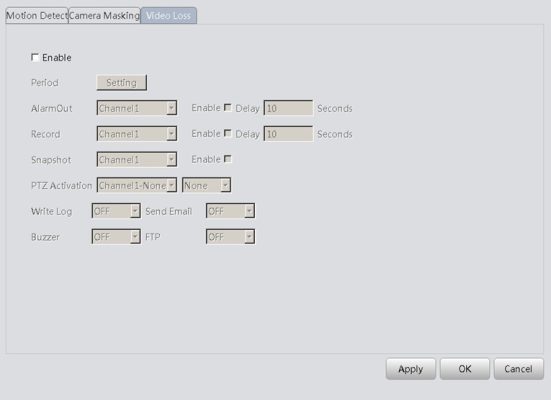

Select the button of Video loss, then could enter the interface accordingly, as shown below:

image59 551w400h

.

.

Set method: refer to Motion Detect.

4.1.11Alarm Input

.

image60 552w368h

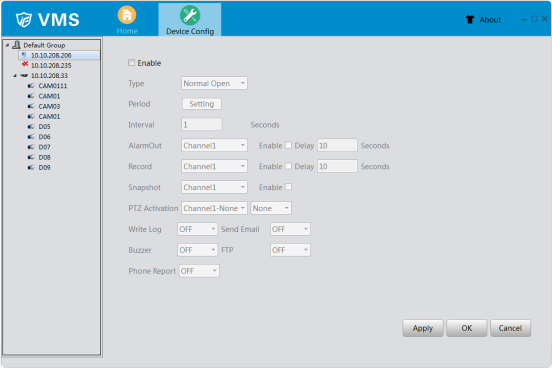

Click the button of Alarm Input, then could enter the interface accordingly, as shown below:

.

Alarm Input interface of IPC

image61 551w368h

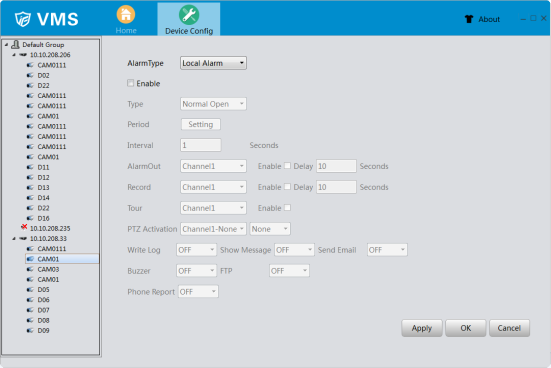

Alarm Input interface of DVR

TypeExternal alarm equipment output based on switch information, which means that alarm

status should be same as device alarm type. If the equipment alarm type is normally open, it should be same as the device alarm type, and vice versa. It would pop up error alarm if the type is not same.

.

Other settings method: refer to Motion Detect.

.

.

.

4.1.12Alarm Output

.

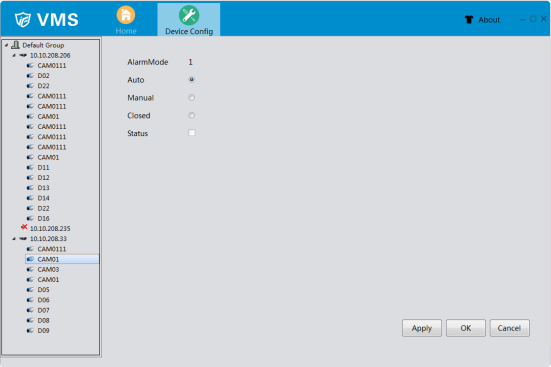

Click the button of Alarm Output, it would appear the interface, as shown below:

image62 551w367h

.

AutoClick the button ,the alarm output will according to the configuration.

ManualClick the button and the corresponding channel is always has alarm output no matter the channel in any state.

ClosedClick the button and the corresponding channel is never has alarm output no matter the channel in any state.

StatusSelect means has alarm output at present, otherwise means no.

.

4.1.13Disk Manager

.

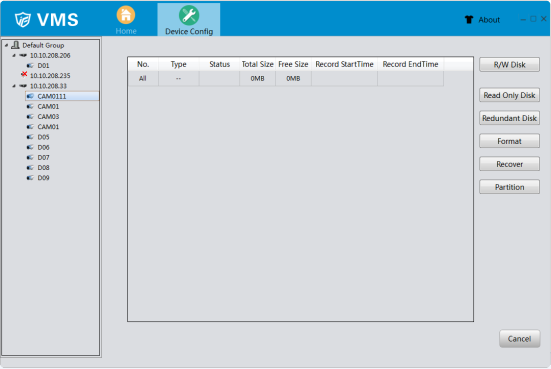

Click the button of Disk Manager and enter the interface accordingly, as shown belown: This function is used for manage the hard disk which is installed.

And note that if this device have the ability of snapshot, here would have one snapshot disk for store

.

.

image63 551w369h

.

R/W Diskafter set, this disk or partition could write or read data.

Snapshot Diskthis disk or partition is used for store pictures which come from the function of snapshot.

Read Only Diskthis disk or partition could only be read, can't written in new records or pictures.

Redundant Diskthis disk or partition is used for double backup the video files.

Formatselect one disk or partition, click this button could format accordingly.

Recoverselect one disk or partition, click this button could repair the disk or partition which is error.

Partitionable to partition the disk which is selected manually

4.1.14Record Config

.

image64 552w369h

Click the button of Record Config, then could enter the interface accordingly, as shown below:

.

Redundancychoose the redundancy function option to implement the file double backup function. Double backup is writing the video files in two hard disks. When you do the double backup, make sure that there are two hard disks installed. One is read-write disk and the other is redundant disk.

RecordLenSet the time length of each video file. 60 minutes is default value.

PreRecordRecord 1-30 seconds before the action.(time length is decided by the code stream)

ModeThree record mode: Auto, Manual and Close

Auto: Record according to the set video type(common, detection and alarm) and time

section.

Manual: Click the button and the according channel is recording no matter the

channel in any state

Close: Click the stop button and the according channel stops recording no matter the channel in any state.

Periodset the time section of common recording, the recording will start only in the set range.

Record typeSet recording type: General, Detect and Alarm.

4.1.15Snap Config

.

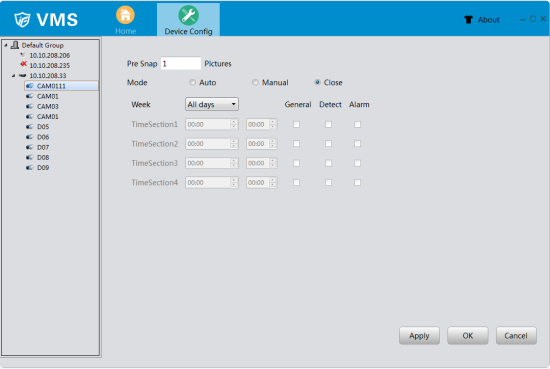

Click the button of Snap Config, then could enter the interface accordingly, as shown below:

image65 550w369h

.

Pre Snaponce happen alarm, it would snapshots 1-5 pictures before alarm triggered to snapshot, by default it is 2 pictures.

.

Other settings please refer to Record Config

.

4.2Alarm Config

.

.

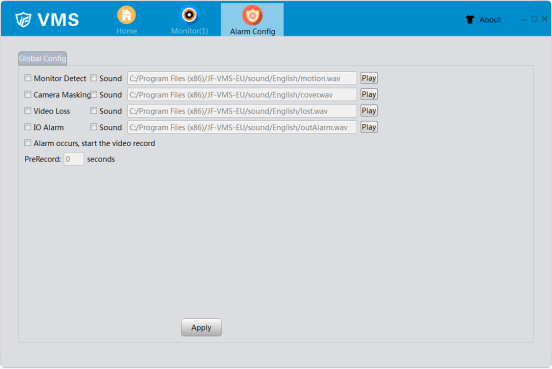

Click the button of Alarm Config, then could enter the interface accordingly, as shown below:

image66 552w369h

.

Alarm typethere are four types of alarm: Monitor Detect, Camera Masking, Video Loss and IO Alarm.

SoundVMS could cause alarm sounds according once alarm triggered. Note that you should tick alarm type and the check box of sound , as well as set up the alarm settings in device config, only this way VMS could cause alarm sounds.

Browseclick the button of image67 1, you could select the alarm sound file by yourself.

Playclick this button, you could play the current alarm sound file.

RecordAlarm occurs,start the video record;Modify PreRecord time.

.

4.3Tour Config

.

.

Click the button of Tour Config, then could enter the interface accordingly, as shown below:

.

image68 551w369h

.

.

.

image69 43w32hClick the button of  , you could add tour project.

image70 556w355h

.

.

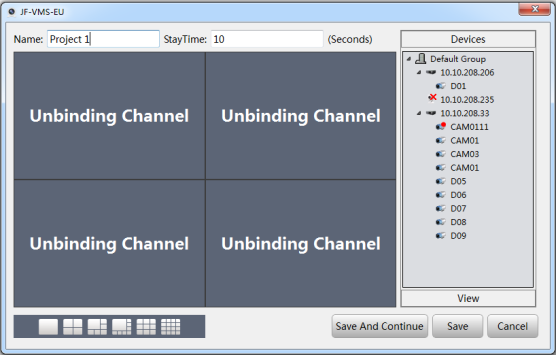

Select one of the window and double click the device channel from Device list, the channel would be added to this window, also you could add the view directly from the View list.

.

image71 555w355h

.

.

Rename the project and stay time, then click the button of Save. Or you could click the button of Save And Continue, in this way, you could continue add new project.

image72 551w367h

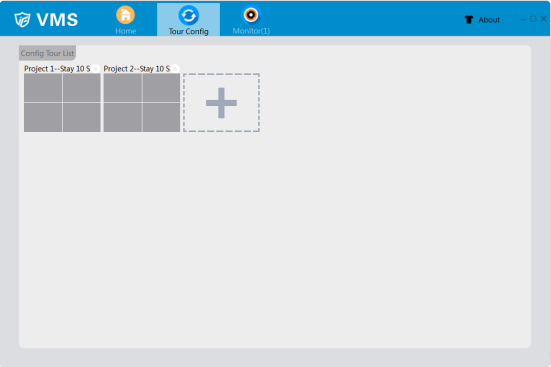

After these, you could see the interface as below show:

.

.

.

image73Finally, you could use this function  in the interface of Monitor, it would monitor according to the tour project.

.

4.4User Manager

.

.

Click the button of User Manager, then enter the interface, as shown below:

Note that by default there are only one managed account(account: admin password: admin)

image74 552w368h

.

Click the button of image69 43w32h 1 then could add new operator account, as shown below:

image75 552w368h

.

4.5Edit User

.

.

image76 1Click the button of  , then could set the password of user account accordingly, and click the button of OK to confirm.

image77 220w

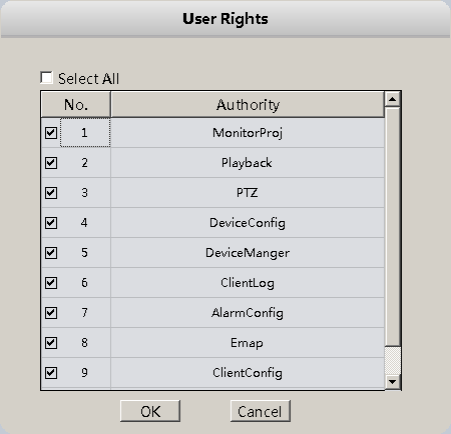

You could set the rights of user account just click the portrait itself, then it would pop up the interface as below shown.

image78 451w

.

image79Click the button of  , it's to delete this user account.

.

4.6System Config

.

.

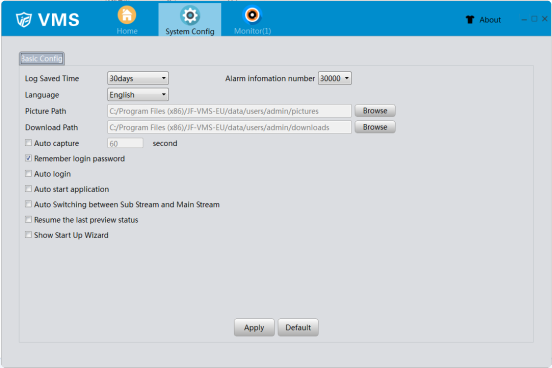

Click the button of System Config, then could enter the interface accordingly, as shown below.

image80 552w368h

Log Saved Timeit's to set log saved time. The max saved time is 90 days.

Alarm information numberSet maximum alarm information

Languagehere you could set the language of VMS, VMS should reboot after modified.

Picture Paththis path is used for save the picture which is snapshot in monitor and you could set it by yourself.

Download Paththis path is to save the records which you download in Playback and you could set it by yourself.

Remember login passwordOnce this box is ticked, the password would be remember.

Auto loginOnce this box is ticked, VMS would auto login after start software. Note that this function need tick the box of remember login password at the same time.

Auto start applicationOnce this box is ticked, computer would auto open VMS after startup.

Auto Switching between Sub Stream and Main Streamtick it in the check box then by default the live view would auto use main stream when less than 4 windows and the live view would auto use sub stream when more than 9 windows. If you use 6 windows or 8 windows, the maximum windows use main-stream and other windows use sub-stream.

Resume the last preview statustick it in the check box then VMS would auto connect the channels which are connected last time.

Show Start Up WizardOnce this box is ticked, it would show start up wizard

.

5.Extensions

.

.

5.1Map

.

image81 552w369h

Click the button of Map, then could enter the interface accordingly, as shown below:

.

.

.

Maps/All Channelsdisplay maps which have been added and device list.

EditIt could be used to edit the map.

.

5.2Add Map

.

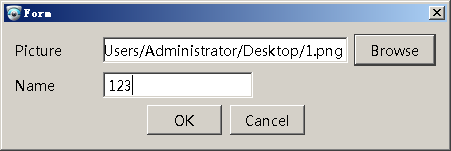

Right-Click in the Map list, then you could add map, as below shows:

image82 1

.

.

Select the map picture and input the name.


.

.

image84 552w369hClick the button of OK to confirm, now the map have been added.

.

5.3Add sub-map

.

.

Right-Click in the view of map, it would pop up the window to add sub-map:

.

Select the map picture and input the name, then click the button of OK to confirm it.

image85 552w368h

.

In maps list, the sub-map would appear in the original map drop list, also you could find the mark in the right display area.

Double click the mark of sub-map in display area or click it in maps list, the sub-map could open and display.

.

5.4Add devices in map

.

.

image86 552w368h

Select the channels in the list of All Channels, it could drag into map, then like below shows:

.

.

.

.

5.5Delete device

.

.

Click the button of Edit, then you could delete the device in the display area, don't forget to click the button of OK to confirm it.

.


.

5.6Delete map

.

.

Right-Click the map which is in the Maps list, you could remove it.

.

image88 1

.

.

.

5.7Decoder

.

It provides function to decode/preview streams by external decoder.

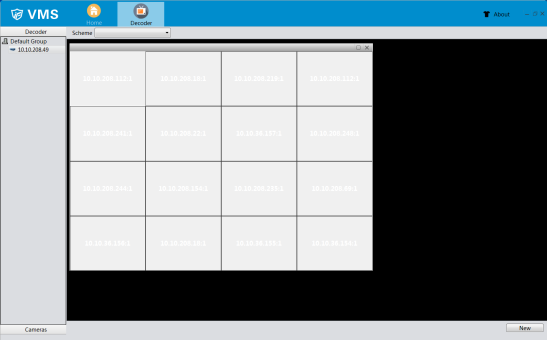

image89 547w340hClick”Decoder”to show existed decoder device list, right click corresponding decoder would show “preview”, and click it, activate preview windows. Select specific camera, drag it into preview windows to decode video stream.

.

5.8Backup

.

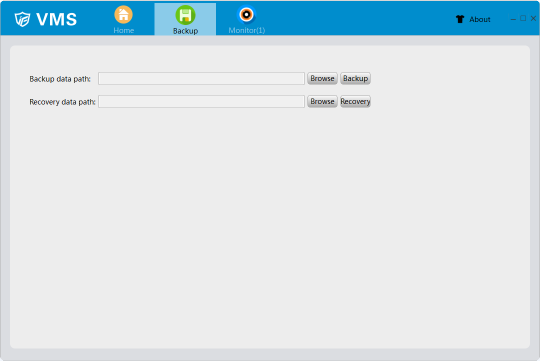

The function of Backup is used for import and export device list, which means you could export the file of devices list, as well as import it. This would be convenient for use.

Note: After import, please reboot VMS.

image90 540w361h

.

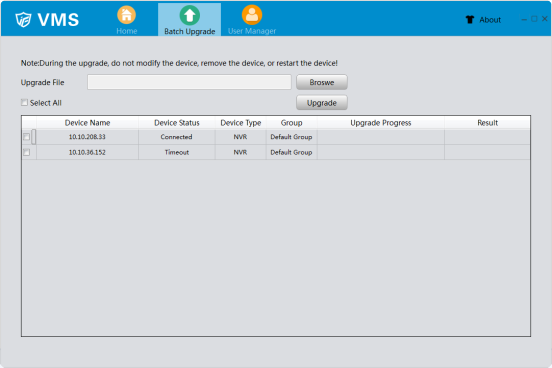

5.9Batch Upgrade

image91 552w368h

It is used for multiple devices (the same mode) upgrade together.

Print Friendly, PDF & Email

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
